GM Lighting LineDRIVE 20W 12VDC LED Driver Universal Dimming
In stock
About this item
About this item
- Output Power: 12VDC Constant Voltage at 20W capacity.
- Universal Dimming: Compatible with Triac, ELV, MLV, 0-10V, and PWM protocols.
- Input Voltage: Universal 120-277VAC for flexible installation.
- Enclosure: Integrated Junction Box with separate wiring compartments.
- Protection: Built-in over-voltage, over-current, and short circuit protection.
We process payments securely and do not store credit card information.
Description
Description

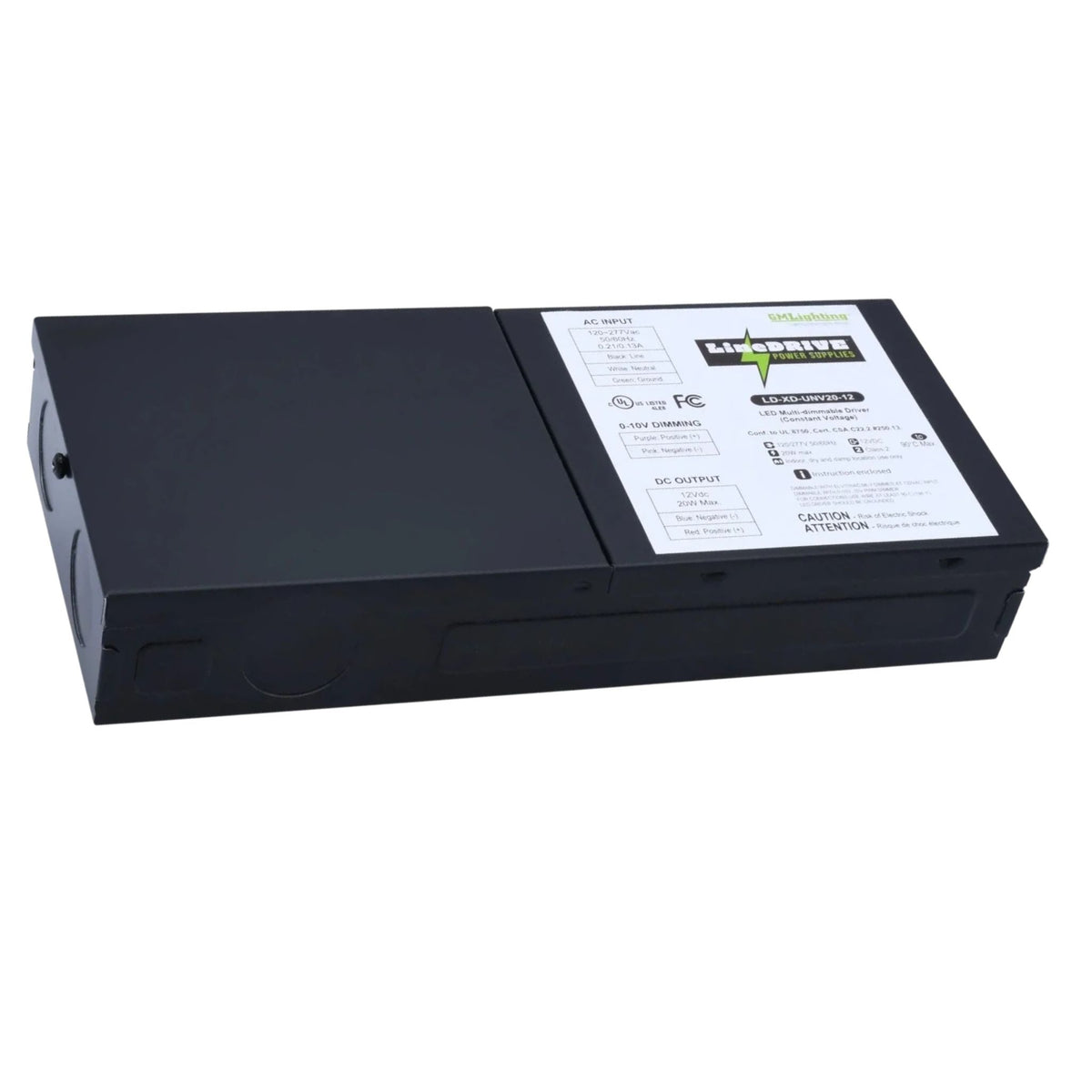

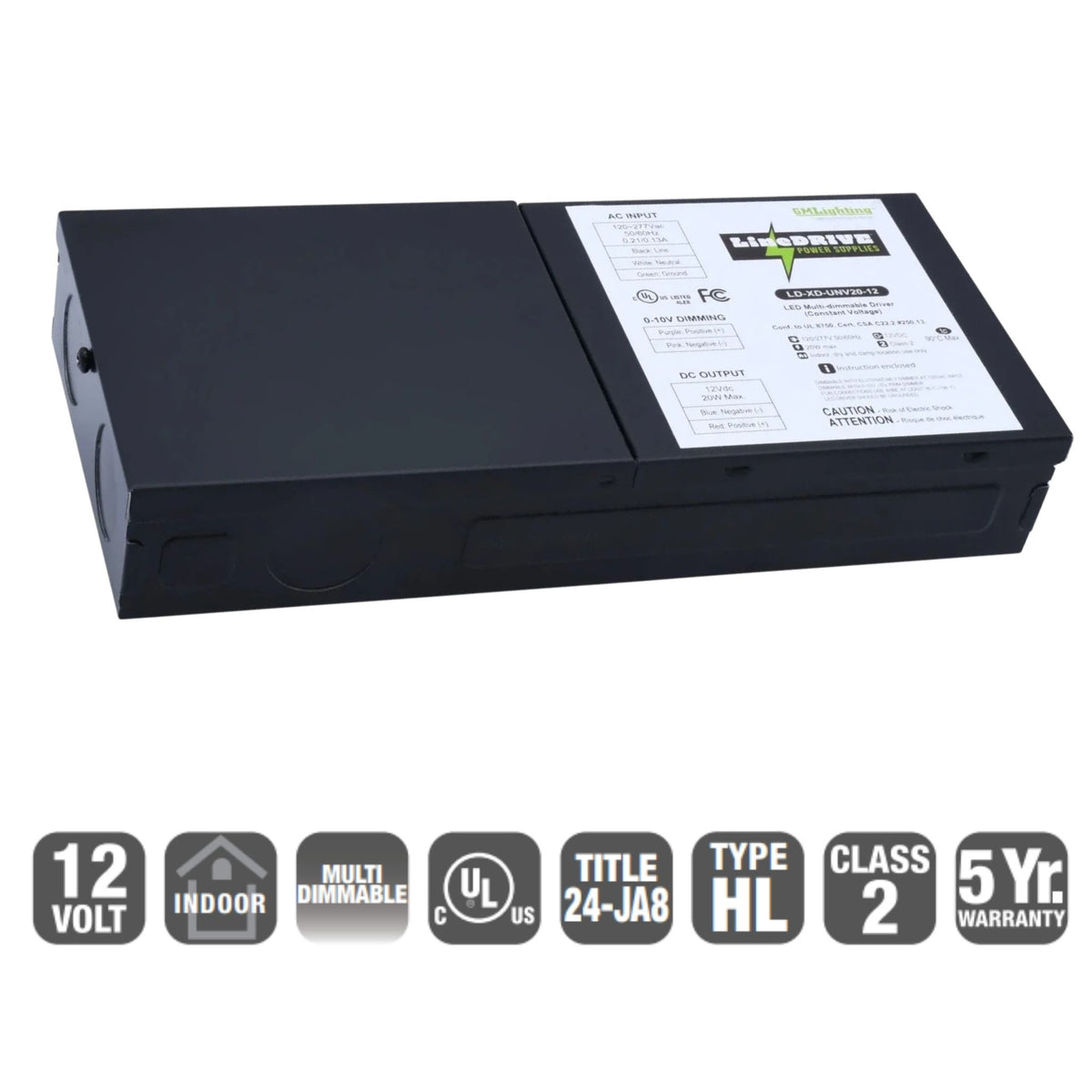

GM Lighting LineDRIVE 20W LED Driver — 12VDC
GM Lighting LD-XD-UNV20-12: 20W, 120-277V input, 12VDC Constant Voltage, Universal Dimming, Class 2, Integrated Junction Box. This versatile LED Driver provides flicker-free dimming down to 1% and is designed for easy installation in a variety of indoor environments.
Key Features
- Power: 20W
- Input Voltage: 120/277VAC
- Output Voltage: 12VDC
- Dimming: Triac, ELV, MLV, 0-10V, PWM
- Minimum Load: 10% (40% for MLV)

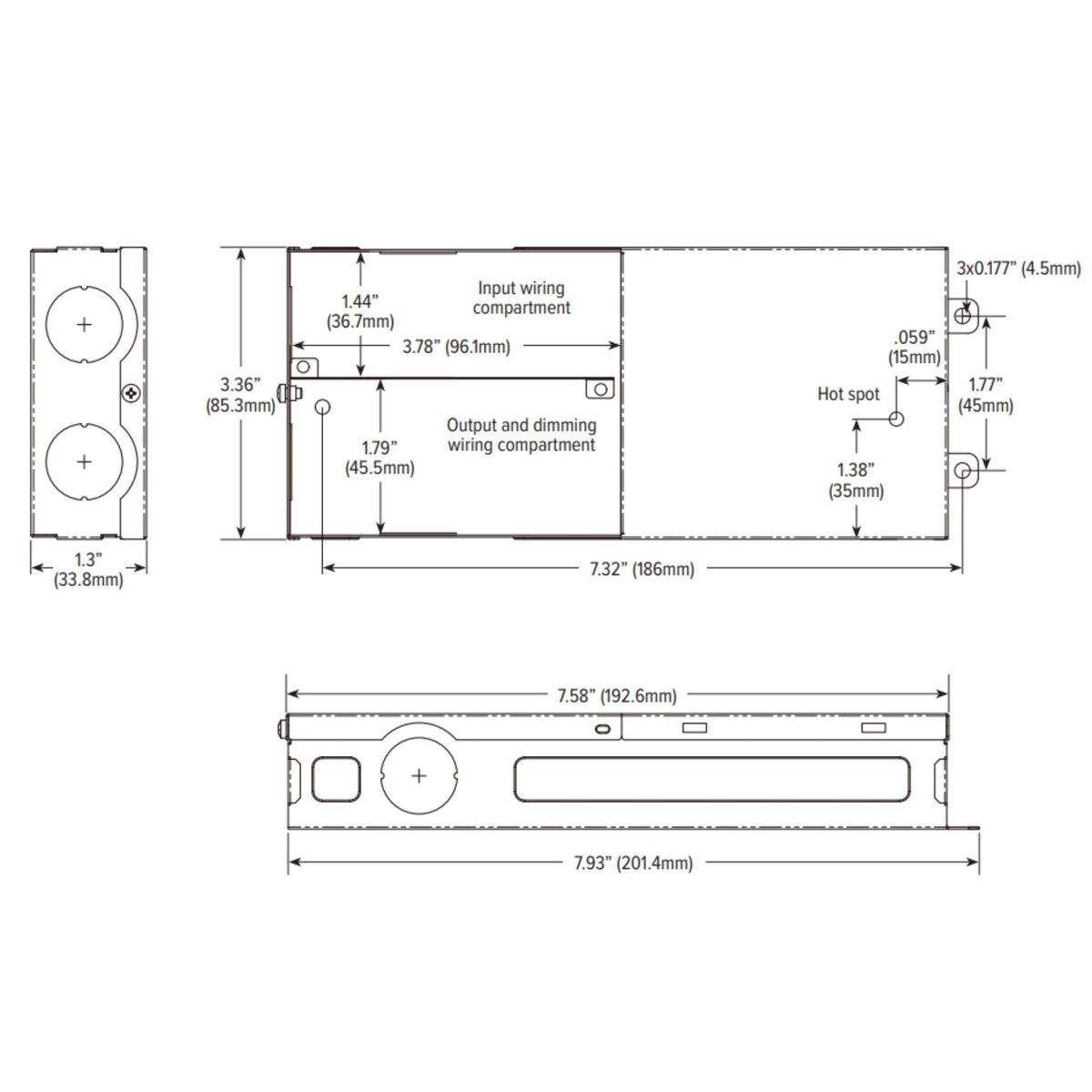

- Dimensions: 7.93 in. L x 3.36 in. W x 1.33 in. H
- Enclosure Type: Integrated Junction Box
- IP Rating: IP20
- Class 2: Yes
- Certifications: UL Listed, Title 24 JA8
Physical Design & Installation

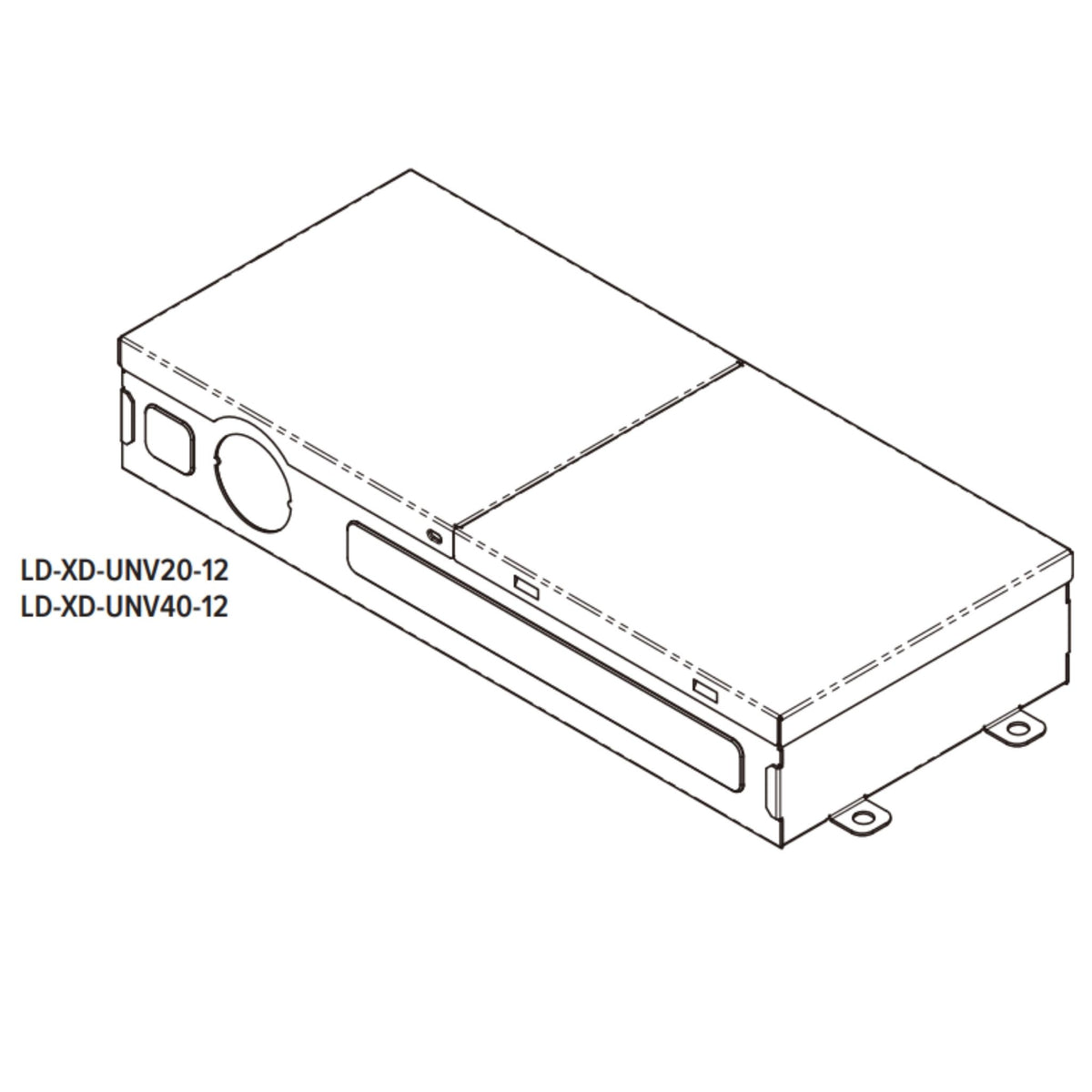

Black powder-coated steel enclosure with integrated wiring compartments. Separate sections for line and low voltage wiring ensure NEC compliance and simplify the installation process.
Dimming & Controls

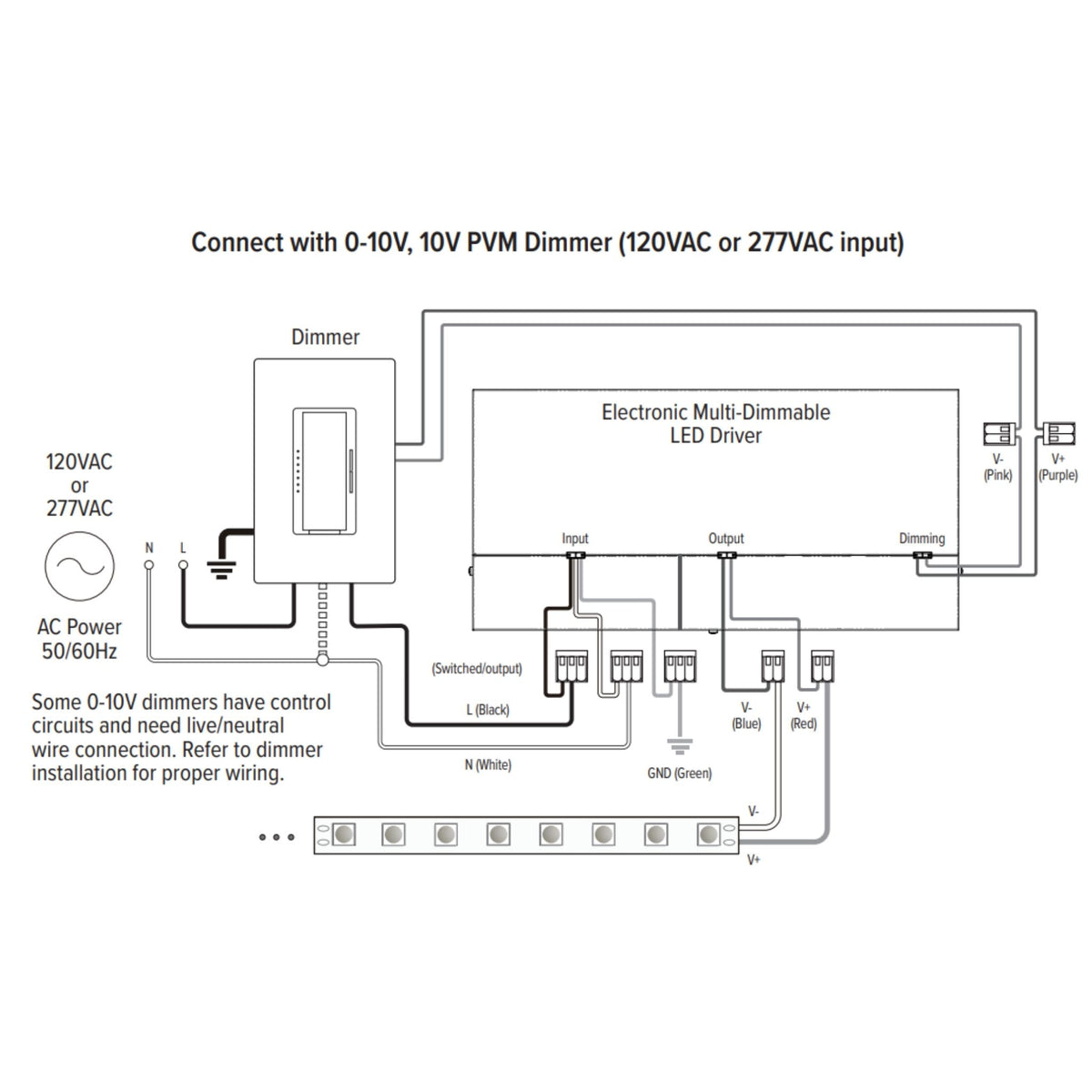

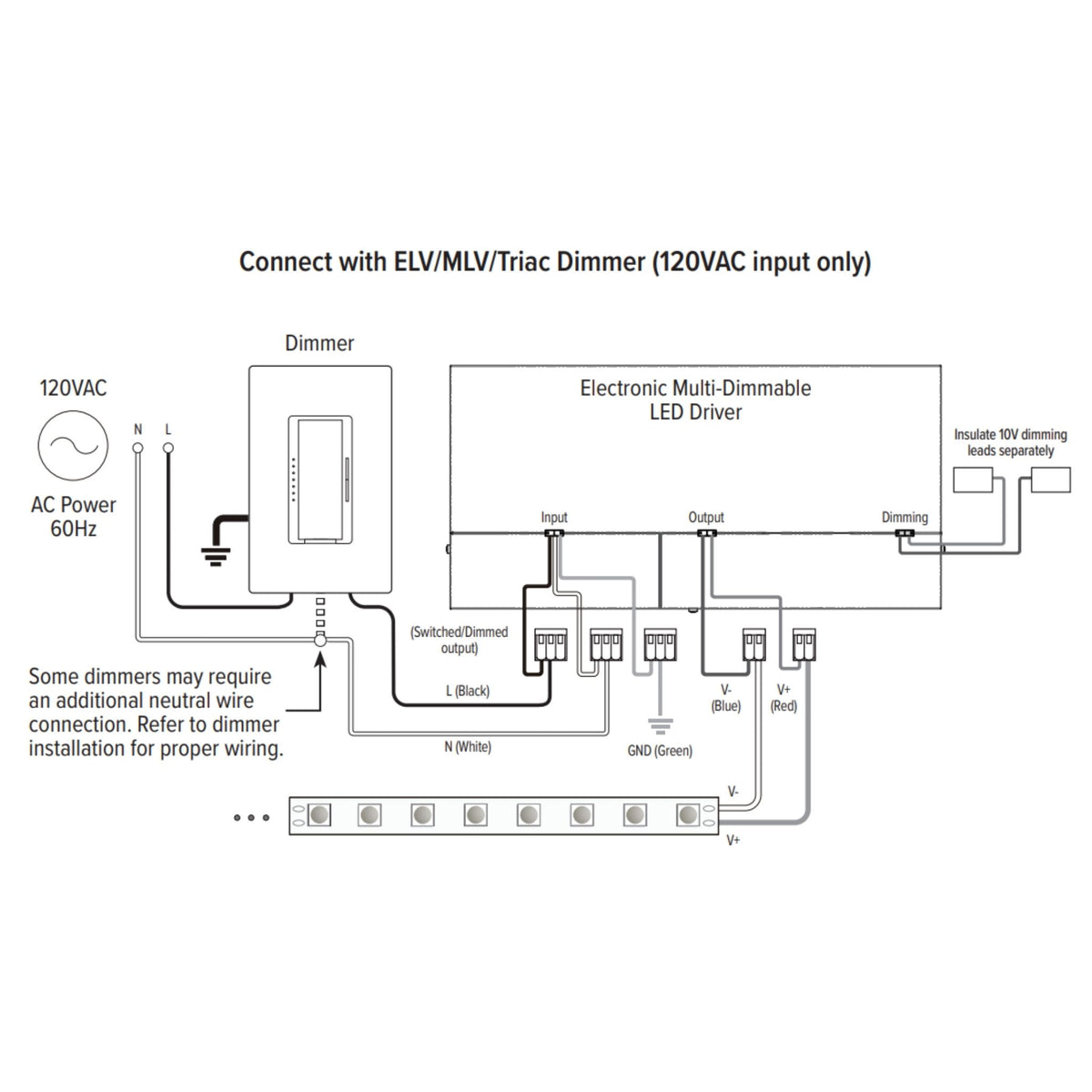

Supports phase dimming (Triac/ELV/MLV) at 120V and 0-10V/PWM dimming at 120V or 277V. Minimum load of 10% is recommended for most protocols, while MLV requires 40% for smooth performance.
Performance & Build
Features hiccup mode for over-voltage, over-current, and short circuit protection. Rated for 85,000 hours at 60C case temperature and UL Class 2 compliant for safety.
Typical Applications
- Under-cabinet LED lighting
- Cove and accent lighting
- Display case illumination
- Linear recessed lighting
