GM Lighting LineDRIVE LD-EDWP-UNV30-24 30W LED Driver — 24V DC

The GM Lighting LineDRIVE LD-EDWP-UNV30-24 is a reliable 30W LED Driver designed for both indoor and outdoor applications. With an input voltage range of 120-277V AC and a constant output voltage of 24V DC, this driver ensures optimal performance for your LED lighting systems. It supports TRIAC dimming, allowing for smooth and flicker-free light control. The unit is Class 2 rated and features an integrated junction box for easy installation.

Key Features

• Power Output: Delivers a consistent 30W power output for LED applications.
• Output Voltage: Provides a stable 24V DC output for LED systems.
• Dimming: Compatible with ELV/Incandescent TRIAC dimmers for versatile lighting control.
• Minimum Load: Operates efficiently with a minimum load of 10%.
• Dimensions: Compact design with dimensions of 12.13 in. L x 2.38 in. W x 2.38 in. H.
• Enclosure Type: Durable aluminum enclosure with multiple knockouts for easy wiring.
• IP Rating: Rated IP66 for protection against dust and water ingress.
• Class 2: Ensures safety and compliance with Class 2 standards.
• Certifications: ETL and CSA certified for quality assurance.

Physical Design & Installation

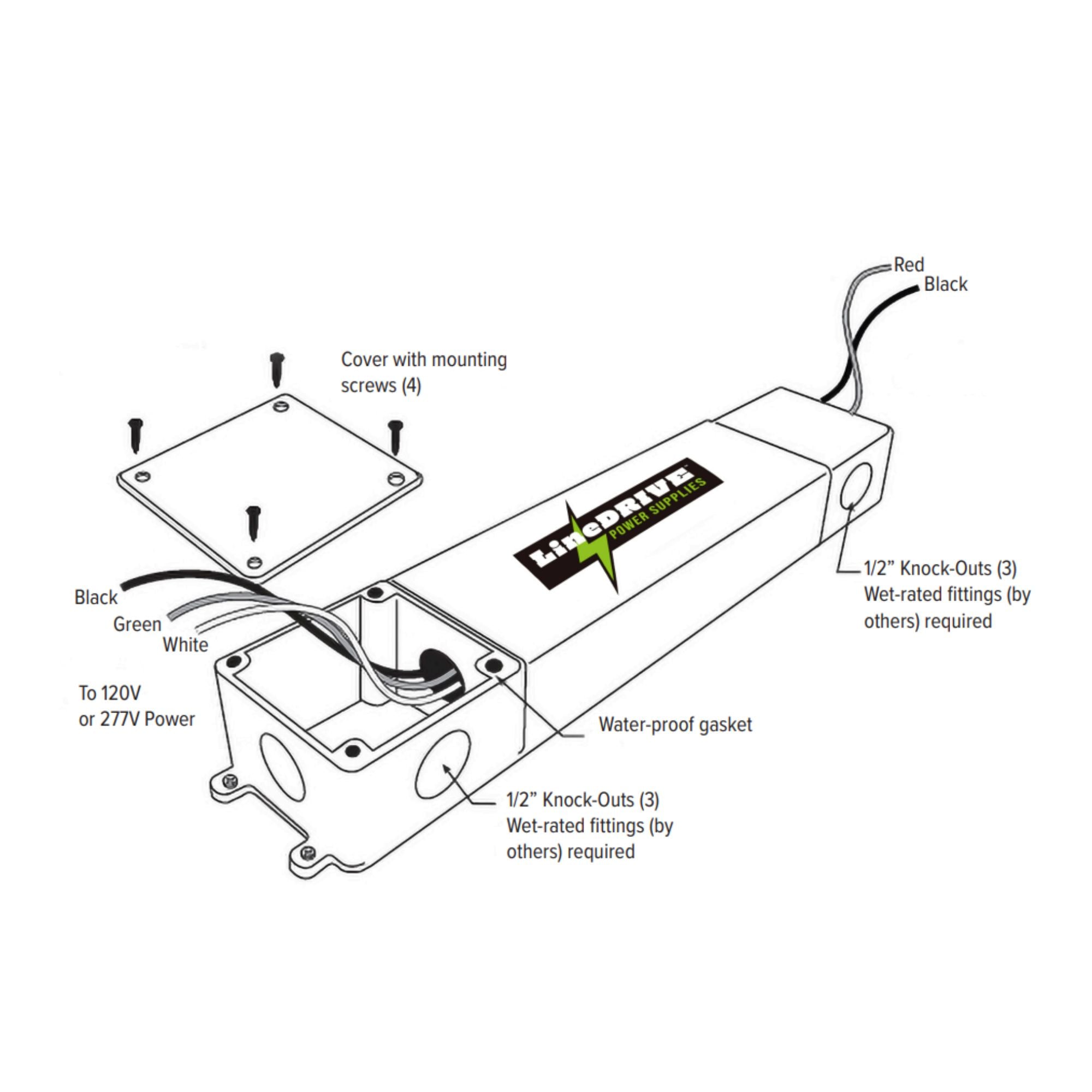

The driver features a corrosion-resistant aluminum housing with an integrated junction box, making it suitable for wet locations. It includes multiple knockouts for flexible wiring options.

Dimming & Controls

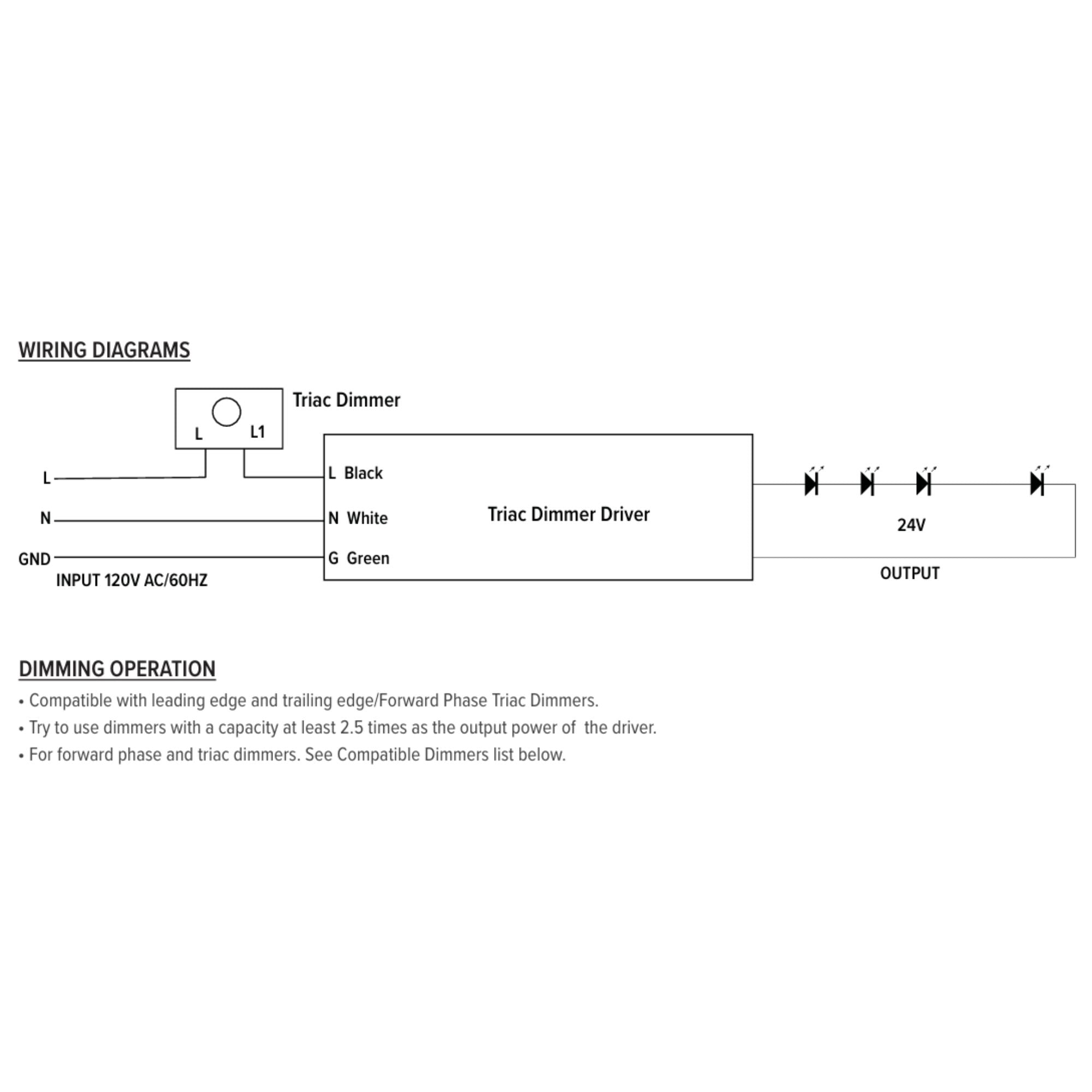

Compatible with leading edge and trailing edge TRIAC dimmers, this driver supports a dimming range from 10% to 100%. Ensure dimmers have a capacity at least 2.5 times the output power of the driver.

Performance & Build

Equipped with over-voltage and short circuit protection, the driver operates safely under various conditions. It is IP66 rated and complies with Class 2 standards for enhanced safety.

Typical Applications

• Outdoor LED lighting installations
• Commercial lighting systems
• Residential LED applications
