GM Lighting LineDRIVE Mini Case 60W 24VDC LED Driver ELV Dimmable
In stock
About this item
About this item
- Output Power: Delivers 60W of 24VDC constant voltage power for LED lighting systems.
- Dimming Protocol: Compatible with ELV and reverse phase dimmers for a 10-100 percent dimming range.
- Input Voltage: Designed for standard 120VAC 50/60Hz residential and commercial electrical systems.
- Enclosure Type: Features a low-profile black aluminum mini case with flying leads for compact installations.
- Safety Protection: Includes built-in over-voltage and short circuit protection with automatic recovery.
We process payments securely and do not store credit card information.
Description
Description

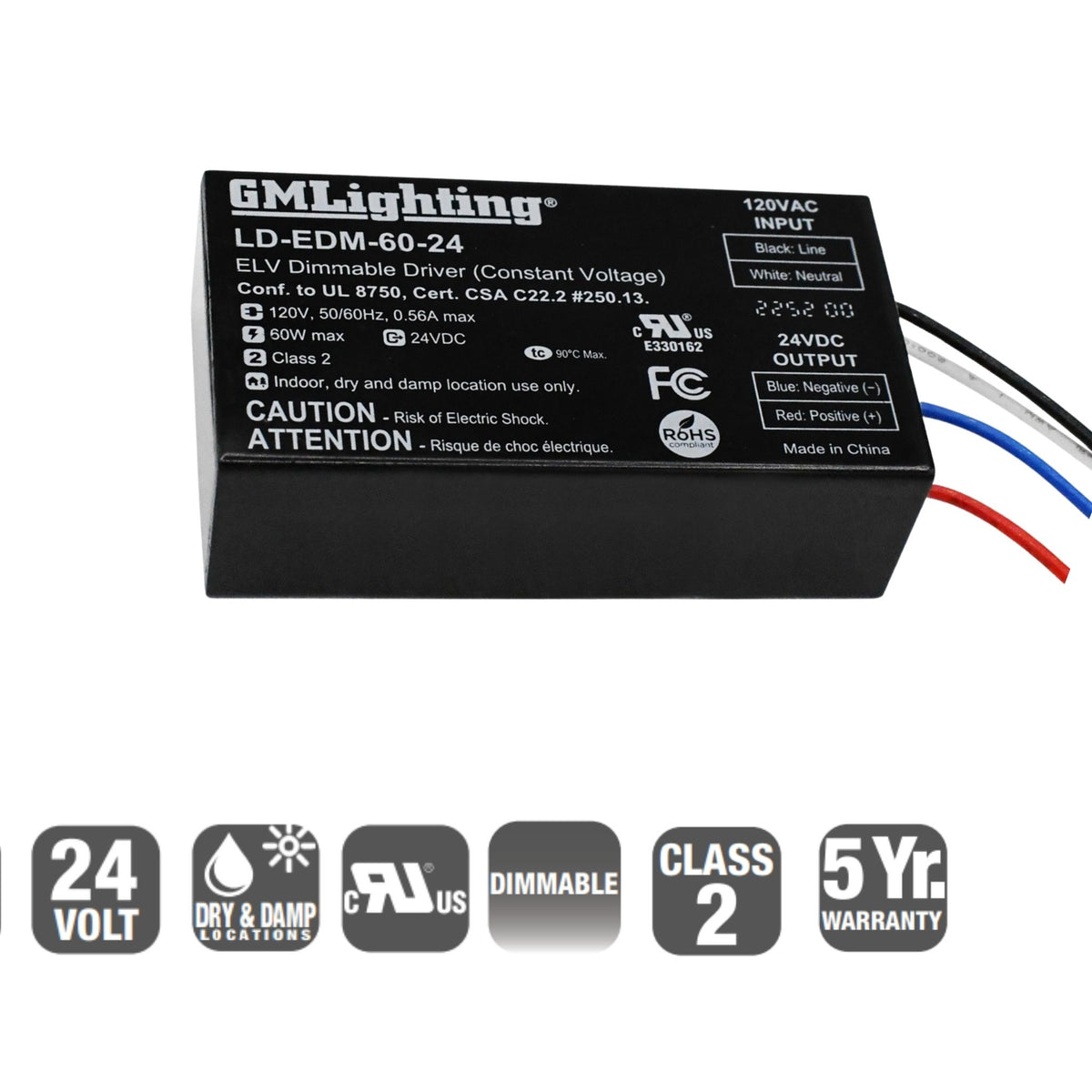

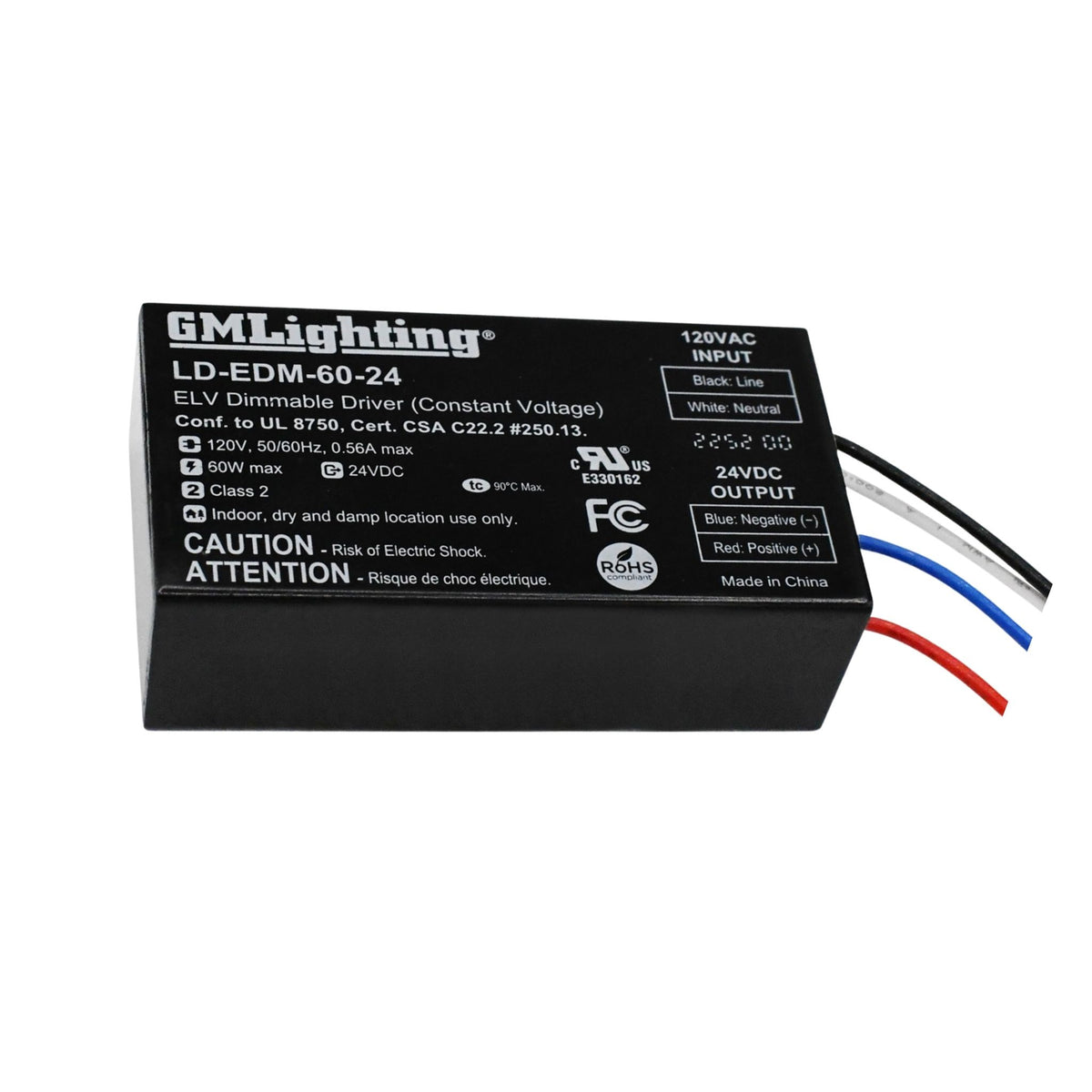

GM Lighting LineDRIVE 60W LED Driver — 24VDC
The GM Lighting LD-EDM-60-24 is a high-performance 60W LED Driver providing a 24VDC Constant Voltage output. This Class 2 rated power supply operates on a 120V input and features a compact black aluminum mini case designed for easy concealment in tight spaces. It is engineered to provide smooth, flicker-free dimming when paired with compatible ELV dimmers.
Key Features
- Power Output: 60W Maximum
- Input Voltage: 120VAC, 0.56A, 50/60Hz
- Output Voltage: 24VDC
- Dimming Protocol: ELV / Reverse Phase
- Minimum Load: 10W for optimal dimming performance

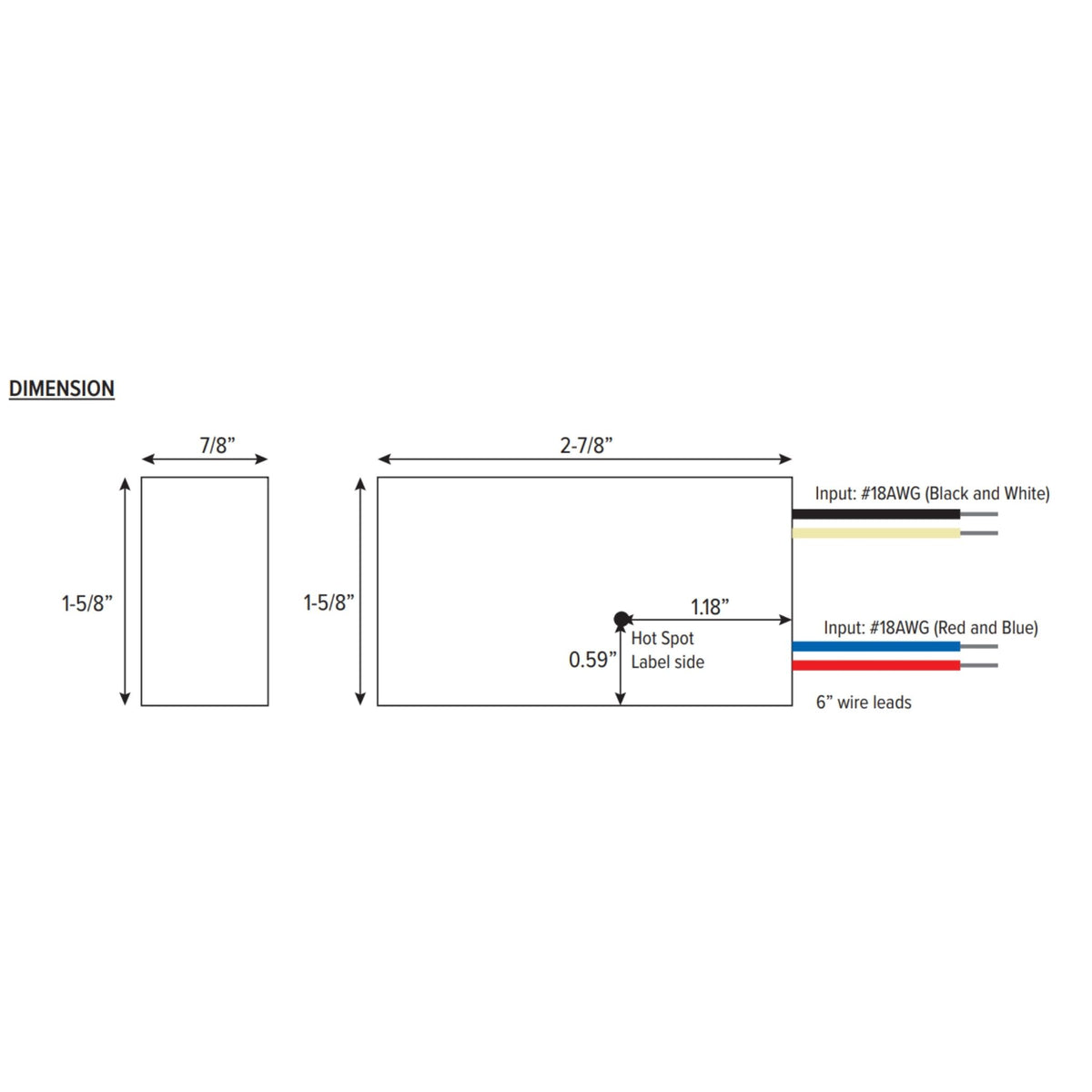

- Dimensions: 2.88 in. L x 1.57 in. W x 0.87 in. H
- Enclosure Type: Aluminum mini case with flying leads
- IP Rating: IP20 (Dry and Damp locations)
- Class Rating: Class 2
- Certifications: UL Recognized, FCC Compliant
Physical Design & Installation
The LD-EDM-60-24 is housed in a lightweight black aluminum enclosure that facilitates cooling by free-air convection. This mini case design includes 6-inch flying leads (18AWG) for both input and output connections, allowing for straightforward hardwire installation in cabinets, coves, or furniture. It does not include an integrated junction box, making it ideal for use within existing enclosures or remote mounting where space is limited.
Dimming & Controls

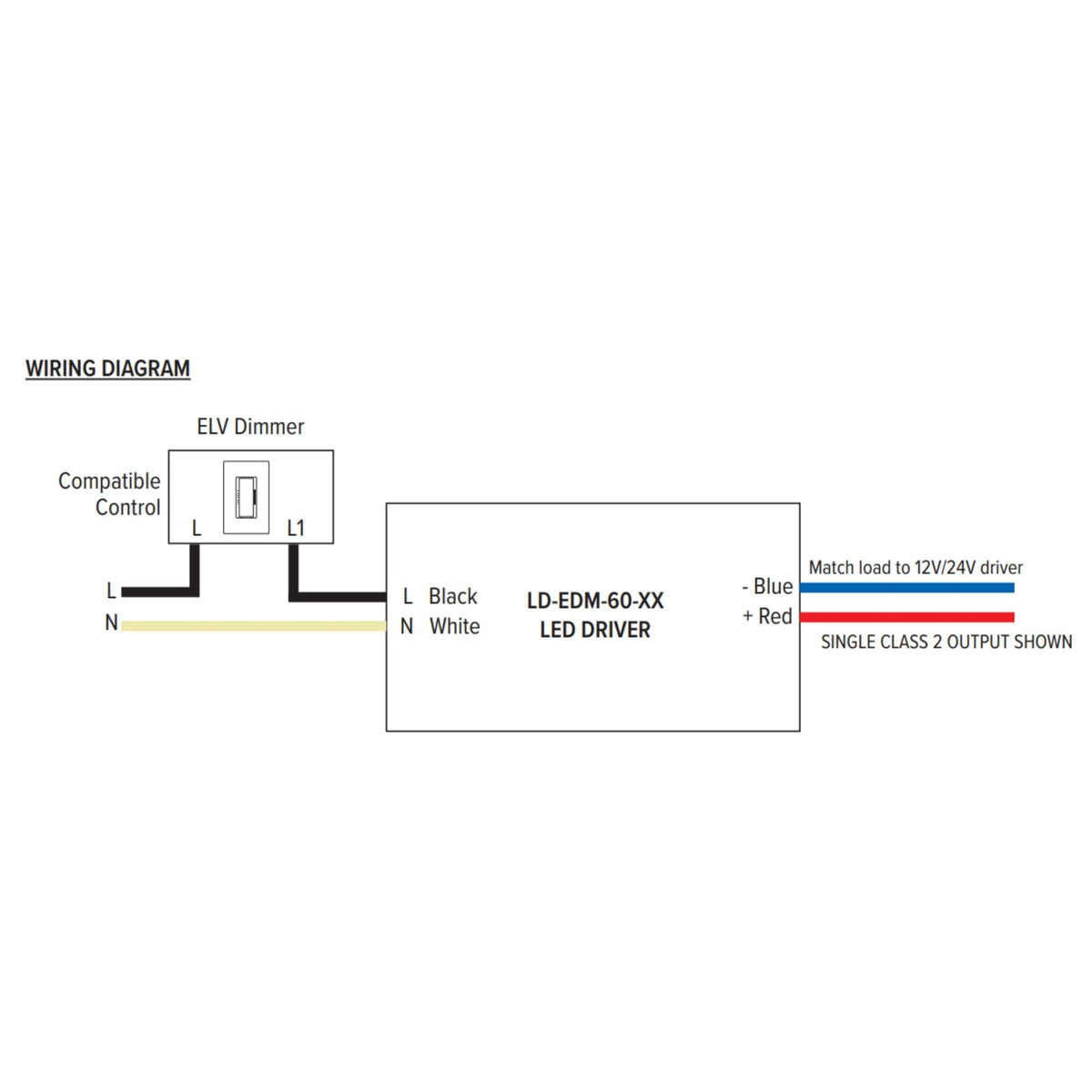

This driver is specifically optimized for ELV (Electronic Low Voltage) and reverse phase dimming systems. It offers a dimming range from 10 percent to 100 percent, depending on the specific dimmer and load configuration. To ensure smooth performance and prevent flickering, a minimum load of 10W is required. It is recommended to use dimmers with a capacity at least 2.5 times the output power of the driver.
Performance & Build
Built for reliability, this power supply features a high power factor of over 0.9 and an efficiency rating exceeding 90 percent at 50-100 percent load. The unit is equipped with comprehensive protection circuitry, including over-voltage and short circuit protection in hiccup mode, which allows the device to recover automatically once a fault condition is removed. It is UL recognized for use in the US and Canada and meets Class 2 safety standards.
Typical Applications
- Under-cabinet LED tape lighting
- Cove and accent lighting
- Display case illumination
- Linear LED fixtures
