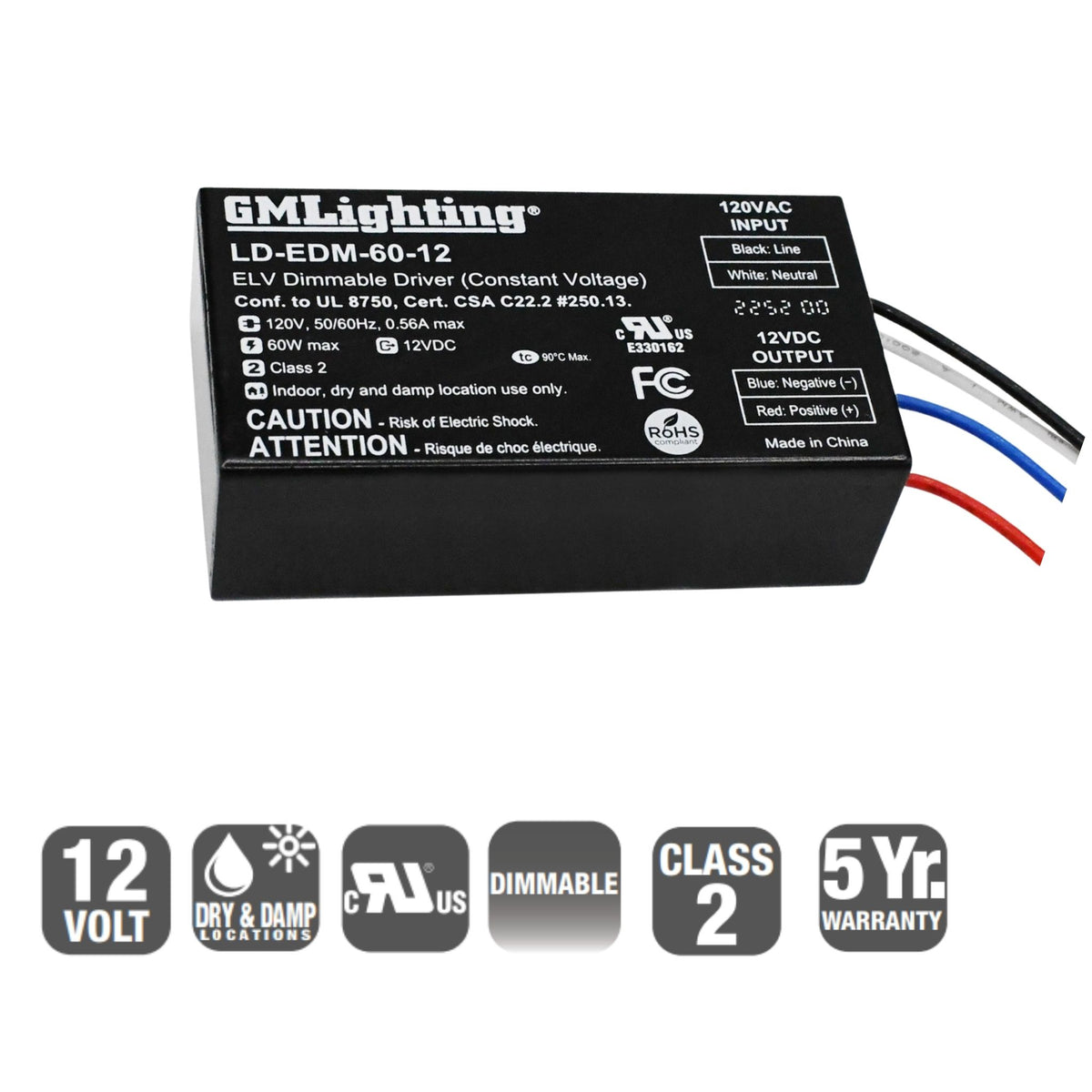

GM Lighting LineDRIVE Mini Case 60W 12VDC LED Driver ELV Dimmable
In stock
About this item
About this item
- Output Power: Delivers a constant 12VDC output at 60W maximum capacity.
- Dimming Protocol: Compatible with ELV and reverse phase dimmers from 10 percent to 100 percent.
- Input Voltage: Operates on standard 120VAC 50/60Hz input for versatile installation.

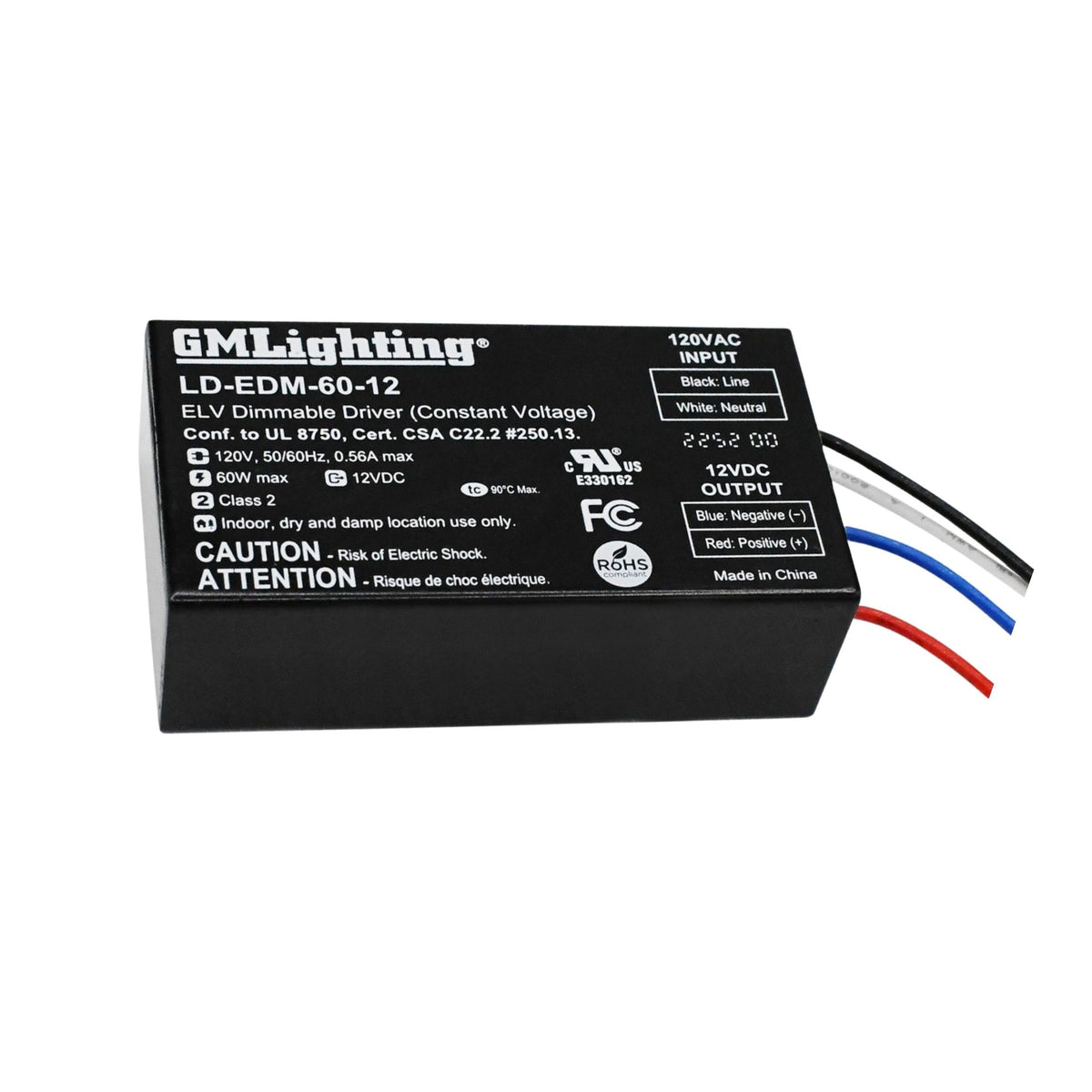

- Enclosure Type: Compact black aluminum mini case featuring 6 inch flying leads for hardwire connection.
- Safety Protections: Includes built-in over-voltage and short circuit protection with automatic recovery.
We process payments securely and do not store credit card information.
Description
Description
GM Lighting LineDRIVE 60W LED Driver — 12VDC
The GM Lighting LD-EDM-60-12 is a 60W LED Driver delivering 12VDC Constant Voltage with ELV dimming and a Class 2 rating in a compact aluminum case. This electronic power supply is designed for high-efficiency performance in low-profile applications.
Key Features
- Power Output: 60W Max
- Output Voltage: 12VDC
- Input Voltage: 120VAC
- Dimming Type: ELV / Reverse Phase
- Minimum Load: 10W for optimal performance

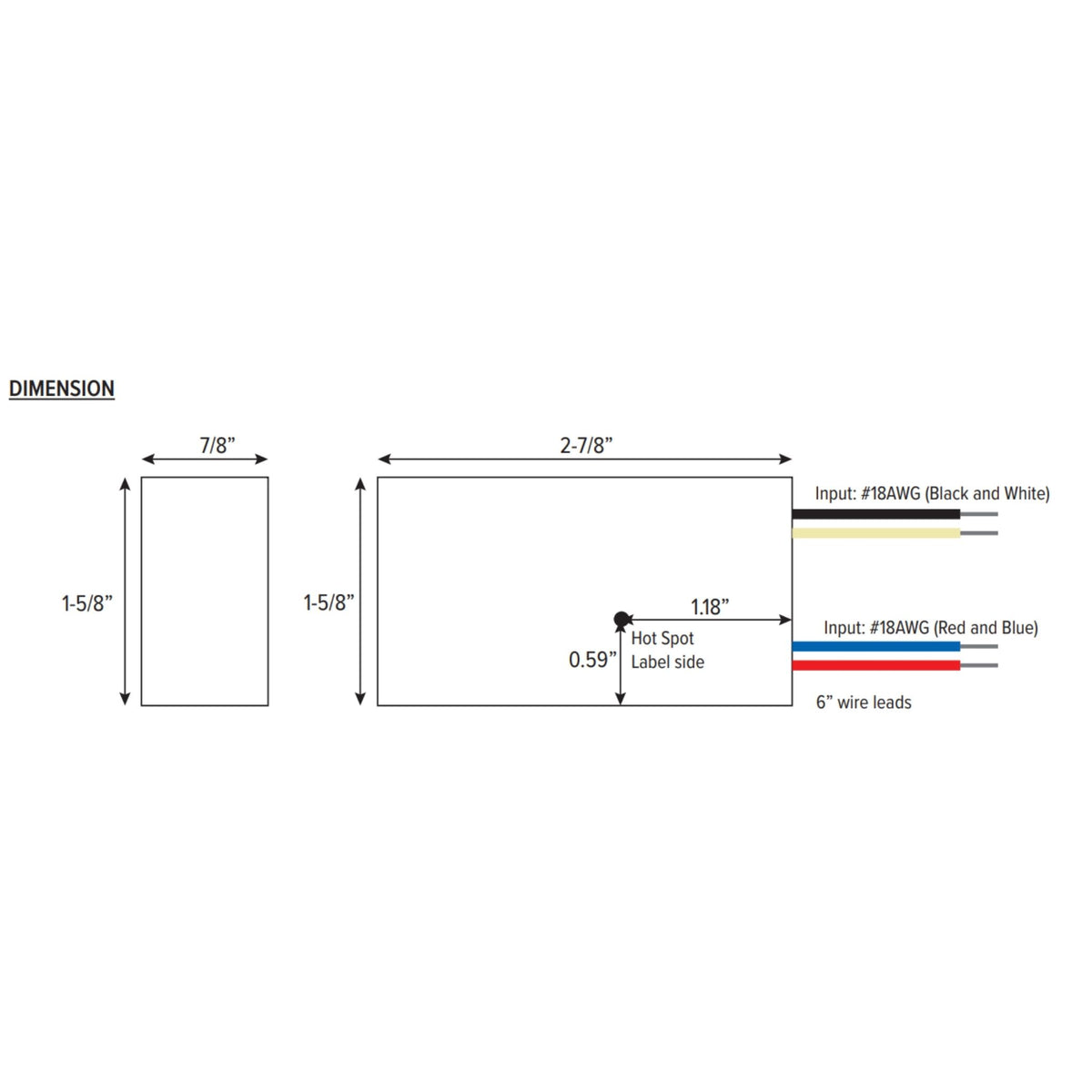

- Dimensions: 2.88 in. L x 1.57 in. W x 0.87 in. H
- Enclosure: Aluminum Mini Case
- Class Rating: Class 2
- IP Rating: IP20
- Certifications: UL Recognized, FCC Compliant
Physical Design & Installation

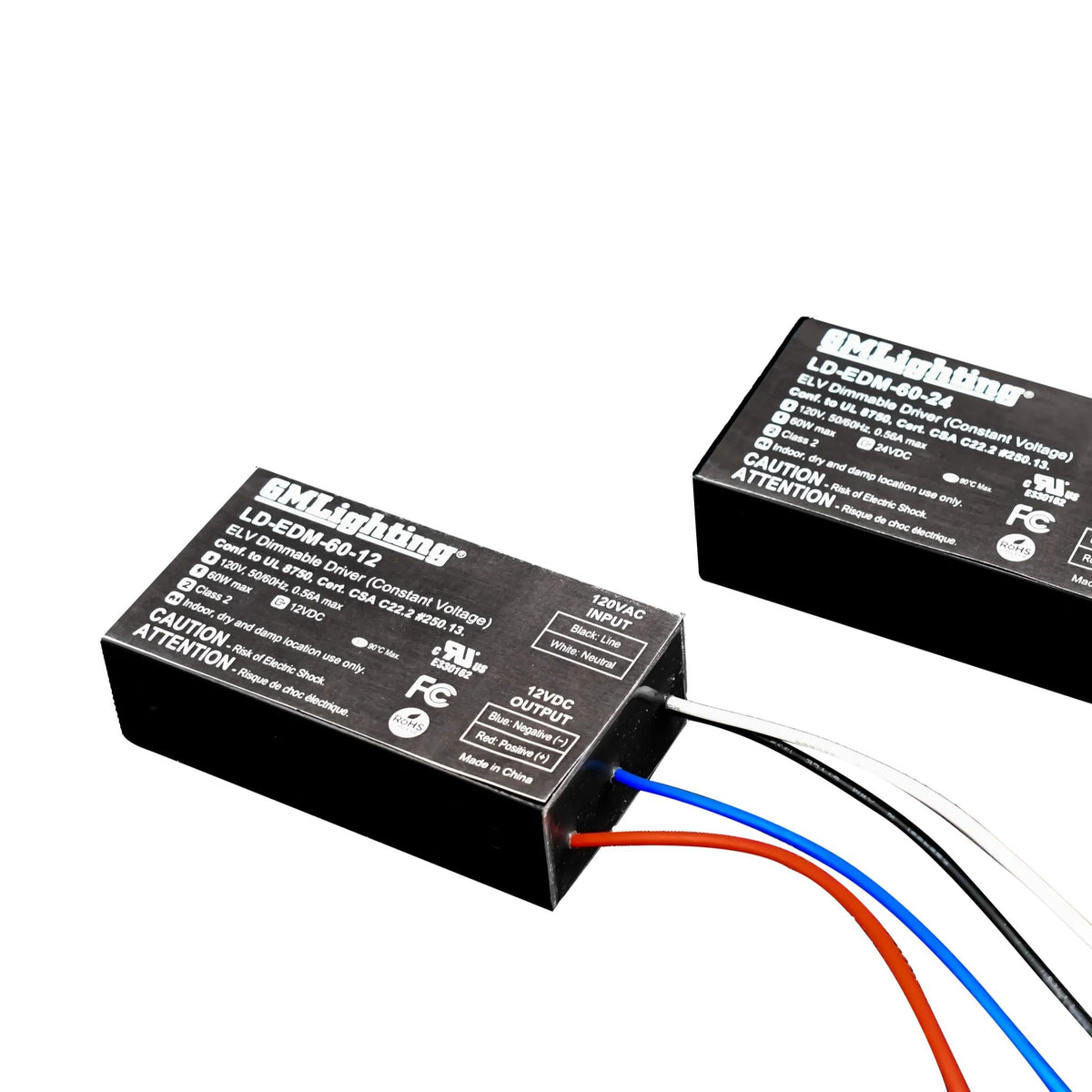

The unit is housed in a lightweight black aluminum mini case designed for space-constrained environments. It features 6 inch flying leads for both input and output connections, allowing for straightforward hardwiring. This model does not include an integrated junction box, making it ideal for placement within existing enclosures or cabinets.
Dimming & Controls

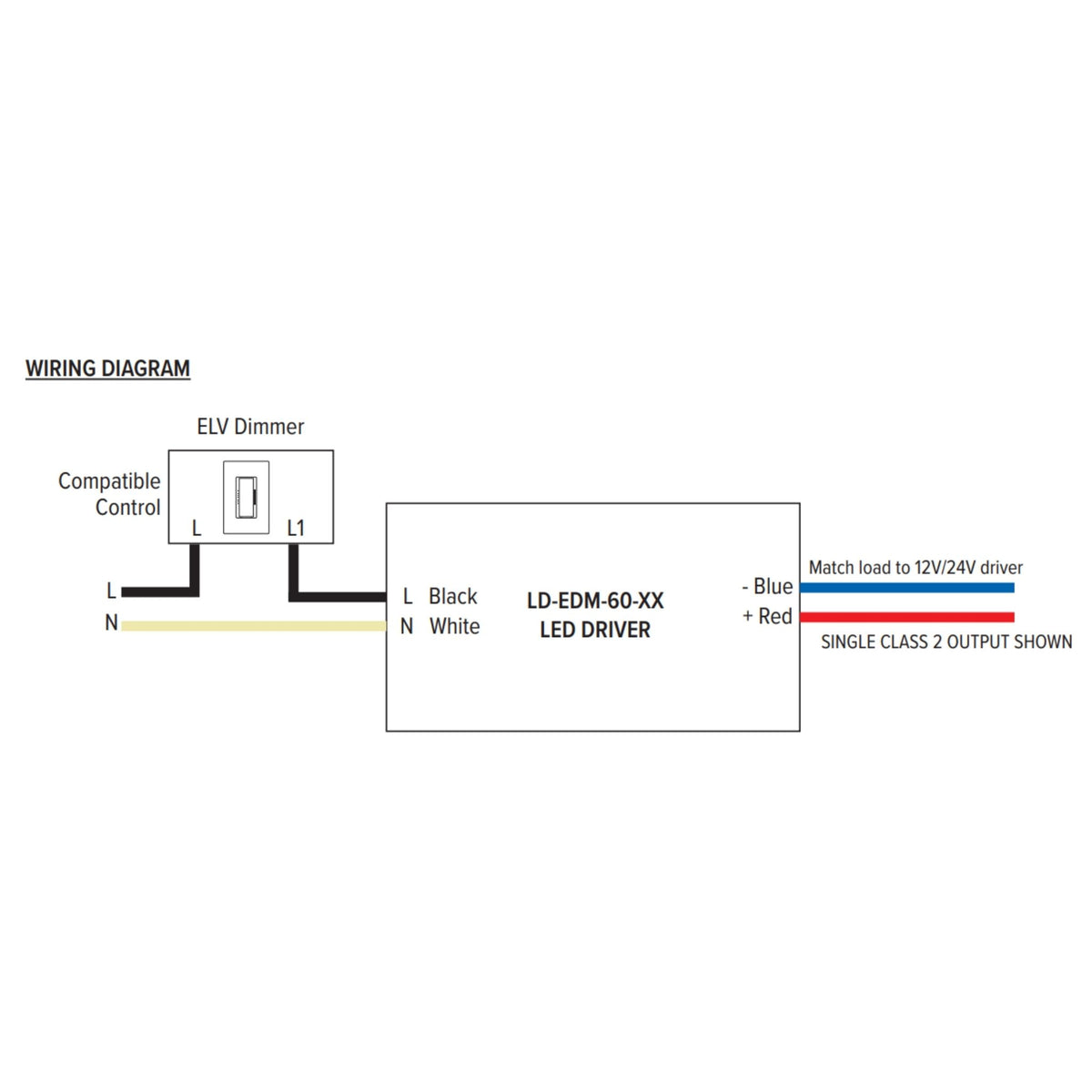

This driver supports smooth dimming from 10 percent to 100 percent when paired with compatible ELV and reverse phase dimmers. To ensure flicker-free operation and optimal performance, a minimum load of 10W is required. It is recommended to use dimmers with a capacity at least 2.5 times the output power of the driver.
Performance & Build
Engineered for reliability, the driver includes comprehensive protection against short circuits and over-voltage using hiccup mode, which allows the unit to recover automatically once a fault is removed. It is Class 2 rated for safety and features an IP20 rating suitable for dry and damp locations.
Typical Applications
- Under-cabinet task lighting
- Cove and accent lighting
- Display case illumination
- Linear LED strip installations
