GM Lighting, 8W LED Driver, 12V DC, Non-Dimmable, 120-277V
In stock
About this item
About this item
- Output Voltage: Provides a stable 12V DC output, ideal for low-voltage LED applications.
- Dimming: This driver is non-dimmable, ensuring consistent power output.
- Input Voltage: Operates efficiently with a wide input range of 120-277V AC.
- Enclosure: Compact design without an integrated junction box, suitable for tight spaces.
- Special Feature: Designed for constant voltage applications, ensuring reliable performance.
We process payments securely and do not store credit card information.
Description
Description

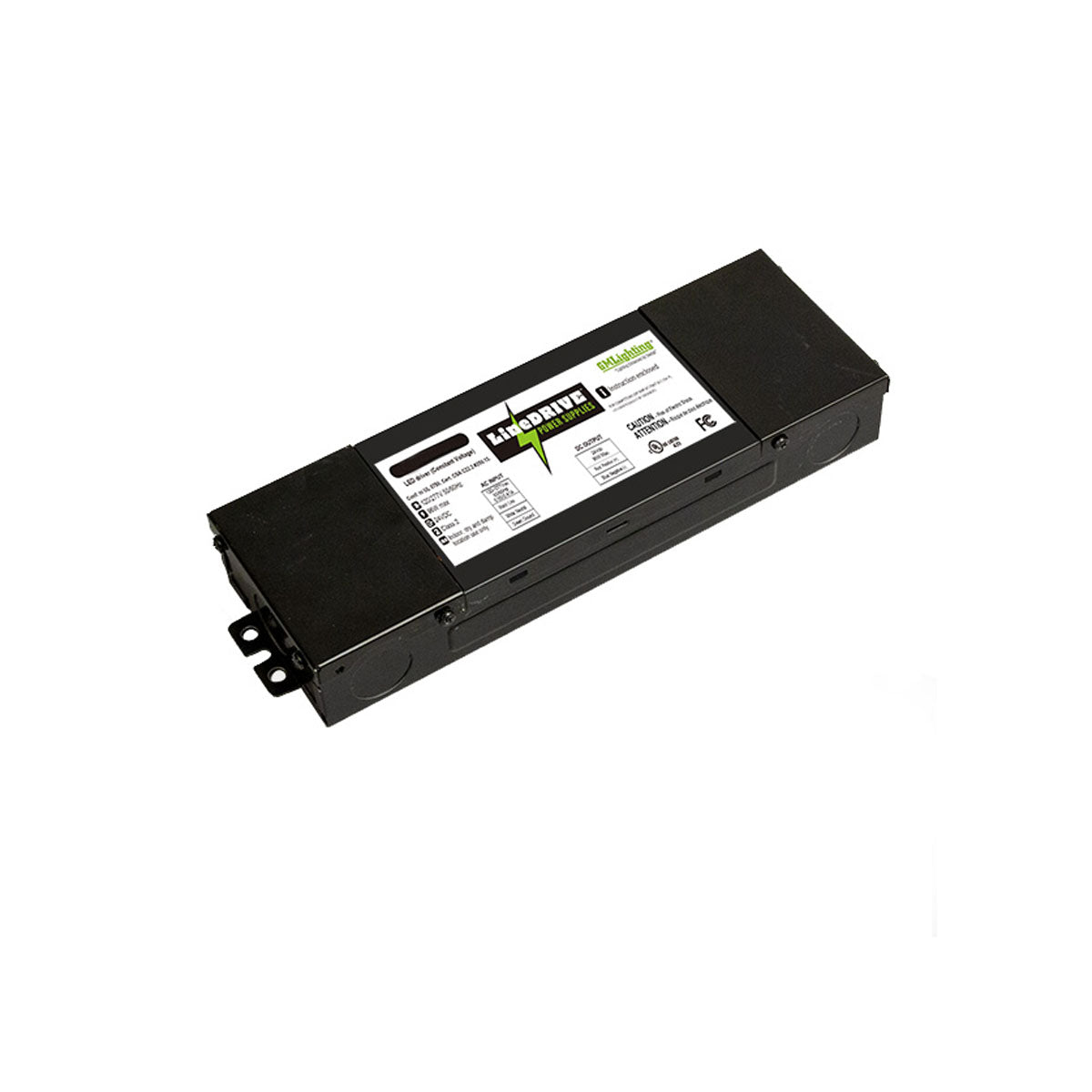

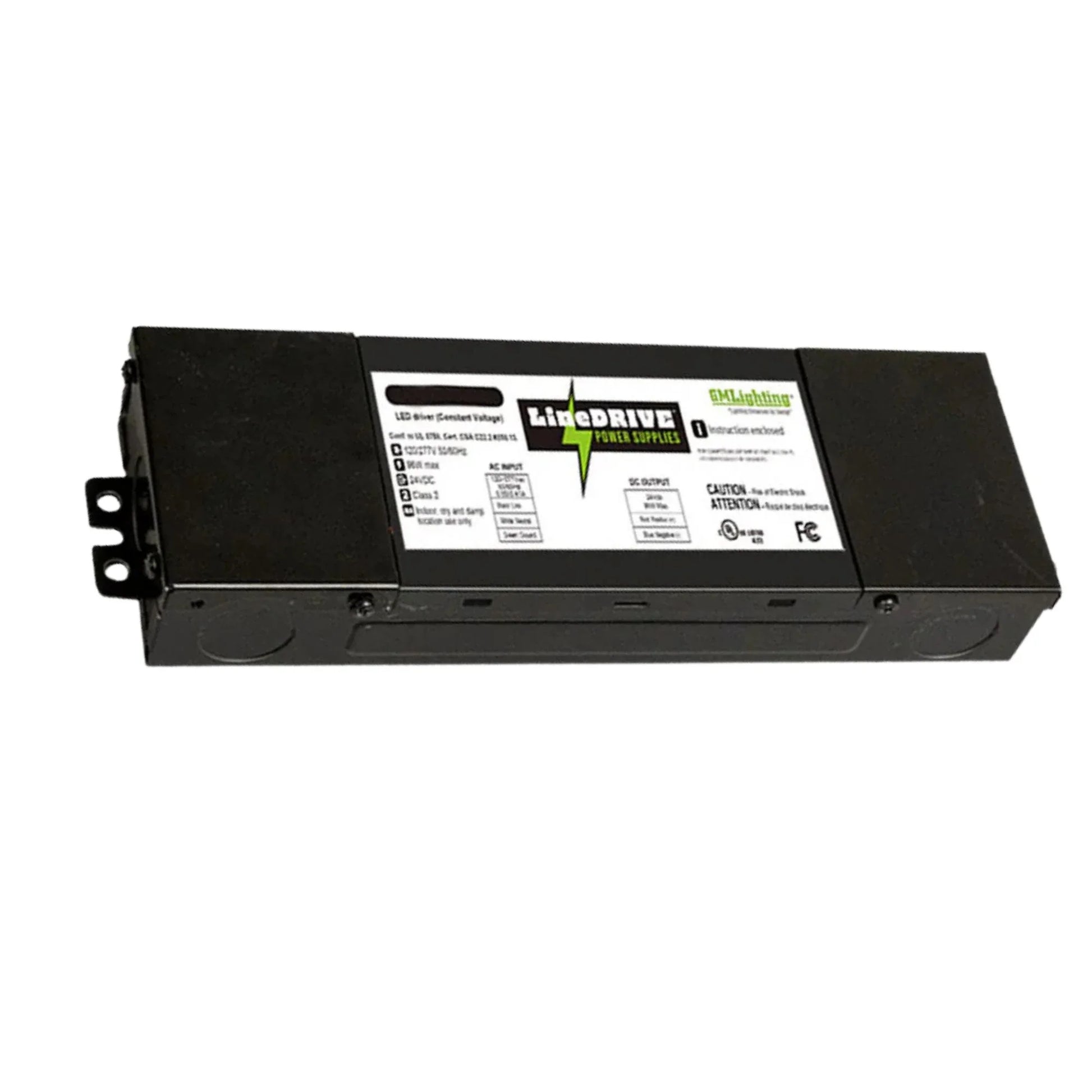

GM Lighting LD-E-UNV8-12 8W LED Driver — 12V DC
The GM Lighting LD-E-UNV8-12 is a robust 8W LED Driver designed to deliver a consistent 12V DC output. This non-dimmable driver is perfect for applications requiring stable voltage, making it ideal for powering LED tape lights and other low-voltage lighting systems. With a wide input voltage range of 120-277V, it offers flexibility and reliability for various installation environments.
Key Features
- Power Output: Provides a reliable 8W power output for efficient LED operation.
- Output Voltage: Delivers a stable 12V DC output for consistent lighting performance.
- Input Voltage Range: Compatible with 120-277V AC, offering versatile installation options.
- Dimming Capability: Non-dimmable design ensures steady power delivery.
- Dimensions: Compact size of 6.00 in. L x 3.00 in. W x 1.33 in. H for easy integration.
- Enclosure Type: Features a durable design without an integrated junction box.
- Class 2 Compliance: Meets Class 2 safety standards for low-voltage applications.
- Certifications: UL listed for safety and reliability.
Physical Design & Installation
The driver features a compact, durable design suitable for various installation environments, though it does not include an integrated junction box.
Dimming & Controls
This driver is non-dimmable, ensuring a consistent power output without the need for dimming controls.
Performance & Build
Engineered for reliability, this driver complies with Class 2 standards and is UL listed, ensuring safety and performance.
Typical Applications
- LED tape lighting installations
- Under-cabinet lighting
- Display case lighting
- Accent lighting in residential and commercial spaces
Specifications
Specifications
Dimensions
Documents
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
