GM Lighting LineDRIVE 300W LED Driver 24V Non-Dimmable, 120-277V
In stock
About this item
About this item
- Output Voltage: Provides a stable 24V DC output for consistent lighting performance.
- Dimming: This driver is non-dimmable, ensuring straightforward installation and operation.
- Input Voltage: Operates efficiently with a wide input range of 120-277V AC.
- Enclosure: Housed in a durable steel enclosure with multiple knockouts for flexible wiring options.
- Protection: Features over-current and short-circuit protection for enhanced safety and reliability.
We process payments securely and do not store credit card information.
Description
Description

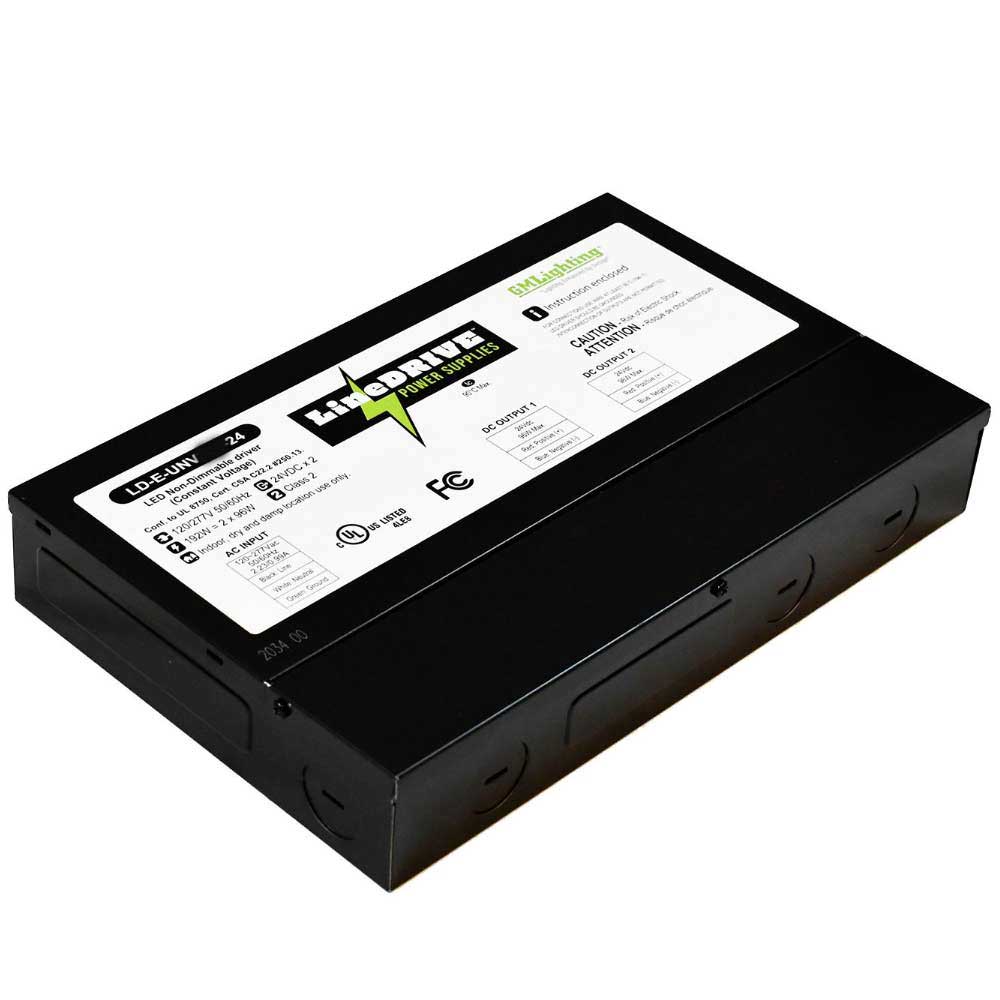

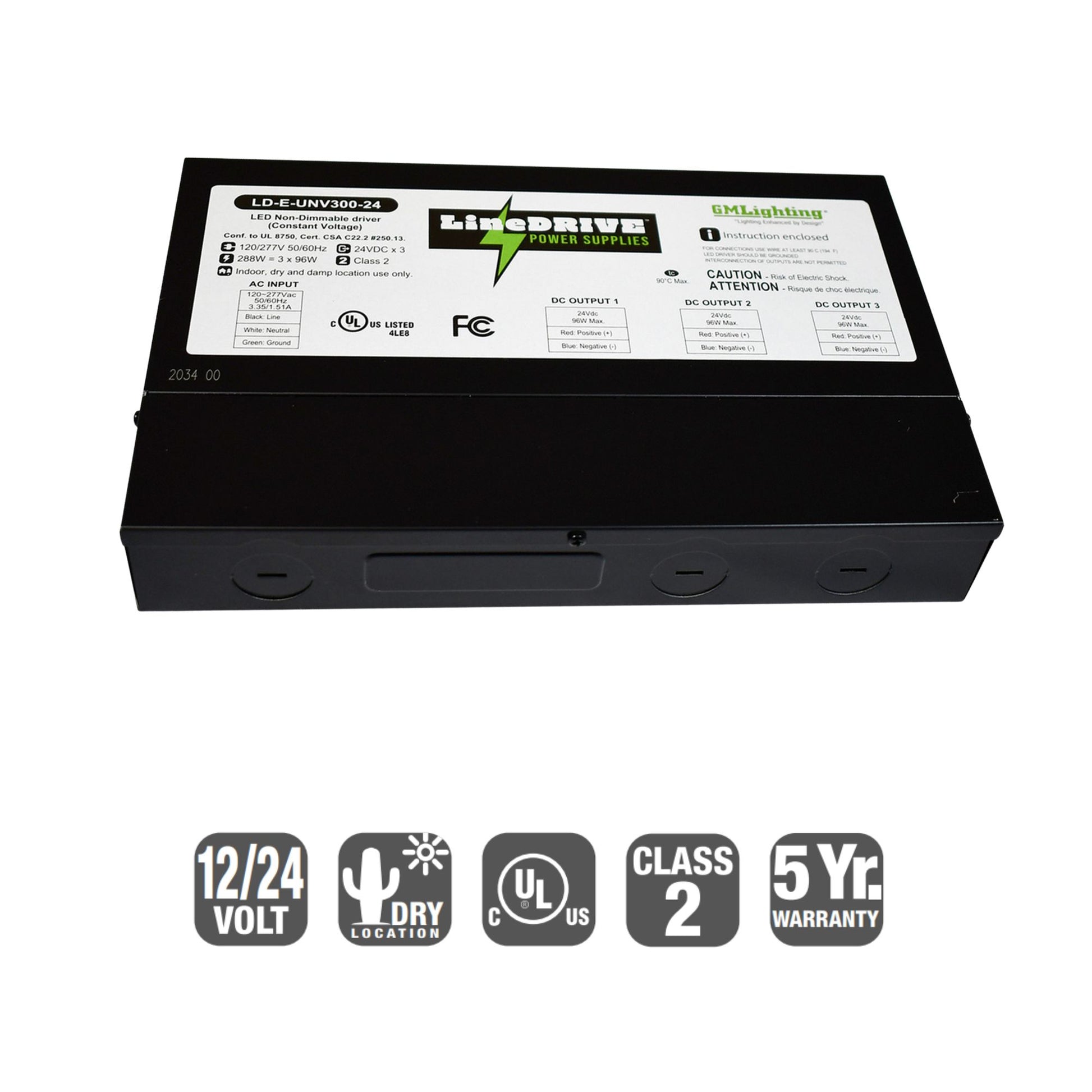

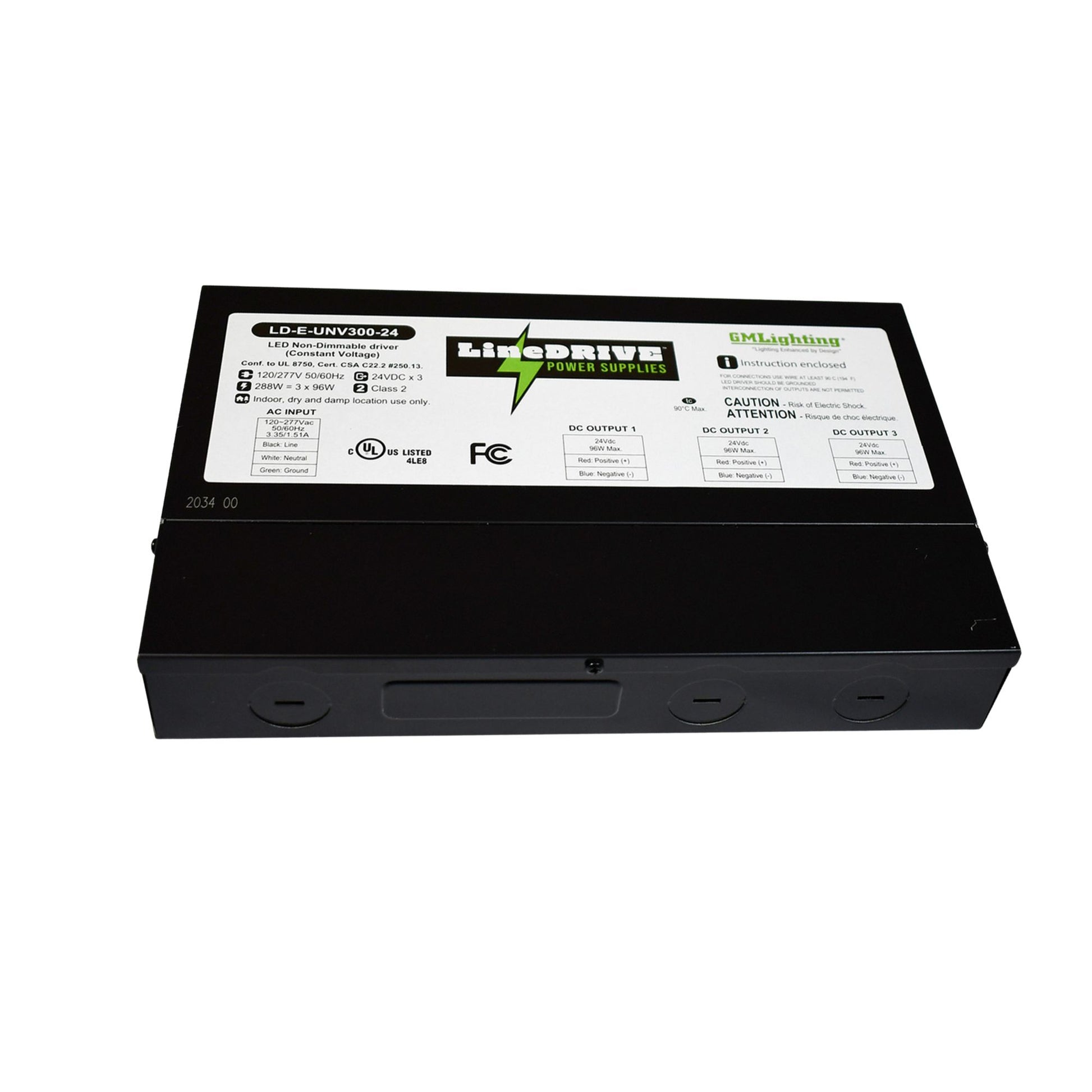

GM Lighting LineDRIVE LD-E-UNV300-24 300W LED Driver — 24V DC
The GM Lighting LineDRIVE LD-E-UNV300-24 is a robust 300W LED Driver designed for non-dimmable applications. With an output of 24V DC, this driver is perfect for powering LED fixtures that require a constant voltage. It operates on a wide input voltage range of 120-277V AC, making it versatile for various installations. The driver is housed in a low-profile, powder-coated steel enclosure with multiple knockouts, ensuring easy installation and integration into your lighting system.
Key Features
- Power Output: Delivers a maximum power of 300W for high-performance lighting applications.
- Output Voltage: Provides a consistent 24V DC output for reliable LED operation.
- Input Voltage Range: Compatible with 120-277V AC, suitable for diverse electrical environments.
- Dimming Capability: Non-dimmable design for straightforward use with compatible fixtures.
- Minimum Load: Operates efficiently with a minimum load of 10% to ensure optimal performance.

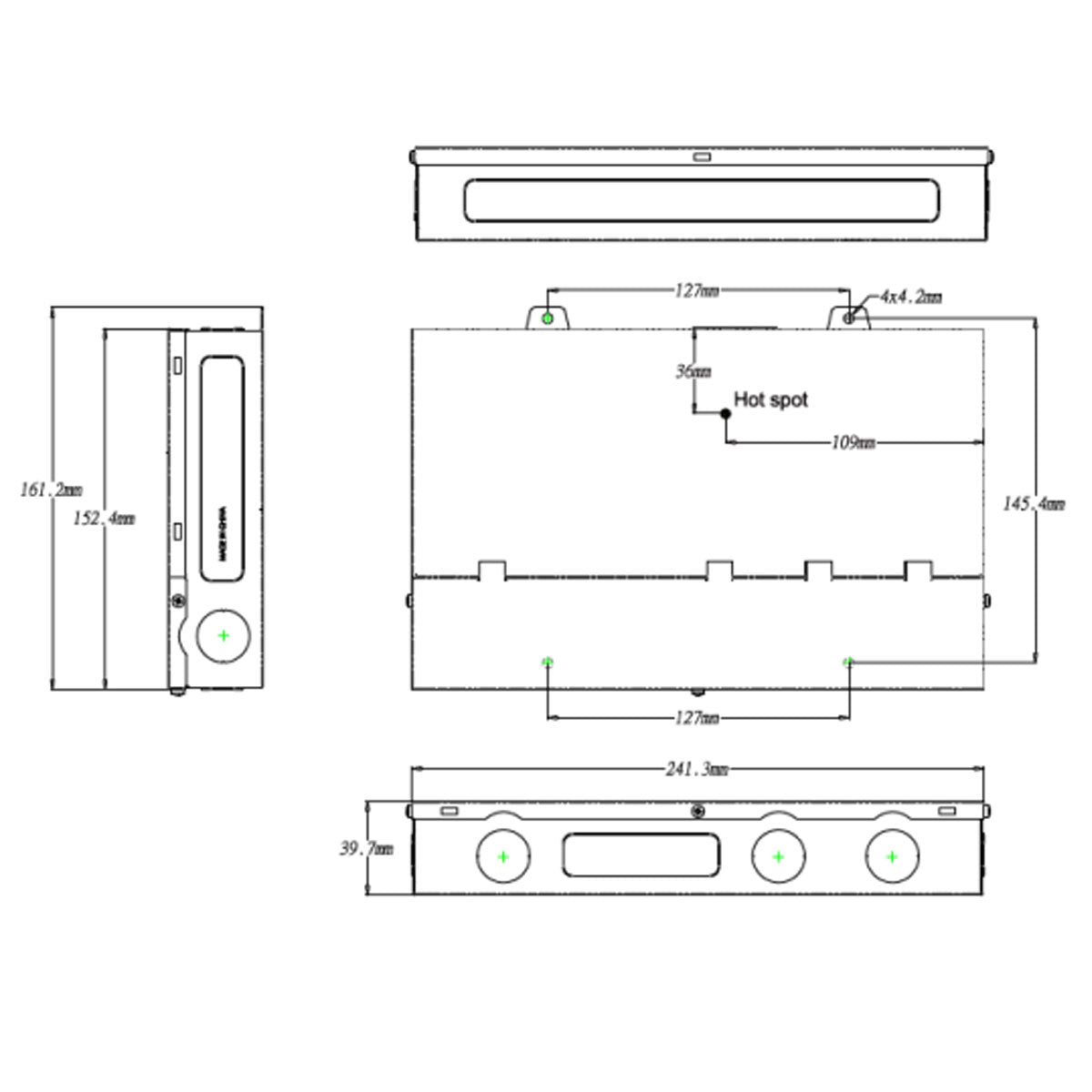

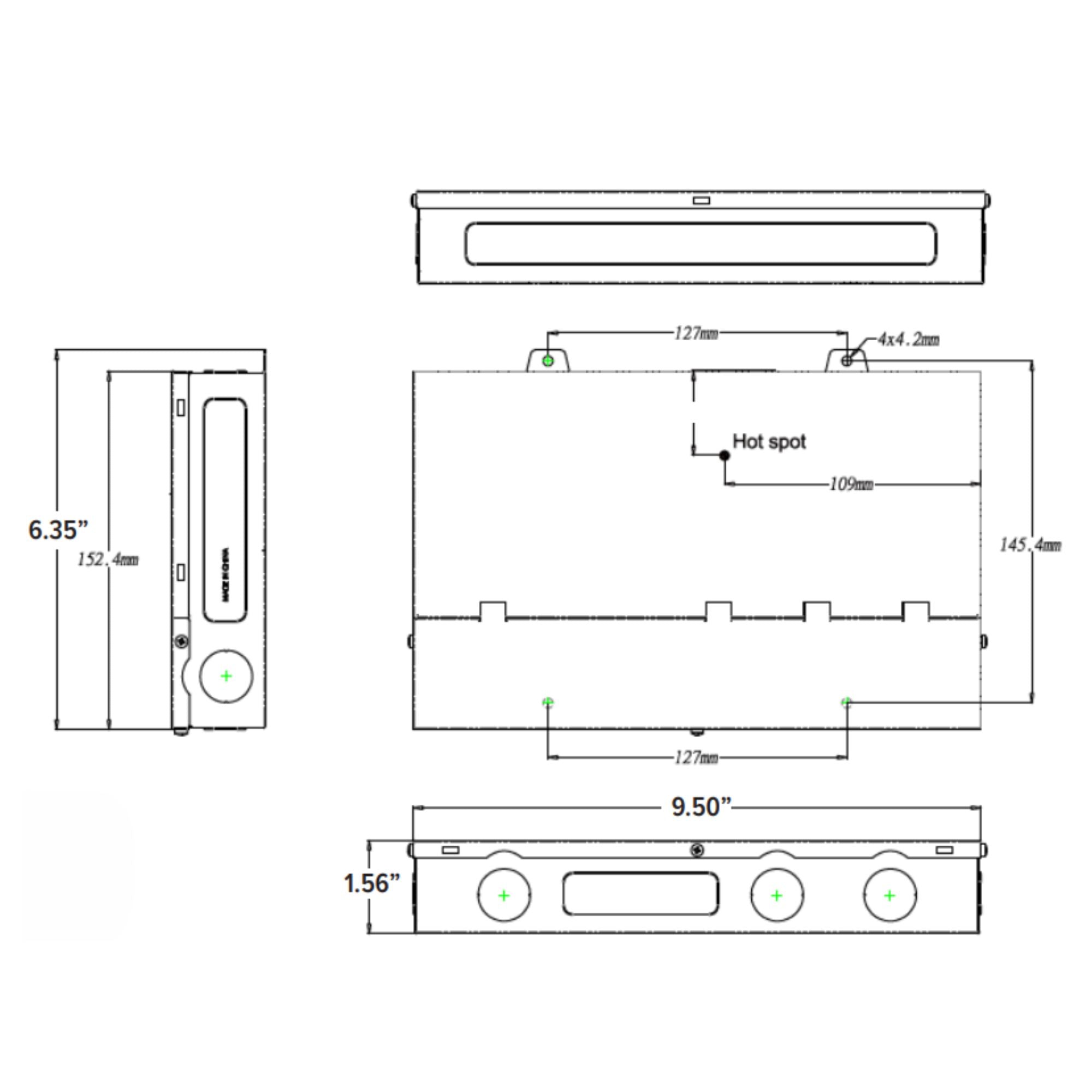

- Dimensions: Measures 9.50 in. L x 6.35 in. W x 1.56 in. H, fitting seamlessly into various setups.
- Enclosure Type: Constructed from black powder-coated steel with knockouts for easy wiring.
- Class 2 Rating: Meets Class 2 standards for safe and reliable operation.
- Certifications: UL listed and CSA certified for quality assurance and safety.
Physical Design & Installation

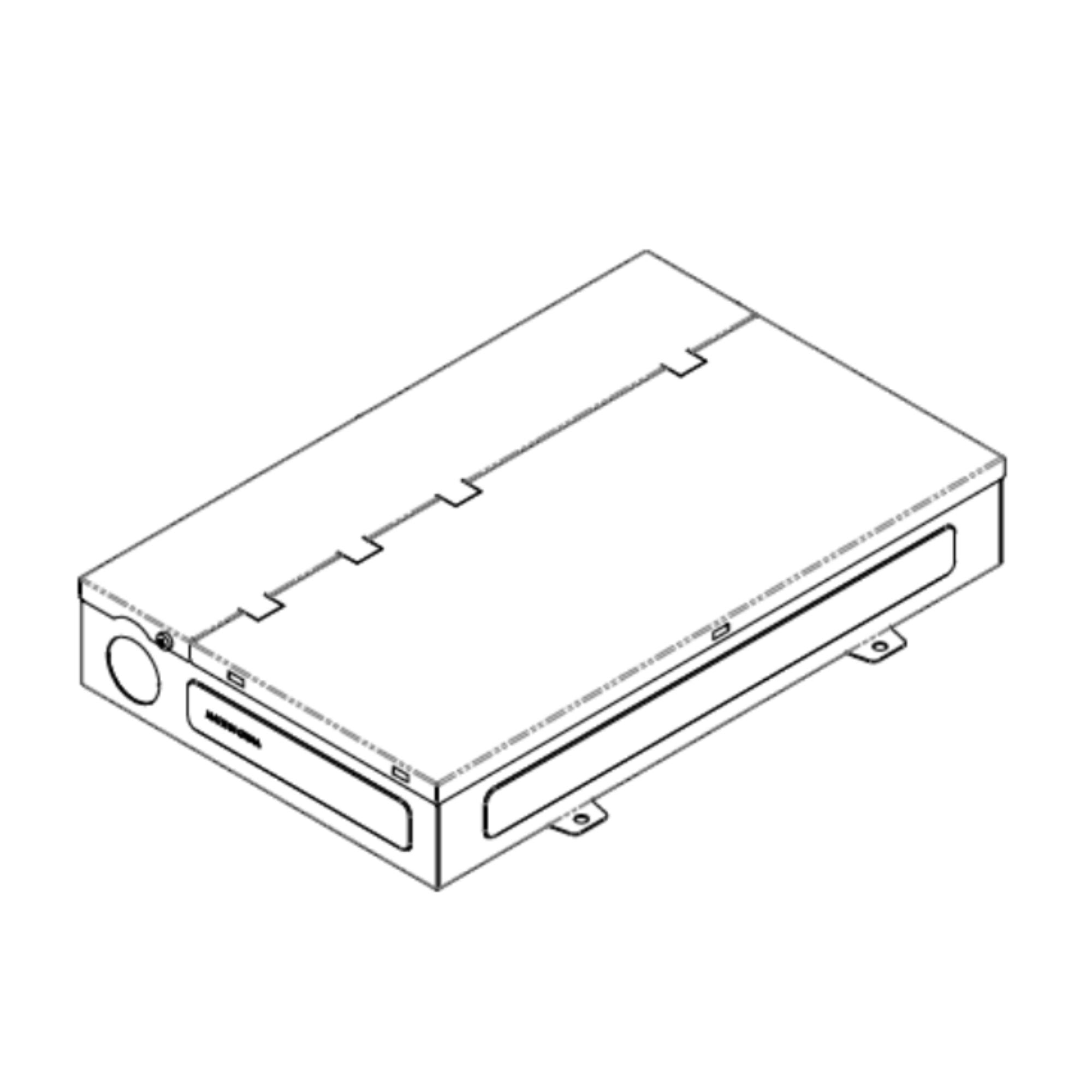

The driver features a sturdy steel enclosure with a black powder-coated finish, providing durability and protection. It includes multiple knockouts for flexible wiring and easy installation.
Dimming & Controls
This driver is non-dimmable, designed for use with LED fixtures that do not require dimming. It supports a wide input voltage range of 120-277V AC, ensuring compatibility with various electrical systems.
Performance & Build
Equipped with over-current and short-circuit protection, the driver ensures safe operation. It is Class 2 rated and UL listed, providing peace of mind for reliable performance.
Typical Applications
- Commercial lighting installations
- Indoor LED strip lighting
- Architectural lighting projects
- Retail display lighting
Specifications
Specifications
Dimensions
Documents
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
