GM Lighting LineDRIVE 200W LED Driver 24V Non-Dimmable, 120-277V
Available in stock (12)
About this item
About this item
- Output Voltage: Delivers a steady 24V DC output, ensuring consistent power for your LED fixtures.
- Dimming: This driver is non-dimmable, making it suitable for applications where dimming is not required.
- Input Voltage: Compatible with a wide input range of 120-277V, offering flexibility for various installations.
- Enclosure: Encased in a durable steel enclosure with multiple knockouts for easy installation.
- Protection: Features over-current and short circuit protection for enhanced reliability and safety.
We process payments securely and do not store credit card information.
Description
Description

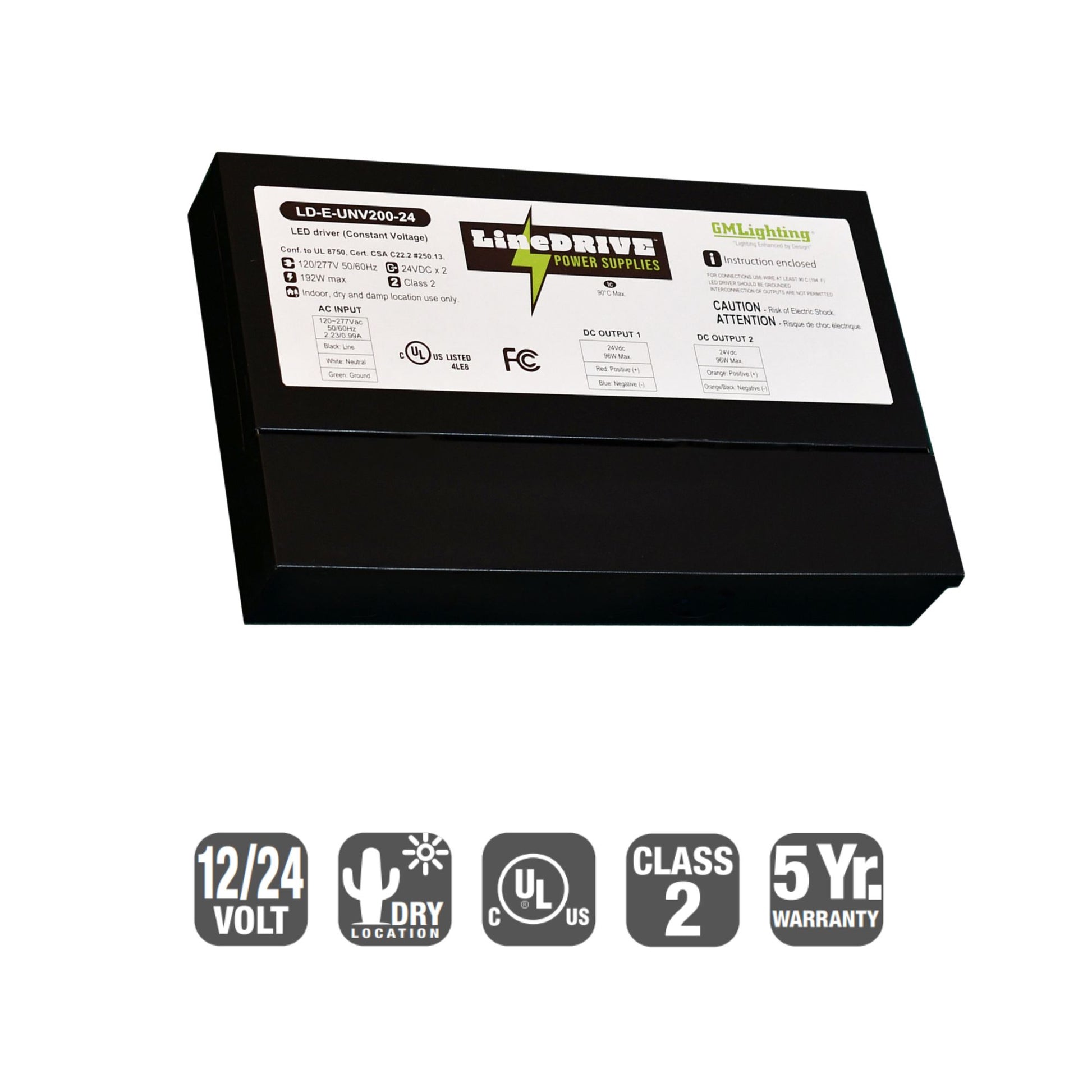

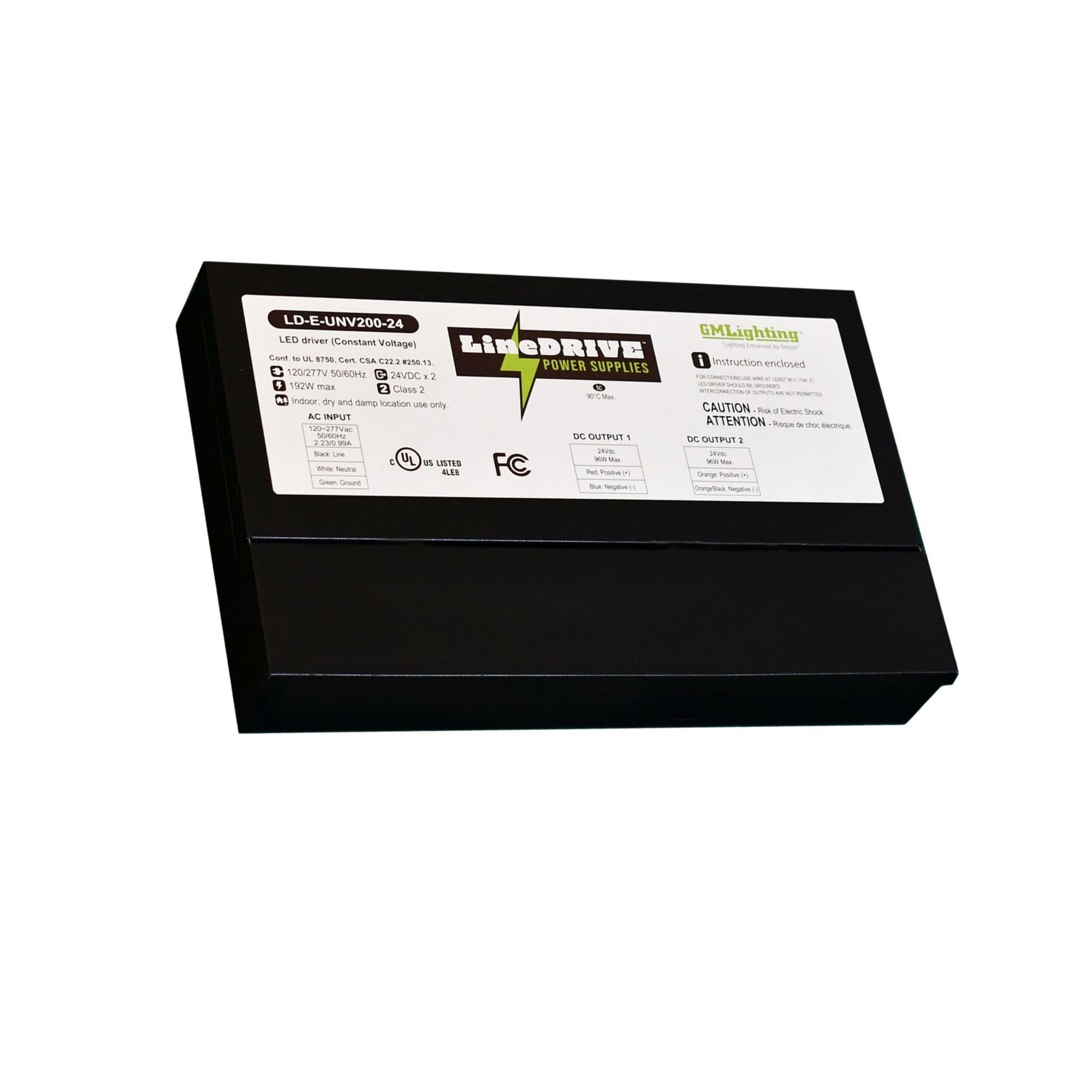

GM Lighting LineDRIVE LD-E-UNV200-24 200W LED Driver — 24V DC
The GM Lighting LineDRIVE LD-E-UNV200-24 is a robust 200W LED Driver designed for non-dimmable applications. With an output of 24V DC, this driver is ideal for powering LED fixtures that require a constant voltage. It operates within a wide input range of 120-277V, making it versatile for various installation environments. Encased in a low-profile, powder-coated steel enclosure, it ensures durability and ease of installation with its integrated knockouts. The LD-E-UNV200-24 is a reliable choice for indoor applications, offering over-current and short circuit protection.
Key Features
- Power Output: Provides a maximum power output of 200W, suitable for high-demand LED applications.
- Output Voltage: Consistent 24V DC output for reliable LED performance.
- Input Voltage Range: Operates efficiently with 120-277V AC input, accommodating various electrical systems.
- Dimming Capability: Non-dimmable design for applications where dimming is not required.
- Minimum Load: Requires a minimum load of 10% for optimal performance.

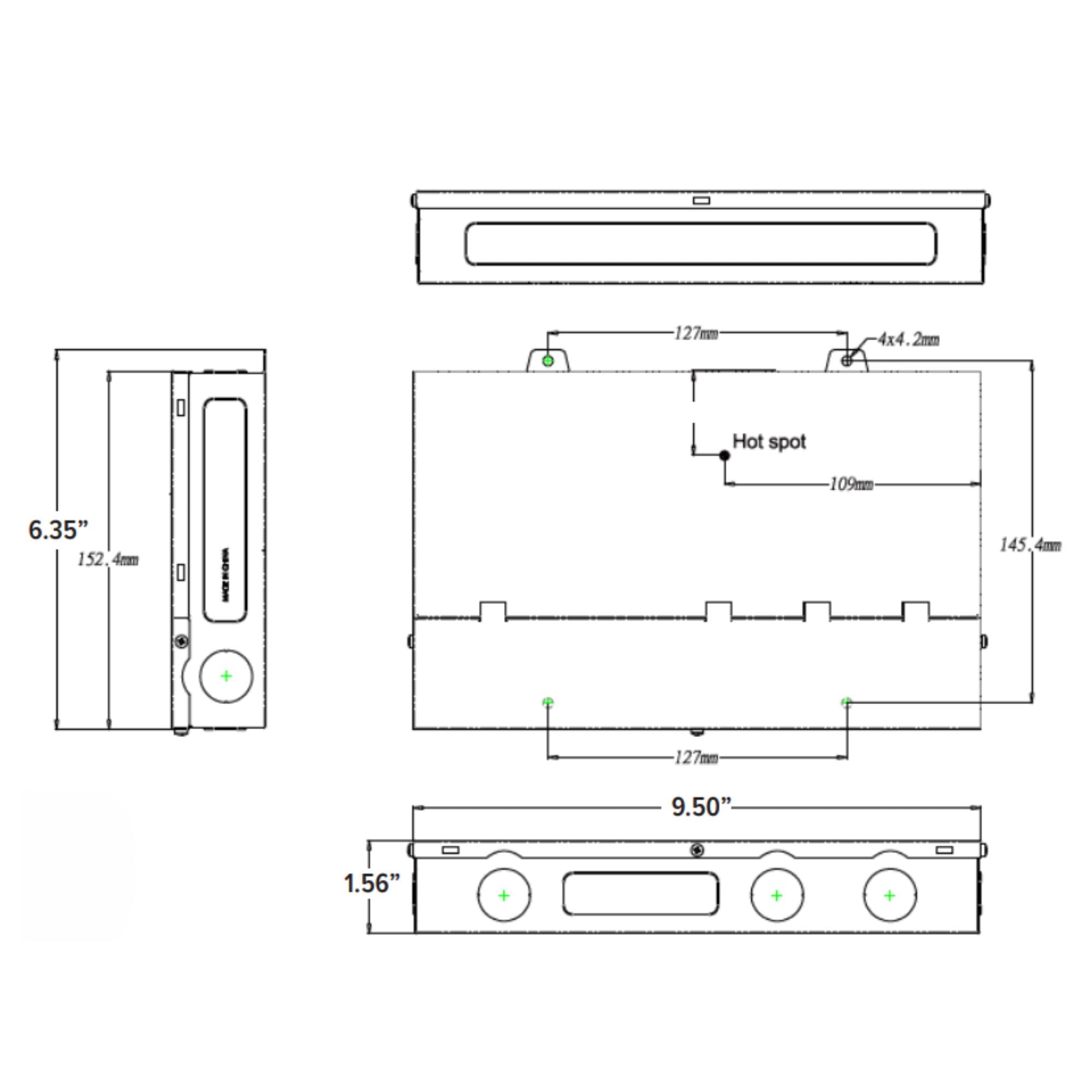

- Dimensions: Compact size of 9.50 in. L x 6.35 in. W x 1.56 in. H for easy integration into tight spaces.
- Enclosure Type: Sturdy steel enclosure with four knockouts for flexible wiring options.
- Class 2 Rating: Meets Class 2 safety standards for safe operation.
- Certifications: UL listed and CSA certified for quality assurance.
Physical Design & Installation

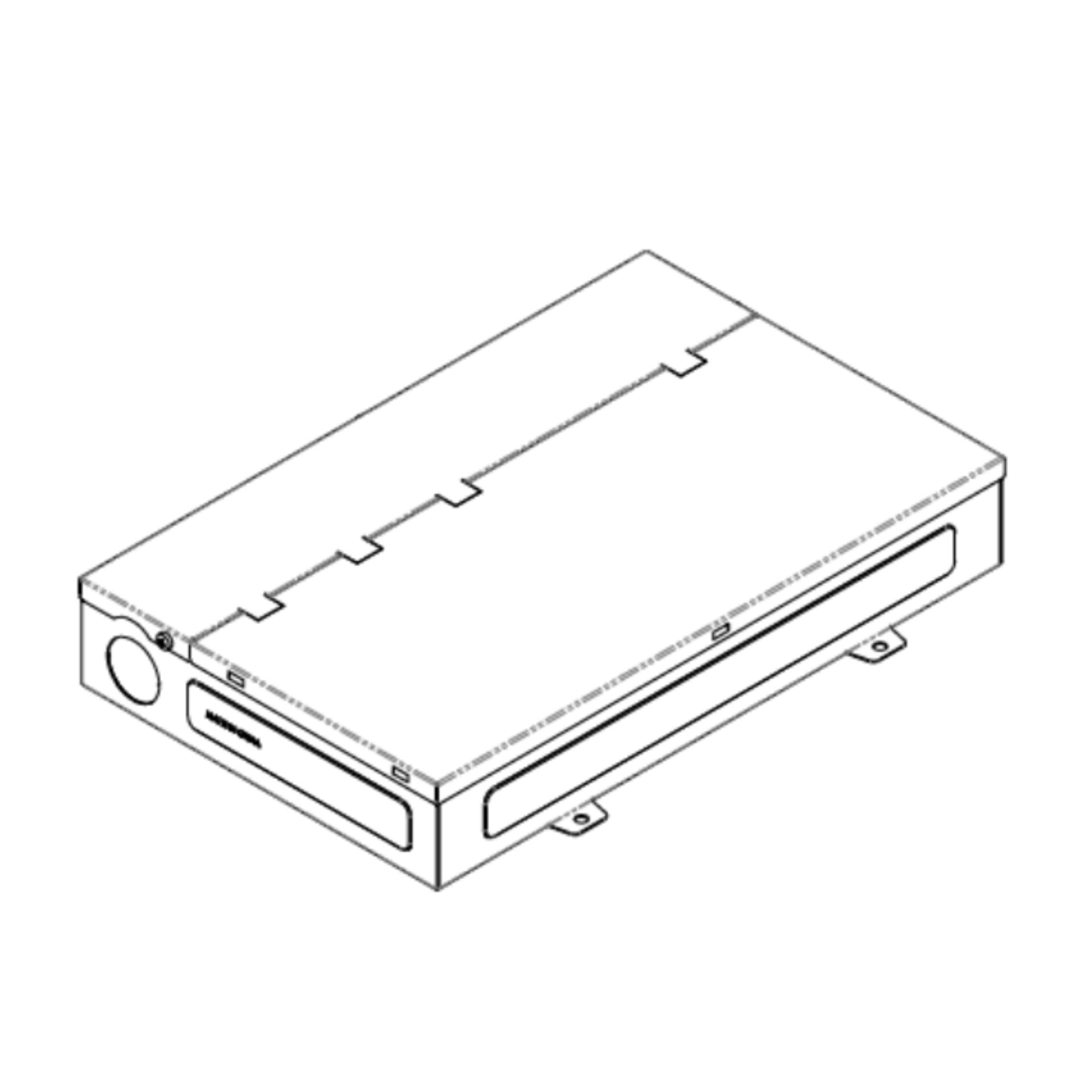

The driver features a black powder-coated steel enclosure with integrated knockouts, facilitating straightforward installation and robust protection.
Dimming & Controls
This driver is non-dimmable, designed specifically for applications where dimming is not required. It supports a wide input voltage range of 120-277V.
Performance & Build
Equipped with over-current and short circuit protection, the driver ensures reliable performance. It complies with Class 2 safety standards and is UL listed.
Typical Applications
- Commercial lighting installations
- Retail environments
- Office spaces
- Indoor architectural lighting
Specifications
Specifications
Dimensions
Documents
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the LD-E-UNV200-24 driver dimmable?
Is the LD-E-UNV200-24 driver dimmable?
What is the input voltage range for this driver?
What is the input voltage range for this driver?
Does this driver include an integrated junction box?
Does this driver include an integrated junction box?
What is the minimum load requirement for this driver?
What is the minimum load requirement for this driver?
What is the IP rating of this driver?
What is the IP rating of this driver?
