GM Lighting SlimEdge Under Cabinet Light Bar — White & Feature Summary

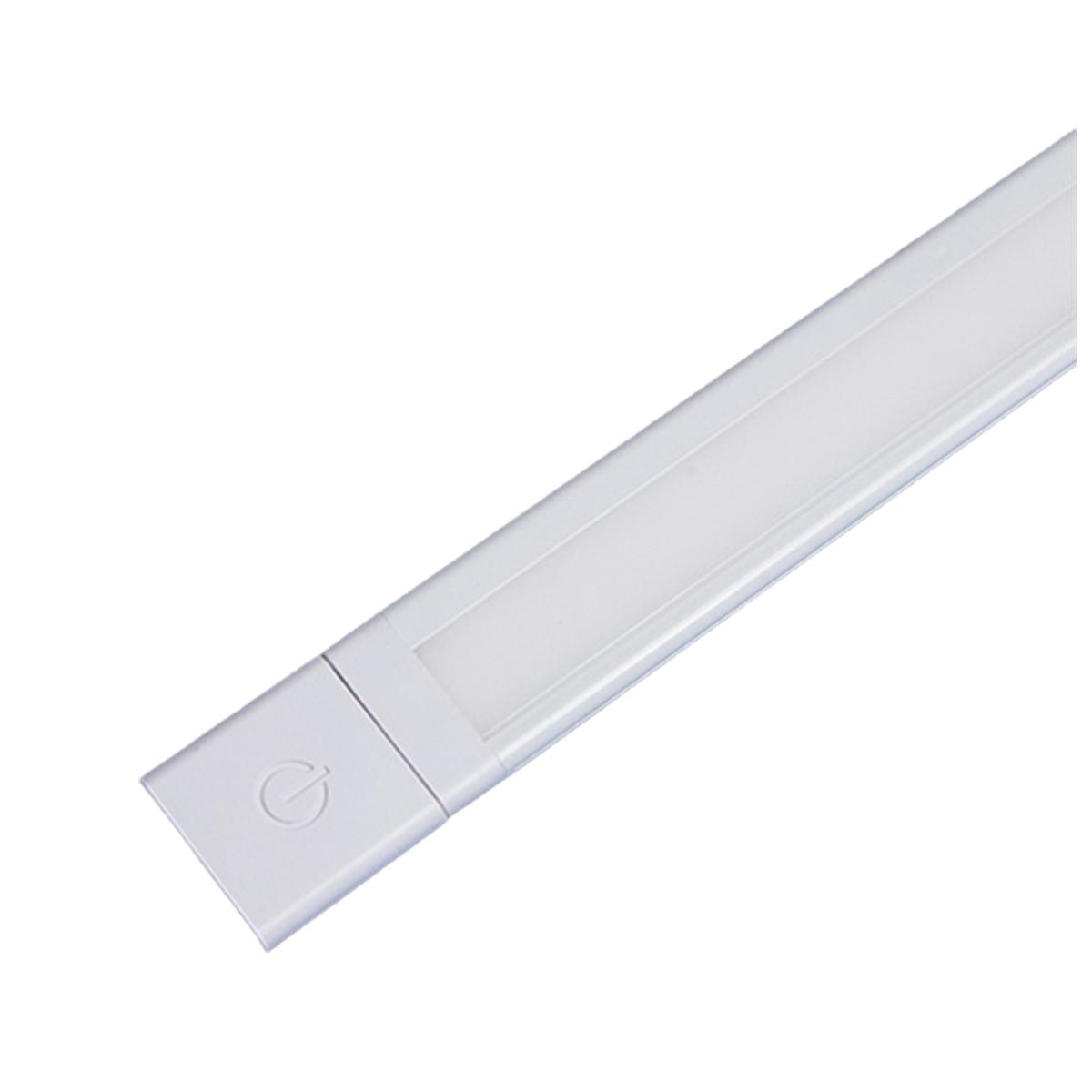

The GM Lighting EDGE-8-27-W is a white, 8 in. under cabinet light bar crafted from high-quality materials. This fixture features a 2700K integrated LED light source, delivering 150 lumens with a power consumption of 3 watts. It operates on 24V input voltage, requiring a compatible power supply.

Key Features

• Length: Measures 8 inches, suitable for compact spaces.
• Wattage: Consumes only 3 watts, ensuring energy efficiency.
• Lumens: Provides 150 lumens for effective task lighting.
• Color Temperature: Fixed at 2700K for warm illumination.
• CRI: High 90+ CRI for accurate color rendering.
• Lifespan: Designed for long-lasting performance with a 5-year warranty.
• Edgelit Technology: Ensures even luminance with no diode imaging.
• Mounting: Includes mounting clips and screws for easy installation.

Core Design & Profile

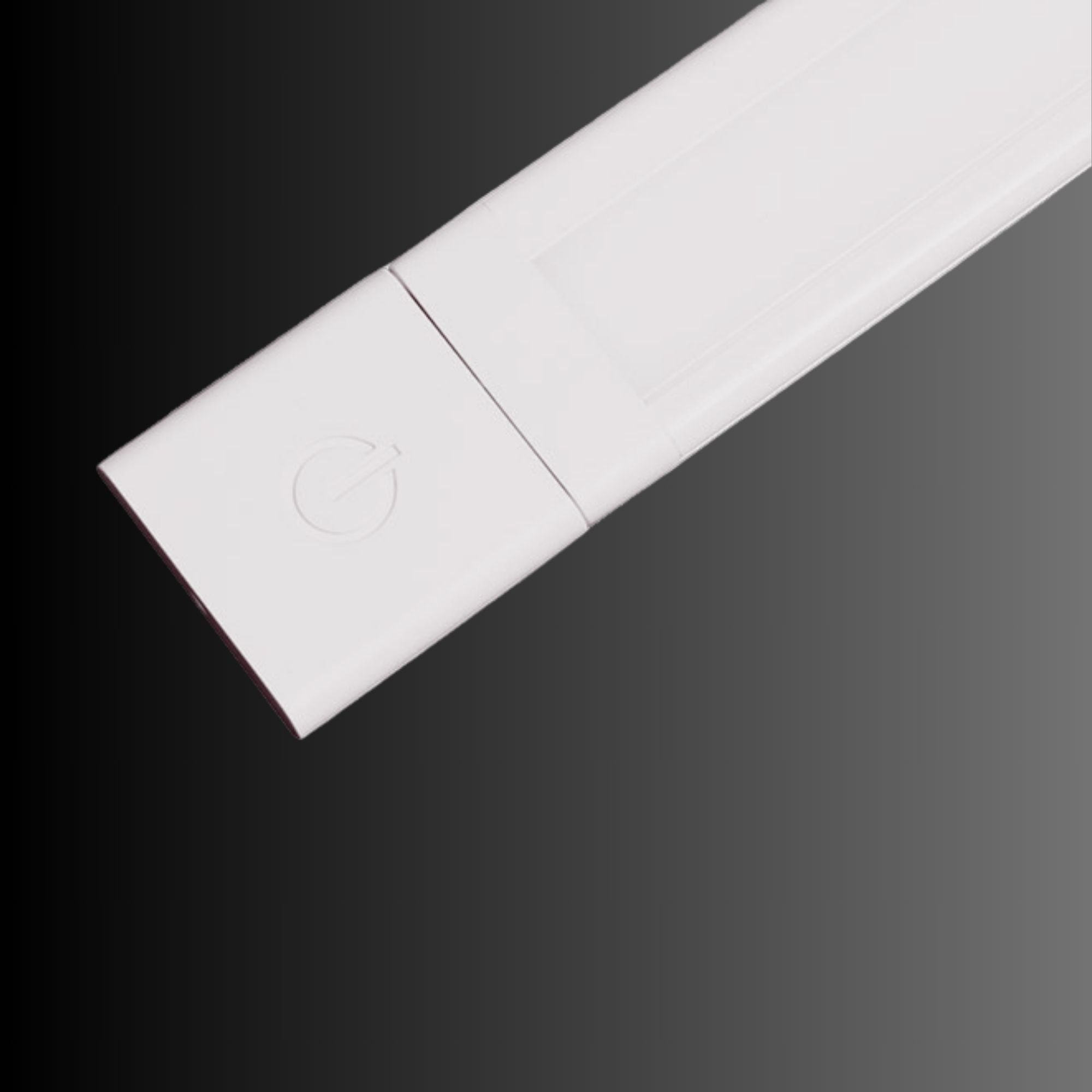

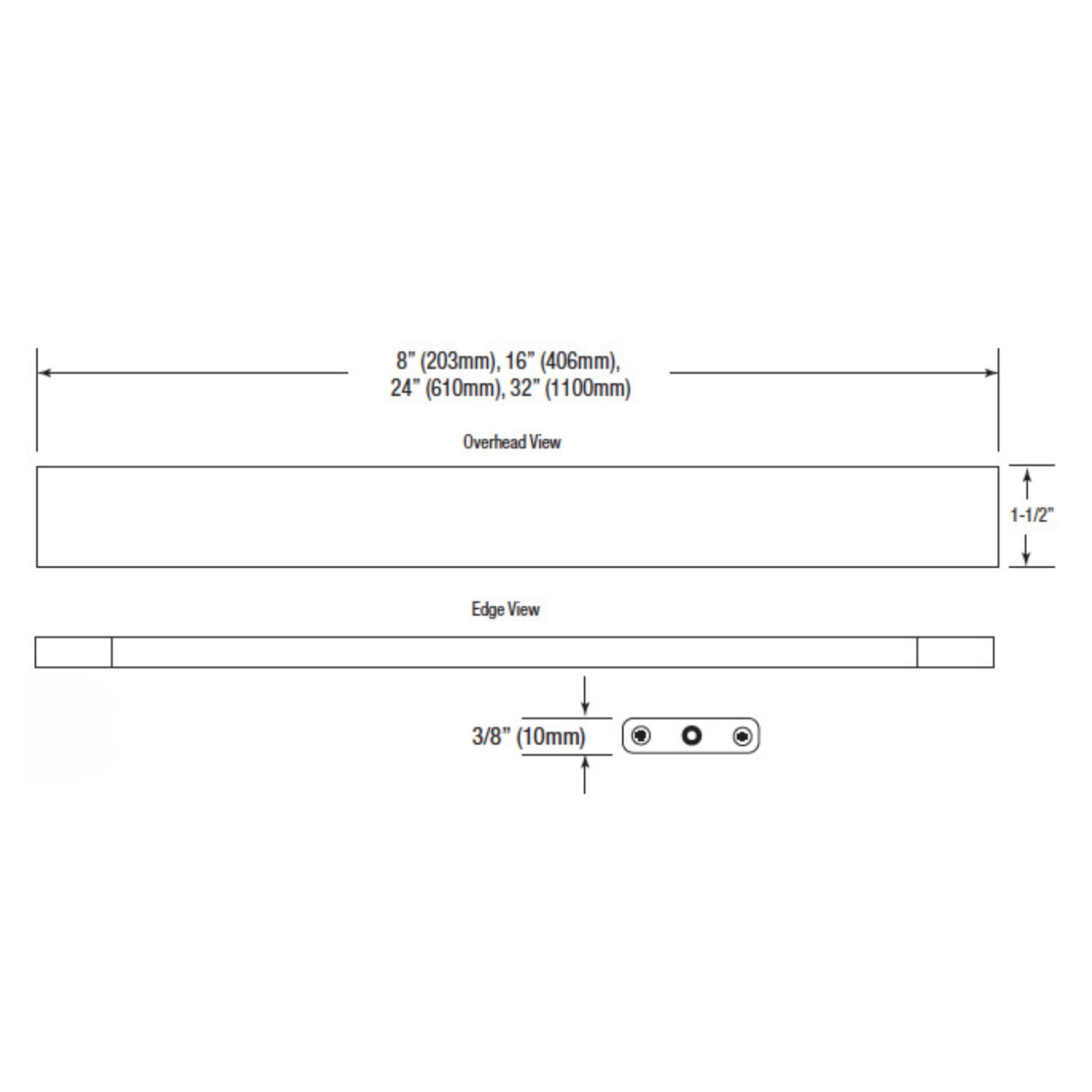

The SlimEdge light bar features a sleek, low-profile design with a thickness of only 0.4 inches. Constructed with durable materials, it is available in a white finish. Rated for dry locations, it is ideal for indoor use.

LED Illumination & Performance

With a light output of 150 lumens and a power consumption of 3 watts, this fixture offers efficient illumination. The 2700K color temperature provides a warm, inviting glow, and the high CRI ensures true color representation.

Power, Wiring & Linkability

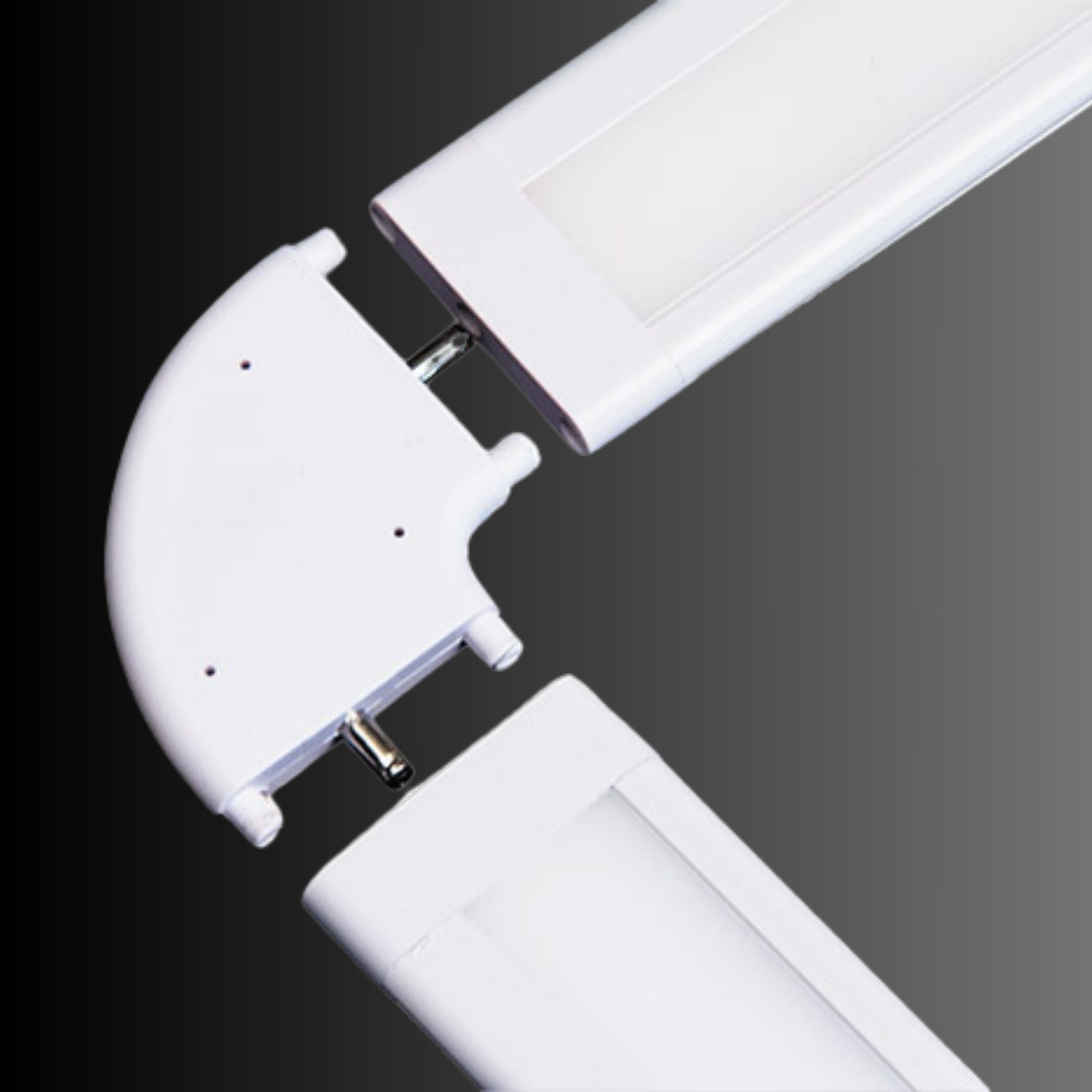

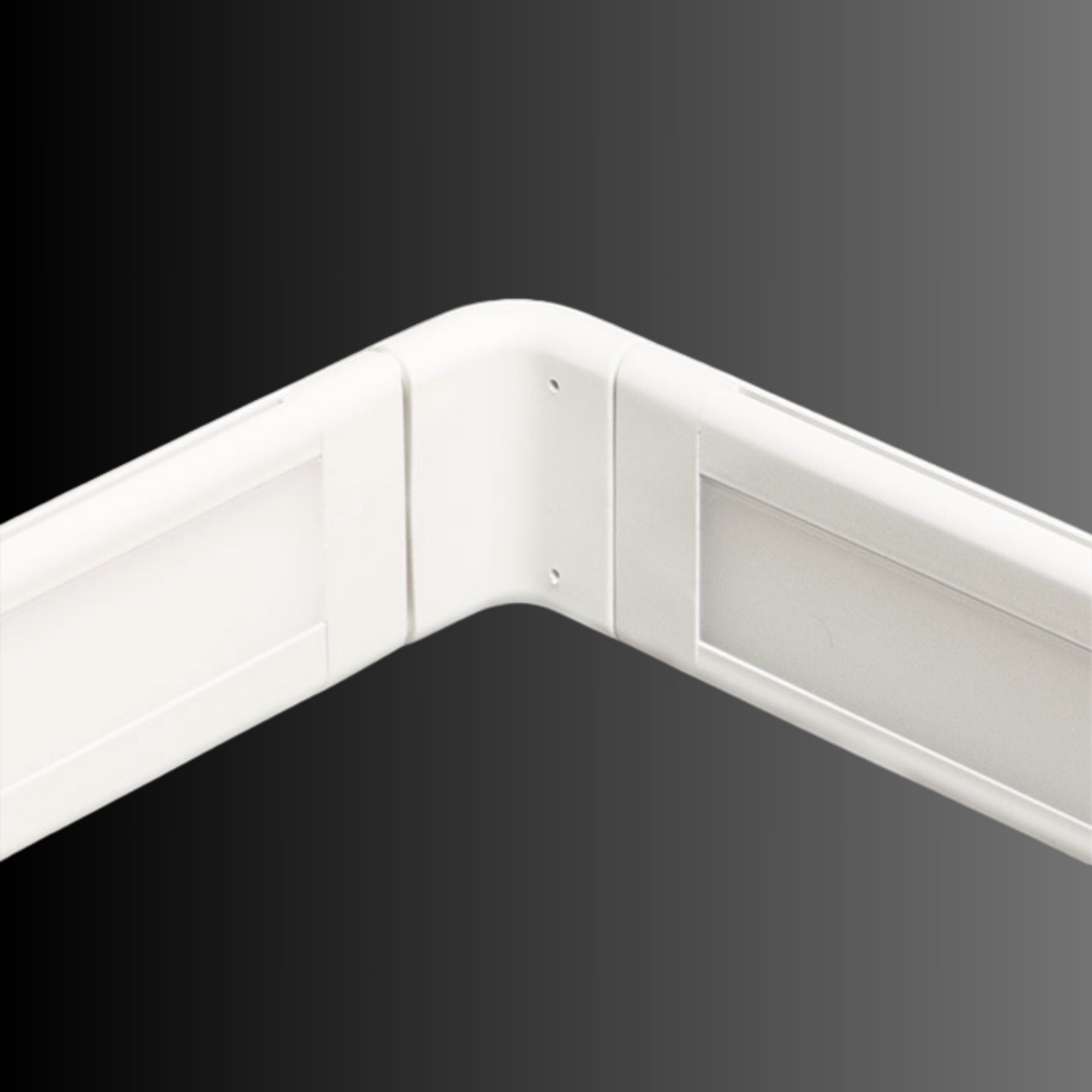

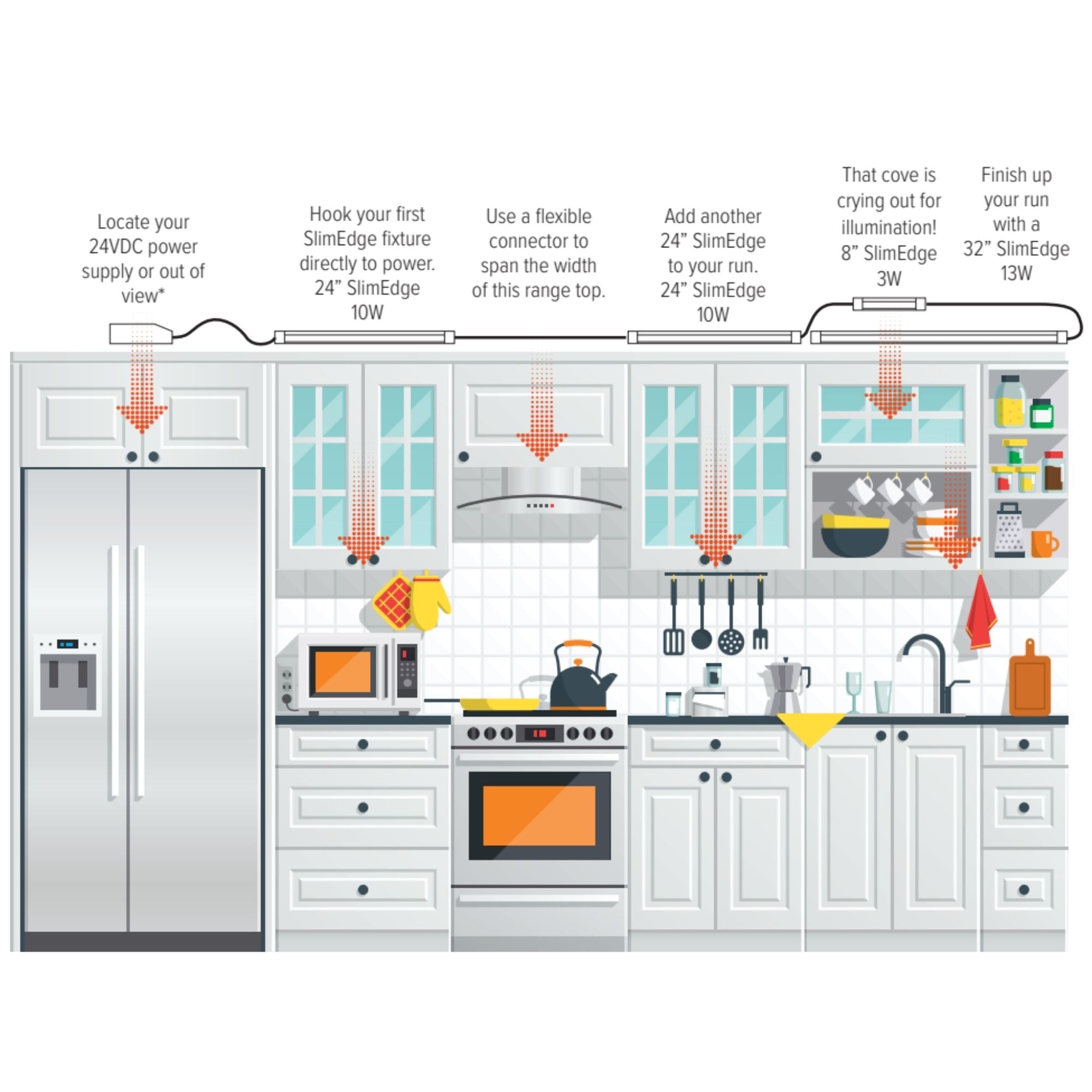

This fixture operates on 24V and requires a remote power supply. It is dimmable and can be linked with other units using modular connectors, supporting a maximum run of 16 feet.

Where This Fixture Works Best

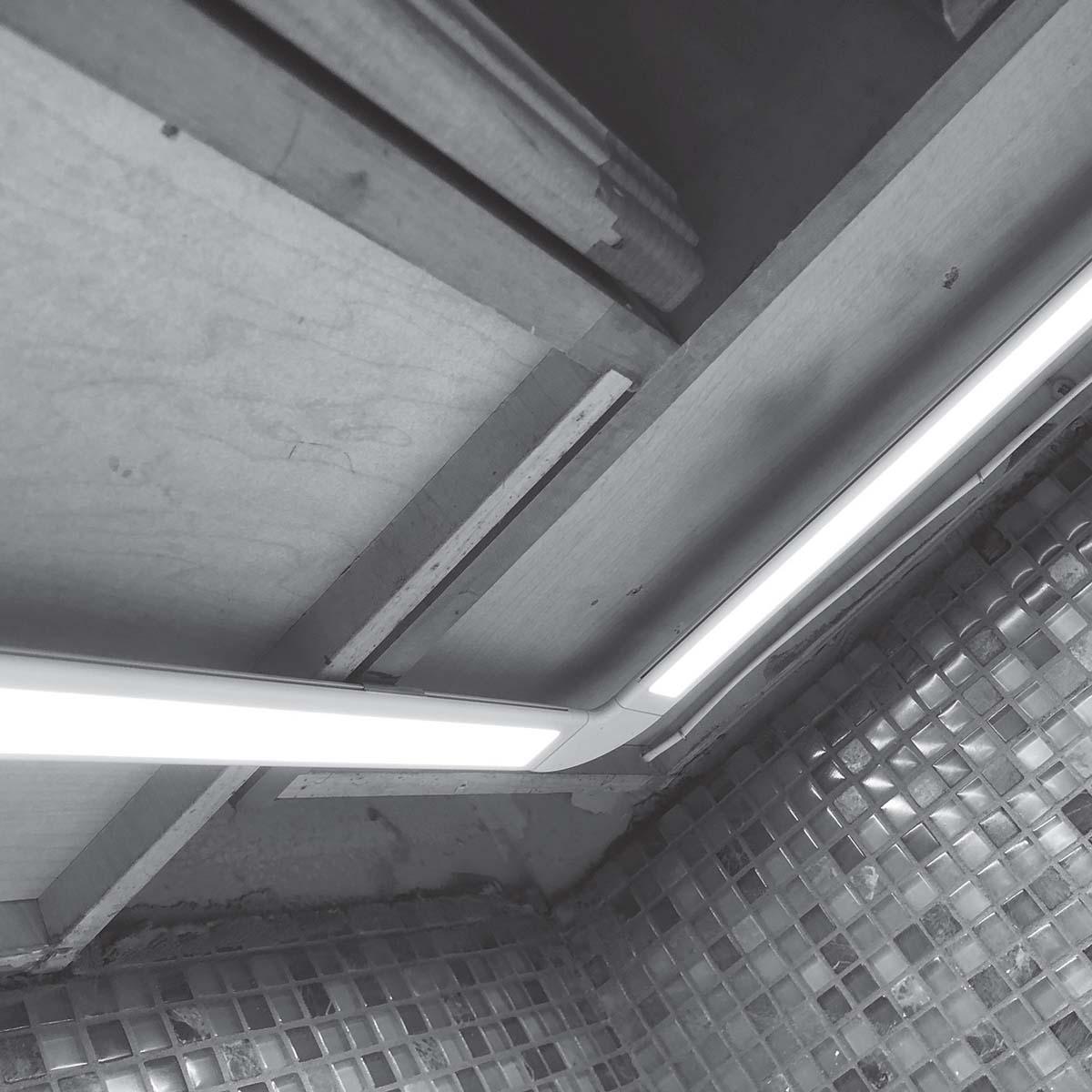

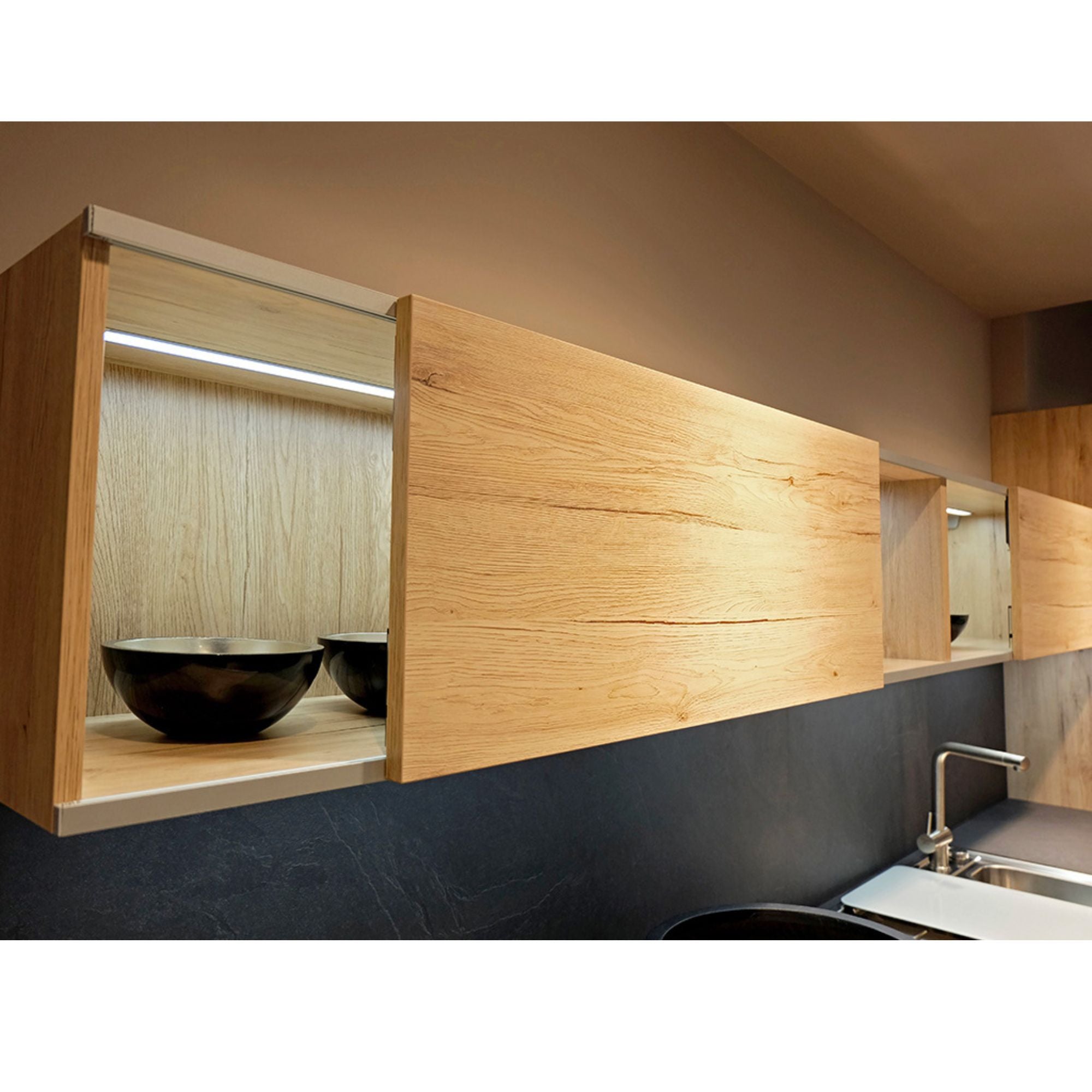

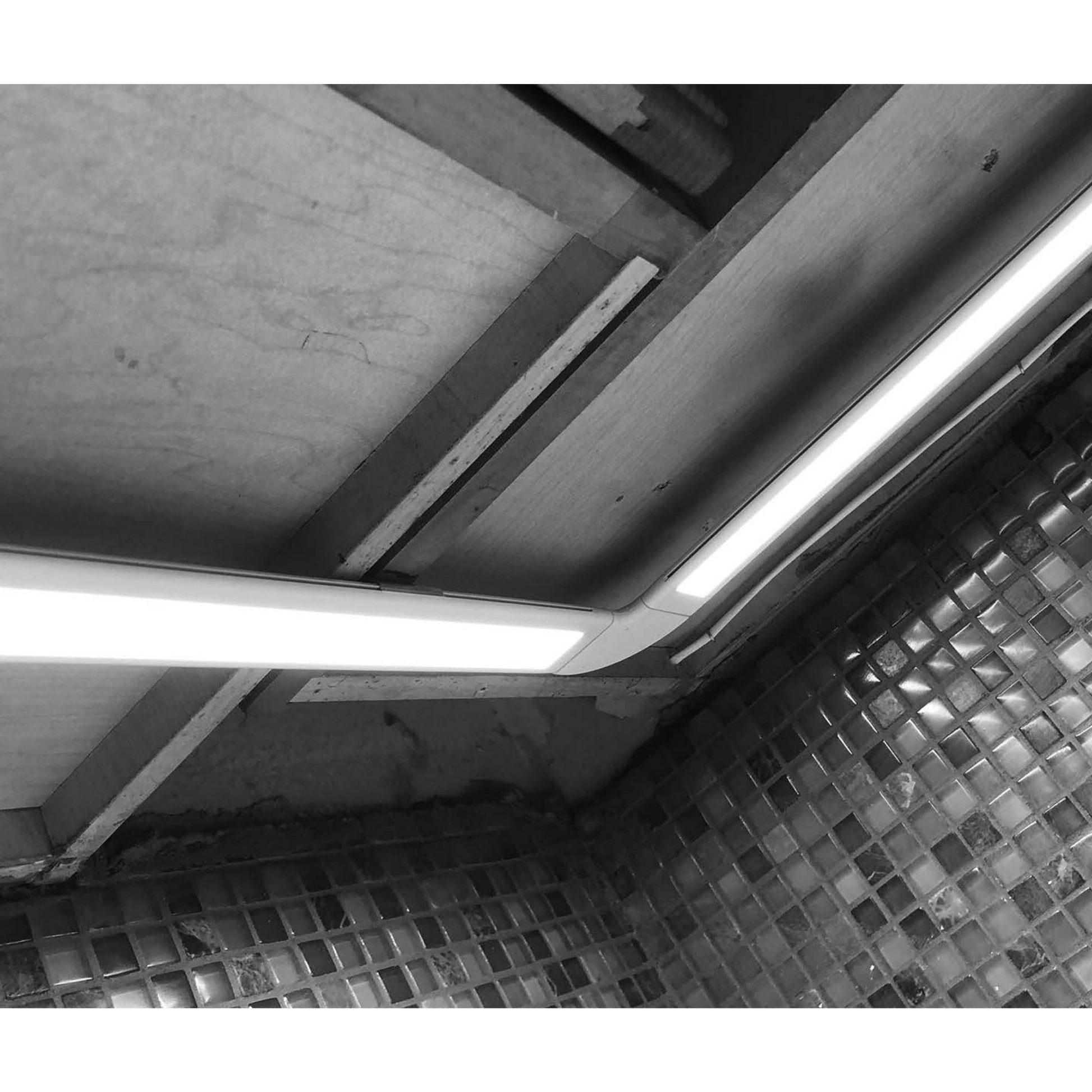

• Kitchen under cabinet lighting
• Office task lighting
• Retail display shelves
• Workshop benches
• Library reading nooks

What's Included

• (2) Mounting clips with screws
• (1) Lightbar to power supply connector (GMC-PS-24)

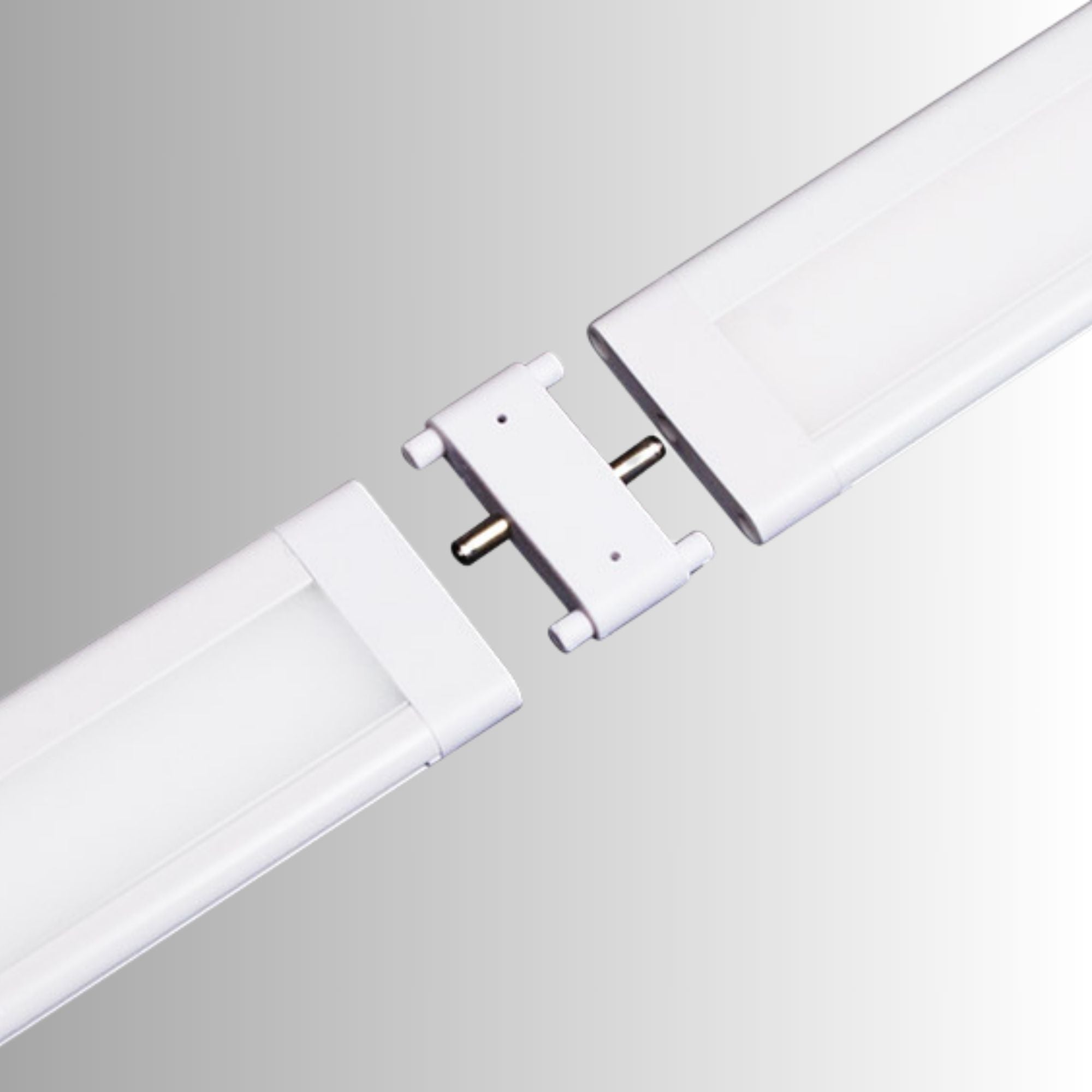

• (1) Rigid bar to bar connector (EDGE-BB-1)
