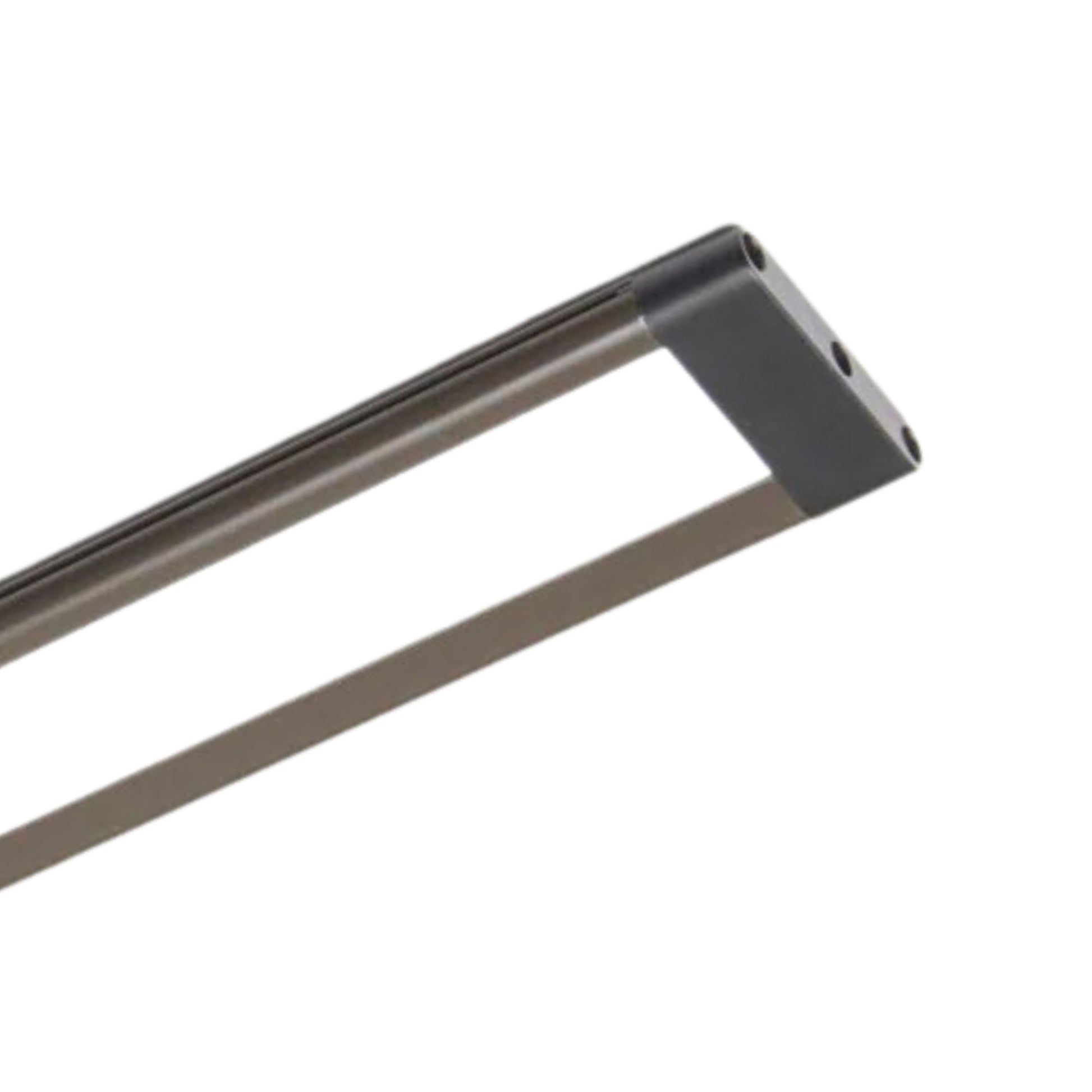

GM Lighting SlimEdge Under Cabinet Light — Bronze & Feature Summary

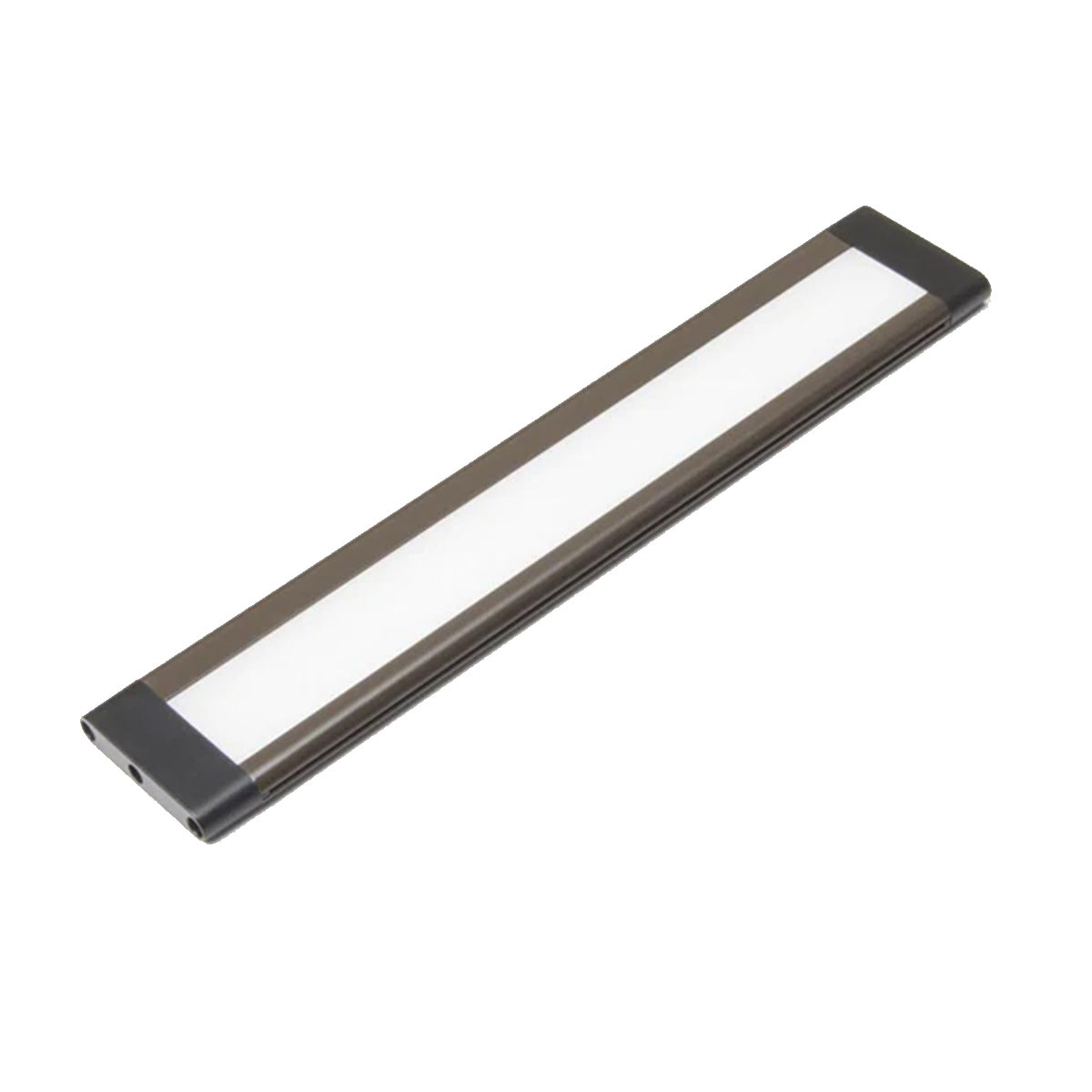

The GM Lighting EDGE-8-27-BZ is a bronze finished, 8-inch under cabinet light bar designed for efficient task lighting. This fixture, with its 24VDC input, utilizes integrated LED technology to deliver 150 lumens at a warm 2700K color temperature.

Key Features

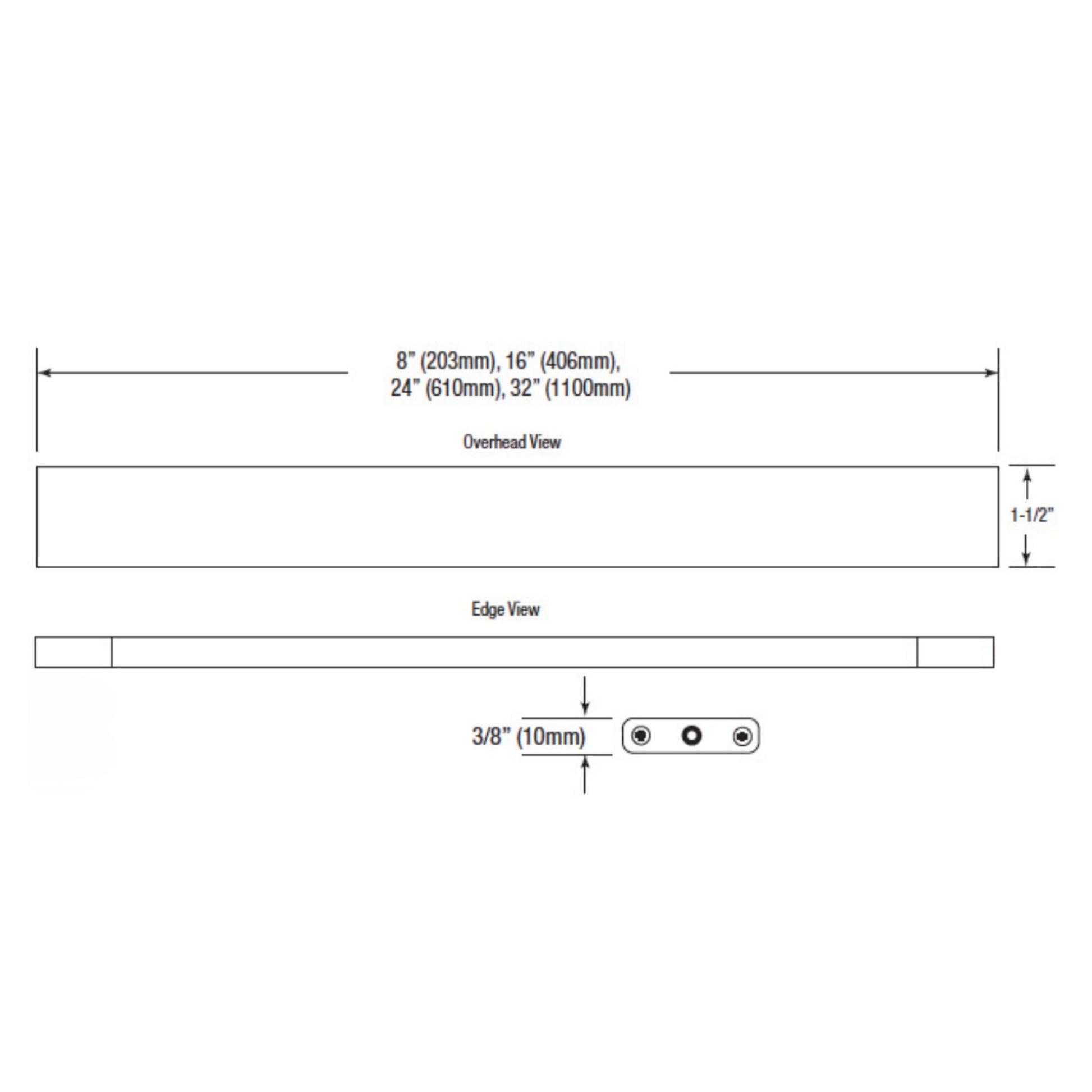

• Dimensions: 8 in. length, 1.5 in. width, and 0.4 in. height for a sleek profile.
• Voltage: Requires a 24VDC remote power supply.
• Wattage: Consumes 3 watts, ensuring energy efficiency.
• Lumens: Provides 150 lumens for effective illumination.
• Color Temperature: Fixed at 2700K for a warm, inviting glow.
• CRI: Features a 90+ CRI for accurate color rendering.
• Lifespan: Designed for long-lasting performance with a 5-year warranty.
• Edgelit Technology: Ensures even light distribution without diode imaging.
• Dimming: Compatible with dimmable power supplies for adjustable lighting.

Core Design & Profile

The SlimEdge light bar features a bronze finish and a slim profile of only 0.4 inches in height. It is designed for dry locations and offers a modern aesthetic with its edge-lit technology.

LED Illumination & Performance

Delivering 150 lumens at 3 watts, this fixture offers a 2700K color temperature with a high CRI of 90+, ensuring vibrant and true-to-life colors.

Power, Wiring & Linkability

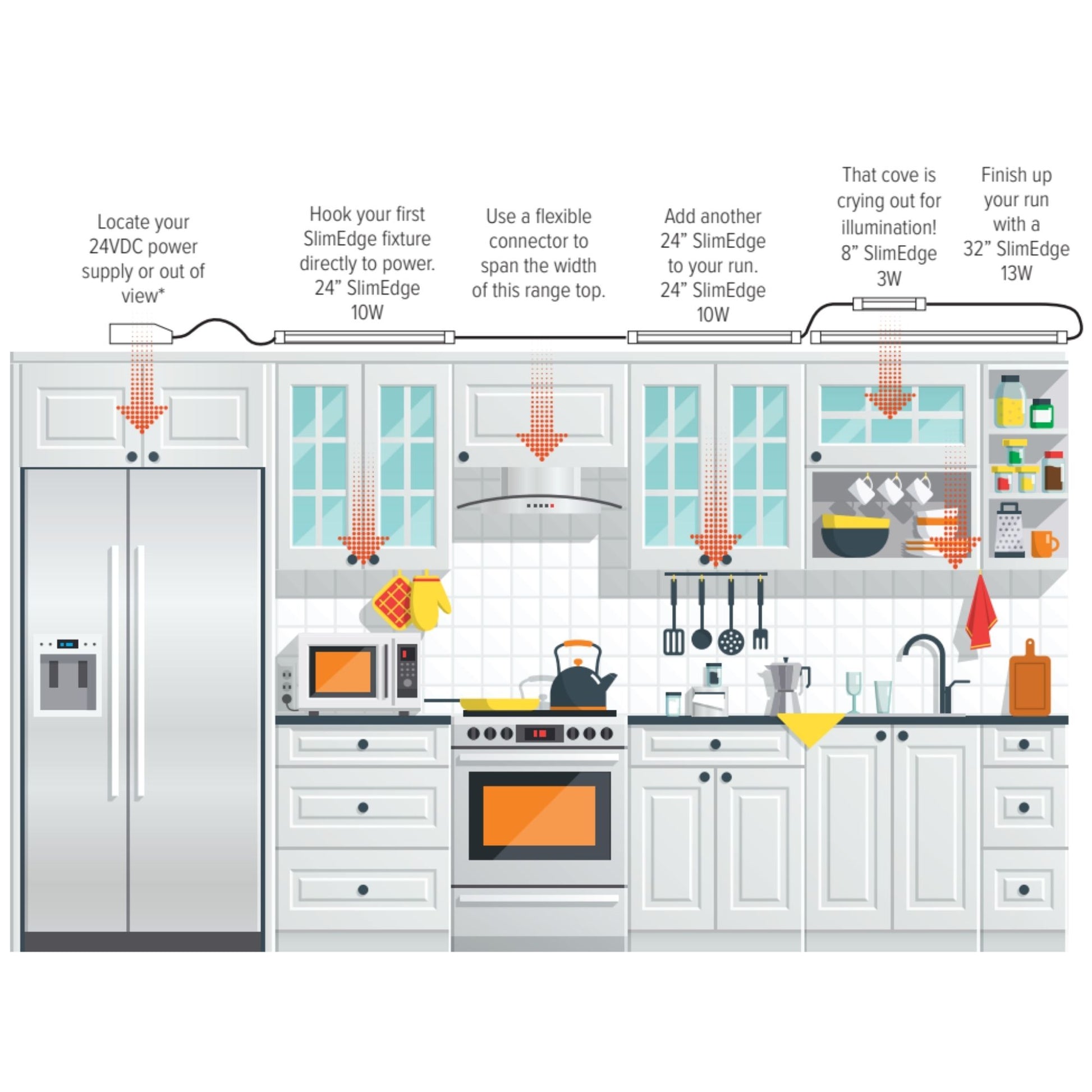

This fixture operates on 24VDC and requires a remote power supply. It includes modular connectors for linking multiple units, supporting a maximum run of 16 feet.

Where This Fixture Works Best

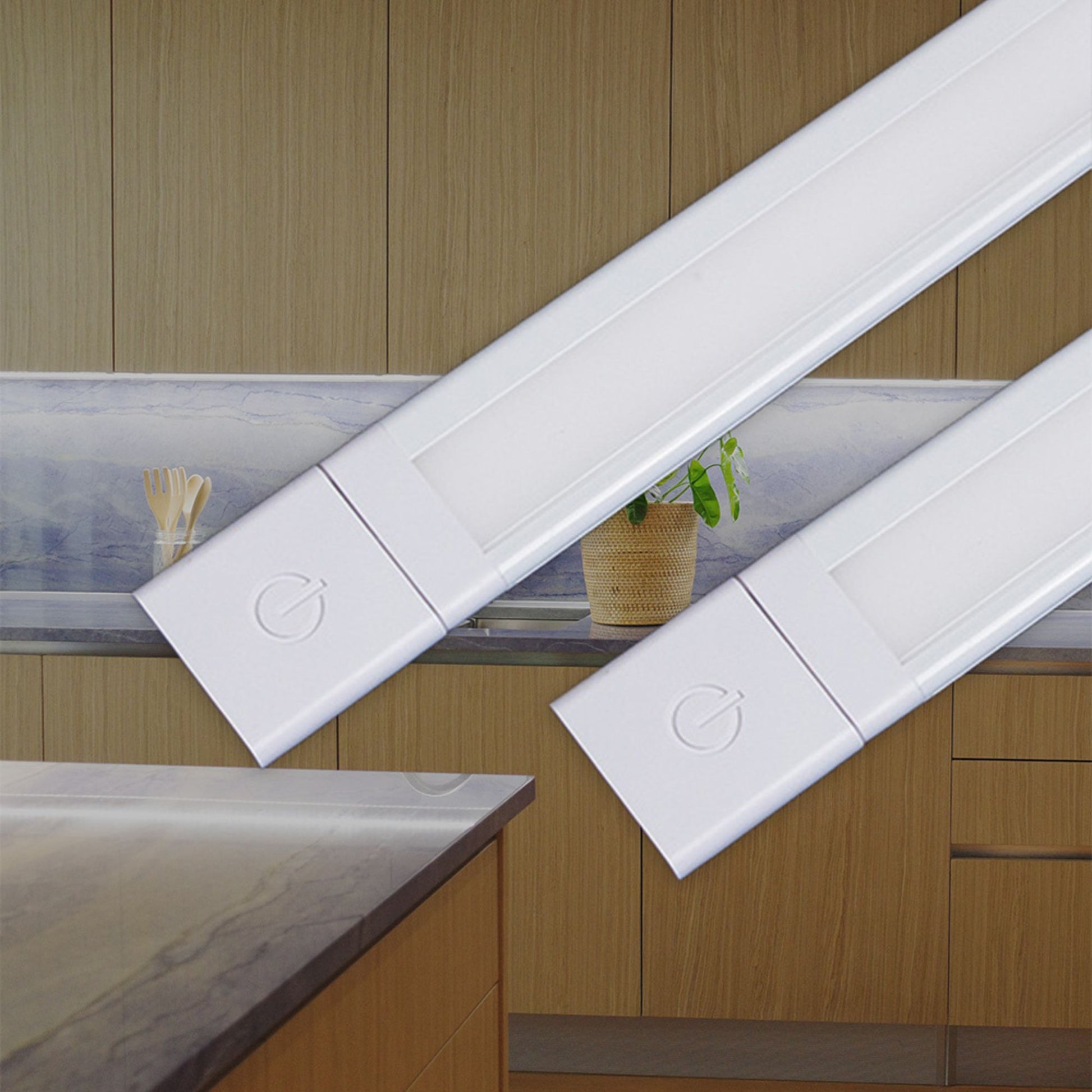

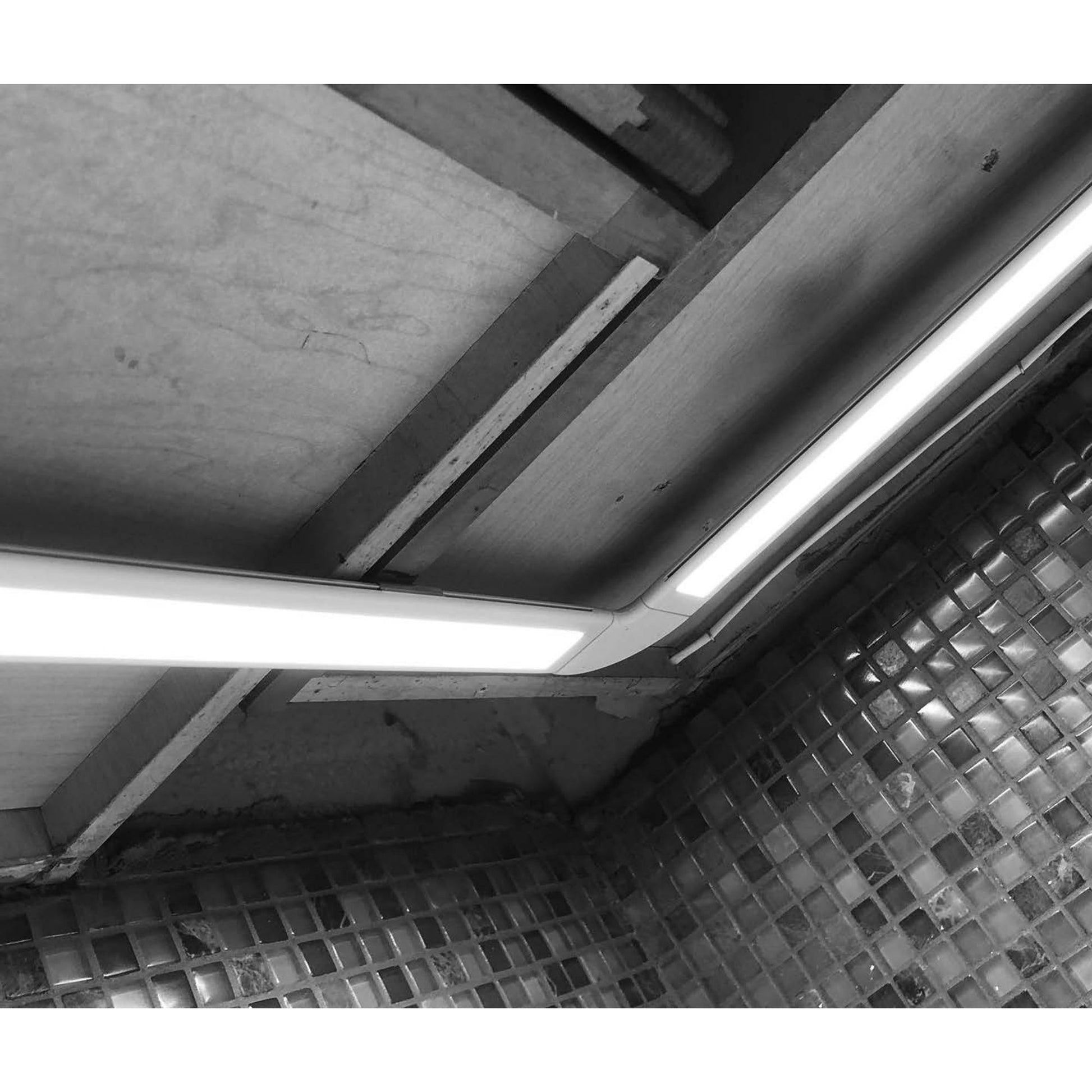

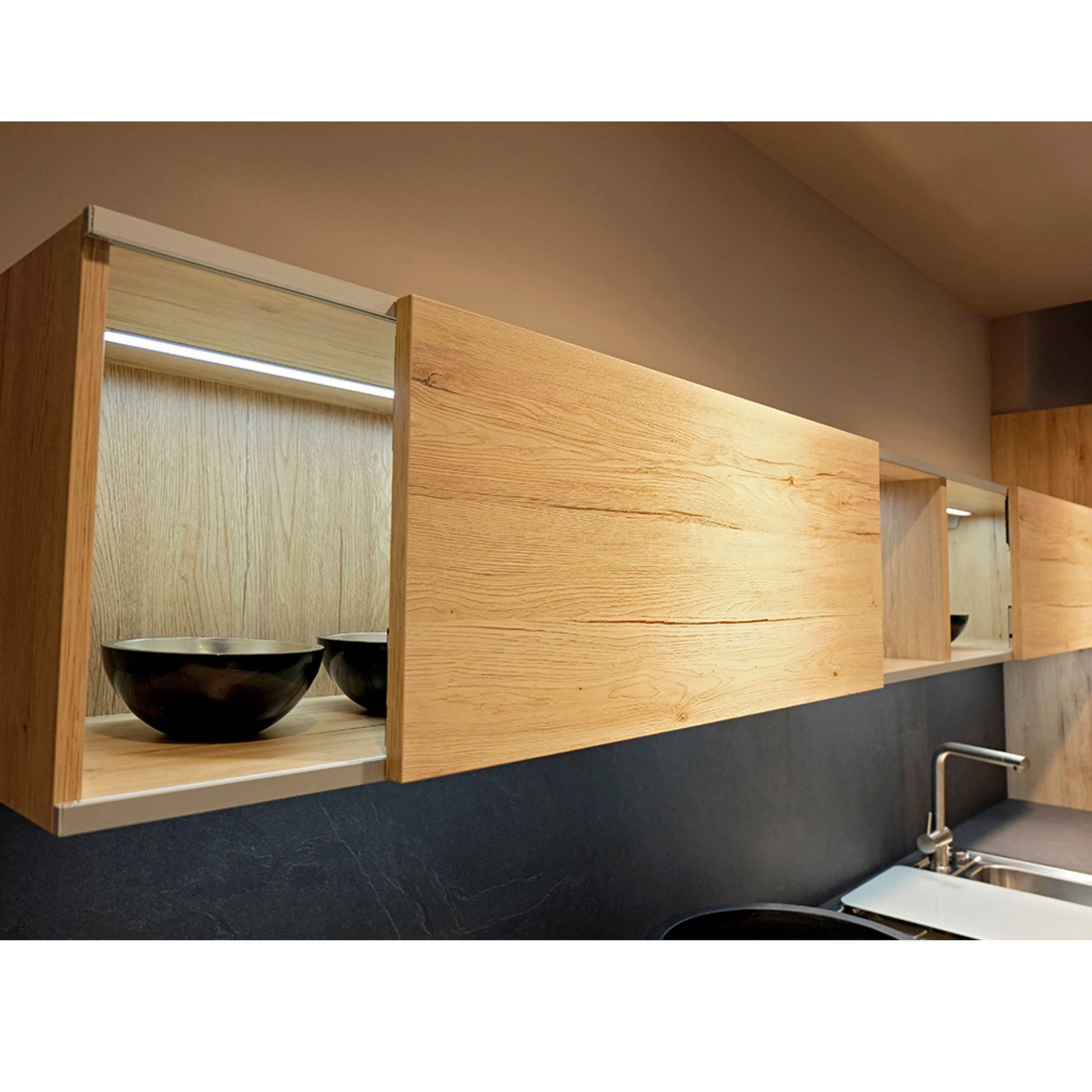

• Kitchen under cabinet lighting
• Office task lighting
• Retail display shelves
• Workshop benches
• Accent lighting in residential spaces

What's Included

• Two mounting clips with screws
• One lightbar to power supply connector (GMC-PS-24)

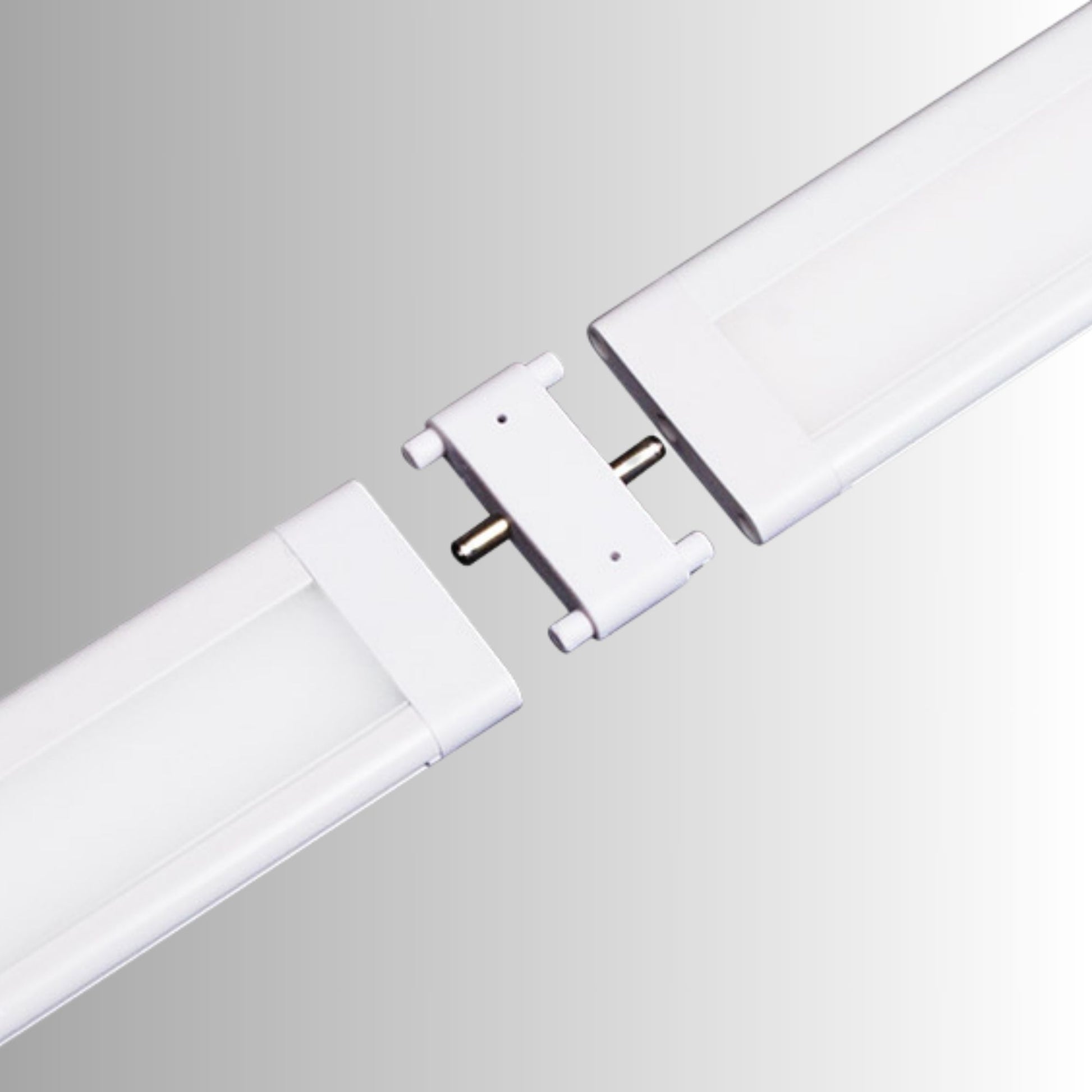

• One rigid bar to bar connector (EDGE-BB-1)
