GM Lighting SlimEdge Under Cabinet Light — White & Feature Summary

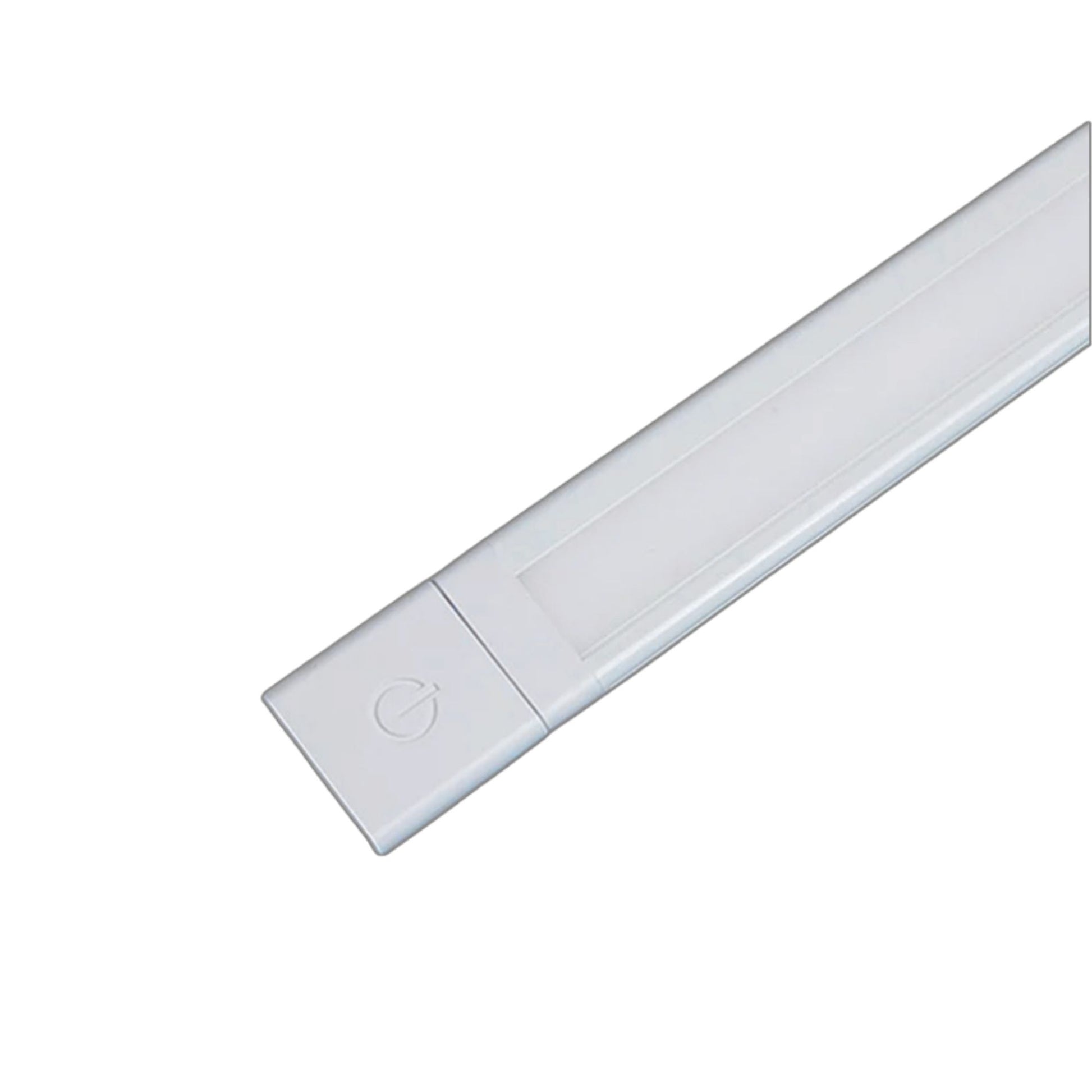

The GM Lighting EDGE-32-30-W is a white under cabinet light fixture, part of the SlimEdge series, designed for efficient task lighting. This 32-inch lightbar features a 24VDC input voltage and utilizes integrated LED technology to deliver 750 lumens at 3000K color temperature.

Key Features

• Length: 32 inches, providing extensive coverage for under cabinet applications.
• Wattage: Consumes 13 watts, ensuring energy efficiency.
• CRI: 90+, offering excellent color rendering for true-to-life colors.

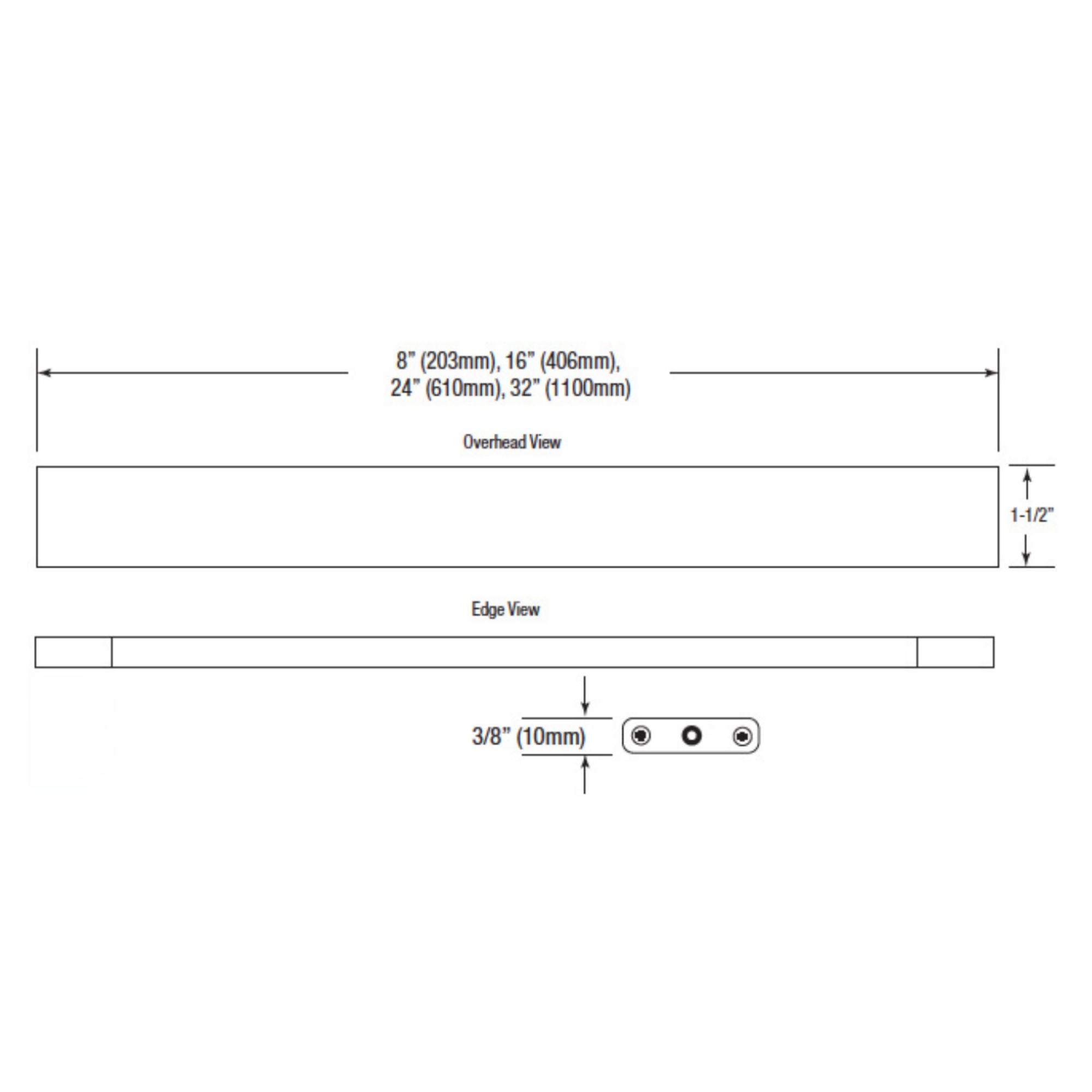

• Profile: Ultra-slim design with a height of only 0.4 inches.
• Mounting: Includes mounting clips and screws for secure installation.

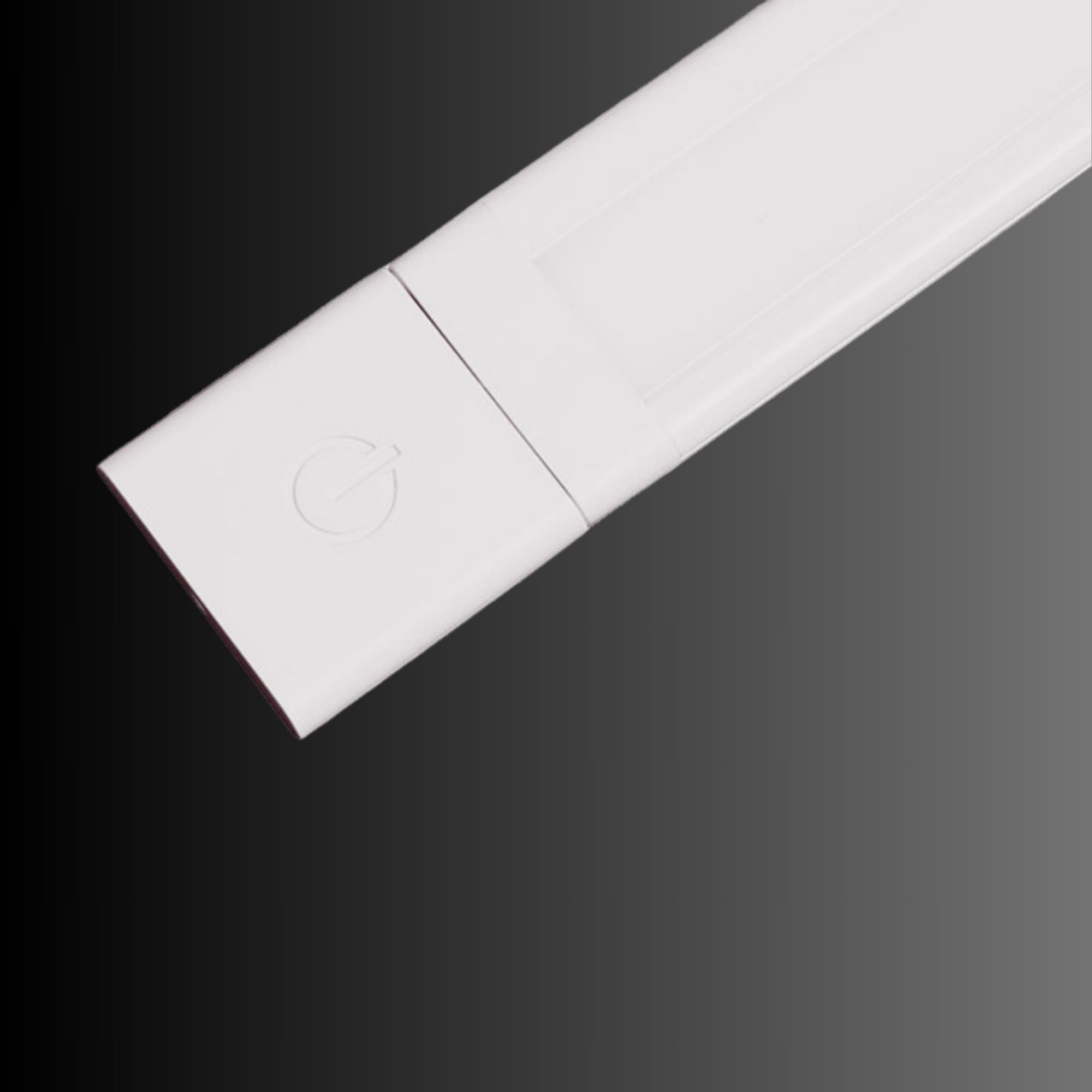

• Linkability: Can be linked up to 16 feet, or 10 feet with a touch dimmer or master switch.
• Technology: Edge-lit technology eliminates diode imaging on polished surfaces.
• Warranty: Backed by a 5-year warranty when used with GM power supply.

Core Design & Profile

The SlimEdge lightbar features a sleek, low-profile design with a white finish, making it suitable for various interior styles. It is dry-rated, ensuring safe installation in non-damp locations.

LED Illumination & Performance

With a light output of 750 lumens and a power consumption of 13 watts, this fixture offers efficient illumination. The 3000K color temperature provides a warm, inviting light, suitable for task lighting.

Power, Wiring & Linkability

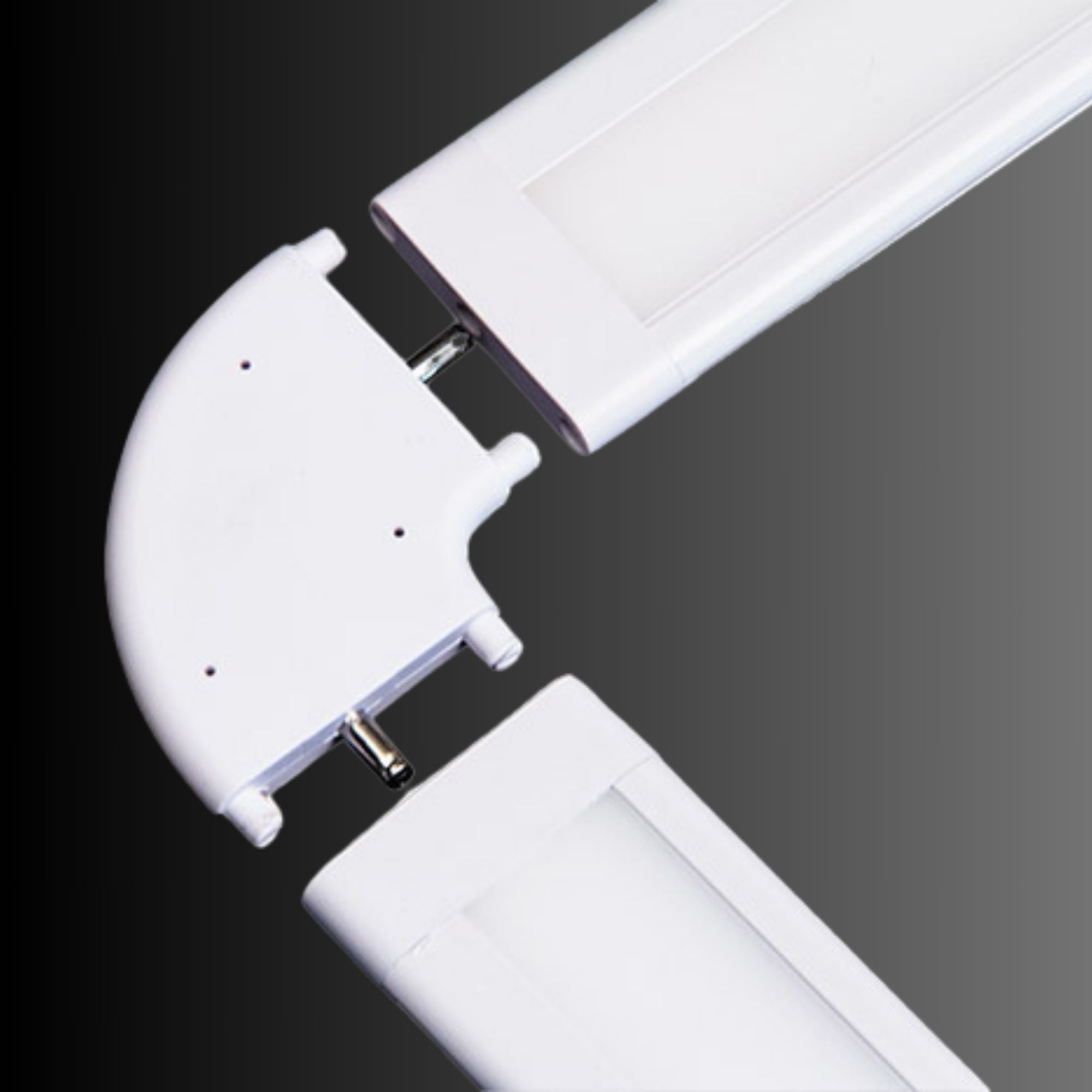

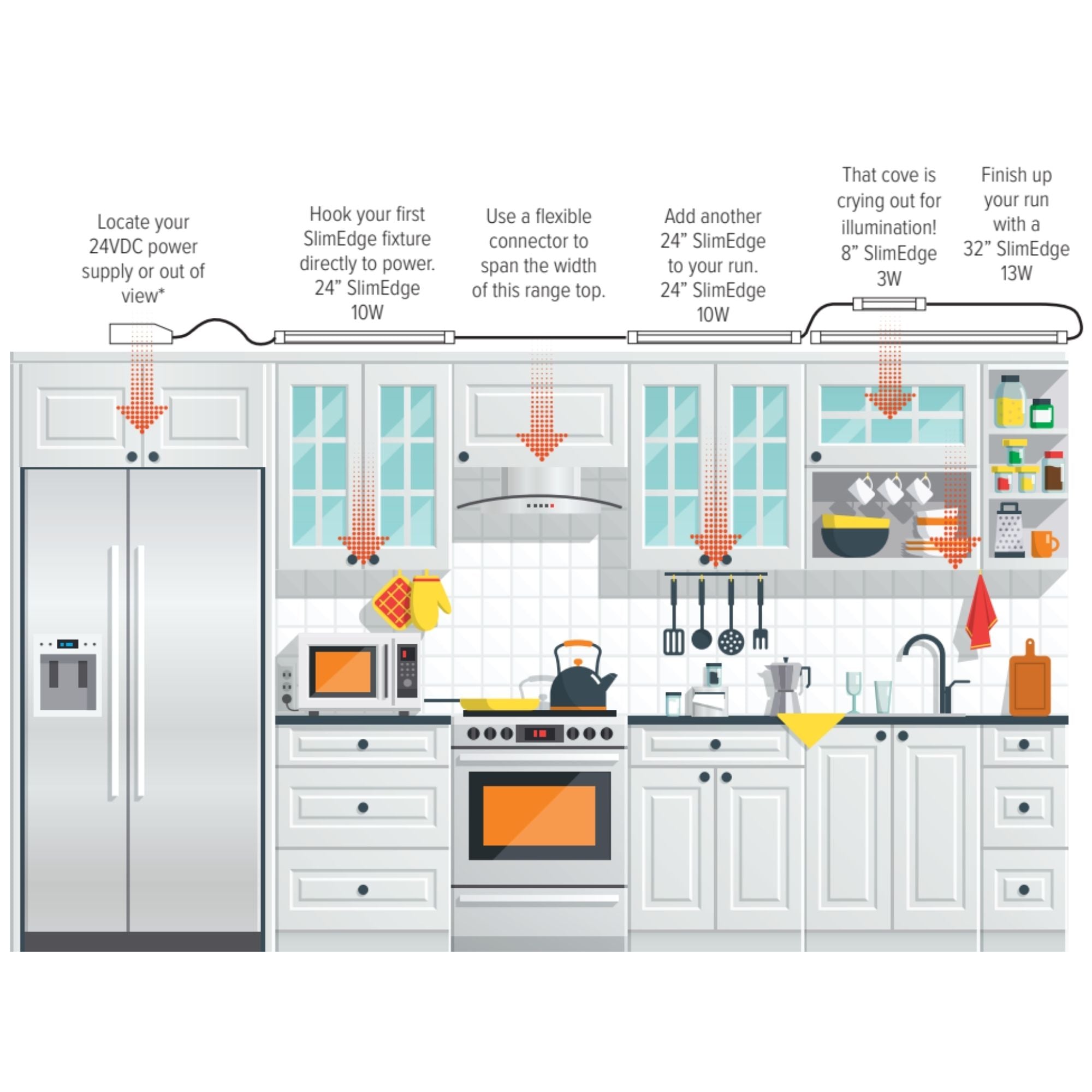

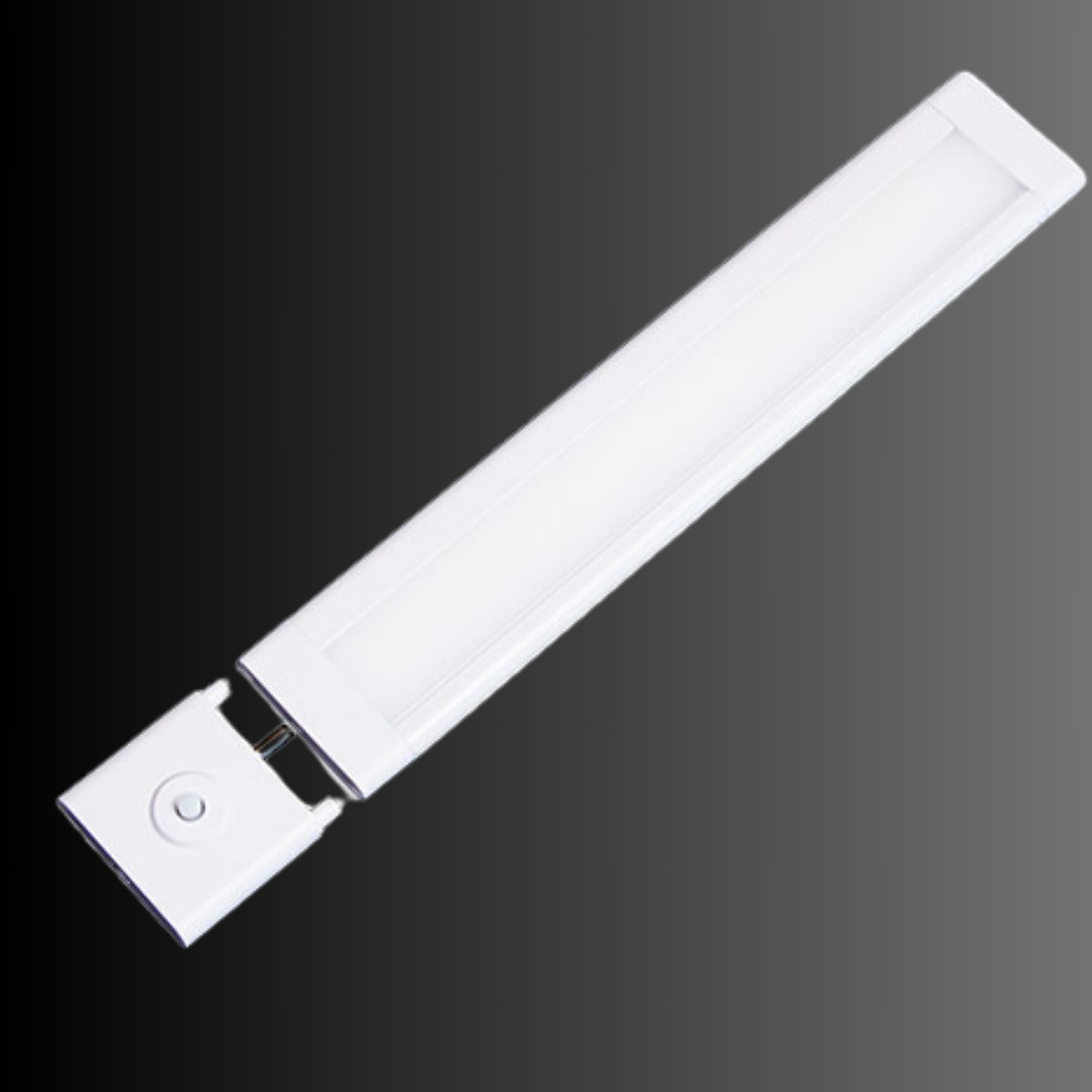

This fixture operates on 24VDC and requires a remote power supply. It can be linked using modular connectors, supporting a maximum run of 16 feet, or 10 feet with a touch dimmer or master switch.

Where This Fixture Works Best

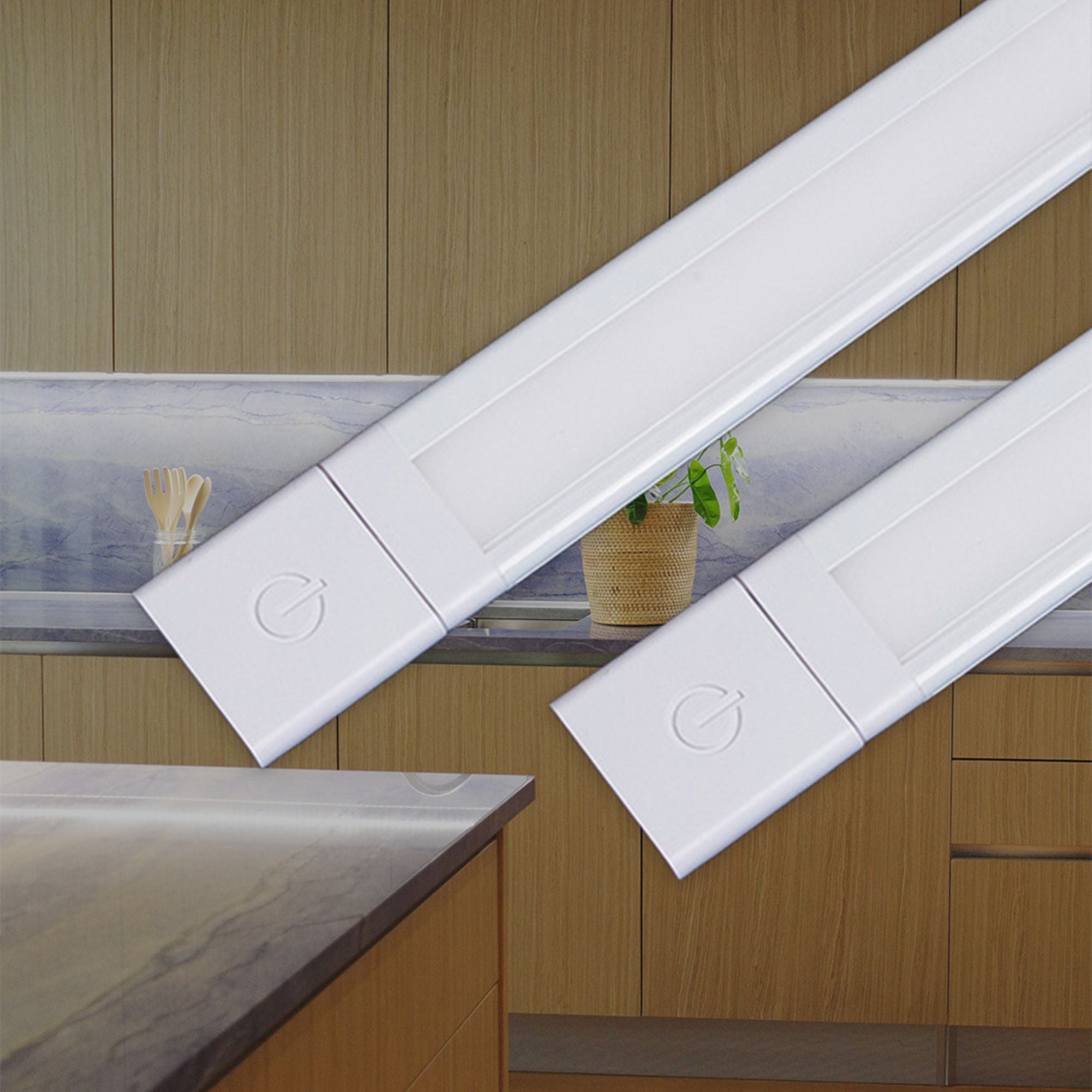

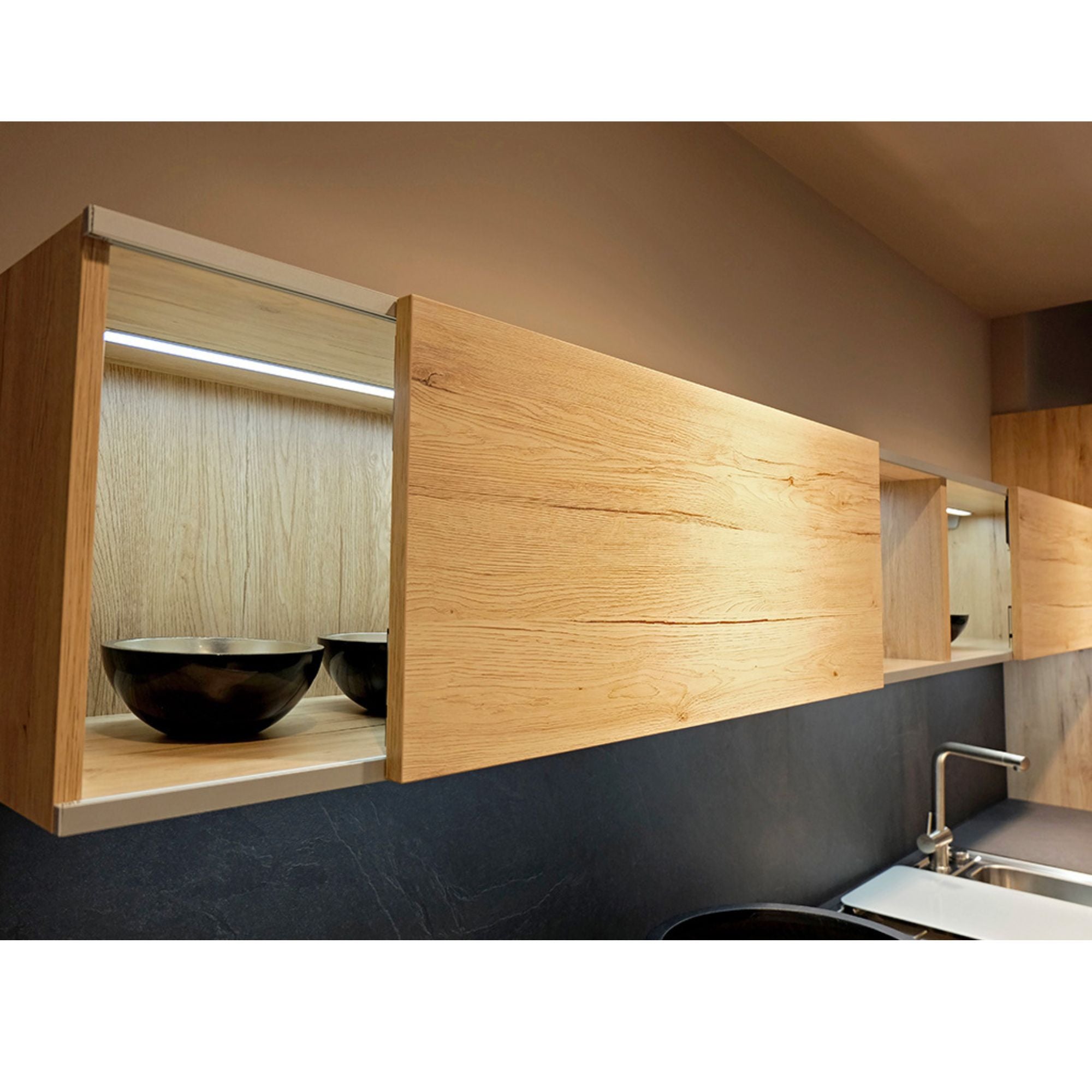

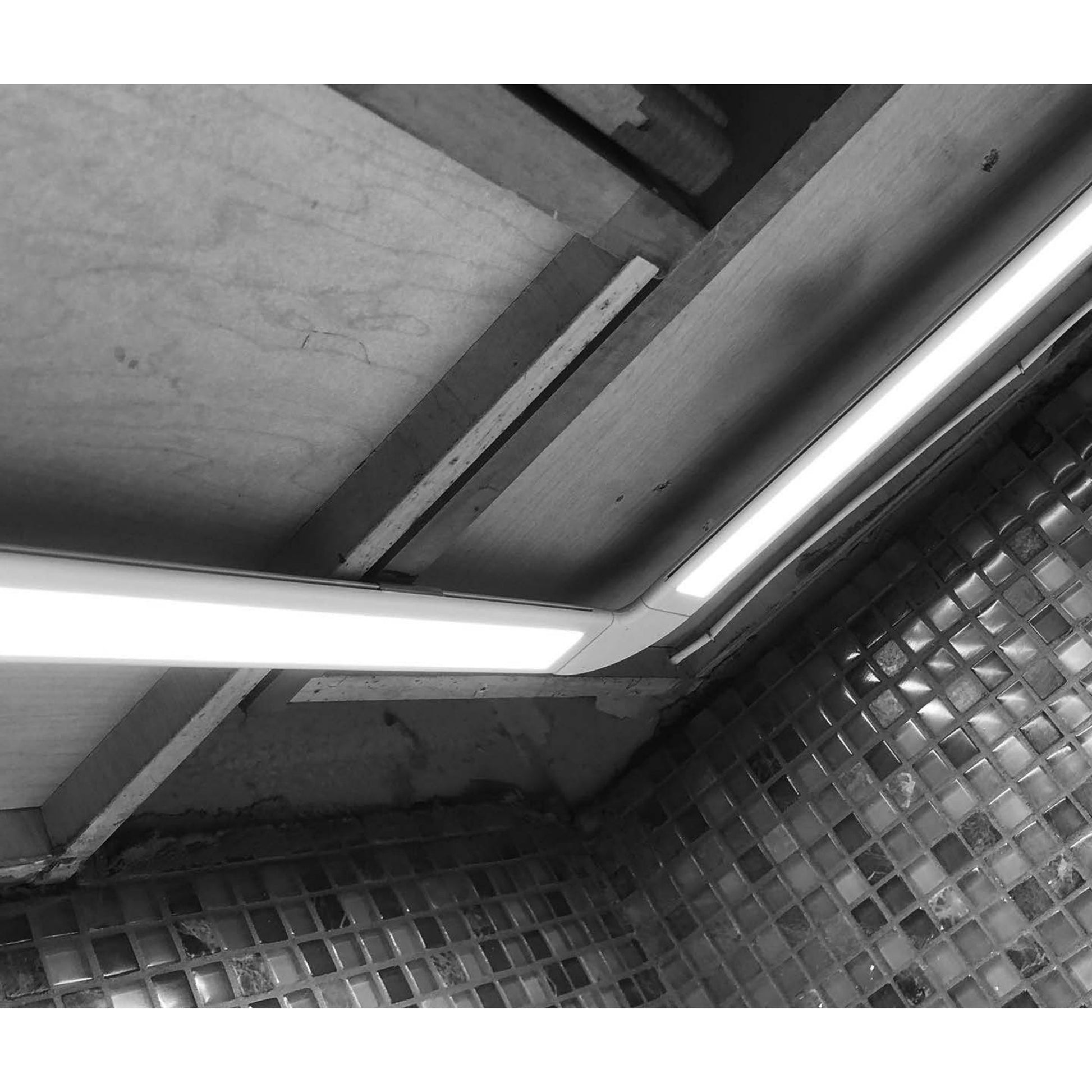

• Kitchen under cabinet lighting
• Office task lighting
• Retail display illumination
• Workshop task areas
• Residential shelving lighting

What's Included

• Two mounting clips with screws
• One lightbar to power supply connector (GMC-PS-24)

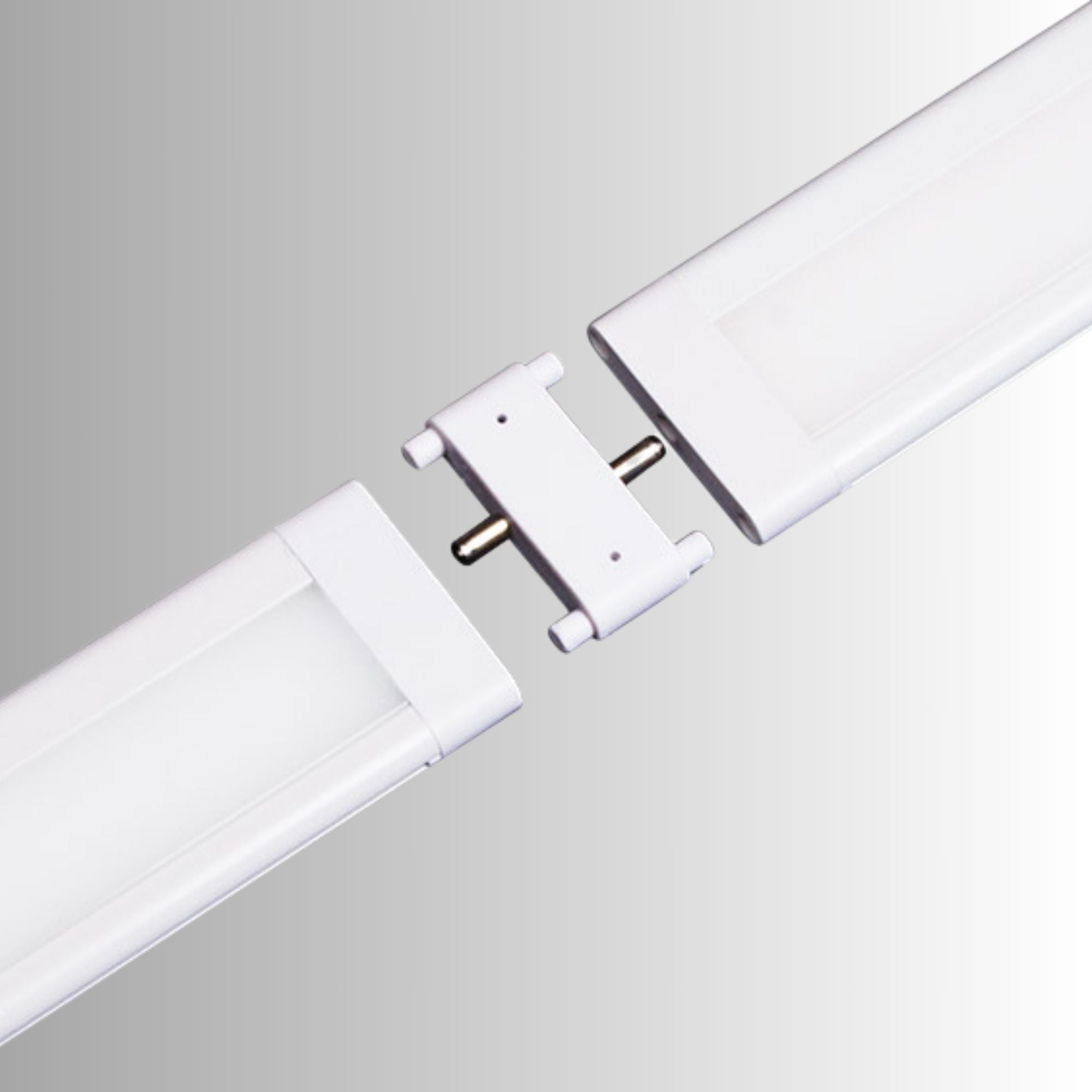

• One rigid bar to bar connector (EDGE-BB-1)
