GM Lighting SlimEdge™ 32" Modular Lightbar | 24VDC | 13W | 750 Lumens | 2700K | White
GM Lighting SlimEdge™ 32" Modular Lightbar | 24VDC | 13W | 750 Lumens | 2700K | White
In stock
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Vibrant Color Accuracy: Delivers 750 lumens at a high 90+ CRI, ensuring colors look natural and rich under its 2700K warm glow.
- Ultra-Slim Profile: At only 0.38" high and 1.5" wide, this fixture is thin enough to remain completely hidden under almost any cabinet.
- Edge-Lit Technology: Provides perfectly uniform light distribution, eliminating the "dots" or hotspots common in standard LED strips.
- Linkable Design: Easily connect multiple units for a seamless lighting installation
- Efficient Performance: Consumes only 13 watts of power while providing bright, high-quality task lighting for kitchens or workspaces.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

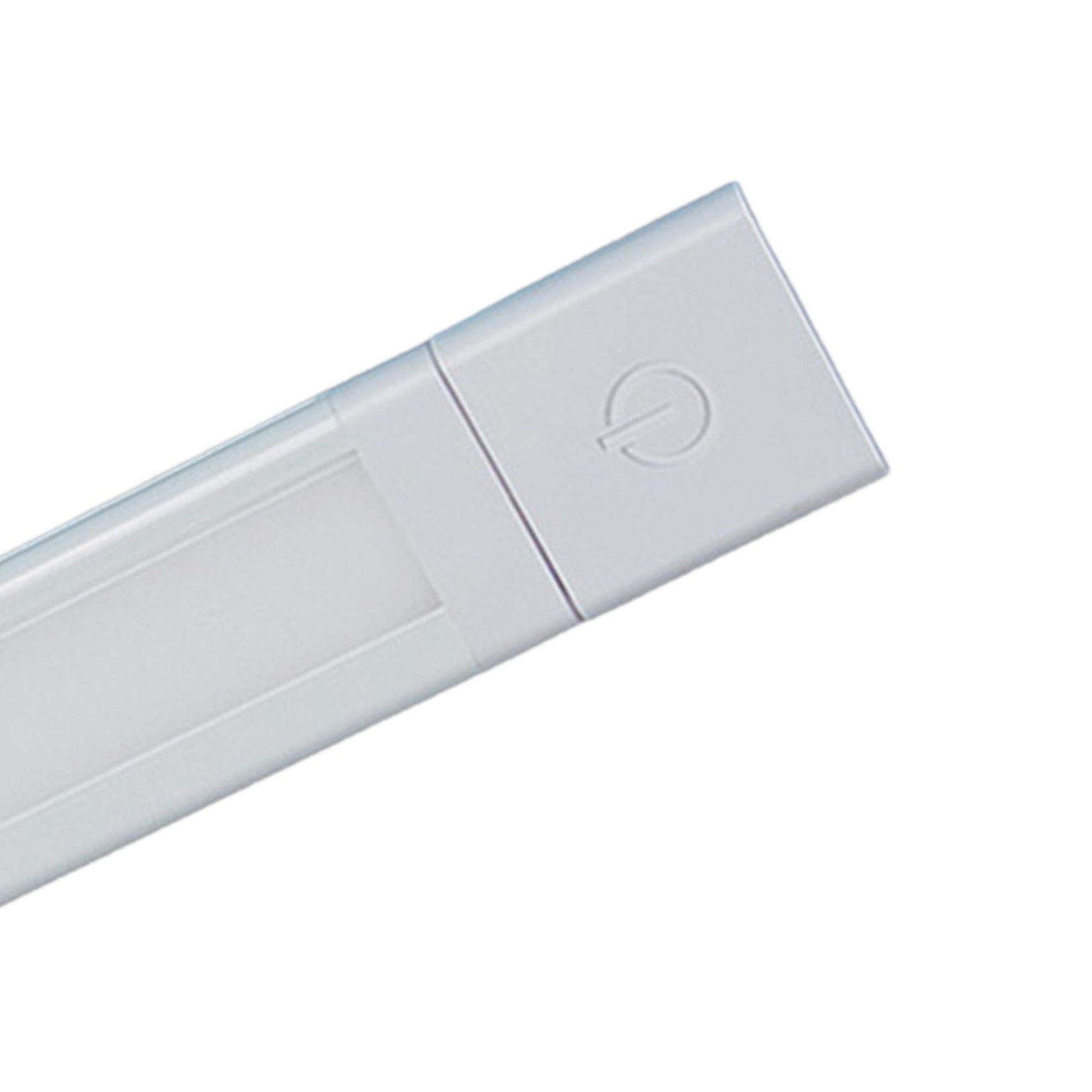

GM Lighting SlimEdge™ 32" Modular Lightbar
24VDC | 13W | 750 Lumens | 2700K Warm White
Model: EDGE-32-27-W
The GM Lighting SlimEdge™ represents the next evolution in architectural undercabinet lighting. At only 3/8" thick, this ultra-slim lightbar utilizes advanced Edgelite technology to disperse light sideways through a lens rather than downward. This creates a perfectly uniform, "diode-free" glow that eliminates the "polka-dot" reflections commonly seen on polished granite or marble countertops.
Top Performance Benefits
- Edge-Lit Optics: High-tech diffusion ensures even luminance with no visible hotspots on reflective surfaces.
- Superior Color Accuracy: 90+ CRI ensures that food, finishes, and decor appear in their truest, most vibrant colors.

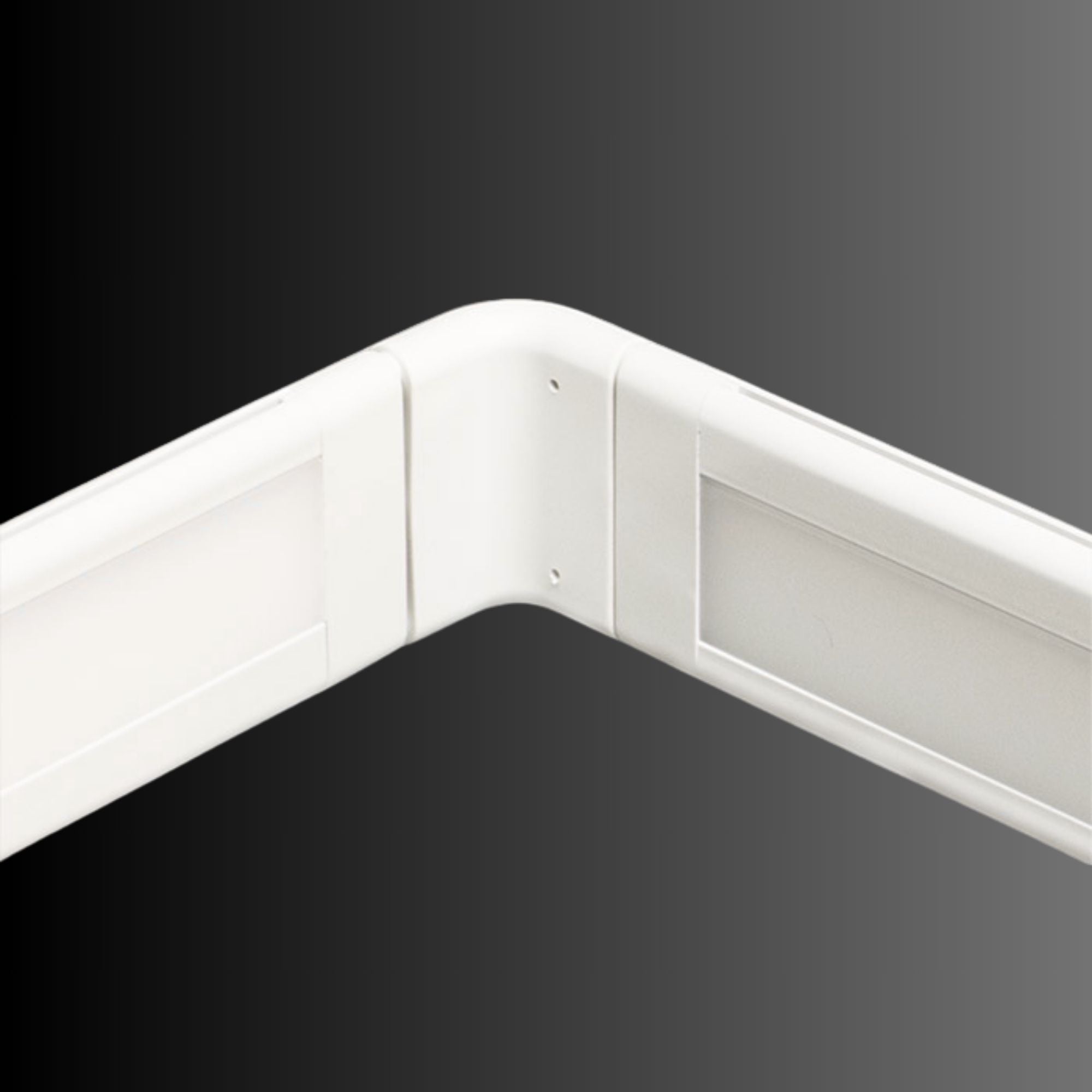

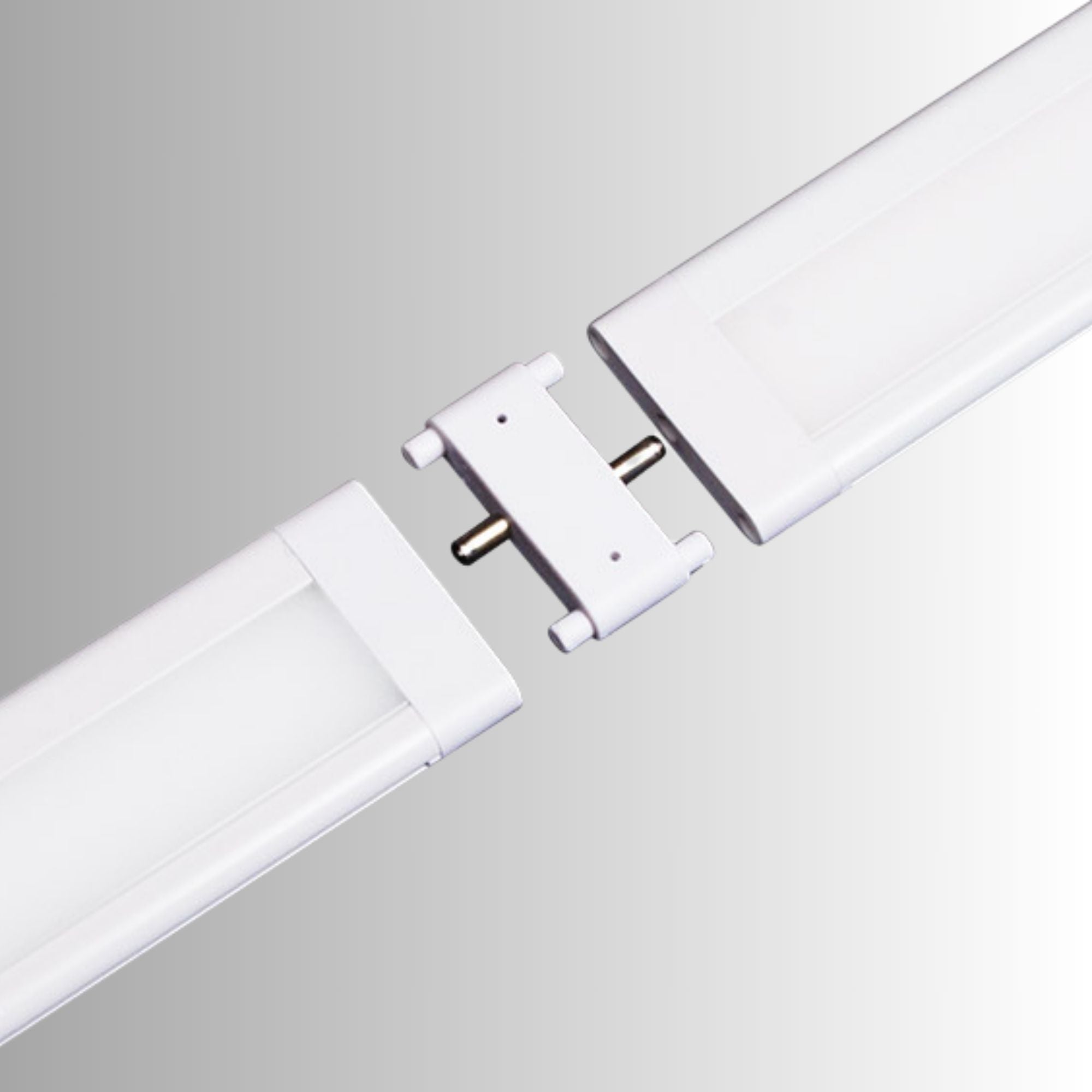

- Modular "Snap" Connectivity: Rigid bars join securely together with modular connectors for seamless, professional-grade linear runs.
- Ultra-Low Profile: The 3/8" height hides easily under cabinets or inside shelving without the need for deep recessed channels.
Technical Specifications

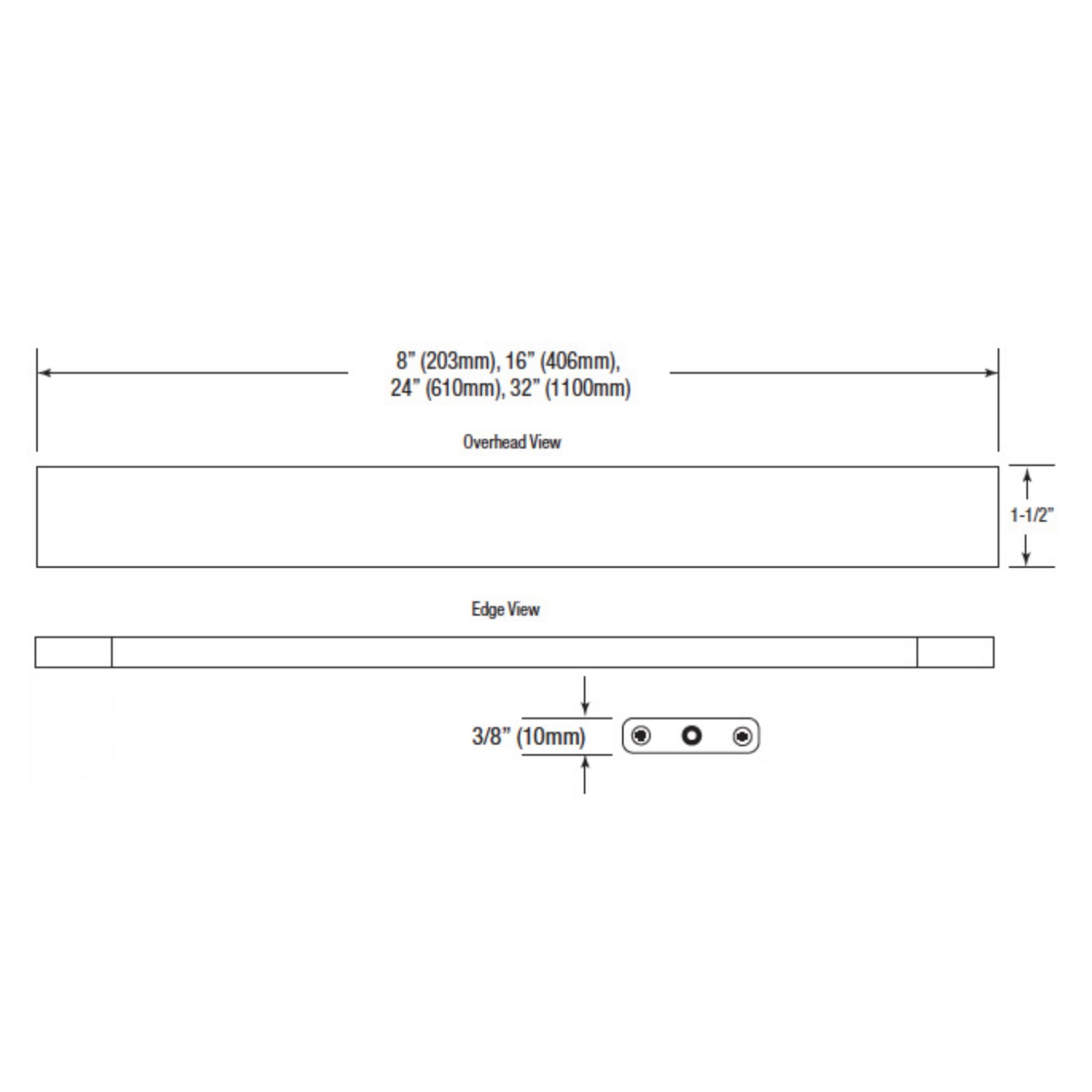

- Length: 32" (1100mm)
- Wattage: 13W / bar
- Lumens: 750 / bar
- Color Temperature: 2700K (Warm White)
- Finish: White with white connectors
- Voltage: 24VDC (Remote Power Supply Required)
- Max Run: 16' (with Touch Dimmer) / 10' (with Master Switch)
- Certifications: UL Listed, Class 2, Title 24 Compliant
- Warranty: 5 years when used with GM power supply
Versatile Control & Installation

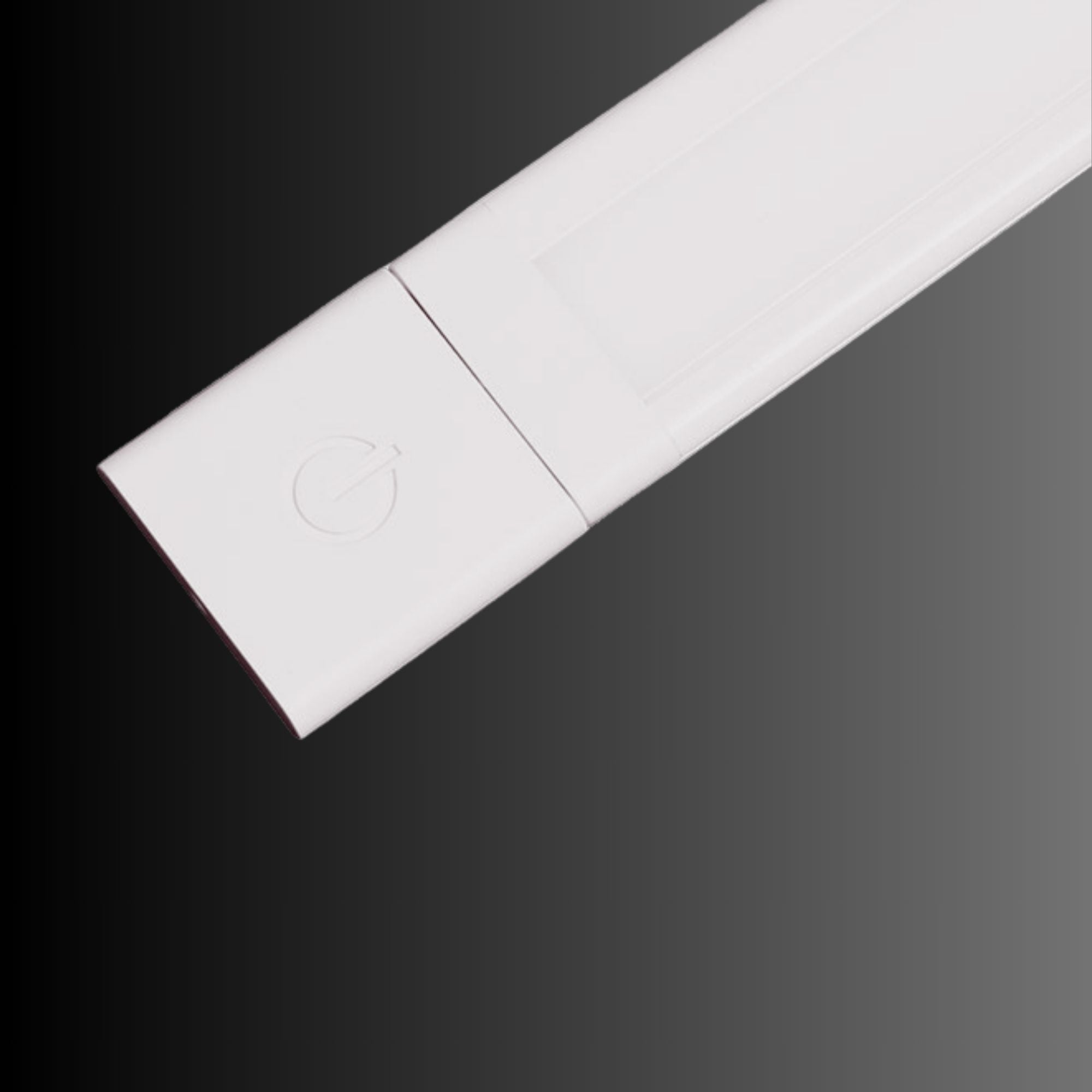

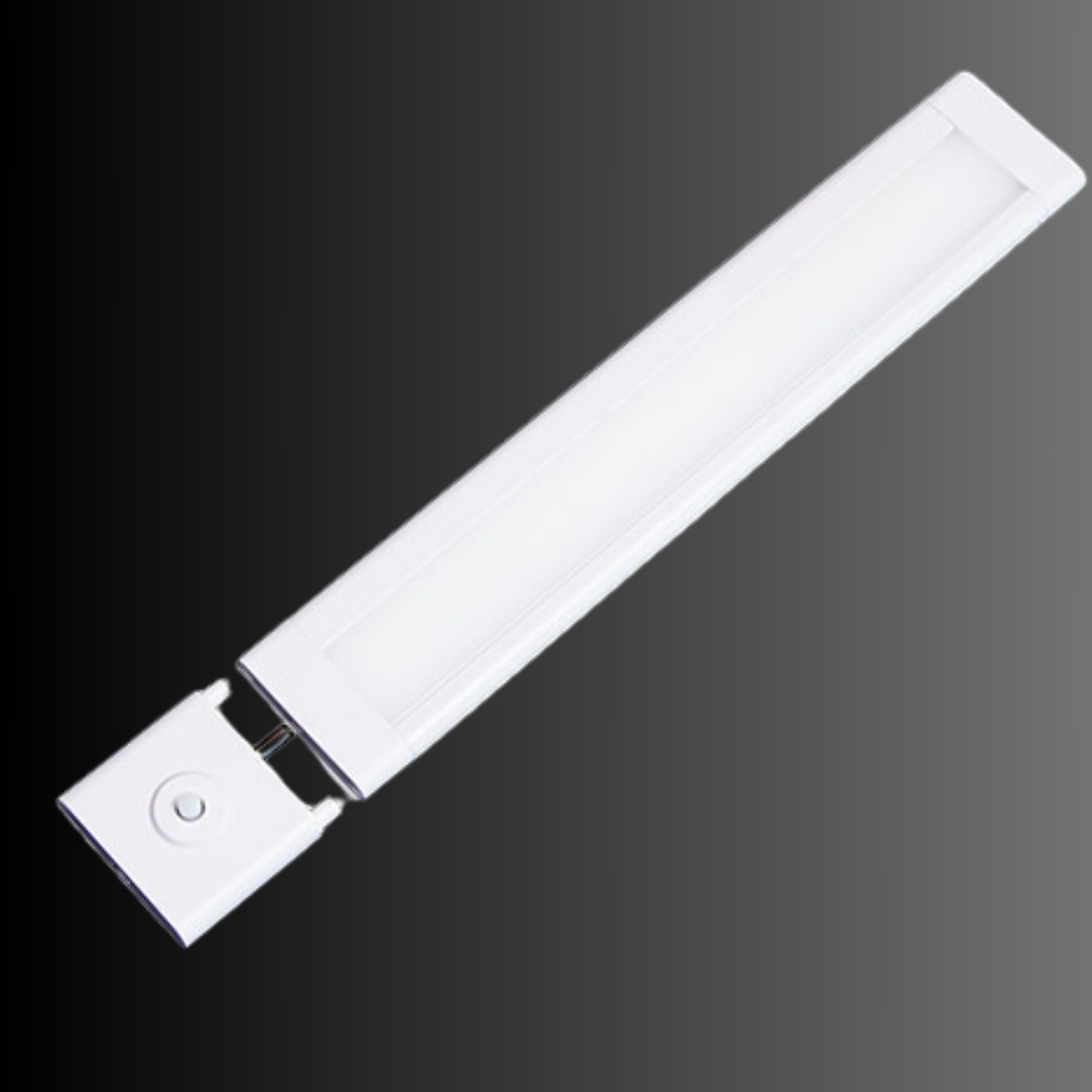

The SlimEdge system is highly adaptable. It can be dimmed using a Touch Dimmer (TD) for localized control or a Master Switch (MS) for larger installations.
- Title 24 Compliance: Achieve JA8 compliance by pairing this fixture with GM Lighting's LD-ED-U series or other approved Title 24 power supplies.
- Mounting: Includes 0-90° adjustable clips for precise aiming of the light beam.
Applications

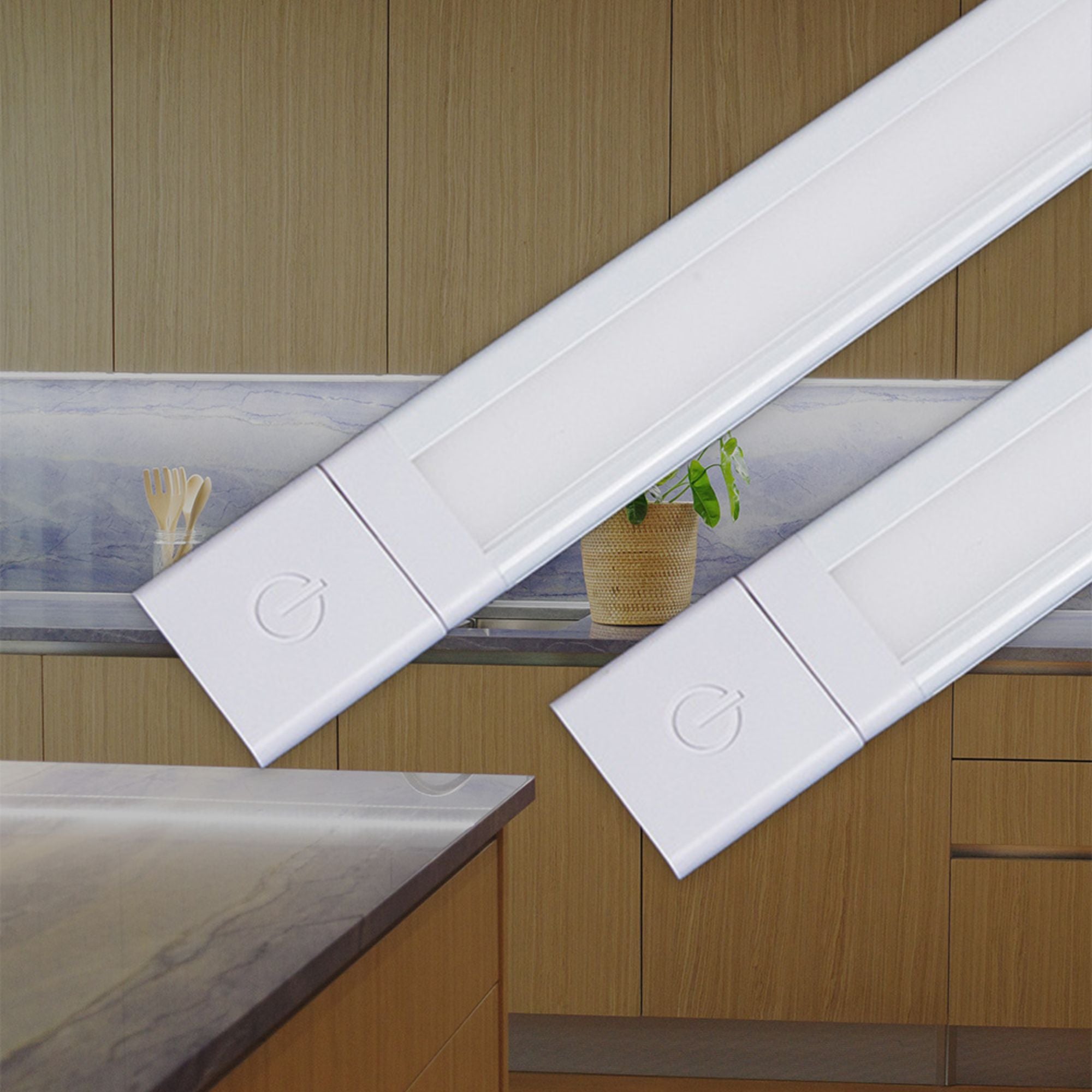

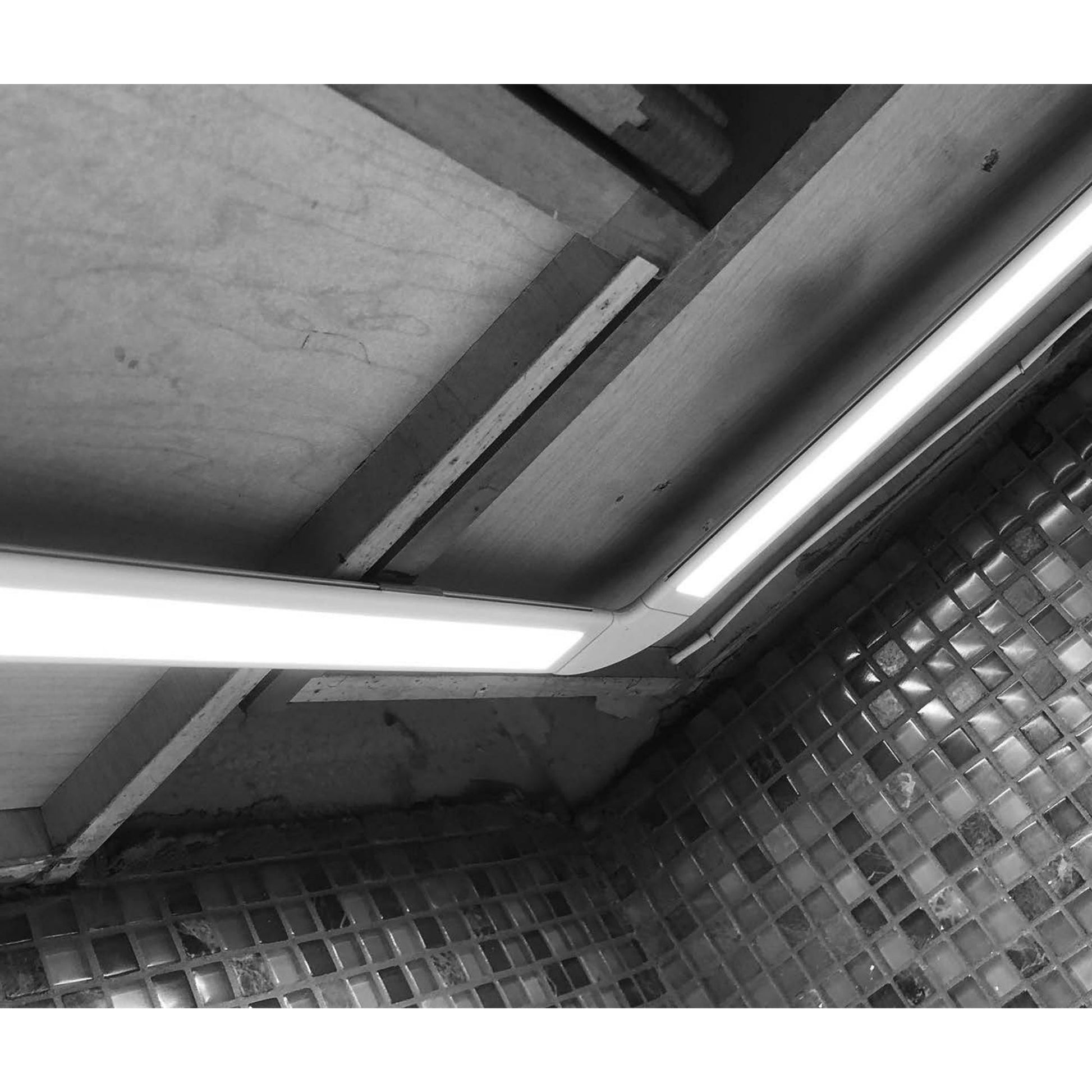

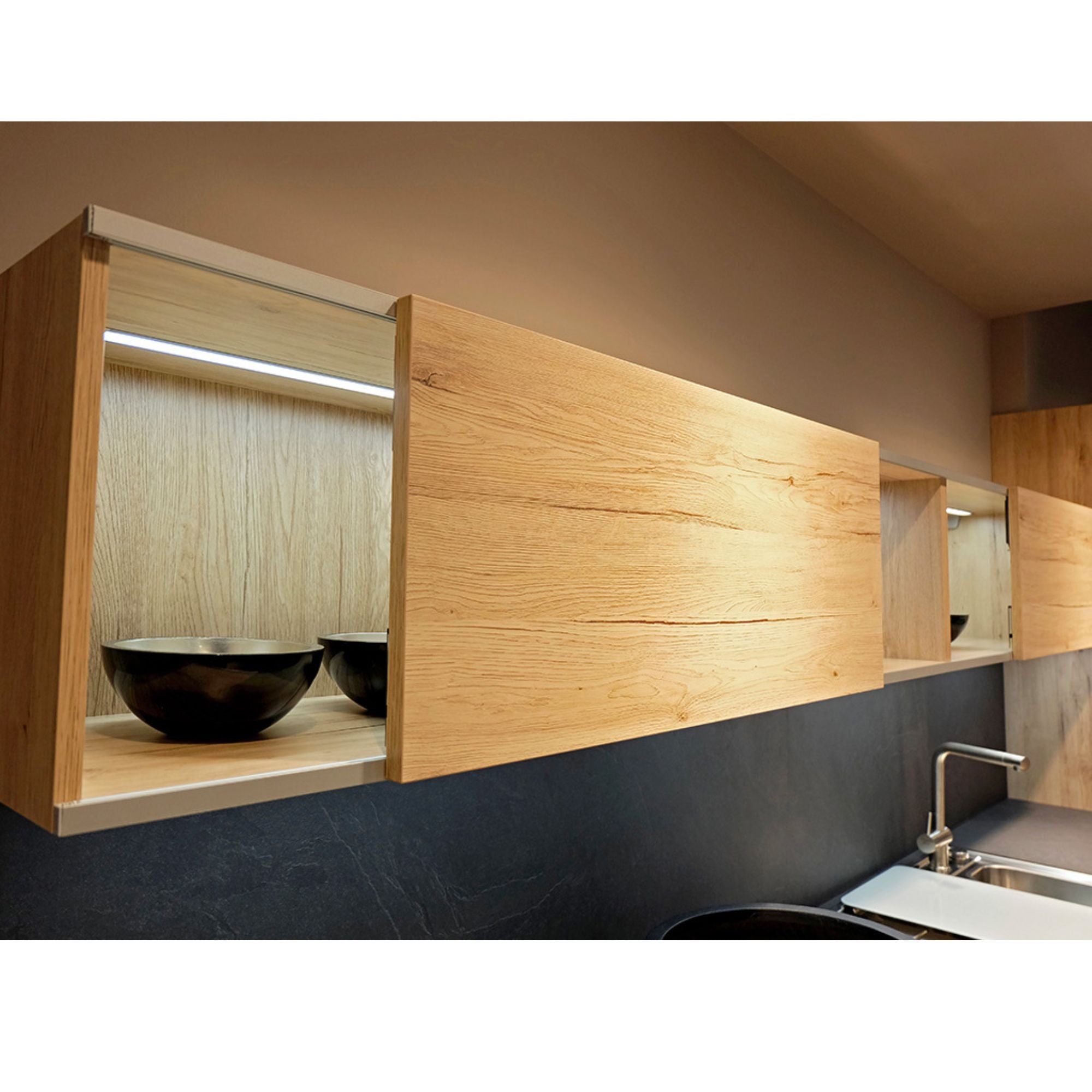

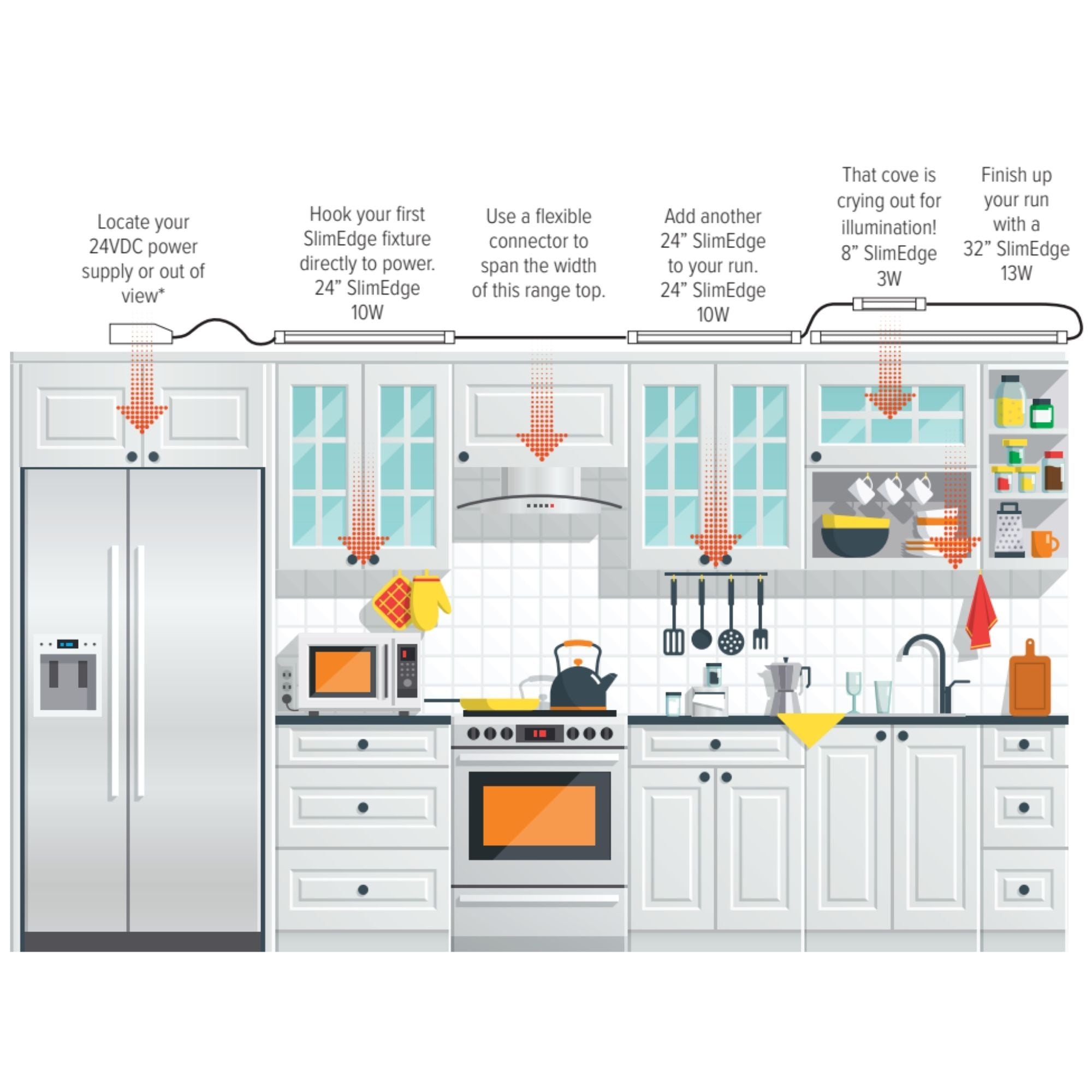

Ideal for undercabinet lighting, architectural linear lighting installations, display case illumination, cove lighting, and premium residential or commercial applications requiring diode-free imaging on reflective surfaces. The modular design allows for seamless runs up to 16 feet, making it perfect for kitchen counters, workspaces, retail displays, and hospitality environments.
What's Included
- (1) EDGE-32-27-W 32" SlimEdge lightbar
- (2) Mounting clips with screws
- (1) Lightbar to power supply connector (GMC-PS-24)
- (1) Rigid bar to bar connector (EDGE-BB-1)
Note: 24VDC remote power supply required (sold separately). Use non-dimmable power supply with touch dimmer.
