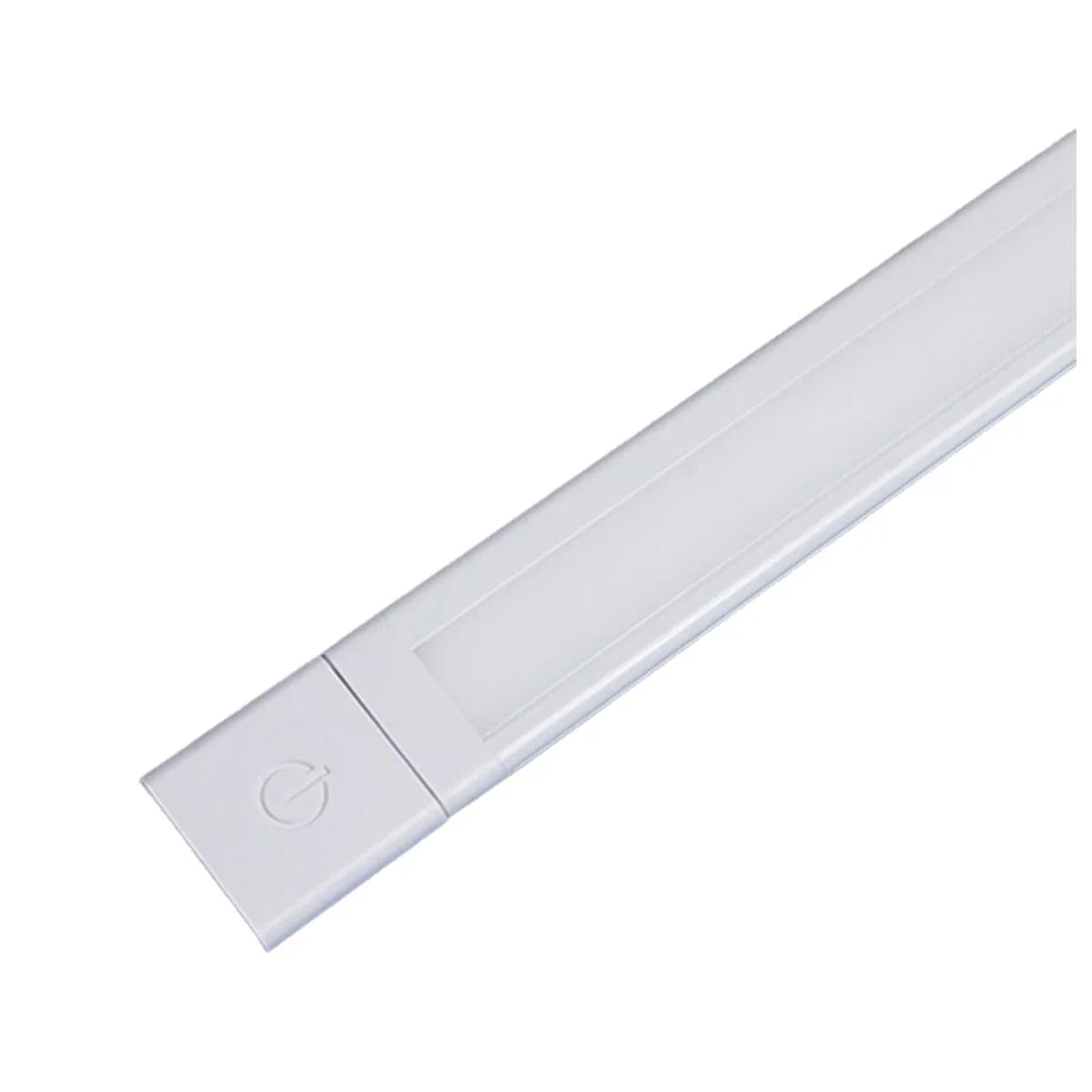

GM Lighting SlimEdge™ 24VDC Modular Architectural Lightbar
The Next Evolution in Undercabinet Lighting
The GM Lighting SlimEdge™ represents the next evolution in architectural undercabinet lighting. At only 3/8" thick, this ultra-slim lightbar utilizes advanced Edgelite technology to disperse light sideways through a lens rather than downward. This creates a perfectly uniform, "diode-free" glow that eliminates the "polka-dot" reflections commonly seen on polished granite or marble countertops.
Top Performance Benefits
- Edge-Lit Optics: High-tech diffusion ensures even luminance with no visible hotspots on reflective surfaces.
- Superior Color Accuracy: 90+ CRI ensures that food, finishes, and decor appear in their truest, most vibrant colors.
- Modular "Snap" Connectivity: Rigid bars join securely together with modular connectors for seamless, professional-grade linear runs.
- Ultra-Low Profile: The 3/8" height hides easily under cabinets or inside shelving without the need for deep recessed channels.
- Flexible Configuration: Available in four lengths (8", 16", 24", 32"), two color temperatures (2700K, 3000K), and two finishes (White, Bronze).
Available Configurations
Four Lengths: 8" (150 lumens, 3W) | 16" (325 lumens, 6W) | 24" (550 lumens, 10W) | 32" (750 lumens, 13W)
Two Color Temperatures: 2700K | 3000K

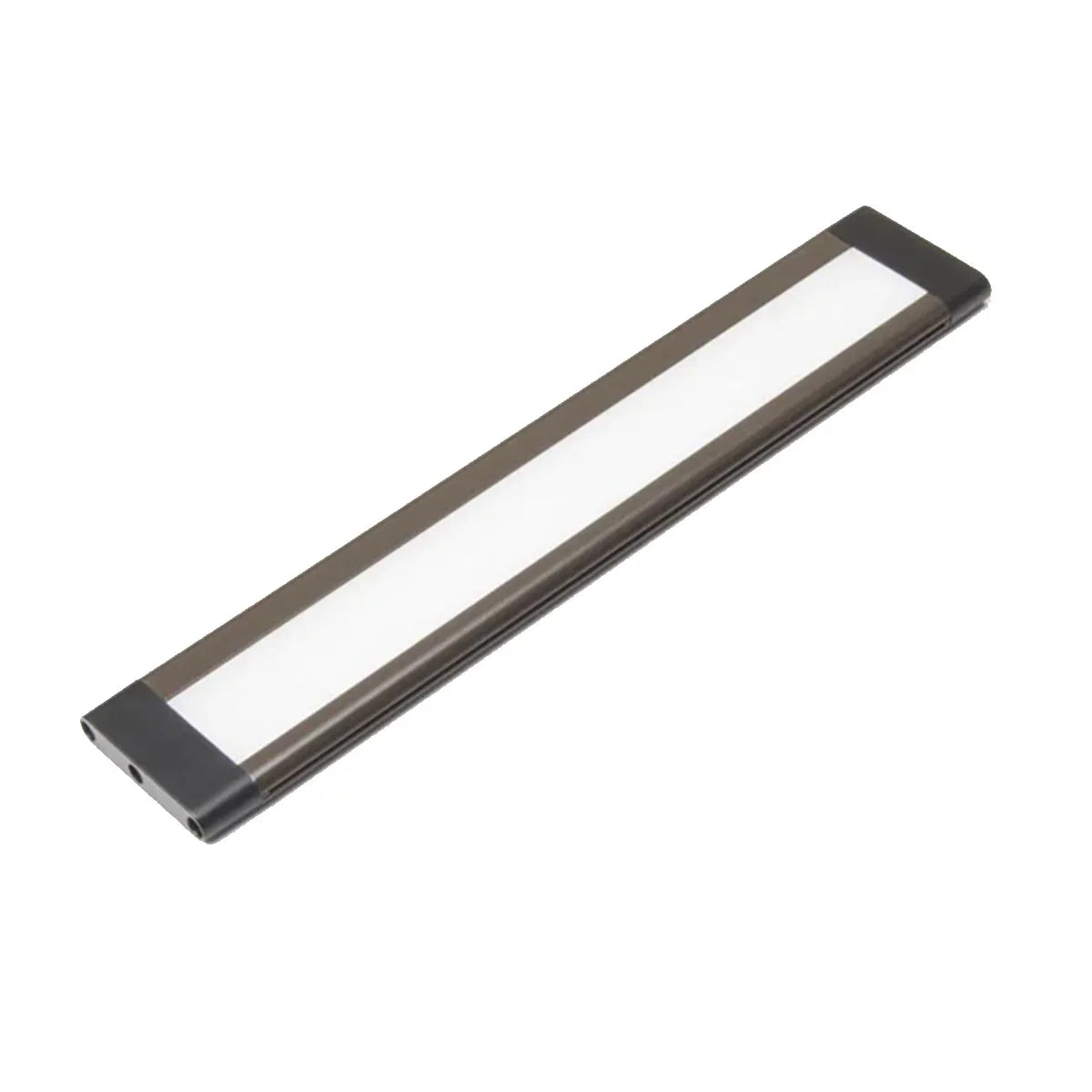

Two Finishes: White with white connectors | Bronze with black connectors
Technical Specifications
- Voltage: 24VDC (Remote Power Supply Required)
- Color Temperatures: 2700K (Warm White) or 3000K
- CRI: 90+
- Finishes: White with white connectors or Bronze with black connectors
- Profile: Ultra-slim 3/8" thick
- Max Run: 16' (with Touch Dimmer) / 10' (with Master Switch)
- Operating Temperature: -4°F to 104°F
- Certifications: UL Listed, Class 2, Title 24 Compliant
- Warranty: 5 years when used with GM power supply
Versatile Control & Installation
The SlimEdge system is highly adaptable. It can be dimmed using a Touch Dimmer (TD) for localized control or a Master Switch (MS) for larger installations.
- Title 24 Compliance: Achieve JA8 compliance by pairing this fixture with GM Lighting's LD-ED-U series or other approved Title 24 power supplies.
- Mounting: Includes 0-90° adjustable clips for precise aiming of the light beam.
- Modular Design: Units join securely together with modular connectors for seamless runs up to 16 feet.
Applications

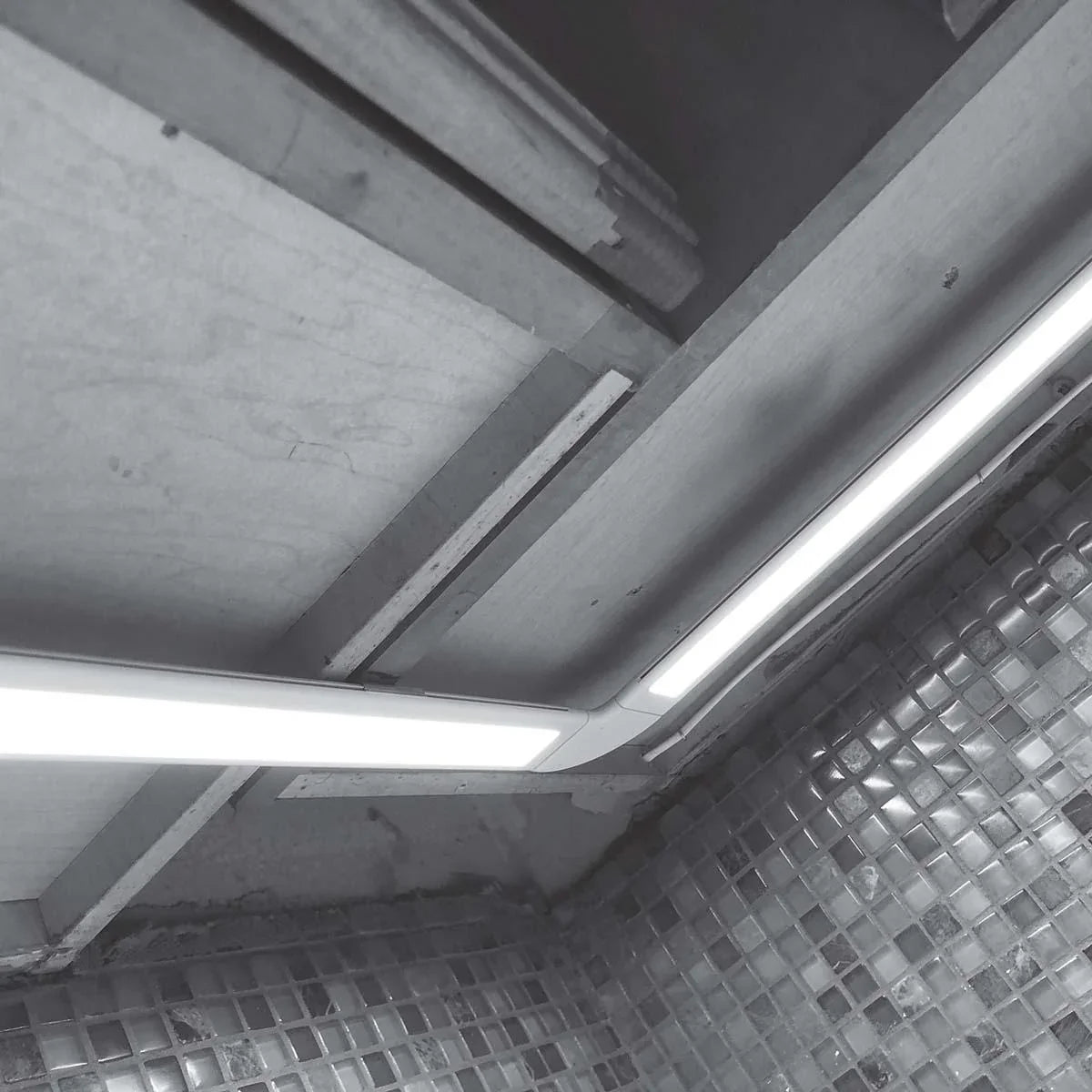

Ideal for undercabinet lighting, architectural linear lighting installations, display case illumination, cove lighting, and premium residential or commercial applications requiring diode-free imaging on reflective surfaces. The modular design allows for seamless runs up to 16 feet, making it perfect for kitchen counters, workspaces, retail displays, and hospitality environments.
What's Included with Each Lightbar
- (1) SlimEdge lightbar in selected length and finish
- (2) Mounting clips with screws
- (1) Lightbar to power supply connector (GMC-PS-24)
- (1) Rigid bar to bar connector (EDGE-BB-1)
Note: 24VDC remote power supply required (sold separately). Use non-dimmable power supply with touch dimmer. For Title 24 compliance, use LD-ED-UXXX or other approved Title24 power supply. White bars are supplied with white connectors, bronze bars are supplied with black connectors.
