GM Lighting SlimEdge™ 24" Modular Lightbar | 24VDC | 10W | 550 Lumens | 3000K | Bronze
GM Lighting SlimEdge™ 24" Modular Lightbar | 24VDC | 10W | 550 Lumens | 3000K | Bronze
Available in stock (46)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Vibrant Color Accuracy: Delivers 550 lumens at a high 90+ CRI, ensuring colors look natural and rich under its 3000K soft white glow.
- Ultra-Slim Profile: At only 0.38" high and 1.5" wide, this fixture is thin enough to remain completely hidden under almost any cabinet.
- Edge-Lit Technology: Provides perfectly uniform light distribution, eliminating the "dots" or hotspots common in standard LED strips.
- Linkable Design: Easily connect multiple units for a seamless lighting installation
- Efficient Performance: Consumes only 10 watts of power while providing bright, high-quality task lighting for kitchens or workspaces.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

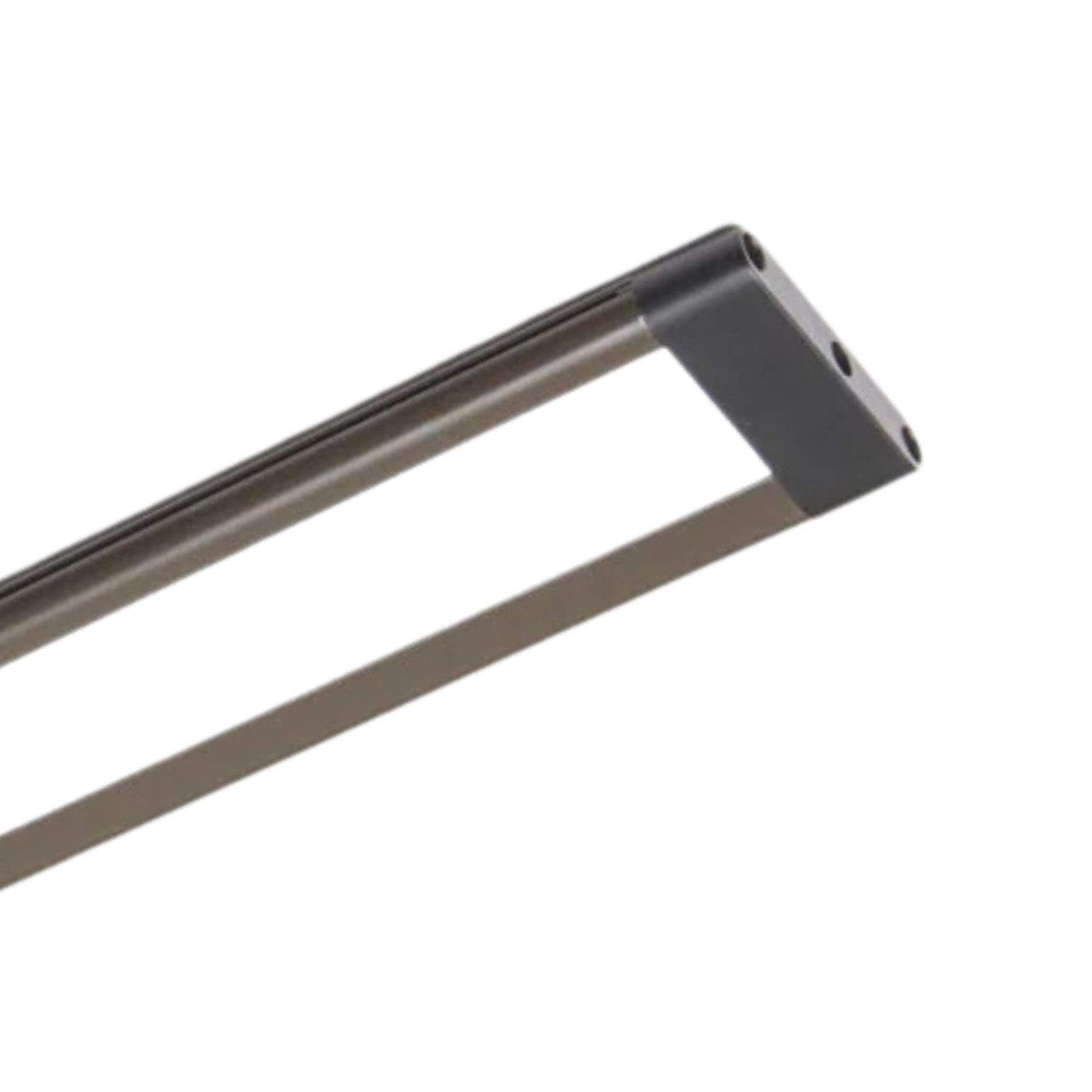

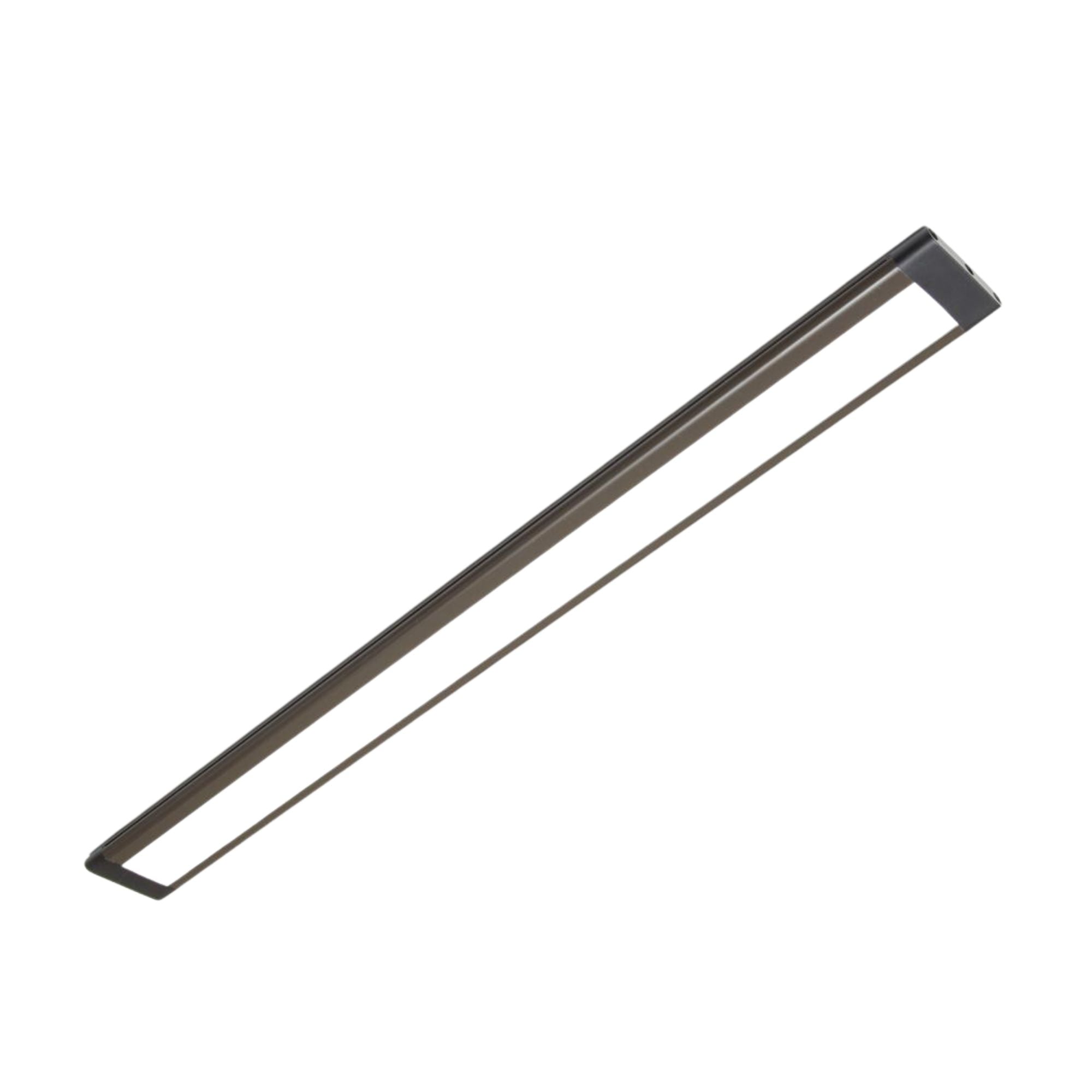

GM Lighting SlimEdge™ 24" Modular Lightbar
24VDC | 10W | 550 Lumens | 3000K
Model: EDGE-24-30-BZ
The GM Lighting SlimEdge™ represents the next evolution in architectural undercabinet lighting. At only 3/8" thick, this ultra-slim lightbar utilizes advanced Edgelite technology to disperse light sideways through a lens rather than downward. This creates a perfectly uniform, "diode-free" glow that eliminates the "polka-dot" reflections commonly seen on polished granite or marble countertops.
Top Performance Benefits
- Edge-Lit Optics: High-tech diffusion ensures even luminance with no visible hotspots on reflective surfaces.
- Superior Color Accuracy: 90+ CRI ensures that food, finishes, and decor appear in their truest, most vibrant colors.

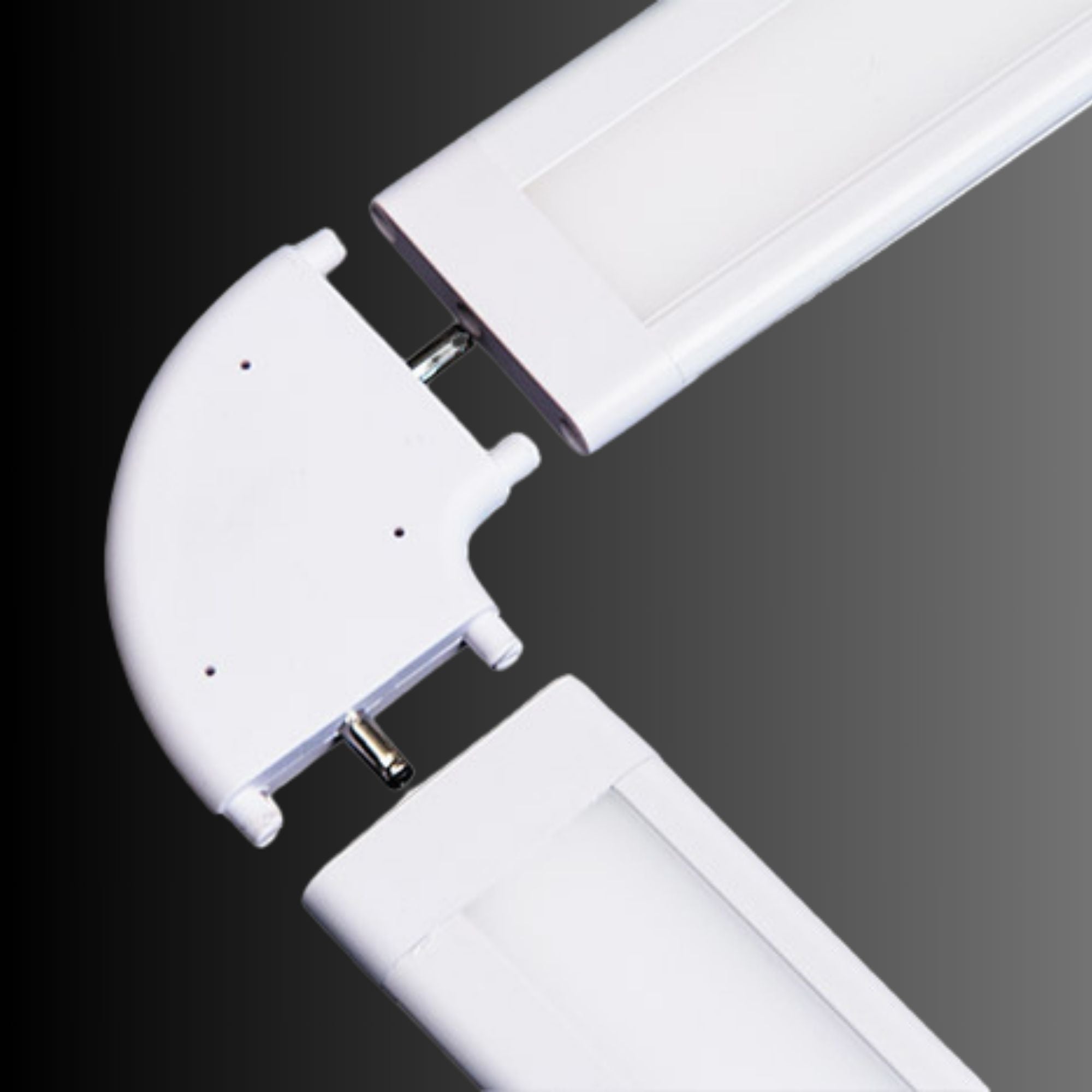

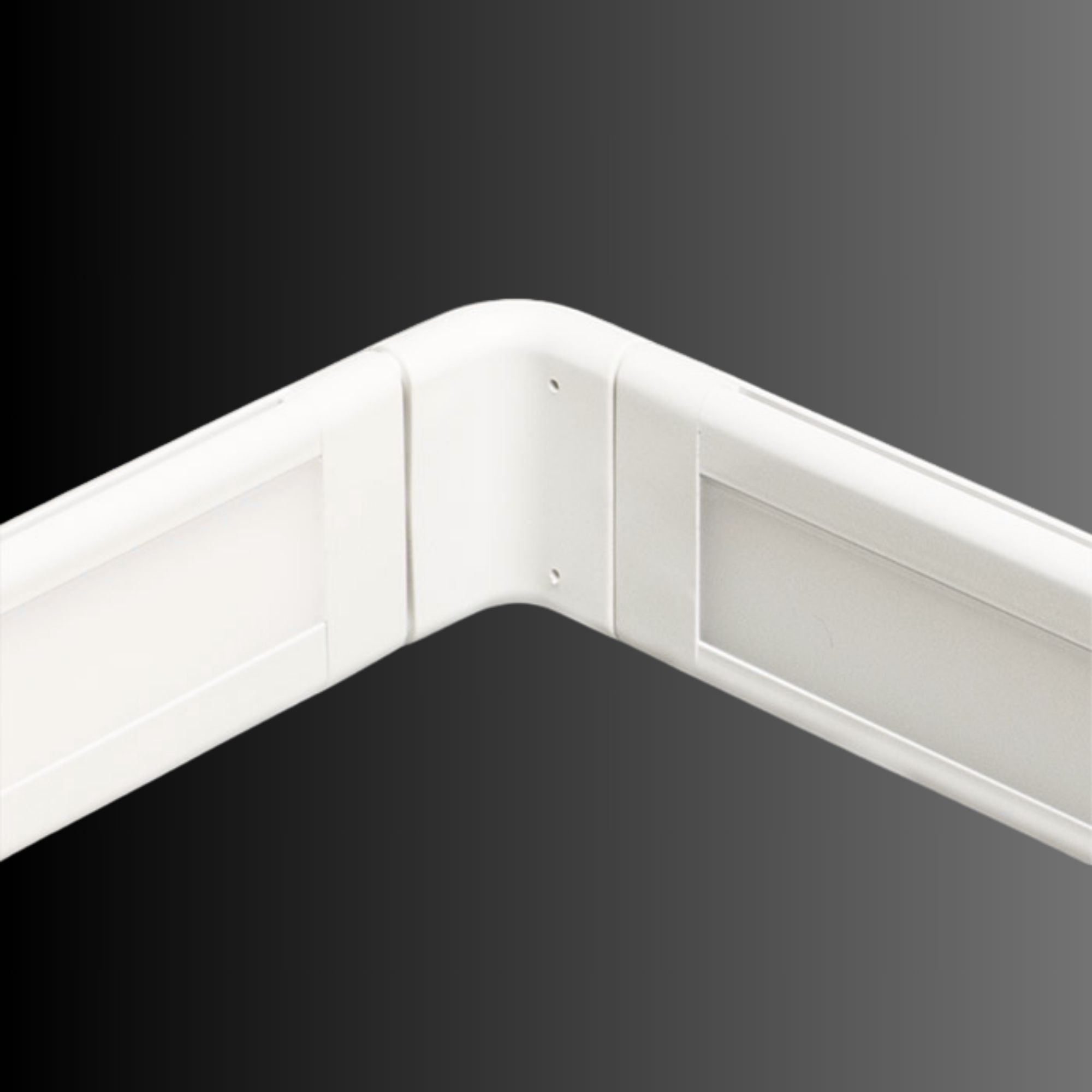

- Modular "Snap" Connectivity: Rigid bars join securely together with modular connectors for seamless, professional-grade linear runs.
- Ultra-Low Profile: The 3/8" height hides easily under cabinets or inside shelving without the need for deep recessed channels.
Technical Specifications

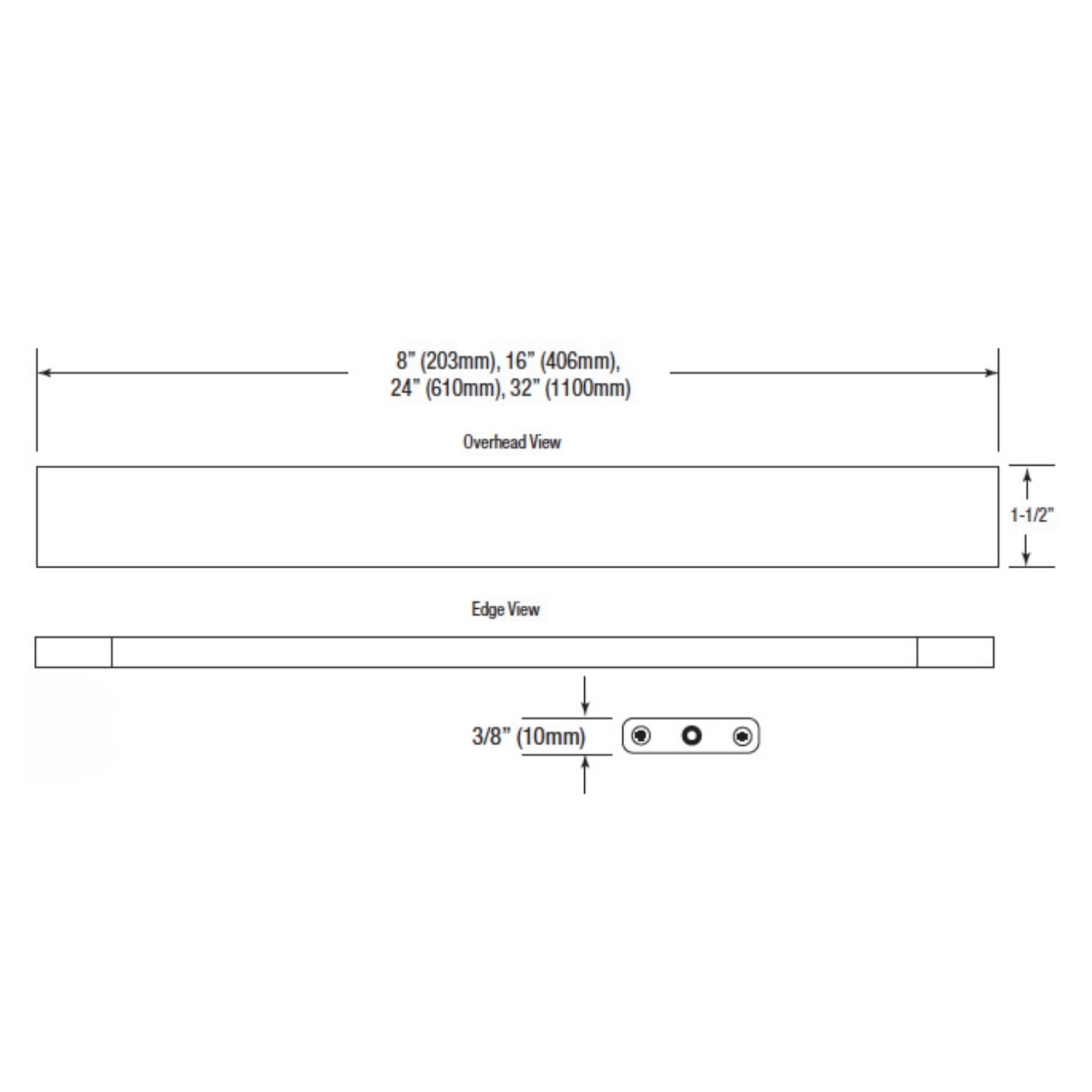

- Length: 24" (610mm)
- Wattage: 10W / bar
- Lumens: 550 / bar
- Color Temperature: 3000K
- Finish: Bronze with black connectors
- Voltage: 24VDC (Remote Power Supply Required)
- Max Run: 16' (with Touch Dimmer) / 10' (with Master Switch)
- Certifications: UL Listed, Class 2, Title 24 Compliant
- Warranty: 5 years when used with GM power supply
Versatile Control & Installation

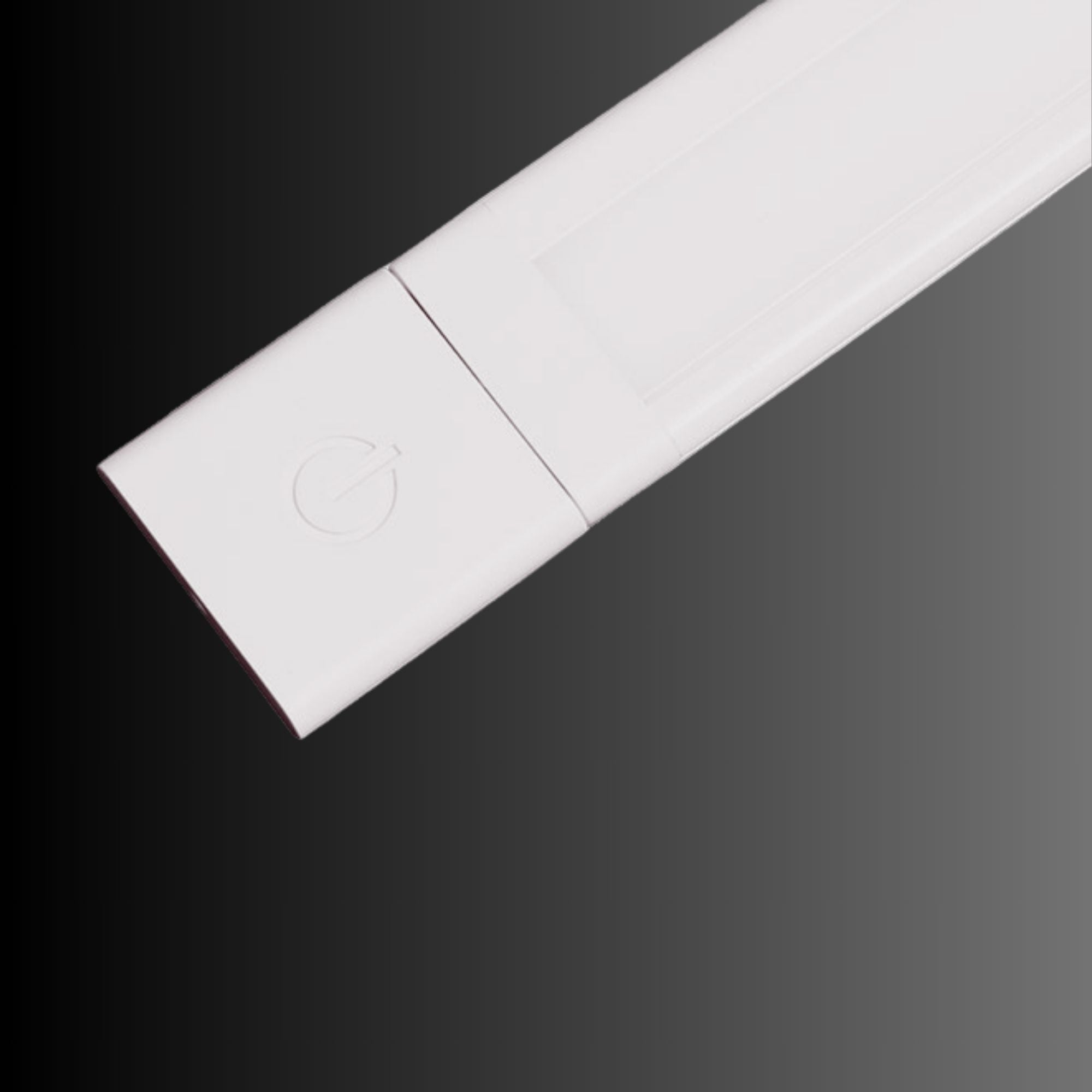

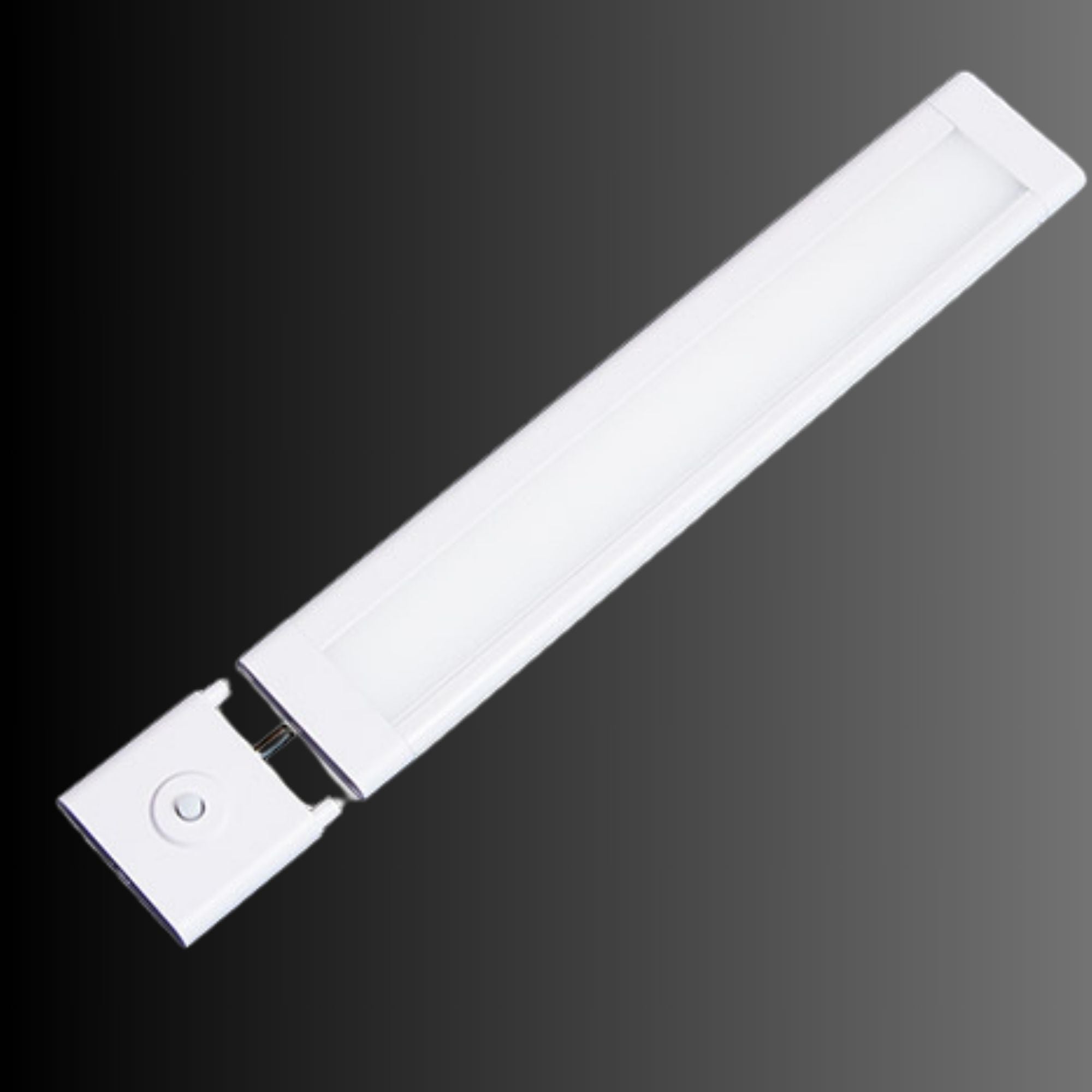

The SlimEdge system is highly adaptable. It can be dimmed using a Touch Dimmer (TD) for localized control or a Master Switch (MS) for larger installations.
- Title 24 Compliance: Achieve JA8 compliance by pairing this fixture with GM Lighting's LD-ED-U series or other approved Title 24 power supplies.
- Mounting: Includes 0-90° adjustable clips for precise aiming of the light beam.
Applications

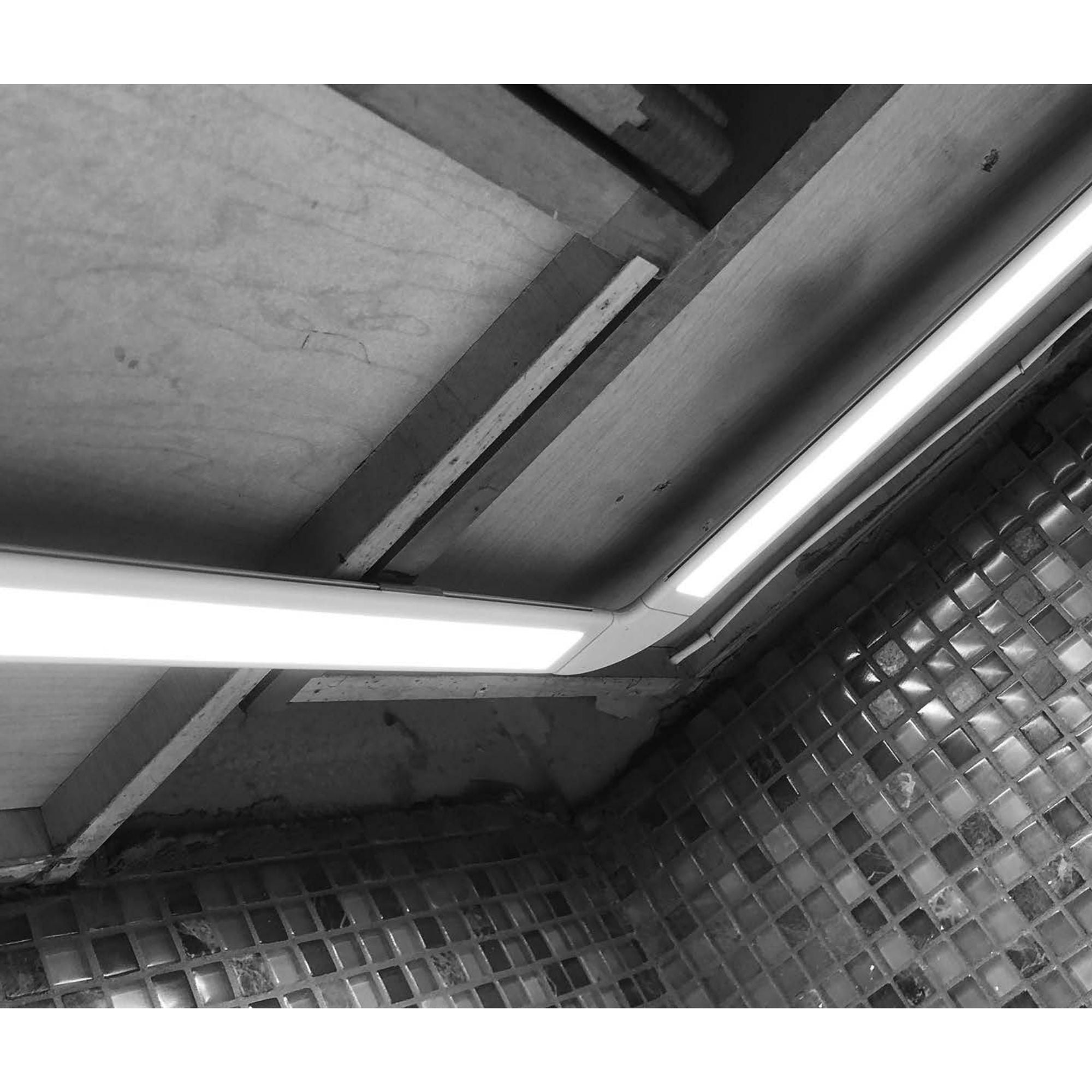

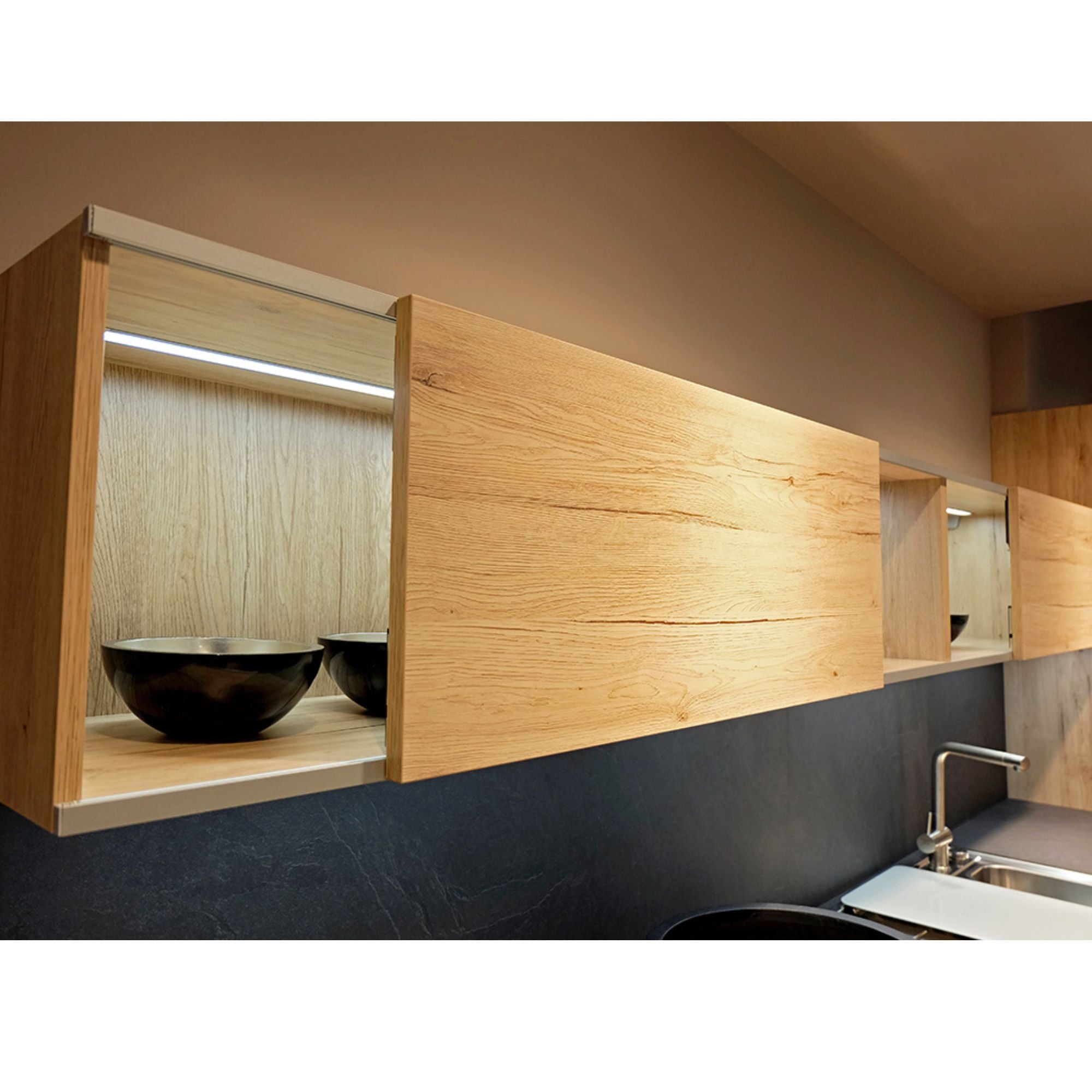

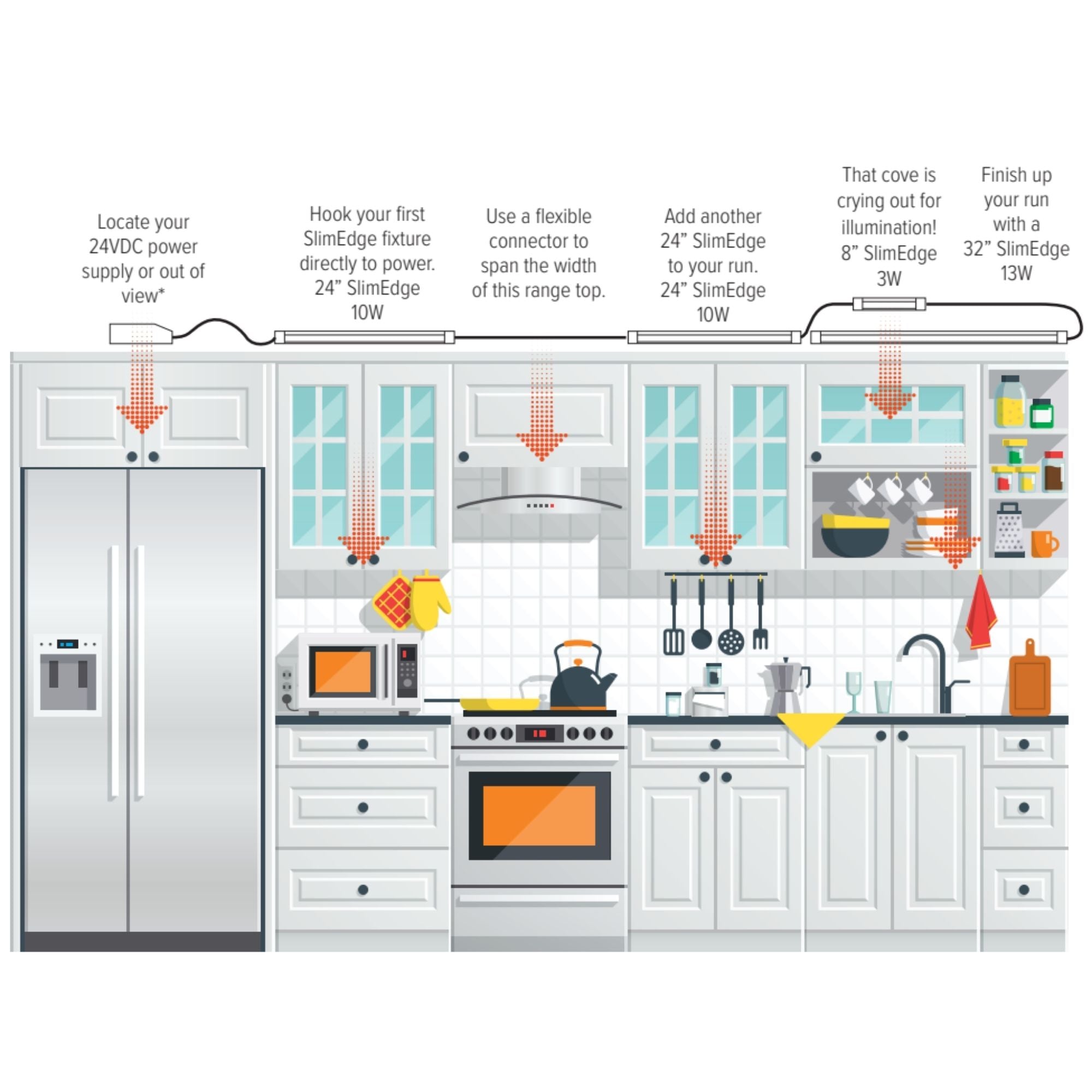

Ideal for undercabinet lighting, architectural linear lighting installations, display case illumination, cove lighting, and premium residential or commercial applications requiring diode-free imaging on reflective surfaces. The modular design allows for seamless runs up to 16 feet, making it perfect for kitchen counters, workspaces, retail displays, and hospitality environments.
What's Included
- (1) EDGE-24-30-BZ 24" SlimEdge lightbar
- (2) Mounting clips with screws
- (1) Lightbar to power supply connector (GMC-PS-24)

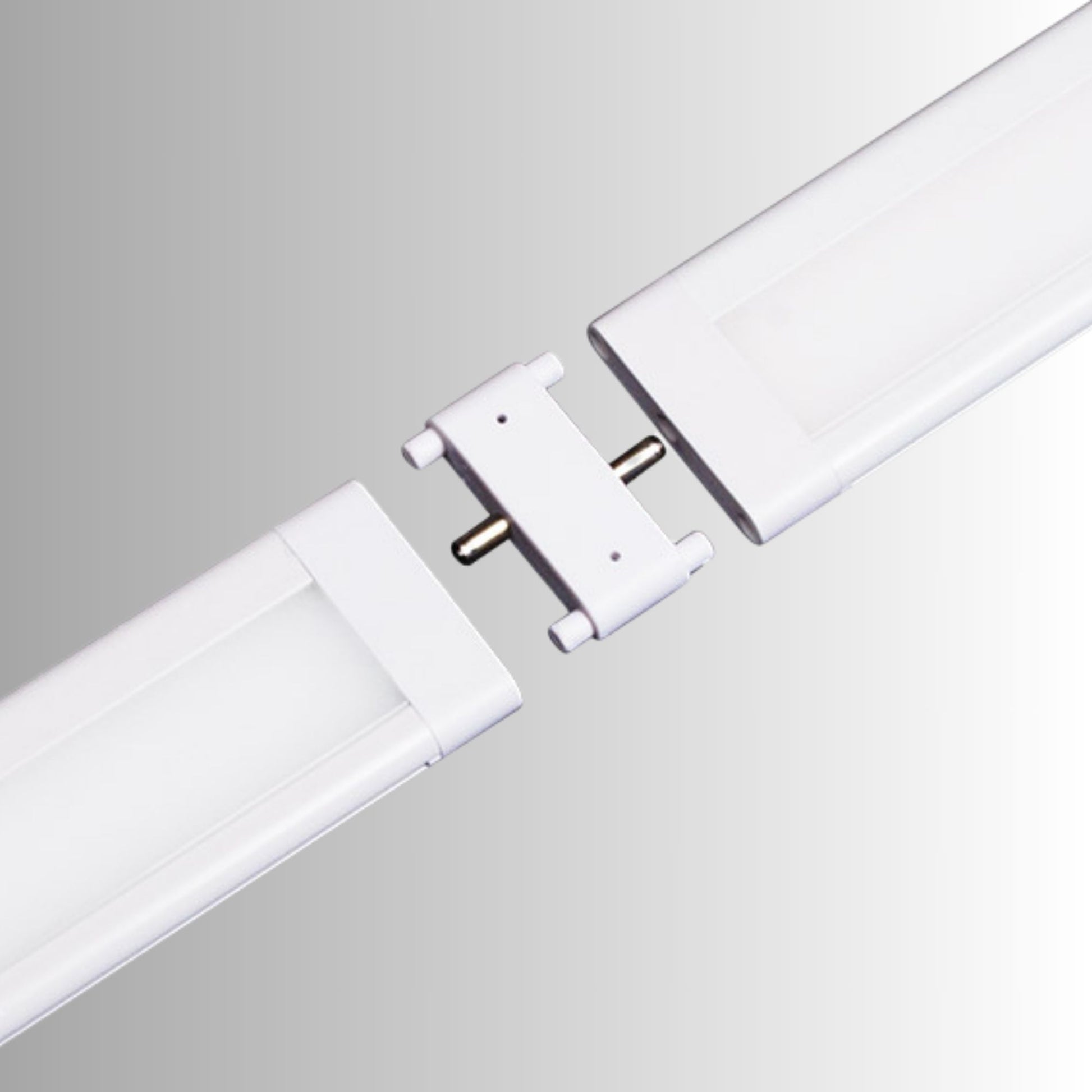

- (1) Rigid bar to bar connector (EDGE-BB-1)
Note: 24VDC remote power supply required (sold separately). Use non-dimmable power supply with touch dimmer.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What are the main types of under cabinet lights?
What are the main types of under cabinet lights?
The main types of under cabinet lights are strip lights, puck lights, and light bars. Strip lights are flexible and provide a continuous, even glow. Puck lights are small and circular, offering focused, spotlight-like illumination. Light bars are rigid fixtures that provide uniform light in a compact form.
What light source is best for under cabinet lighting?
What light source is best for under cabinet lighting?
LEDs (Light Emitting Diodes) are widely considered the best under cabinet lighting source. While older alternatives like fluorescent and halogen were once common, LEDs are far more energy-efficient, last for tens of thousands of hours, and produce very little heat, making them a safer and more cost-effective choice for your under cabinet LED lighting.
What's the difference between hardwired, plug-in, and battery-powered under cabinet lighting?
What's the difference between hardwired, plug-in, and battery-powered under cabinet lighting?
Hardwired under cabinet lighting is a permanent solution installed directly into your home's electrical wiring, providing a seamless look with no visible cords. Plug-in under cabinet lighting is a convenient, non-permanent option that plugs into a standard outlet. Battery-powered under cabinet lighting offers ultimate portability and ease of installation, perfect for areas without nearby outlets.
What color temperature should I choose for my kitchen?
What color temperature should I choose for my kitchen?
The ideal color temperature for your under cabinet light depends on your desired ambiance. A warmer white (2700K-3000K) creates a cozy, inviting feel, while a neutral or natural white (3500K-4000K) is a versatile choice for both task lighting and everyday use. A cooler white (5000K+) offers a crisp, modern look ideal for detailed tasks.
What is the benefit of low voltage under cabinet lighting?
What is the benefit of low voltage under cabinet lighting?
Low voltage under cabinet lighting is a very safe option, as it operates at 12V or 24V using a power supply, reducing the risk of electrical shock. The thinner wiring is also easier to conceal, making it a popular choice for sleek, discreet installations in a variety of applications.
