GM Lighting SlimEdge Under Cabinet Lightbar — White & Feature Summary

The GM Lighting EDGE-24-27-W is a white under cabinet lightbar crafted from high-quality materials. This 24-inch fixture is designed for seamless integration into modern cabinetry. It features an integrated LED light source operating at 24VDC, delivering 550 lumens of warm 2700K light.

Key Features

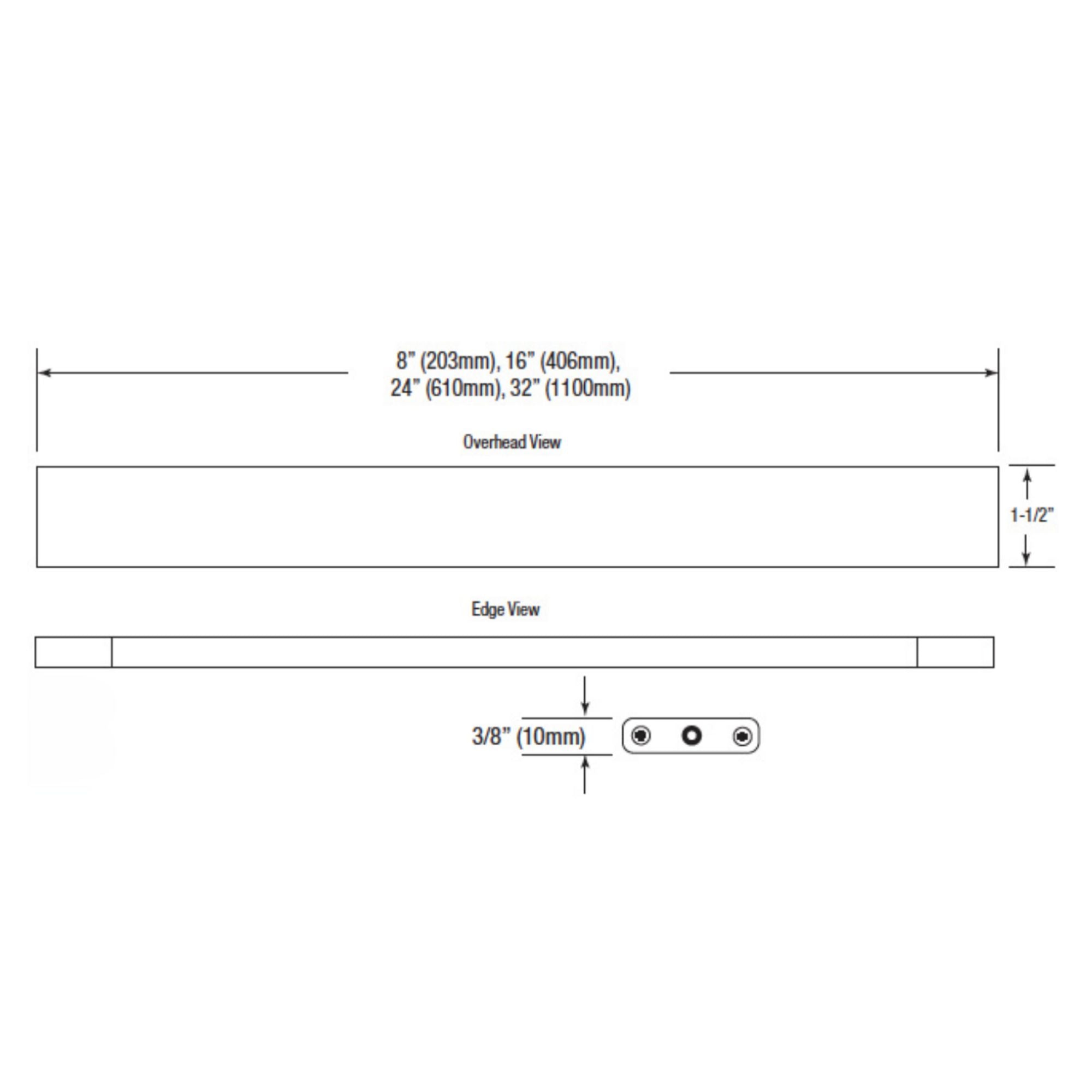

• Dimensions: 24 inches in length, 1.5 inches in width, and 0.4 inches in height.
• Voltage: Requires a 24VDC remote power supply for operation.
• Wattage: Consumes 10 watts of power.
• Lumens: Provides 550 lumens of illumination.
• Color Temperature: Fixed at 2700K for a warm lighting effect.
• CRI: 90+ for excellent color rendering.
• Lifespan: Designed to last with a 5-year warranty.
• Edgelit Technology: Ensures even luminance with no diode imaging.
• Dimming: Compatible with dimming controls for adjustable brightness.
• Mounting: Comes with mounting clips and screws for easy installation.

Core Design & Profile

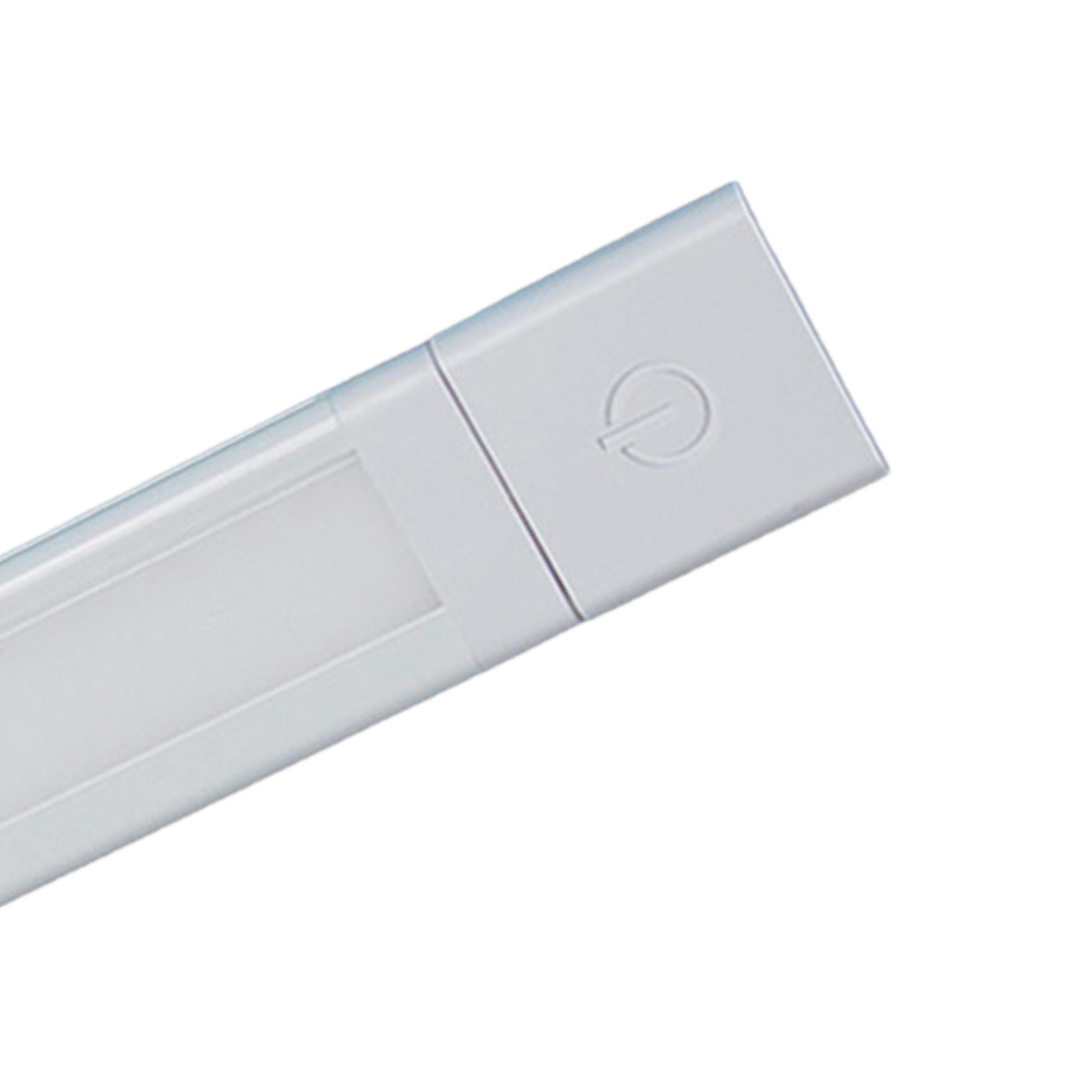

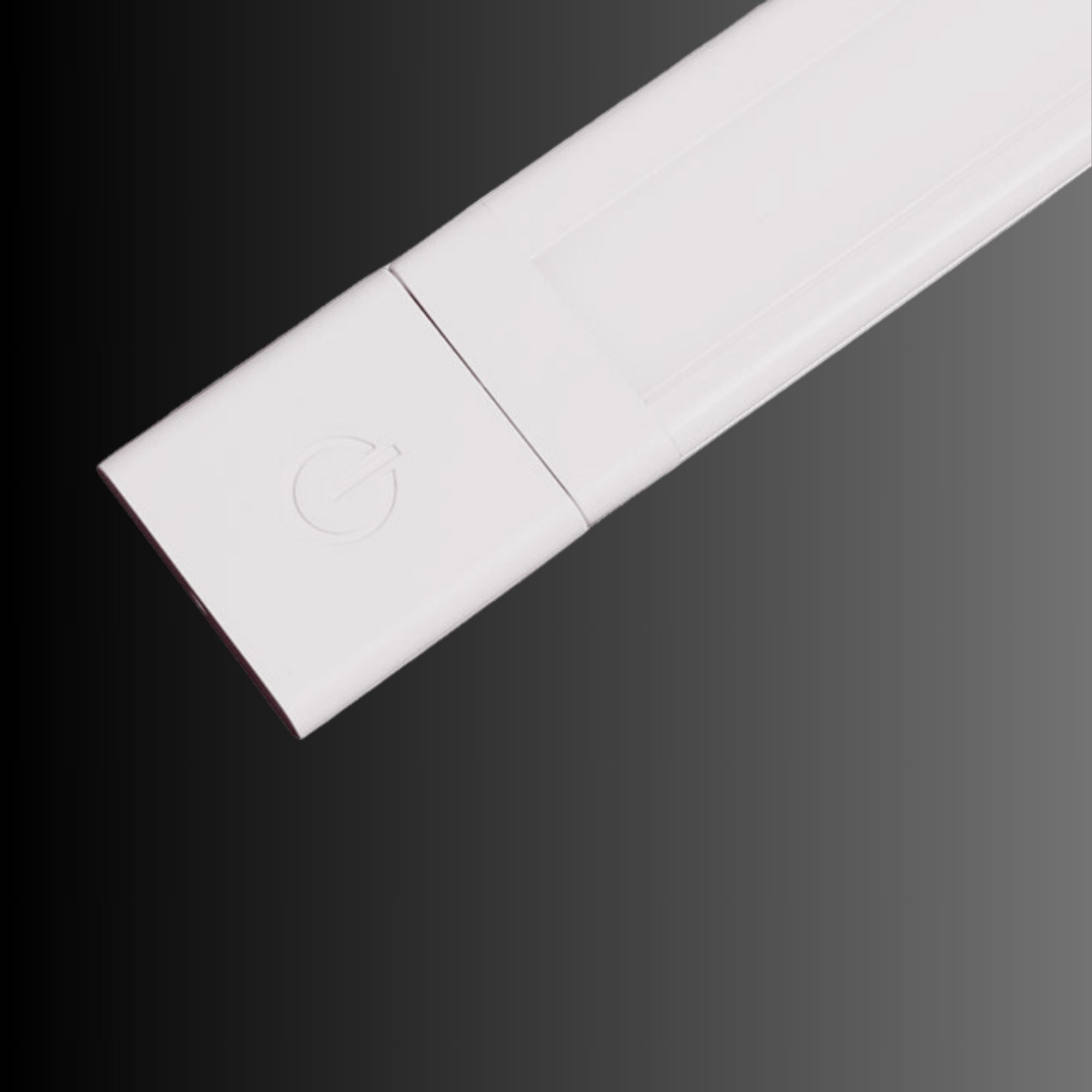

The SlimEdge lightbar features a sleek, low-profile design with a thickness of only 0.4 inches. Constructed with a durable white finish, it is dry-rated for indoor use.

LED Illumination & Performance

Delivering 550 lumens at 10 watts, this fixture offers a warm 2700K light with a high CRI of 90+, ensuring vibrant and true-to-life colors.

Power, Wiring & Linkability

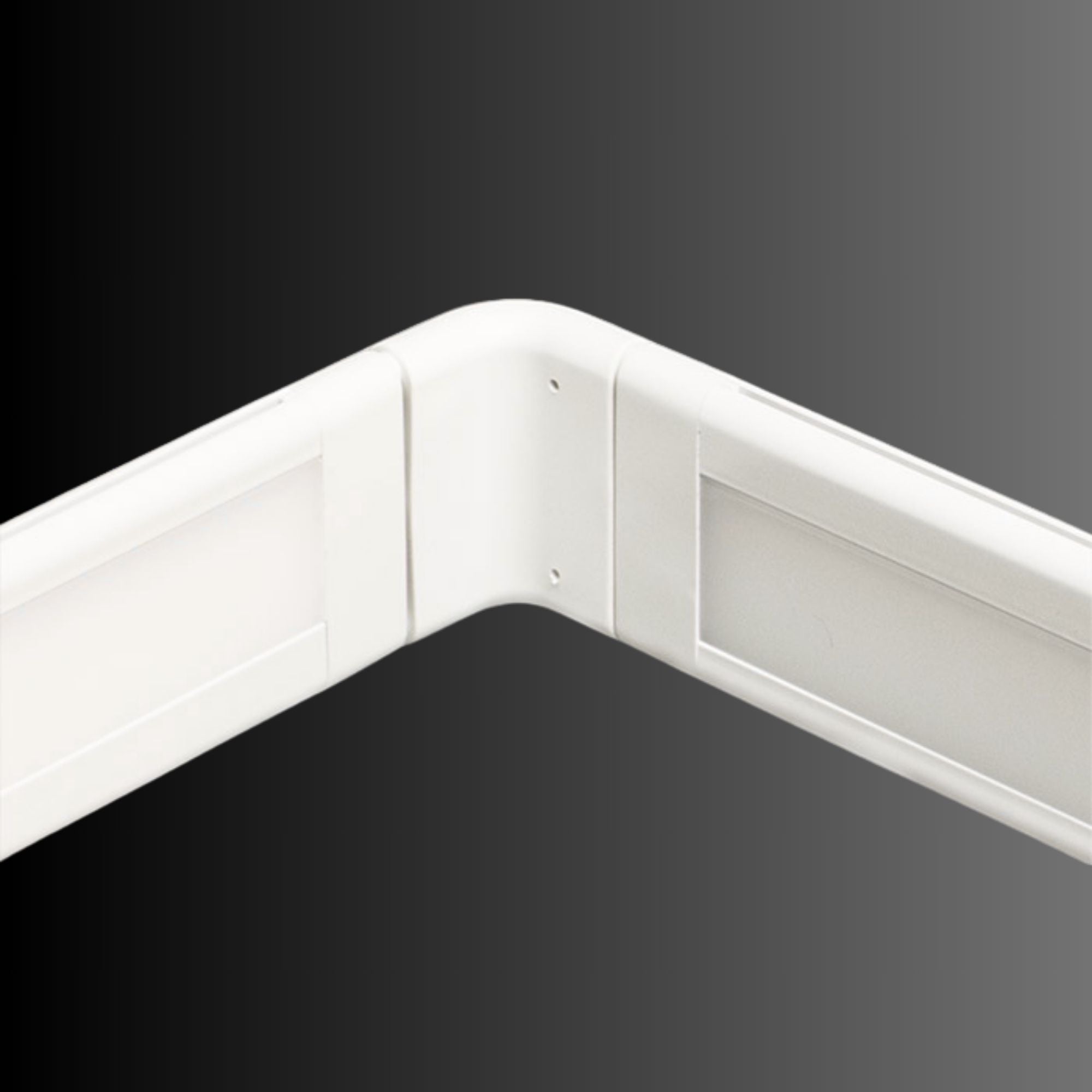

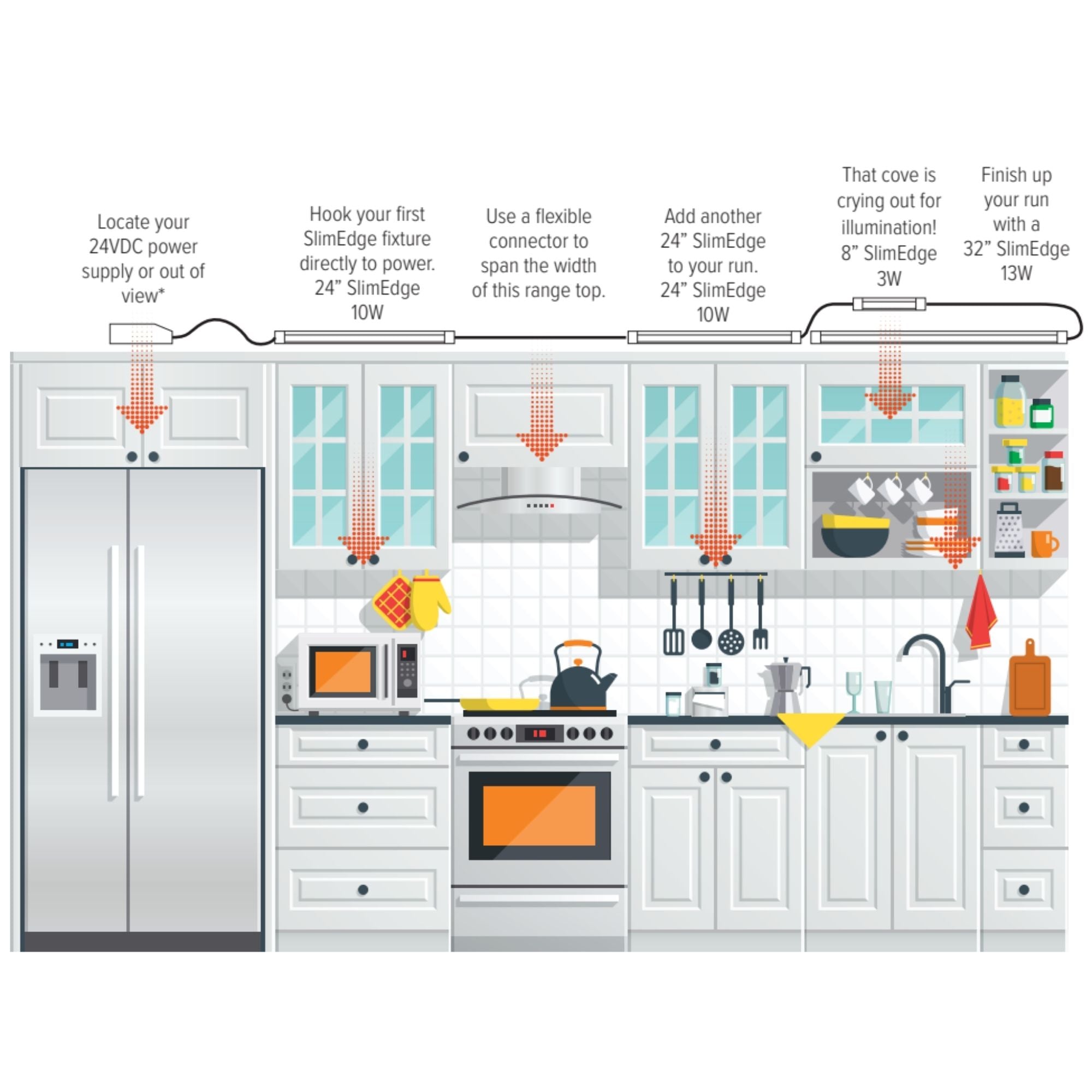

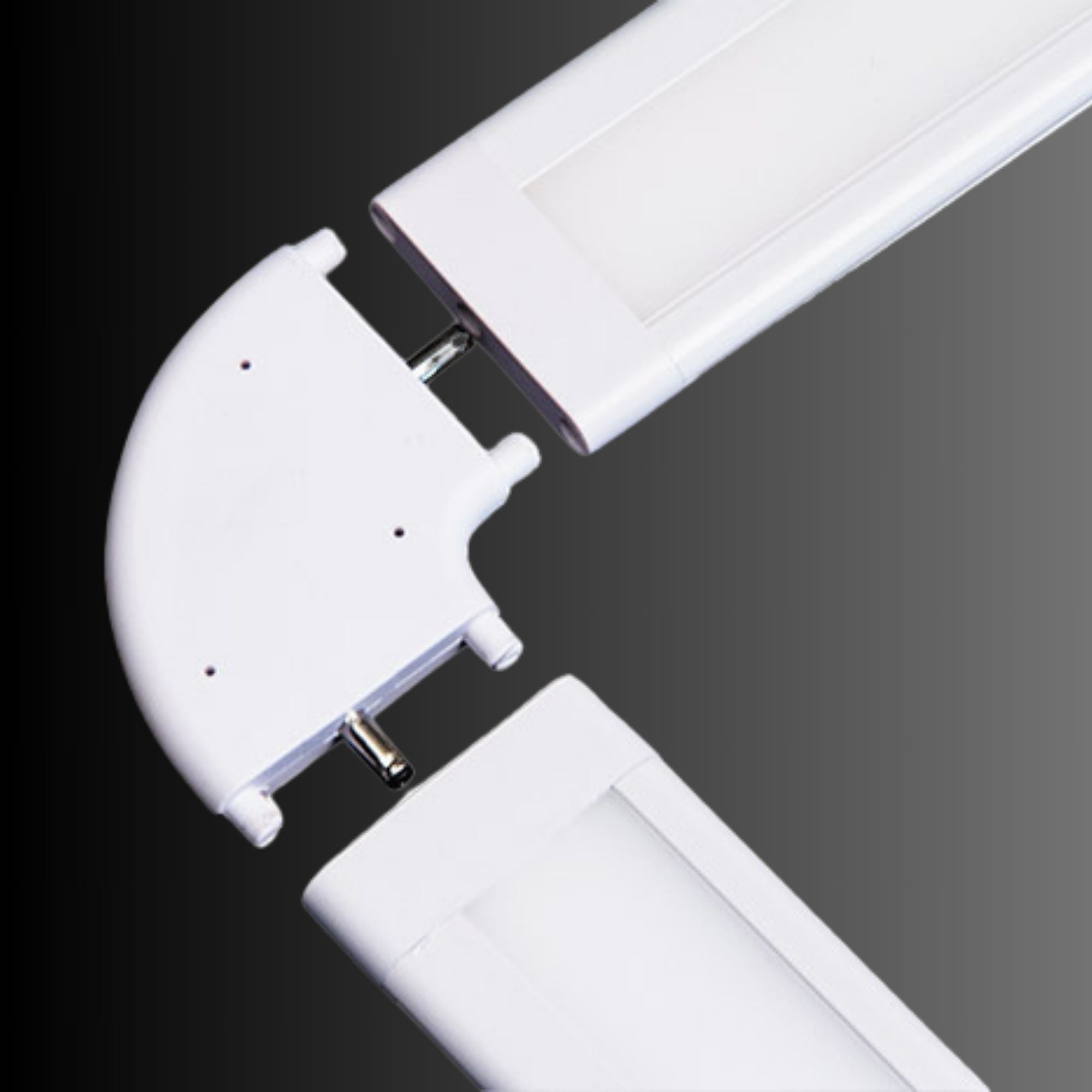

This fixture operates on 24VDC and requires a remote power supply. It includes connectors for linking multiple units, with a maximum run of 16 feet.

Where This Fixture Works Best

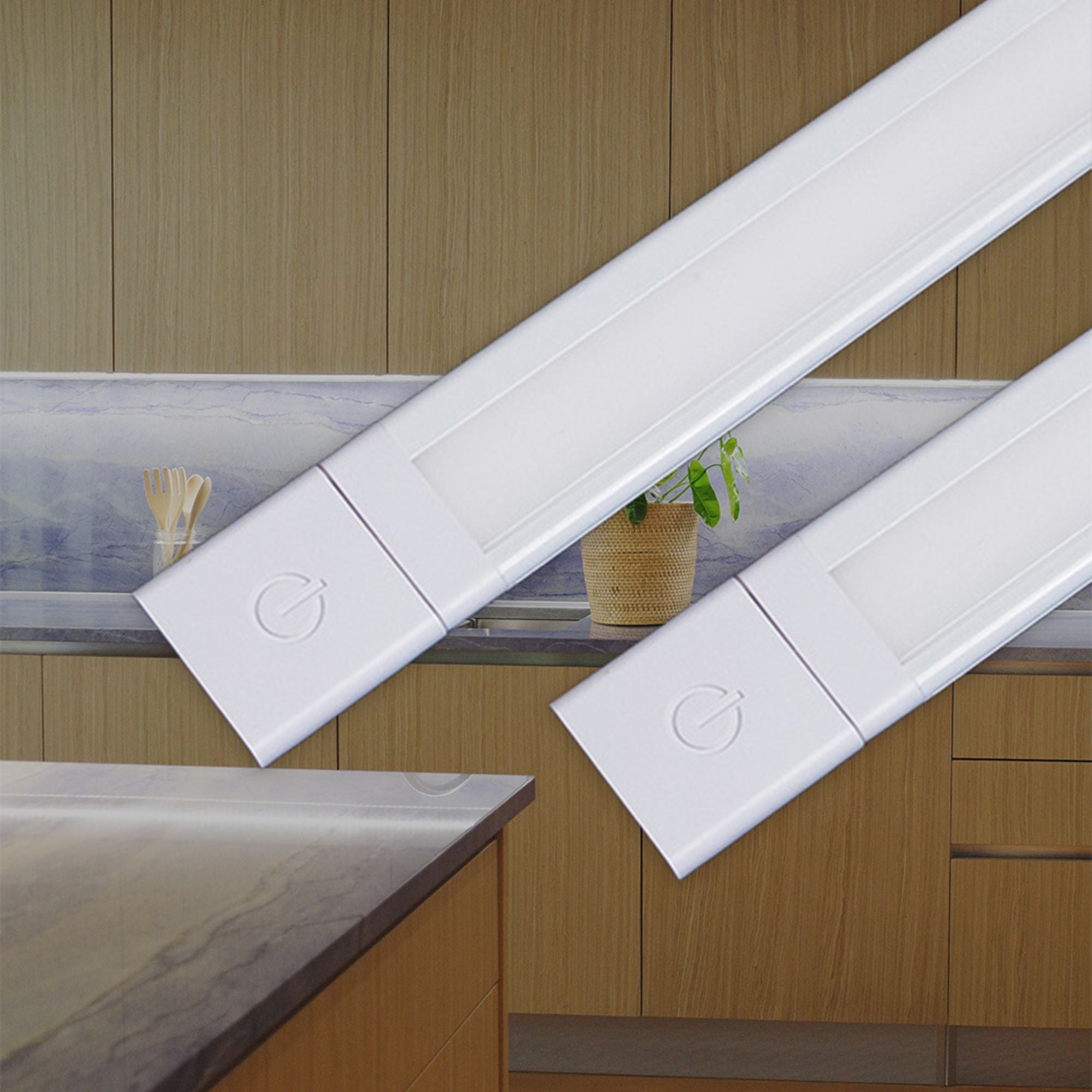

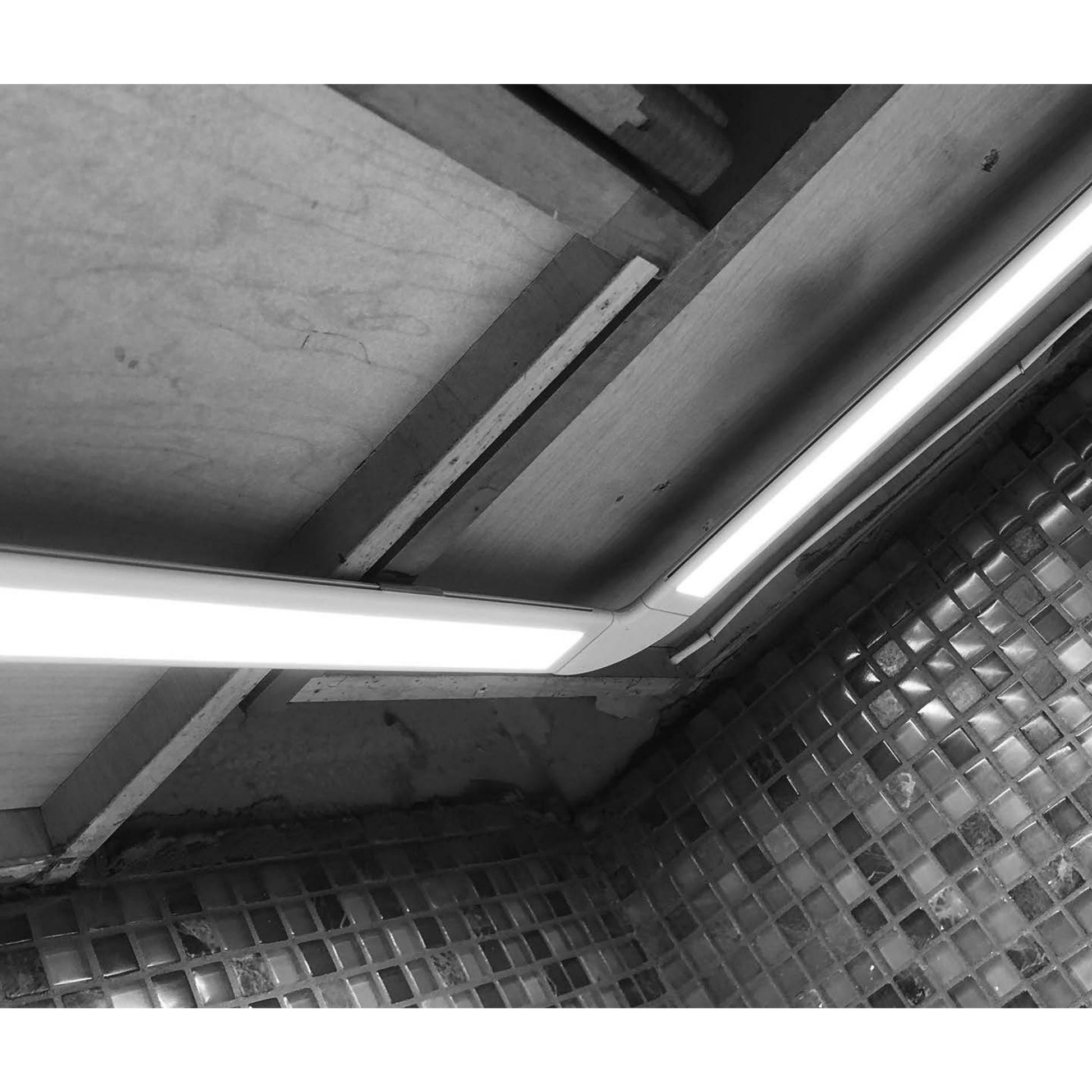

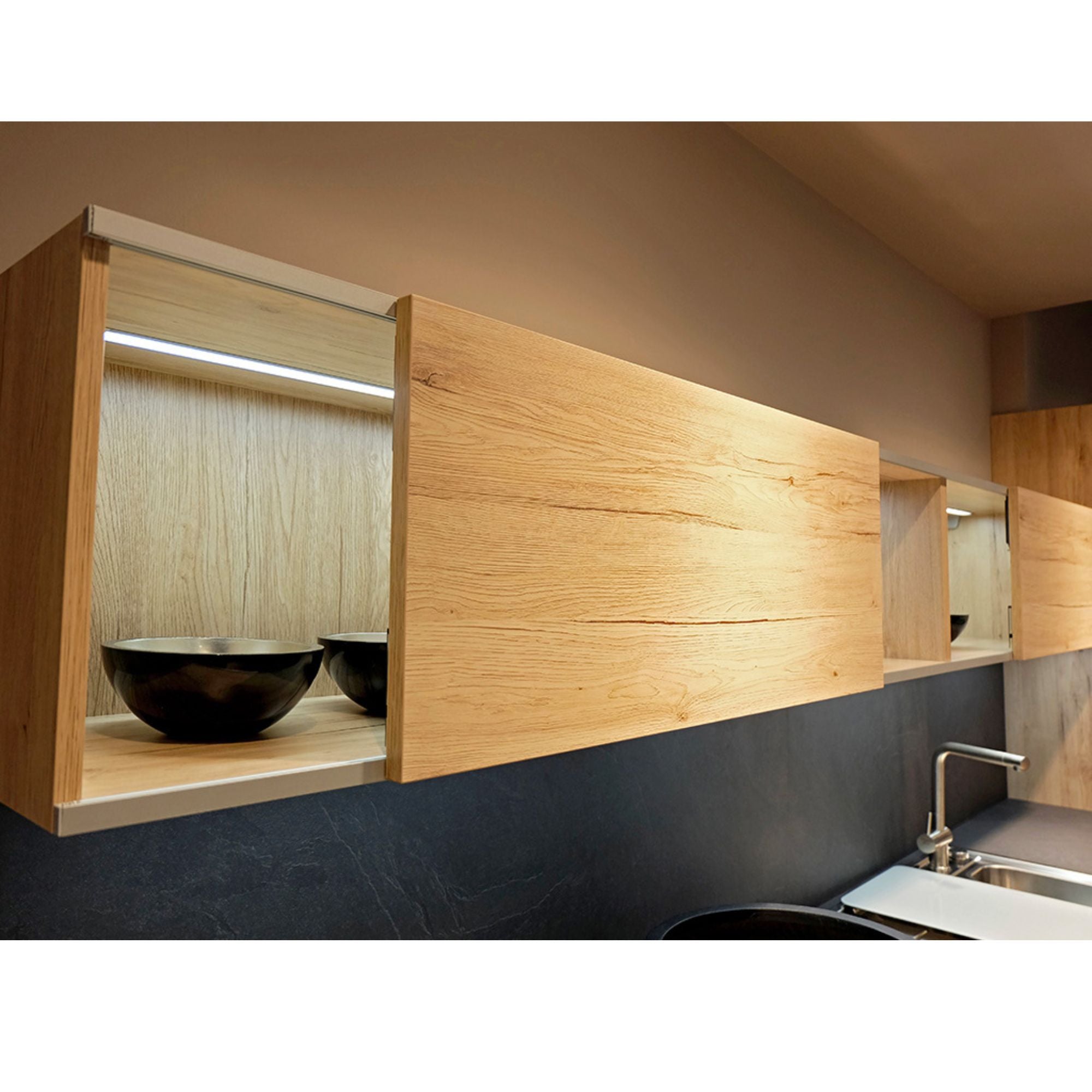

• Kitchen under cabinets
• Office workstations
• Retail display shelves
• Workshop task lighting
• Residential bookshelves

What's Included

• Two mounting clips with screws

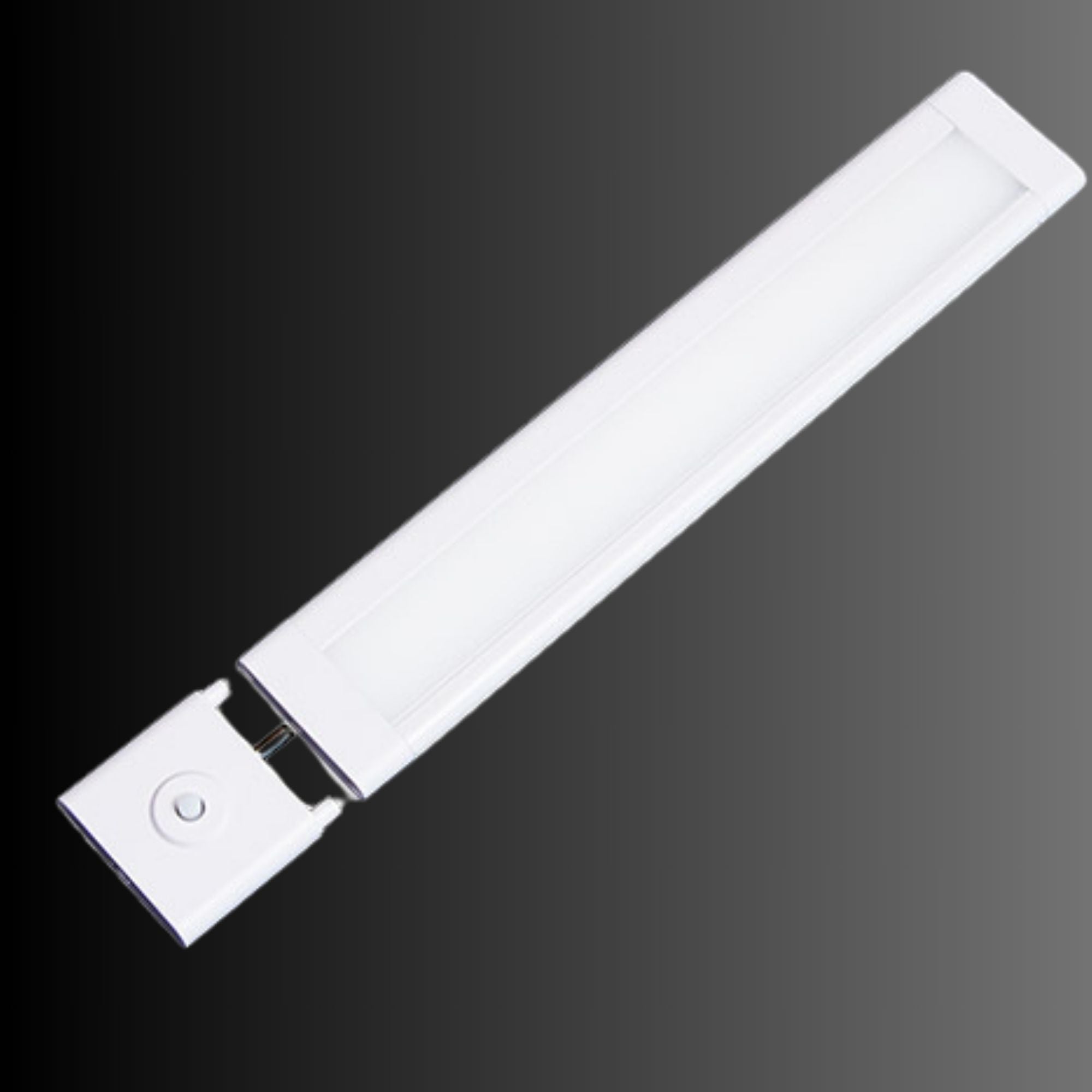

• One lightbar to power supply connector

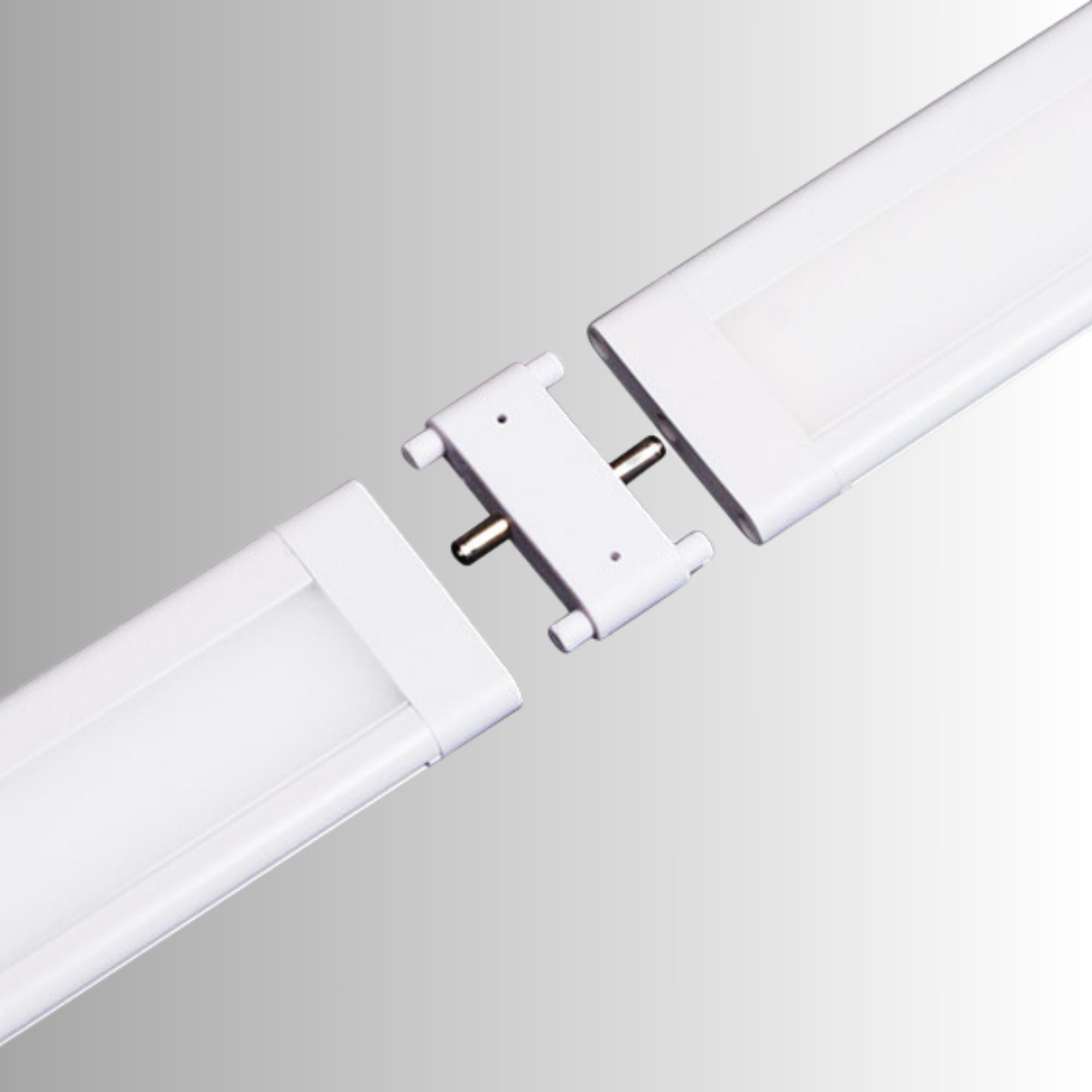

• One rigid bar to bar connector
