GLT 95W Selectable Modern LED Wall Pack 15,000 Lumens 38-95W Selectable 30K/40K/50K 120-277V Bronze WDGE-P2-UV-CCT
Available in stock (93)
About this item
About this item

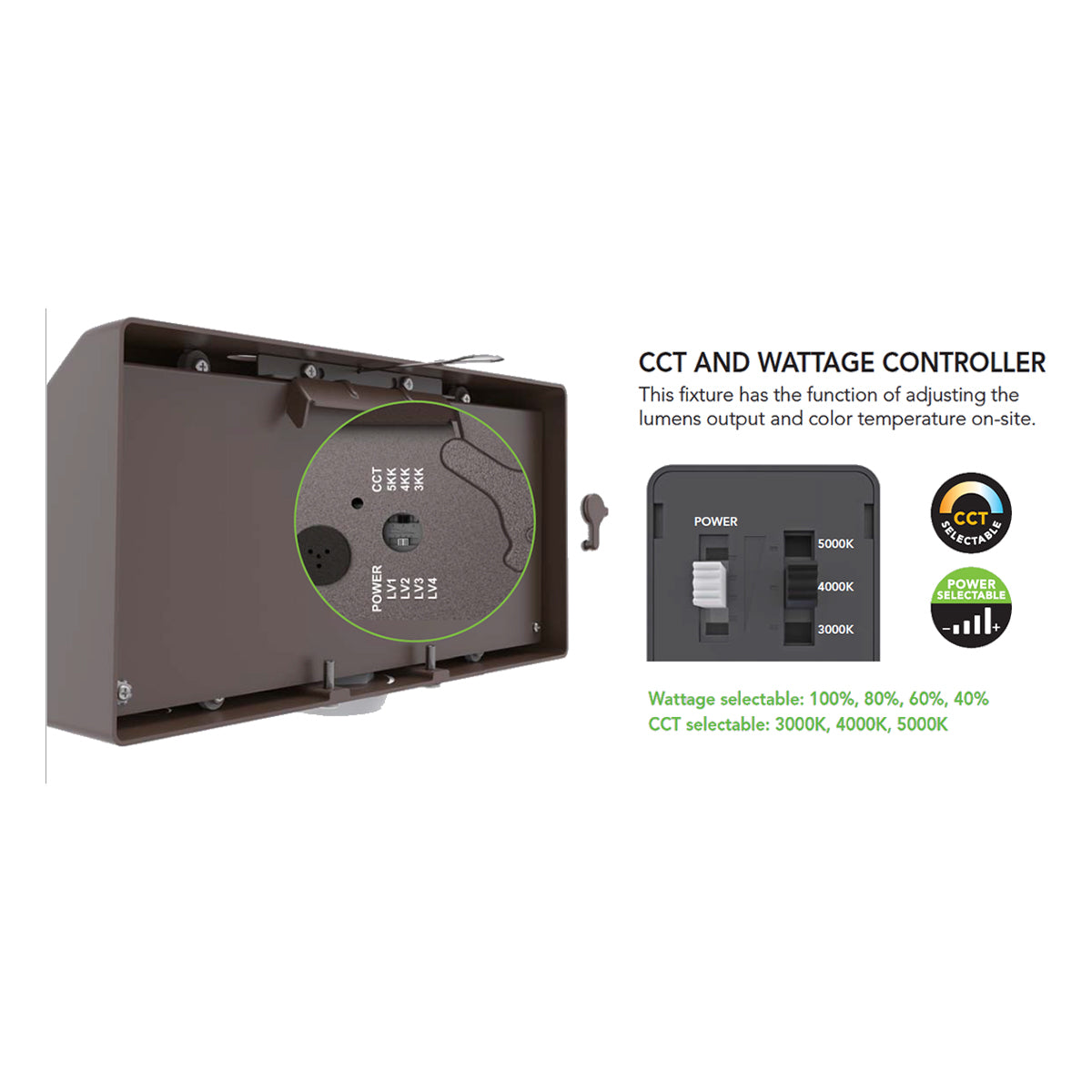

- Power & Color Select Controller: Comes equipped with an adjustable dial controller that simplifies inventory and maximizes on-site flexibility. Easily select between 3000K, 4000K, and 5000K, and adjust the wattage (100%, 80%, 60%, 40%) directly on the fixture.
- Modern Low-Profile Design: Cast in a sleek, architectural style that easily fits any building's aesthetic while meeting dark sky requirements with a zero-uplight design.
- Massive Output & Efficiency: Delivers up to 15,000 lumens at its maximum 95W setting, providing an exceptional energy-saving efficacy of up to 168 LPW at lower wattages.
- Rugged Durability: Constructed with a sealed die-cast aluminum profile that effectively conducts LED heat to optimize performance, alongside high-performance UV-stabilized optical polymer refractor lenses.

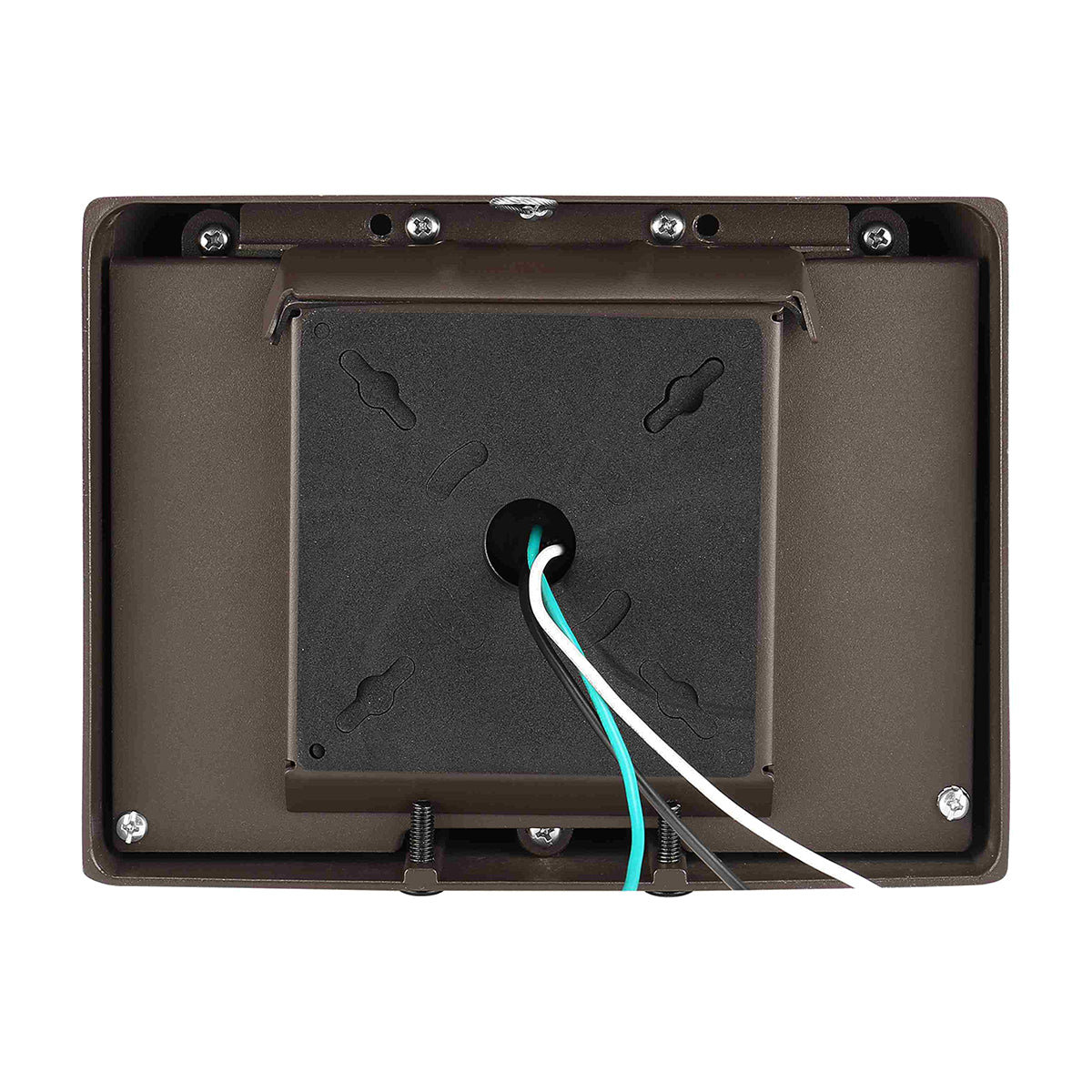

- Easy Installation: Features an external portable mounting plate that eliminates the need to open the fixture housing or drill into it, significantly minimizing the risk of water ingression.
We process payments securely and do not store credit card information.
Description
Description
GLT Selectable Modern LED Wall Pack — 95W, Color & Power Selectable, 120–277V, Bronze
The GLT WDGE-P2-UV-CCT is an architectural-grade, high-performance modern LED wall pack delivering up to a massive 15,000 lumens. Engineered with a low-profile design that seamlessly blends into building aesthetics, this fixture features a zero-uplight distribution that meets dark sky requirements and minimizes light pollution. It offers exceptional versatility by coming fully equipped with an adjustable dial controller that allows installers to easily choose between 3000K, 4000K, or 5000K color temperatures, as well as scale the wattage down to 76W, 57W, or 38W on-site. Operating on a universal 120–277V driver, it features 0-10V dimming for a smooth dimming range of 100% to 10%. With its sealed die-cast construction, UV-stabilized polymer lenses, and Wet Location rating, it is ideal for illuminating large commercial office buildings, campuses, warehouses, and shopping malls.
Key Features
- Wattage: 95W (Power Adjustable to 95W, 76W, 57W, 38W via included dial controller)
- Selectable CCT: 3000K / 4000K / 5000K via included dial controller
- Delivered Lumens: 5,900 to 15,000 lumens depending on settings
- Efficacy: Up to 168 Lumens Per Watt (LPW)
- Voltage: 120–277VAC universal input
- Dimming: 0-10V Dimming standard (dimming range from 100% to 10%)
- Lens: High-performance UV-stabilized optical grade polymer refractor lenses
- CRI: 70
- Environmental Ratings: UL/cUL Listed for Wet Locations
- Estimated Life: 50,000 hours (based on IES LM-80 results and TM-21 calculations)
- Warranty: 5-Year warranty
Typical Applications
- Large commercial office buildings and complexes
- Warehouses and expansive campuses
- Shopping malls and exterior perimeters
- Locations requiring dark-sky compliant, zero-uplight illumination
Performance & Light Output
The WDGE-P2-UV-CCT provides highly uniform, wide illumination ranging from 5,900 lumens at its lowest 38W setting up to 15,000 lumens at its full 95W capacity. The zero-uplight distribution is achieved using individual acrylic, UV-stabilized refractor lenses optimized to achieve maximum spacing and superior lighting uniformity. With a 50,000-hour rated lifespan, this large fixture drastically reduces both energy consumption and maintenance cycles.
Electrical & Controls
This fixture operates on an electronic universal 120–277V AC driver. It features a power factor greater than 0.9, less than 20% harmonic distortion, and comes standard with 0-10V dimming capabilities. This specific base configuration does not include a photocell or occupancy sensor, making it ideal for standard switch-controlled or centrally managed systems.
Construction & Durability

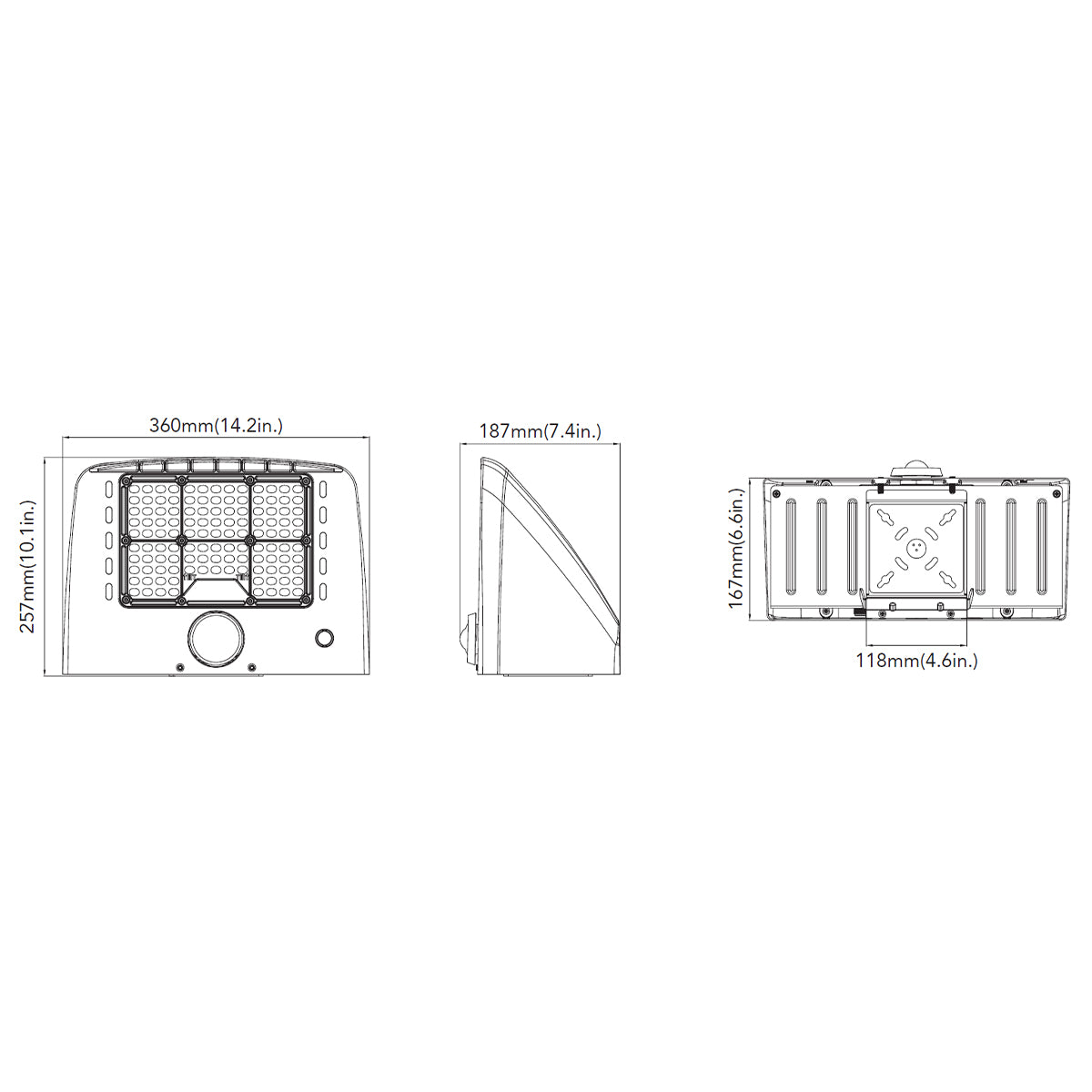

Engineered for outdoor reliability and modern aesthetics, the fixture features a sealed die-cast aluminum profile. This larger model has a footprint of 14.2" W x 10.1" H x 6.6" D and weighs 9.41 lbs. The die-casting effectively conducts LED heat to optimize performance, allowing operation in ambient environments from -40°C to 40°C (-40°F to 104°F). The external portable mounting plate ensures the housing remains completely sealed during installation.
What's Included
- GLT 95W Large Modern LED Wall Pack
- Integrated Power & CCT Adjustable Dial Controller
- External Portable Mounting Plate
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
No, the standard configuration for this unit ships without an optional photocell or occupancy sensor, relying on external switches or timers.
No, the standard configuration for this unit ships without an optional photocell or occupancy sensor, relying on external switches or timers.
Is this fixture dark sky friendly?
Is this fixture dark sky friendly?
Yes, the modern design provides a zero-uplight distribution, which meets the rigorous requirements for dark sky compliance and prevents light pollution.
Yes, the modern design provides a zero-uplight distribution, which meets the rigorous requirements for dark sky compliance and prevents light pollution.
What are the dimensions of this large 95W wall pack?
What are the dimensions of this large 95W wall pack?
This larger profile fixture measures 14.2 inches in width, 10.1 inches in height, and 6.6 inches in depth.
This larger profile fixture measures 14.2 inches in width, 10.1 inches in height, and 6.6 inches in depth.
