Description

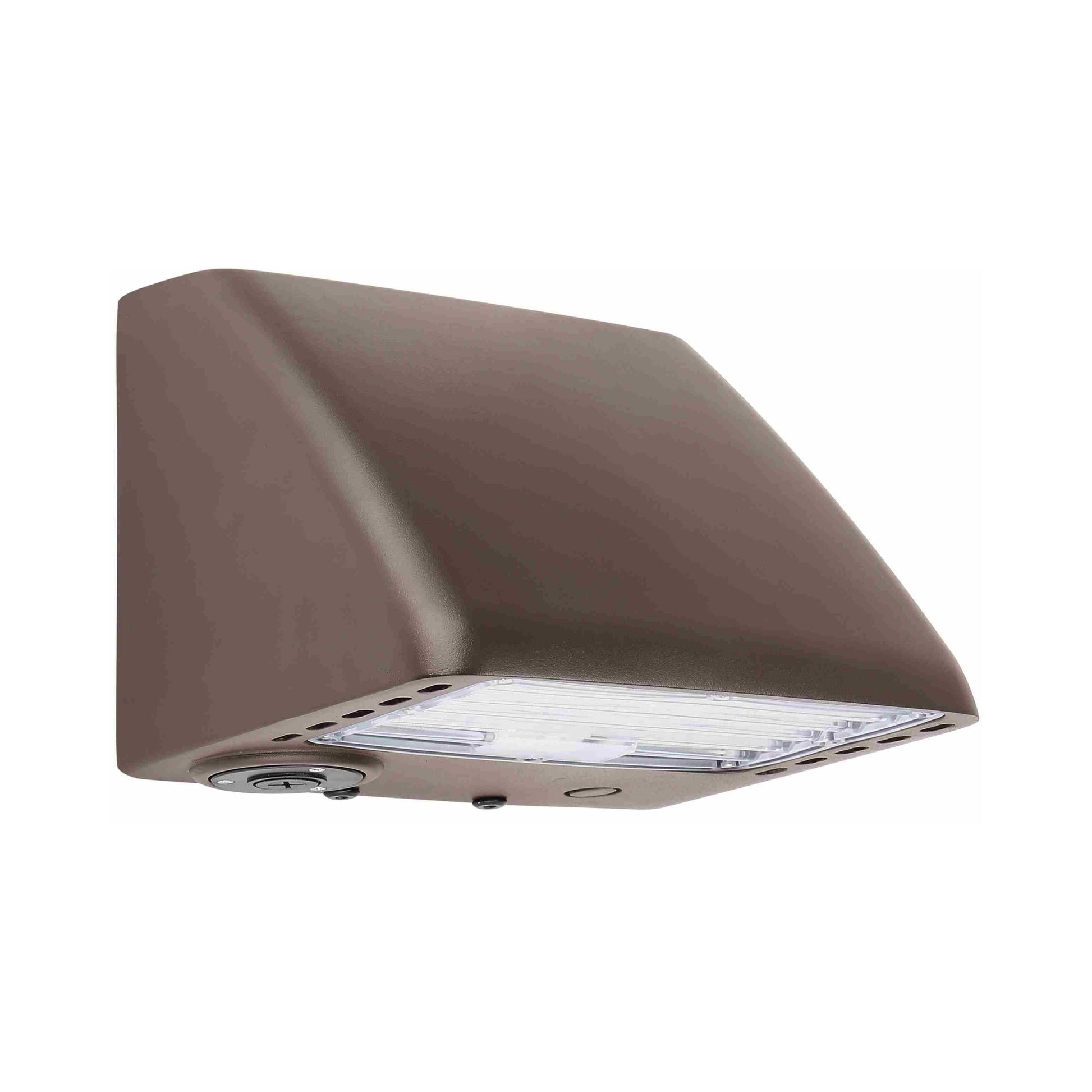

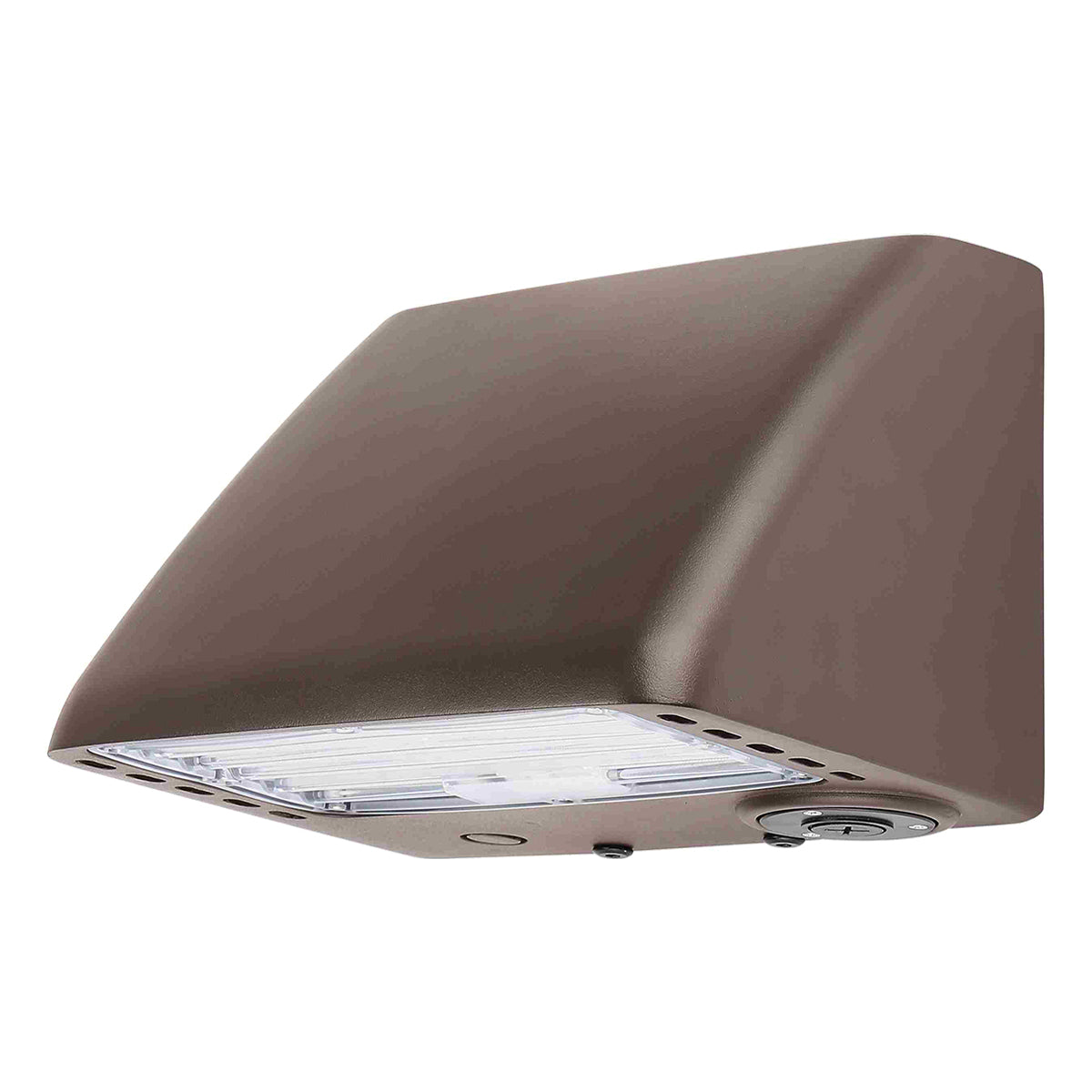

GLT Field-Adjustable Full Cutoff LED Wall Pack - 45W/36W/27W/18W Selectable - 3000K/4000K/5000K - Dark Bronze

The GLT WDGE-P1-UV-CCT is a low-profile architectural full cutoff LED wall pack engineered to deliver 2,750 to 7,000 lumens across field-selectable 45W, 36W, 27W, and 18W power settings (100%, 80%, 60%, and 40%) and switchable 3000K, 4000K, and 5000K color temperatures via its built-in CCT and wattage adjustment dial. Operating on universal 120-277V AC electrical systems with 0-10V dimming (100% to 10%), it combines modern architectural styling with dark-sky compliant performance. Built with a weatherproof sealed die-cast aluminum profile and UL/cUL wet-location certification, this luminaire features a 0° zero-uplight dark-sky optical distribution, an external portable mounting plate that installs without opening or drilling the housing, and includes individual acrylic optics with UV-stabilized optical-grade polymer refractor lenses and an integrated 120-277V dusk-to-dawn photocell.

Key Features

  • Selectable Wattage: 45W / 36W / 27W / 18W field-adjustable via 100% / 80% / 60% / 40% dial
  • Lumen Output Range: 2,750 to 7,000 lm (up to 7,000 lm at 45W / 4000K)
  • Peak Efficacy: Up to 167 lm/W
  • CRI: 70 CRI
  • Selectable CCT: 3000K / 4000K / 5000K switchable
  • Lens & Optics: Individual acrylic optics and high-performance UV-stabilized optical-grade polymer refractor lenses
  • Cutoff & Dark Sky Design: Zero-uplight full cutoff distribution meets dark-sky requirements
  • Photocell & Controller: Includes 120-277V integrated dusk-to-dawn photocell and on-site CCT and power adjustment dial
  • Dimming: 0-10V continuous dimming from 100% down to 10%
  • Input Voltage & Driver: Universal 120-277V AC, single driver (680 mA driver current), PF >90%, THD <20%
  • Mounting Architecture: External portable mounting plate eliminates opening or drilling the fixture housing
  • Location & Body Rating: UL and cUL Listed for wet locations; sealed die-cast outdoor housing
  • Operating Temperature: -40°F (-40°C) to 104°F (40°C)
  • Rated Life: Estimated 50,000-hour L70 LED lifespan based on IES LM-80 results and TM-21 calculations
  • Warranty: 5-year limited warranty - GLT

Performance & Light Output

Nominal Wattage (Switch Setting) 3000K (Warm White) 4000K (Neutral White) 5000K (Cool White)
45W (100% Setting) 6,500 lm (144 lm/W) 7,000 lm (156 lm/W) 6,750 lm (150 lm/W)
36W (80% Setting) 5,300 lm (147 lm/W) 5,700 lm (158 lm/W) 5,500 lm (153 lm/W)
27W (60% Setting) 4,050 lm (150 lm/W) 4,400 lm (163 lm/W) 4,200 lm (156 lm/W)
18W (40% Setting) 2,750 lm (153 lm/W) 3,000 lm (167 lm/W) 2,900 lm (161 lm/W)

Delivers 70 CRI across all selectable wattage and color temperature settings with a zero-uplight dark-sky distribution. Estimated 50,000-hour LED lifespan (L70) based on IES LM-80 results and TM-21 calculations.

Lens & Optics

Engineered with individual acrylic optics and high-performance UV-stabilized optical-grade polymer refractor lenses delivering a dedicated Full Cutoff Zero-Uplight distribution. Optimized for maximum fixture spacing, target footcandles, and wide lighting uniformity, the zero-uplight optical geometry meets dark-sky requirements by eliminating uplight above the horizontal plane.

Smart & Control Features

Engineered for automated dusk-to-dawn operation, on-site tuning, and optional motion control:

  • Integrated 120-277V Photocell (Included): Factory-installed dusk-to-dawn photocell provides automatic nighttime switching for perimeter security and energy savings.

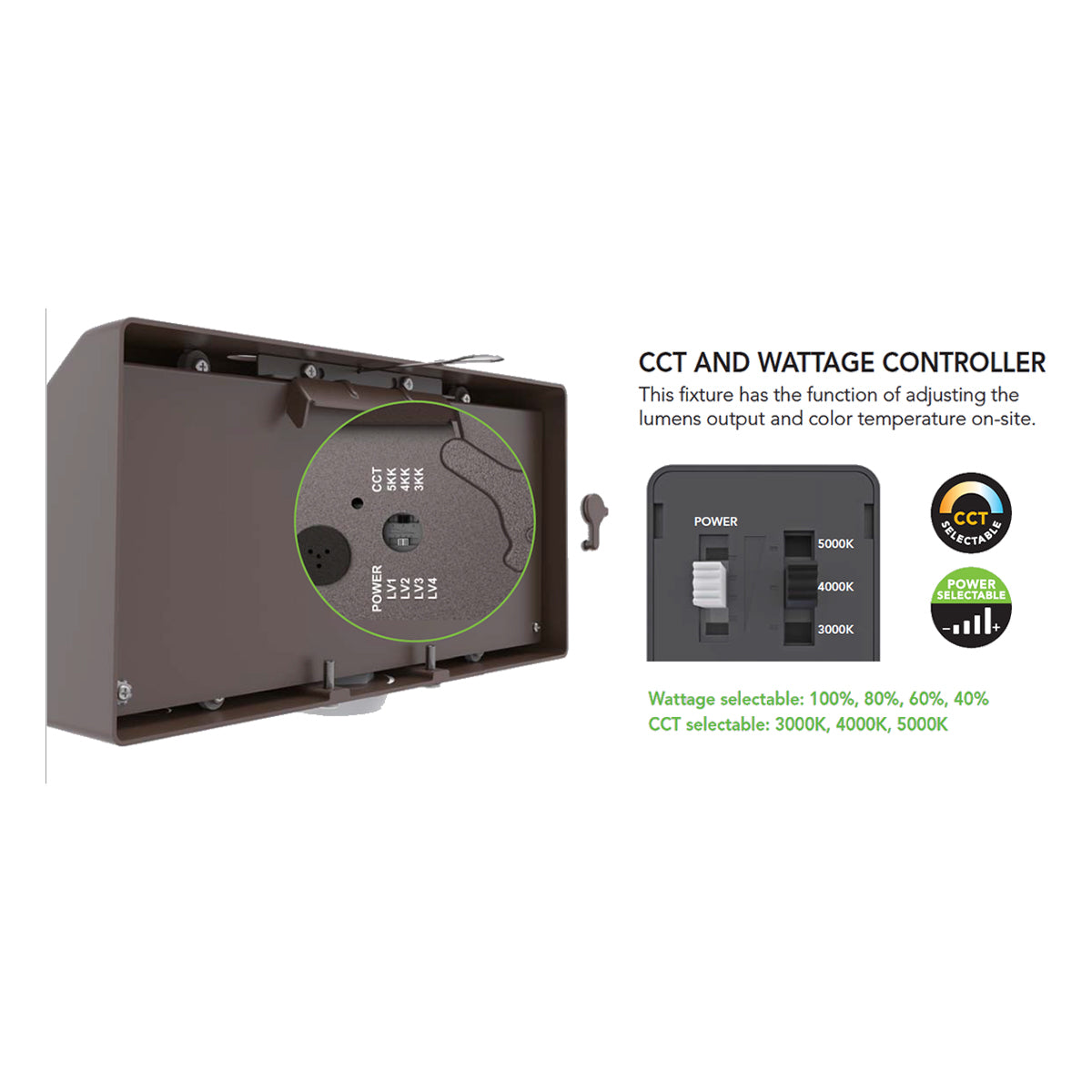

  • Built-In CCT & Wattage Controller Dial: On-site slide switches allow contractors to select power output (100%, 80%, 60%, 40%) and color temperature (3000K, 4000K, 5000K) directly at the installation site.
  • 0-10V Continuous Dimming: Standard 0-10V dimming driver dims smoothly from 100% down to 10%.
  • Optional Plug-and-Play PIR Sensors: Compatible with optional plug-and-play PIR occupancy sensor ANT-6-4T or Bluetooth PIR sensor ANT-6-4T-BLE-SR (sold separately).

Electrical

Powered by 1 constant current driver (680 mA driver current) operating on universal 120-277V AC with a Power Factor >90% and Total Harmonic Distortion (THD) <20%. Includes standard 0-10V dimming leads (100% to 10% dimming range).

Optional Emergency Battery Backup: Supports an optional emergency battery backup (factory pre-installed or field-installed, sold separately) for emergency egress lighting applications.

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Nominal Power 120V Current (A) 208V Current (A) 240V Current (A) 277V Current (A)
45W 0.38A 0.22A 0.19A 0.16A

Construction

Housing & Thermal: Low-profile sealed die-cast housing engineered for outdoor applications, thermally conducting heat away from the LED array via passive convection to optimize performance and service life.

Finish: Architectural dark bronze powder-coat finish formulated to complement modern commercial building facades.

Environmental Sealing: UL and cUL Listed for wet locations with a sealed housing architecture that minimizes water ingression. Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

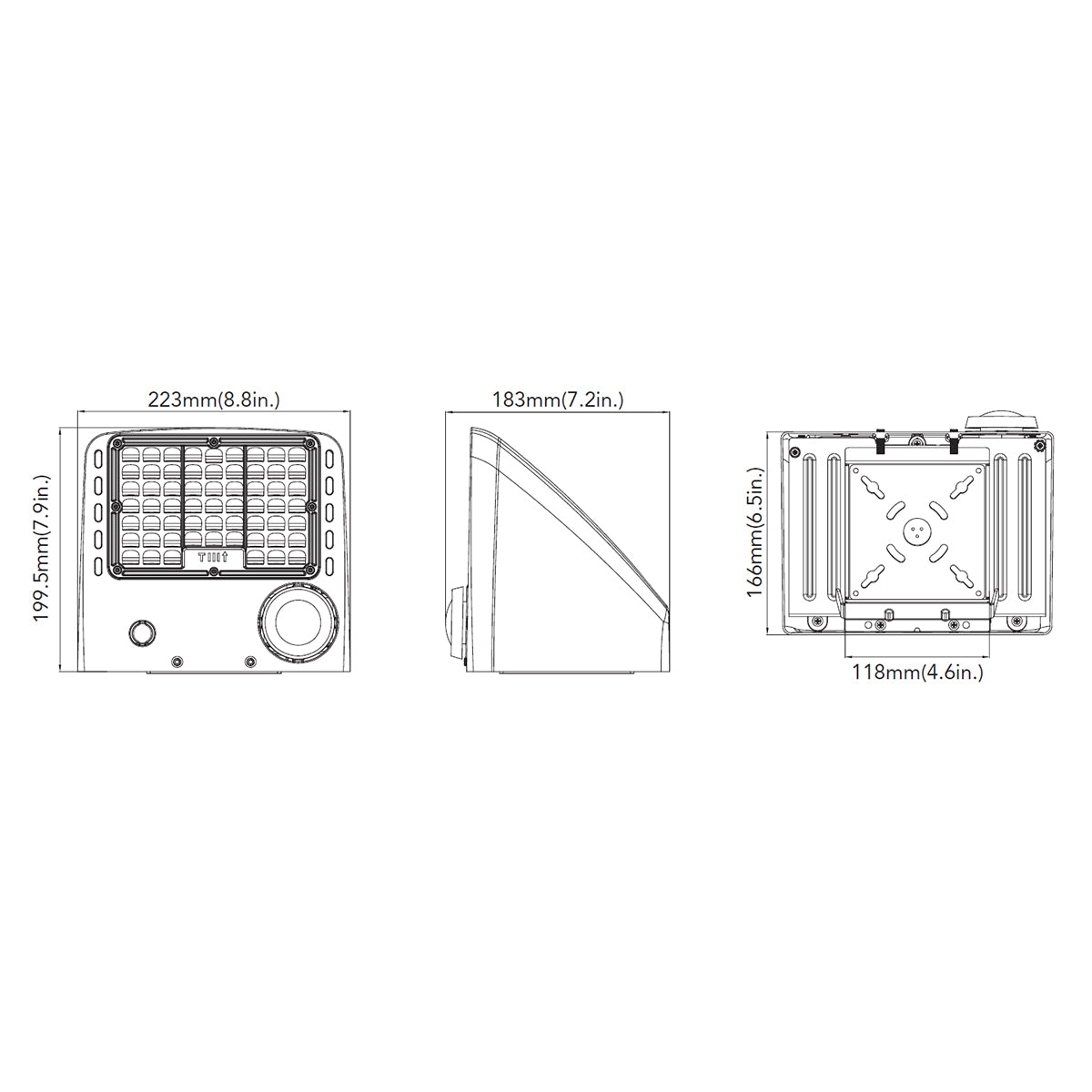

Dimensions & Weight: 8.8" L x 7.9" W x 7.2" H (223mm x 199.5mm x 183mm); backplate mounting footprint 6.5" H x 4.6" W (166mm x 118mm) (Small Size housing). Net weight: 5.92 lbs.

Installation & Mounting

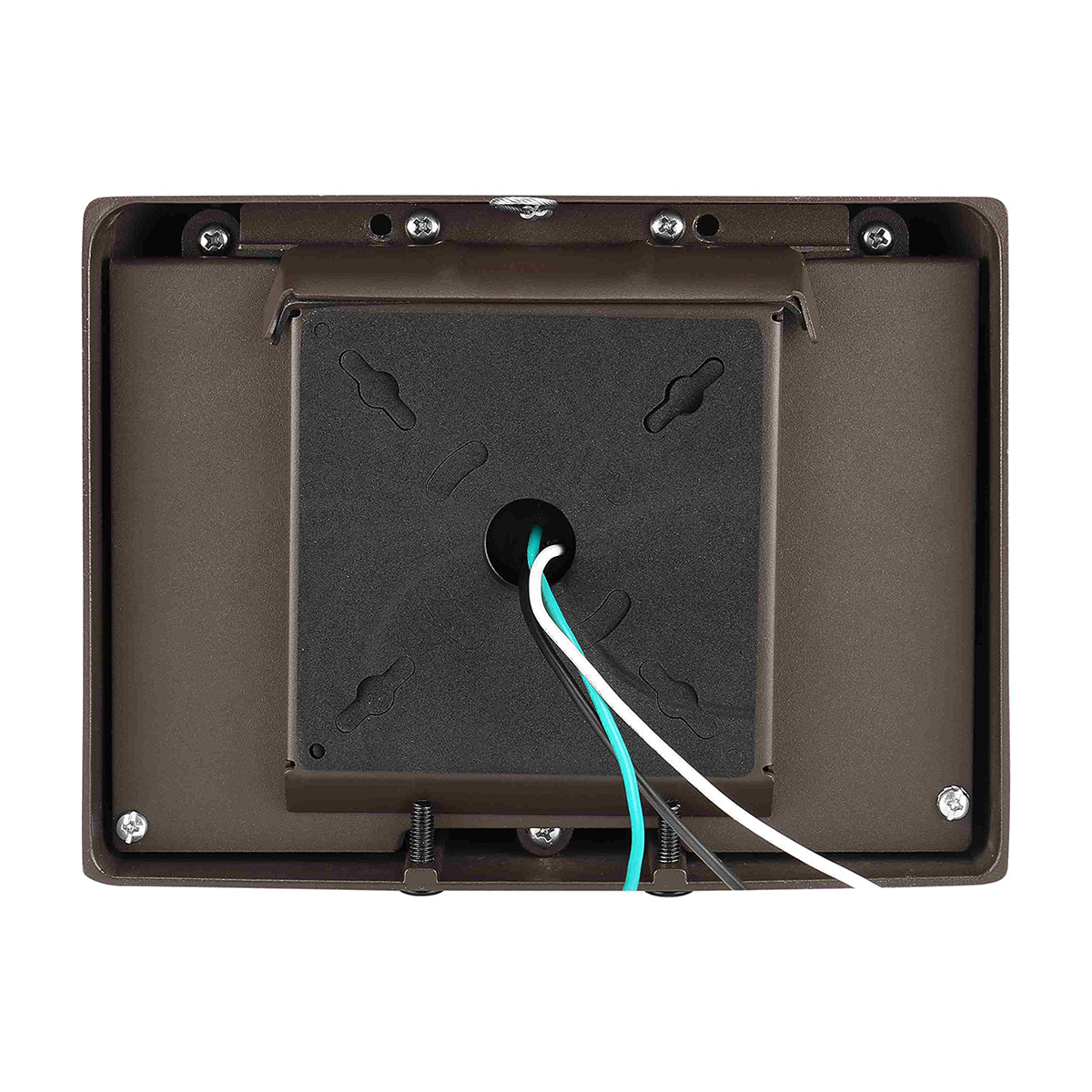

Mounting Hardware: Features an external portable mounting plate that makes installation fast and simple—there is no need to open the fixture housing or drill through the housing, greatly minimizing the risk of water ingression while maintaining a true 0° zero-uplight cutoff plane.

Conduit & Surface Back Box Access: Mounts directly to recessed junction boxes via the portable mounting plate, or pairs with the optional external Surface-Mounted Back Box (4.8" W x 5.3" H x 1.77" D, sold separately) featuring 1/2" knockouts on all 4 sides for surface conduit wiring without a recessed J-box.

Accessories (Sold Separately):

  • ANT-6-4T: Plug-and-Play PIR Occupancy Sensor (sold separately)
  • ANT-6-4T-BLE-SR: Plug-and-Play Bluetooth PIR Occupancy Sensor (sold separately)
  • Surface-Mounted Back Box: External surface-mount junction box (4.8" W x 5.3" H x 1.77" D) with 1/2" knockouts on 4 sides for outer-surface conduit wiring (sold separately)
  • Emergency Battery Backup: Optional factory or field-installable emergency battery backup pack (sold separately)

Certifications & Rebates

  • cULus Listed: UL and cUL certified for wet locations
  • Dark-Sky Zero-Uplight Design: Zero-uplight optical distribution meets dark-sky requirements for reduced light pollution

Typical Applications

  • Commercial Office Buildings & Corporate Campuses - Low-profile architectural wedge silhouette and zero-uplight dark-sky optics enhance modern building facades
  • Shopping Malls, Retail Plazas & Walkways - UV-stabilized optical-grade polymer refractor lenses provide wide, uniform illumination with maximum fixture spacing
  • Warehouses & Distribution Complexes - Field-selectable 45W/36W/27W/18W output and 3000K/4000K/5000K CCT adapt light levels to varied mounting heights
  • Watertight Exterior Perimeter Installations - External portable mounting plate installs without opening or drilling the sealed die-cast housing
  • Automated Dusk-to-Dawn Security Zones - Included 120-277V integrated photocell and 0-10V dimming (100% to 10%) streamline nighttime security operation

What's Included

  • GLT WDGE-P1-UV-CCT Field-Adjustable Full Cutoff Wall Pack (45W) - Dark Bronze
  • Included 120-277V integrated dusk-to-dawn photocell
  • Built-in CCT (3000K/4000K/5000K) and power (100%/80%/60%/40%) adjustment dial
  • External portable wall mounting plate, installation hardware, and operation manual

Specifications

Dimensions

Length/Depth
8.8 in
Width/Diameter
7.2 in
Height
7.9 in
Weight
5.92 lb

Documents

Style & Materials

Material
Aluminum

Characteristics & Features

Lamp Source
led
Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
70 CRI
Delivered Lumens
7000
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
45W

Item Details

MPN
WDGE-P1-UV-CCT
Brand
GLT
Catalog Number
MWP1345W27VDDKDPAD
Family
MWP13 Cutoff Wall Pack
UPC
0680087982545

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
50,000 Hours
Product Rating
Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is the GLT WDGE-P1-UV-CCT wall pack dark-sky friendly, and how does it mount to a wall?

Yes, the GLT WDGE-P1-UV-CCT features a zero-uplight full cutoff design that meets dark-sky requirements using individual acrylic optics and UV-stabilized polymer refractor lenses. Its 8.8" L x 7.9" W x 7.2" H (5.92 lbs) sealed die-cast housing installs via an external portable mounting plate without opening or drilling the fixture.

What wattages, lumen outputs, and color temperatures can be selected on the GLT WDGE-P1-UV-CCT?

The built-in power adjustment dial selects 45W (up to 7,000 lm), 36W (up to 5,700 lm), 27W (up to 4,400 lm), and 18W (up to 3,000 lm) at up to 167 lm/W. A separate switch on the controller selects between 3000K, 4000K, and 5000K color temperatures with 70 CRI.

Does the GLT WDGE-P1-UV-CCT come with a photocell and dimming, and can sensors be added?

Yes, the GLT WDGE-P1-UV-CCT includes a 120-277V integrated dusk-to-dawn photocell, an on-site CCT and power dial, and a 120-277V driver with 0-10V dimming from 100% to 10%. It also supports optional plug-and-play PIR sensors (ANT-6-4T or ANT-6-4T-BLE-SR) and emergency battery backup (sold separately).

How is the GLT WDGE-P1-UV-CCT constructed for outdoor wet-location durability?

The GLT WDGE-P1-UV-CCT is built with a low-profile dark bronze sealed die-cast housing that thermally conducts heat away from the LEDs and prevents water ingression. It is UL and cUL Listed for wet locations and operates reliably in ambient temperatures from -40°F (-40°C) to 104°F (40°C).

What are the rated LED lifespan and warranty coverage for the GLT WDGE-P1-UV-CCT?

The GLT WDGE-P1-UV-CCT is rated for an estimated 50,000-hour L70 LED lifespan based on IES LM-80 testing results and TM-21 calculations. It is backed by GLT's 5-year limited warranty for commercial office buildings, warehouses, campuses, and shopping malls.
