GLT Selectable General Purpose Floodlight — 120W, Selectable CCT & Power, Slipfitter Mount, Photocell, 120-277V

The GLT VFL-120W-UV-77-CCT-SP is a versatile, high-performance LED flood light designed to deliver optimal illumination for large courtyards, expansive parking lots, and commercial building exteriors. This powerful luminaire produces an impressive 19,000 lumens and features advanced power selection, allowing installers to toggle the wattage between 40%, 60%, 80%, and 100% of the maximum 120W output. You can also easily adapt to different project requirements by selecting between three color temperatures (3000K, 4000K, 5000K) directly in the field. It features a fully sealed tempered glass lens and a wide NEMA 7H x 7V distribution pattern, providing a broad, powerful wash of light that effortlessly replaces 250W-400W metal halide fixtures. Operating on a 120-277V universal driver, this model comes equipped with a built-in photocell for automated dusk-to-dawn energy savings and a dedicated slipfitter mount for secure pole installation. Built to endure harsh environments, the fixture is housed in rugged die-cast aluminum for optimal heat dissipation and is UL Listed for wet locations. Backed by a 5-year warranty, it is the perfect solution for long-lasting, professional-grade exterior area lighting.

Key Features

• Wattage: Field adjustable to 100%, 80%, 60%, or 40% of the 120W max output.
• Selectable CCT: Field adjustable between 3000K (Warm White), 4000K (Cool White), and 5000K (Daylight).
• Dimming: Integrated 1-10V dimming capabilities.
• Photocell: Integrated photocell included for automatic dusk-to-dawn operation.
• Optics: NEMA 7H x 7V wide flood distribution with a fully sealed tempered glass lens.
• Mounting Type: Slipfitter mount.
• Delivered Lumens: Up to 19,000 lumens at the 100% (120W) setting.
• Environmental Ratings: UL Listed for Wet Locations.
• Rated Life: L70 > 50,000 hours.

Typical Applications

• Large building perimeters and facade illumination
• Commercial parking lots and wide area lighting
• Commercial signage and billboards
• General high-output exterior area and security lighting

Performance & Light Output

The GLT VFL-120W-UV-77-CCT-SP provides high-intensity, uniform light with a maximum output of 19,000 lumens. Its advanced optical design ensures crisp color consistency (70+ CRI) without the risk of yellowing over time. With long-life LEDs rated for 50,000 hours, this fixture significantly reduces maintenance and energy costs compared to traditional HID lighting.

Electrical & Controls

Operating efficiently on a 120-277V AC input, this fixture features an integrated photocell that allows for automated daylight operation out of the box. It also supports 1-10V dimming for seamless integration with energy management and lighting control systems.

Construction & Durability

The fixture features a rugged die-cast aluminum housing for optimal heat dissipation and improved LED efficiency. It is completely sealed with a durable tempered glass lens, safely operating in extreme ambient temperatures ranging from -40°F (-40°C) up to 104°F (40°C).

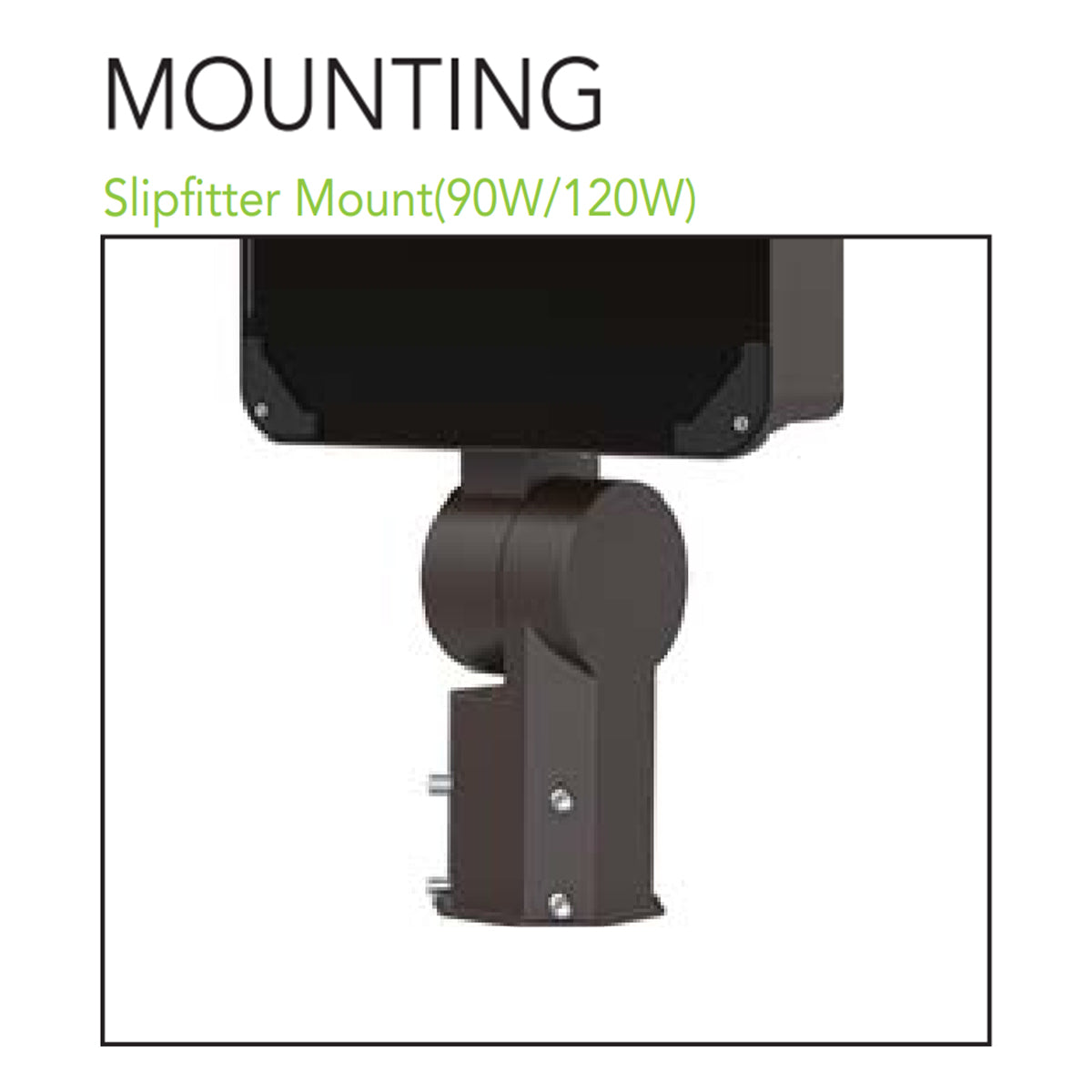

Installation & Mounting

This model is designed for straightforward installation on high-output applications, coming exclusively with a heavy-duty slipfitter mount. This makes it perfectly suited for sliding over standard 2 3/8" tenons or light poles and locking securely in place.

What's Included

• GLT VFL-120W-UV-77-CCT-SP LED Selectable Flood Light
• Integrated Slipfitter Mount
• Integrated Photocell
• 5-Year Manufacturer Warranty
