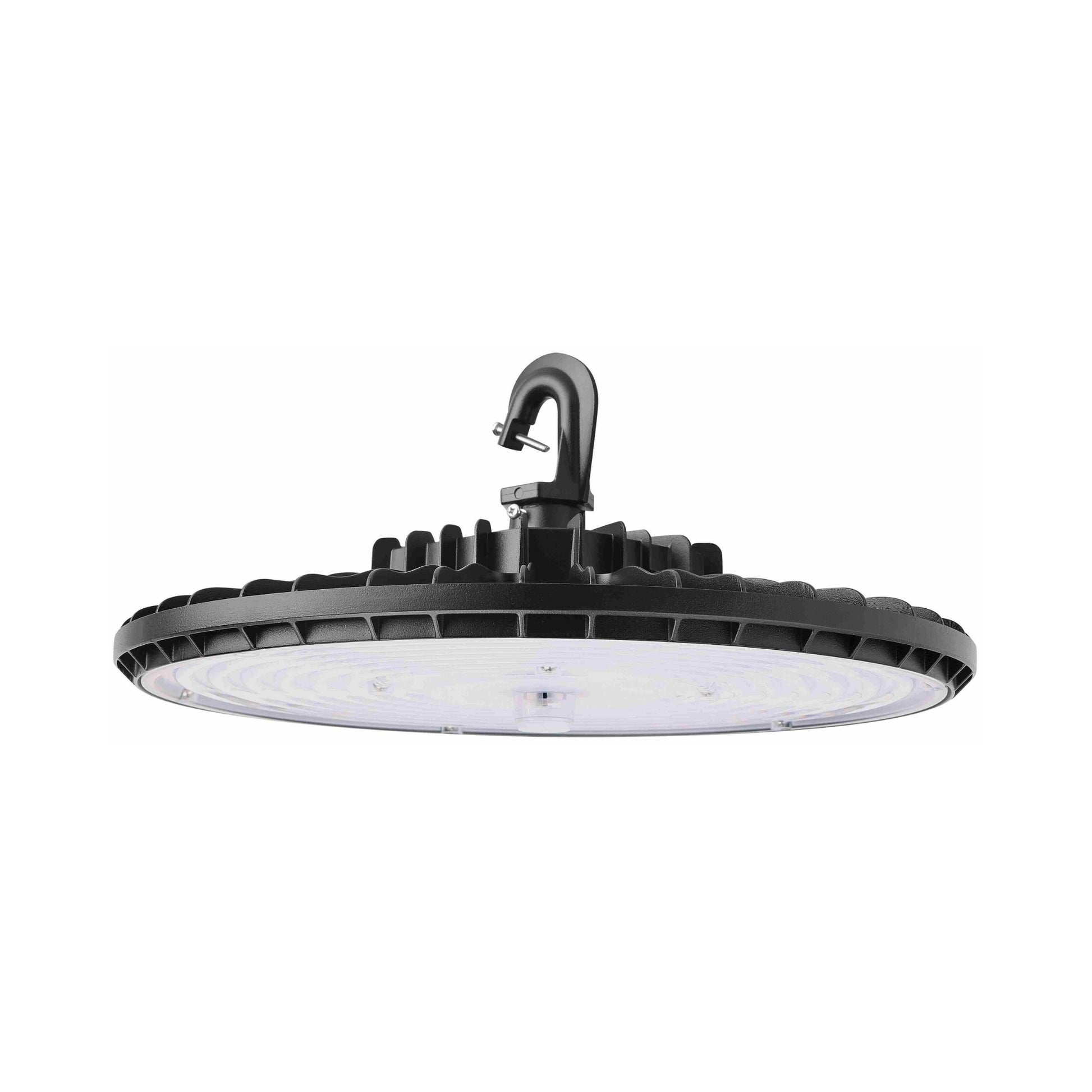

GLT Field-Adjustable UFO LED High Bay — 36,000 lm — 92W / 138W / 184W / 230W Selectable — Bronze
Available in stock (464)
About this item
About this item
- Four-Step Selectable Wattage — One SKU, Multiple Applications: Switch between 92W, 138W, 184W, and 230W in the field — delivering 16,500 to 36,000 lm (4000K) — replacing up to 750W metal halide fixtures without stocking separate SKUs for each ceiling height.
- Tri-Selectable CCT — 3000K / 4000K / 5000K On-Site: Three color temperature options in a single fixture — set warm white, neutral, or daylight before installation to match facility requirements or blend with existing lighting.
- UL cUL Wet Location Listed — Outdoor and Harsh Environment Ready: Wet-location rating and -40°C cold-start capability make this fixture suitable for covered outdoor areas, wash-down environments, and cold-storage facilities.
- DLC Premium Listed — Utility Rebate Eligible: Qualifies for utility rebate programs through designlights.org, reducing net project cost for commercial and industrial retrofits.
- Plug-and-Play Sensor Ready — ANT-6-4T / ANT-5-4T Compatible: Accepts PIR and microwave sensors (standard and Bluetooth) via integrated sensor receptacle for occupancy and daylight harvesting control — no rewiring required.
We process payments securely and do not store credit card information.
Description
Description

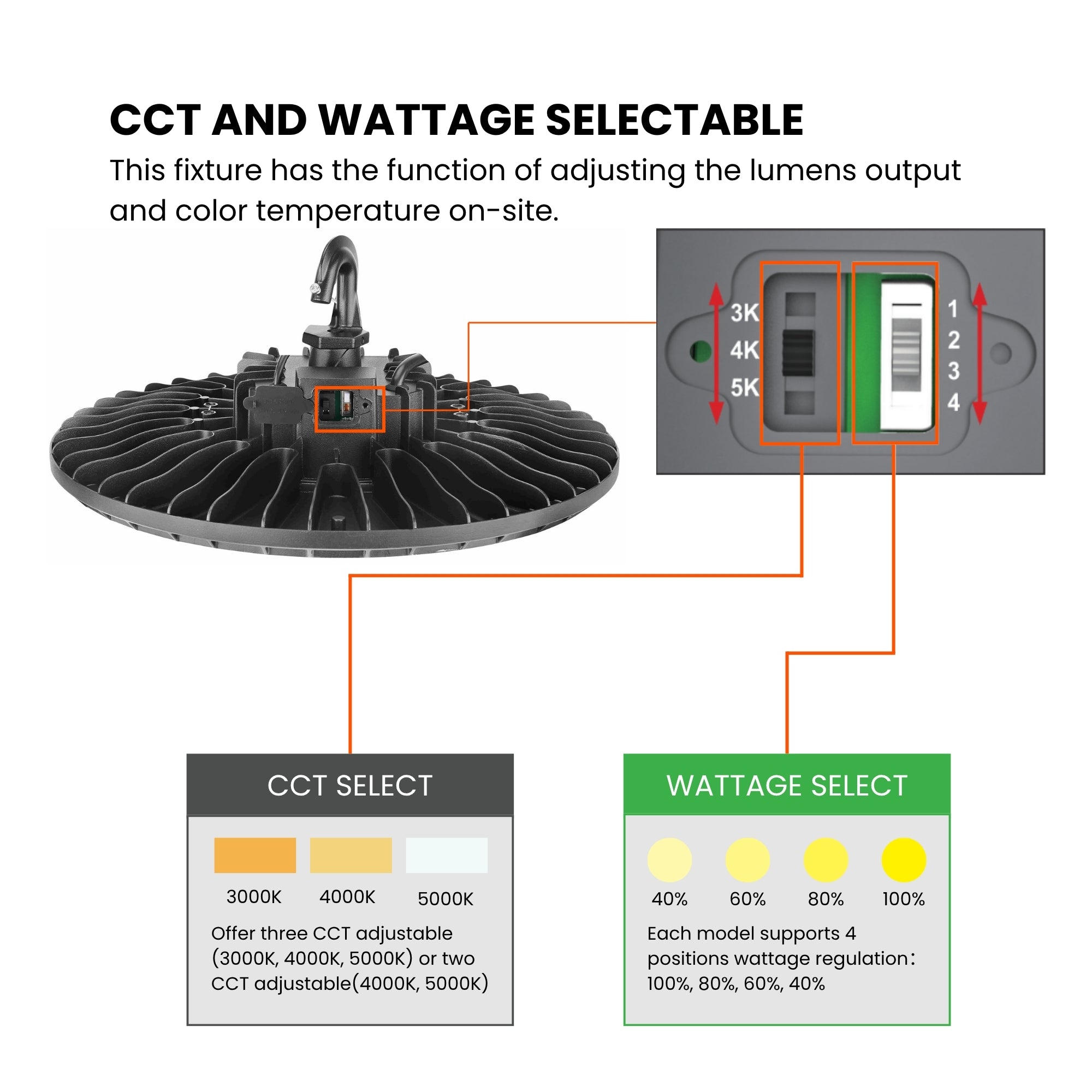

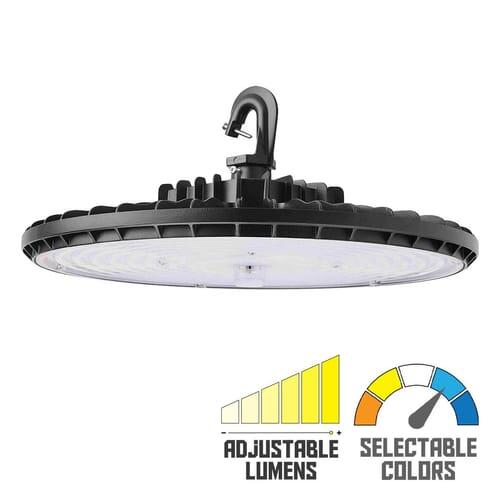

The GLT HBU-240W-UV-CCT is a high-output, field-adjustable UFO LED high bay engineered for large commercial and industrial facilities requiring maximum lumen delivery with on-site flexibility. Four selectable wattage steps (92W / 138W / 184W / 230W — 40% / 60% / 80% / 100%) and tri-selectable CCT (3000K / 4000K / 5000K) are adjustable on-site via built-in switches before installation. Delivers up to 36,000 lumens at 4000K with a peak efficacy of 179 lm/W on a universal 120–277V platform. CRI 70, UL cUL wet location listed, and DLC Premium listed for utility rebate eligibility. Cold-start rated to -40°C. 0–10V dimmable driver standard (10% minimum). Backed by a 5-year manufacturer warranty.
Key Features
- Field-Selectable Wattage: 92W / 138W / 184W / 230W (40% / 60% / 80% / 100%) — right-size output for ceiling height without stocking multiple SKUs
- Field-Selectable CCT: 3000K / 4000K / 5000K — set color temperature on-site before installation
- Maximum Lumen Output: 36,000 lm at 230W / 4000K
- Peak Efficacy: 179 lm/W at 92W / 4000K
- CRI: 70 across all wattage and CCT settings
- Dimming: 0–10V dimmable driver standard (100% to 10% minimum)
- Universal Voltage: 120–277V AC, single driver
- Power Factor / THD / Surge: PF >90%, THD <20%, 6kV surge protection
- Location Rating: UL cUL wet location listed
- Cold-Start Rated: -40°C to +45°C (-40°F to +113°F)

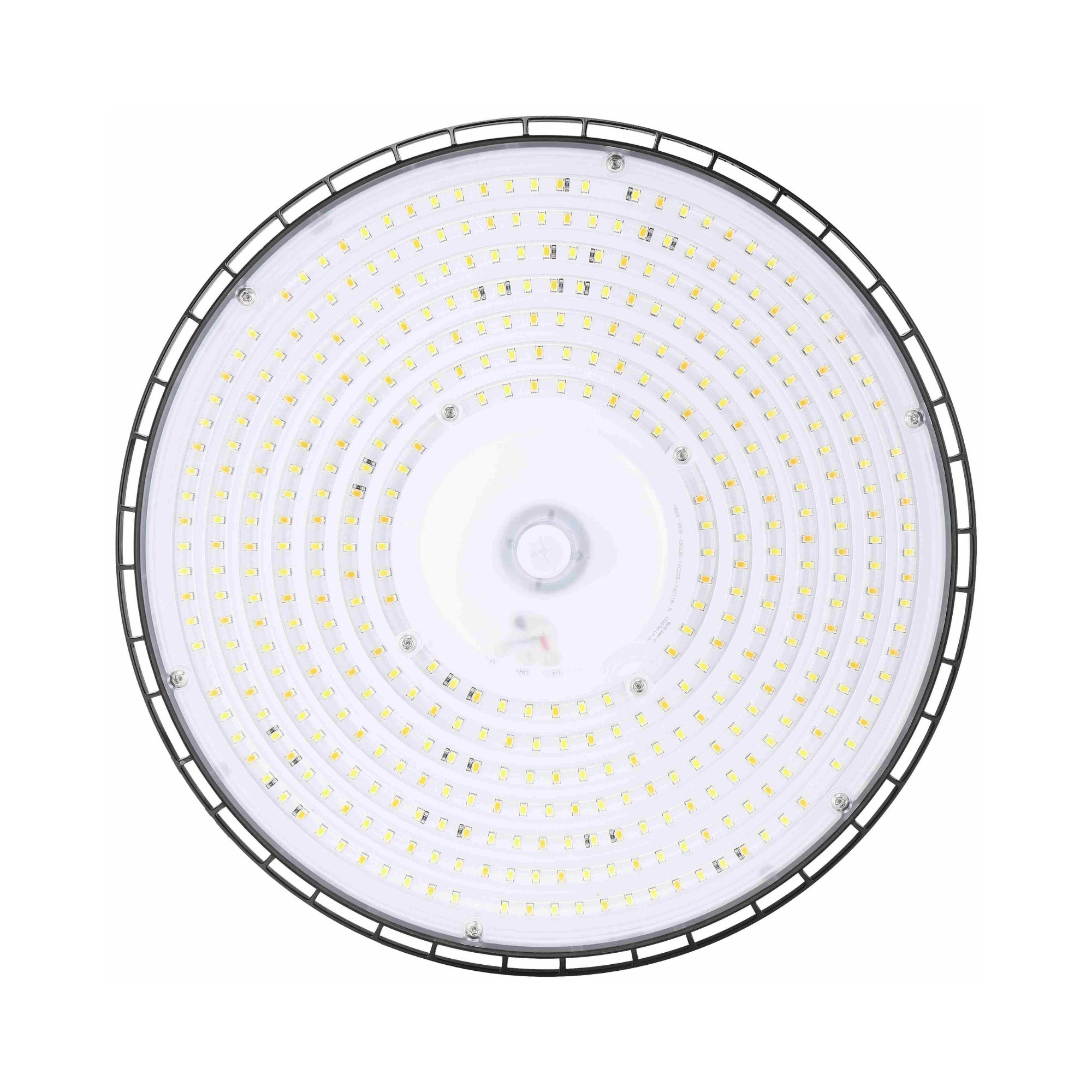

- Optics: Anti-UV prismatic translucent lens for uniform light distribution and glare control
- Rated Life: 50,000 hours (IES LM-80 / TM-21)
- Certifications: DLC Premium, UL cUL Listed, TAA Compliant
- Wattage Equivalency: Replaces up to 750W metal halide UFO high bay fixtures
- Warranty: 5-year manufacturer warranty
Performance & Light Output
Lumen output varies by CCT — 4000K delivers the highest output at every wattage setting. At 230W (100%): 34,000 lm / 148 lm/W (3000K) | 36,000 lm / 157 lm/W (4000K) | 35,000 lm / 152 lm/W (5000K). At 184W (80%): 28,000 lm / 152 lm/W (3000K) | 30,000 lm / 163 lm/W (4000K) | 29,000 lm / 158 lm/W (5000K). At 138W (60%): 22,000 lm / 159 lm/W (3000K) | 24,000 lm / 174 lm/W (4000K) | 22,500 lm / 167 lm/W (5000K). At 92W (40%): 15,500 lm / 168 lm/W (3000K) | 16,500 lm / 179 lm/W (4000K) | 16,000 lm / 174 lm/W (5000K). Rated life 50,000 hours per IES LM-80 results and TM-21 projections.
Smart & Control Features

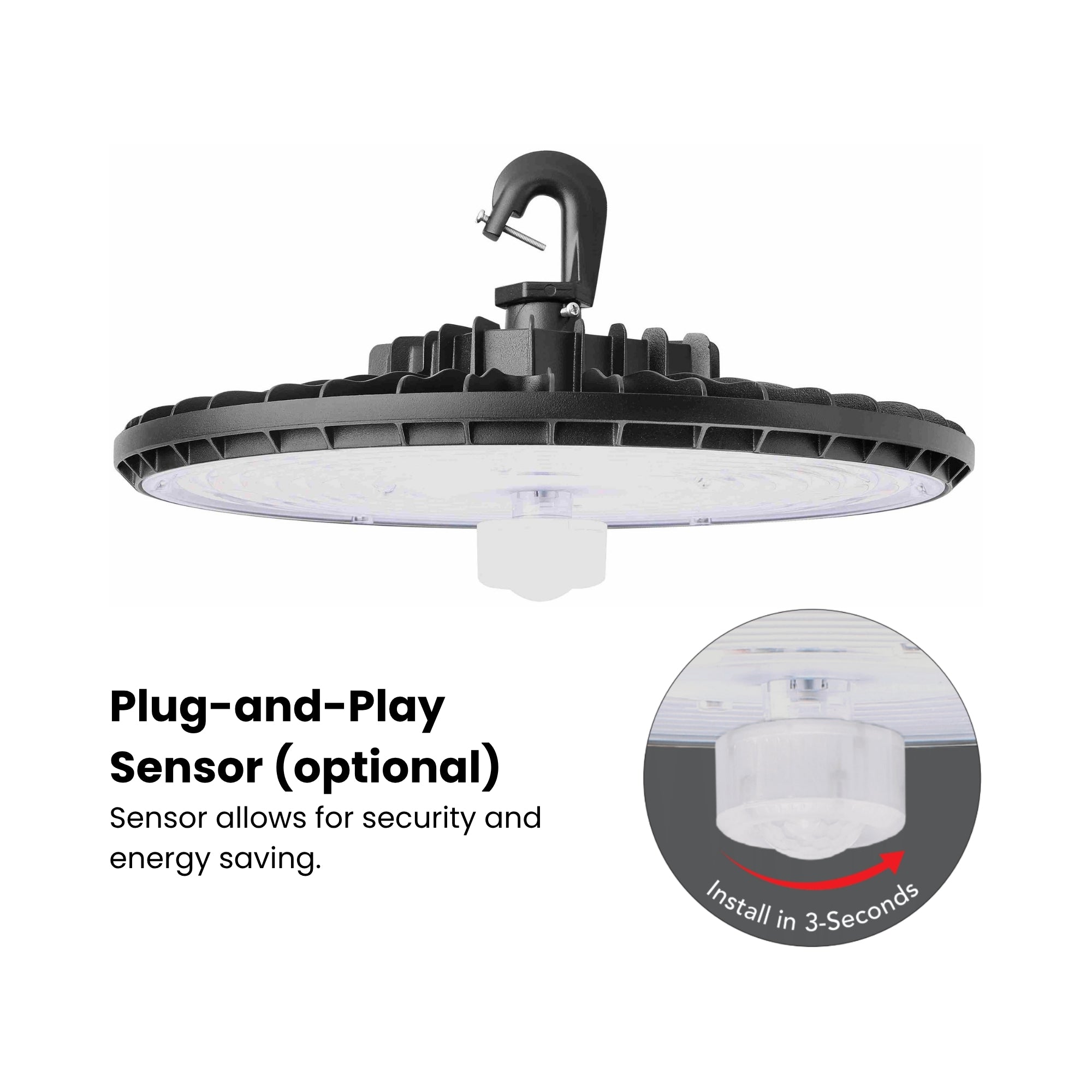

The HBU-240W-UV-CCT includes a standard 0–10V dimmable driver and supports plug-and-play sensor accessories via the integrated sensor receptacle:
- Plug-and-Play PIR Sensor: ANT-6-4T (standard) | ANT-6-4T-BLE-SR (Bluetooth) — sold separately
- Plug-and-Play Microwave Sensor: ANT-5-4T (standard) | ANT-5-4T-BLE-SR (Bluetooth) — sold separately
Bluetooth sensor variants enable wireless group control and scheduling without a separate gateway. A Transformer Box accessory is available to convert this fixture to high-voltage (HV) input, reducing SKU count and inventory pressure.
Electrical
Universal 120–277V AC input, single driver. 0–10V dimming from 100% to 10% minimum. PF >90%, THD <20%, 6kV surge protection. Operating temperature: -40°C to +45°C (-40°F to +113°F). When using emergency battery, operating temperature range is 5°C to +50°C (+41°F to +122°F). TAA compliant.
Construction

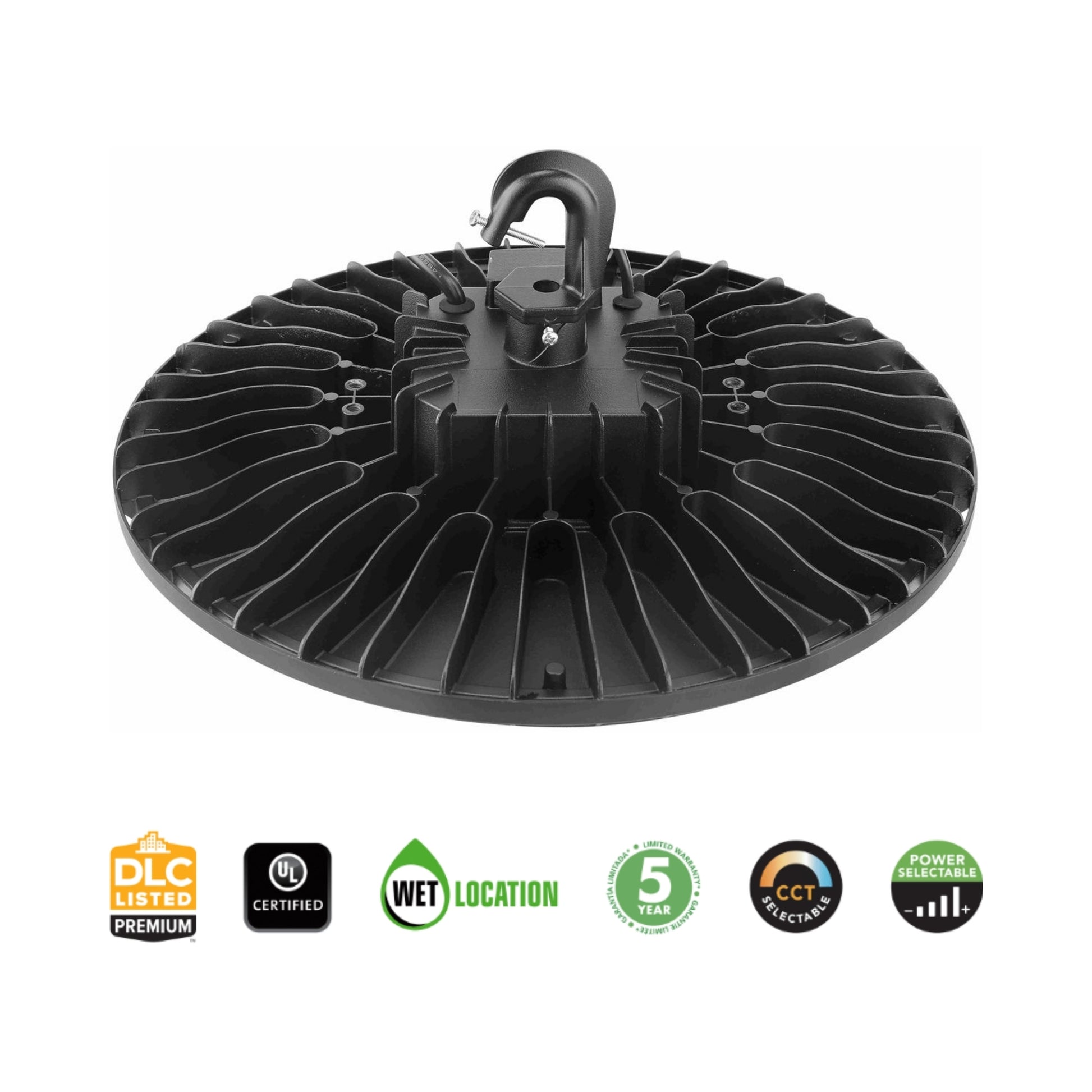

Rugged die-cast aluminum housing thermally conducts LED heat to optimize performance and long-term reliability. Bronze corrosion-resistant powder-coat finish. Anti-UV prismatic translucent lens shapes light uniformity and controls glare. Dimensions: Ø14.1" × 7.5"H (Ø358.9mm × 191.3mm).
Installation & Mounting

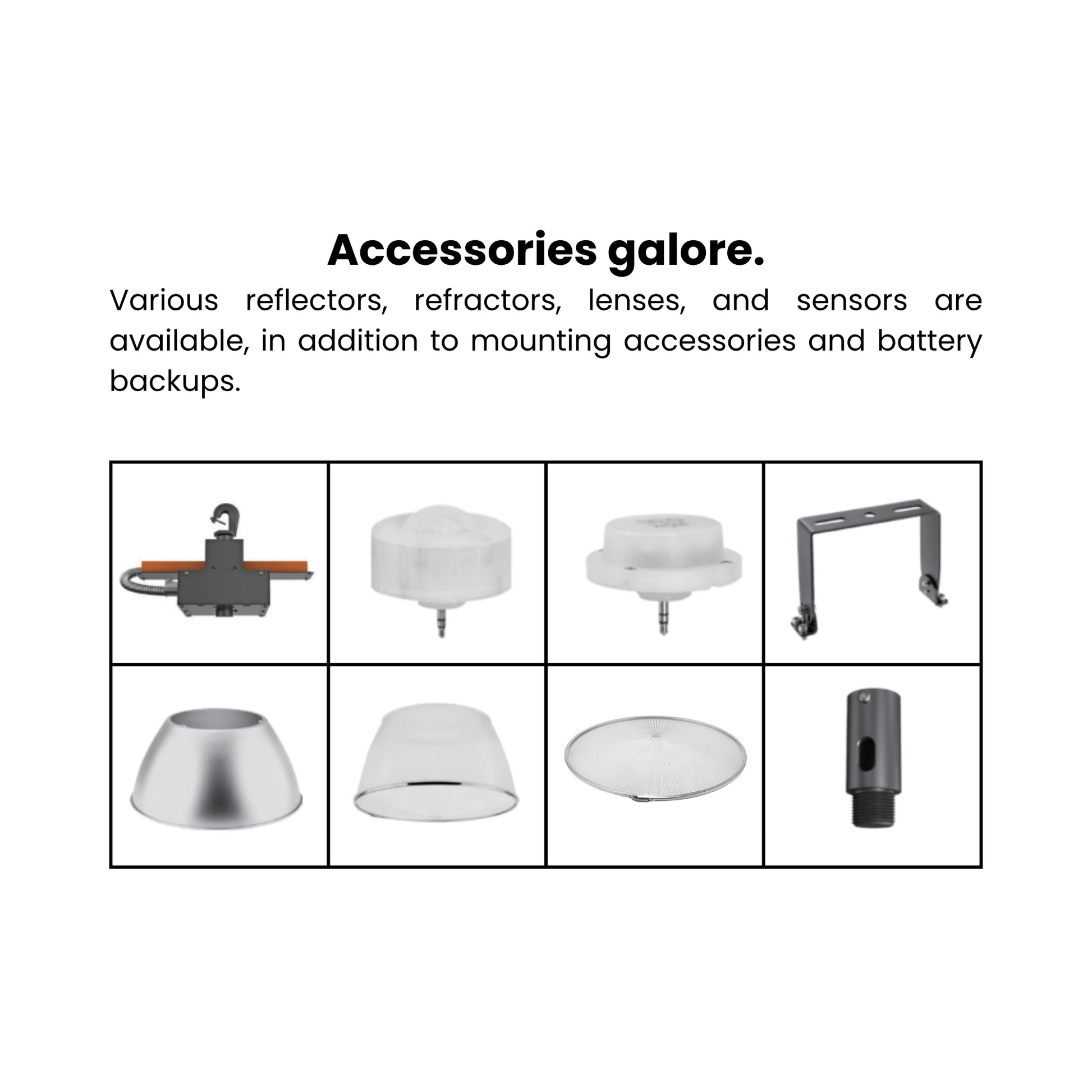

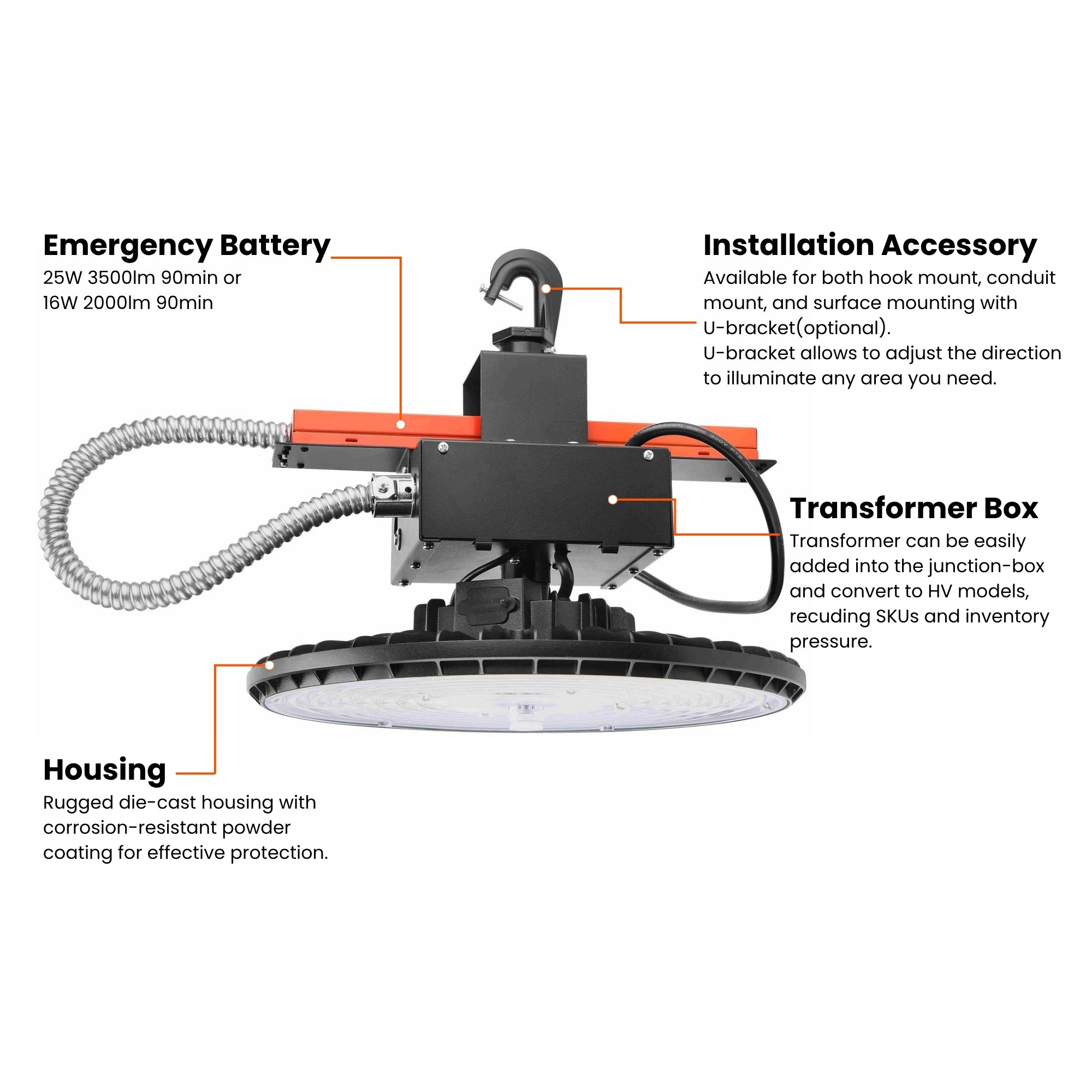

Three mounting methods supported: hook mount (included), conduit pendant mount, and surface mount via U-bracket (sold separately). Recommended ceiling height by wattage setting: 92W — 12–18 ft | 138W — 16–22 ft | 184W — 20–28 ft | 230W — 24–32 ft.
- Mounting Options: Hook (included), conduit pendant, U-bracket surface mount (sold separately)
- Emergency Battery: 25W 3500lm 90-min — suits 210W / 230W models (sold separately)
- Sensors: ANT-6-4T (PIR), ANT-5-4T (Microwave), Bluetooth variants available — sold separately
- Aluminum Reflector: Available separately for enhanced directional control
- Transformer Box: Converts to high-voltage input — sold separately
Certifications & Rebates
UL cUL listed for wet locations. DLC Premium listed — eligible for utility rebate programs in most U.S. states and Canadian provinces. Verify eligibility at designlights.org. TAA compliant for federally funded projects.
Typical Applications
- Warehouses & Distribution Centers: High-output 230W / 36,000 lm setting covers large-footprint bays and high-rack storage up to 32 ft
- Manufacturing & Heavy Industrial Facilities: Wet-location rating and -40°C cold-start handle the most demanding production floor environments

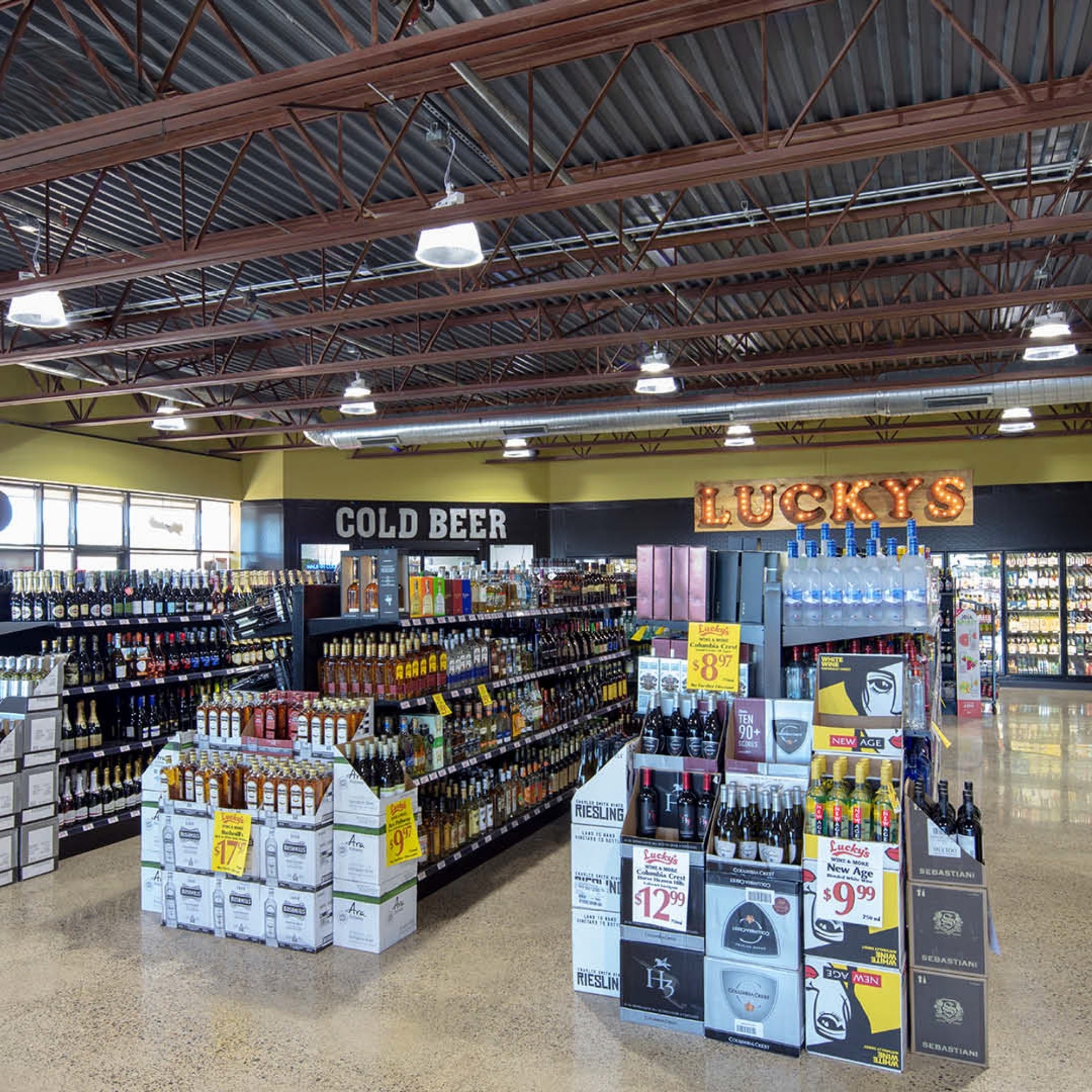

- Large Retail & Big-Box Spaces: Tri-CCT selection lets facility managers match or blend with existing ambient lighting across expansive floor plans
- Municipal & Government Buildings: TAA compliant — qualifies for federally funded retrofit and new construction projects
- Commercial Garages & Auto Service: Uniform round distribution eliminates dark spots in large multi-bay service facilities
- Stadiums & Recreation Facilities: 230W / 36,000 lm handles large open-ceiling gymnasium and arena environments
What's Included
- GLT HBU-240W-UV-CCT UFO LED High Bay with integrated LED engine, driver, and field-selectable wattage/CCT switches
- Pre-installed hook mount
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the GLT HBU-240W-UV-CCT rated for outdoor or wet locations?
Is the GLT HBU-240W-UV-CCT rated for outdoor or wet locations?
Can I adjust the wattage and color temperature after installation?
Can I adjust the wattage and color temperature after installation?
What sensors are compatible, and how do they install?
What sensors are compatible, and how do they install?
What is the Transformer Box accessory, and when do I need it?
What is the Transformer Box accessory, and when do I need it?
Is this fixture DLC listed, and how do I check rebate eligibility?
Is this fixture DLC listed, and how do I check rebate eligibility?
great servive
We recently bought several of these lamps to test out in our collision repair shop. We hung 2 of them next to our old HID lamps and immediately bought 14 more to complete the installation. They are extremely bright, have great coverage and we no longer have shadows in corners and along walls. The energy savings alone makes them worth buying!
These lights work really well in our facility; they are fairly robust and last a long time
The lights were fine. The issue that arose for me was their claim of shipping within three business days and that "all lights are in stock". I placed three different orders. The first one had not shipped within three weeks. After I inquired about it, I was told there was a communication error and the lights would ship immediately. It still took a week. Both the second and third orders took multiple weeks to ship, and both times they only shipped after I inquired about them. It is clear they do not stock these lights and instead are just a middle man.
