GLT 100W Selectable Traditional LED Wall Pack 12,000 Lumens 30K/40K/50K Adjustable Power 120-277V TWR-100WCCT-PA
Available in stock (76)
About this item
About this item
- Power & Color Select Controller: Comes equipped with an adjustable dial controller that simplifies inventory and maximizes on-site flexibility. Easily select between 3000K, 4000K, and 5000K, and adjust the wattage (100%, 80%, 60%, 40%) directly on the fixture via a switch selection.
- Classic Design, Modern Performance: Features a high-efficiency light engine housed in a classic, sealed die-cast aluminum profile designed specifically for outdoor applications.
- High Efficiency: Delivers up to 12,000 lumens at its maximum 100W setting, providing an exceptional energy-saving efficacy of up to 120 LPW.
- Rugged Durability: The housing thermally conducts LED heat to optimize performance and longevity, while the professional prismatic UV-resistant polycarbonate lens guarantees uniform light distribution.
- Built for Outdoors: Fully UL/cUL Wet Location listed and capable of operating in extreme ambient temperatures ranging from -40°F to 104°F (-40°C to 40°C).
We process payments securely and do not store credit card information.
Description
Description

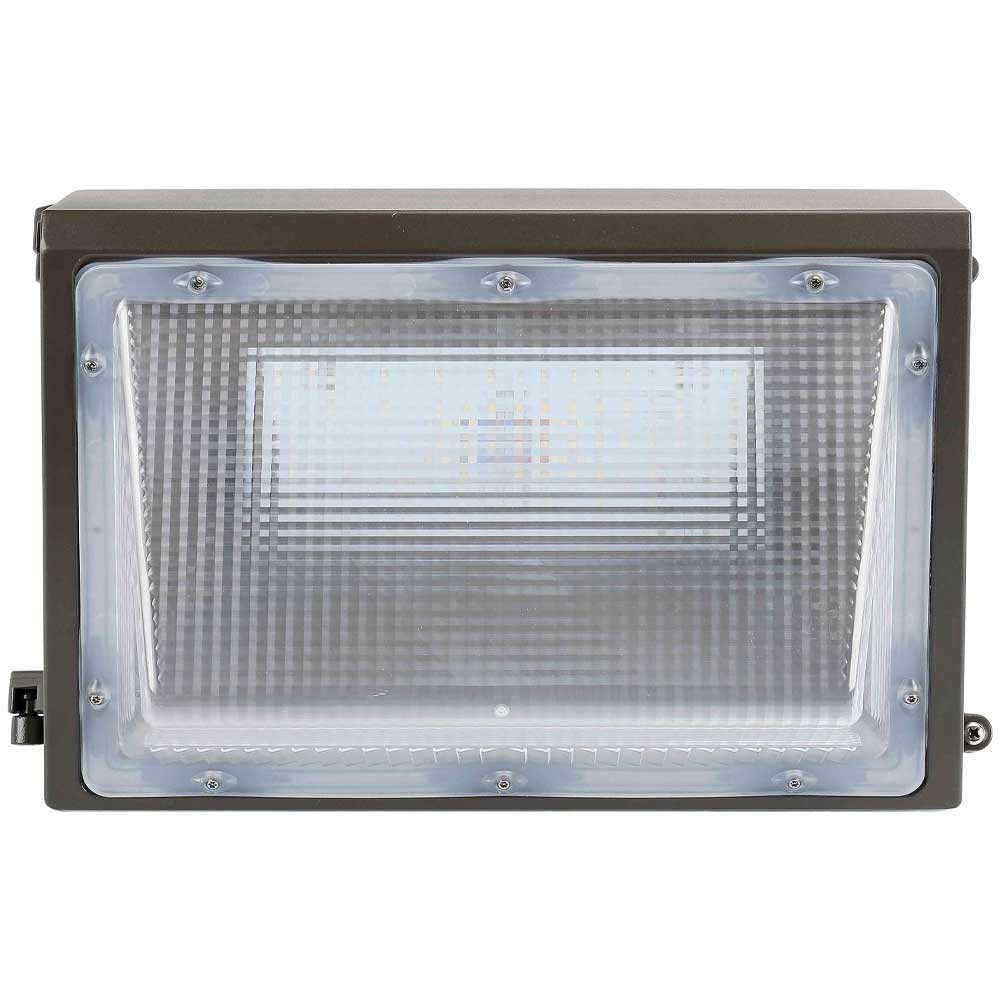

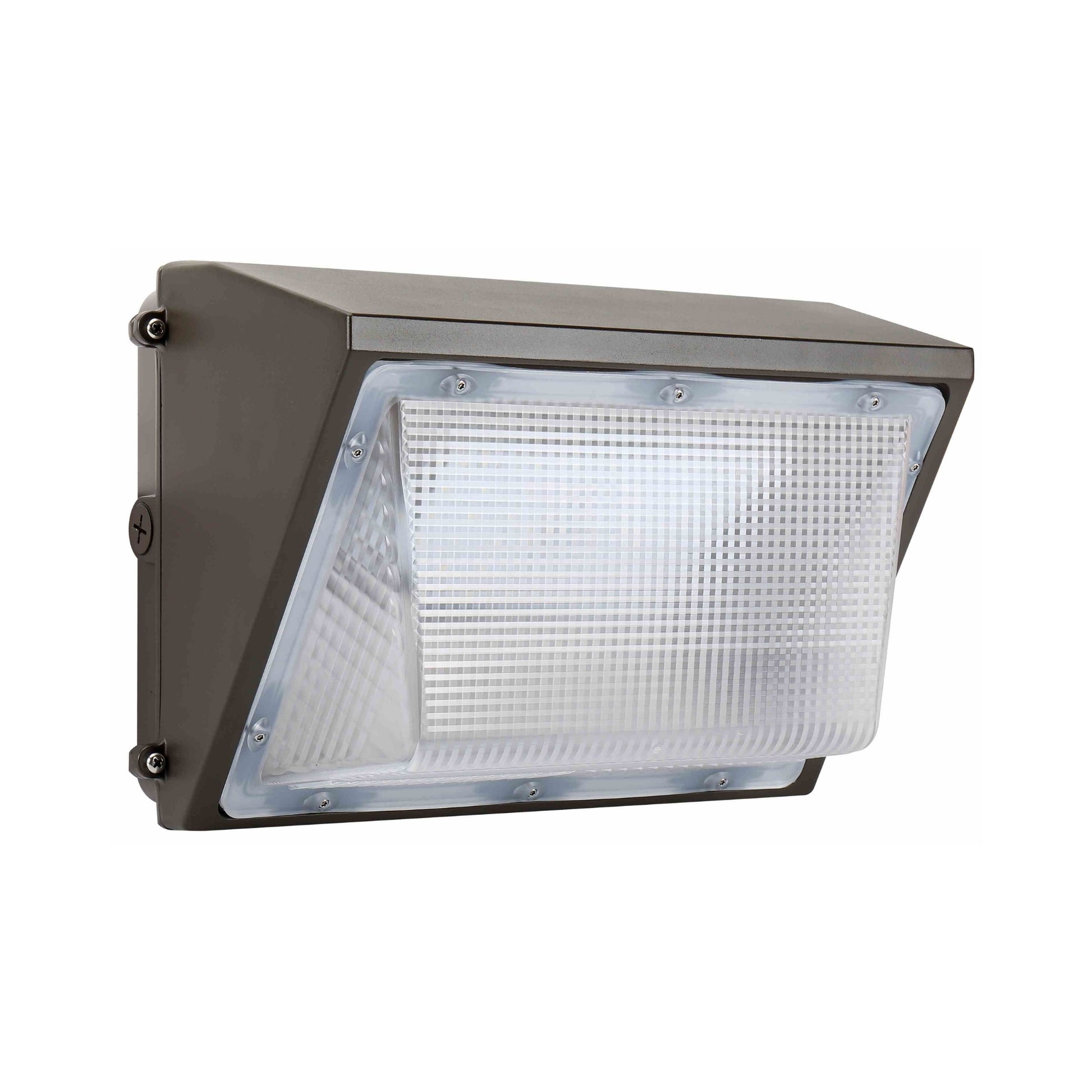

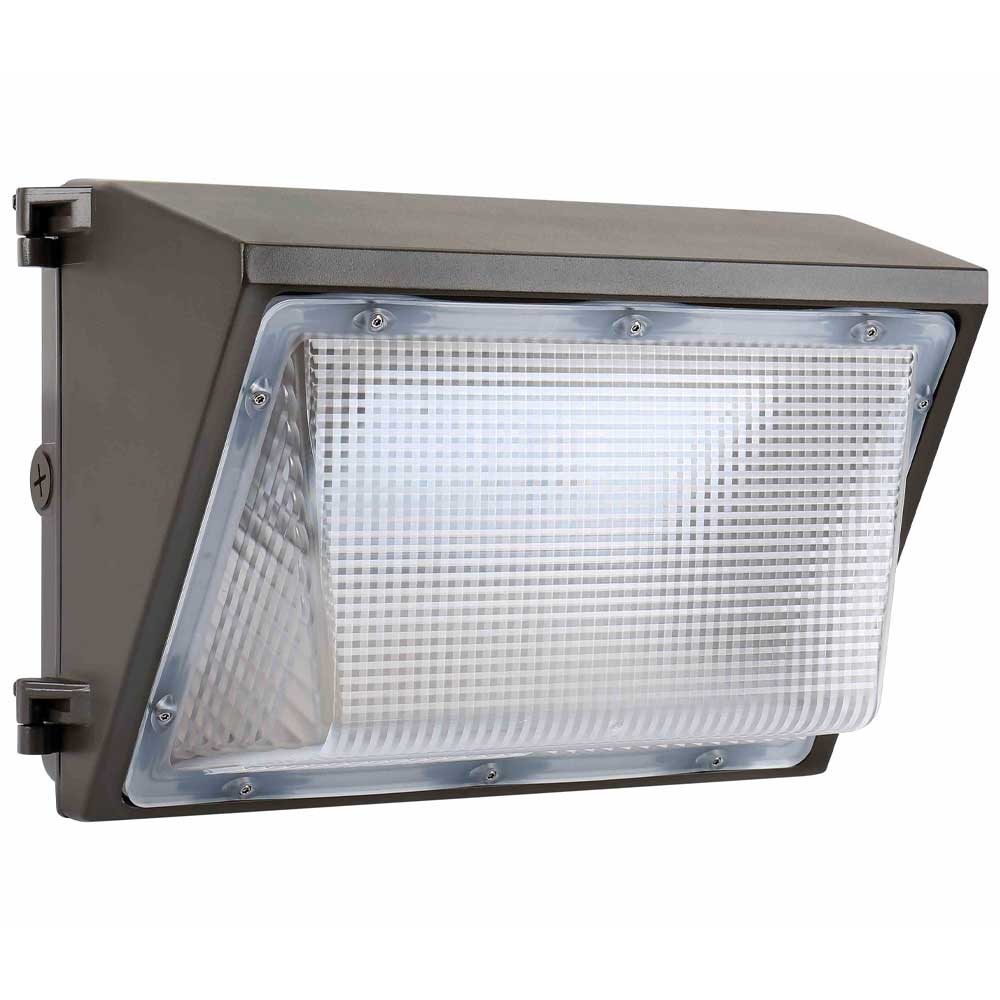

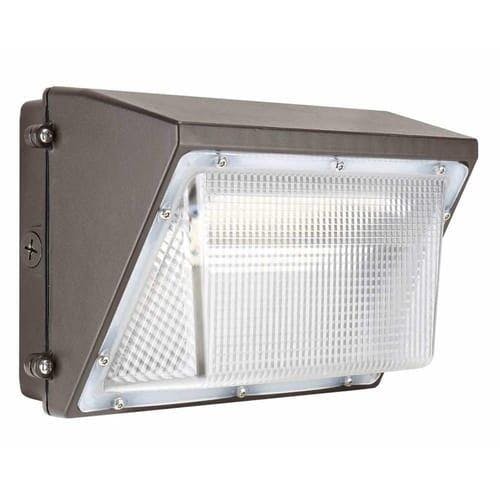

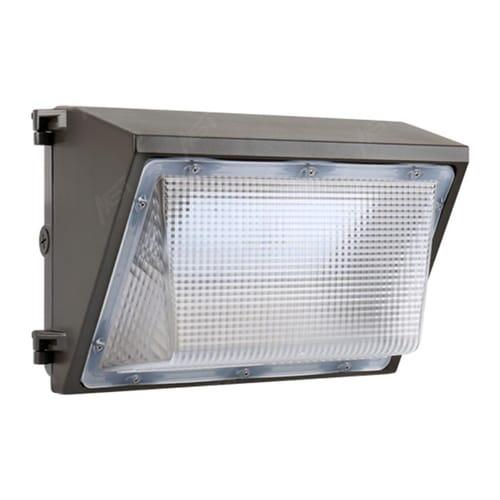

GLT Selectable Traditional LED Wall Pack — 100W, Color & Power Selectable, 120–277V
The GLT TWR-100WCCT-PA is a cost-effective, high-performance traditional LED wall pack delivering up to 12,000 lumens. Combining a classic wall pack aesthetic with advanced LED technology, this fixture features a robust, sealed die-cast aluminum housing and a high-quality UV-resistant polycarbonate lens that provides excellent lighting uniformity. It offers exceptional flexibility for contractors by coming fully equipped with an adjustable dial controller that allows installers to easily choose between 3000K, 4000K, or 5000K color temperatures, as well as scale the wattage down to 80%, 60%, or 40% on-site. Operating on a universal 120–277V driver, it features standard 1-10V dimming and is fully compatible with optional field-installed photocells or emergency battery backups. With its Wet Location rating and 50,000-hour estimated lifespan, it is a highly reliable choice for building perimeters, walkways, and exterior security lighting.
Key Features
- Wattage: 100W (Power Adjustable to 100%, 80%, 60%, 40% via included dial controller)
- Selectable CCT: 3000K / 4000K / 5000K via included dial controller
- Delivered Lumens: 11,500 lumens (3000K), 12,000 lumens (4000K), 11,600 lumens (5000K)
- Efficacy: Up to 120 Lumens Per Watt (LPW)
- Voltage: 120–277VAC universal input
- Dimming: 1-10V Dimming standard
- Lens: UV-stabilized polycarbonate lens with professional prismatic design
- CRI: 70
- Environmental Ratings: UL/cUL Listed for Wet Locations
- Estimated Life: 50,000 hours (based on IES LM-80 results and TM-21 calculations)
- Warranty: 5-Year warranty
Typical Applications
- Commercial and industrial building perimeters
- Building entrances, stairwells, and walkways
- General exterior security lighting
Performance & Light Output
The TWR-100WCCT-PA provides highly uniform, bright illumination ranging from 5,512 lumens at its lowest 40% setting up to 12,000 lumens at its full 100W capacity. The UV-resistant polycarbonate lens guarantees excellent light distribution control and uniformity while preventing yellowing over time. With a 50,000-hour rated lifespan, this fixture drastically reduces both energy consumption and maintenance cycles.
Electrical & Controls
This fixture operates on an electronic universal 120–277V AC driver. It features a power factor greater than 0.90, less than 20% harmonic distortion, and comes standard with 1-10V dimming capabilities. An optional photocell or emergency battery backup can be field-installed or pre-installed by request.
Construction & Durability

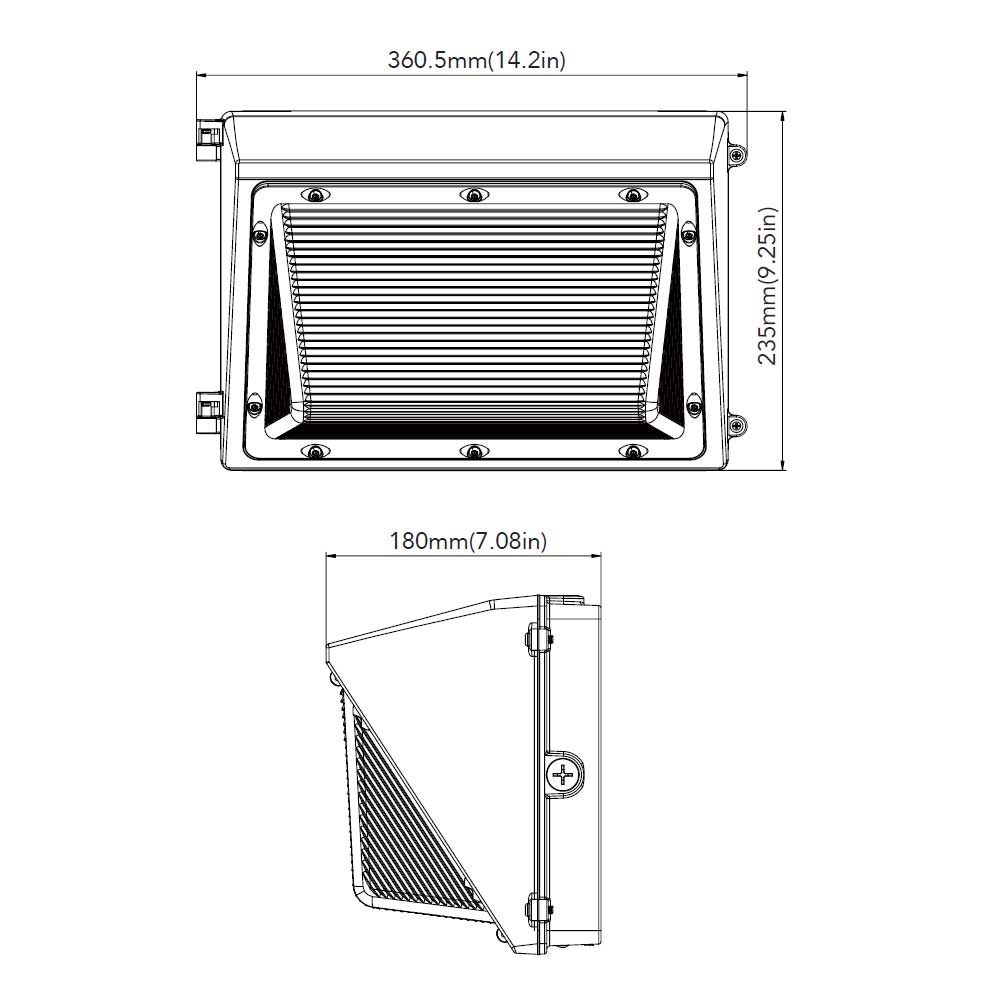

Engineered for outdoor reliability, the fixture features a rugged, sealed die-cast aluminum housing. The fixture has a traditional footprint (Dimensions: 14.2" W x 9.25" H x 7.08" D) and weighs 7.319 lbs. It is suitable for applications requiring 3G testing prescribed by ANSI C136.31. The housing effectively conducts LED heat to optimize performance, allowing safe operation in ambient environments from -40°C to 40°C.
What's Included
- GLT 100W Traditional Selectable LED Wall Pack
- Integrated Power & CCT Adjustable Dial Controller
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Yes, an optional photocell can be field-installed or requested as a factory pre-install for automated security. An optional emergency battery backup is also available for this 100W model and can be pre-installed or field-installed.
Yes, an optional photocell can be field-installed or requested as a factory pre-install for automated security. An optional emergency battery backup is also available for this 100W model and can be pre-installed or field-installed.
What are the dimensions of this wall pack?
What are the dimensions of this wall pack?
This traditional-style fixture measures 14.2 inches in width, 9.25 inches in height, and 7.08 inches in depth.
This traditional-style fixture measures 14.2 inches in width, 9.25 inches in height, and 7.08 inches in depth.

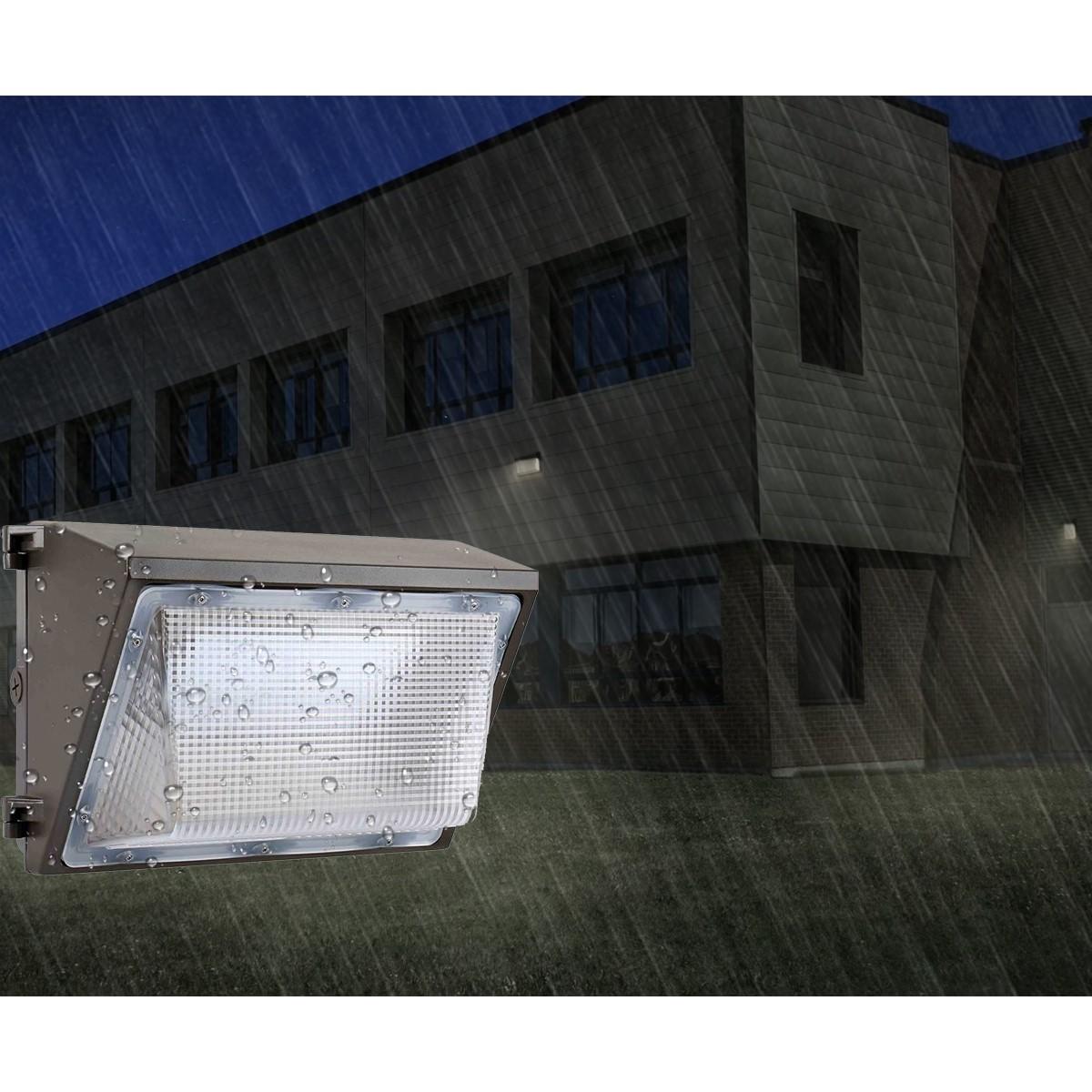

Can this wall pack be used in harsh outdoor conditions?
Can this wall pack be used in harsh outdoor conditions?
Yes, it is UL and cUL listed for wet locations and features a sealed die-cast housing designed to operate in extreme ambient temperatures ranging from -40°F to 104°F (-40°C to 40°C).
Yes, it is UL and cUL listed for wet locations and features a sealed die-cast housing designed to operate in extreme ambient temperatures ranging from -40°F to 104°F (-40°C to 40°C).
