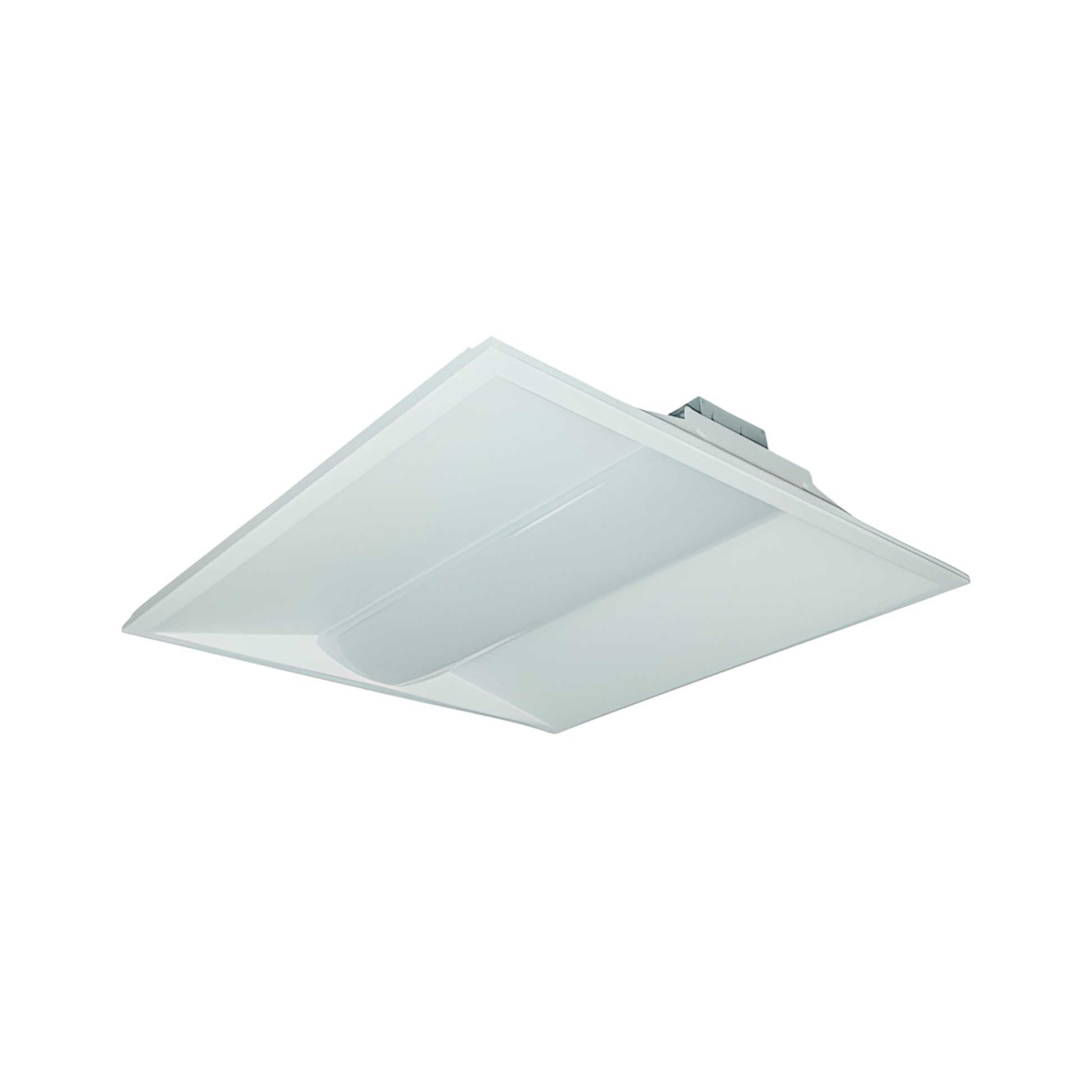

GLT TR22 2×2 LED Troffer — 15/25/36/40W Selectable — White

The GLT TR22 is a 2×2 recessed LED troffer designed for commercial grid ceiling applications including offices, healthcare, education, and retail. Wattage is field-selectable between 15W, 25W, 36W, and 40W, and color temperature is field-selectable between 3000K, 3500K, 4000K, and 5000K via an onboard switch — no tools required. At peak output, the fixture delivers 5,600 lumens at 140 lm/W and supports 0-10V dimming down to 10%. The fixture operates on 100–277VAC, is UL Listed for damp locations, and is DLC Listed, qualifying for utility rebate programs. At its maximum 40W setting it replaces conventional 2-lamp F32T8 fluorescent troffer fixtures.

Key Features

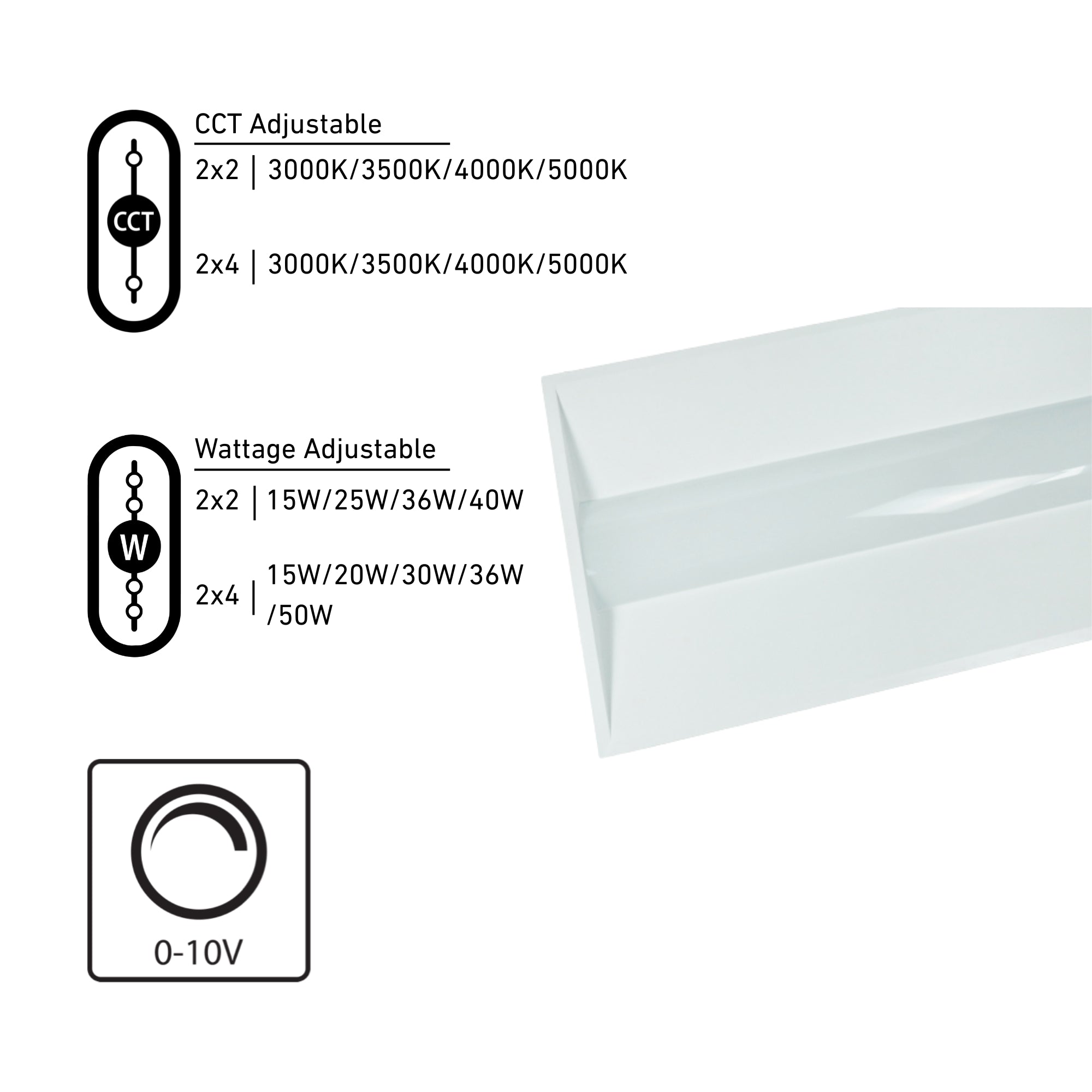

• Selectable Wattage: Field-adjustable between 15W, 25W, 36W, and 40W via onboard switch — no tools required, no rewiring, adjustable before or after installation.
• Fluorescent Equivalency: Replaces conventional 2-lamp F32T8 fluorescent troffer fixtures at maximum 40W output.
• Maximum Lumen Output: Up to 5,600 lm at 40W — high output in a standard 2×2 recessed form factor.
• Peak Efficacy: 140 lm/W across all wattage settings — consistent efficiency at every power level.
• CRI: >80 across all wattage and CCT combinations for accurate color rendering.
• Selectable CCT: Field-adjustable between 3000K, 3500K, 4000K, and 5000K via onboard switch — quad color temperature options without re-ordering.
• Lens & Optics: Diffuse lens panel providing balanced direct-indirect illumination with minimal glare across the full 2×2 grid opening.
• Dimming: 0-10V dimming standard — flicker-free control down to 10% of full output. Compatible 0-10V dimmer required, sold separately.
• Voltage & Driver: 100–277VAC universal voltage, suitable for standard commercial electrical systems.
• Location Rating: UL Listed for damp locations — suitable for offices, corridors, stairwells, and other damp-rated interior environments.

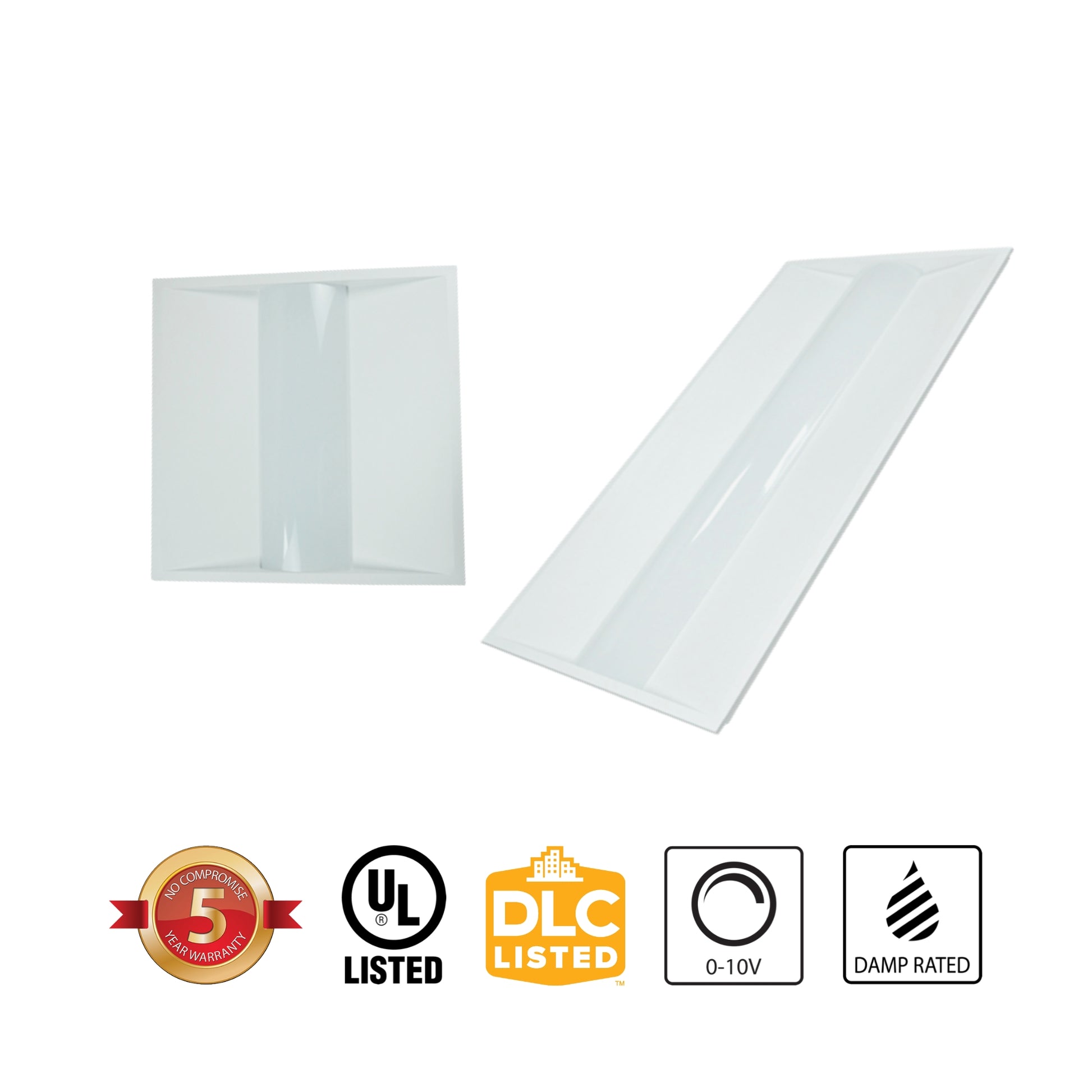

• Certifications: UL Listed (damp locations) · DLC Listed.
• Rated Life: 50,000-hour rated lifespan for reduced maintenance in commercial installations.
• Warranty: 5-year manufacturer warranty.

Performance & Light Output

The TR22 delivers consistent 140 lm/W efficacy across all four wattage settings, enabling precise output tuning from 2,100 lm to 5,600 lm. At maximum 40W output, the fixture replaces conventional 2-lamp F32T8 fluorescent troffers.

CRI >80 across all wattage and CCT settings. Rated life: 50,000 hours.

Smart & Control Features

The TR22 supports 0-10V dimming, providing flicker-free light level control from full output down to 10%. A compatible 0-10V dimmer is required and sold separately. No integrated sensor receptacle or wireless control platform is included.

Electrical

Universal voltage driver rated for 100–277VAC. Efficacy is consistent at 140 lm/W across all wattage steps. Supports 0-10V dimming to 10% minimum. Mercury-free, RoHS compliant.

Construction

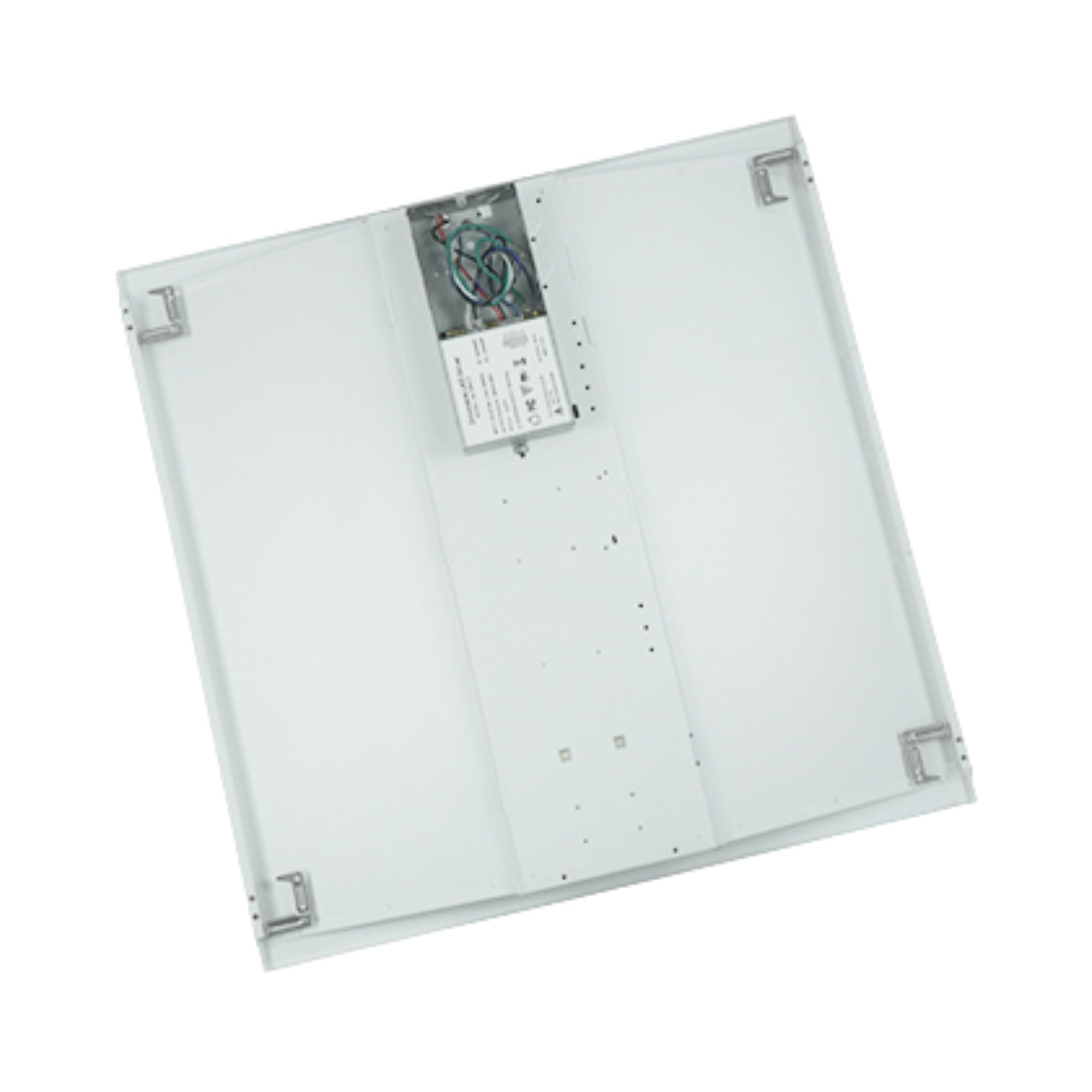

Housing & Thermal: Steel housing construction with integrated thermal management to protect internal electronics and support the 50,000-hour rated lifespan.

Lens & Optics: Diffuse polycarbonate lens panel providing balanced direct-indirect illumination with minimal glare across the full 2×2 grid opening.

Finish: White powder-coat finish.

Environmental & Safety: UL Listed for damp locations. Mercury-free, RoHS compliant.

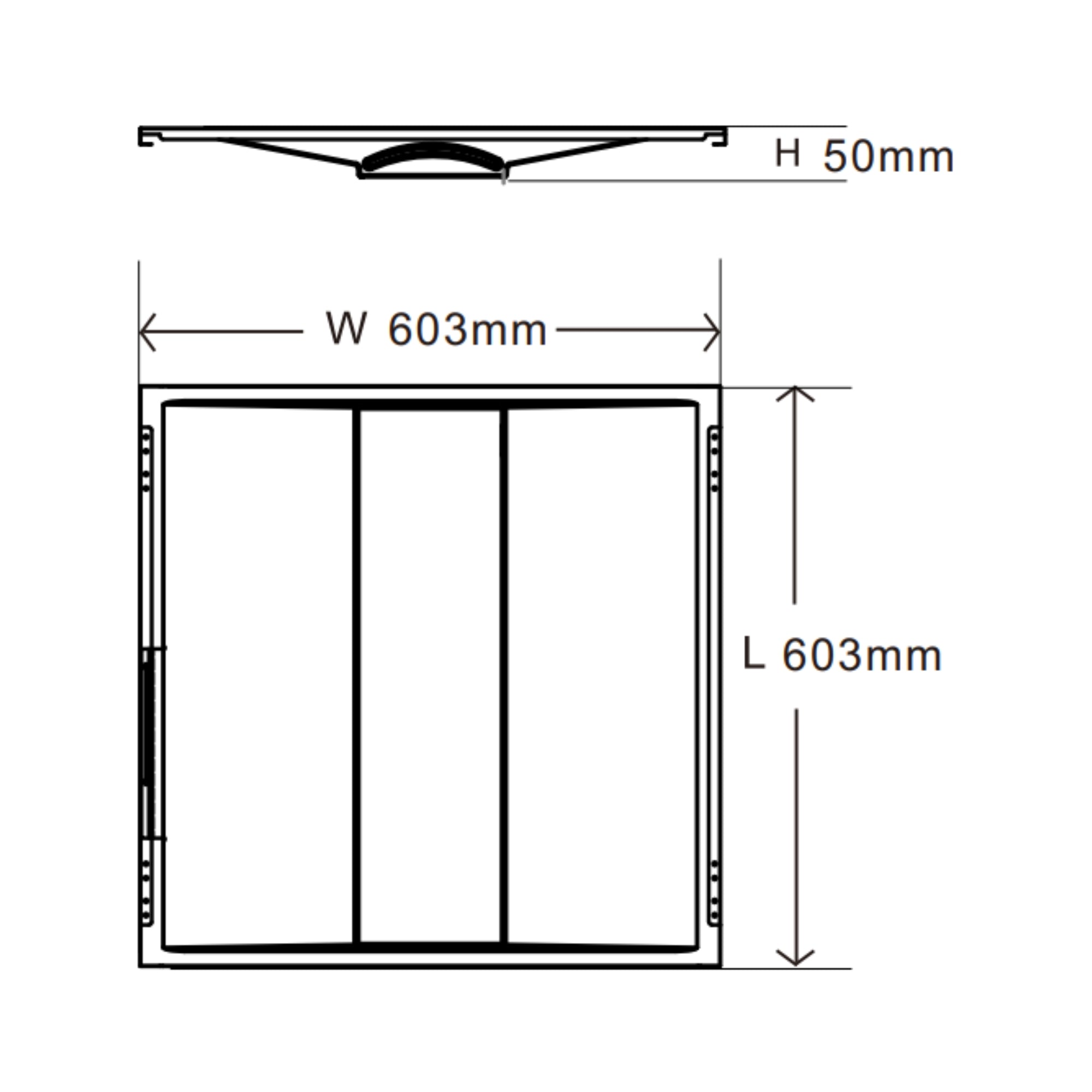

Dimensions & Weight: 23.74" L × 23.74" W × 1.97" H (603mm × 603mm × 50mm). Weight: 7.72 kg (17.02 lbs).

Installation & Mounting

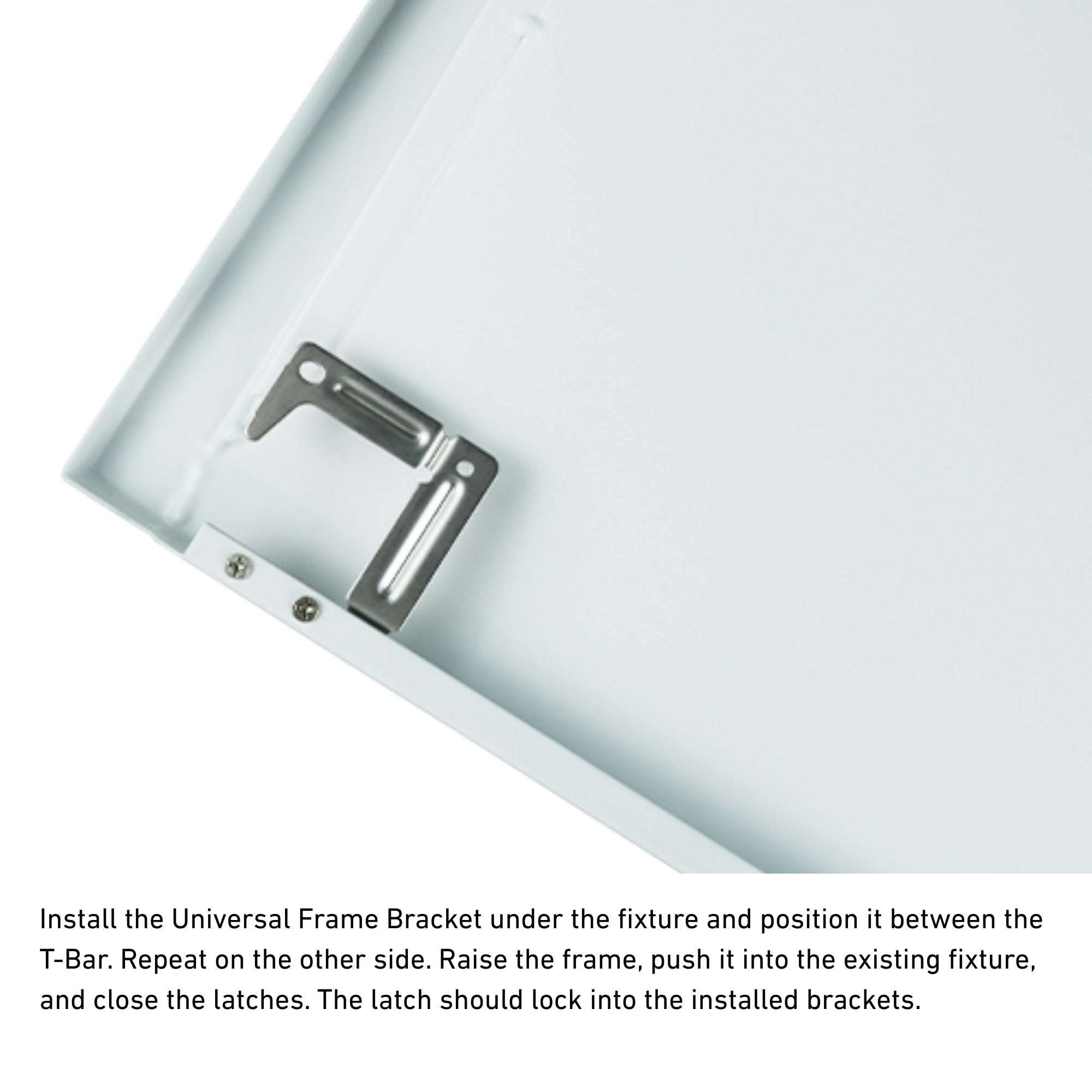

Standard Hardware: Comes standard with wire rope safety protection hardware and mounting clips for recessed T-bar grid installation.

Mounting Options: Recessed installation into standard 2×2 drop/grid ceiling T-bar system.

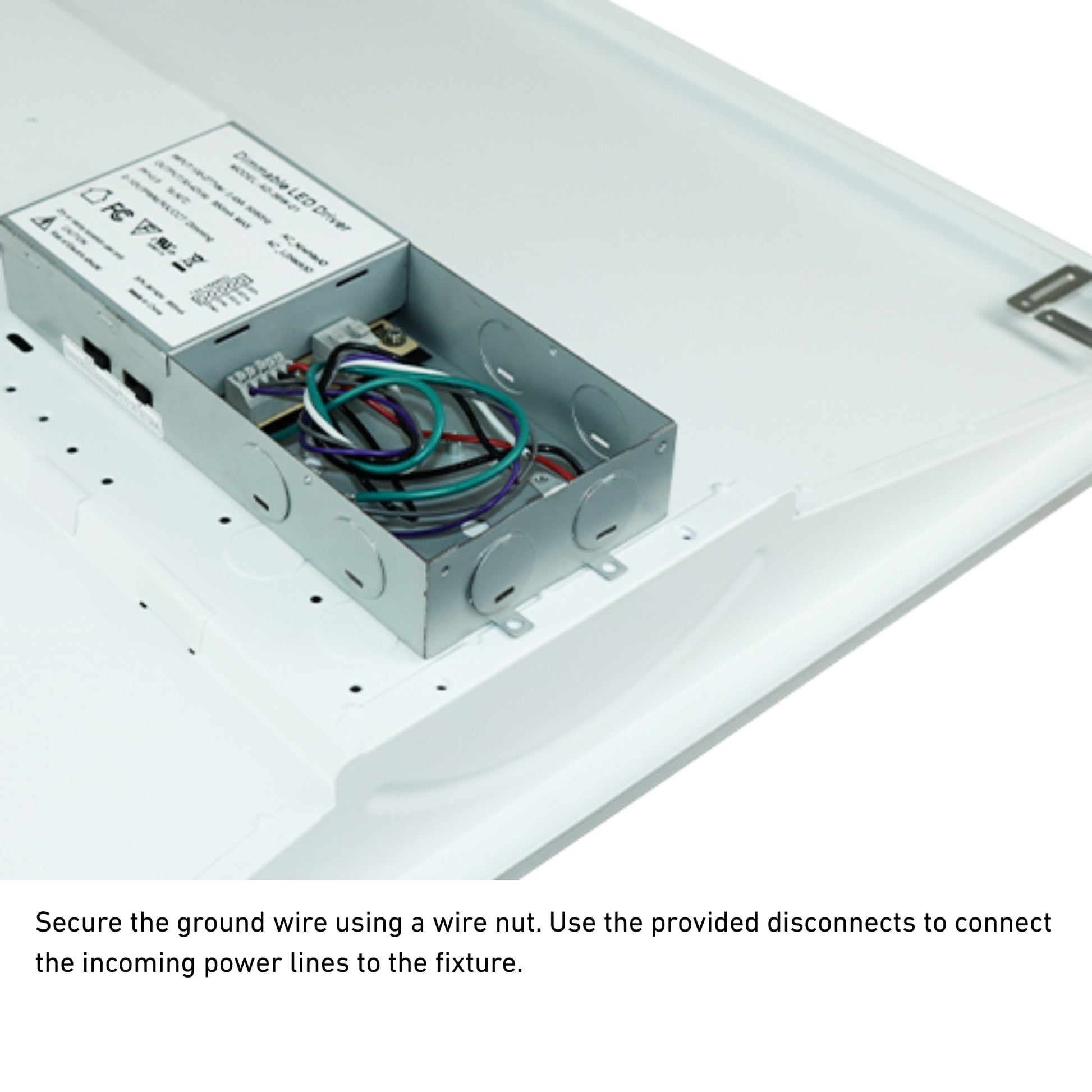

Wiring: 0-10V dimming leads included for dimmer connection. Wattage and CCT selections should be made via onboard switch prior to or after installation.

Certifications & Rebates

• UL Listed — damp locations
• DLC Listed — qualifies for utility rebate programs. To verify rebate eligibility with your utility provider, visit designlights.org and search by model number TR22-30K40K50K-D10.

Typical Applications

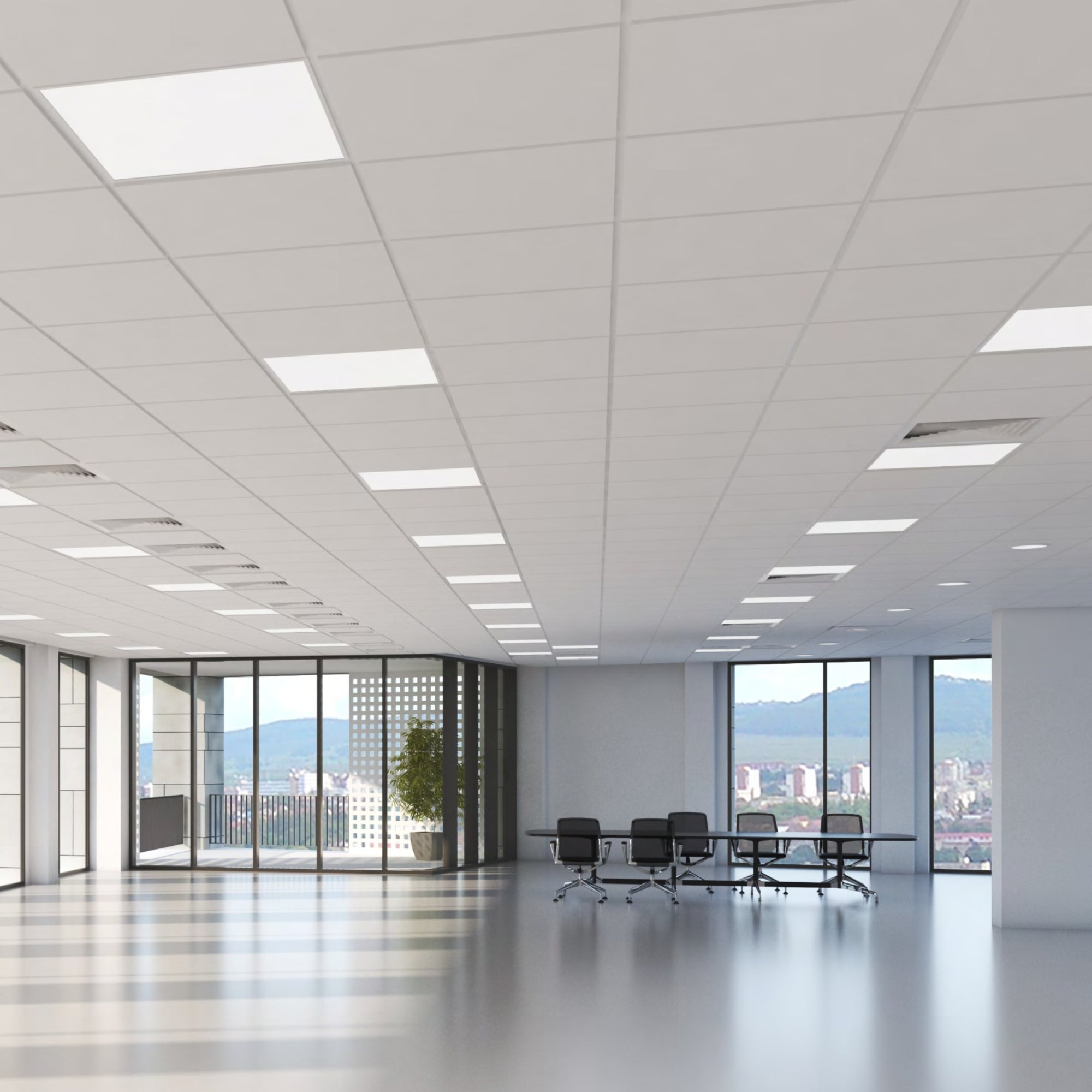

• Corporate offices and open-plan workspaces — balanced direct-indirect illumination with minimal glare supports sustained visual comfort in desk-intensive environments
• Classrooms and educational facilities — quad CCT selectability allows tuning from 3000K warm tones to 5000K daylight to support different learning activities and occupancy scenarios
• Healthcare exam rooms and clinical spaces — damp location rating and >80 CRI support accurate color rendering for patient assessment and clinical tasks

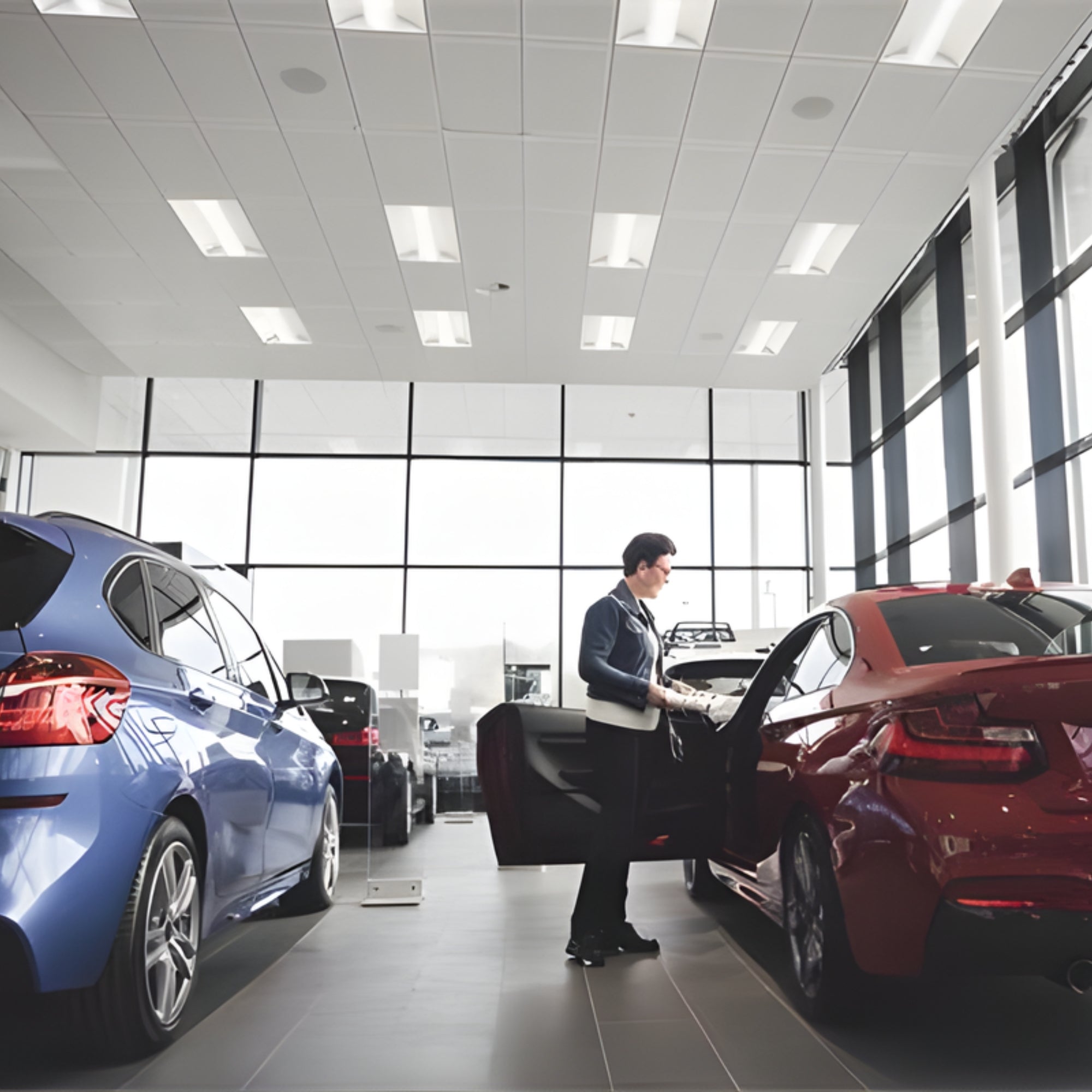

• Retail interiors and commercial showrooms — field-selectable CCT allows lighting to be matched to merchandise or brand aesthetic post-installation without re-ordering
• Corridors, lobbies, and common areas — 50,000-hour rated life reduces maintenance overhead in high-uptime commercial environments
• Hotels and hospitality common areas — 3000K/3500K settings deliver warm, inviting illumination in guest-facing spaces

What's Included

• GLT TR22 2×2 LED troffer fixture — White
• Wire rope safety protection hardware
• Mounting clips for T-bar grid installation
