GLT 80W Selectable Slim Adjustable LED Wall Pack 11,400 Lumens 32-80W Selectable 30K/40K/50K 120-277V Bronze SLIM-80FA-UV-CCT
Available in stock (200)
About this item
About this item
- Adjustable Tilt Head: Features a versatile hinged design that allows for 0° to +90° tilt adjustments, giving you precise control over light direction and distribution.

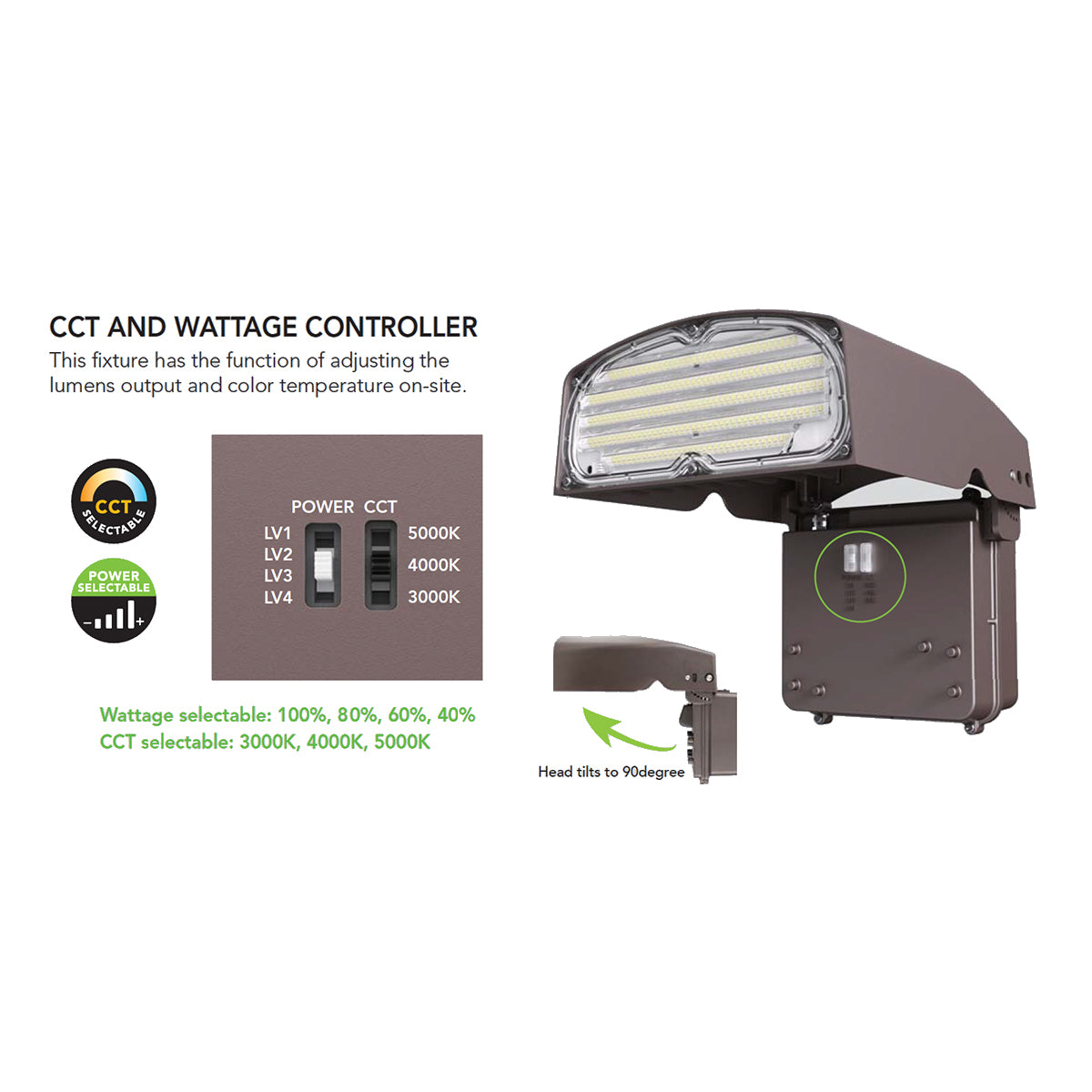

- Power & Color Select Controller: Comes equipped with an adjustable dial controller that simplifies inventory and maximizes on-site flexibility. Easily select between 3000K, 4000K, and 5000K, and adjust the wattage (100%, 80%, 60%, 40%) directly on the fixture.
- Sleek Architectural Design: Designed with a modern, low-profile style that is perfect for buildings requiring a futuristic or clean architectural aesthetic.
- High Efficiency: Delivers up to 11,400 lumens at its maximum 80W setting, providing an exceptional energy-saving efficacy of up to 151 LPW at lower wattages.
- Rugged Durability: Constructed from a rugged cast-aluminum housing with a bronze polyester powder paint finish and a tempered UV-coated flat lens for outstanding glare control.
We process payments securely and do not store credit card information.
Description
Description

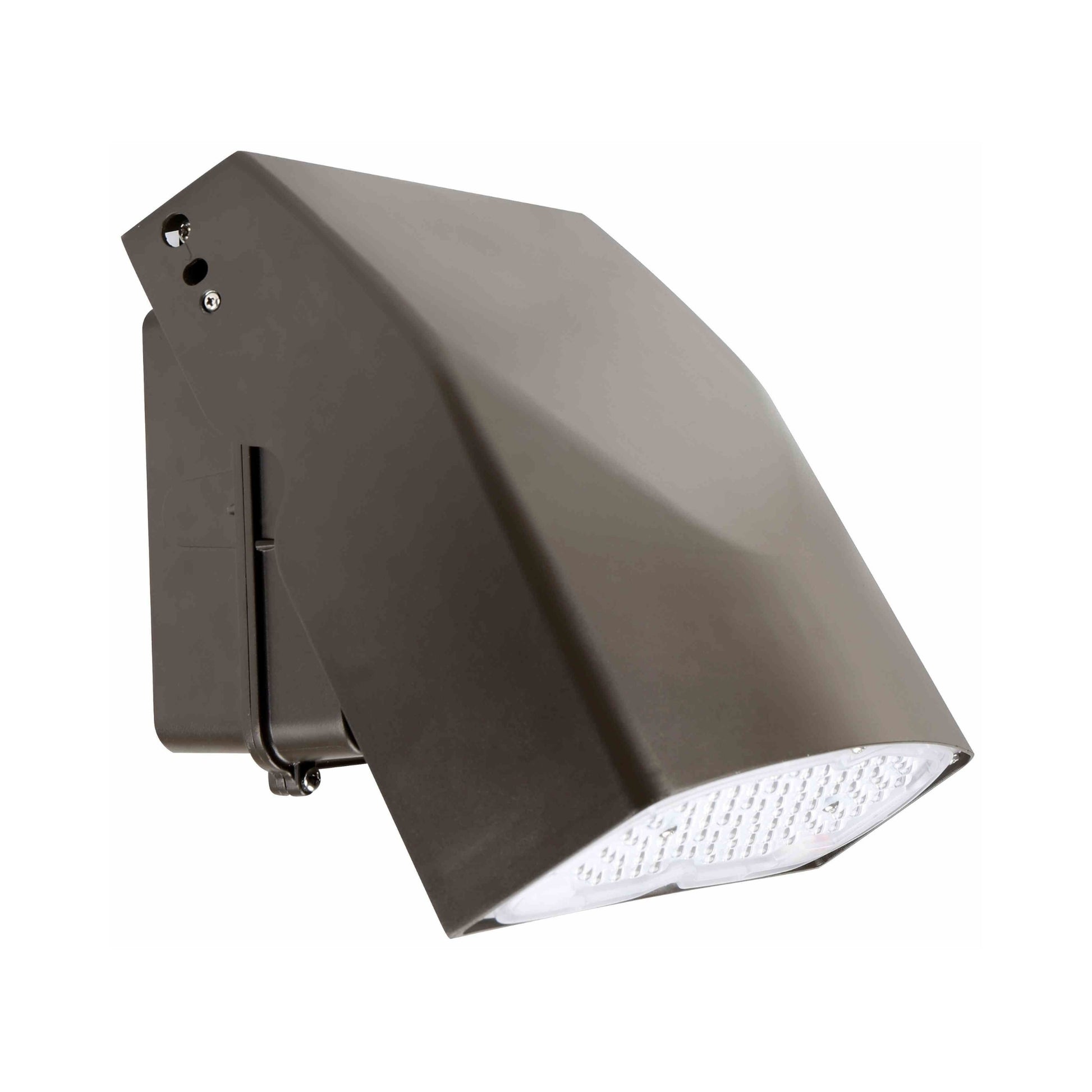

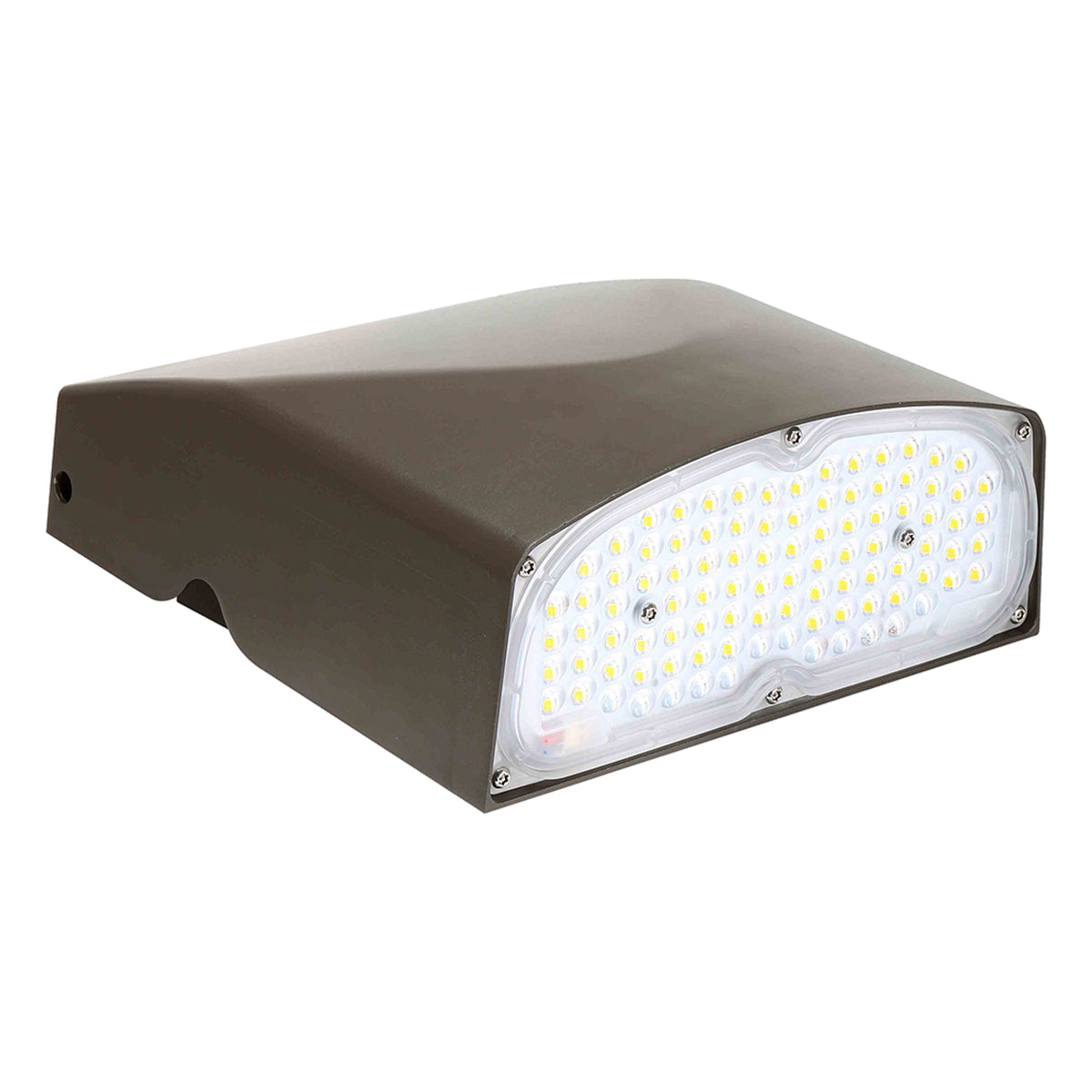

GLT Selectable Slim Adjustable LED Wall Pack — 80W, Color & Power Selectable, 120–277V, Bronze
The GLT SLIM-80FA-UV-CCT is an architectural-grade, high-performance slim LED wall pack delivering up to 11,400 lumens. Engineered for buildings that demand a modern or futuristic look, this fixture features a low-profile design and a unique light head that can be tilted from 0° to +90° to precisely direct illumination exactly where it's needed. It offers exceptional versatility by coming fully equipped with an adjustable dial controller that allows installers to easily choose between 3000K, 4000K, or 5000K color temperatures, as well as scale the wattage down to 64W, 48W, or 32W on-site. Operating on a universal 120–277V driver, it features 0-10V dimming and is compatible with an optional field-installed photocell for automated security lighting. With its rugged cast-aluminum construction, tempered UV-coated lens, and Wet Location rating, it is the premier choice for building perimeters, entryways, and stairways.
Key Features
- Wattage: 80W (Power Adjustable to 80W, 64W, 48W, 32W via included dial controller)
- Selectable CCT: 3000K / 4000K / 5000K via included dial controller
- Delivered Lumens: 4,600 to 11,400 lumens depending on settings
- Efficacy: Up to 151 Lumens Per Watt (LPW)
- Voltage: 120–277VAC universal input (50/60Hz)
- Dimming: 0-10V Dimming standard (dimming range from 10%-100%)

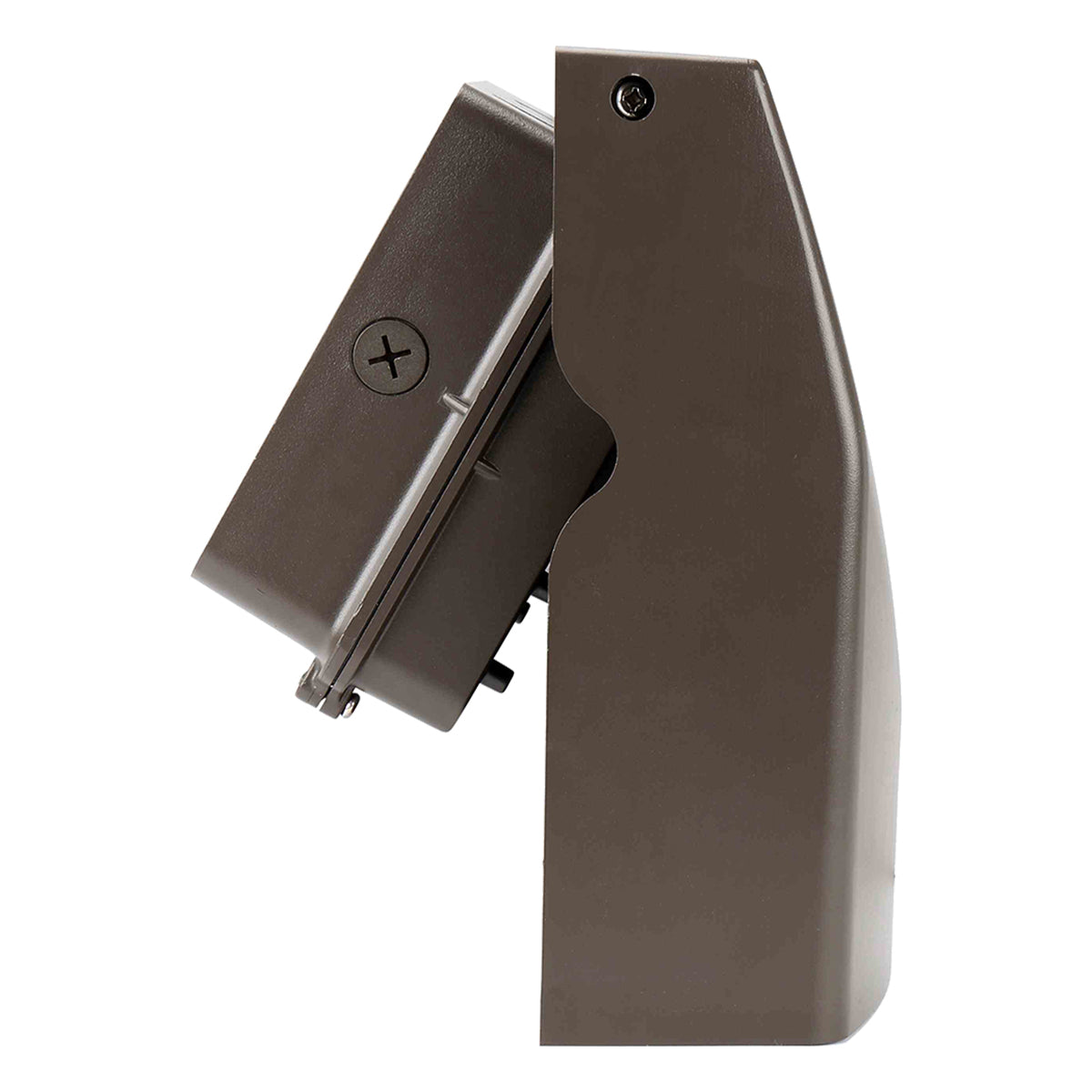

- Adjustability: Light head tilts from 0° to +90°
- Lens: Tempered UV-coated flat lens
- CRI: 70
- Environmental Ratings: UL/cUL Listed for Wet Locations
- Estimated Life: 50,000 hours (based on IES LM-80 results and TM-21 calculations)
- Warranty: 5-Year limited warranty
Typical Applications
- Commercial and modern architectural building perimeters
- Building entrances, stairways, and walkways
- General exterior security lighting
Performance & Light Output
The SLIM-80FA-UV-CCT provides highly uniform, bright illumination ranging from 4,600 lumens at its lowest 32W setting up to 11,400 lumens at its full 80W capacity. The tempered UV-coated flat lens ensures outstanding performance, light uniformity, and superior glare control. With a 50,000-hour rated lifespan and DLC Premium qualifications, this fixture drastically reduces both energy consumption and maintenance cycles.
Electrical & Controls
This fixture operates on an electronic universal 120–277V AC driver. It features a power factor greater than 0.9, less than 20% harmonic distortion, and comes standard with 0-10V dimming capabilities. An optional photocell can be field-installed or pre-installed by request for automated dusk-to-dawn operation.
Construction & Durability

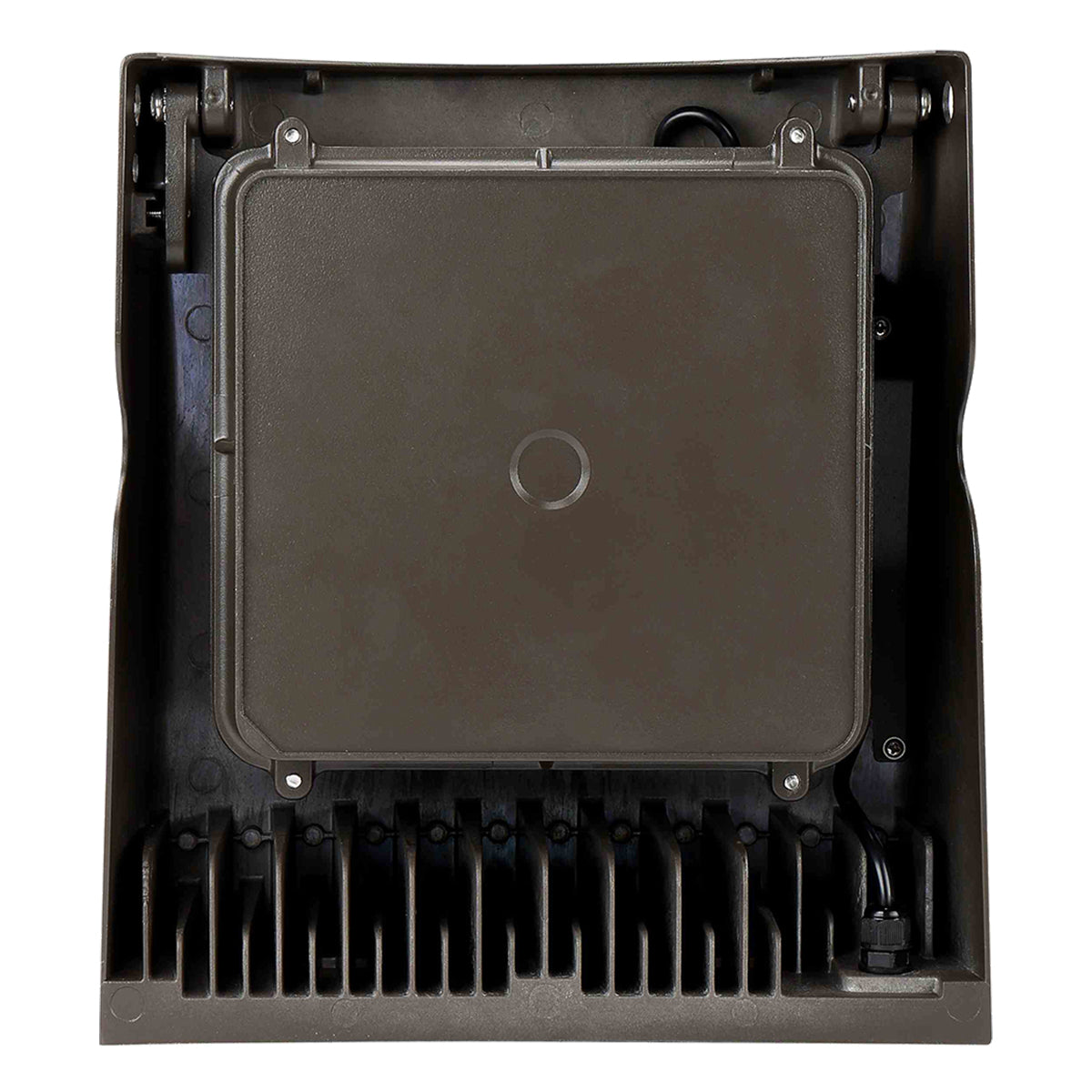

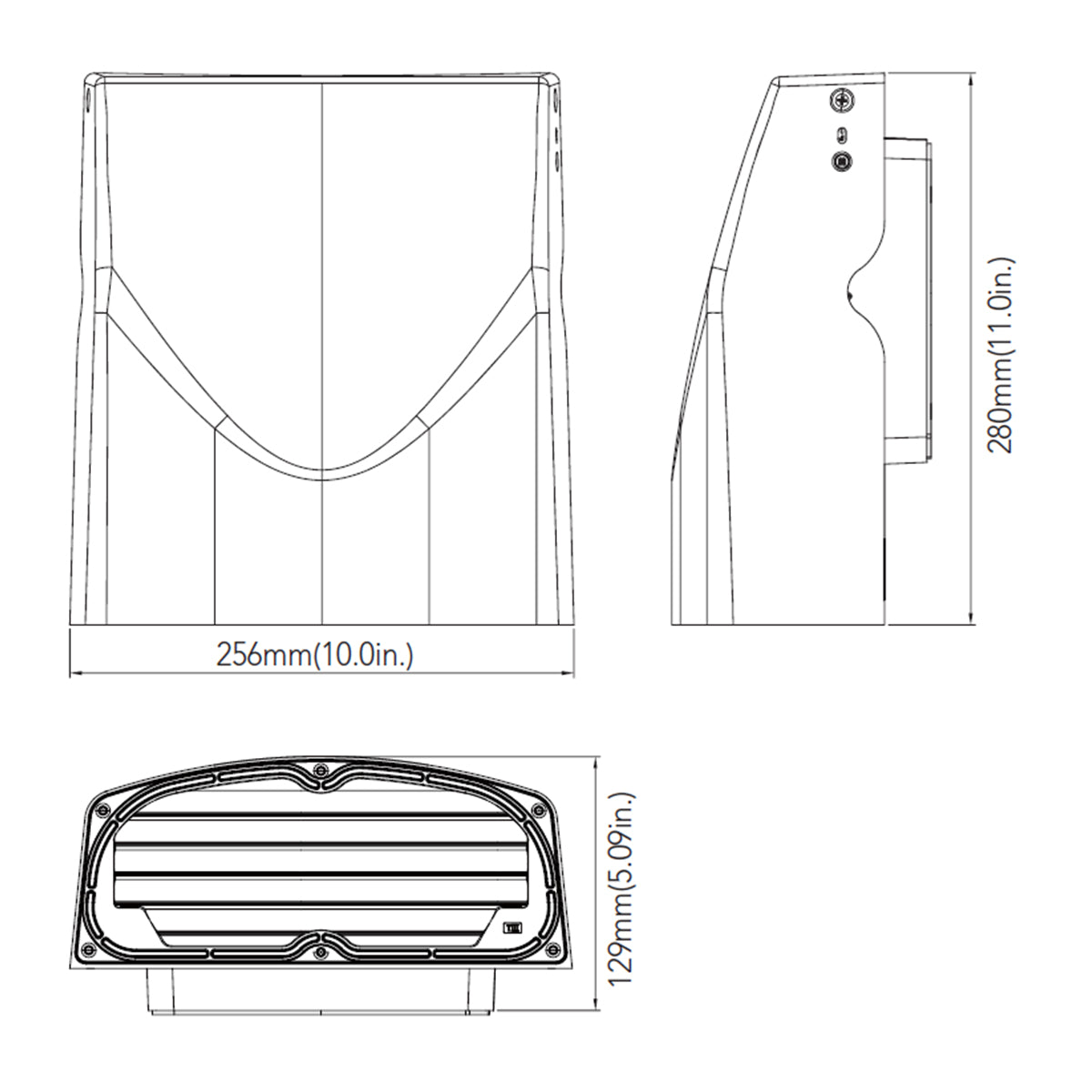

Engineered for outdoor reliability and modern aesthetics, the fixture features a rugged cast-aluminum housing finished in bronze polyester powder paint. This medium-sized fixture has a compact footprint (Dimensions: 10.0" W x 11.0" H x 5.09" D) and weighs 7.804 lbs. The LED module and power bin separation design offers excellent thermal management, extending component life and allowing operation in ambient environments from -40°C to 40°C.
What's Included
- GLT 80W Slim Adjustable LED Wall Pack
- Integrated Power & CCT Adjustable Dial Controller
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Yes, this wall pack comes standard with 0-10V dimming capabilities, providing a dimming range from 10% to 100%.
Yes, this wall pack comes standard with 0-10V dimming capabilities, providing a dimming range from 10% to 100%.
Can I add a photocell to this fixture?
Can I add a photocell to this fixture?
Yes, an optional photocell can be field-installed or requested as a factory pre-install for automated security and energy savings.
Yes, an optional photocell can be field-installed or requested as a factory pre-install for automated security and energy savings.
What are the dimensions of this medium slim wall pack?
What are the dimensions of this medium slim wall pack?
This medium-sized fixture measures 11.0 inches in height, 10.0 inches in width, and 5.09 inches in depth.
This medium-sized fixture measures 11.0 inches in height, 10.0 inches in width, and 5.09 inches in depth.
