GLT Field-Adjustable Slim Wall Pack — 40W — 3000K/4000K/5000K — Dark Bronze
Available in stock (100)
About this item
About this item
- 4-Tier Selectable Output: Onboard LV1–LV4 power controller adjusts between 40W (100%), 32W (80%), 24W (60%), and 16W (40%), delivering up to 5,600 lumens at a peak efficacy of 150 lm/W.
- 0–90° Adjustable Tilt & Glass Lens: Tempered UV-coated flat glass lens and low-profile cast-aluminum head tilt from 0° full cutoff to +90° forward throw.
- Field-Adjustable CCT: Onboard CCT switch selects between 3000K, 4000K, and 5000K color temperatures with 70 CRI.
- Controls & Dimming: Universal 120-277V driver with 0-10V dimming (10%–100%) and optional photocell compatibility.
- Rebates & Ingress: DLC Premium qualified across all lumen packages and UL/cUL Wet Location listed for outdoor perimeter security.
Description
Description

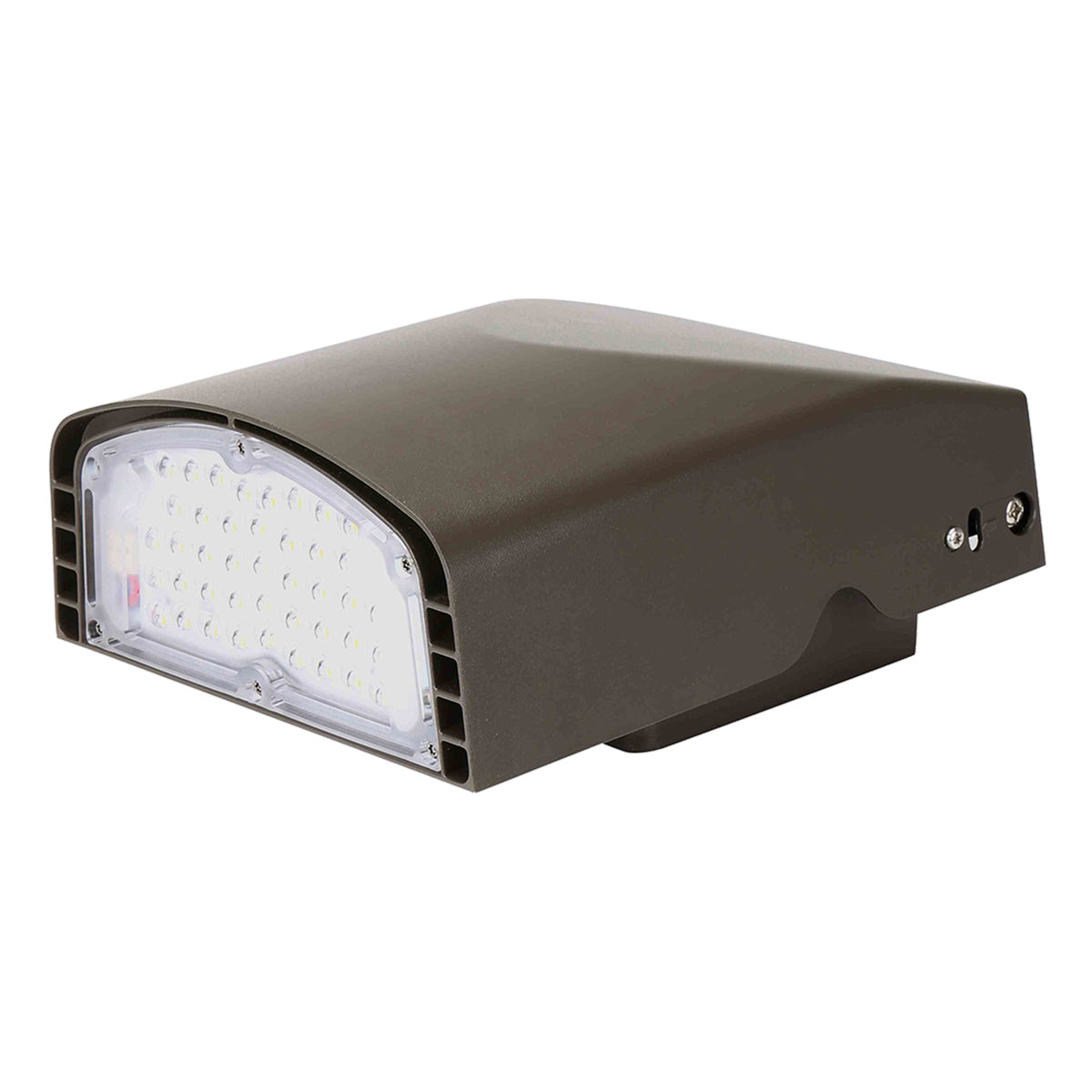

GLT Field-Adjustable Slim LED Wall Pack — 40/32/24/16W Selectable — 3000K/4000K/5000K — Dark Bronze
The GLT SLIM-40FA-UV-CCT (MWP10 Small series) is a commercial field-adjustable cutoff wall pack and architectural slim LED wall pack engineered to deliver 2,300 to 5,600 lumens (up to 5,600 lumens at up to 150 lm/W) across four selectable power settings—40W (100%), 32W (80%), 24W (60%), and 16W (40%)—and switchable 3000K, 4000K, and 5000K color temperatures. Operating on universal 120-277V electrical systems with 0-10V dimming from 10% to 100%, it is DLC Premium qualified across all lumen packages for commercial utility rebates. Built with a rugged cast-aluminum housing in a bronze polyester powder-coat finish and UL/cUL wet-location listing, this multi-mount exterior luminaire features a slim 4.2" wall projection depth, an adjustable head that tilts from 0° full cutoff to +90° forward throw, a tempered UV-coated flat glass lens, and LED module-to-power-bin thermal separation.
Key Features
- Selectable Wattage: 4-level LV1–LV4 power controller: 40W (100%), 32W (80%), 24W (60%), and 16W (40%) (Small MWP10 housing)
- Scalable Lumen Output: 2,300 to 5,600 lm across 12 wattage and CCT combinations
- Peak Efficacy: Up to 150 lm/W (141 lm/W at 40W, 4000K)
- CRI: 70 CRI
- Selectable CCT: 3000K / 4000K / 5000K selectable via onboard controller
- Lens & Aiming Optics: Tempered UV-coated flat lens with 0° to +90° adjustable head tilt
- Photocell & Controls: Onboard CCT and wattage slide controllers; compatible with photocell MS-PUNVC01 (field or factory installed)
- Dimming: 0-10V dimming from 10% to 100%
- Electrical & Driver: Electronic universal 120-277V AC, 50/60Hz; single driver (640 mA (at 40W) / 430 mA (at 27W)); Power Factor >0.9; THD <20%
- Thermal Architecture: LED module and power bin separation design enhances LED efficiency and extends component life
- Location & Body Rating: UL and cUL Wet Location listed; rugged cast-aluminum housing with bronze polyester powder paint
- Operating Temperature: -40°F (-40°C) to 104°F (40°C)
- Dimensions & Weight: 7.29" (185mm) W x 9.13" (232mm) H x 4.2" (106.6mm) D; Net weight 3.968 lbs
- Certifications & Rebates: DesignLights Consortium (DLC) Premium Qualified (all lumen packages), UL Listed, cUL Listed
- Rated Life & Warranty: Estimated 50,000-hour L70 LED lifespan (IES LM-80 / TM-21); 5-year limited warranty - GLT
Performance & Light Output
| Power Switch Setting (System Watts) | Selectable CCT | Lumen Output | Efficacy (LPW) | CRI |
|---|---|---|---|---|
| LV1 — 100% (40W) | 3000K | 5,300 lm | 133 lm/W | 70 |
| LV1 — 100% (40W) | 4000K | 5,600 lm | 141 lm/W | 70 |
| LV1 — 100% (40W) | 5000K | 5,500 lm | 138 lm/W | 70 |
| LV2 — 80% (32W) | 3000K | 4,300 lm | 136 lm/W | 70 |
| LV2 — 80% (32W) | 4000K | 4,600 lm | 144 lm/W | 70 |
| LV2 — 80% (32W) | 5000K | 4,500 lm | 141 lm/W | 70 |
| LV3 — 60% (24W) | 3000K | 3,300 lm | 139 lm/W | 70 |
| LV3 — 60% (24W) | 4000K | 3,500 lm | 147 lm/W | 70 |
| LV3 — 60% (24W) | 5000K | 3,400 lm | 144 lm/W | 70 |
| LV4 — 40% (16W) | 3000K | 2,300 lm | 142 lm/W | 70 |
| LV4 — 40% (16W) | 4000K | 2,400 lm | 150 lm/W | 70 |
| LV4 — 40% (16W) | 5000K | 2,300 lm | 147 lm/W | 70 |
Delivers 70 CRI across all twelve wattage and color temperature combinations. Estimated 50,000-hour LED lifespan (L70) based on IES LM-80 testing results and TM-21 calculations.
Lens & Optics
The MWP10 slim optical assembly combines a tempered UV-coated flat glass lens with a 0° to +90° aiming head:
- 0° Full Cutoff Orientation: Directs illumination straight down along building perimeters, entrances, and stairways with superior uniformity and glare control.

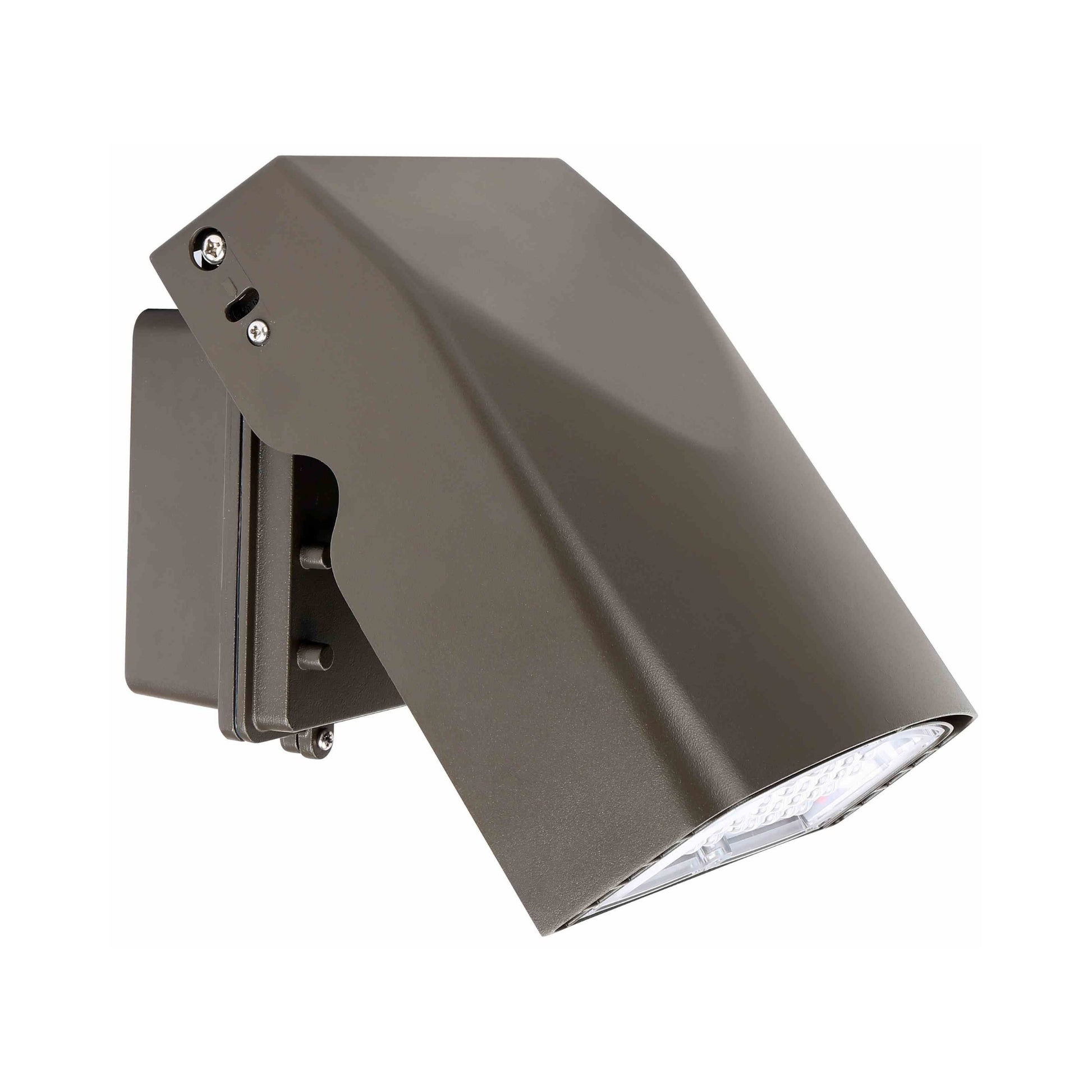

- 0° to +90° Forward-Throw Tilt Adjustments: Pivoting upper LED head tilts outward up to +90 degrees to aim light across wider yards, loading areas, and parking perimeters.
The tempered UV-coated flat lens resists scratching, thermal stress, and ultraviolet degradation in exposed outdoor environments.
Smart & Control Features
Engineered for on-site lumen and color commissioning, 0-10V dimming, and dusk-to-dawn photocell integration:

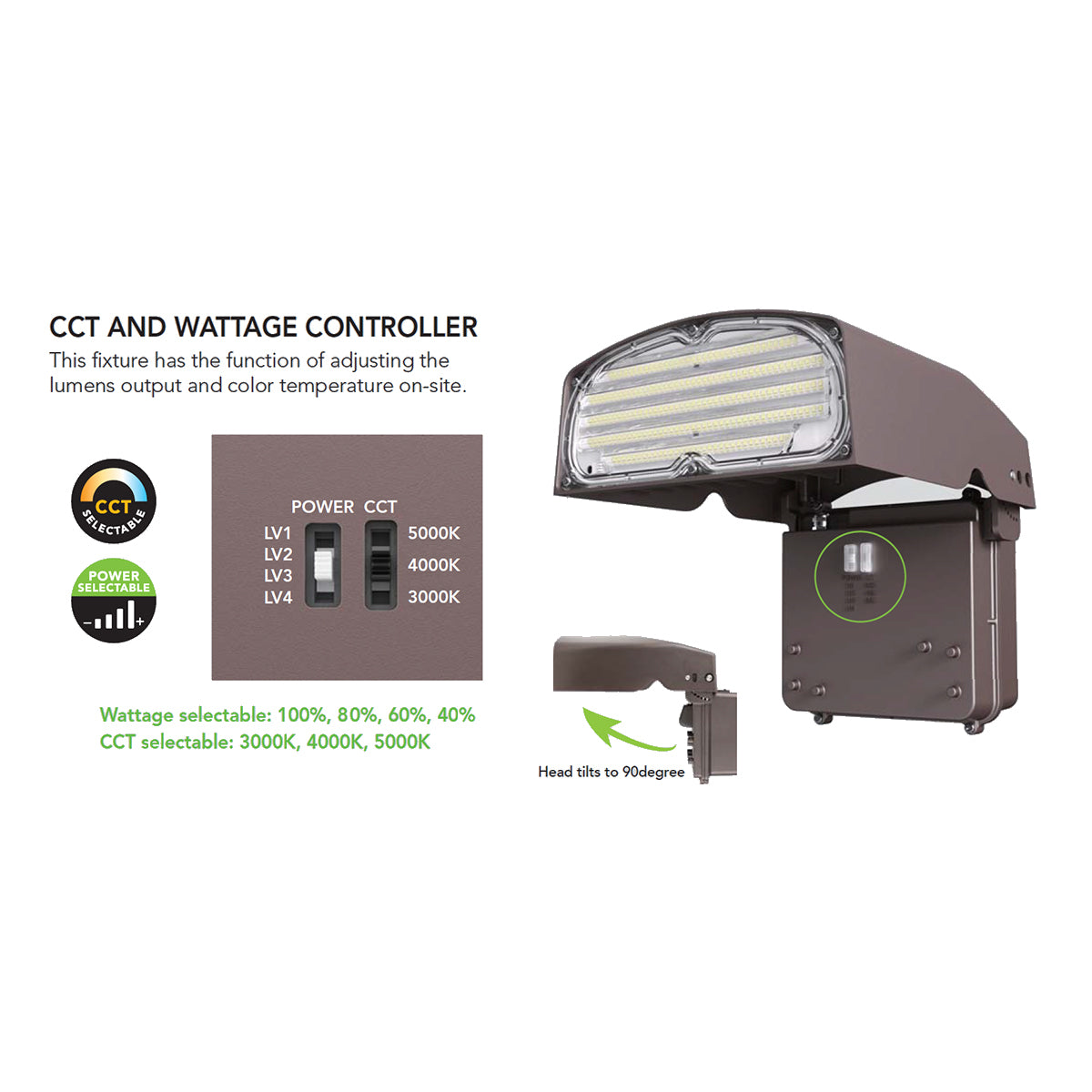

- On-Site Wattage & CCT Slide Controllers: Dual internal slide switches housed inside the rear power compartment allow contractors to set output across four power levels—LV1 (100% / 40W), LV2 (80%), LV3 (60%), and LV4 (40%)—and three color temperatures (3000K, 4000K, and 5000K).
- 0-10V Continuous Dimming: Supports smooth 0-10V dimming from 10% to 100% for integration with commercial lighting controls and timeclocks.
- Photocell Compatibility: Accepts photocell MS-PUNVC01 (field installed or factory pre-installed by request — sold separately unless ordered with PO photocell option).
Electrical
Powered by a single electronic universal-voltage driver (640 mA (at 40W) / 430 mA (at 27W) drive current) operating on 120-277V AC at 50/60Hz with a Power Factor >0.9 and Total Harmonic Distortion (THD) <20%. Includes 0-10V dimming control (10%–100% dimming range).
Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:
| Nominal Power (Driver Current) | 120V Current (A) | 208V Current (A) | 240V Current (A) | 277V Current (A) |
|---|---|---|---|---|
| 40W (100%) (640 mA) | 0.33A | 0.19A | 0.17A | 0.14A |
| 27W Reference (430 mA) | 0.23A | 0.13A | 0.11A | 0.10A |
Construction
Housing & Thermal: Rugged cast-aluminum housing (Small MWP10 size) engineered with LED module and power bin separation that isolates driver heat from the LED array to enhance efficacy and extend component life.
Finish: Architectural Dark Bronze polyester powder-coat paint formulated for outdoor corrosion and weather resistance.
Environmental Sealing: UL and cUL Listed for wet locations with a gasketed rear driver box and tempered UV-coated flat lens. Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

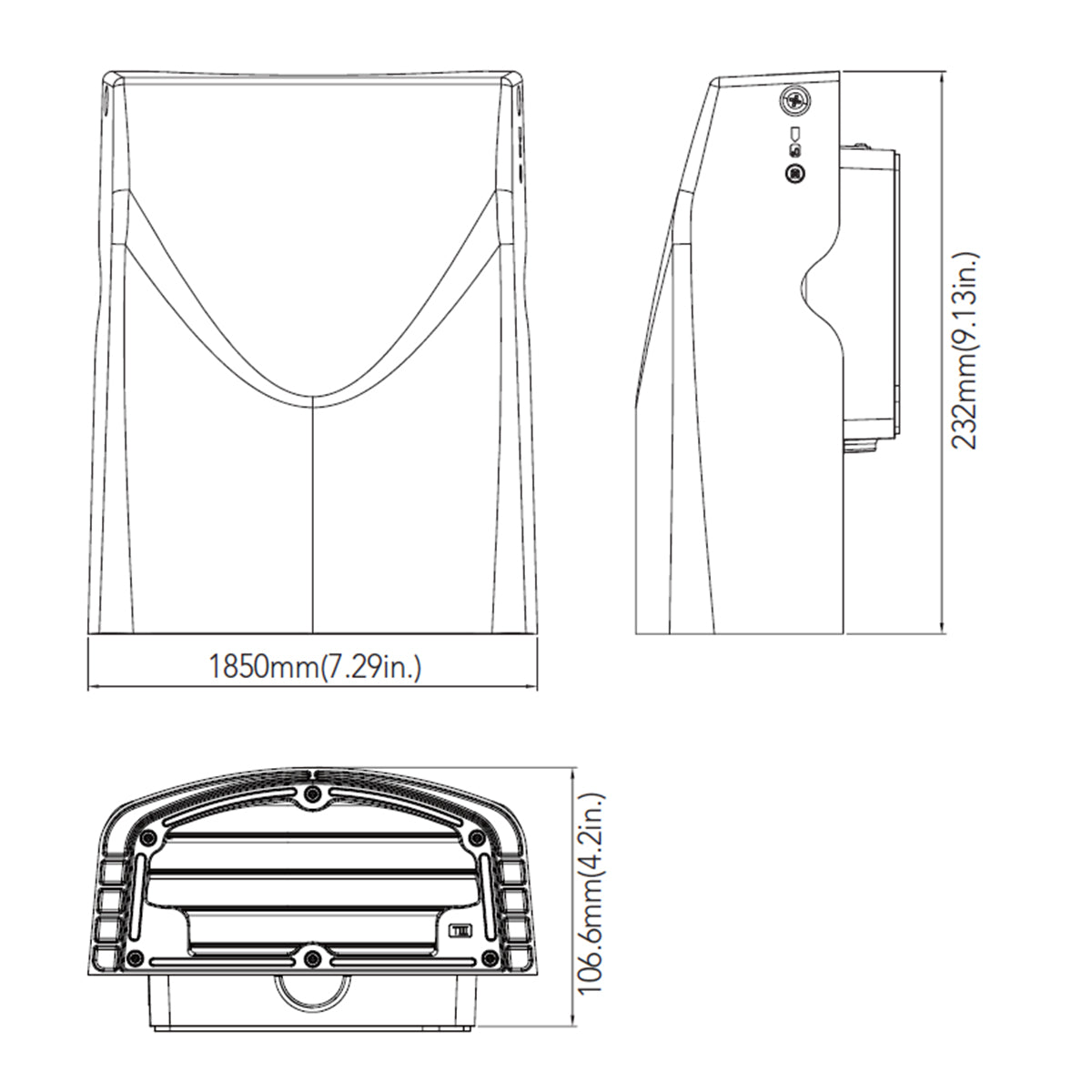

Dimensions & Weight: 7.29" (185mm) W x 9.13" (232mm) H x 4.2" (106.6mm) D. Net weight: 3.968 lbs.
Installation & Mounting

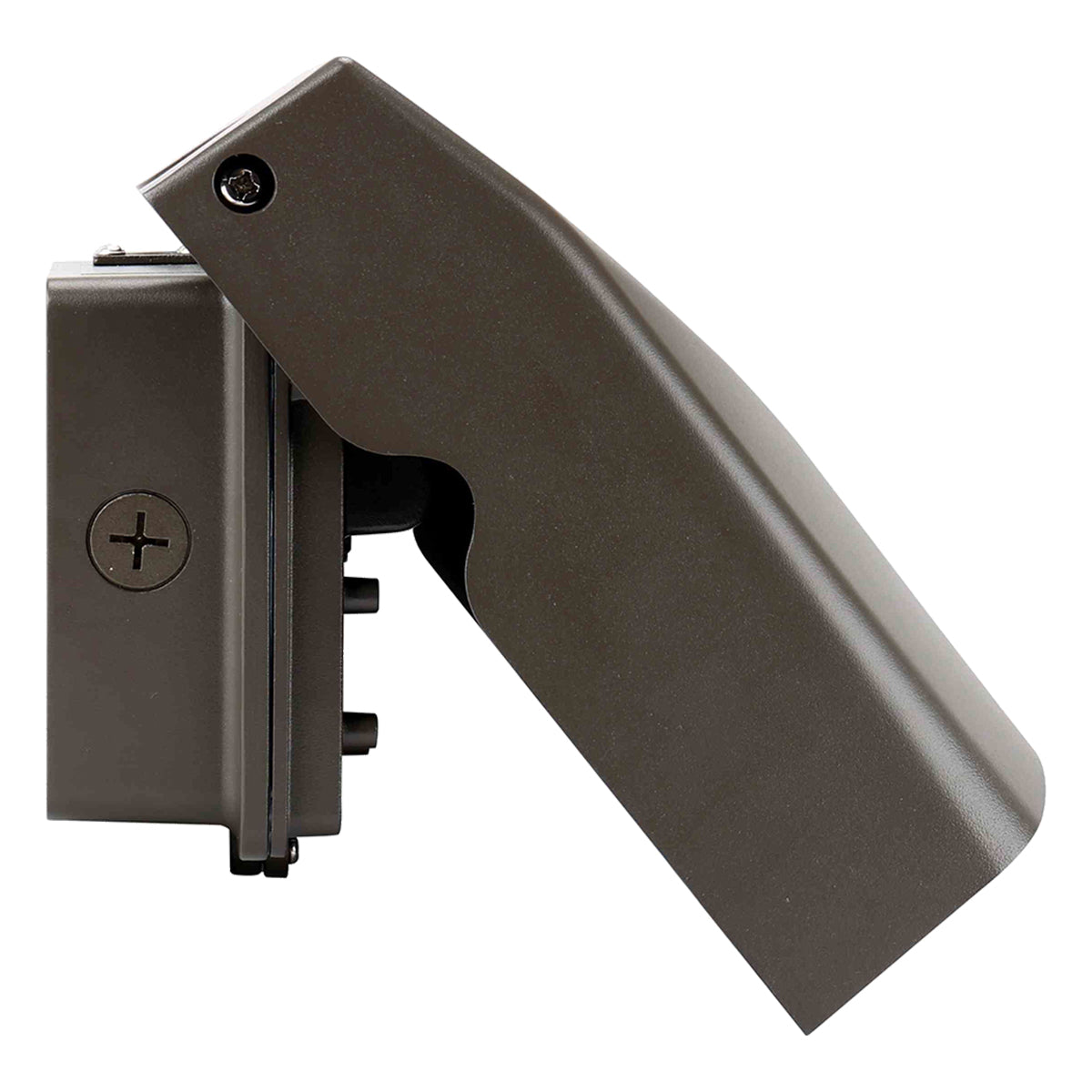

Mounting Hardware: Low-profile 7.29" (185mm) W x 9.13" (232mm) H x 4.2" (106.6mm) D (3.968 lbs) cast-aluminum backbox features multi-mount wall installation capability and an articulated upper luminaire head that tilts from 0° full cutoff to +90° via side adjustment bolts.

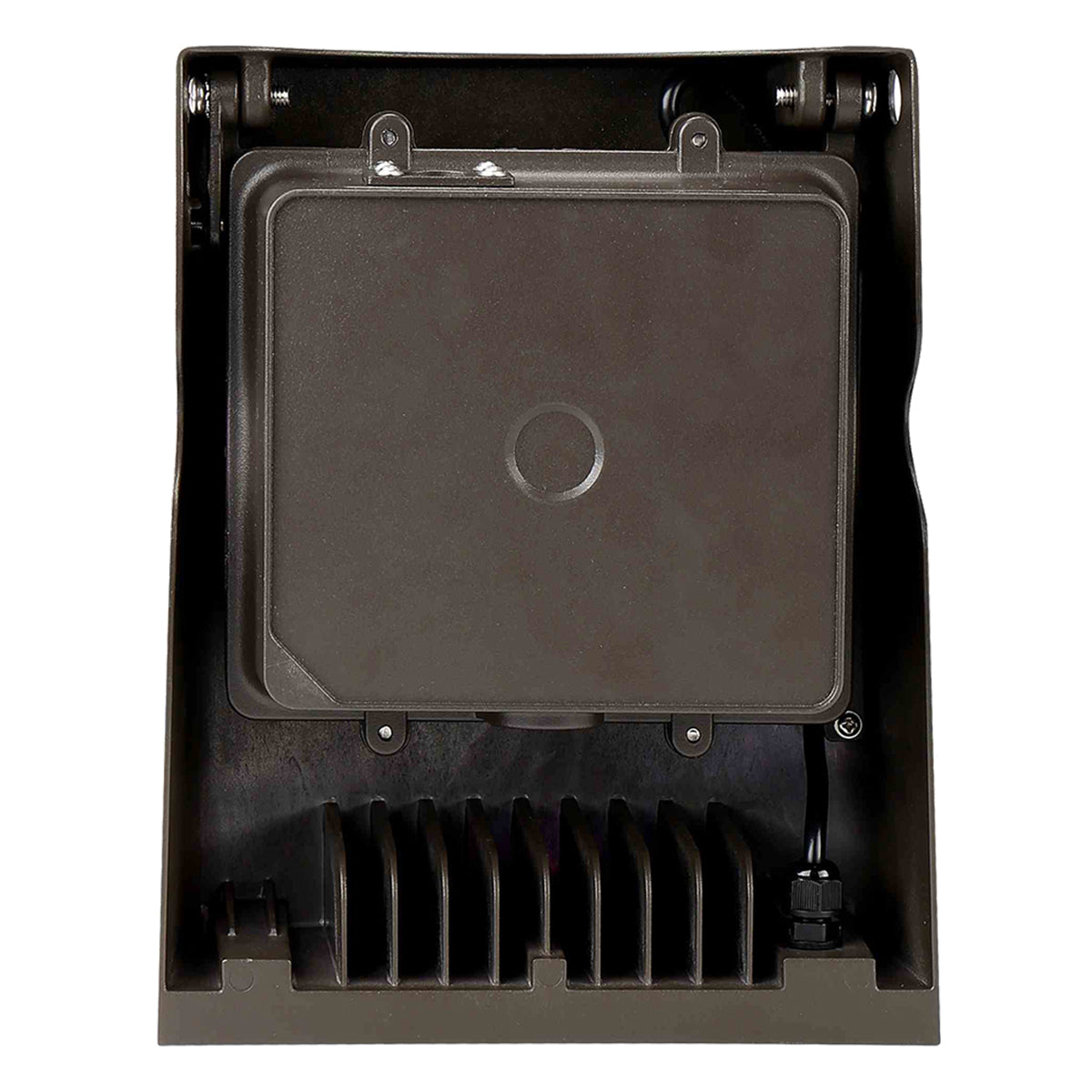

Conduit & Wiring Access: Separate rear wiring/power compartment provides direct access to the onboard LV1–LV4 power and CCT selector switches and side conduit knockouts.
Accessories (Sold Separately):
- Sensors & Controls: Photocell MS-PUNVC01 (Field-installable or factory pre-installed dusk-to-dawn photocell — sold separately)
Certifications & Rebates
- DLC Premium Listed: DesignLights Consortium (DLC) Qualified and classified for DLC Premium across all lumen packages (verify model SLIM-40FA-UV-CCT / MWP10 on designlights.org)
- UL & cUL Wet Location Listed: Certified for exposed outdoor wet locations
Typical Applications
- Building Perimeters & Modern Facades - Low-profile architectural style tilts from 0° cutoff to +90° while delivering up to 5,600 lumens
- Commercial Entrances & Doorways - Tempered UV-coated flat glass lens provides uniform, low-glare illumination at entry points
- Exterior Stairways & Walkways - 4-level LV1–LV4 wattage selector scales output down to 40% to match lower mounting elevations
- Industrial & Warehouse Security Lighting - Separated LED module and power bin thermal design ensures reliable operation from -40°F (-40°C) to 104°F (40°C)
- Utility Rebate Retrofit Projects - DLC Premium qualification across all selectable lumen packages maximizes energy rebate incentives
What's Included
- GLT SLIM-40FA-UV-CCT (MWP10 40W) Field-Adjustable Slim LED Wall Pack - Dark Bronze
- Integrated LV1–LV4 wattage and 3000K/4000K/5000K CCT slide controllers
- Installation hardware and operation manual
