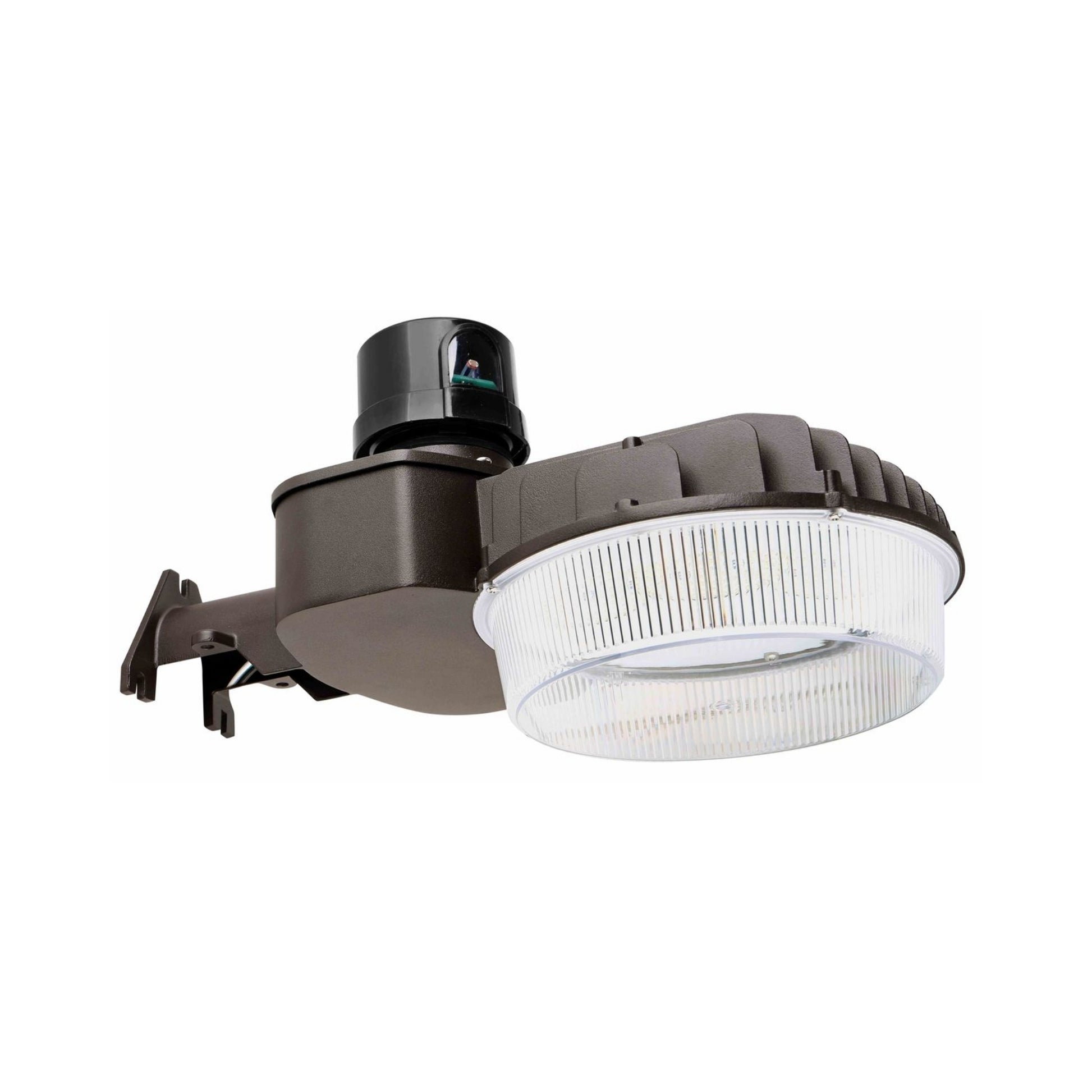

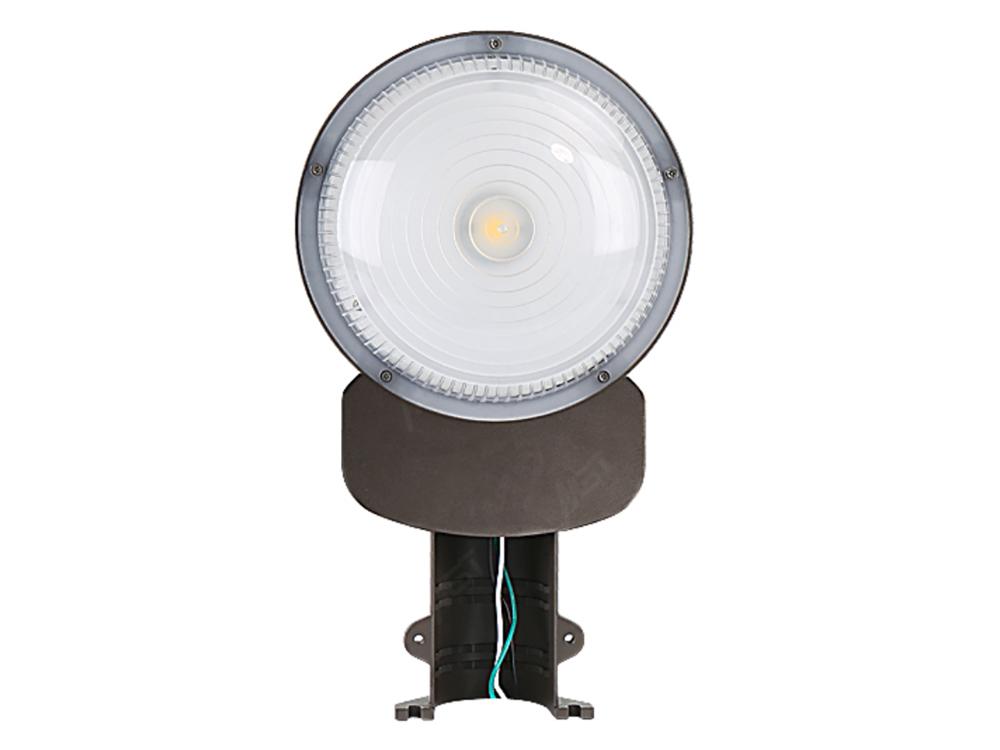

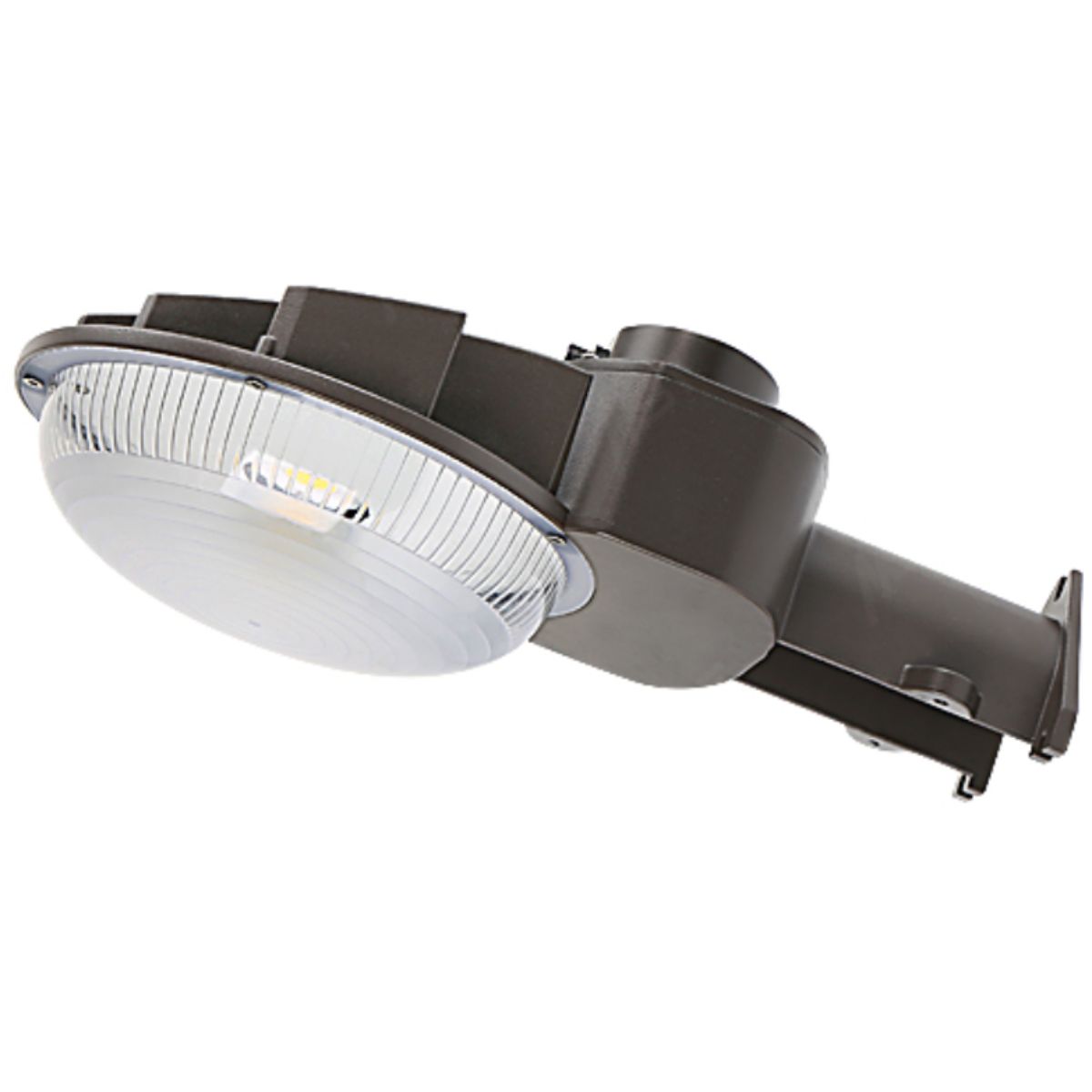

GLT SDD LED Dusk to Dawn Area Light — 45W, 5000K, 120–277V

The GLT SDD-45W-UV-50K-BZ-A is a utility-focused LED dusk to dawn area light delivering 6,200 lumens at a dedicated 45W output and 5000K daylight color temperature. Operating on a 120–277V universal driver, this luminaire features traditional dusk-to-dawn design elements with softened edges and an included 120-277V photocell for automated security lighting. Built with a UL cUL Wet Location listing and a durable dark bronze finish, it is engineered to replace up to 250W traditional metal halide fixtures in local roadways, entryways, and general perimeter applications.

Key Features

• Wattage: 45W
• CCT: 5000K
• Delivered Lumens: 6,200 lumens (138 LPW)
• Voltage: 120–277V input
• Controls: 120-277V photocell included
• CRI: ?70
• HID Equivalent: Replaces up to 250W Metal Halide
• Environmental Ratings: UL cUL Wet Location listed

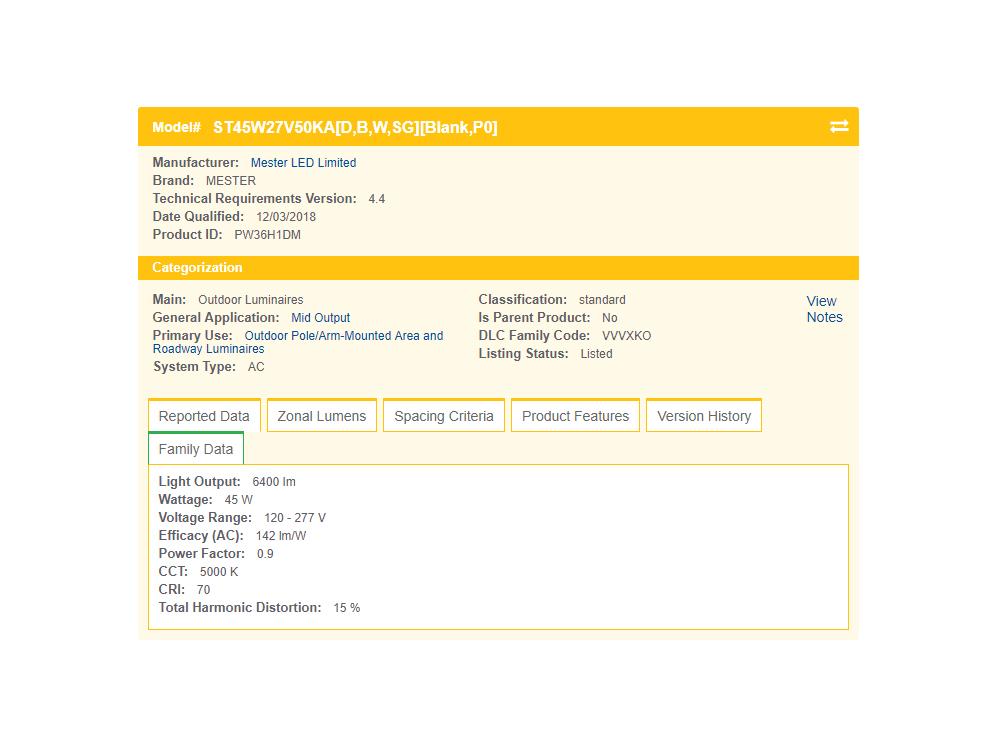

• Certifications: DLC Qualified
• Operating Temperature: -40°C to 40°C (-40°F to 104°F)
• Estimated Life: >50,000 hours

Typical Applications

• Local, collector, and major roadways
• General area and perimeter illumination
• Building entryways and pathways
• Commercial yards and loading docks

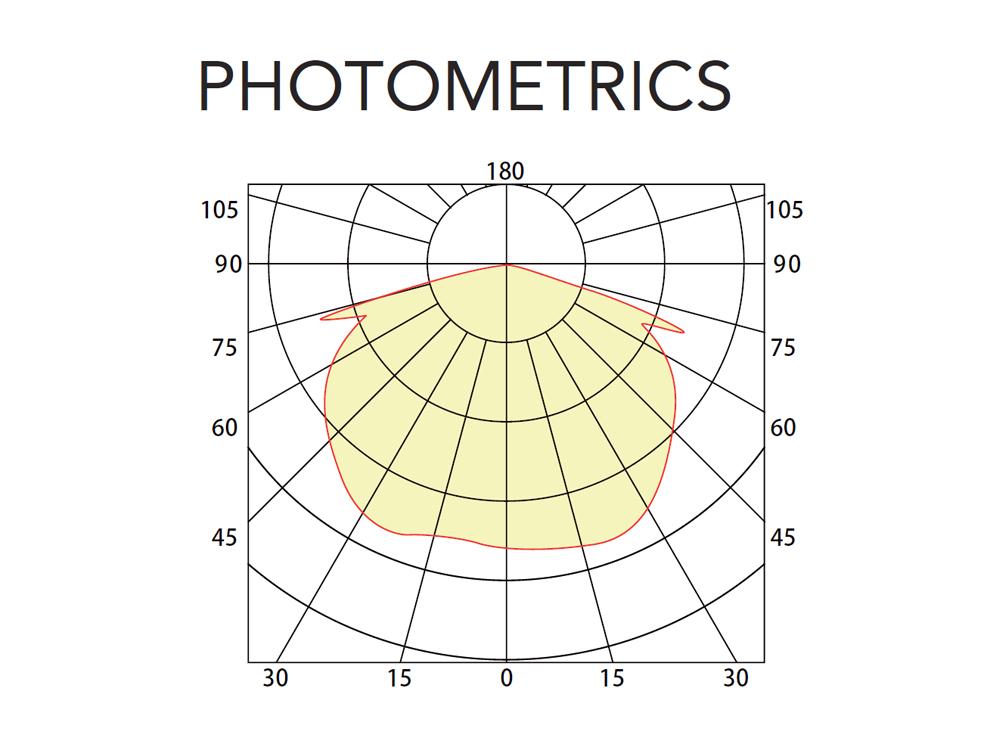

Performance & Light Output

This LED dusk-to-dawn light produces 6,200 lumens at a crisp 5000K daylight color temperature, achieving an excellent efficacy of 138 lumens per watt. It utilizes breakthrough LEDs and precision-engineered optics to provide uniform and exceptional illumination that effectively replaces up to 250W traditional metal halide area lights. The high-performance LED light engine delivers a color rendering index (CRI) of 70 or greater and maintains a highly reliable estimated lifespan of over 50,000 hours, significantly reducing maintenance needs.

Electrical & Controls

The luminaire operates on a universal 120–277V AC driver designed for stable commercial use. The electrical system maintains a power factor of 0.90 or greater and total harmonic distortion (THD) below 20%. For maximum energy savings and site security, the fixture comes standard with an included 120-277V photocell that automatically turns the light on at dusk and off at dawn, eliminating the need for manual switches or external timers.

Construction & Durability

Engineered for harsh outdoor environments, the fixture features a durable die-cast aluminum housing finished in a standard dark bronze polyester powder-coat. The traditional dusk-to-dawn design has been modernized with softened edges for a versatile look that complements many applications. The housing is UL and cUL listed for wet locations, guaranteeing reliable operation in extreme ambient temperatures ranging from -40°C (-40°F) up to 40°C (104°F).

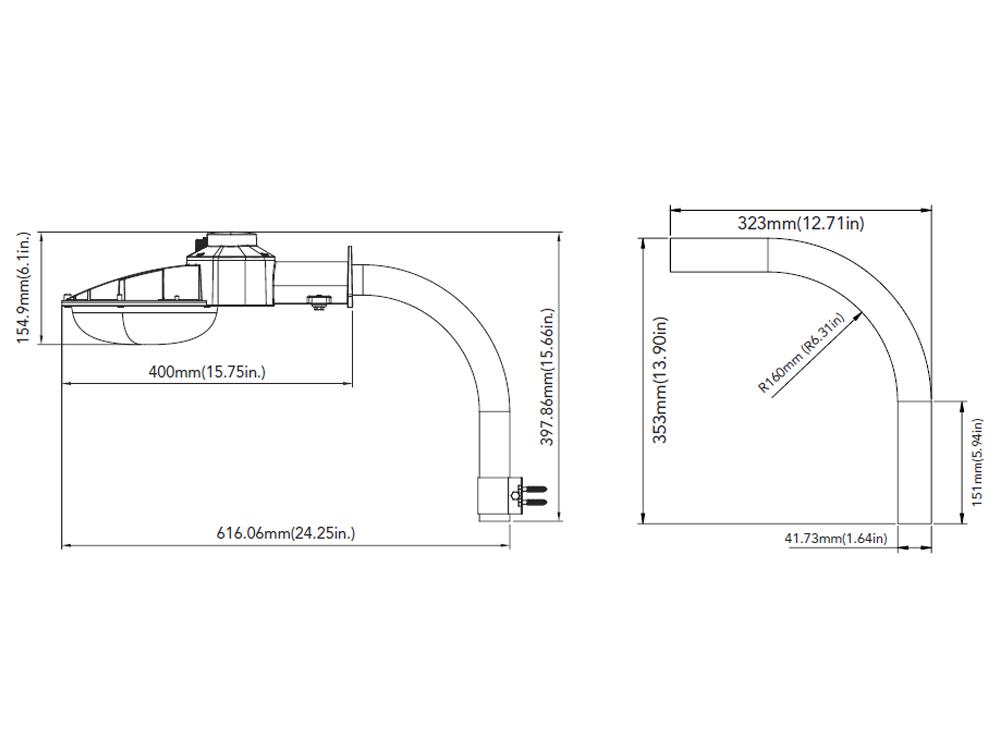

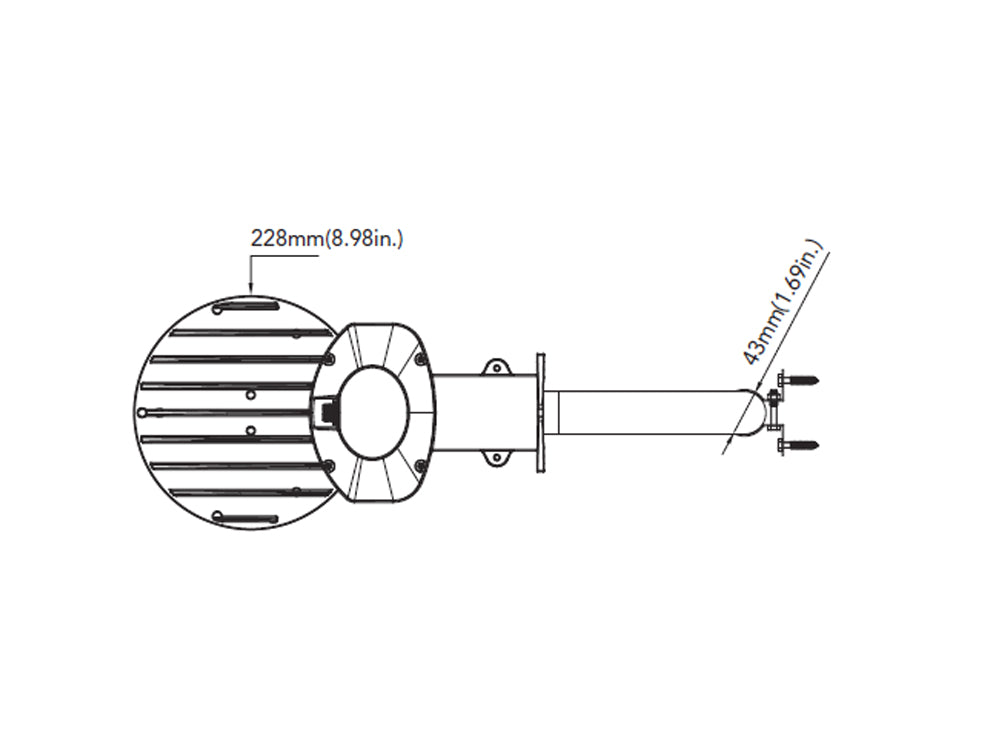

Installation & Mounting

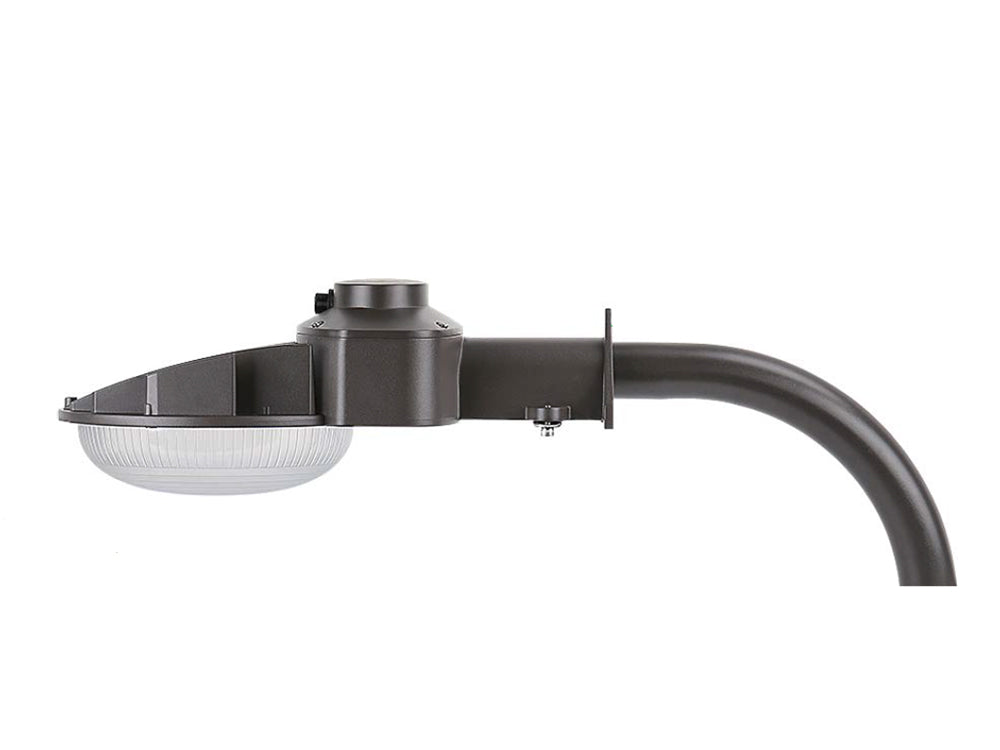

The SDD series area light is designed for highly adaptable and straightforward site installation. The fixture can be mounted directly to a flat wall surface straight out of the box for perimeter security applications. For extended reach and traditional pole-mounted street or yard lighting configurations, the luminaire is fully compatible with an optional pole mounting arm kit (sold separately).

What's Included

• GLT SDD Area Light Fixture (Dark Bronze)
• 120-277V Photocell
