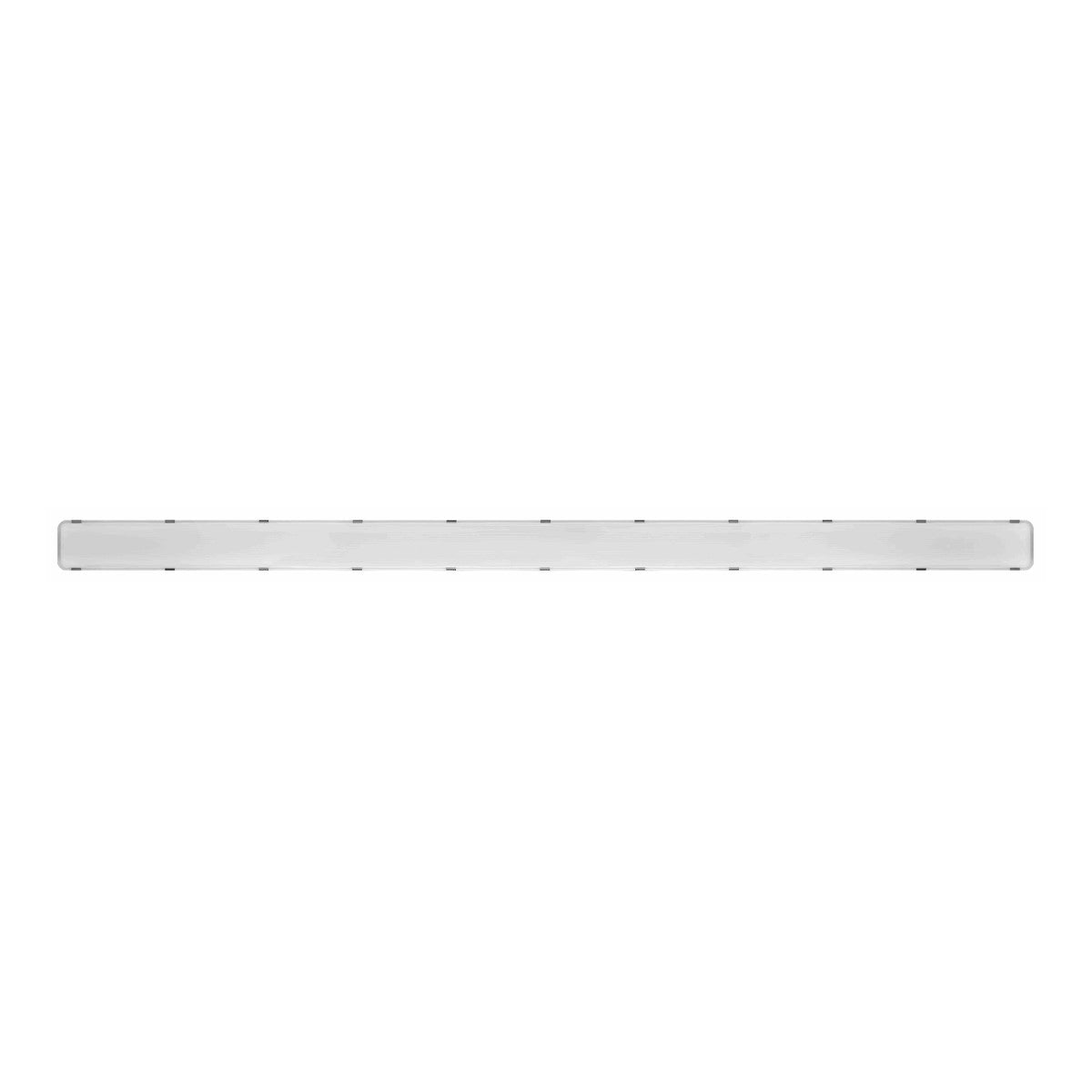

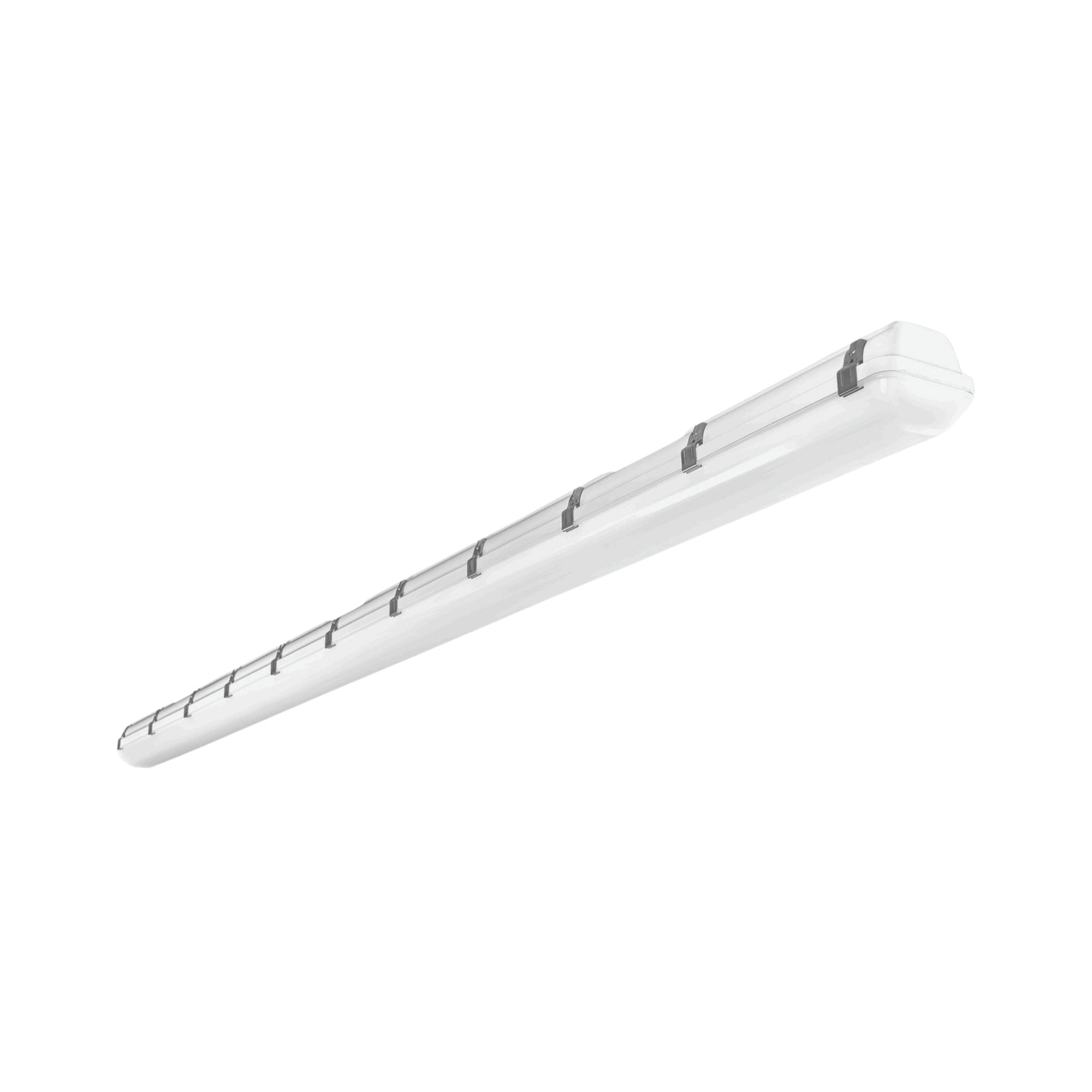

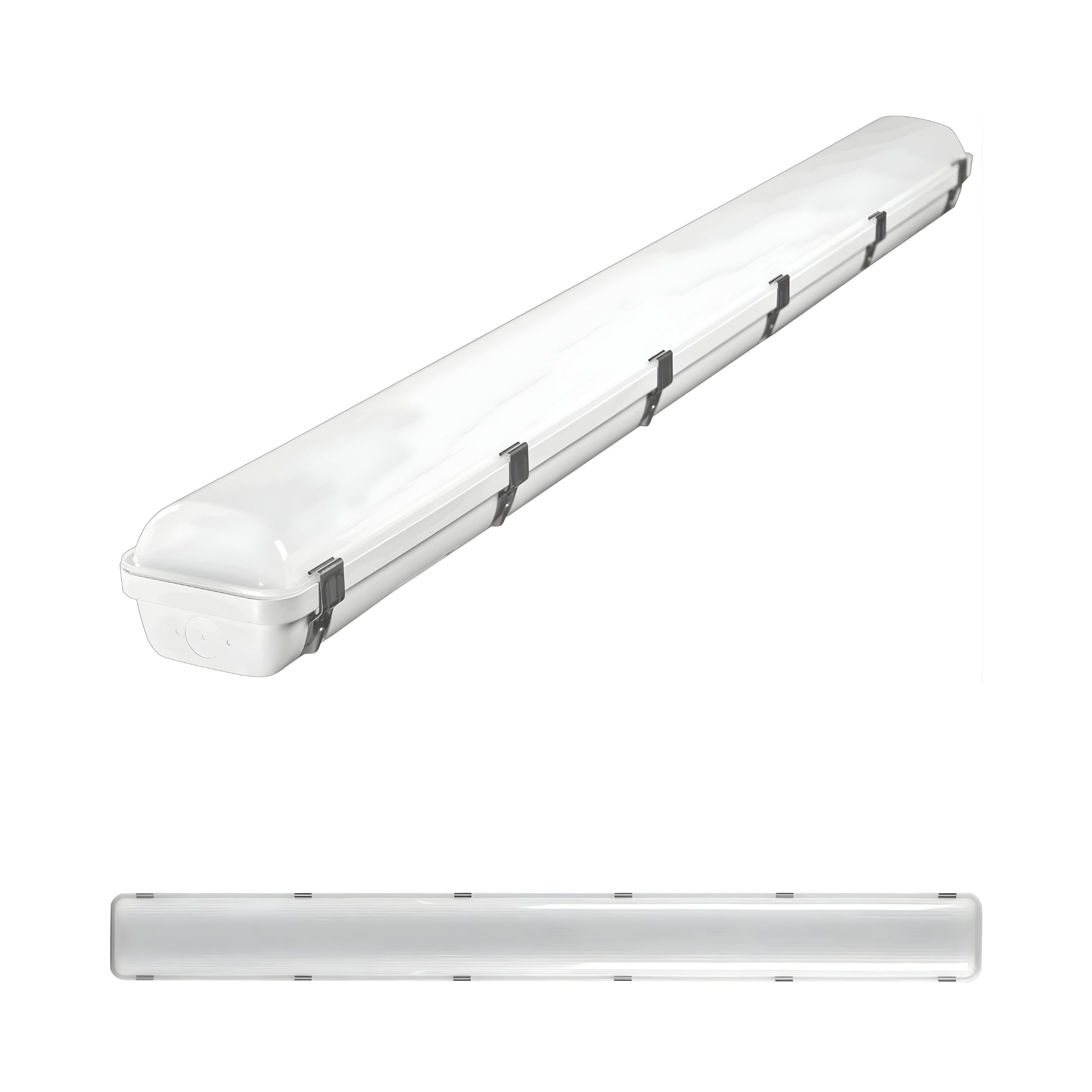

GLT 8ft LED Vapor Tight Fixture — Selectable Wattage & CCT

The GLT 8ft LED Vapor Tight Fixture is designed for wet, washdown, and industrial environments requiring reliable high-output lighting. It delivers up to 13,700 lumens with field-selectable wattage (60W / 75W / 90W) and selectable color temperature (3500K / 4000K / 5000K) for flexible on-site configuration. Operating on a universal 120–277V driver, this sealed fixture features IP65 and NEMA 4X protection and supports 0–10V dimming for compatibility with commercial lighting control systems. Built for demanding environments, the fixture is rated for wet locations and is TAA Compliant for government and federally funded projects.

Key Features

• Selectable Wattage: Field-adjustable 60W / 75W / 90W output inside housing
• Selectable CCT: 3500K / 4000K / 5000K switchable color temperature
• Maximum Output: Up to 13,700 lumens
• High Efficiency: Up to 167 lumens per watt depending on configuration
• Universal Voltage: 120–277V input
• 0–10V Dimming: Compatible with commercial lighting control systems
• Environmental Rating: IP65 sealed housing with NEMA 4X protection
• Impact Protection: IK08 rated lens durability
• Operating Temperature: -30°C to 50°C ambient
• Long Lifespan: Estimated 100,000-hour LED life based on LM-80 and TM-21 testing
• Controls Compatibility: Supports occupancy sensors, microwave sensors, daylight sensors, and Bluetooth control modules

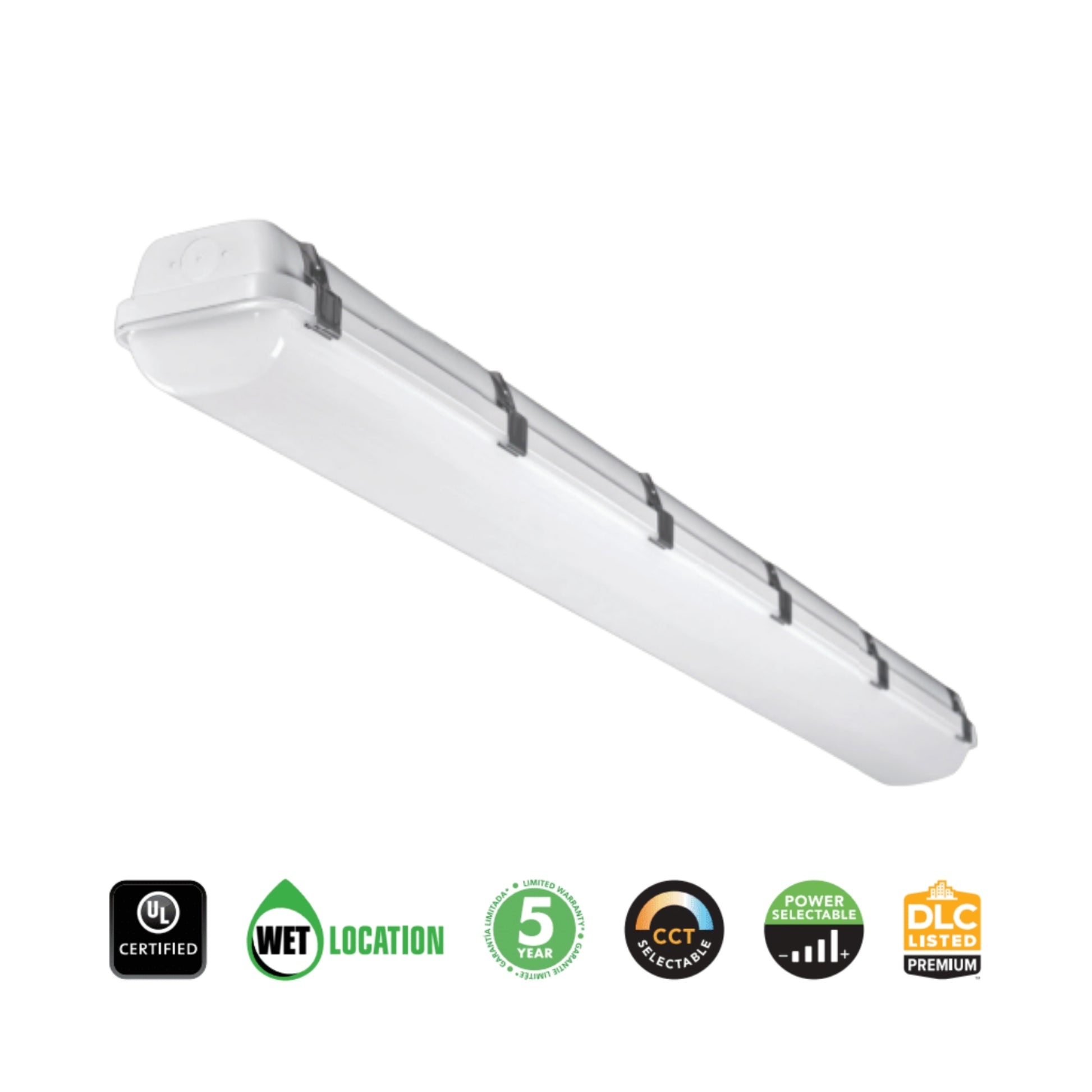

• Certifications: UL / cUL wet location listed and DLC qualified
• Compliance: TAA Compliant for government procurement projects
• Warranty: 5-year limited warranty

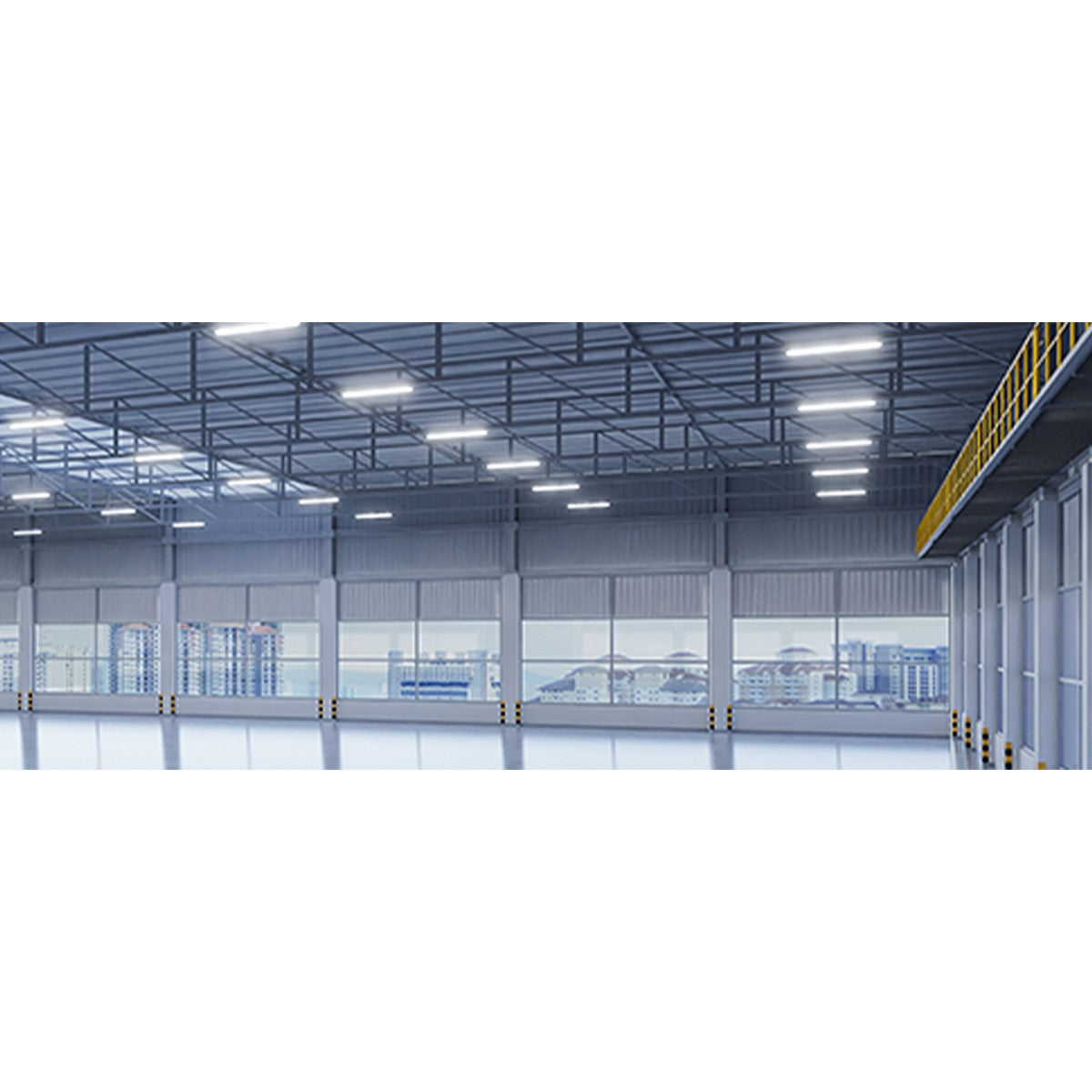

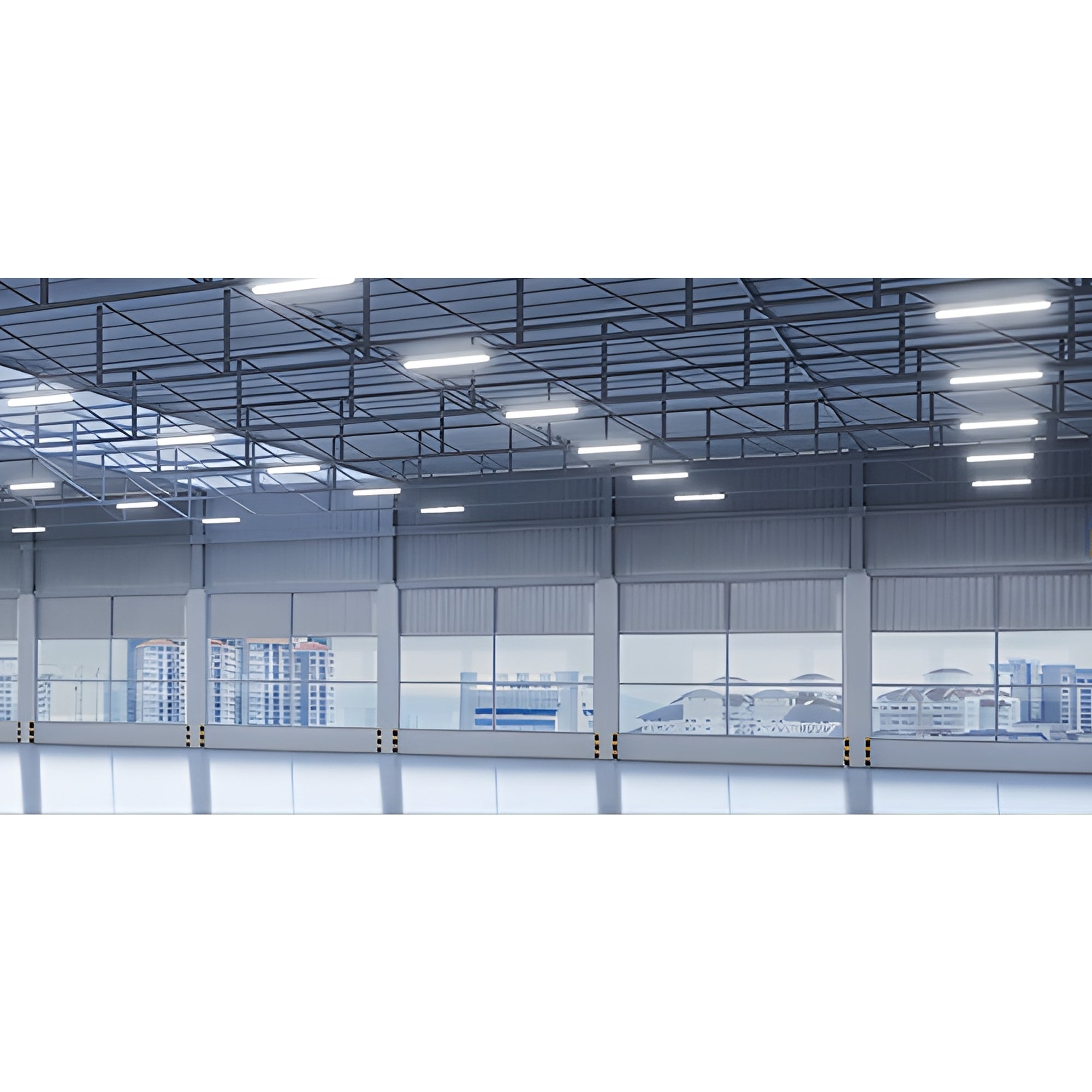

Typical Applications

• Parking garages
• Car washes
• Food processing facilities
• Cold storage areas
• Industrial washdown environments
• Agricultural buildings

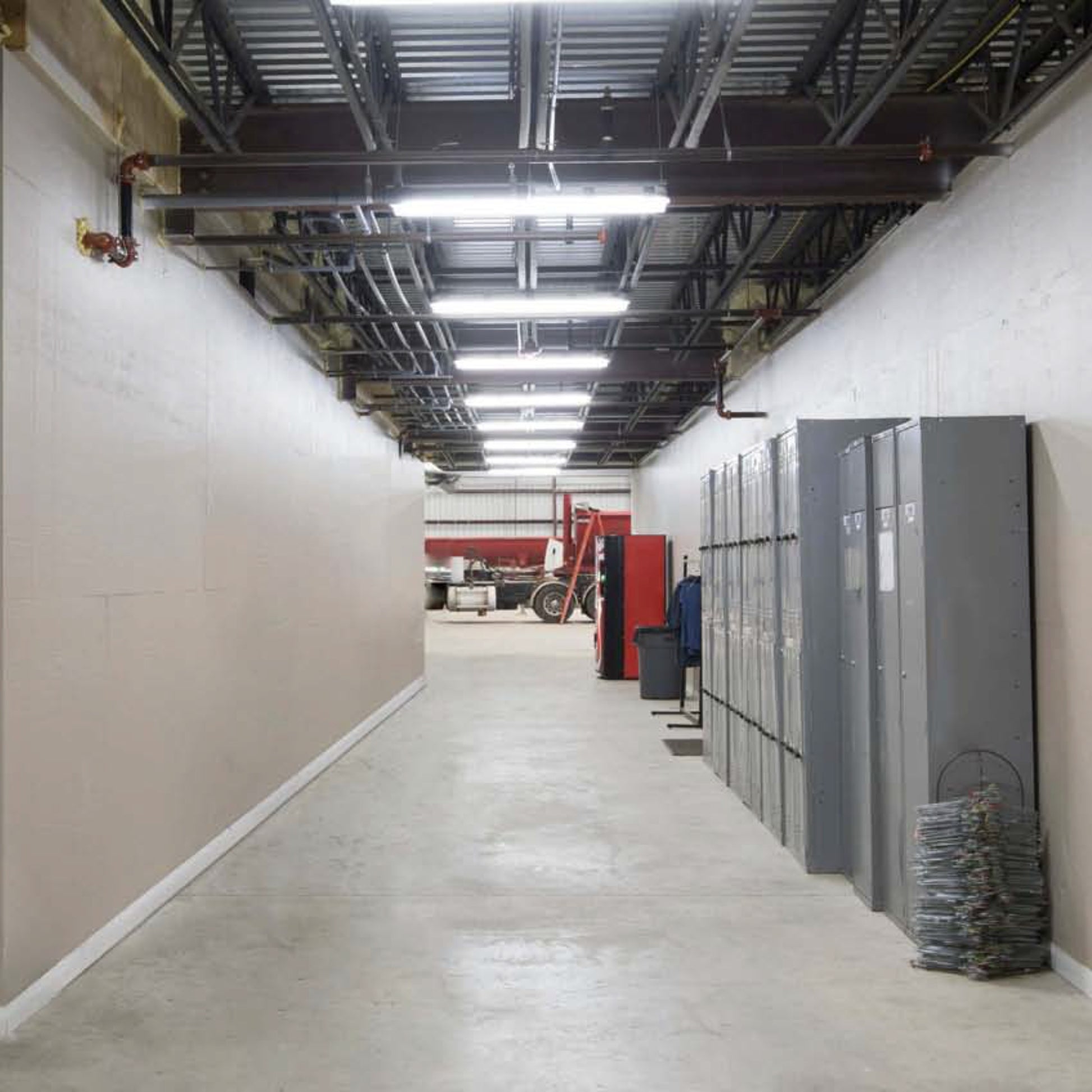

• Utility corridors
• Warehouses with humid environments

Performance & Light Output

Selectable wattage and color temperature switches allow installers to adjust light output during installation. The fixture delivers lumen packages ranging from approximately 10,000 to 13,700 lumens depending on selected wattage and CCT settings. High-efficiency LEDs provide up to 167 lm/W, offering reliable illumination for large commercial and industrial spaces.

Electrical & Controls

Operates on 120–277V, 50/60Hz universal voltage input. The fixture includes standard 0–10V dimming compatibility for integration with building lighting control systems. An auxiliary 12V output supports compatible accessories. Optional controls include occupancy sensors, microwave sensors, daylight sensors, Bluetooth controllers, and third-party network lighting systems.

Construction & Durability

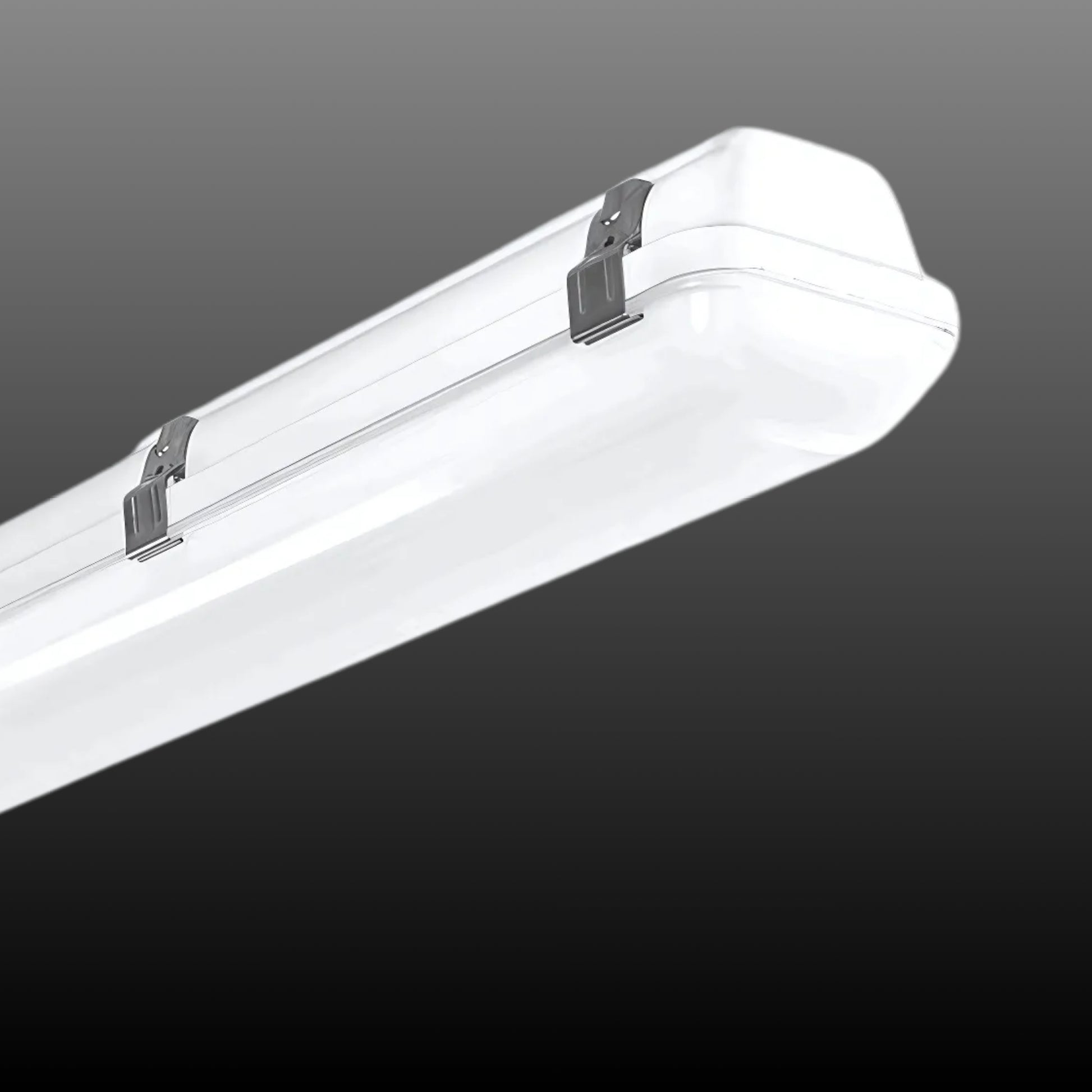

Sealed housing construction protects internal components from moisture and environmental contaminants. Stainless steel clamps secure the lens and housing for long-term durability. The fixture is rated IP65 and NEMA 4X for wet and washdown environments and features an IK08 impact-resistant lens. Designed for reliable operation in temperatures ranging from -30°C to 50°C. The fixture is also TAA Compliant, making it suitable for federally funded and government installations.

Installation & Mounting

Designed for flexible installation with both surface mount and suspended mounting options. Snap-on mounting brackets support surface installation, while included V-hooks allow chain suspension. Wattage and CCT can be adjusted using internal switches prior to closing the housing during installation.

Included

• Snap-on mounting brackets
• V-hooks for chain mounting
