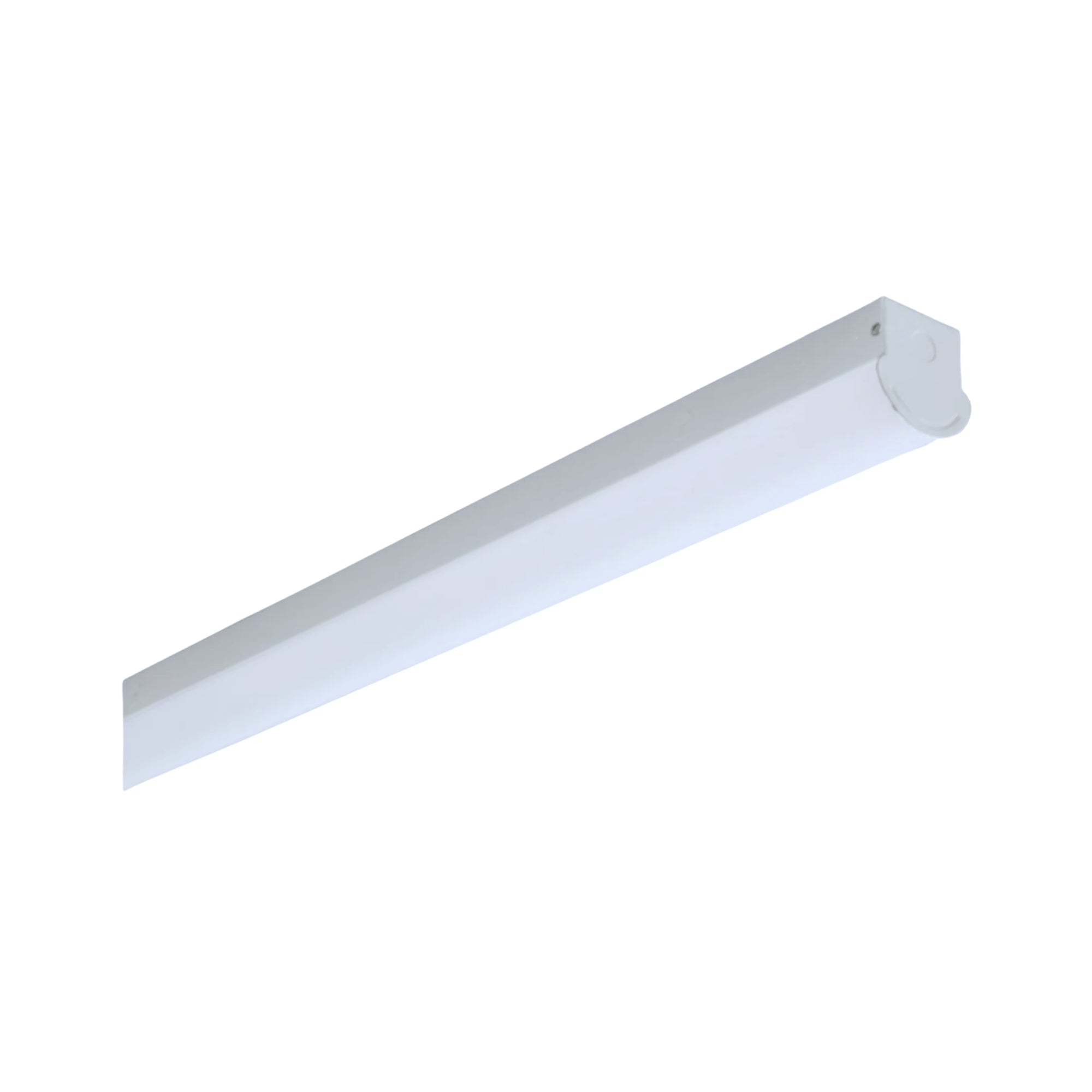

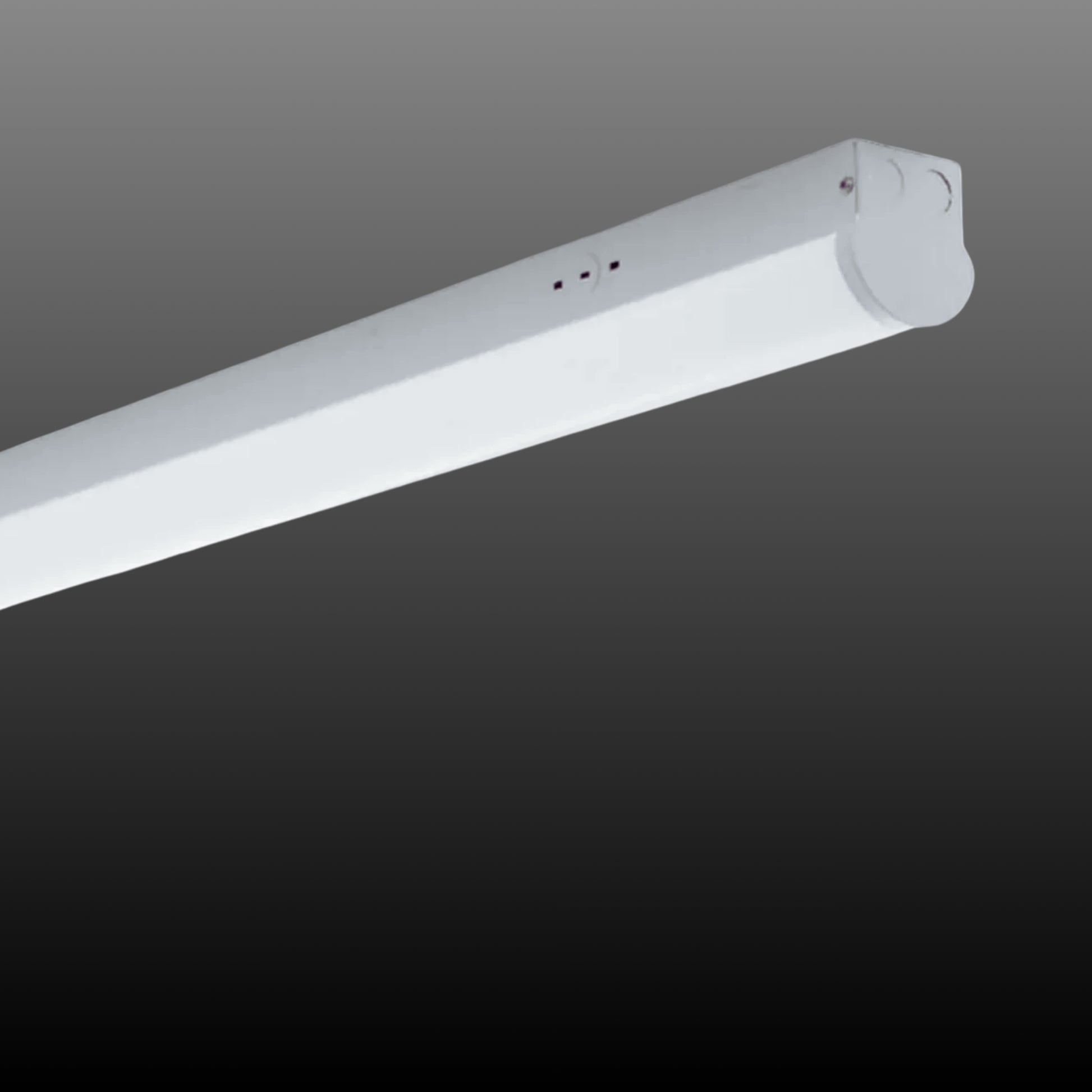

GLT LS Series 8ft LED Linear Strip Light — 65W — 5000K — White / Frosted Acrylic Drop Lens

The GLT LS8-80L-50K-D10 is a commercial 8ft LED Linear Strip Light engineered to deliver 8,645 lumens at 65W with dedicated 5000K illumination. Operating on universal 120-277V electrical systems with 0–10V continuous dimming, this luminaire provides an energy-efficient replacement for legacy fluorescent T8 and T5HO fixtures. Built with a cULus / UL Listed Damp Location rating, it is qualified for commercial utility rebates under DLC certified standards and features an acrylic drop lens with continuous-row mounting capability.

Key Features

• Operating Wattage: 65W fixed power consumption
• Wattage Equivalency: Replaces legacy fluorescent T8 and T5HO fixtures
• Maximum Lumen Output: 8,645 lm at 65W (5000K)
• Peak Efficacy: 133 lm/W for high-efficiency commercial operation
• CRI: 80 color rendering
• Color Temperature: Dedicated 5000K illumination
• Lens & Optics: Frosted acrylic drop lens delivering low-glare, diffused light distribution
• Dimming: 0–10V continuous dimming standard
• Voltage: Universal 120-277V AC, 50/60Hz UL Class II driver
• Location Rating: UL listed for U.S. and Canada for damp locations
• Operating Temperature: -4°F (-20°C) to 122°F (50°C) ambient range
• Certifications: DLC certified, cUL, UL listed, RoHS compliant, mercury-free
• Rated Life: 100,000 hours (L70) rate life with high-performance LM80 LED chips
• Warranty: 5-year limited warranty — GLT
• Form Factor & Design: One-piece durable steel plate housing with tool-free wiring knockouts for surface, suspended, or continuous row mounting

Performance & Light Output

Delivers 8,645 lumens at 65W (133 lm/W efficacy), replacing up to fluorescent T8 and T5HO systems.

CRI >80 across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing. Delivers high-efficiency illumination resulting in significant energy reduction compared to traditional fluorescent systems.

Form Factor & Design Profile

Engineered as a surface ambient luminaire with an acrylic drop lens, the 8ft LS Series features a one-piece durable steel plate construction that houses the LED strips and UL Class II driver. The fixture includes end-cap wiring knockouts and mounting apertures to facilitate surface mounting to a junction box, suspended mounting via V-hooks or aircraft cables, and end-to-end continuous row installations across commercial ceiling layouts.

Smart & Control Features

The LS Series strip light luminaire is powered by a high-performance UL Class II LED driver equipped with continuous 0–10V dimming. Compatible with most standard commercial 0–10V wall dimmers and external low-voltage occupancy/daylight sensors for tailored architectural lighting control and automated energy management.

Electrical

Powered by an internal UL Class II constant current LED driver operating on universal 120-277V AC at 50/60Hz. Delivers high electrical efficiency with low harmonic distortion. Equipped with standard low-voltage 0–10V dimming leads compatible with commercial lighting controls and sensors.

Construction

Housing & Thermal: One-piece durable steel plate constructed with integrated LED strips and LED driver for passive thermal dissipation.

Lens & Optics: Frosted acrylic drop lens providing even, diffused, low-glare light distribution.

Finish: White finish formulated for commercial durability.

Environmental Sealing: UL listed for damp locations. Mercury-free and RoHS compliant. Operating ambient temperature range: -4°F (-20°C) to 122°F (50°C).

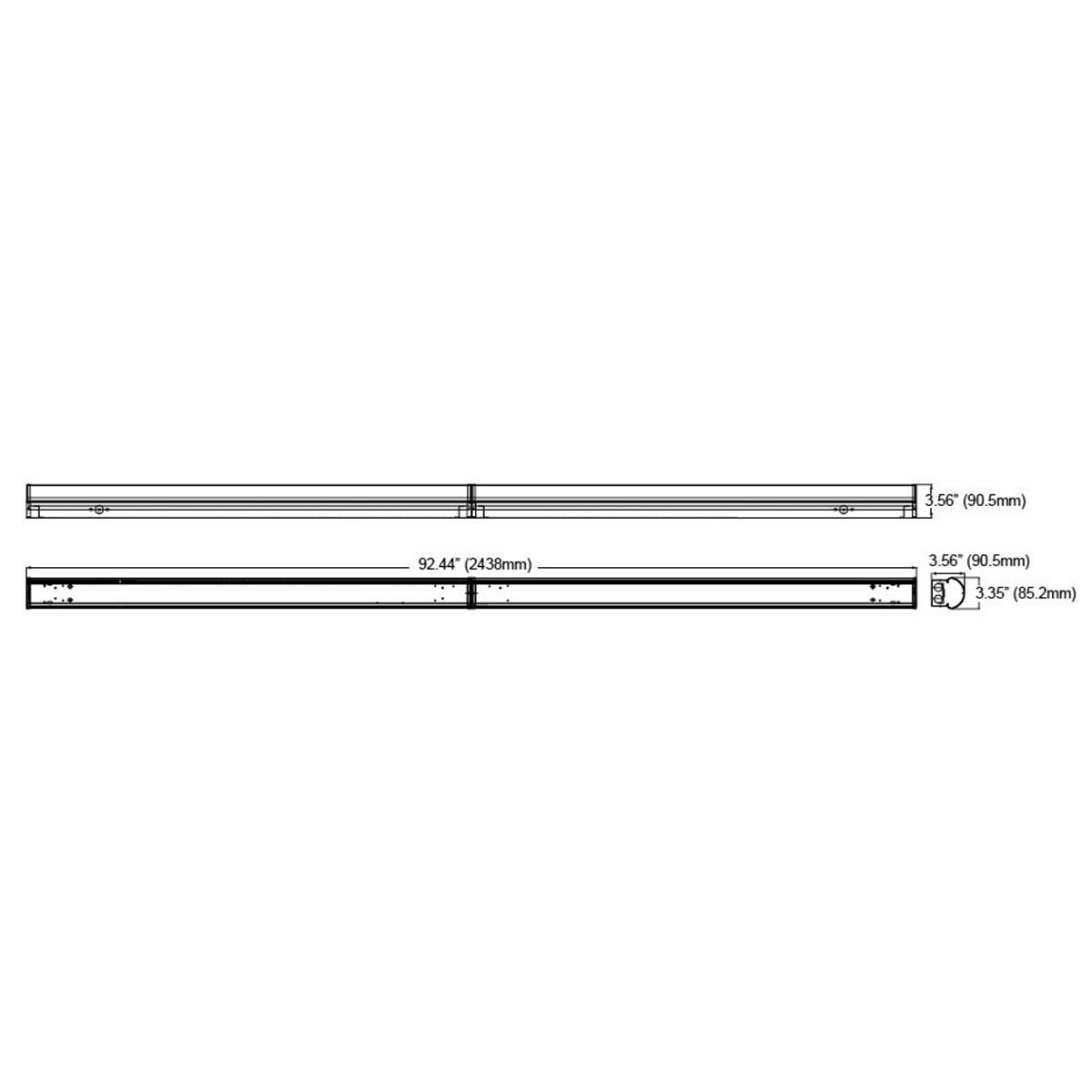

Dimensions & Weight: 92.44" L × 3.56" W × 3.35" H (2438mm × 90.5mm × 85.2mm).

Installation & Mounting

Standard Mounting: Surface mounted with a standard junction box or suspended using optional mounting kits.

Continuous Run Mounting: Supports continuous row mounting using end-cap wiring knockouts and alignment features.

Accessories (Sold Separately):

• Chain Hangers: HC36 (36" chain hangers, 1 pair) — sold separately
• Aircraft V-Hanger: ZACVH (10' aircraft V-hanger, 1 pair) — sold separately

Certifications & Rebates

• DLC Certified: Qualifies for commercial utility rebate incentives across regional energy efficiency programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search Model Number LS8-80L-50K-D10.
• cULus / UL Listed: Certified for damp locations per UL standards for the U.S. and Canada.
• RoHS Compliant & Mercury-Free: Manufactured without hazardous substances or mercury.

Typical Applications

• Commercial Offices & Administrative Areas — Low-glare frosted acrylic drop lens and 5000K light enhance visual comfort in working spaces
• Retail Stores & Supermarkets — Continuous row mounting capability and 133 lm/W efficacy deliver uniform, shadow-free illumination across shopping aisles
• Warehouses & Distribution Facilities — 100,000-hour LM80 rated life and durable steel plate construction minimize routine maintenance overhead in storage zones
• Storage Units & Utility Rooms — Surface mount design with junction box compatibility provides fast, reliable linear lighting in enclosed spaces
• Stairwells & Parking Garages — Damp-location UL listing and 0–10V dimming compatibility ensure dependable performance in semi-conditioned transit corridors

What's Included

• GLT LS8-80L-50K-D10 8ft LED Linear Strip Light — White
• Frosted acrylic drop lens (pre-installed)
• Installation and wiring instruction manual
