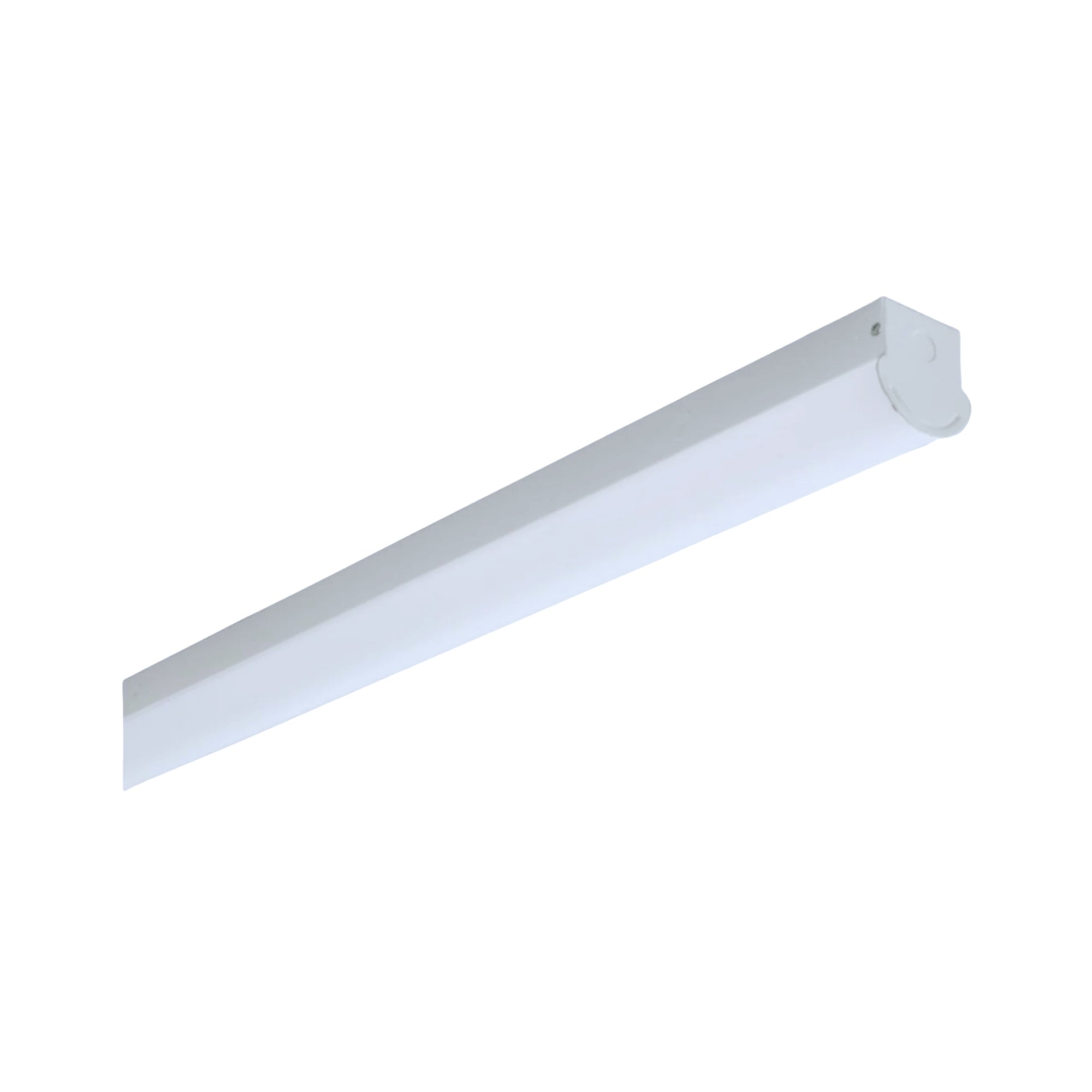

LED LS Series Strip Light — 65W Configuration

The LS8-80L-40K-D10 is an 8-foot LED strip light delivering 8500 lumens at 65 watts. It operates on 120-277V and is suitable for damp locations, making it ideal for commercial applications such as offices, retail spaces, and warehouses. This fixture is DLC certified and offers a 5-year warranty.

Key Features

• High Efficacy: Provides up to 132 lumens per watt for efficient lighting.
• Durable Construction: Features a one-piece steel plate with a frosted diffuser for glare-free light.
• Long Lifespan: Rated for 100,000 hours of operation, reducing maintenance needs.
• Versatile Mounting: Can be surface mounted or suspended with optional accessories.
• RoHS Compliant: Mercury-free design for environmentally friendly use.
• Wide Operating Temperature: Functions effectively from -20°C to 50°C.
• UL Listed: Certified for safety in the U.S. and Canada.
• Continuous Row Mounting: Allows for seamless installation in long runs.

Typical Applications

• Offices
• Retail Spaces
• Warehouses
• Parking Garages
• Storage Units
• Stairwells

Performance & Light Output

This strip light delivers 8500 lumens with an efficacy of 132 lm/W and a CRI of 80, ensuring high-quality light output. The frosted diffuser ensures even distribution.

Electrical & Controls

Compatible with 120-277V systems, it includes a UL class II LED driver with 0-10V dimming capability, supporting most dimmers and sensors.

Construction & Durability

The fixture is constructed from durable steel with a frosted diffuser, rated for damp locations, and compliant with RoHS standards.

Installation & Mounting

Designed for surface mounting with a junction box or suspended installation using V-hooks or chain hangers. Continuous row mounting is supported.

What's Included

• LED Strip Light Fixture
