GLT LS8-100L-CCT-D10 8FT LED Linear Strip — 70/62/54/46W Selectable — 2700/3000/3500/4000/5000K — White
In stock
About this item
About this item
- Output & Equivalency: Field-adjustable 70/62/54/46W power settings deliver up to 10307 lumens.
- Dynamic Form Factor USP: 8ft linear strip with an innovative internal hinge for folding, reducing storage space and simplifying installation.
- Selectable CCT: Five switchable color temperatures (2700/3000/3500/4000/5000K) are field-adjustable.
- Controls & Automation: Standard 0-10V dimming down to 10%, compatible with optional plug-and-play sensors.
- Dynamic Certifications & Ingress: DLC Premium listed and UL Listed for damp locations.
We process payments securely and do not store credit card information.
Description
Description

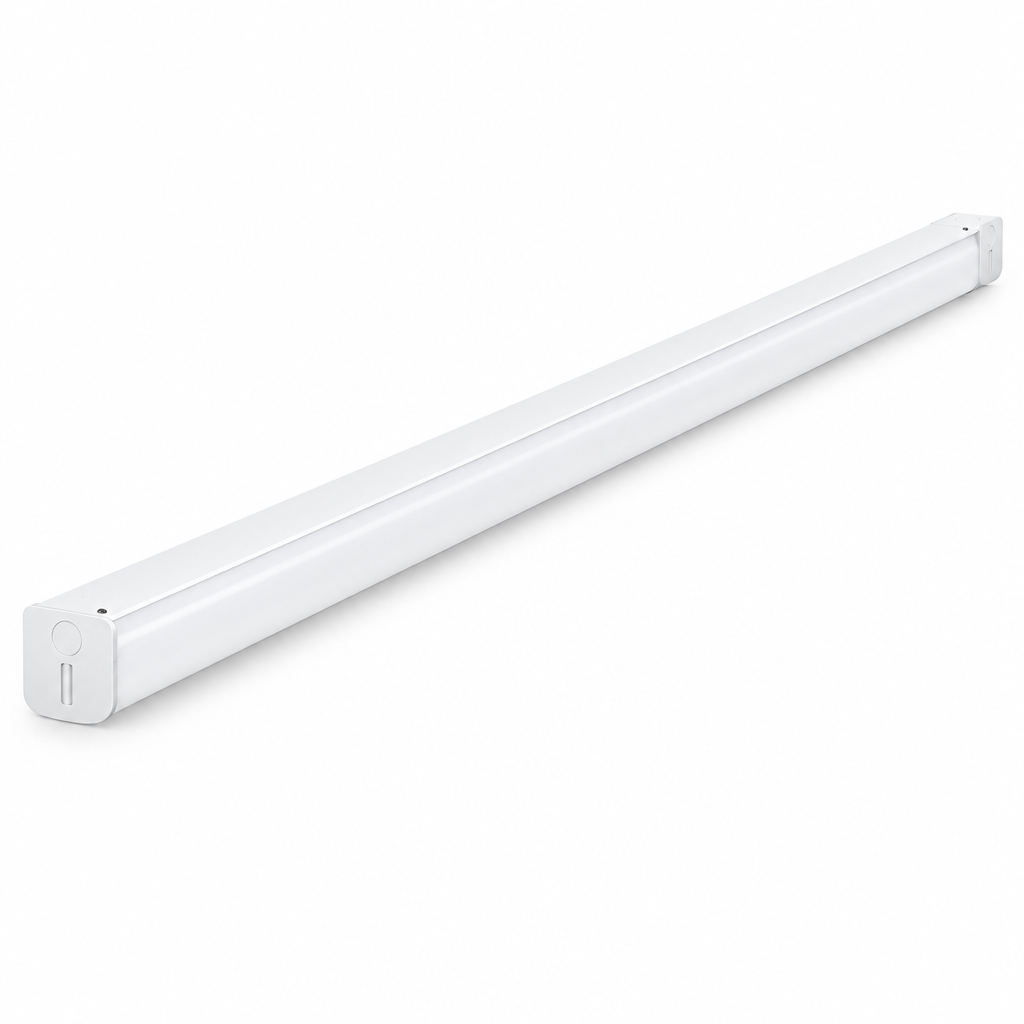

GLT LS8-100L-CCT-D10 8FT LED Linear Strip — 70/62/54/46W Selectable — 2700/3000/3500/4000/5000K — 120-277V — White
The GLT LS8-100L-CCT-D10 is a commercial 8FT LED Linear Strip engineered to deliver up to 10307 lumens with field-adjustable 70/62/54/46W power settings and switchable 2700/3000/3500/4000/5000K color temperatures. Operating on 120-277V electrical systems with 0-10V continuous dimming, this luminaire provides an energy-efficient commercial lighting solution. Built with a UL Listed damp location rating, it is qualified for commercial utility rebates under DLC Premium standards and features an innovative folding design for simplified shipping and installation.
Key Features
- Selectable Wattage: 70/62/54/46W — field-adjustable
- Maximum Lumen Output: 10307 lm at 70W 4000K setting
- Peak Efficacy: 156 lm/W for high-efficiency commercial operation
- CRI: >80 color rendering across all settings
- Selectable CCT: 2700/3000/3500/4000/5000K — field-adjustable
- Lens & Optics: PC lens designed for uniform light distribution
- Dimming: 0–10V continuous dimming standard down to 10%
- Voltage: Universal 120-277V AC, 50/60Hz constant current driver
- Location Rating: UL Listed for damp locations
- Operating Temperature: -4°F (-20°C) to 104°F (40°C) ambient range
- Certifications: DLC Premium, cULus Listed
- Rated Life: 100,000 hours (L70) per IES TM-21 standards
- Warranty: 5-year limited warranty — GLT
- Form Factor & Design: Innovative internal hinge allows the 8FT fixture to fold in half for easier transport
- Sensor Compatibility: Optional sensor receptacle accepts plug-and-play microwave controls
Performance & Light Output
| Wattage | Total Lumens | Efficacy |
|---|---|---|
| 70W | 10307 lm | 147 lm/W |
| 62W | 9369 lm | 151 lm/W |
| 54W | 8336 lm | 154 lm/W |
| 46W | 7187 lm | 156 lm/W |
CRI >80 across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing.
Form Factor & Design Profile
The 8-foot-long LS lighting fixture incorporates an innovative internal hinge design, allowing it to fold in half for shipping. This feature reduces packaging materials and lowers shipping, storage space, and associated costs. Once unpacked, it unfolds smoothly and locks securely for effortless continuous-run installation.
Smart & Control Features
The LS8-100L-CCT-D10 features an integrated control receptacle supporting modular sensing and building automation:
- 0–10V Continuous Dimming (Standard): Dims smoothly down to 10% on standard 0–10V low-voltage control circuits. Compatible with commercial dimmers and centralized building automation systems (BAS).
Compatible plug-and-play sensors include DIVA-MWS12VDC (Microwave Sensor Kit) — sold separately.
Electrical
Powered by a constant current driver operating on 120-277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.9 and Total Harmonic Distortion (THD) <20%. Includes pre-wired 0–10V dimming leads.
Emergency Battery Backup: Compatible with emergency battery backup to provide standby illumination during a primary power failure. Operating temperature shifts to 50°F (10°C) to 104°F (40°C) when equipped.
Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:
| Wattage | 120V Current (A) | 208V Current (A) | 240V Current (A) | 277V Current (A) |
|---|---|---|---|---|
| 70W | 0.58A | 0.34A | 0.29A | 0.25A |
Construction
Housing & Thermal: Cold-rolled steel housing with internal hinges engineered for thermal dissipation.
Lens & Optics: PC lens designed to shape light uniformity.
Finish: White formulated for high resistance against surface wear.
Environmental Sealing: UL Listed for damp locations. Operating ambient temperature range: -4°F (-20°C) to 104°F (40°C).

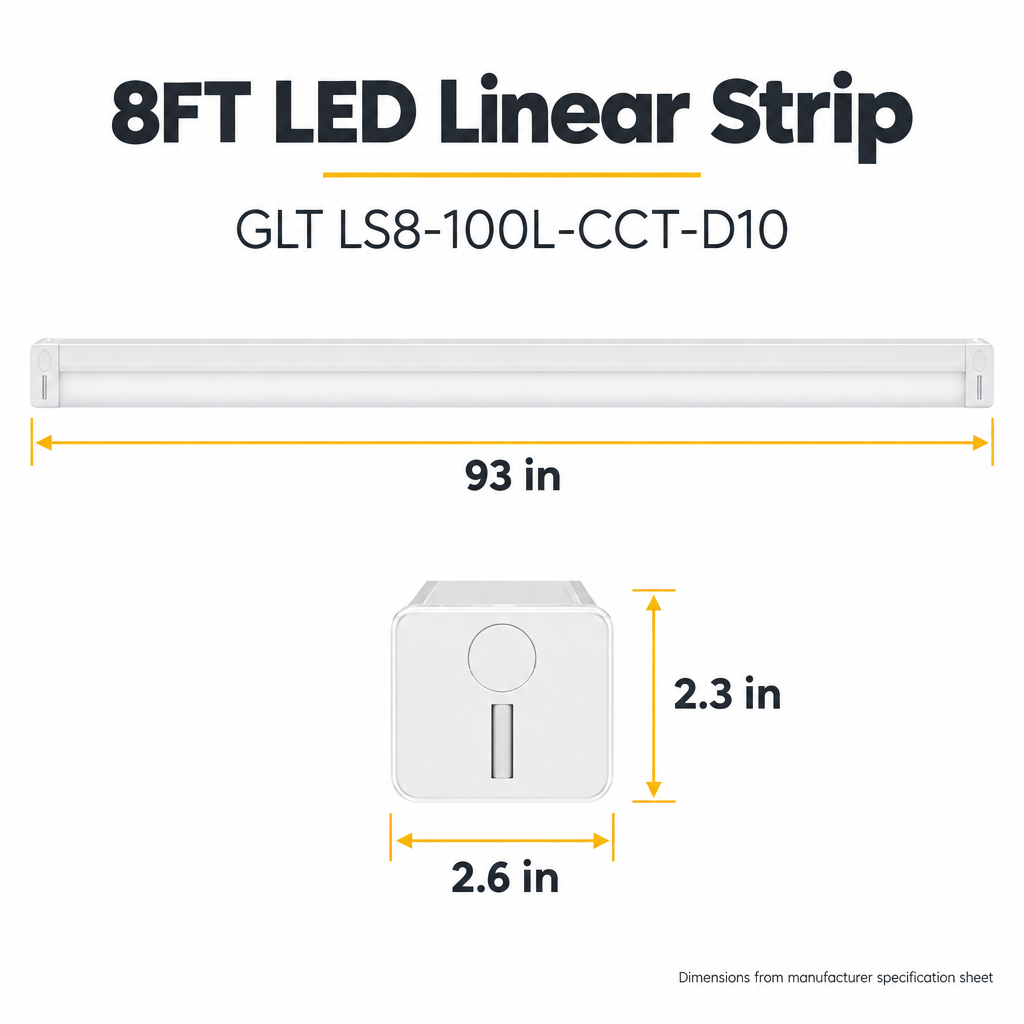

Dimensions & Weight: 93" L × 2.6" W × 2.3" H.

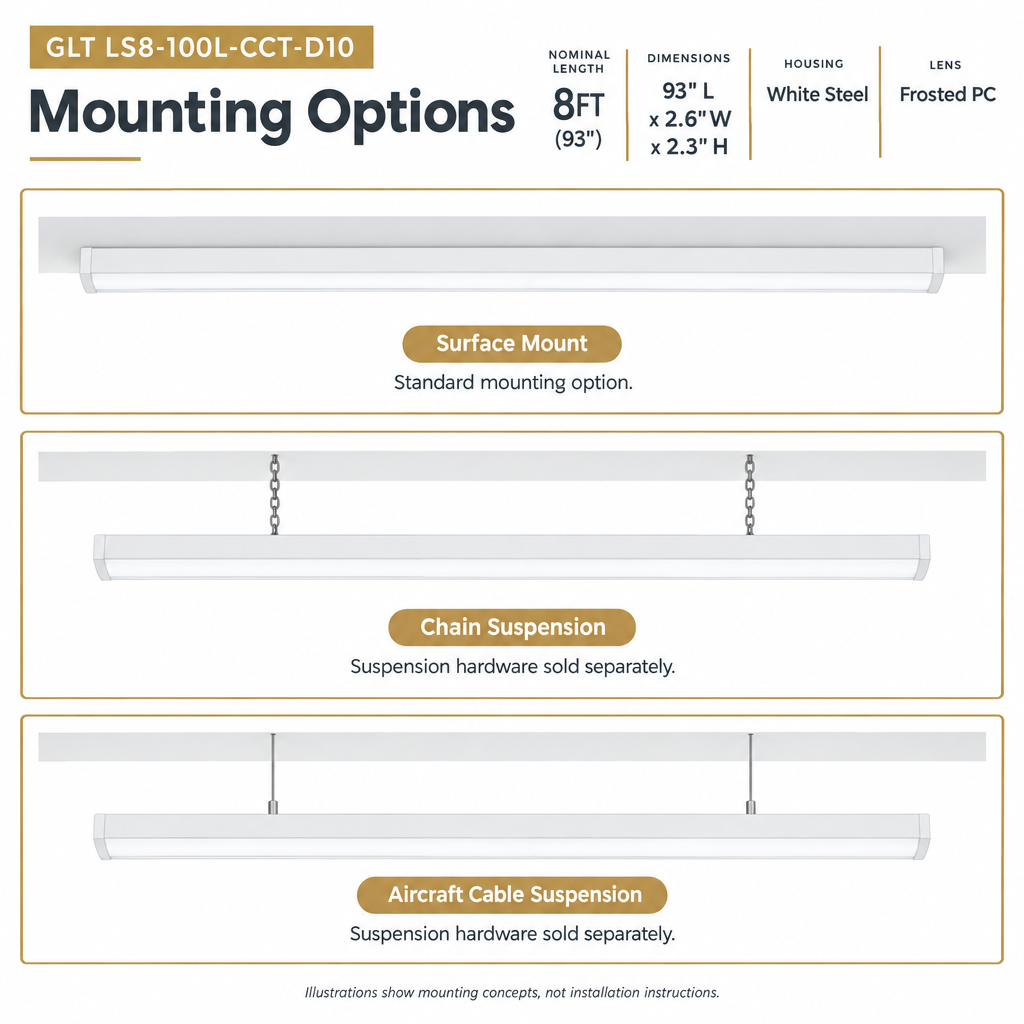

Installation & Mounting
Standard Mounting: Designed for surface mounting.
Continuous Run Mounting: Supports end-to-end tandem mounting.
Accessories (Sold Separately):
- Chain Installation Kit: DIVA-F-CHAINMT
- Aircraft Cable Kit: DIVA-F-CABLEMOUNT
- Joiner Bracket Kit: DIVA-JB-KIT
- Sensors & Controls: DIVA-MWS12VDC
Certifications & Rebates
- DLC Premium: Qualifies for maximum utility rebate incentives across regional commercial energy programs.
- cULus/UL Listed: Certified for damp locations per UL standards
Typical Applications

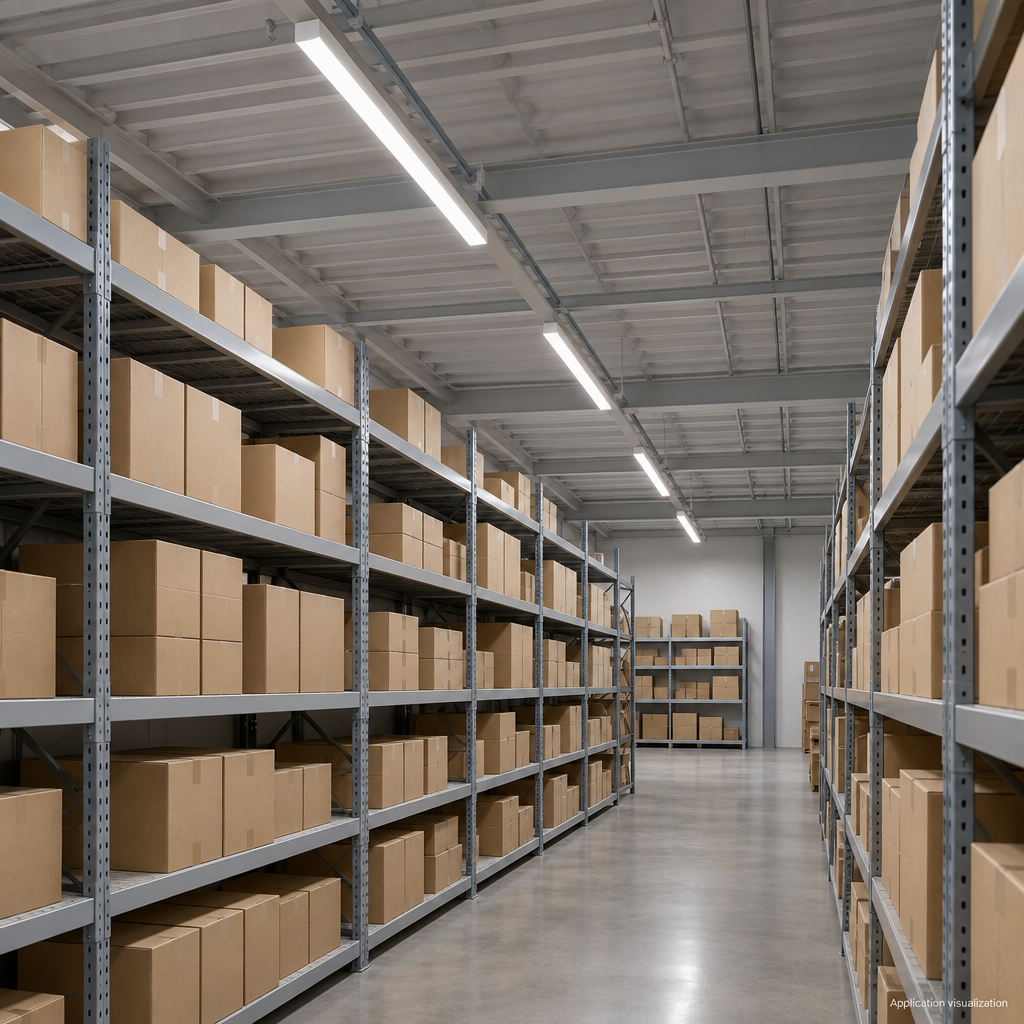

- Warehouses — 8FT linear form factor and up to 10,307 lm output deliver maximum coverage across expansive facilities
- Commercial Corridors — Continuous row mounting support provides uninterrupted light channels for long hallways
- Retail Spaces — Uniform light distribution via the PC lens provides comfortable illumination for merchandise displays
- Covered Parking Lots — UL Listed damp location rating allows for safe installation in protected, unconditioned environments
What's Included
- GLT LS8-100L-CCT-D10 8FT Foldable LED Linear Strip — White
- Surface Mount Kit
- Installation and operation manual
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
How can this 8FT LED strip fixture be mounted?
How can this 8FT LED strip fixture be mounted?
How do you select the wattage and color temperature?
How do you select the wattage and color temperature?
Does the 8FT fixture ship in one large piece?
Does the 8FT fixture ship in one large piece?
Does the LS8-100L-CCT-D10 support dimming and sensors?
Does the LS8-100L-CCT-D10 support dimming and sensors?
Is this fixture eligible for utility rebates?
Is this fixture eligible for utility rebates?
