LED LS Series Strip Light — 46W Configuration

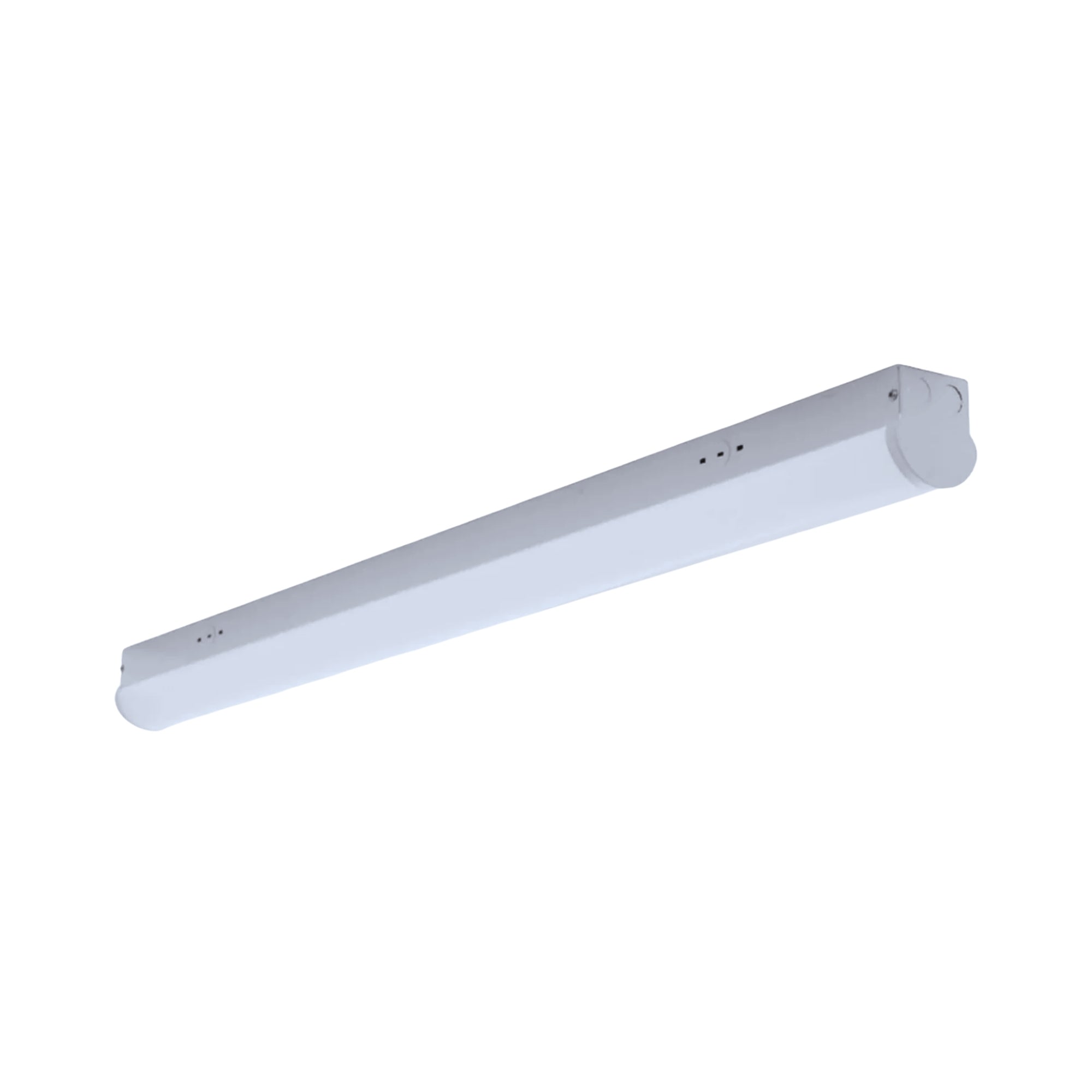

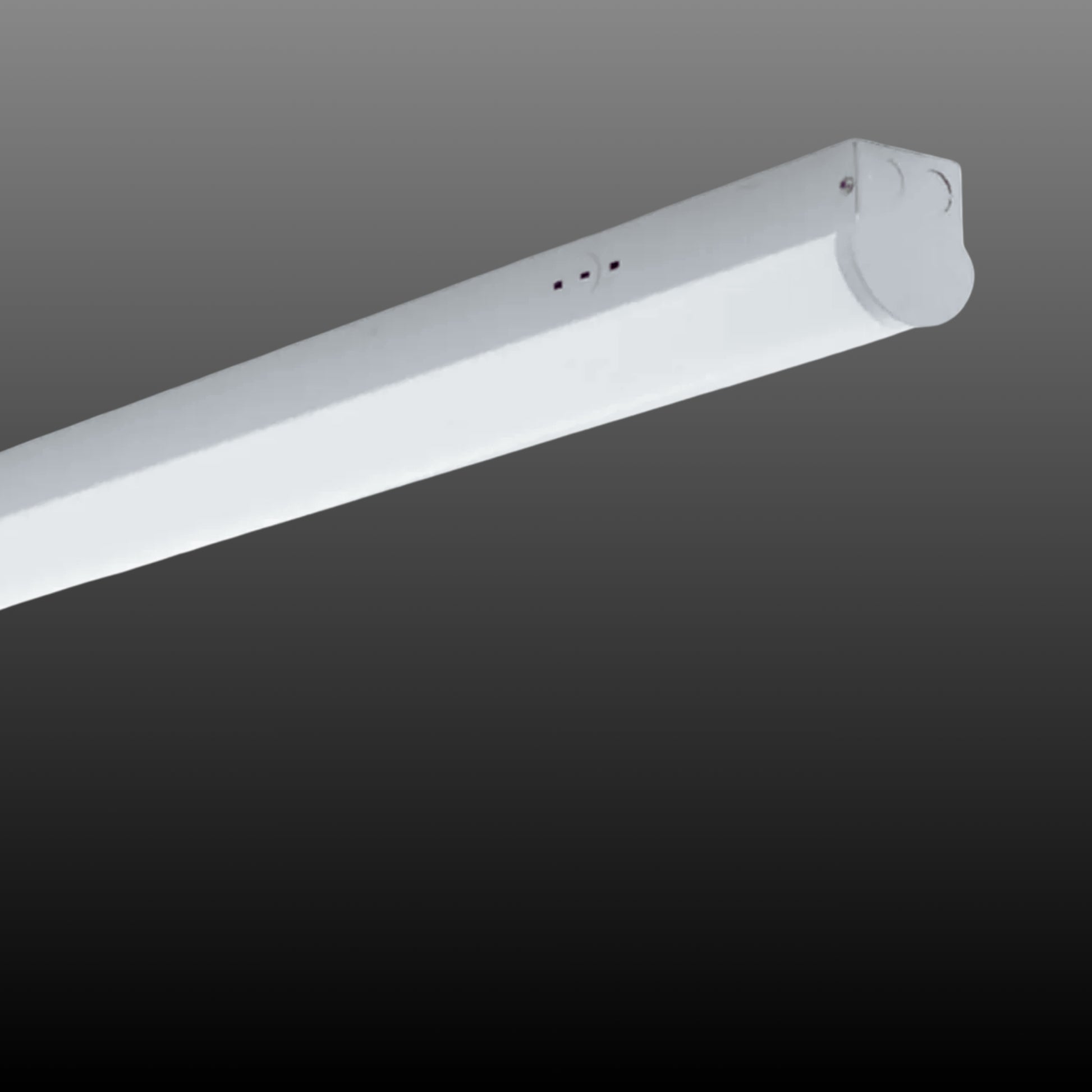

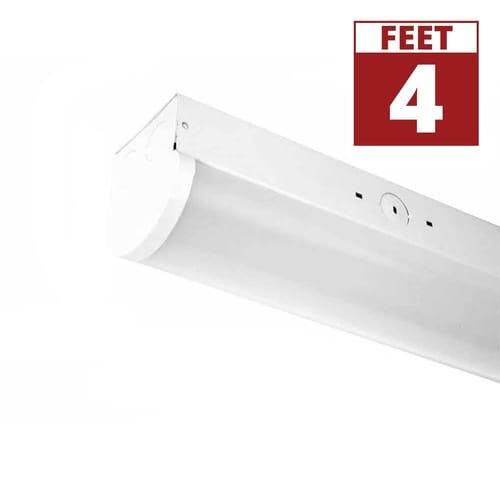

The LS4-60L-40K-D10 is a linear LED strip light fixture designed for commercial applications, delivering 6000 lumens at 46 watts. It operates on a 120-277V input and features a 4000K color temperature. This fixture is ideal for replacing fluorescent T8 and T5HO fixtures, offering easy installation for surface or suspended mounting.

Key Features

• High Efficacy: Achieves up to 130 lumens per watt, maximizing energy savings.
• Durable Construction: Made from a one-piece steel plate with a mercury-free, RoHS-compliant design.
• Optical System: Includes a frosted diffuser for glare-free, even light distribution.
• Long Lifespan: Features LM80 LED chips with a 100,000-hour L70 life.
• Dimmable Driver: Equipped with a UL class II LED driver supporting 0-10V dimming.
• Mounting Options: Supports surface mounting and suspended mounting with optional accessories.
• Certifications: UL listed for U.S. and Canada, DLC certified, and damp location rated.
• Warranty: Backed by a 5-year limited warranty.

Typical Applications

• Offices
• Retail Spaces
• Warehouses
• Parking Garages
• Storage Units
• Stairwells

Performance & Light Output

This fixture provides 6000 lumens with an efficacy of 130 lm/W and a CRI of 80, ensuring high-quality light output suitable for various environments.

Electrical & Controls

The LS4-60L-40K-D10 operates on a universal voltage range of 120-277V and includes a high-performance LED driver with 0-10V dimming capability, compatible with most dimmers and sensors.

Construction & Durability

Constructed from durable steel with a frosted acrylic lens, this fixture is designed for damp locations and is both UL and DLC certified.

Installation & Mounting

Supports surface mounting with a junction box or suspended mounting using V-hook or chain hangers. Optional mounting accessories are available separately.

What's Included

• LED Strip Light Fixture
