GLT 4FT LED Linear Strip Light — 40/34/28/22W Selectable — 2700/3000/3500/4000/5000K — White
Available in stock (100)
About this item
About this item
- Output & Equivalency: Field-adjustable 40/34/28/22W power settings deliver up to 5890 lumens.
- Dynamic Form Factor USP: 4ft continuous-run capable linear strip, compatible with optional tandem row mounting joiner brackets.
- Selectable CCT: Five switchable color temperatures (2700/3000/3500/4000/5000K) are field-adjustable.
- Controls & Automation: Standard 0-10V dimming down to 10%, compatible with optional plug-and-play sensors.
- Dynamic Certifications & Ingress: DLC Premium listed and UL Listed for damp locations.
Description
Description

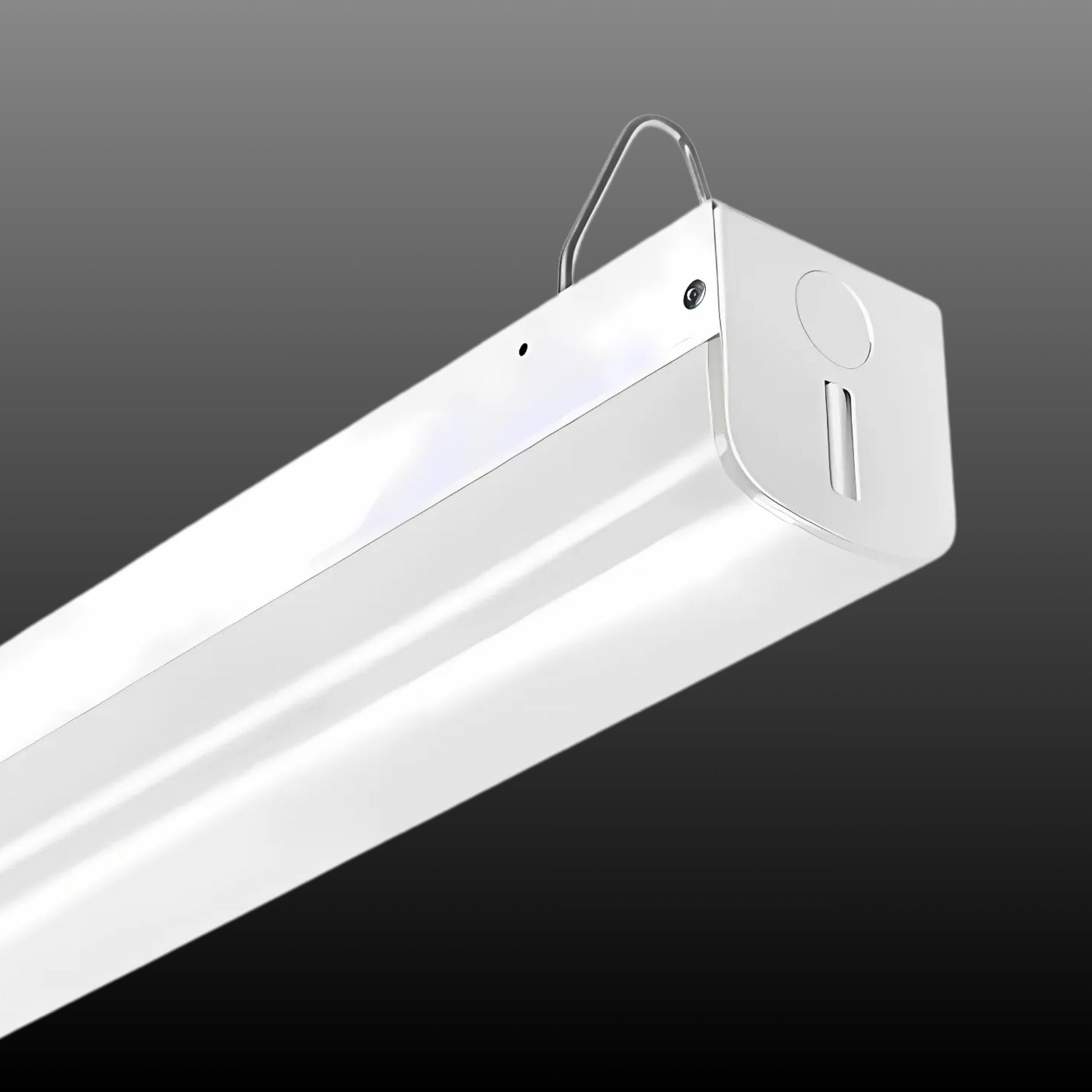

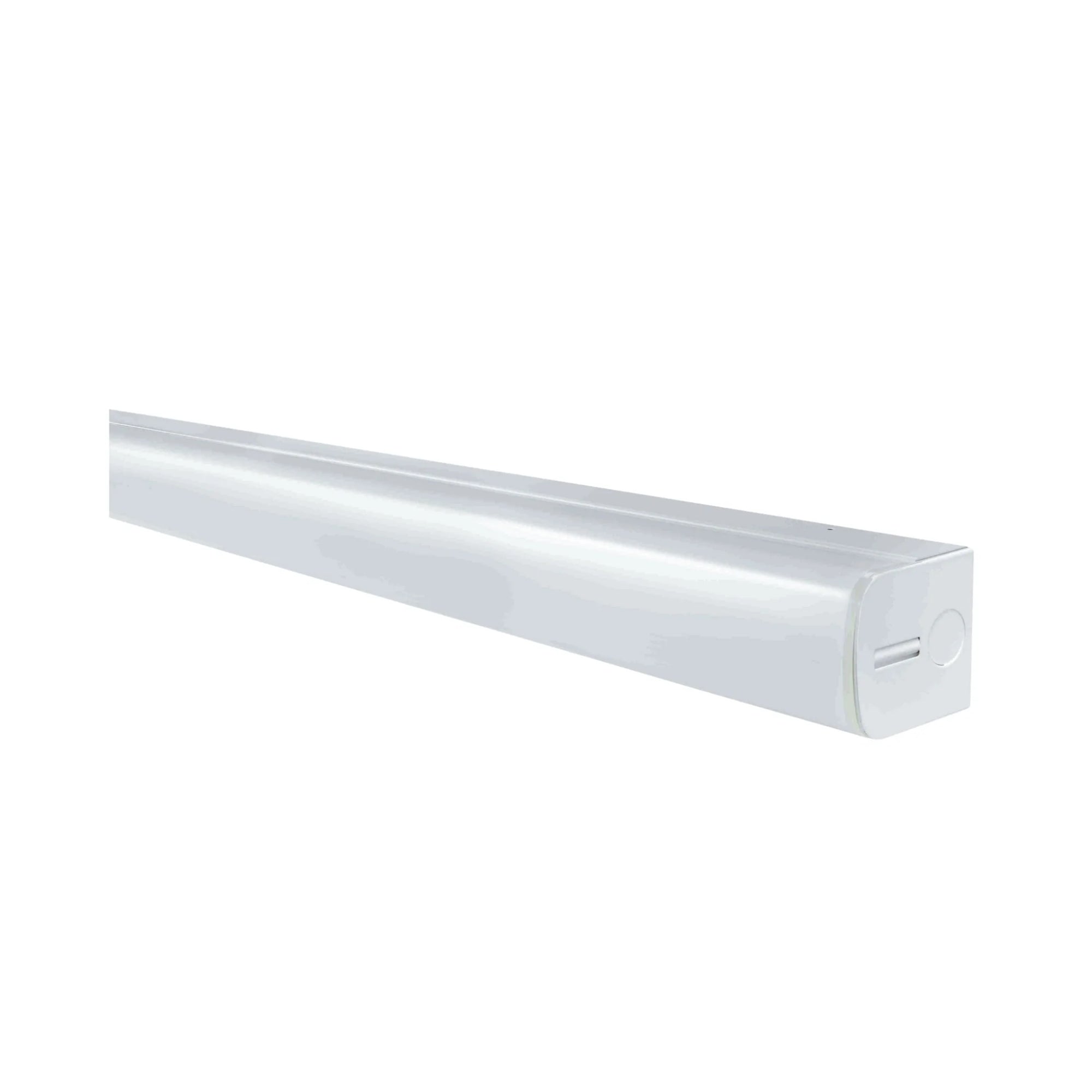

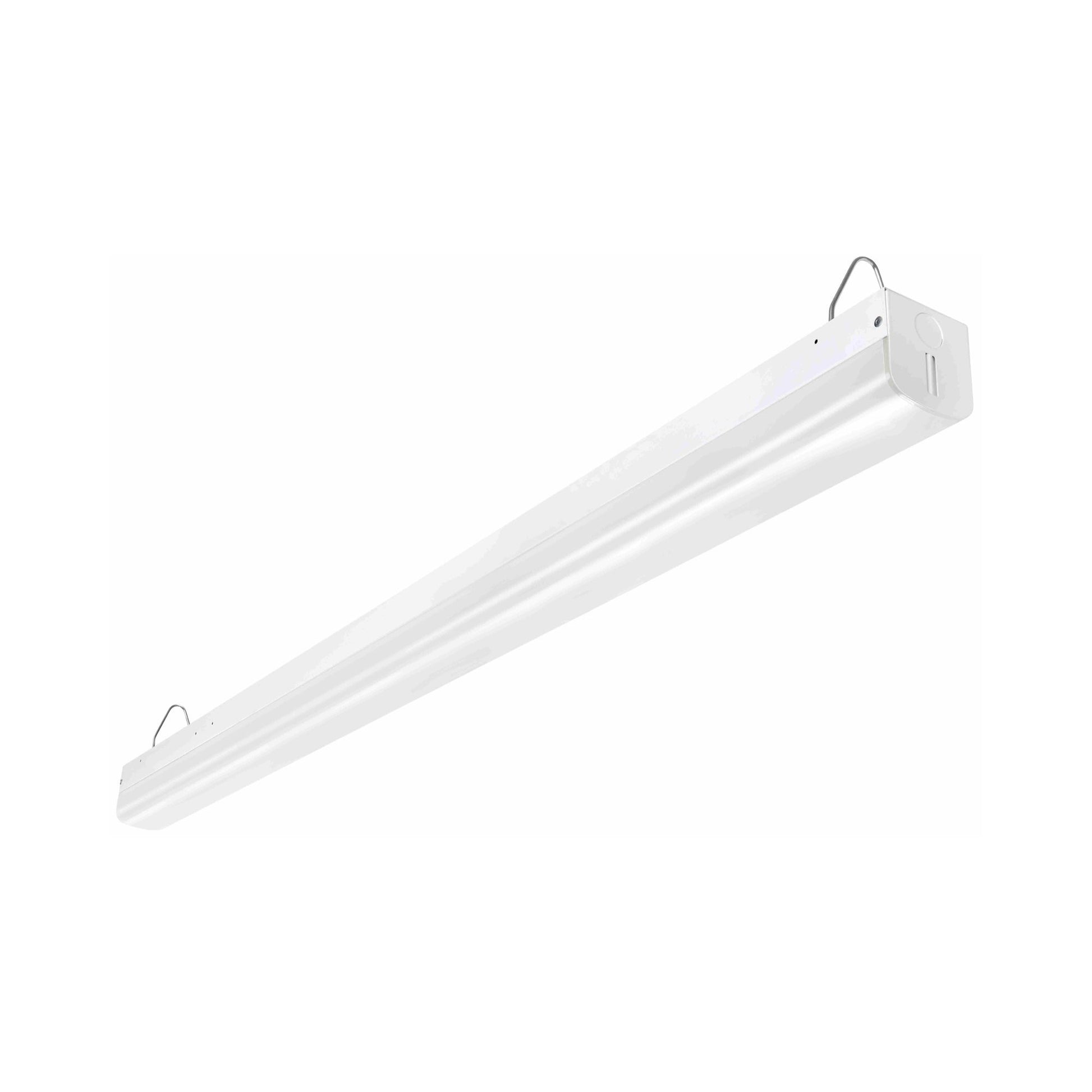

GLT LS4-60L-CCT-D10 4FT LED Linear Strip — 40/34/28/22W Selectable — 2700/3000/3500/4000/5000K — 120-277V — White
The GLT LS4-60L-CCT-D10 is a commercial 4FT LED Linear Strip engineered to deliver up to 5890 lumens with field-adjustable 40/34/28/22W power settings and switchable 2700/3000/3500/4000/5000K color temperatures. Operating on 120-277V electrical systems with 0-10V continuous dimming, this luminaire provides an energy-efficient commercial lighting solution. Built with a UL Listed damp location rating, it is qualified for commercial utility rebates under DLC Premium standards and features continuous-run tandem mounting capability.
Key Features
- Selectable Wattage: 40/34/28/22W — field-adjustable
- Maximum Lumen Output: 5890 lm at 40W 4000K setting
- Peak Efficacy: 157 lm/W for high-efficiency commercial operation
- CRI: >80 color rendering across all settings
- Selectable CCT: 2700/3000/3500/4000/5000K — field-adjustable
- Lens & Optics: PC lens designed for uniform, comfortable light distribution
- Dimming: 0–10V continuous dimming standard down to 10%
- Voltage: Universal 120-277V AC, 50/60Hz constant current driver
- Location Rating: UL Listed for damp locations
- Operating Temperature: -4°F (-20°C) to 104°F (40°C) ambient range
- Certifications: DLC Premium, cULus Listed
- Rated Life: 100,000 hours (L70) per IES TM-21 standards
- Warranty: 5-year limited warranty — GLT
- Form Factor & Design: Continuous-run tandem mounting capable
- Sensor Compatibility: Optional sensor receptacle accepts plug-and-play microwave controls
Performance & Light Output
| Wattage | Total Lumens | Efficacy |
|---|---|---|
| 40W | 5890 lm | 147 lm/W |
| 34W | 5138 lm | 151 lm/W |
| 28W | 4322 lm | 154 lm/W |
| 22W | 3451 lm | 157 lm/W |
CRI >80 across all configurations. Rated life 100,000 hours (L70) per IES TM-21 testing.
Smart & Control Features
The LS4-60L-CCT-D10 features an integrated control receptacle supporting modular sensing and building automation:
- 0–10V Continuous Dimming (Standard): Dims smoothly down to 10% on standard 0–10V low-voltage control circuits. Compatible with commercial dimmers and centralized building automation systems (BAS).
Compatible plug-and-play sensors include DIVA-MWS12VDC (Microwave Sensor Kit) — sold separately.
Electrical

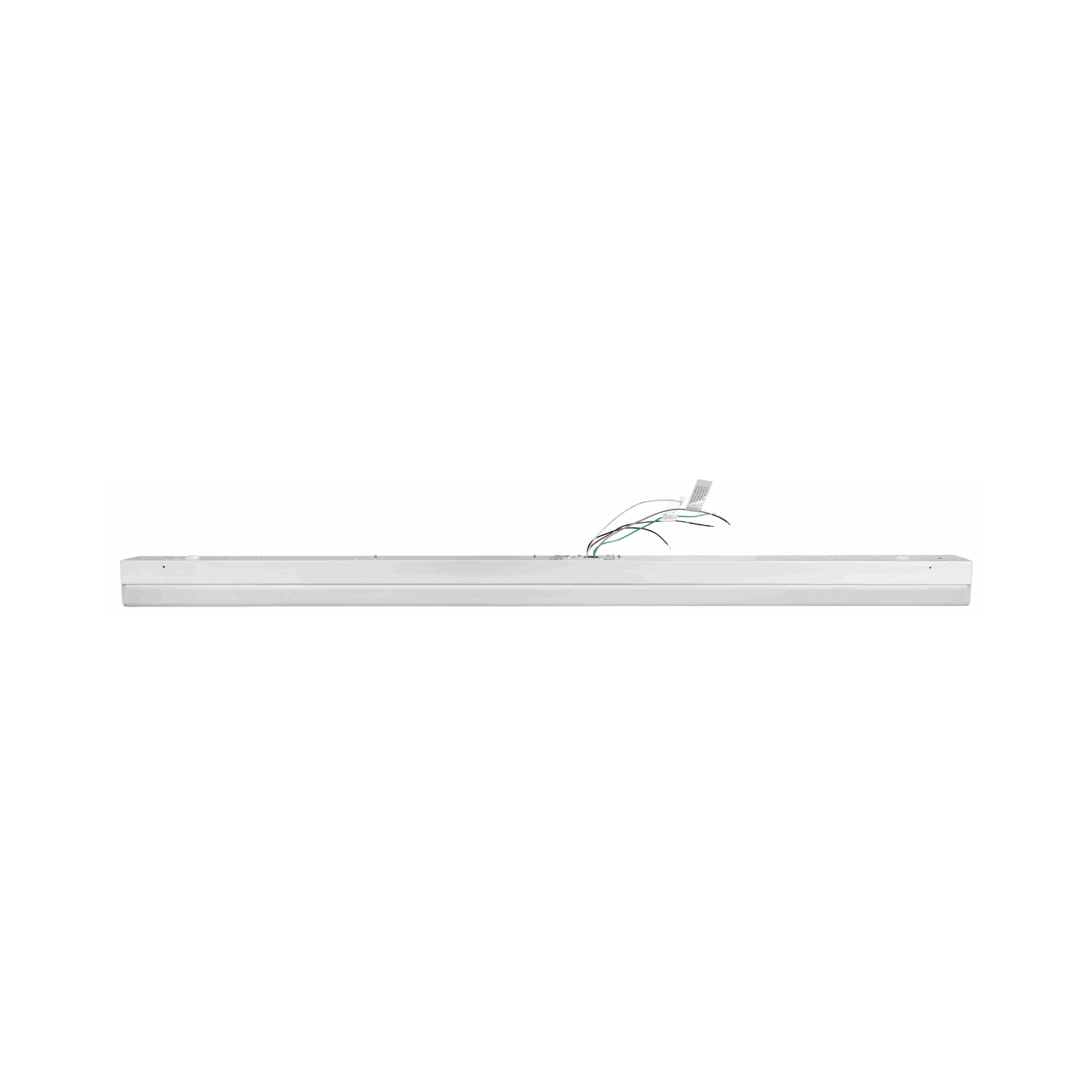

Powered by a constant current driver operating on 120-277V AC at 50/60Hz. Delivers high electrical efficiency with a Power Factor >0.9 and Total Harmonic Distortion (THD) <20%. Includes pre-wired 0–10V dimming leads.
Emergency Battery Backup: Compatible with emergency battery backup to provide standby illumination during a primary power failure. Operating temperature shifts to 50°F (10°C) to 104°F (40°C) when equipped.
Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:
| Wattage | 120V Current (A) | 208V Current (A) | 240V Current (A) | 277V Current (A) |
|---|---|---|---|---|
| 40W | 0.33A | 0.19A | 0.17A | 0.14A |
Construction
Housing & Thermal: Cold-rolled steel housing and heatsink engineered for thermal dissipation.
Lens & Optics: PC lens designed to shape light uniformity.
Finish: White formulated for high resistance against surface wear.
Environmental Sealing: UL Listed for damp locations. Operating ambient temperature range: -4°F (-20°C) to 104°F (40°C).

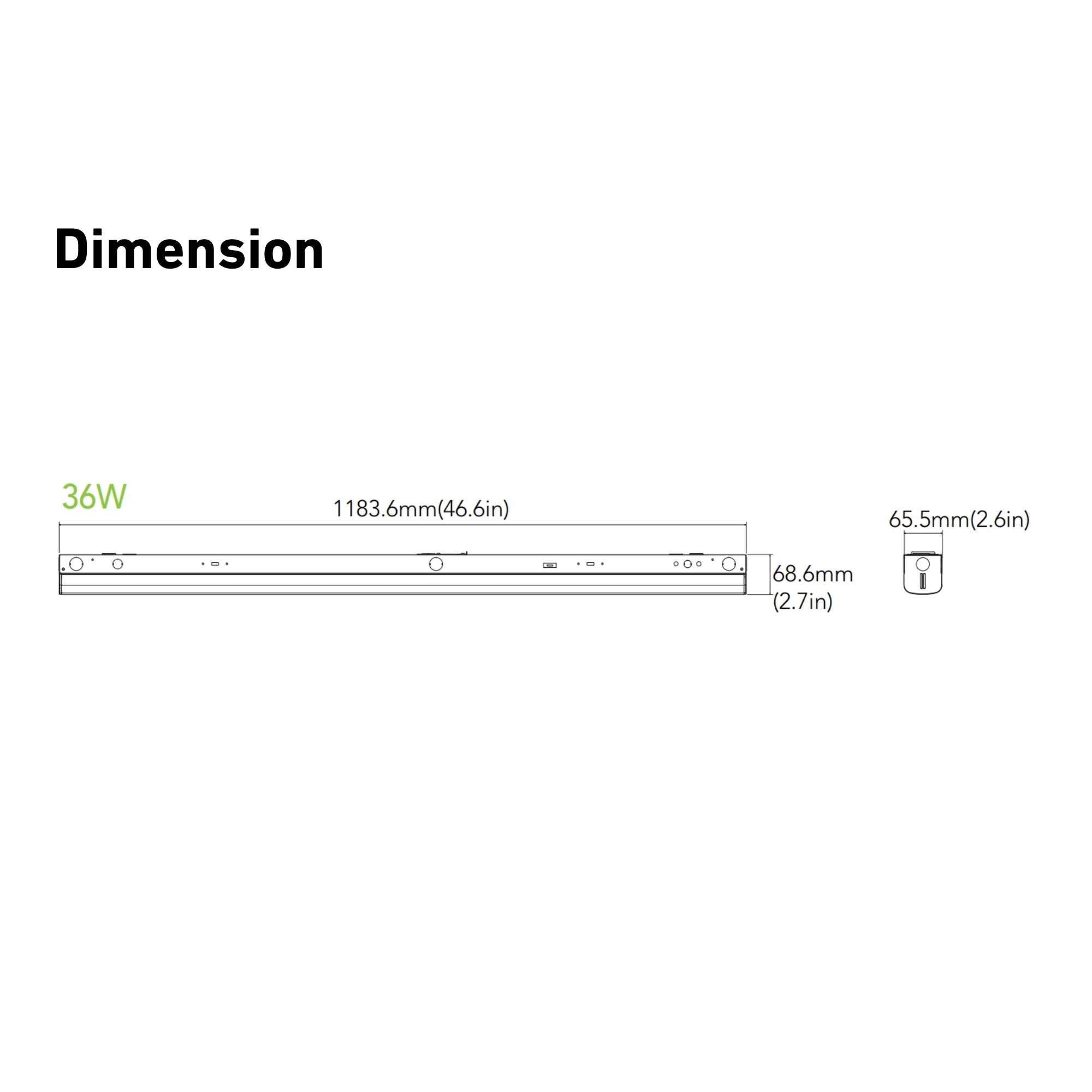

Dimensions & Weight: 46.5" L × 2.6" W × 2.3" H.
Installation & Mounting
Standard Mounting: Designed for surface mounting.
Continuous Run Mounting: Supports end-to-end tandem mounting.
Accessories (Sold Separately):
- Chain Installation Kit: DIVA-CHAINMT
- Aircraft Cable Kit: DIVA-CABLEMOUNT
- Joiner Bracket Kit: DIVA-JB-KIT
- Sensors & Controls: DIVA-MWS12VDC
Certifications & Rebates
- DLC Premium: Qualifies for maximum utility rebate incentives across regional commercial energy programs.
- cULus/UL Listed: Certified for damp locations per UL standards

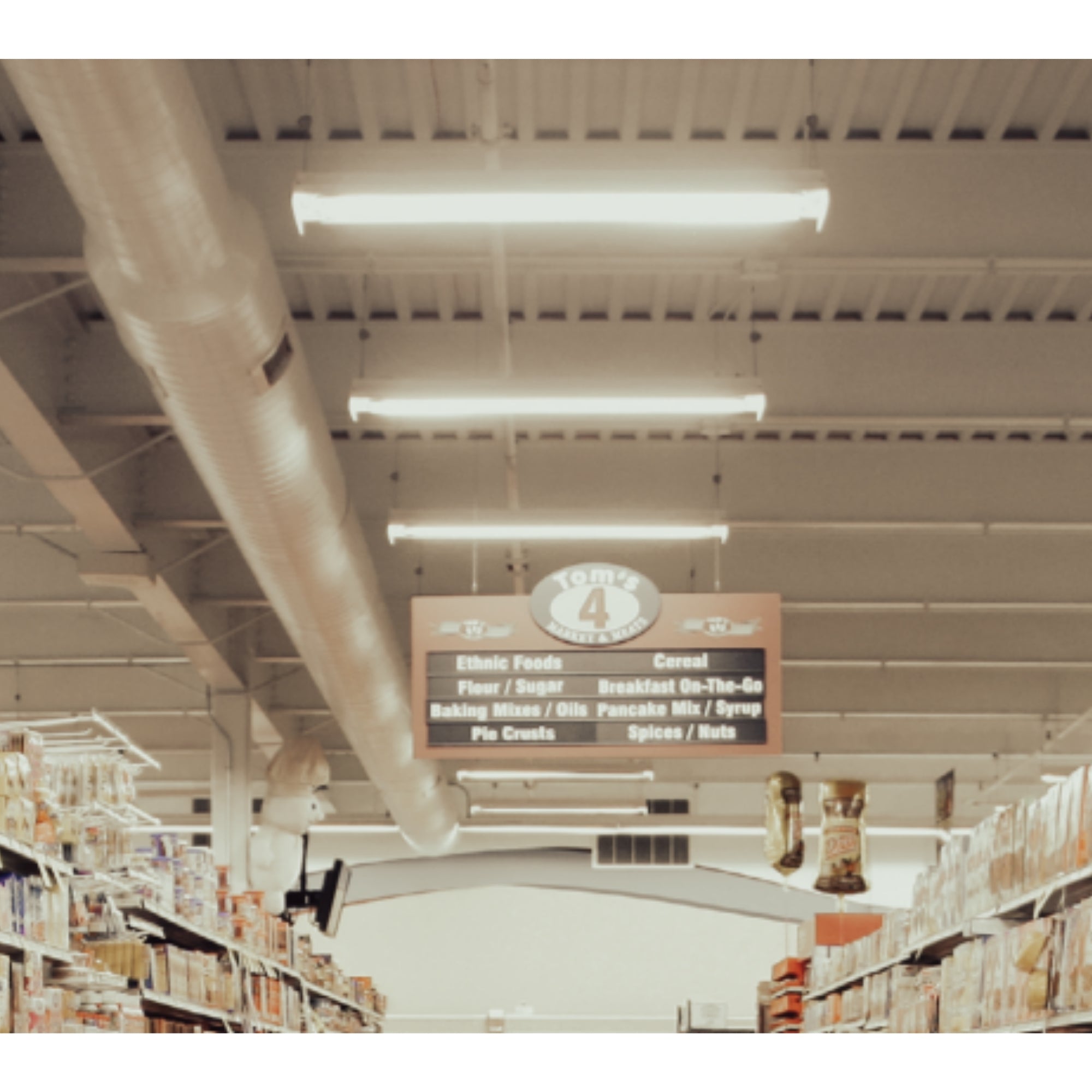

Typical Applications
- Commercial Corridors — Continuous row mounting capability via joiner brackets provides uninterrupted lighting paths
- Warehouses — High peak efficacy of up to 157 lm/W delivers bright, uniform illumination for large-scale facilities
- Retail Spaces — Sleek linear form factor and PC lens integrate seamlessly into modern open ceiling environments
- Covered Parking Areas — UL Listed damp location rating ensures safe operation in unconditioned, weather-protected spaces

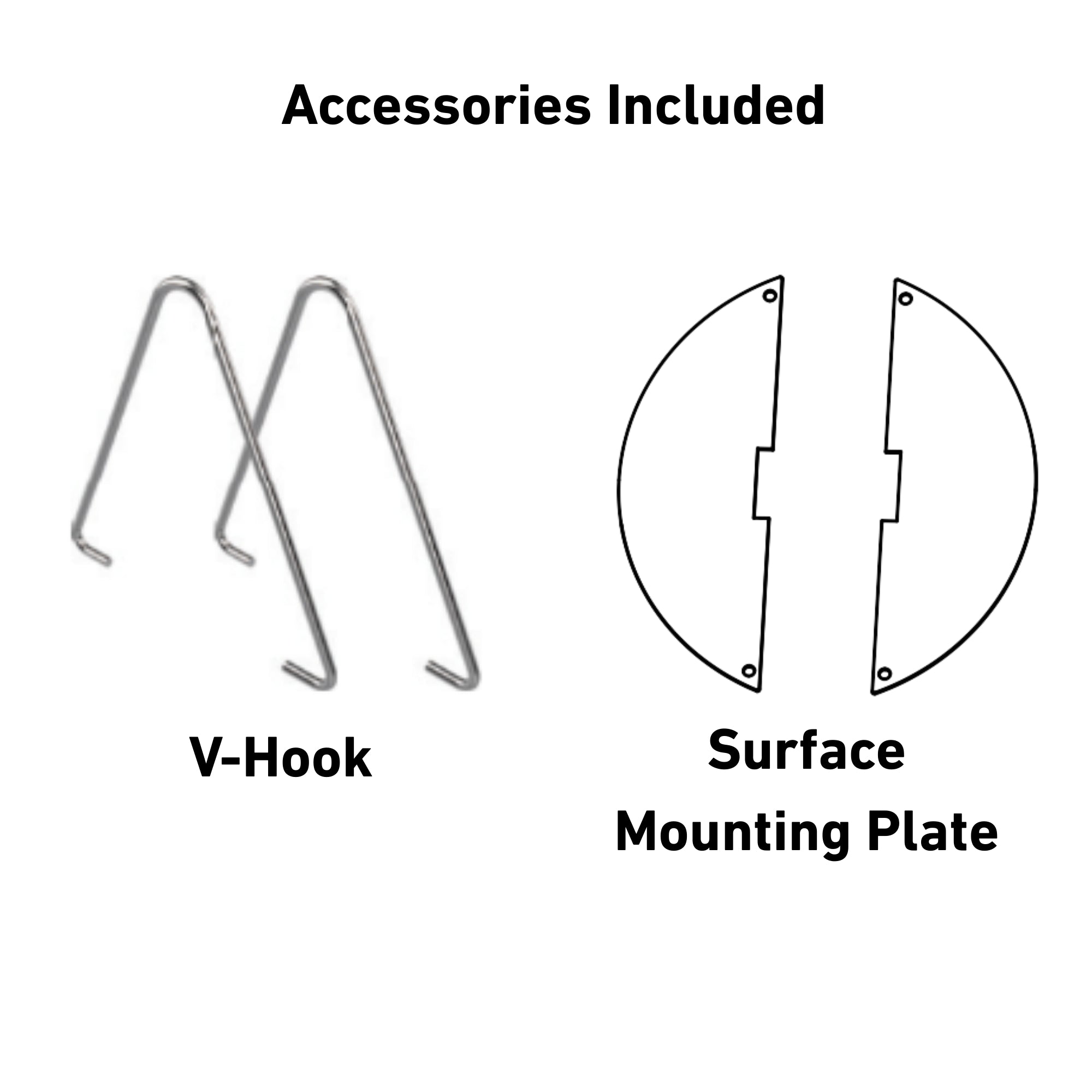

What's Included
- GLT LS4-60L-CCT-D10 LED Strip Fixture — White
- Surface Mount Kit
- Installation and operation manual
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
How can this 4FT LED strip fixture be mounted?
How can this 4FT LED strip fixture be mounted?

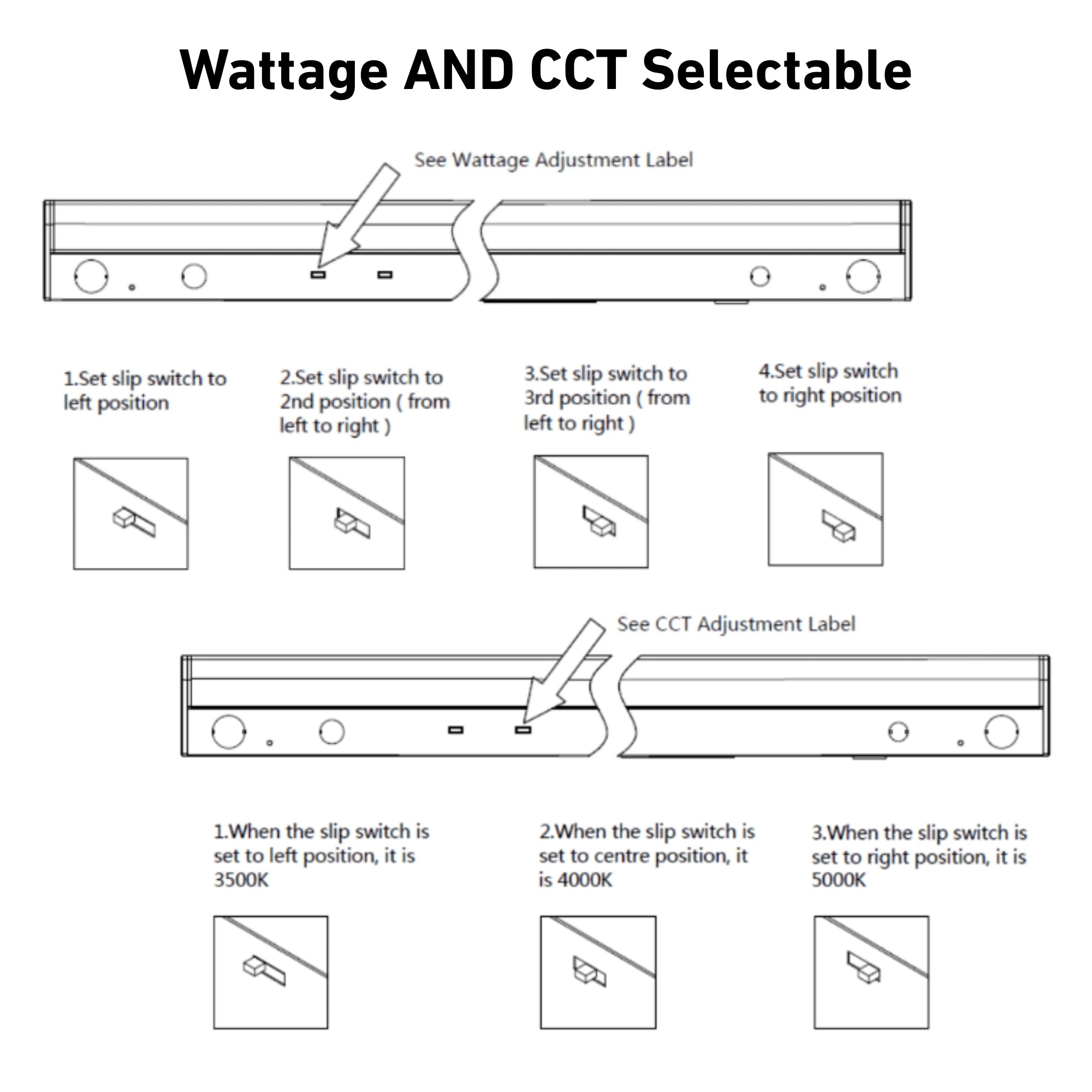

How do you select the wattage and color temperature?
