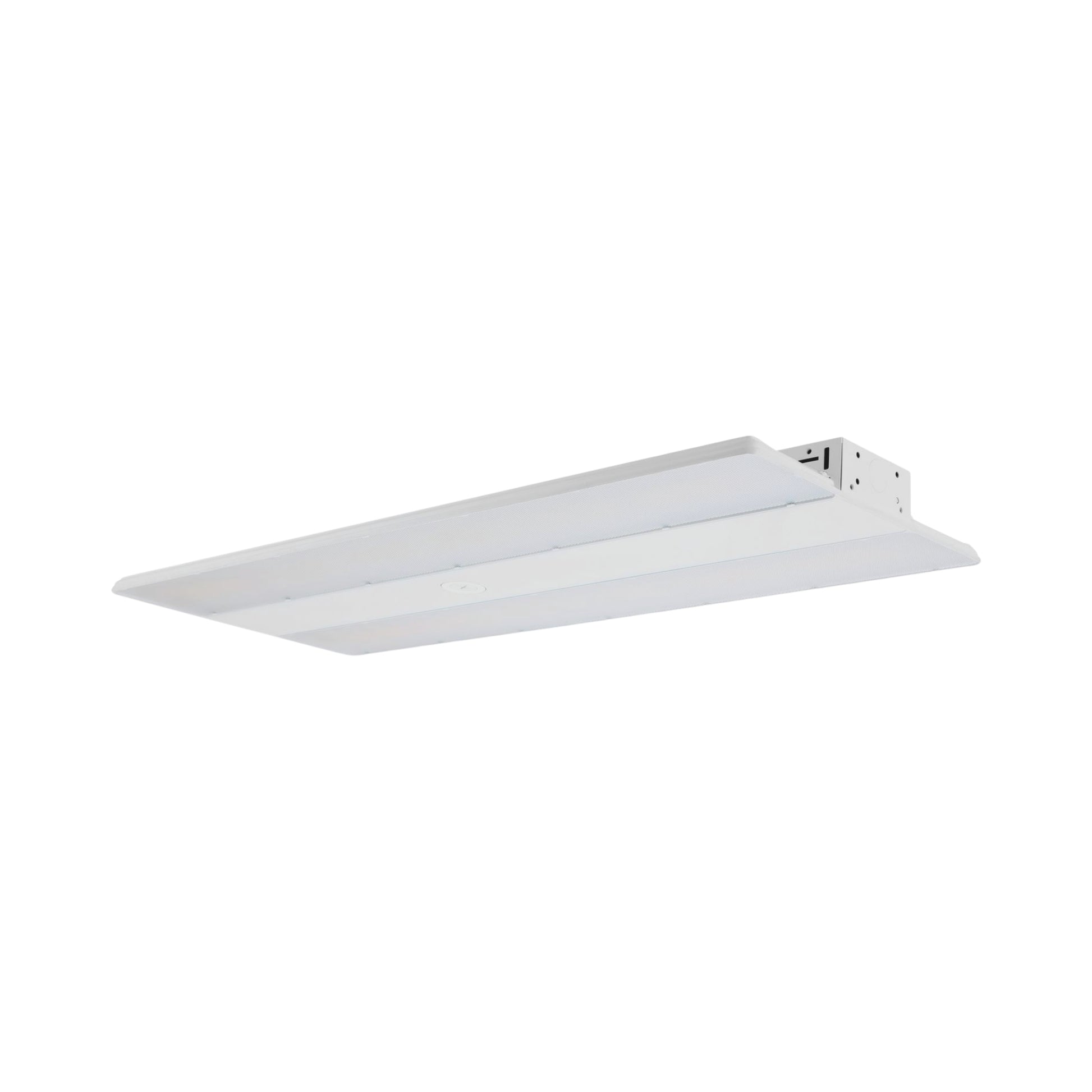

GLT Field-Adjustable LED Linear High Bay — 42,000 lm — 120W / 180W / 240W / 300W Selectable — White
Available in stock (296)
About this item
About this item
- Four-Step Selectable Wattage — One SKU, Multiple Applications: Switch between 120W, 180W, 240W, and 300W in the field — delivering 20,000 to 42,000 lm — replacing 600W–1000W metal halide fixtures and eliminating the need to stock multiple SKUs for different ceiling heights.
- Dual Selectable CCT for On-Site Flexibility: Choose 4000K neutral white or 5000K daylight before installation — both options deliver CRI 80+ and identical lumen output for consistent commercial-grade illumination.
- UL Damp Location Listed — Built for Industrial Conditions: Rated for damp locations and cold-start performance to -40°C, making this fixture suitable for refrigerated warehouses, manufacturing floors, and condensation-prone environments.
- DLC Premium Listed — Utility Rebate Eligible: Qualifies for utility rebate programs through designlights.org, reducing net project cost for commercial and industrial retrofits.
- Plug-and-Play Sensor Ready with 0–10V Dimming: Compatible with MSANT12VPH01 PIR and MSANT12VMH01 microwave sensors (including Bluetooth variants) for occupancy and daylight harvesting control — supporting ASHRAE 90.1 and Title 24 energy code compliance.
We process payments securely and do not store credit card information.
Description
Description

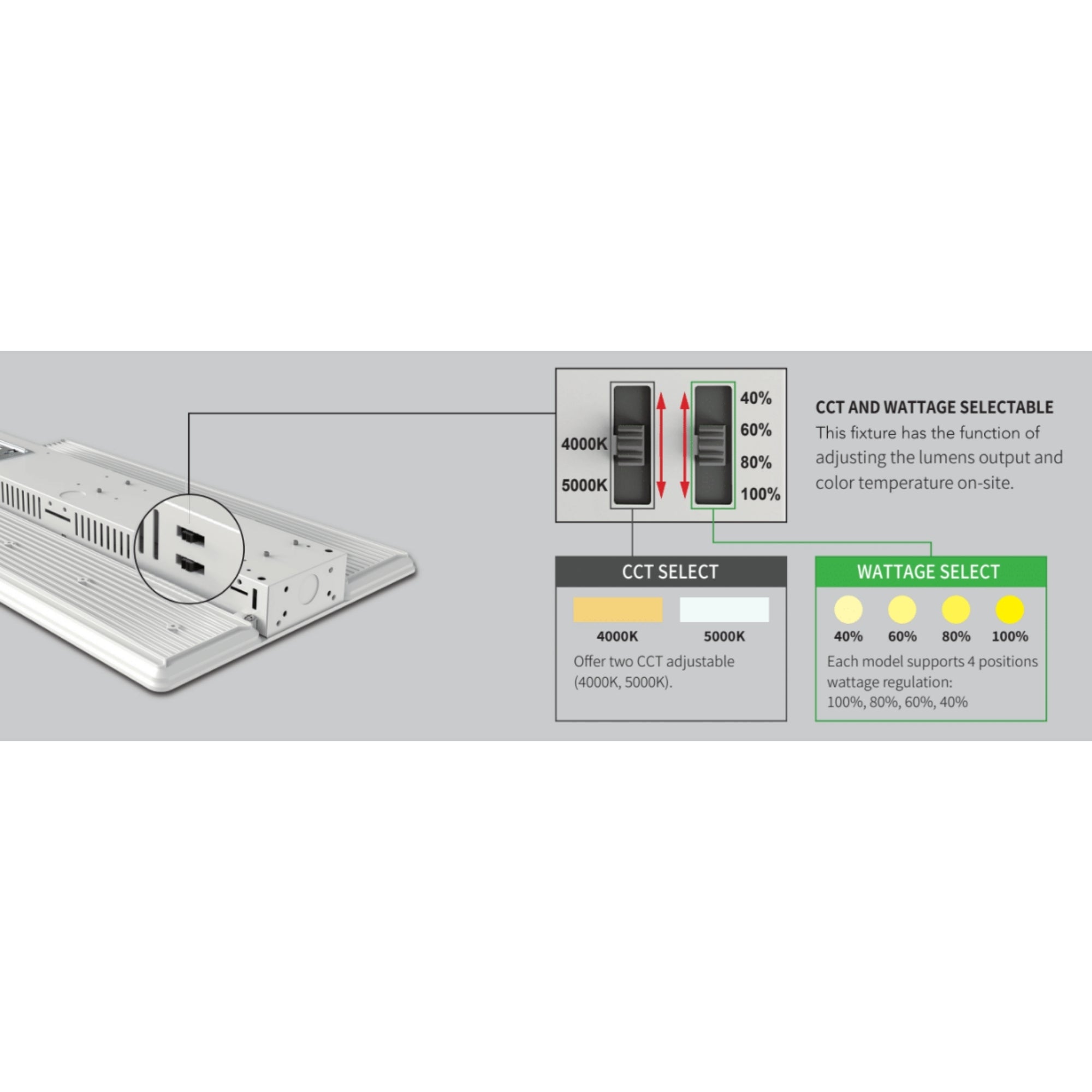

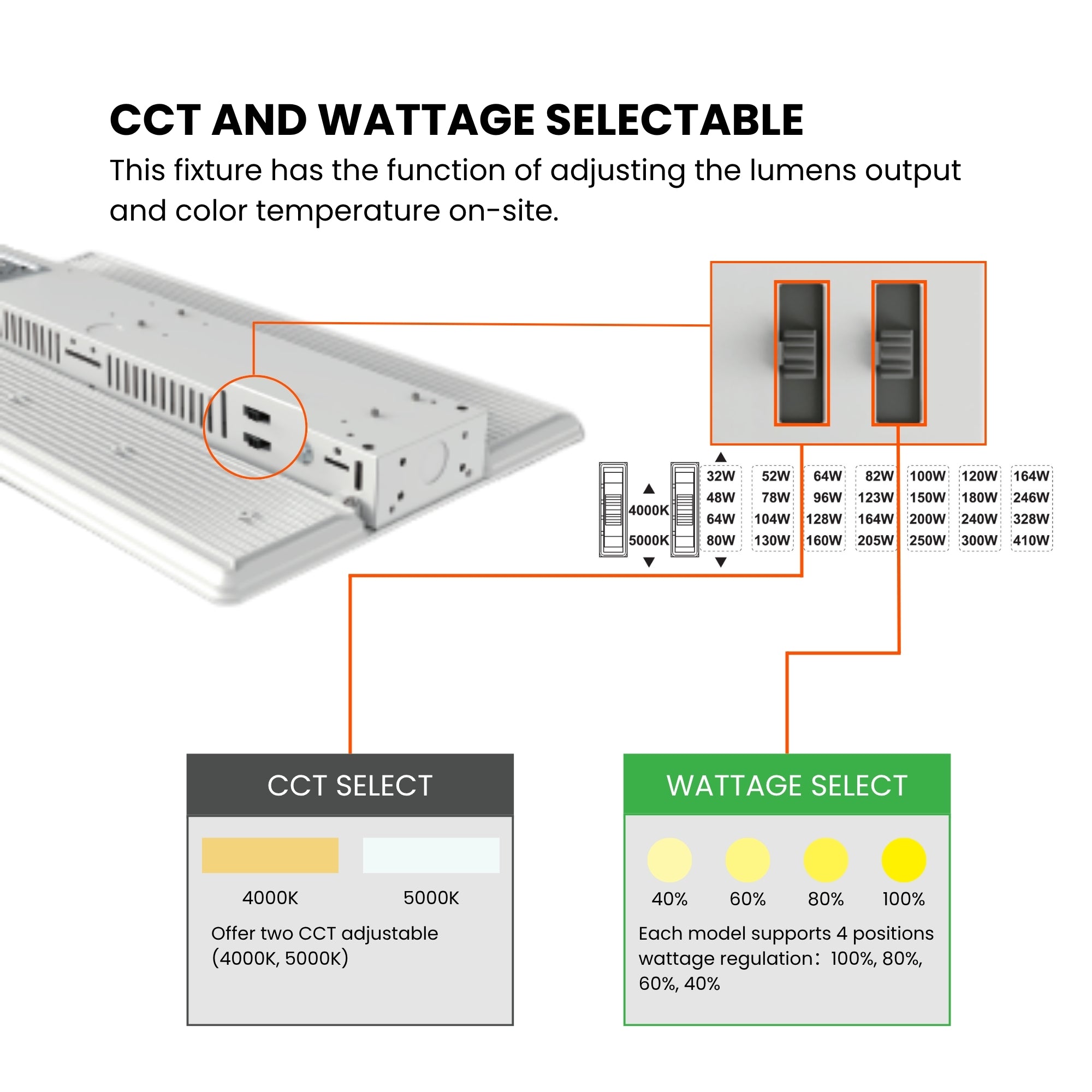

The GLT LHB-40L is a high-output contractor-grade LED linear high bay built for large commercial and industrial spaces requiring serious lumen delivery with field flexibility. Four selectable wattage steps (120W / 180W / 240W / 300W — 40% / 60% / 80% / 100%) and dual selectable CCT (4000K / 5000K) are adjustable on-site via built-in switches before installation. Delivers up to 42,000 lumens at a peak efficacy of 167 lm/W on a universal 120–277V platform. CRI 80+, UL listed for damp locations, and DLC Premium listed for utility rebate eligibility. Cold-start rated to -40°C. 0–10V dimmable driver standard. Backed by a 5-year manufacturer warranty.
Key Features
- Field-Selectable Wattage: 120W / 180W / 240W / 300W (40% / 60% / 80% / 100%) — right-size output for ceiling height without stocking multiple SKUs
- Field-Selectable CCT: 4000K or 5000K — set color temperature on-site before installation
- Maximum Lumen Output: 42,000 lm at 300W
- Peak Efficacy: 167 lm/W (at 120W setting)
- CRI: 80+ across all wattage and CCT settings
- Dimming: 0–10V dimmable driver standard
- Universal Voltage: 120–277V AC, 50/60Hz
- Location Rating: UL listed for damp locations
- Cold-Start Rated: -40°C to +50°C (-40°F to +122°F)
- Rated Life: 50,000 hours (IES LM-80 / TM-21, L70)
- Certifications: DLC Premium, UL Listed, TAA Compliant, RoHS
- Wattage Equivalency: Replaces 600W–1000W metal halide linear high bay fixtures
- Warranty: 5-year manufacturer warranty
Performance & Light Output
Lumen output and efficacy are identical across 4000K and 5000K CCT settings. At 300W (100%): 42,000 lm / 140 lm/W. At 240W (80%): 36,000 lm / 150 lm/W. At 180W (60%): 28,000 lm / 156 lm/W. At 120W (40%): 20,000 lm / 167 lm/W. CRI 80+ maintained across all settings. Rated life 50,000 hours per IES LM-80 results and TM-21 projections (L70).
Smart & Control Features

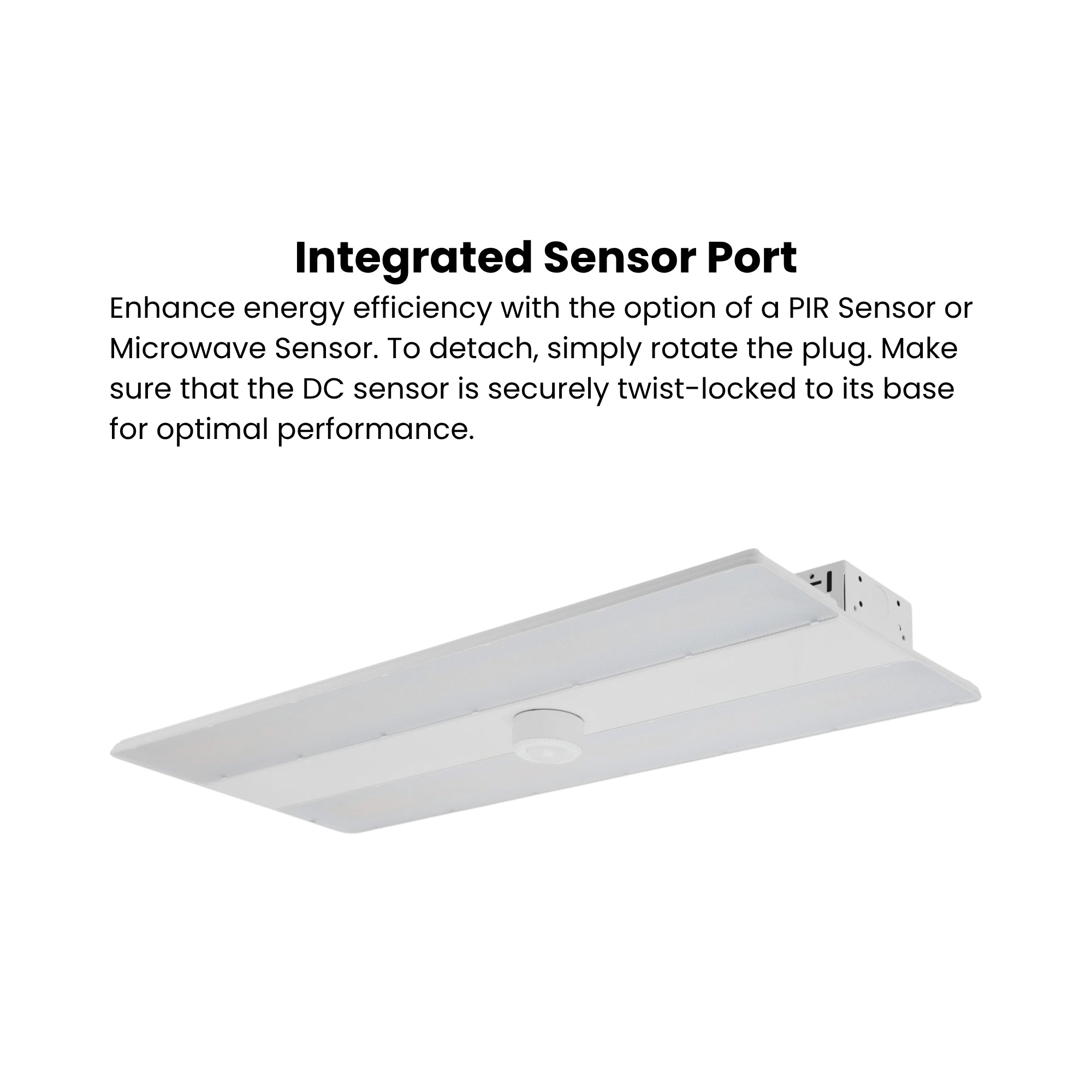

The LHB-40L includes a standard 0–10V dimmable driver and supports plug-and-play sensor accessories for occupancy and daylight harvesting control:
- Plug-and-Play PIR Sensor (12–24VDC): MSANT12VPH01 (standard) | MSANT12VPHB01 (Bluetooth) — sold separately
- Plug-and-Play Microwave Sensor (12–24VDC): MSANT12VMH01 (standard) | MSANT12VMHB01 (Bluetooth) — sold separately
Main stocking sensor SKU: MSANT12VPH01. Bluetooth variants enable wireless group control without a separate gateway for smaller installations.
Electrical
Universal 120–277V AC input, 50/60Hz. Standard 0–10V dimming driver. TAA compliant. Driver integrated within the aluminum housing for thermal protection and extended component life.
Construction

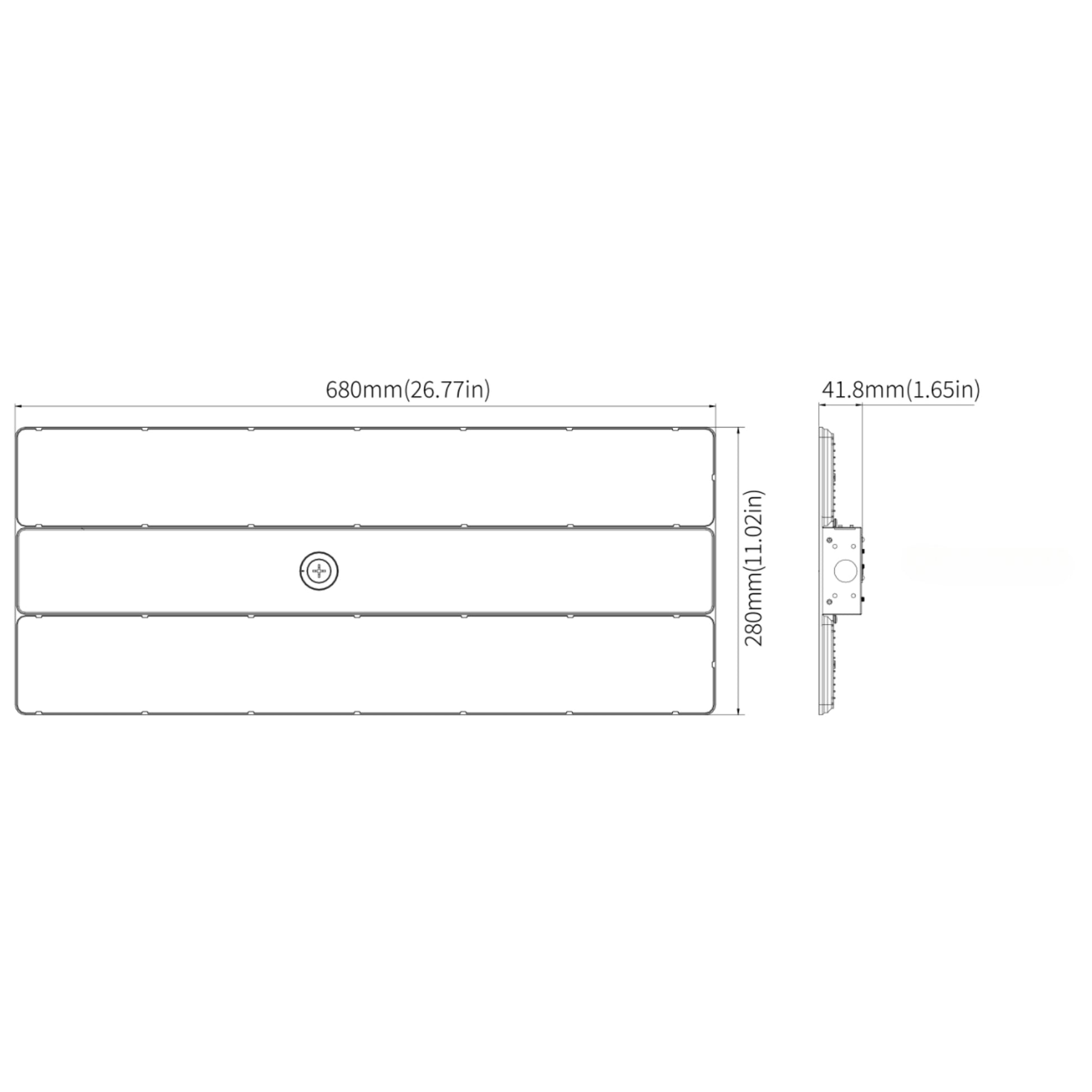

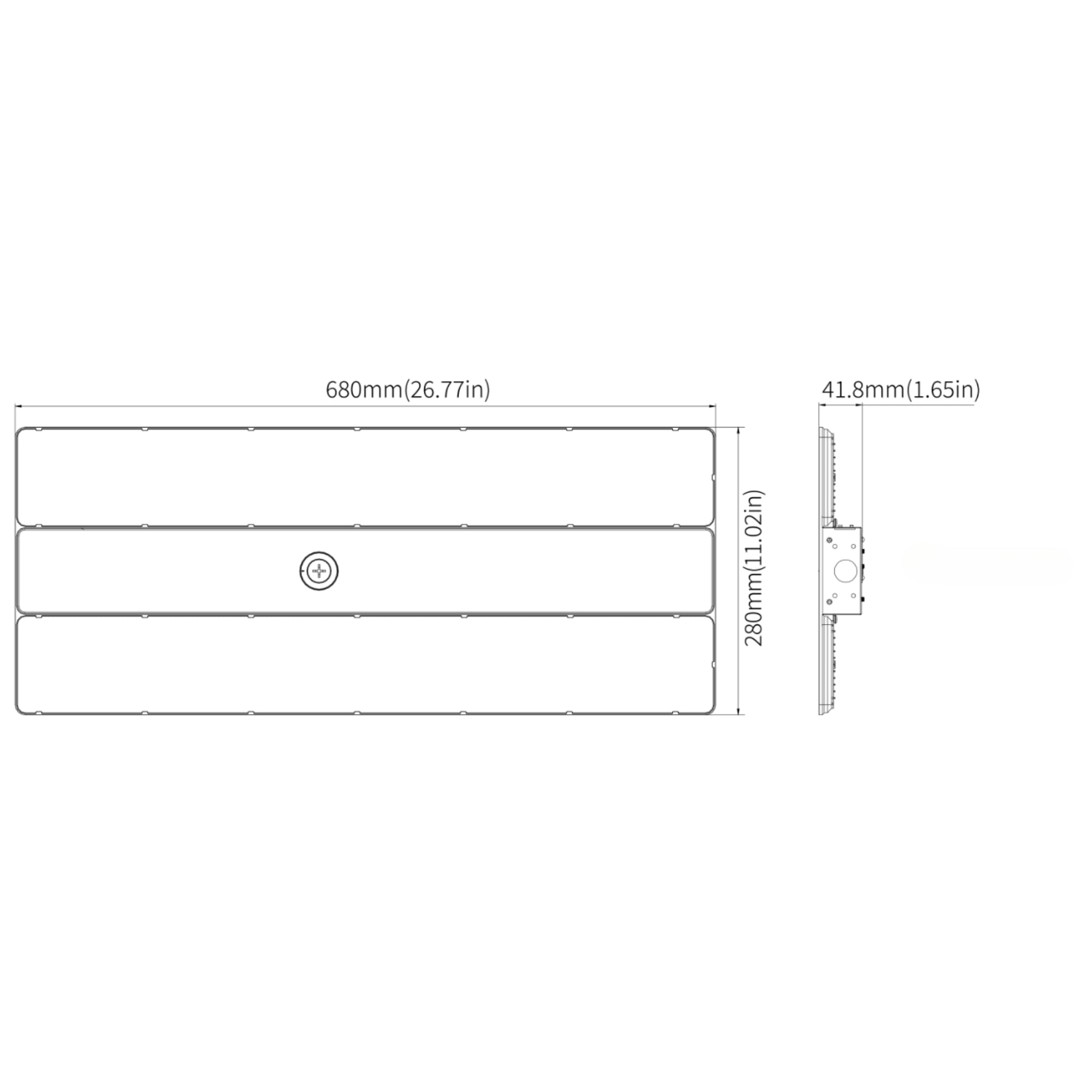

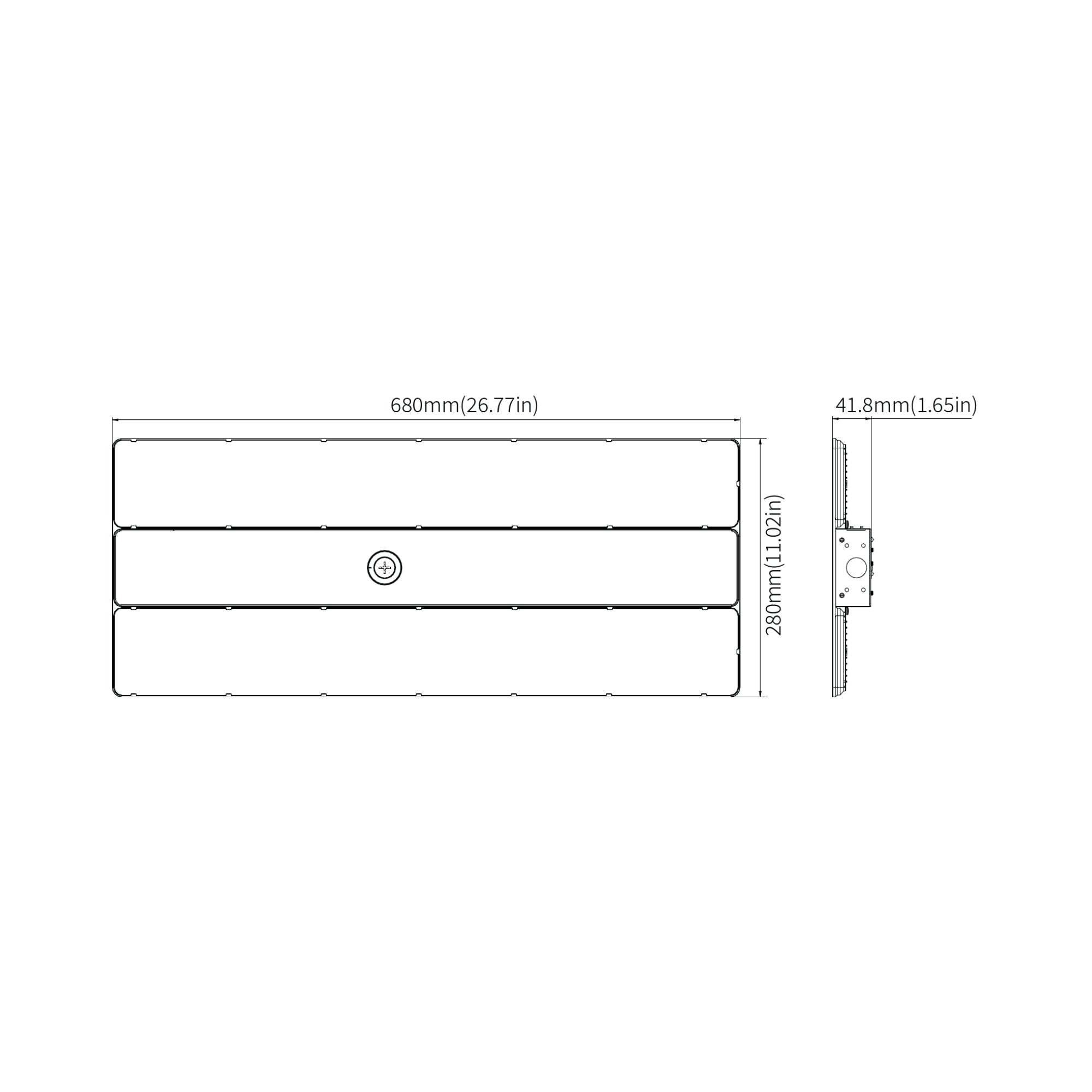

Die-cast and extruded aluminum housing for superior heat dissipation and structural rigidity. White powder-coat finish. Frosted polycarbonate lens for uniform light distribution. UL listed for damp locations. Dimensions: 26.77" × 11.02" × 1.65" (680 × 280 × 41.8mm). Weight: 5.67 lbs.
Installation & Mounting

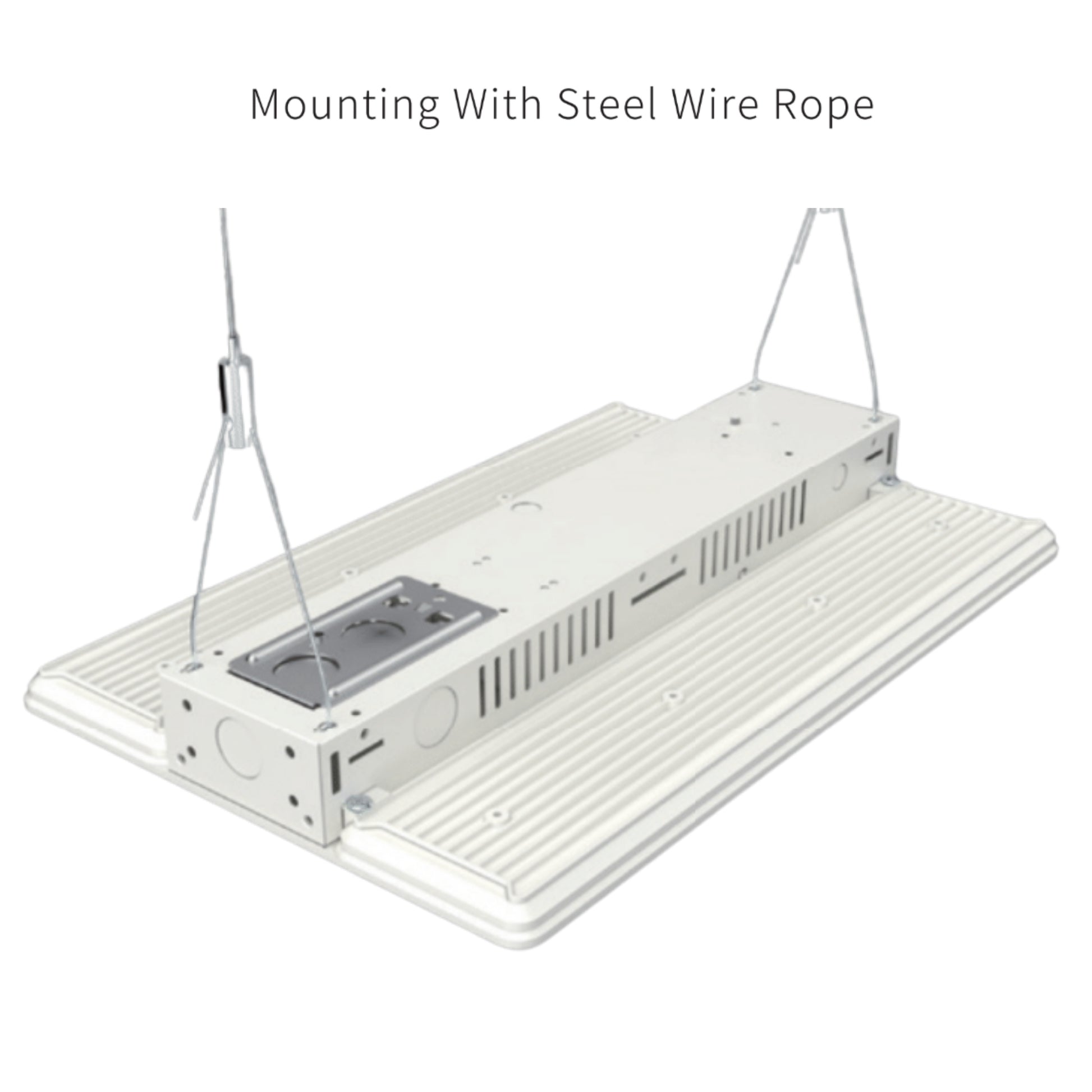

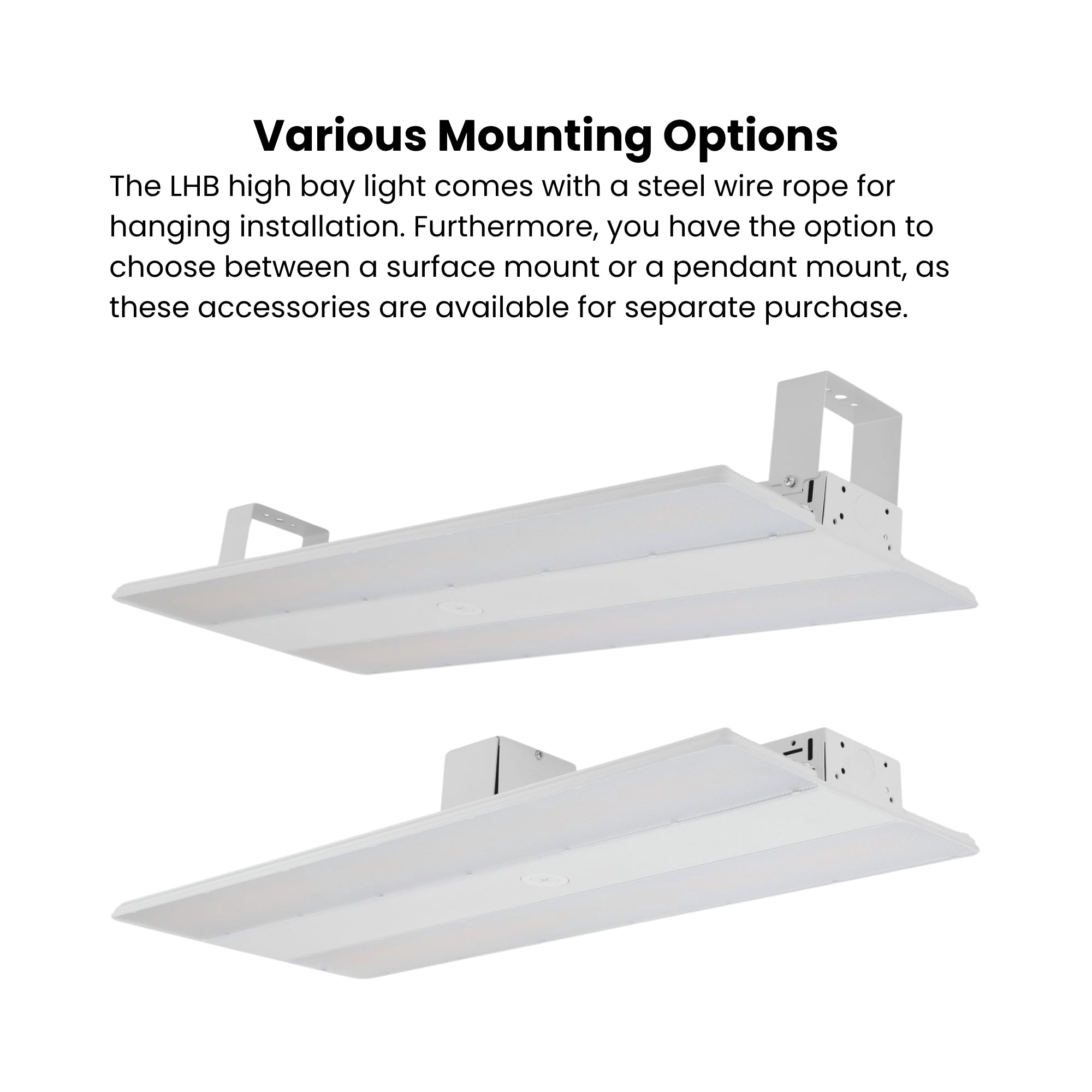

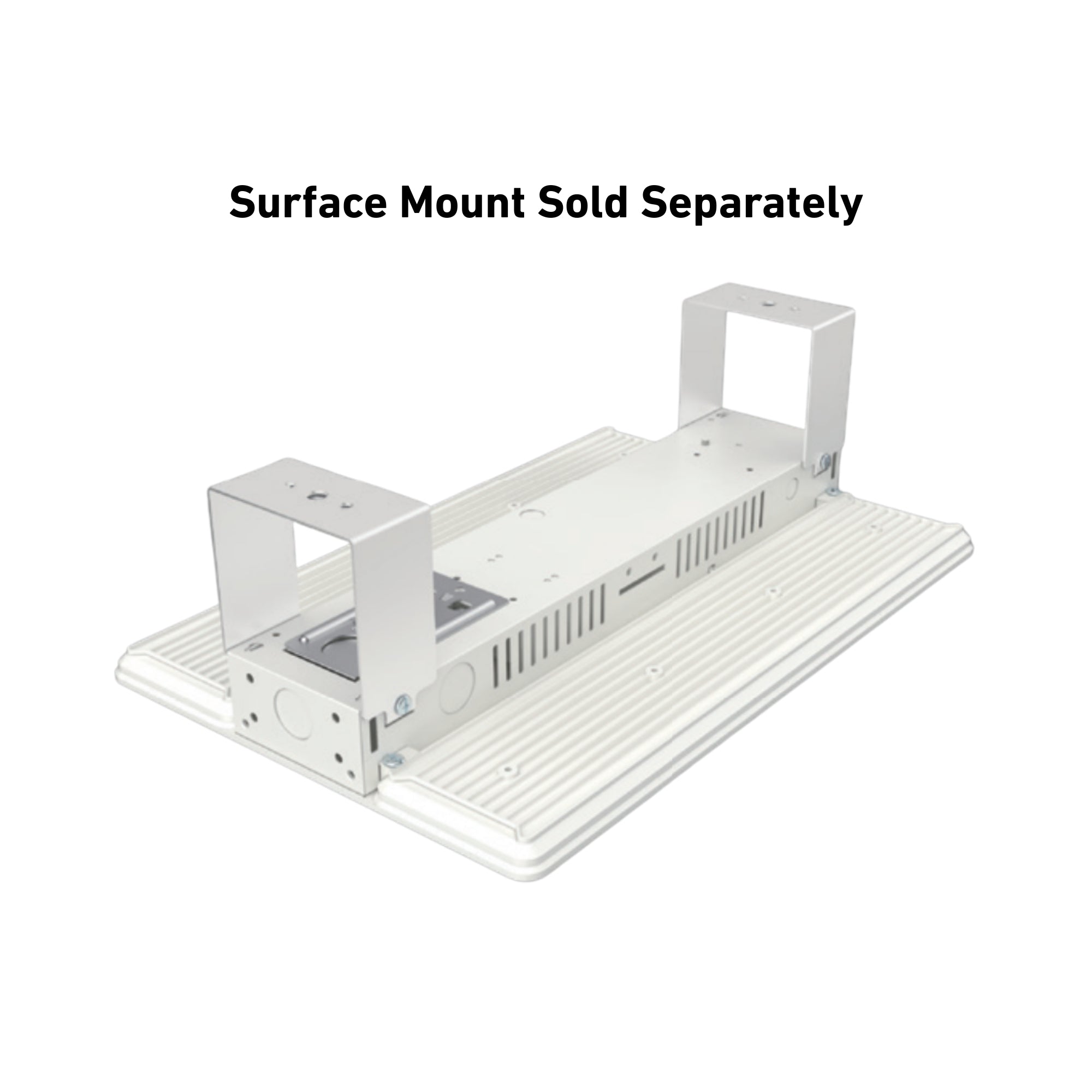

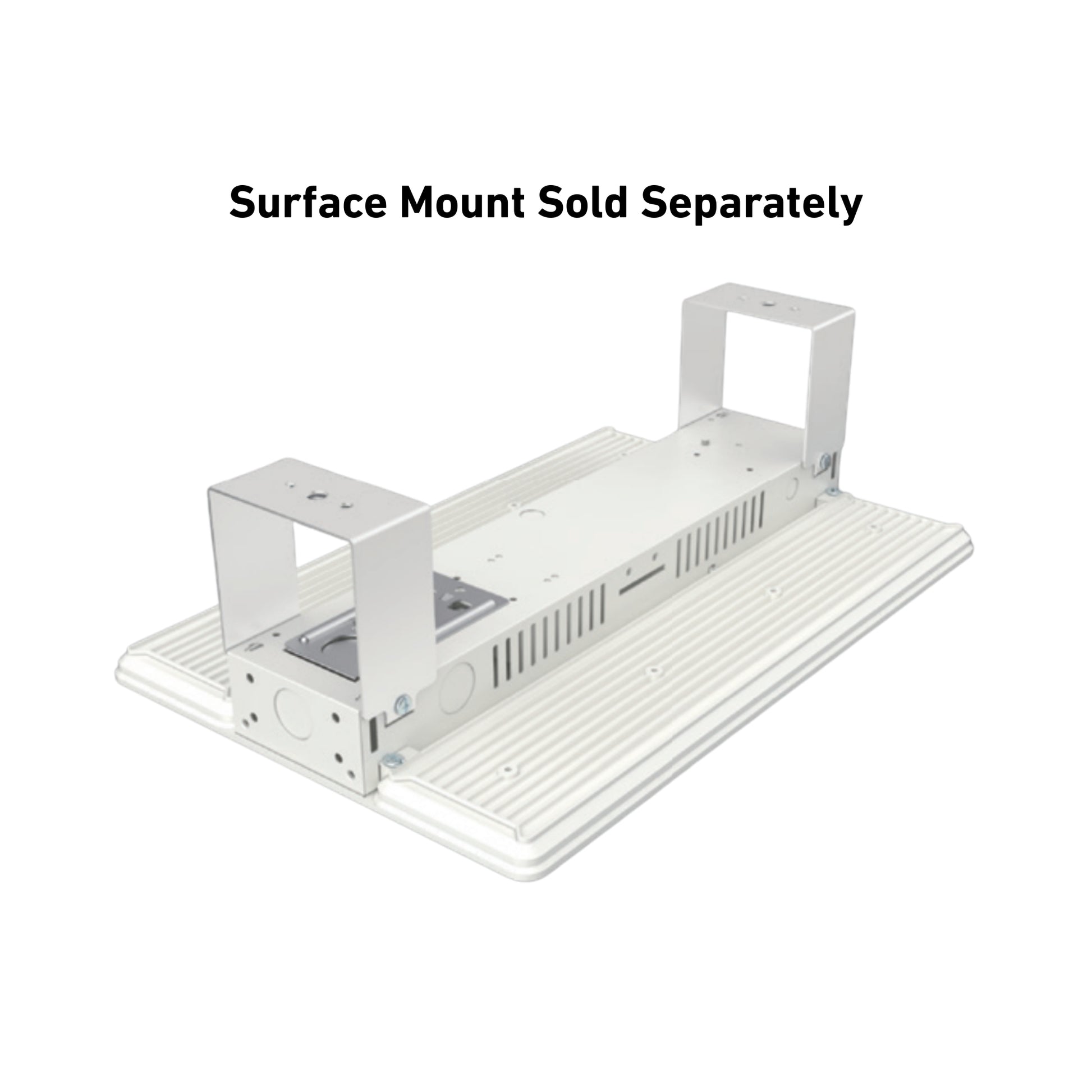

Steel wire rope suspension mount is included for chain/pendant installation. Surface mount and conduit pendant mount kits are available separately. Recommended ceiling height by wattage setting: 120W — 14–20 ft | 180W — 18–25 ft | 240W — 22–30 ft | 300W — 25–35 ft.
- Mounting Options: Steel wire rope (included), surface mount kit (sold separately), conduit pendant mount (sold separately)

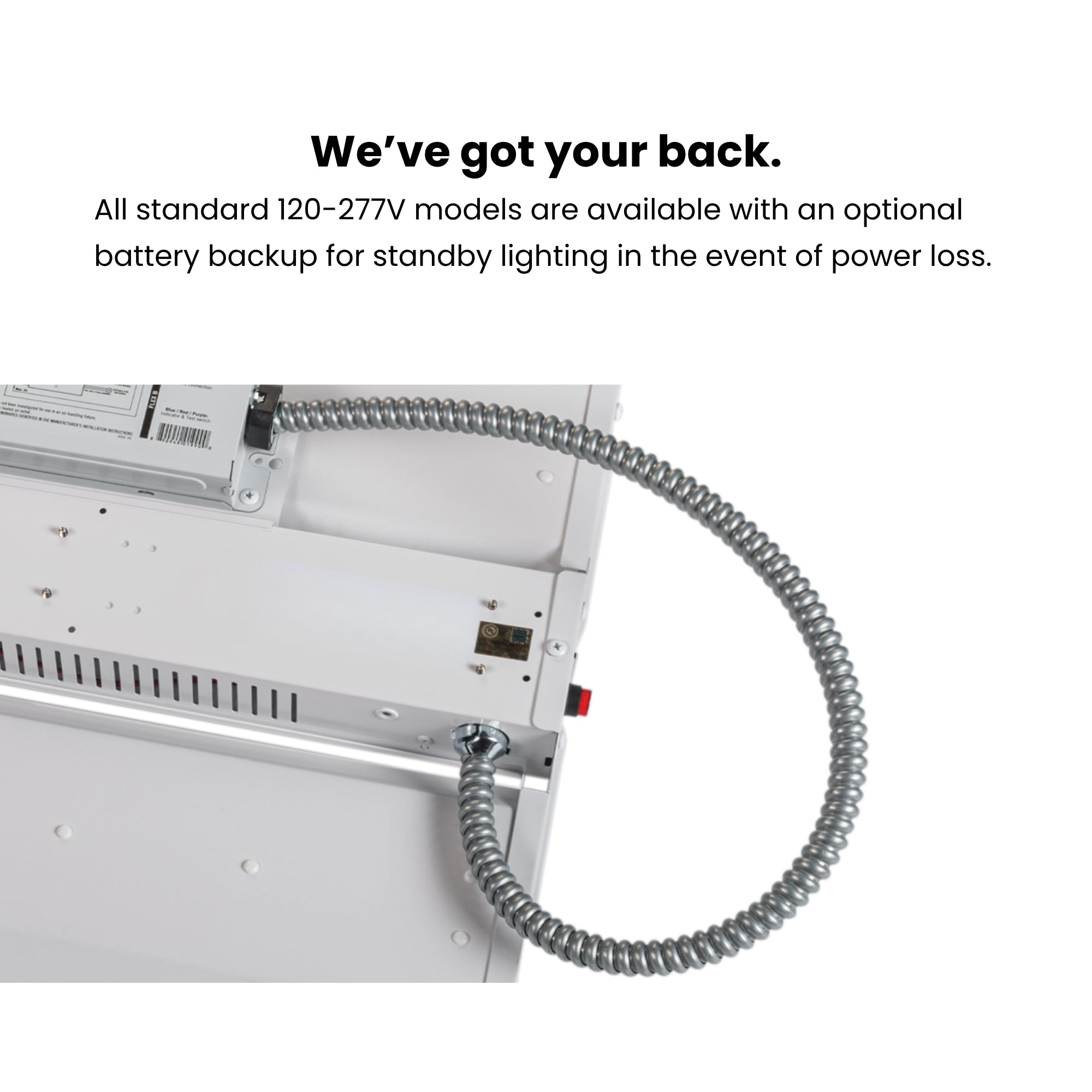

- Emergency Battery: 25W 3500lm 90-min — suits 250W/300W models (sold separately)
- Sensors: MSANT12VPH01 (PIR), MSANT12VMH01 (Microwave), Bluetooth variants available — sold separately
- Wire Guards: Available separately
Certifications & Rebates
UL listed for damp locations. DLC Premium listed — eligible for utility rebate programs in most U.S. states and Canadian provinces. Verify eligibility at designlights.org. TAA compliant for federally funded projects. RoHS compliant.
Typical Applications

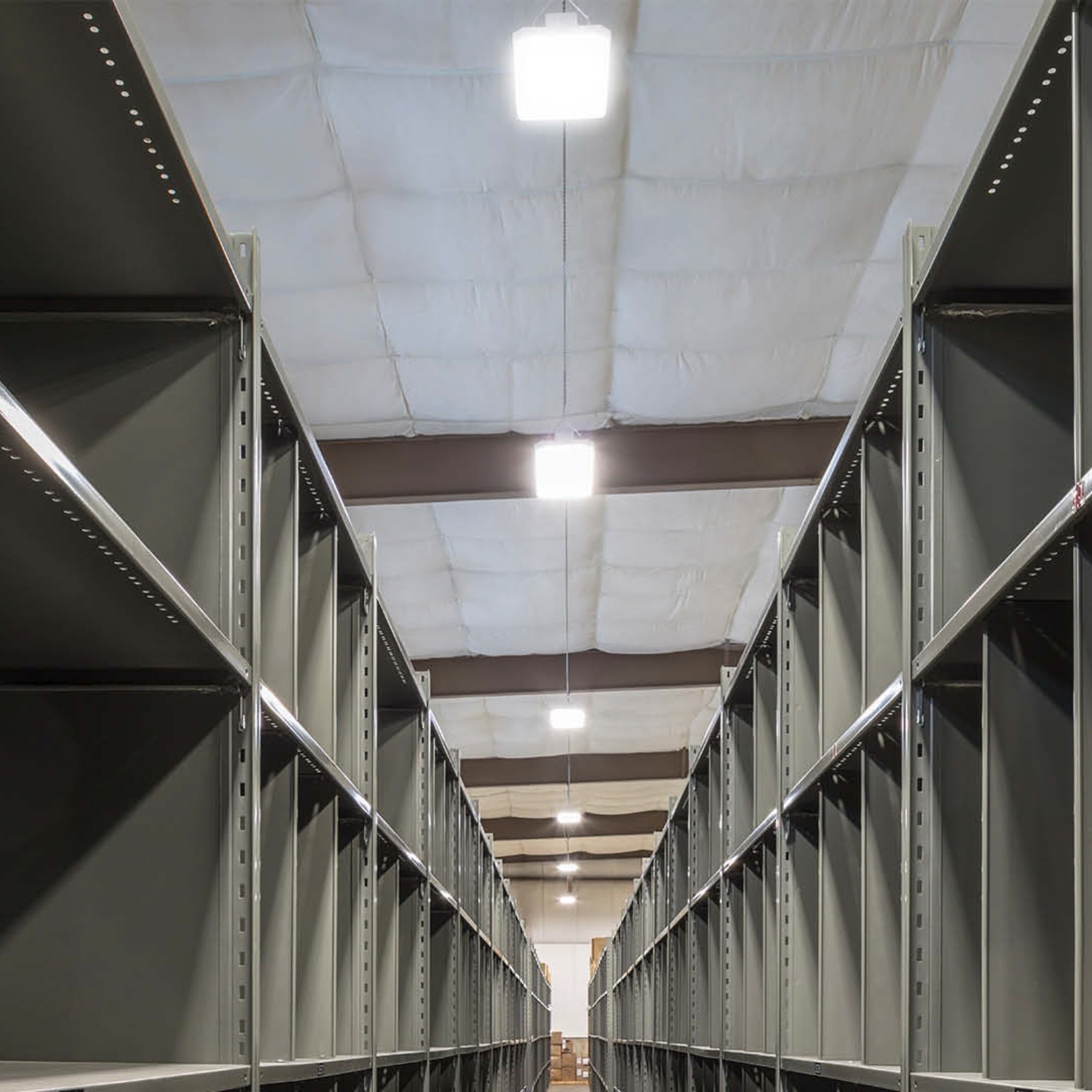

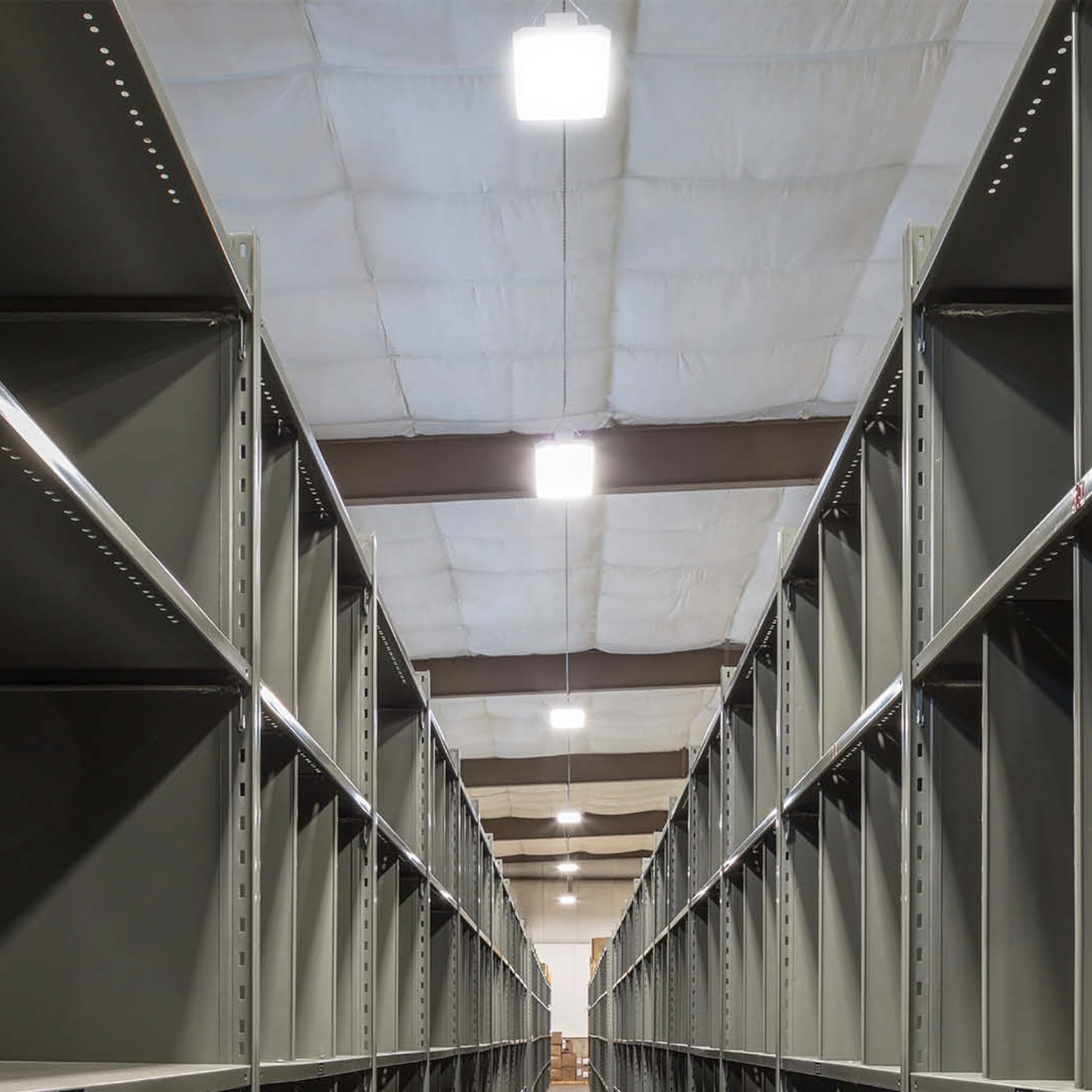

- Warehouses & Distribution Centers: High-output 300W / 42,000 lm setting covers large-footprint bays and high-rack storage facilities
- Manufacturing & Assembly Facilities: Damp-location rating handles condensation and humidity on production floors
- Large Retail & Big-Box Spaces: Dual CCT selection lets facility managers match existing ambient lighting

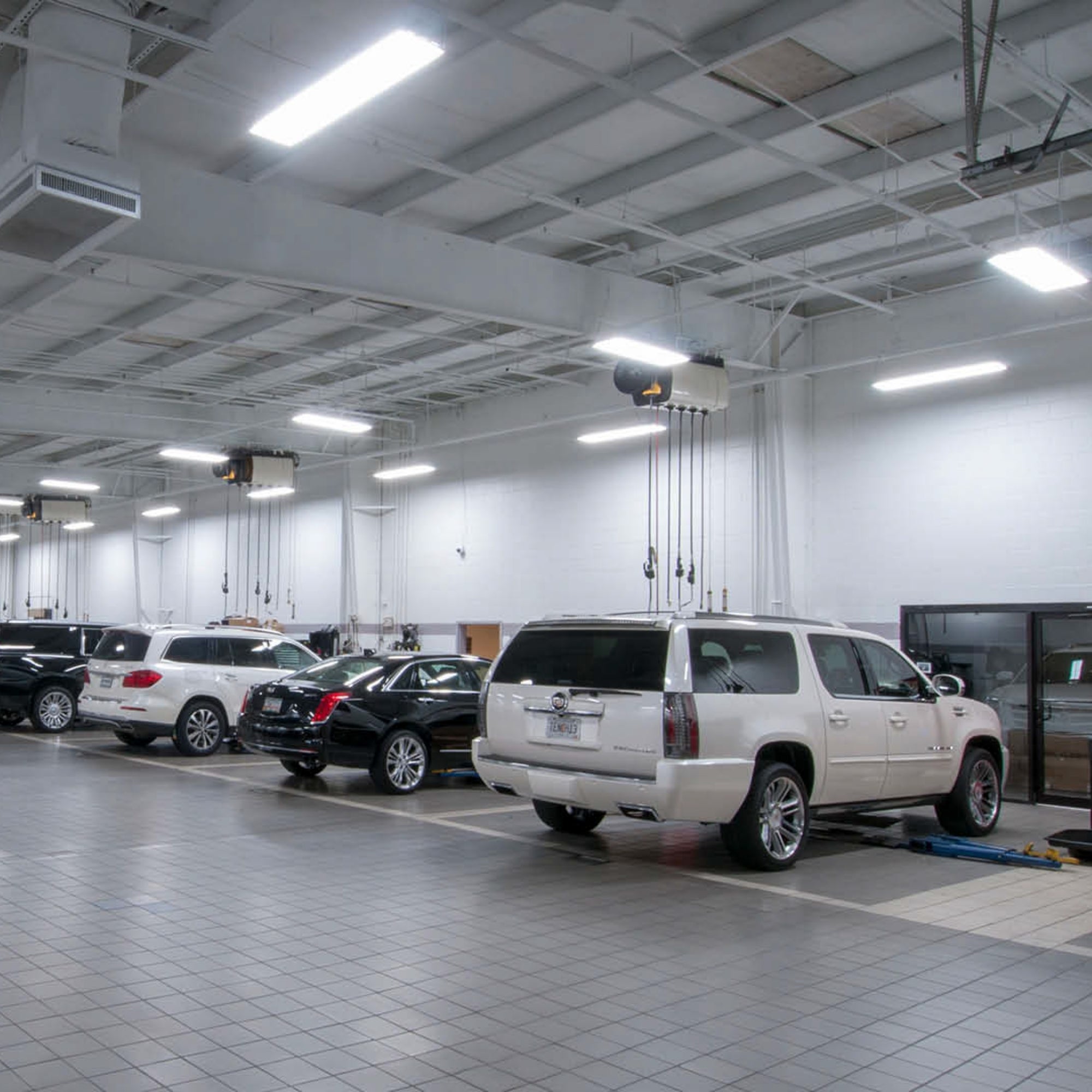

- Commercial Garages & Auto Service: Bright, uniform output improves visibility for detail and inspection work

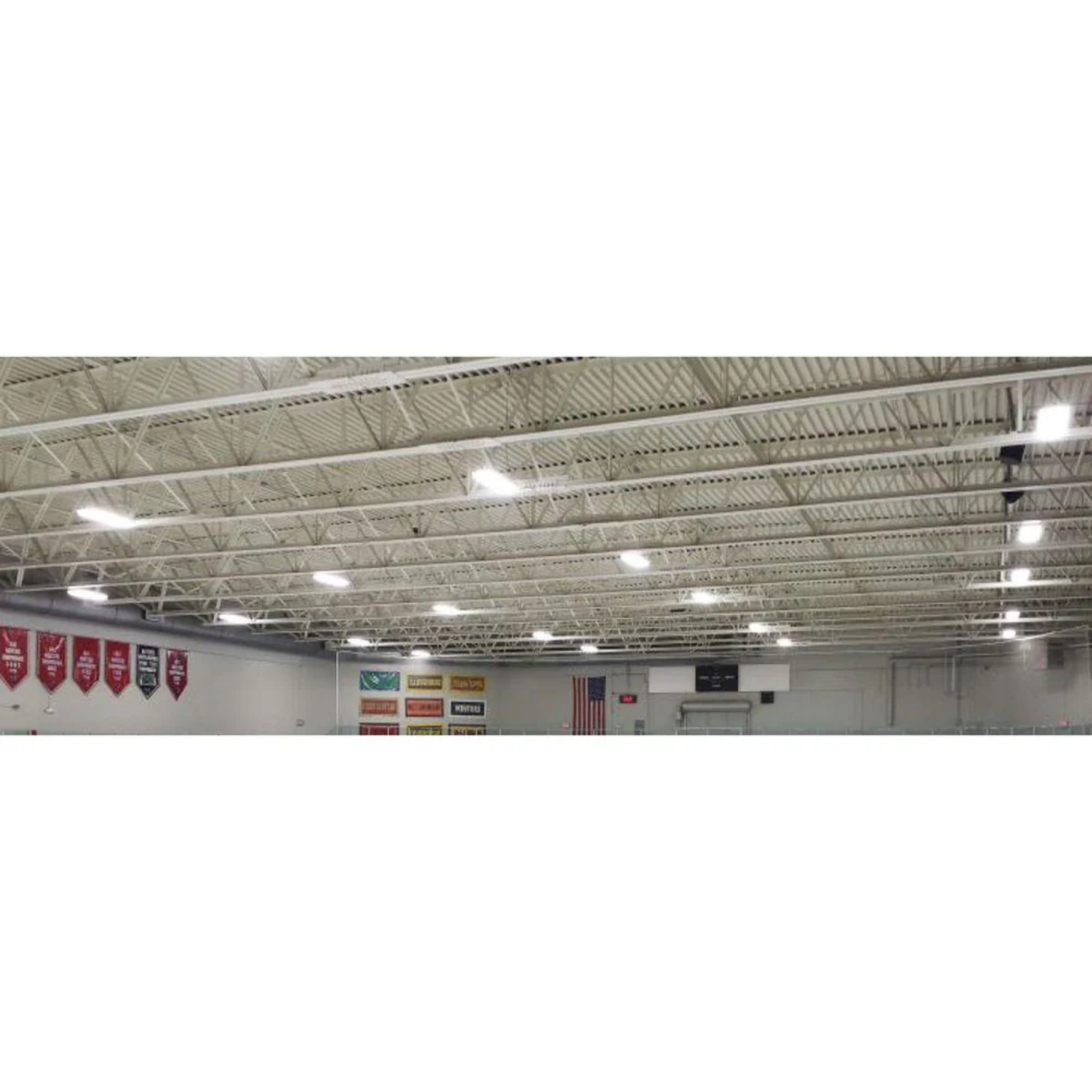

- Athletic & Recreation Facilities: 300W / 42,000 lm handles large gymnasium and arena ceilings
- Cold-Storage & Refrigerated Warehouses: Cold-start rated to -40°C — powers on at full output in freezer environments
What's Included
- GLT LHB-40L LED Linear High Bay with integrated LED module, driver, and field-selectable wattage/CCT switches
- Steel wire rope suspension mounting kit
