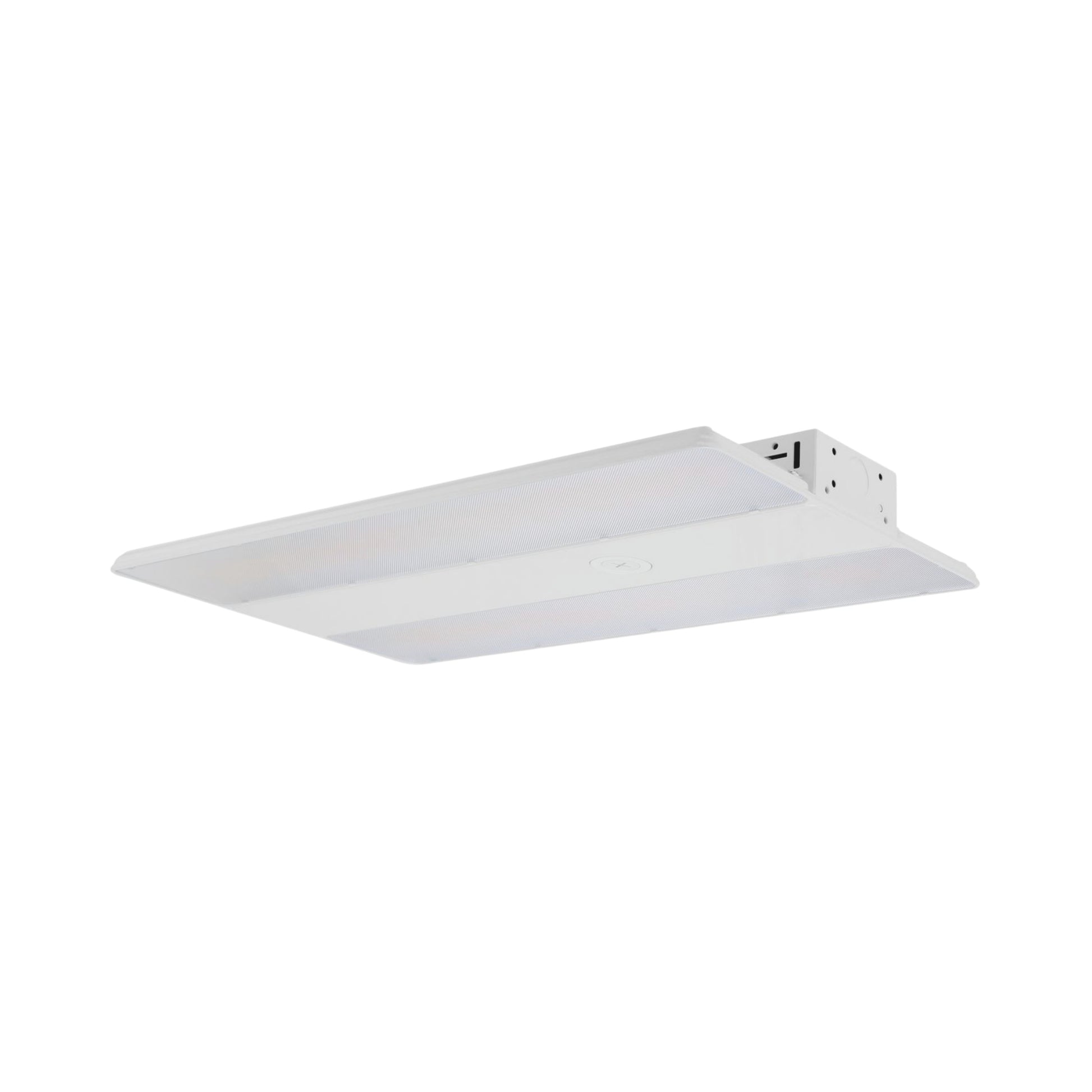

GLTLED Linear High Bay 24,100 Lumens 64/96/128/160W Selectable 4000K/5000K 347-480V White

GLT LHB-24L-HV-CCT-D10 LED Linear High Bay — High Voltage Commercial Grade

The GLT LHB-24L-HV-CCT-D10 is a contractor-grade, high-voltage LED linear high bay engineered for industrial and large commercial facilities operating on 347-480V systems. Featuring four selectable wattage settings (64W / 96W / 128W / 160W) and selectable 4000K or 5000K color temperature, this fixture delivers up to 24,100 lumens with field-adjustable flexibility.

Key Features:

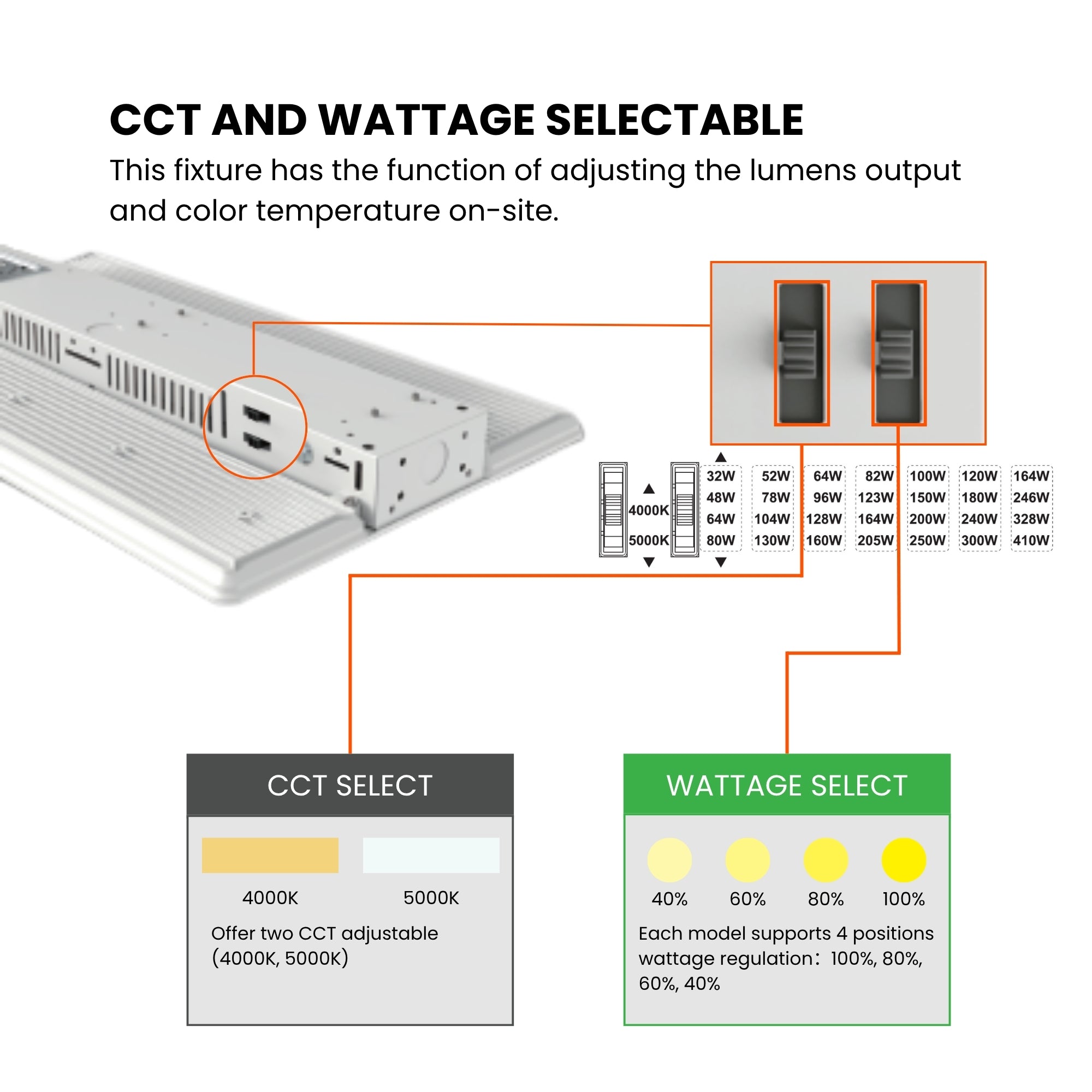

• Selectable Wattage: 64W / 96W / 128W / 160W
• Selectable CCT: 4000K or 5000K
• Light Output: 10,600 to 24,100 lumens
• Efficacy: Up to 166 lumens per watt
• High Voltage Input: 347-480V
• Dimming: 0-10V dimmable driver
• CRI: 80+
• Thermal Management: Aluminum housing construction

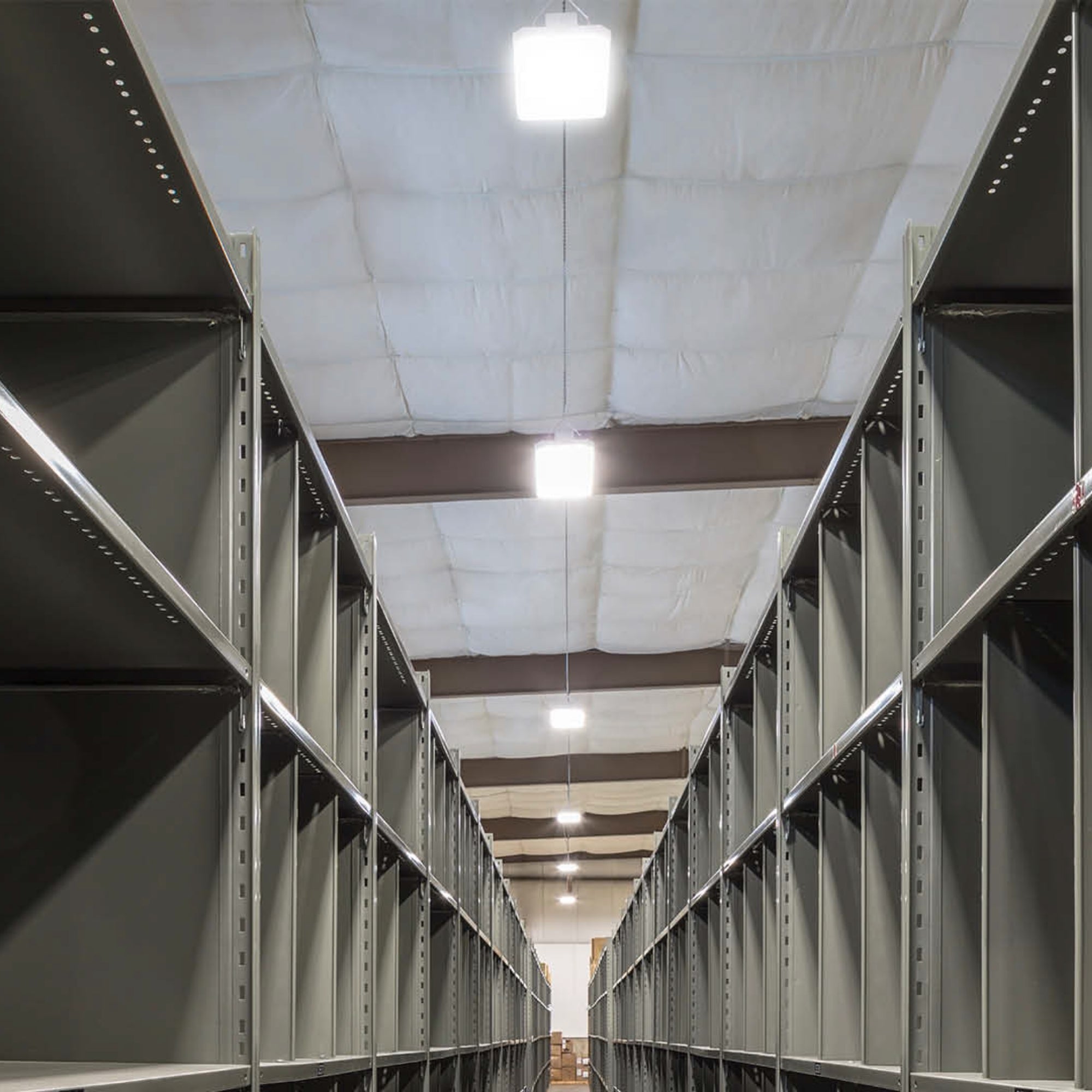

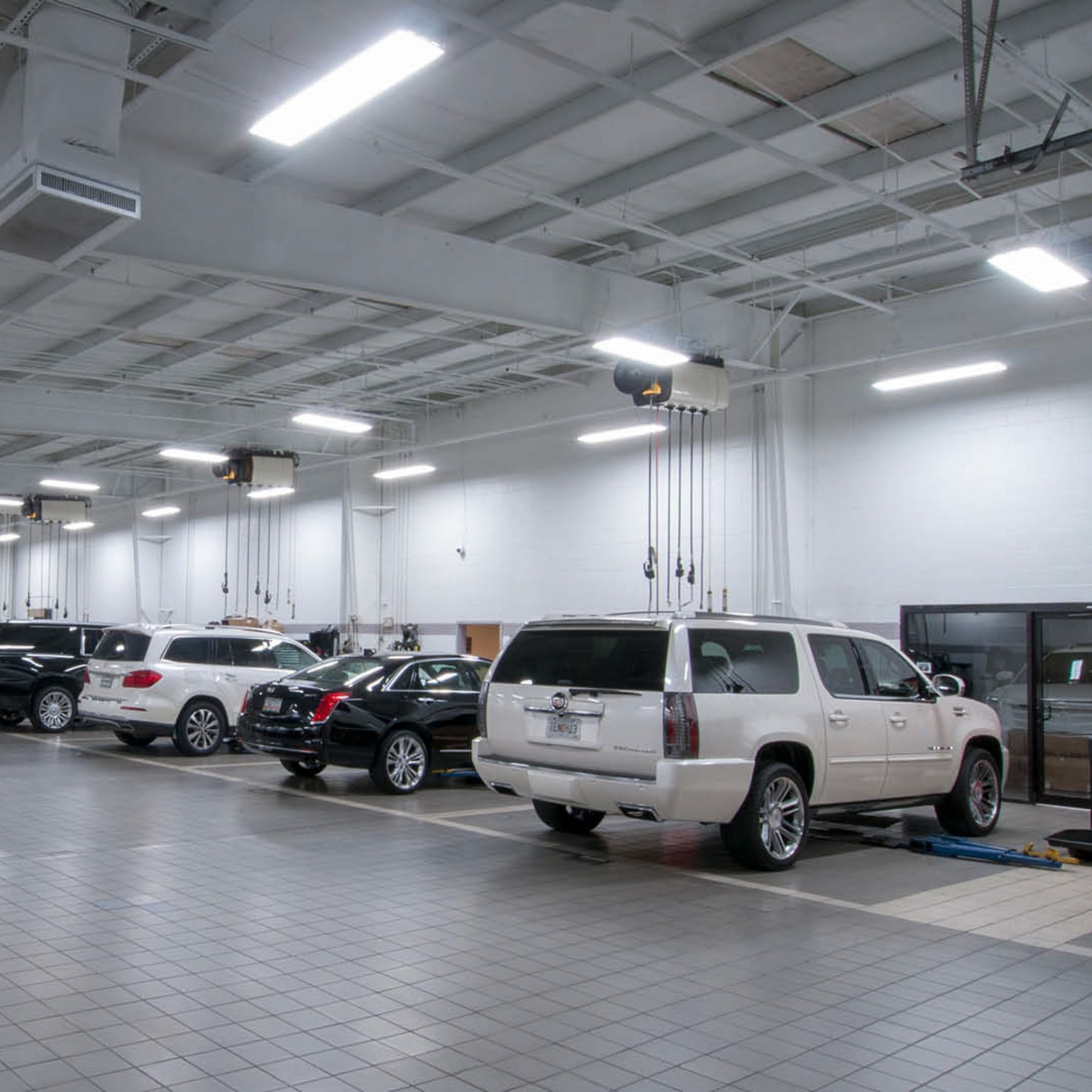

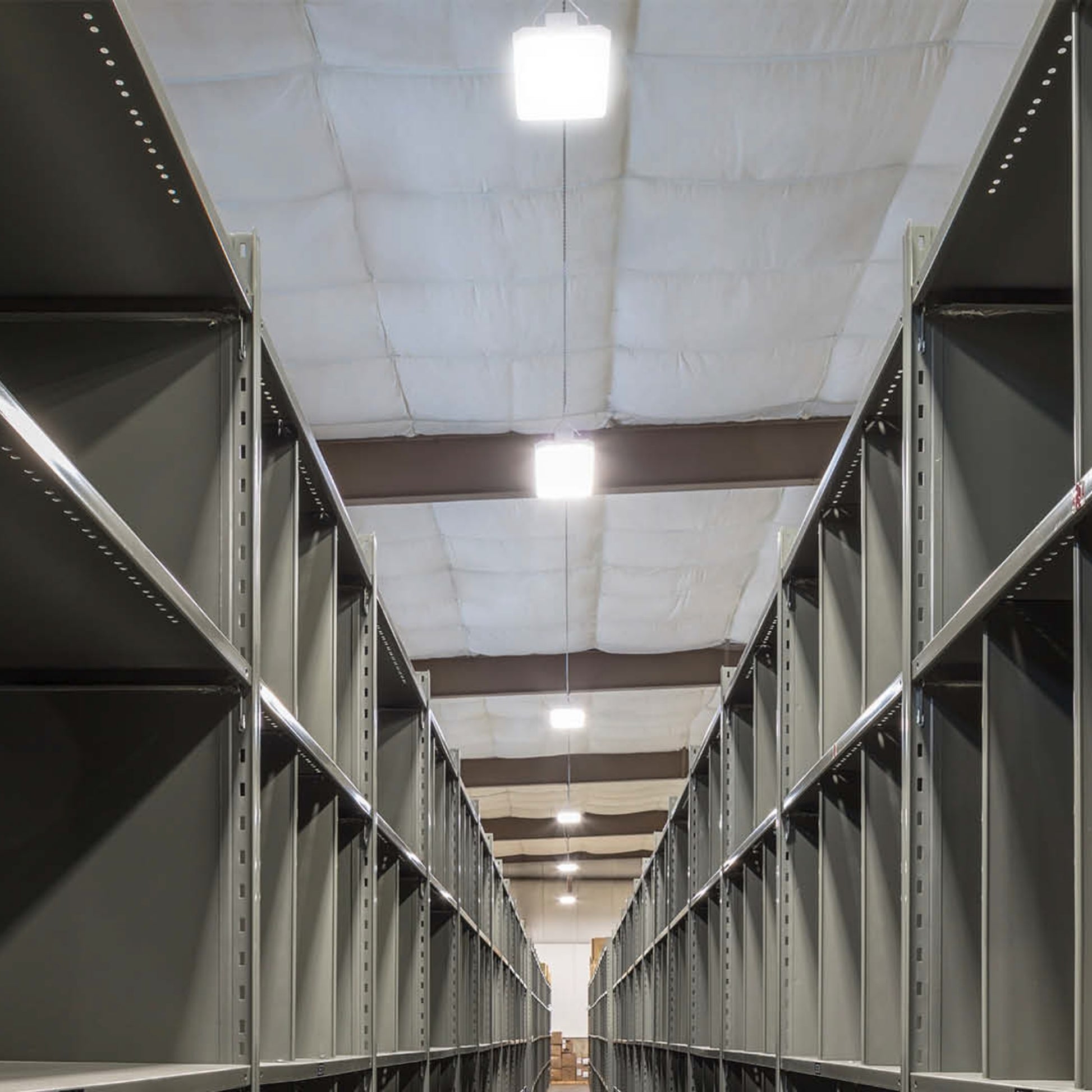

Typical Applications:

• Industrial manufacturing facilities
• Distribution centers
• High-ceiling warehouses
• Utility facilities
• Large commercial buildings

Performance & Light Output:
Selectable outputs include 160W (24,100 lumens), 128W (20,000 lumens), 96W (15,500 lumens), and 64W (10,600 lumens). Both 4000K and 5000K configurations maintain 80 CRI performance. Estimated 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.

Electrical & Controls:

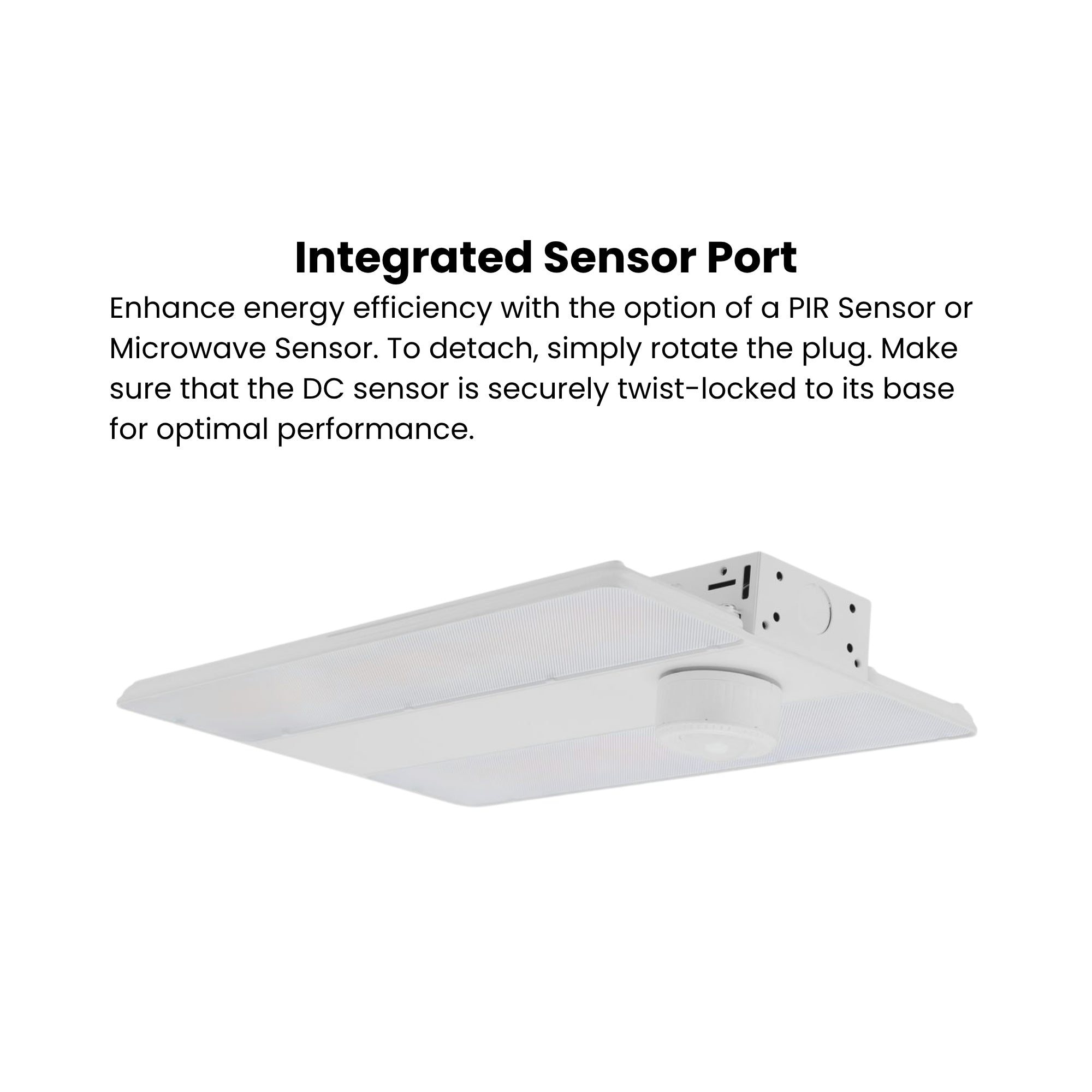

Designed for 347-480V AC systems with standard 0-10V dimming capability. Compatible with occupancy and daylight sensors to support advanced energy management strategies in high-voltage installations.

Construction, Compliance & Warranty:

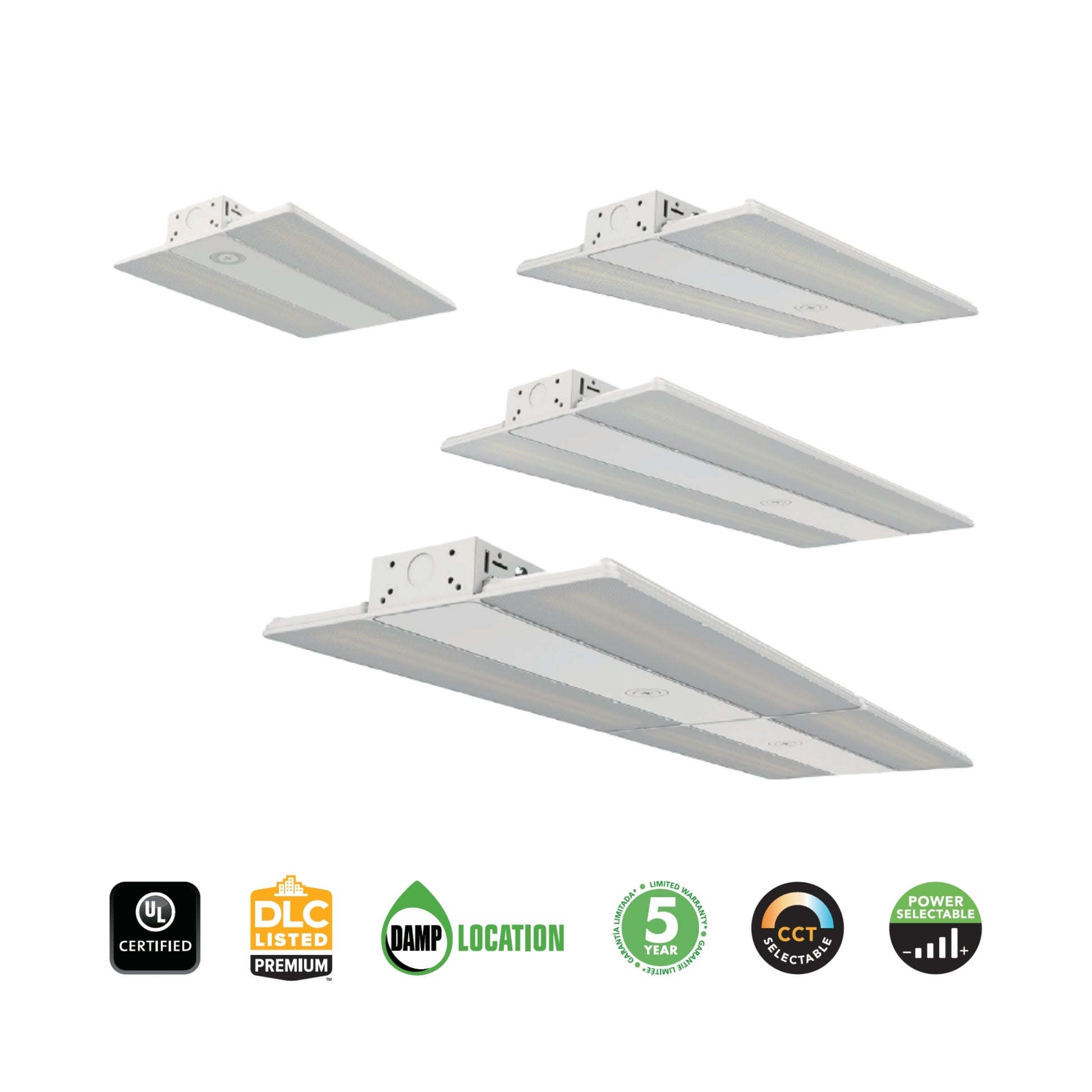

Constructed with a durable aluminum housing engineered for thermal stability and long service life. UL listed for damp locations and DLC 5.1 Premium listed for commercial rebate eligibility. TAA compliant for federally funded projects. Backed by a 5-year manufacturer warranty.

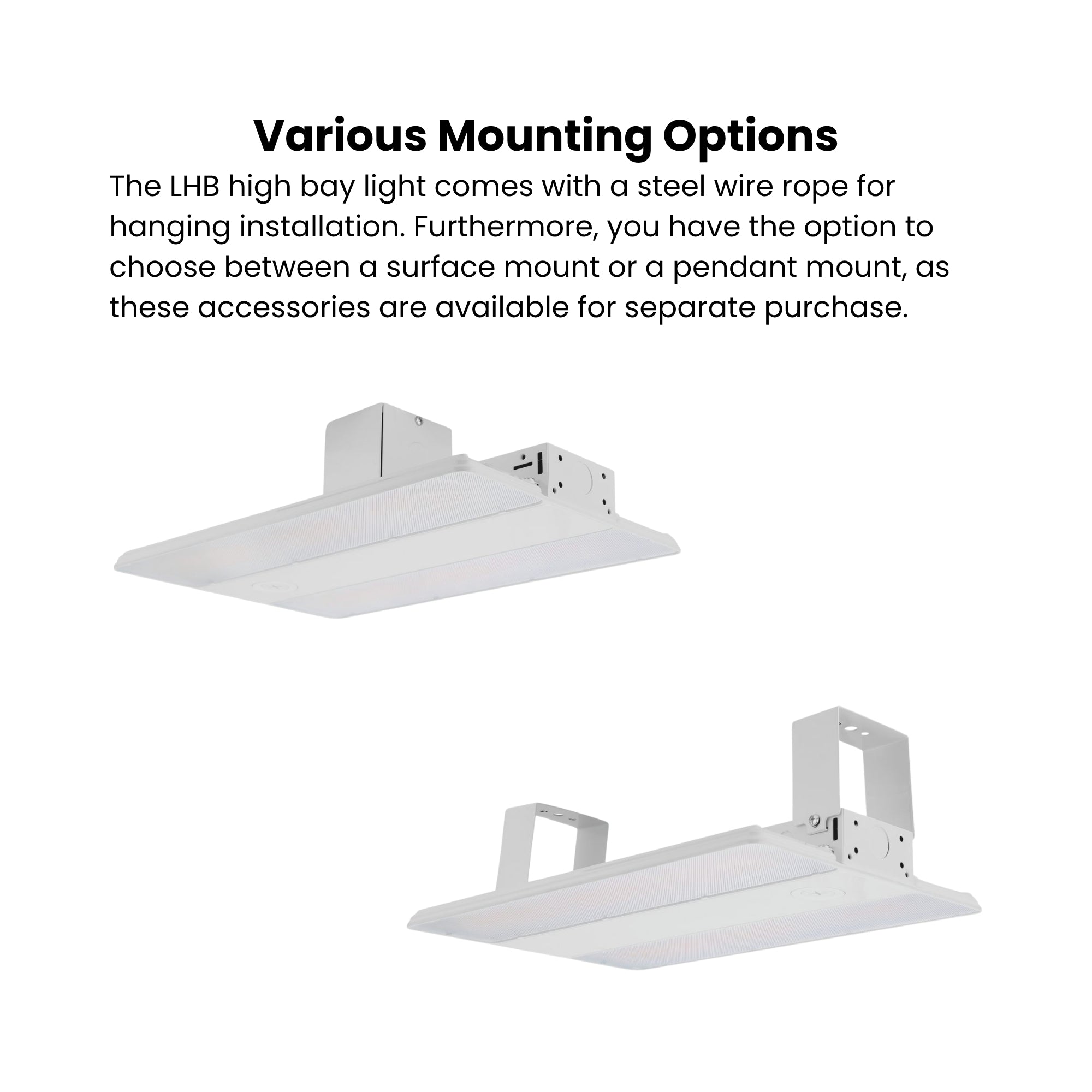

Installation & Mounting:

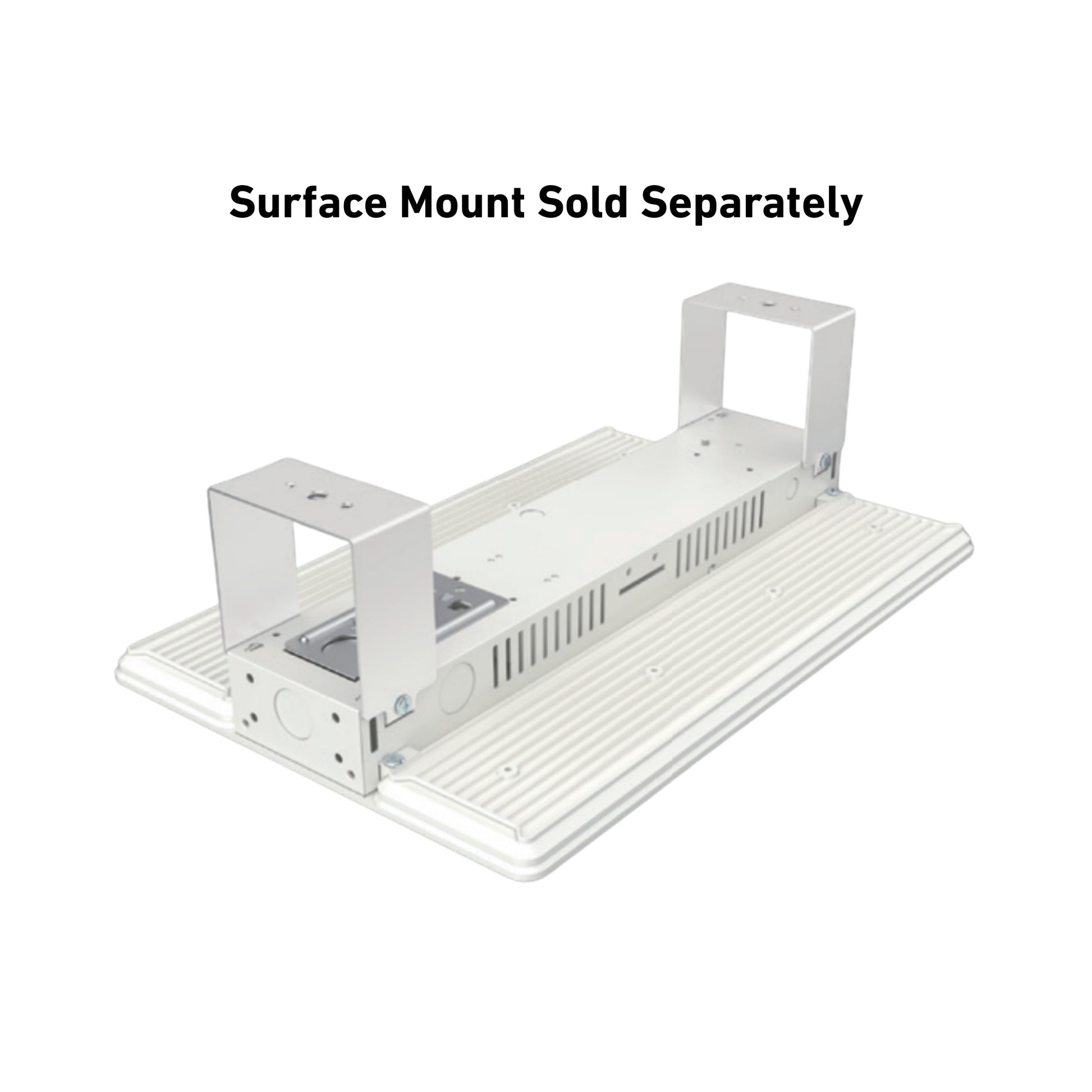

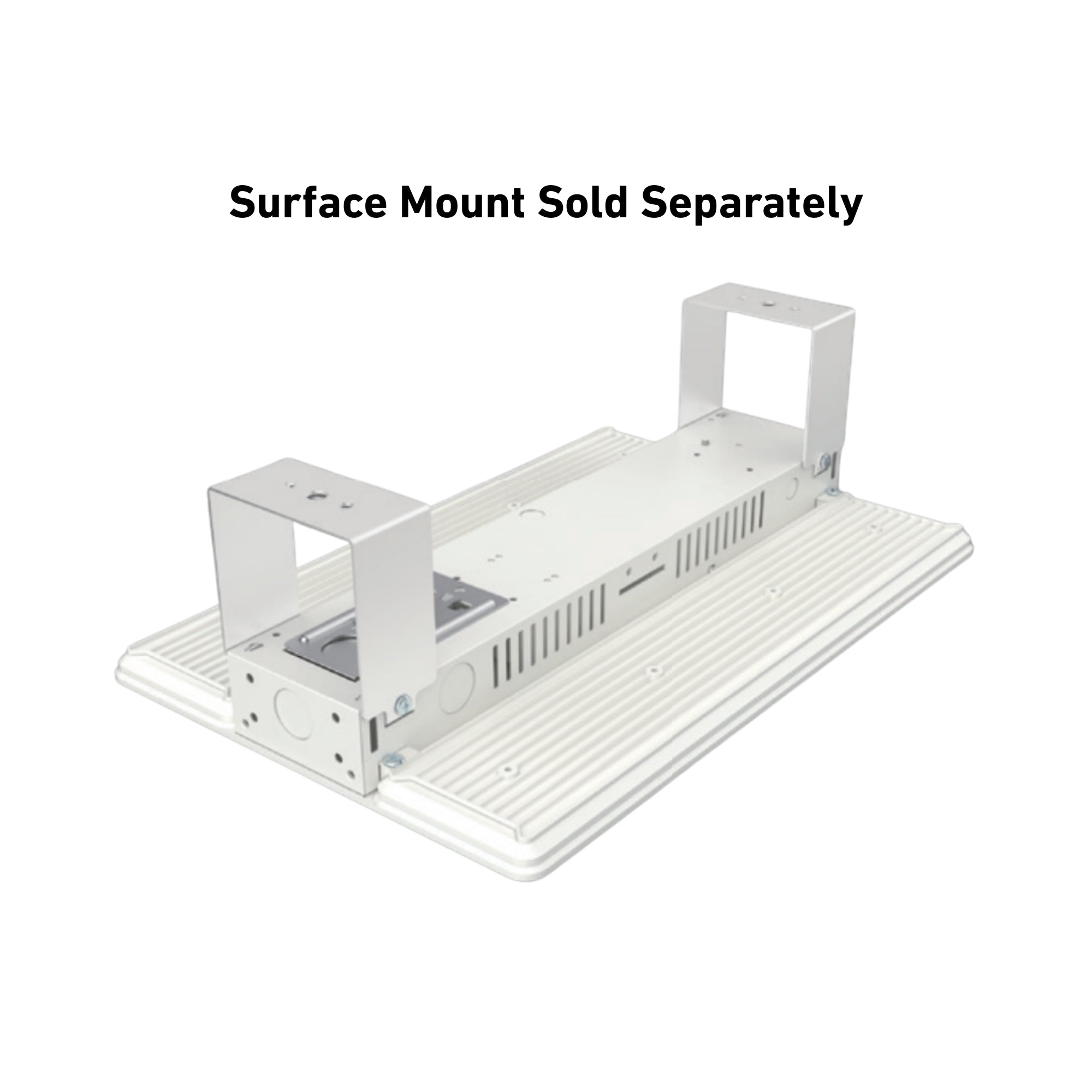

Steel wire rope suspension mount is included with the fixture for overhead installation. Surface mount and conduit pendant mount options are sold separately to accommodate various installation requirements.

Included Components:
Fixture body with integrated LED module and driver, field-selectable switches, and steel wire rope suspension mounting kit.

Accessories:

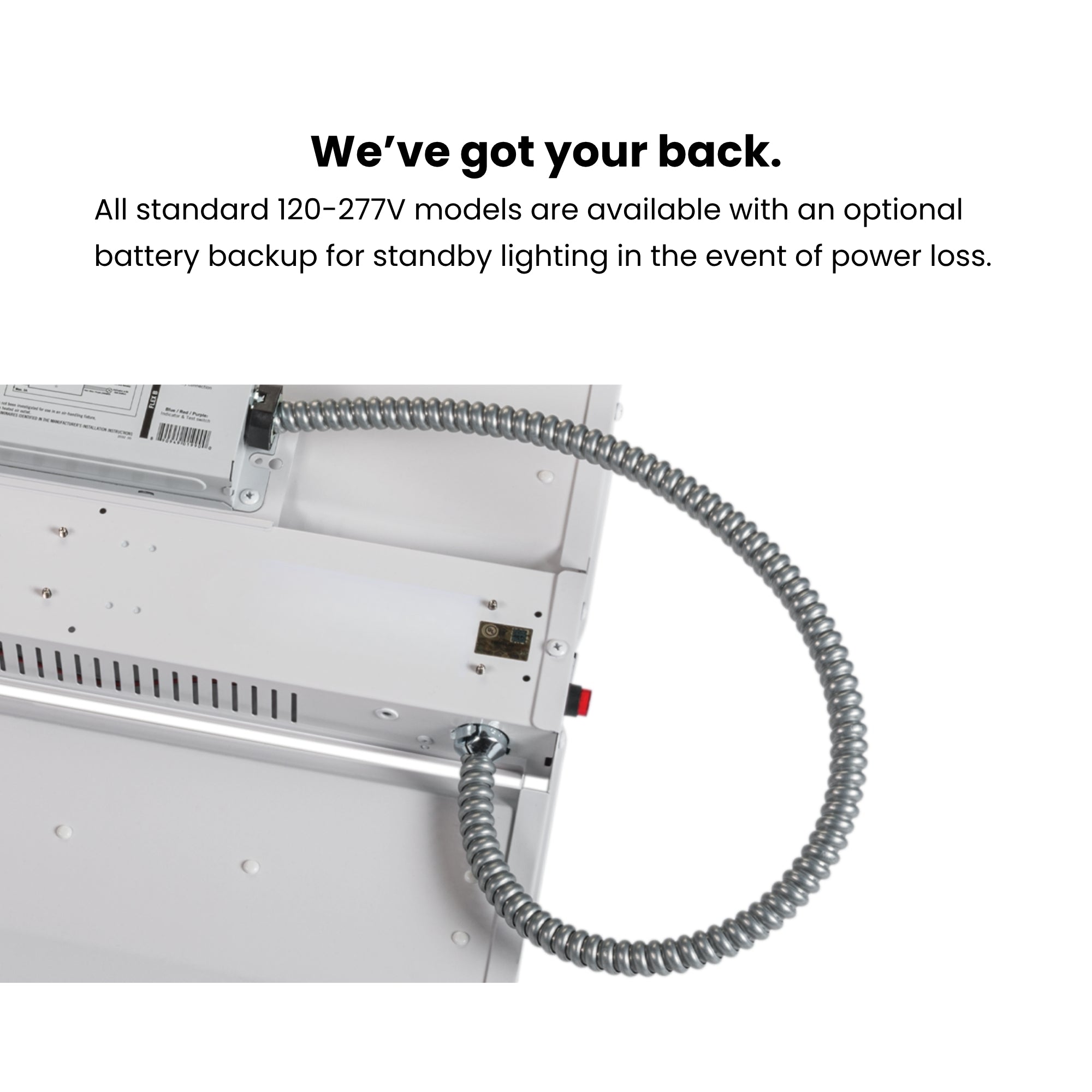

Optional occupancy sensors, daylight sensors, emergency battery backup modules, surface mounting kits, and conduit pendant mounts are available to meet project-specific requirements.
