GLT FPS Series LED Flat Panel — 20–50W Selectable — 3500K/4000K/5000K — White

The GLT FPS Series LED Flat Panel is available in two sizes — 2×2 (FPS22-45L-CCT-D10) and 2×4 (FPS24-60L-CCT-D10) — each with field-selectable wattage and color temperature adjusted via switches on the driver. The 2×2 supports 20W (LV3), 30W (LV2), and 40W (LV1) (up to 4,700 lumens); the 2×4 supports 30W (LV3), 40W (LV2), and 50W (LV1) (up to 6,100 lumens). Both sizes support 3500K, 4000K, and 5000K selectable CCT, a 120° beam angle, 0–10V dimming, and operate on 120–277V. Both are compatible with optional plug-in PIR sensors and emergency battery backup (sold separately).

Key Features

• Selectable Wattage: Field-selectable via switches on the driver — 20/30/40W on 2×2; 30/40/50W on 2×4. No rewiring required.
• Wattage Equivalency: Replaces traditional fluorescent 2×2 and 2×4 systems with significant energy savings across all wattage settings.
• Maximum Lumen Output: Up to 4,700 lumens at 40W (2×2); up to 6,100 lumens at 50W (2×4).
• Peak Efficacy: Up to 125 lm/W at 20W (2×2); up to 127 lm/W at 30W (2×4).
• CRI: >80.
• Selectable CCT: Field-selectable between 3500K, 4000K, and 5000K via switches on the driver — no tools required.
• Lens & Optics: Flat panel diffuser lens — 120° beam angle delivering even, glare-controlled illumination across the ceiling grid opening.
• Dimming: 0–10V continuous dimming. Compatible dimmer required, sold separately.
• Voltage: 120–277V universal voltage driver.
• Location Rating: Suitable for dry and damp location installations.
• Operating Temperature: Refer to individual product spec sheets for rated ambient temperature range.
• Certifications: 2×2: DLC Standard Listed — 2×4: DLC Premium Listed — ETL Listed — FCC.
• Rated Life: L70 50,000 hours.
• Warranty: 5-year limited warranty.
• Optional Accessories: Compatible with plug-in PIR sensor (12–24VDC, sold separately) and field-installable emergency battery backup (8W, 900 lm, 90 min, sold separately).

Performance & Light Output

2×2 (FPS22-45L-CCT-D10) — 20/30/40W: At 20W (LV3), delivers 2,500 lumens at 125 lm/W. At 30W (LV2), output reaches 3,600 lumens at 120 lm/W. At maximum 40W (LV1), output is 4,700 lumens at 118 lm/W.

2×4 (FPS24-60L-CCT-D10) — 30/40/50W: At 30W (LV3), delivers 3,800 lumens at 127 lm/W. At 40W (LV2), output reaches 4,900 lumens at 123 lm/W. At maximum 50W (LV1), output is 6,100 lumens at 122 lm/W.

All wattage settings on both sizes support 3500K, 4000K, and 5000K selectable CCT with a 120° beam angle. CRI: >80. L70 rated life: 50,000 hours.

Smart & Control Features

Both sizes support 0–10V continuous dimming via the onboard driver. An optional plug-in PIR sensor (12–24VDC input) is available separately — factory default settings: 100% sensitivity, hold time 5 min, dimming level 30%, dimming time 60 minutes. Daylight sensor function is included. A compatible 0–10V dimmer is required for dimming control, sold separately.

Electrical

Input voltage: 120–277V. Dimming: 0–10V. Beam angle: 120°. CRI: >80. L70 rated life: 50,000 hours. Mercury-free.

Construction

Housing & Thermal: Low-profile flat panel housing. Depth: 1.41″ (36mm) — both sizes.

Lens & Optics: Flat panel diffuser — 120° beam angle with even, glare-controlled light distribution across the full panel surface.

Finish: White.

Dimensions by Size:

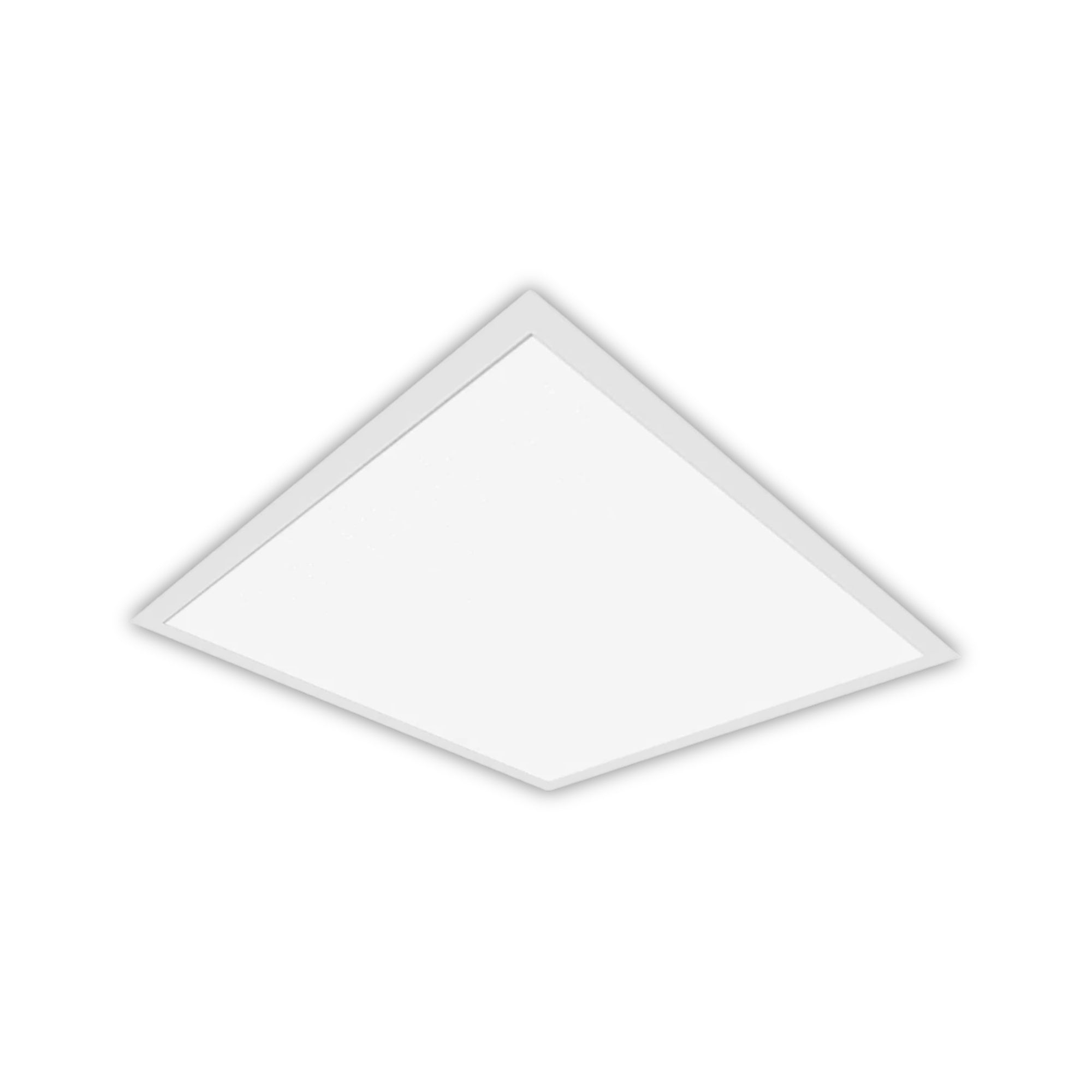

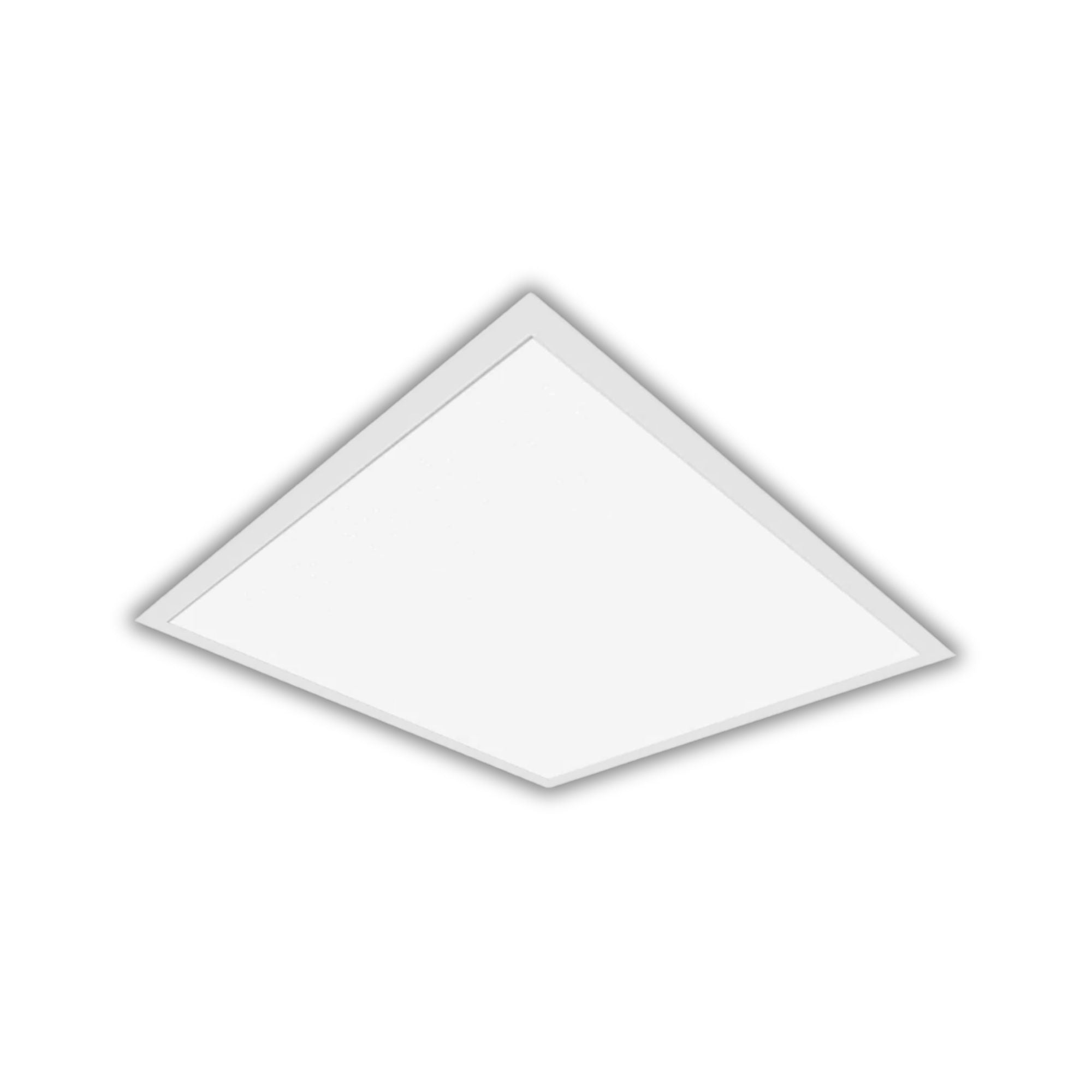

• 2×2 (FPS22): 23.7″ L × 23.7″ W × 1.41″ H (603 × 603 × 36mm) — Net weight: 4.1 lbs

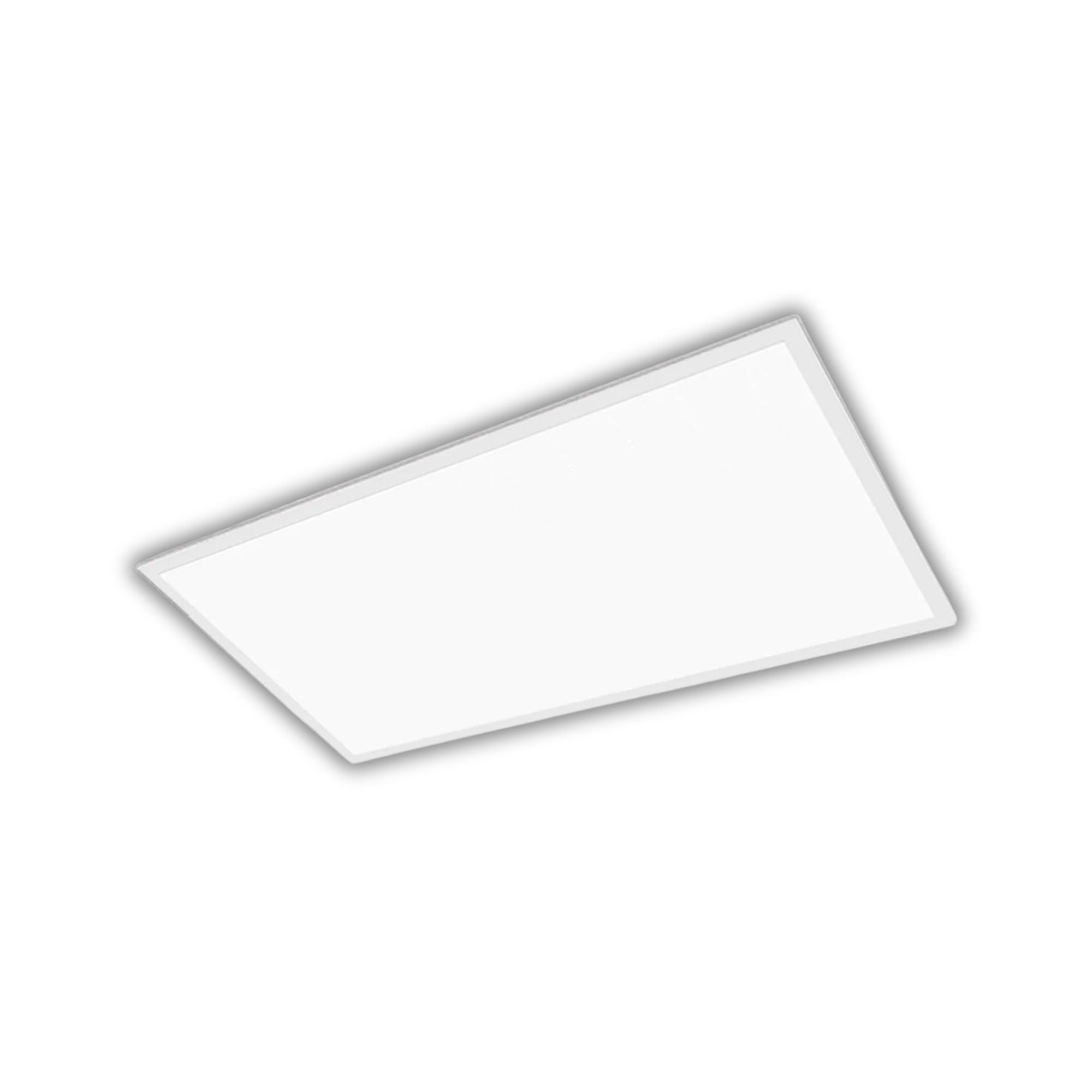

• 2×4 (FPS24): 47.7″ L × 23.7″ W × 1.41″ H (1213 × 603 × 36mm) — Net weight: 8.1 lbs

Installation & Mounting

Standard Mounting: Recessed installation into standard T-grid ceiling systems — 2×2 into 2×2 grids, 2×4 into 2×4 grids (default).

Optional Mounting Methods (Sold Separately):

• Suspended Mount: Wire suspension kit — sold separately
• Surface Mount: Surface mount frame — sold separately

Optional Accessories (Sold Separately):

• Emergency Battery Backup: 8W, 900 lm, 90-minute runtime — field-installable, sold separately
• PIR Sensor: 12–24VDC plug-in PIR sensor with daylight sensor function — factory default: 100% sensitivity, 5 min hold time, 30% dimming level, 60 min dimming time; sold separately

Certifications & Rebates

• DLC Premium Listed (2×4 — FPS24) — qualifies for the highest tier of utility rebate programs. To verify rebate eligibility, visit designlights.org and search DLC product ID S-RXY8VP.
• DLC Standard Listed (2×2 — FPS22) — qualifies for utility rebate programs. To verify rebate eligibility, visit designlights.org and search DLC product ID S-8PM799.
• ETL Listed
• FCC Compliant

Typical Applications

• Corporate offices and open-plan workspaces — selectable CCT and wattage allow tuning for task lighting at any desk density without re-ordering
• Retail and showroom spaces — 120° beam angle delivers even, shadow-free illumination across wide floor areas
• Educational facilities — selectable CCT supports varied classroom environments; 120–277V driver covers standard U.S. electrical systems
• Healthcare and institutional spaces — DLC Premium listing on 2×4 maximizes utility rebate eligibility for large-scale retrofit projects
• Corridors and common areas — optional PIR sensor (sold separately) enables occupancy-based dimming to 30% for automated energy savings
• Fluorescent retrofit projects — replaces standard 2×2 and 2×4 fluorescent troffers with selectable wattage to match existing light levels

What’s Included

• GLT FPS Series LED flat panel fixture — White — (size per selection: 2×2 — FPS22-45L-CCT-D10, 2×4 — FPS24-60L-CCT-D10)
• Mounting hardware for recessed T-grid installation
