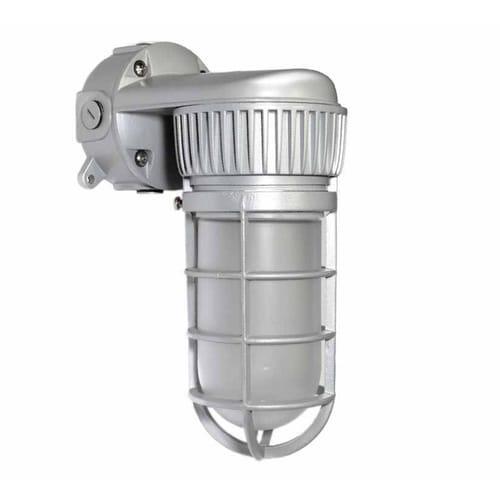

GLT Wall Mount LED Vapor Tight Jelly Jar — 20W (19W) — 5000K — Gray/Polycarbonate Lens

The GLT JVT-20WU50K is a commercial Wall Mount LED Vapor Tight Jelly Jar engineered to deliver 1,810 lumens at 20W nominal (19W power consumption) in a fixed 5000K color temperature. Operating on 120–277V AC electrical systems, this luminaire provides an energy-efficient replacement for legacy 200W incandescent and CFL fixtures. Built with an ETL and cETL Wet Location rating, it features an IP65-sealed die-cast aluminum housing with a rubber gasket and polycarbonate lens for harsh outdoor and commercial environments.

Key Features

• Wattage: 20W nominal (19W power consumption)
• Wattage Equivalency: Replaces legacy 200W incandescent and CFL fixtures
• Maximum Lumen Output: 1,810 lm at 5000K
• Peak Efficacy: 96 lm/W for high-efficiency commercial operation
• CRI: 74 color rendering
• Color Temperature: 5000K fixed CCT
• Lens & Optics: Polycarbonate lens for impact-resistant, diffused light distribution
• Voltage: Universal 120–277V AC high-performance LED driver
• Location Rating: ETL and cETL Listed for outdoor and wet locations
• Operating Temperature: -4°F (-20°C) to 104°F (40°C) ambient range
• Certifications: ETL Listed, cETL Listed, IP65, IES LM-80 tested LEDs
• Rated Life: 50,000 hours minimum rated life
• Warranty: 5-year limited warranty — GLT

Performance & Light Output

Delivers 1,810 lumens at 19W (20W series rating / 96 lm/W efficacy), replacing up to 200W incandescent systems.

CRI 74 across standard output. Rated life 50,000 hours with high-performance LM80 LEDs. Delivers high-efficiency illumination resulting in significant energy reduction compared to traditional incandescent and CFL systems.

Electrical

Powered by a high-performance LED driver operating on 120–277V AC (19W power consumption).

Construction

Durability & Impact Protection: Die-cast aluminum housing and protective guard with a rubber gasket engineered for thermal dissipation and harsh environment protection.

Ingress Protection: IP65 rated for complete protection against airborne dust and water jets in outdoor and wet locations.

Operating Temperature: Operating ambient temperature range of -4°F (-20°C) to 104°F (40°C).

Lens & Optics: Polycarbonate lens for durable optical protection.

Finish: Gray finish formulated for high resistance against corrosion and surface wear.

Dimensions & Weight: 4.61" L × 7.54" W × 12.00" H (4.61" × 7.54" × 12").

Installation & Mounting

Standard Mounting: Wall mount configuration included standard with threaded conduit entry points on the junction box.

Accessories (Sold Separately):

• Mounts: Optional ceiling mount and pendant mount configurations (sold separately)

Certifications & Rebates

• ETL & cETL Listed: Certified for outdoor and wet locations.
• IP65 Rated: Sealed against dust and water jets for harsh commercial and industrial environments.
• LM80 Tested LEDs: High-performance LED modules tested in accordance with IES LM-80 standards.

Typical Applications

• Doorways & Commercial Entryways — Architectural wall-mount profile and IP65 wet-location sealing illuminate exterior building entrances.
• Construction Sites & Scaffolding — Die-cast aluminum housing, cage guard, and polycarbonate lens withstand harsh jobsite conditions.
• Emergency Call Stations — Crisp 5000K illumination and 50,000-hour rated life ensure dependable visibility at safety stations.
• Exterior Walkways & Utility Corridors — Rubber-gasketed enclosure and -4°F (-20°C) to 104°F (40°C) operating range handle year-round weather exposure.

What's Included

• GLT JVT-20WU50K Wall Mount LED Vapor Tight Jelly Jar — Gray
• Pre-installed polycarbonate lens and protective cage guard
• Integrated wall-mount junction box
• Installation and operation manual
