GLT Field-Adjustable UFO LED High Bay — 62,000 lm — 140W / 210W / 280W / 350W Selectable — 5000K — Bronze
Available in stock (165)
About this item
About this item
- Ultra-High Output — 62,000 lm at 350W, 190 lm/W Peak: Delivers up to 62,000 lumens at 350W with a peak efficacy of 190 lm/W at 140W — replacing 750W–1000W metal halide fixtures and covering ceiling heights from 20 to 45 ft with a single SKU.
- 100,000-Hour Rated Life — Double the Industry Standard: IES LM-80 / TM-21 validated 100,000-hour lifespan means fewer re-lamp cycles and lower long-term maintenance costs in large industrial facilities.
- 65°C High-Ambient Rated at Reduced Wattage: Operates in ambient temperatures up to 65°C at 40%–80% wattage settings — designed for foundries, hot manufacturing environments, and facilities where standard fixtures fail prematurely.
- DLC Premium Listed — Utility Rebate Eligible: Qualifies for utility rebate programs through designlights.org, reducing net project cost for large-scale industrial retrofits.
- Plug-and-Play Sensor Ready — MSANT12VPH01 / MSANT12VMH01 Compatible: Accepts PIR and microwave sensors (standard and Bluetooth) via integrated receptacle for occupancy and daylight harvesting control — no rewiring required.
We process payments securely and do not store credit card information.
Description
Description

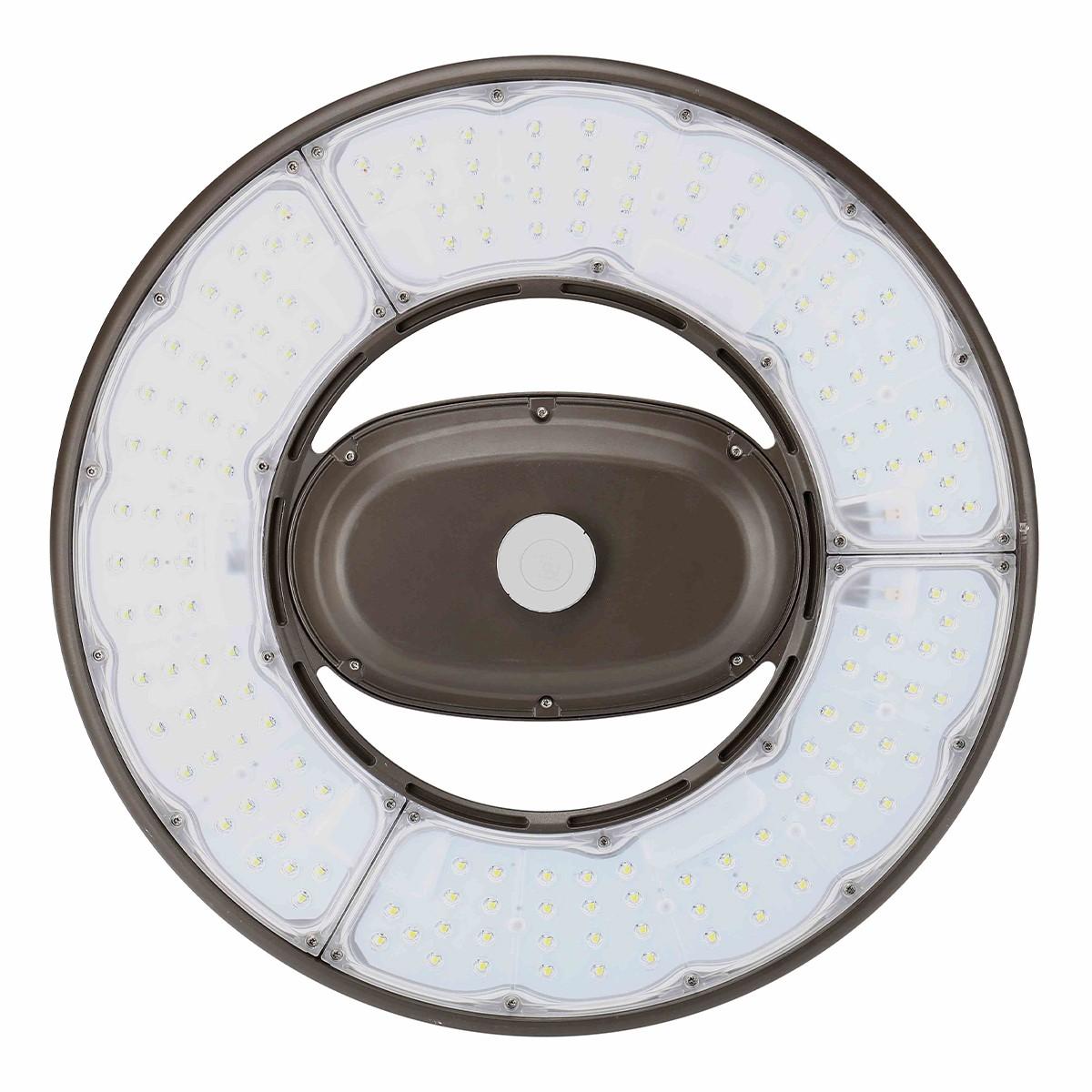

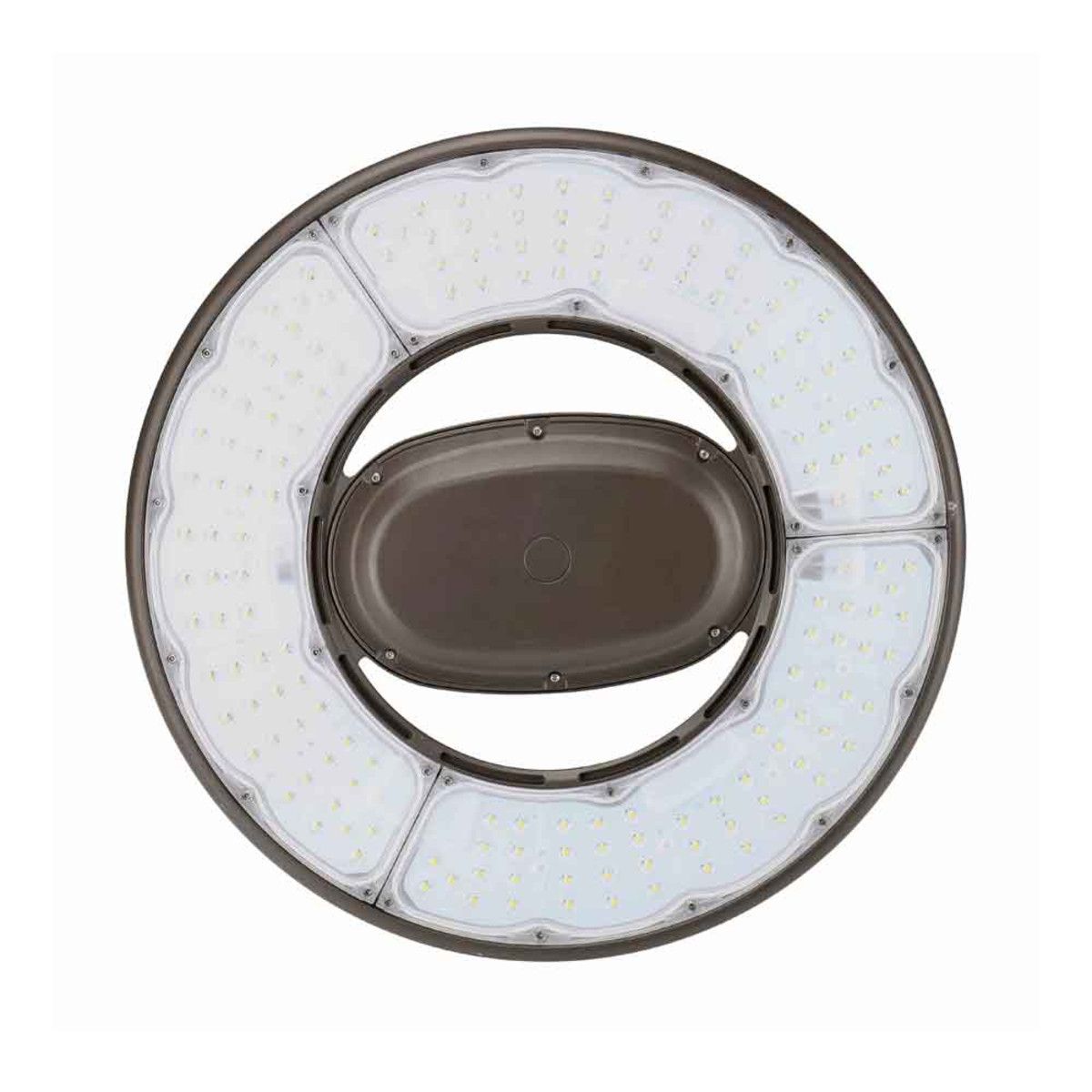

The GLT HBUL-350W-UV-50K-D10 is an ultra-high-output, heavy-duty UFO LED high bay engineered for the largest industrial and commercial facilities requiring maximum lumen performance with field-adjustable flexibility. Four selectable wattage steps (140W / 210W / 280W / 350W — 40% / 60% / 80% / 100%) are adjustable on-site via the wattage adjustment dial. Fixed 5000K daylight CCT delivers crisp, high-contrast illumination ideal for industrial and warehouse environments. Delivers up to 62,000 lumens at a peak efficacy of 190 lm/W on a universal 120–277V platform. CRI 70, UL cUL wet location listed, and DLC Premium listed for utility rebate eligibility. Rated life 100,000 hours. 0–10V dimmable driver standard (10% minimum). Backed by a 5-year limited manufacturer warranty.
Key Features
- Field-Selectable Wattage: 140W / 210W / 280W / 350W (40% / 60% / 80% / 100%) via on-site wattage adjustment dial
- Fixed CCT: 5000K Daylight — optimized for industrial visibility and contrast
- Maximum Lumen Output: 62,000 lm at 350W
- Peak Efficacy: 190 lm/W at 140W
- CRI: 70 across all wattage settings
- Dimming: 0–10V dimmable driver standard (100% to 10% minimum)
- Universal Voltage: 120–277V AC
- Location Rating: UL cUL wet location listed
- Max Ambient Temperature: Up to 65°C at 40%/60%/80% settings; 55°C at 100% (350W)
- Cold-Start Rated: -40°C (-40°F)

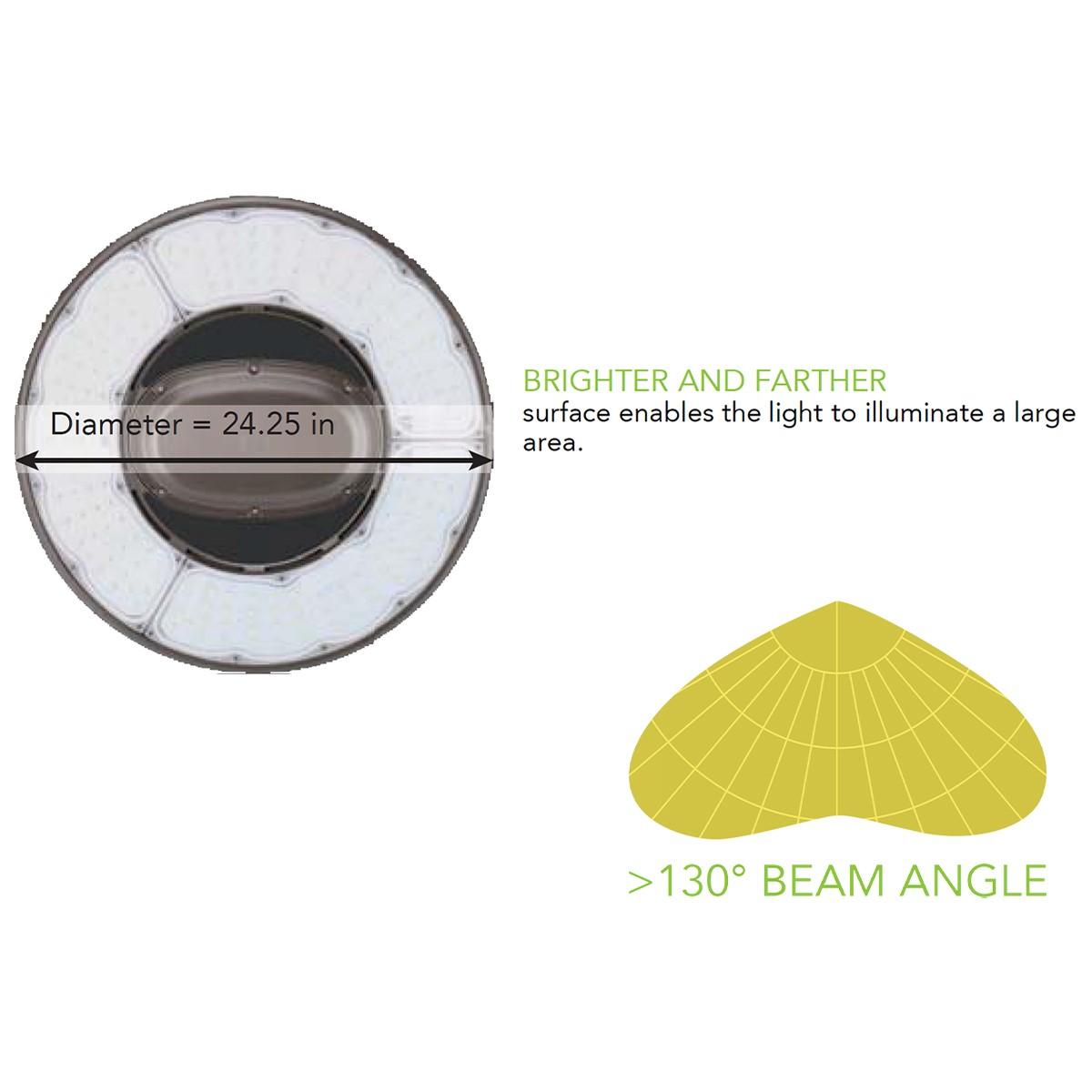

- Optics: 120° lens for uniform light distribution
- Rated Life: 100,000 hours (IES LM-80 / TM-21)

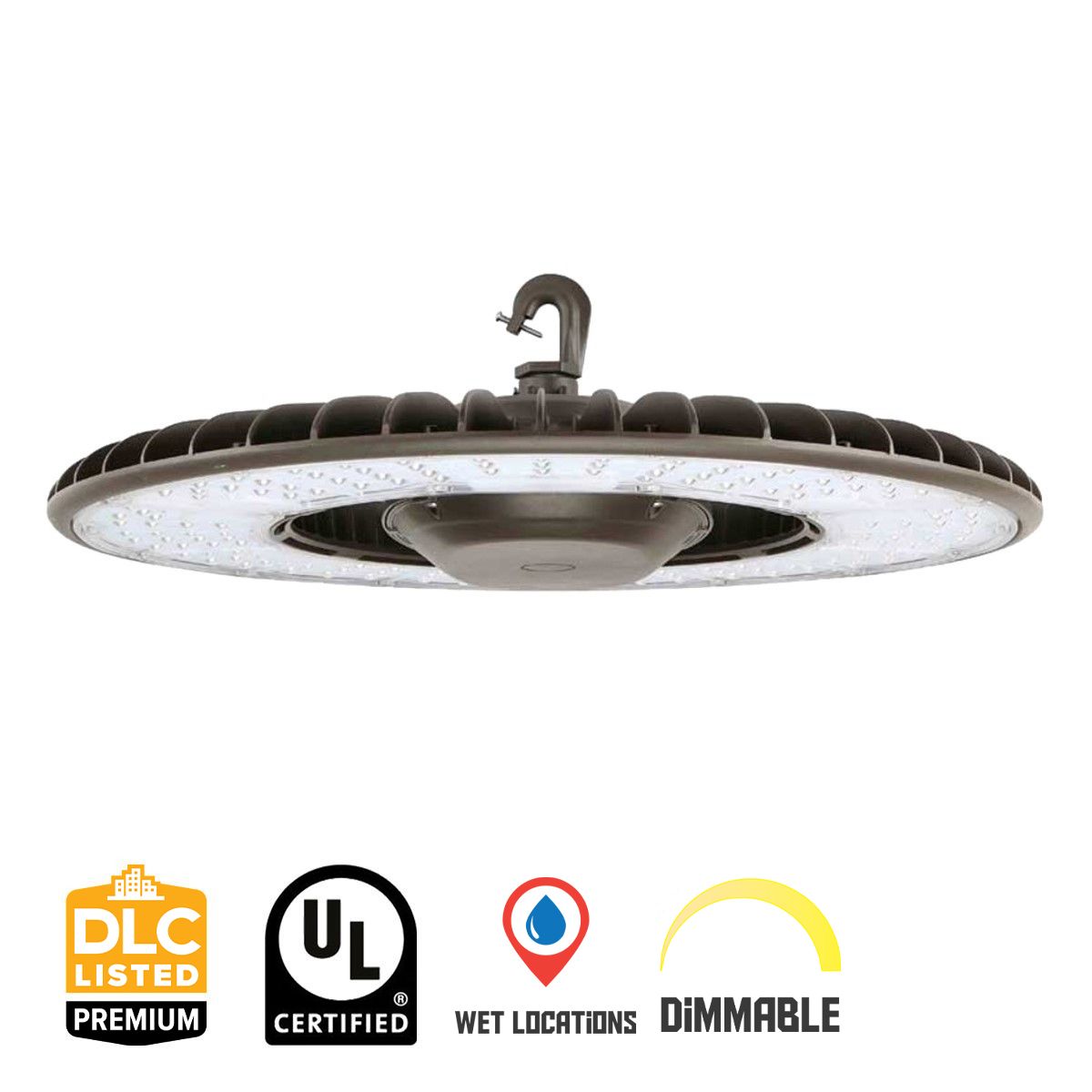

- Certifications: DLC Premium, UL cUL Listed, TAA Compliant
- Wattage Equivalency: Replaces 750W–1000W metal halide UFO high bay fixtures
- Warranty: 5-year limited manufacturer warranty
Performance & Light Output
Fixed 5000K CCT across all wattage settings. At 350W (100%): 62,000 lm / 177 lm/W | Max ambient: 55°C. At 280W (80%): 51,000 lm / 182 lm/W | Max ambient: 65°C. At 210W (60%): 39,000 lm / 186 lm/W | Max ambient: 65°C. At 140W (40%): 26,600 lm / 190 lm/W | Max ambient: 65°C. Rated life 100,000 hours per IES LM-80 results and TM-21 projections.
Smart & Control Features
The HBUL-350W includes a standard 0–10V dimmable driver and supports plug-and-play sensor accessories via the integrated sensor receptacle:
- Plug-and-Play PIR Sensor: MSANT12VPH01 (standard) | MSANT12VPHB01 (Bluetooth) — sold separately
- Plug-and-Play Microwave Sensor: MSANT12VMH01 (standard) | MSANT12VMHB01 (Bluetooth) — sold separately
Bluetooth sensor variants enable wireless group control and scheduling without a separate gateway for large facility deployments.
Electrical
Universal 120–277V AC input. 0–10V dimming from 100% to 10% minimum. Integrated surge protection. Operating temperature: -40°C to +55°C at 100% wattage; -40°C to +65°C at 80% and below. TAA compliant.
Construction

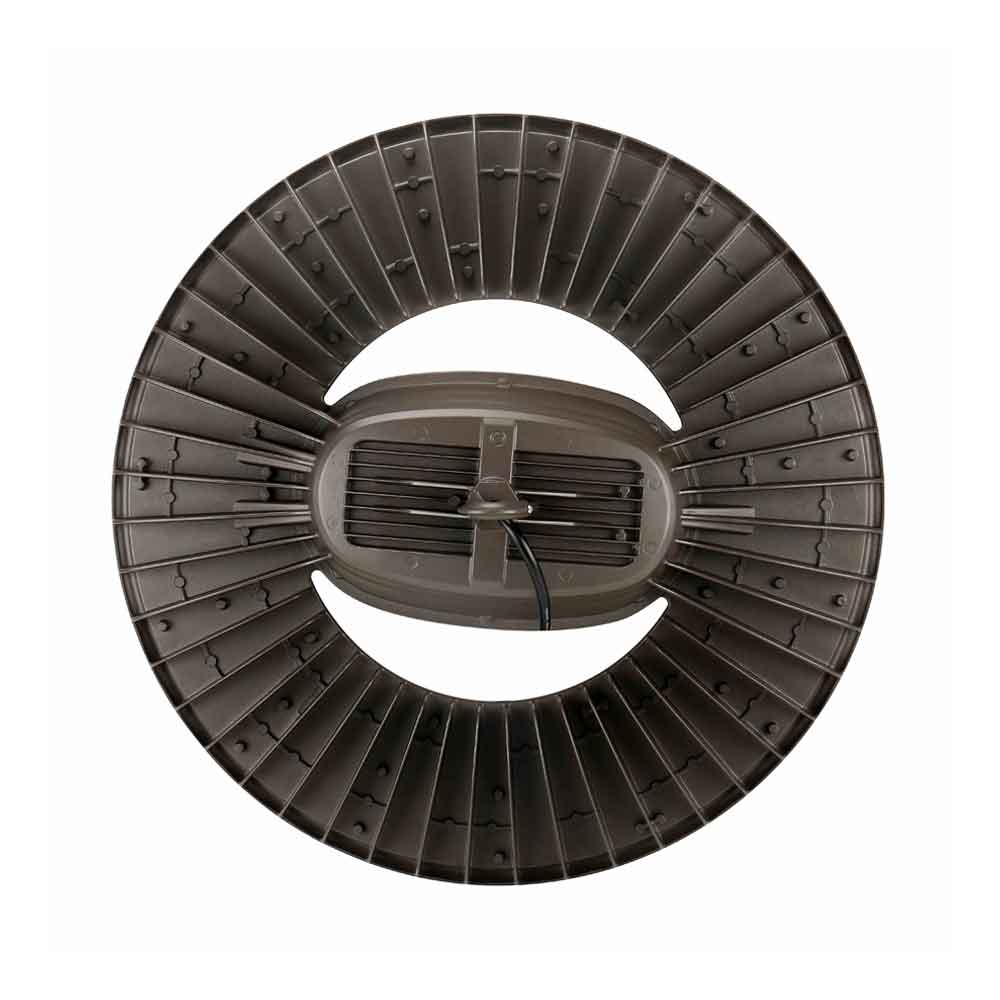

Durable die-cast aluminum housing with heat-dissipating fins for superior thermal management and long-term reliability. Dark bronze polyester powder-coat finish for corrosion resistance in demanding environments. 120° lens for uniform light distribution. Dimensions: Ø24.25" × 7.47"H (Ø616mm × 189.7mm). Weight: 17.32 lbs (7.858 kg).
Installation & Mounting

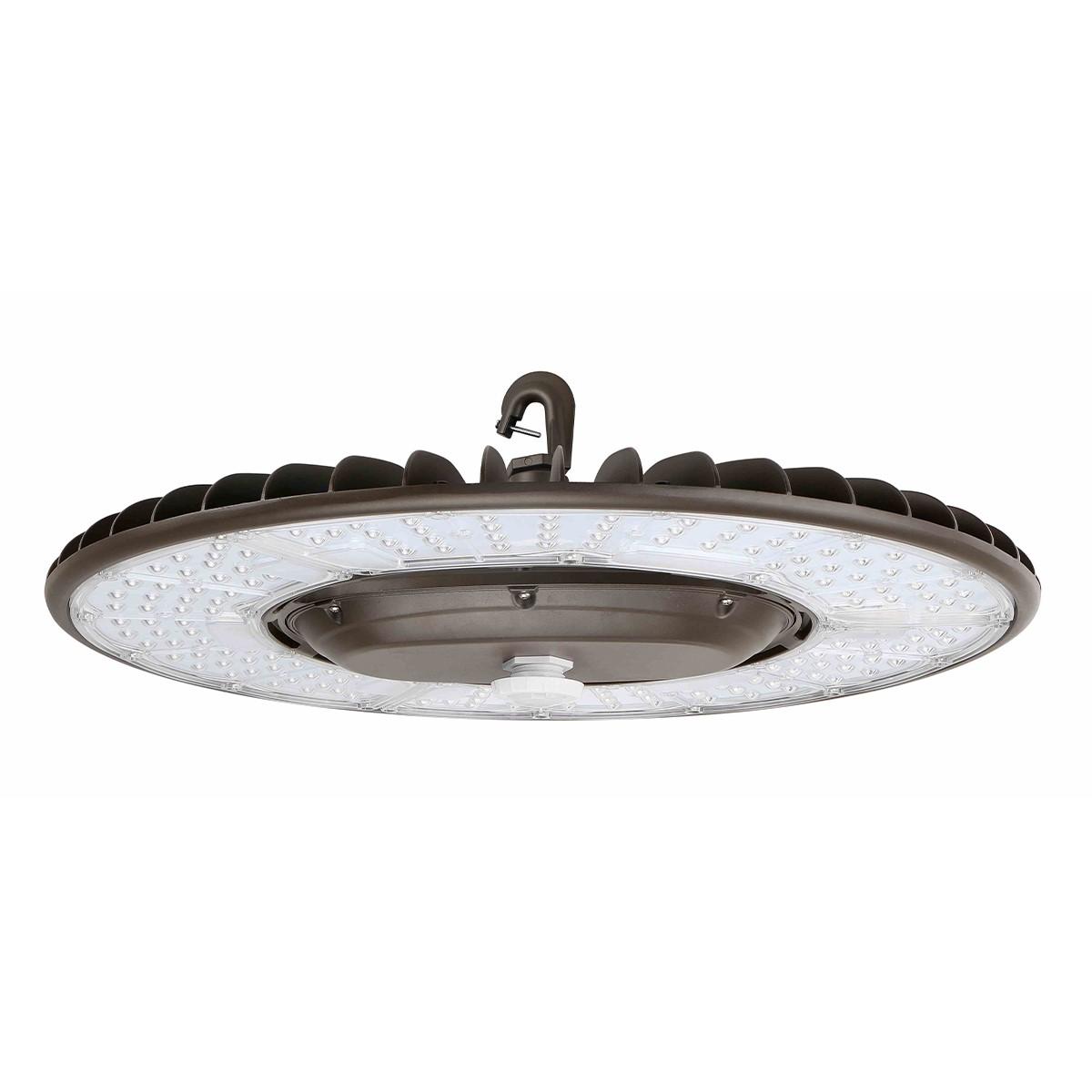

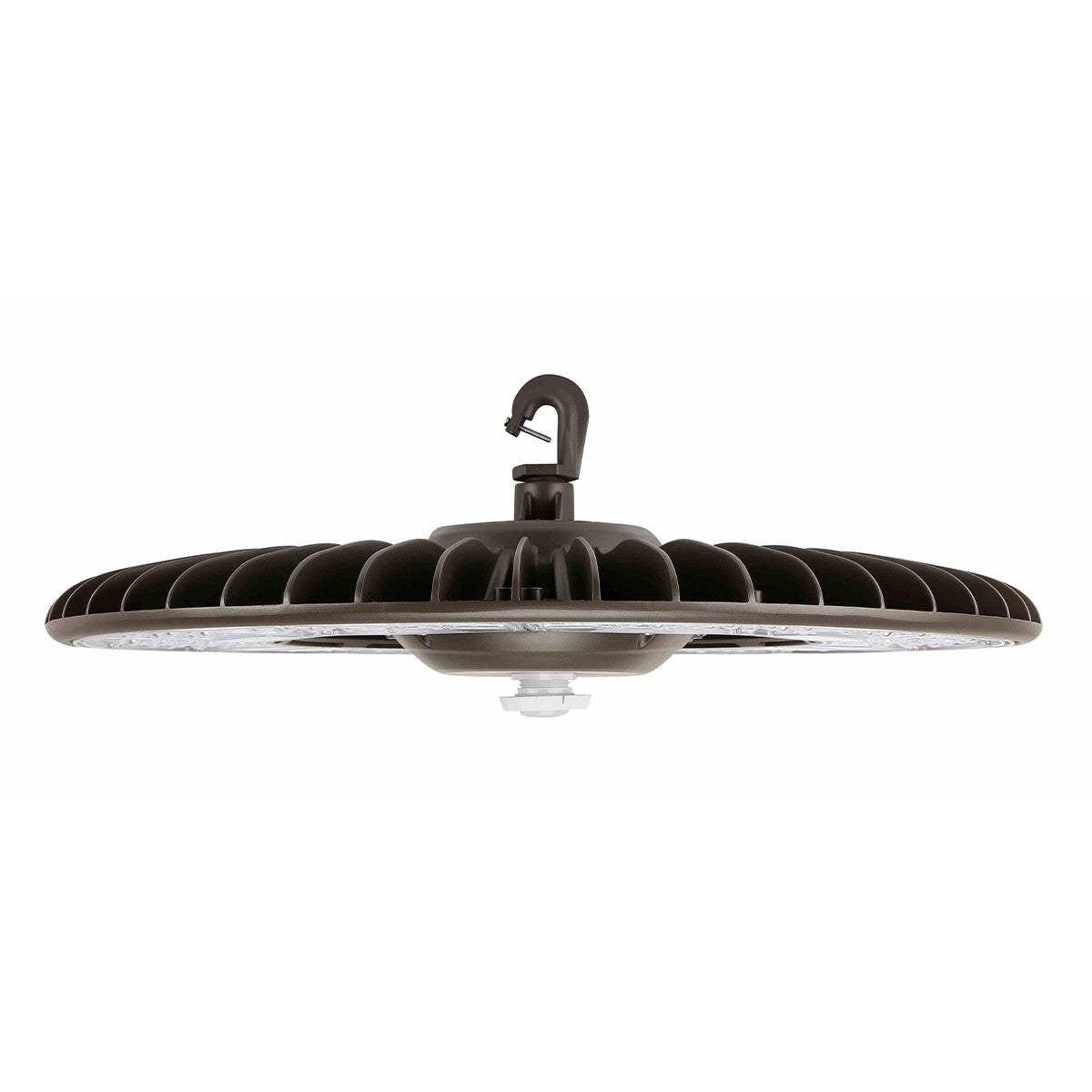

Two mounting methods supported: hook mount (pre-installed) and 3/4" conduit pendant mount. Recommended ceiling height by wattage setting: 140W — 20–28 ft | 210W — 25–35 ft | 280W — 30–40 ft | 350W — 35–45 ft.
- Mounting Options: Hook (pre-installed), 3/4" conduit pendant mount
- Sensors: MSANT12VPH01 (PIR), MSANT12VMH01 (Microwave), Bluetooth variants — sold separately
Certifications & Rebates
UL cUL listed for wet locations. DLC Premium listed — eligible for utility rebate programs in most U.S. states and Canadian provinces. Verify eligibility at designlights.org. TAA compliant for federally funded projects.
Typical Applications
- High-Ceiling Warehouses & Distribution Centers: 62,000 lm at 350W covers the tallest racking and widest bays in high-cube distribution facilities
- Large Manufacturing & Heavy Industrial Facilities: Wet-location rating and 65°C ambient tolerance handle extreme production floor environments
- Aircraft Hangars: Ultra-high output and large 24.25" aperture deliver uniform coverage across the widest spans
- Municipal & Government Facilities: TAA compliant — qualifies for federally funded retrofit and new construction projects
- Commercial Garages & Auto Service: 5000K daylight CCT maximizes color contrast for inspection and detail work
- Stadiums & Arena Facilities: 62,000 lm / 350W handles the highest gymnasium, arena, and indoor sports venue ceilings
What's Included
- GLT HBUL-350W-UV-50K-D10 UFO LED High Bay with integrated LED engine, driver, and wattage adjustment dial
- Pre-installed hook mount
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the GLT HBUL-350W rated for outdoor or wet locations?
Is the GLT HBUL-350W rated for outdoor or wet locations?
Can I adjust the wattage after installation?
Can I adjust the wattage after installation?
What sensors are compatible, and how do they install?
What sensors are compatible, and how do they install?
What does the 100,000-hour rated life mean in practice?
What does the 100,000-hour rated life mean in practice?
Is this fixture DLC listed, and how do I check rebate eligibility?
Is this fixture DLC listed, and how do I check rebate eligibility?
