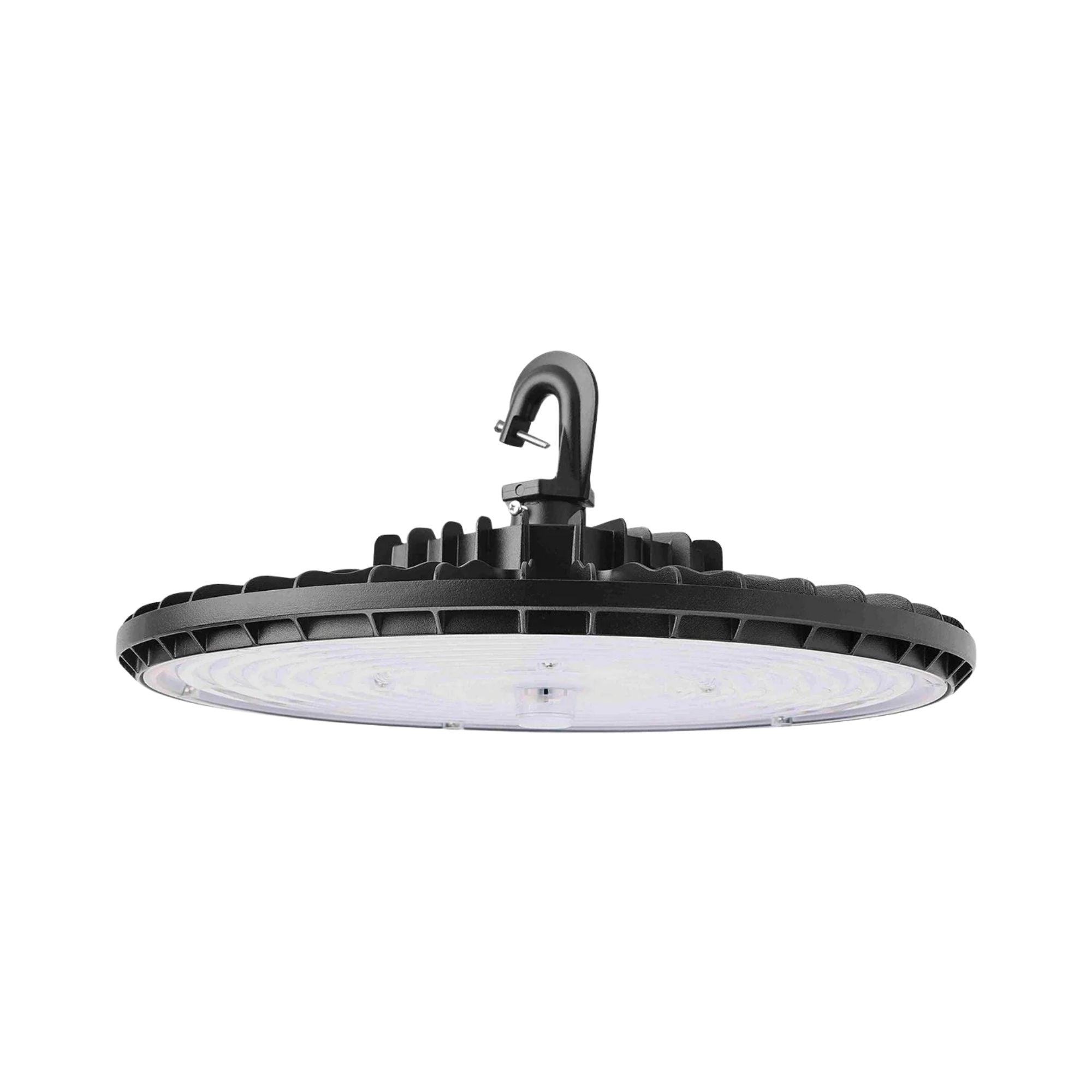

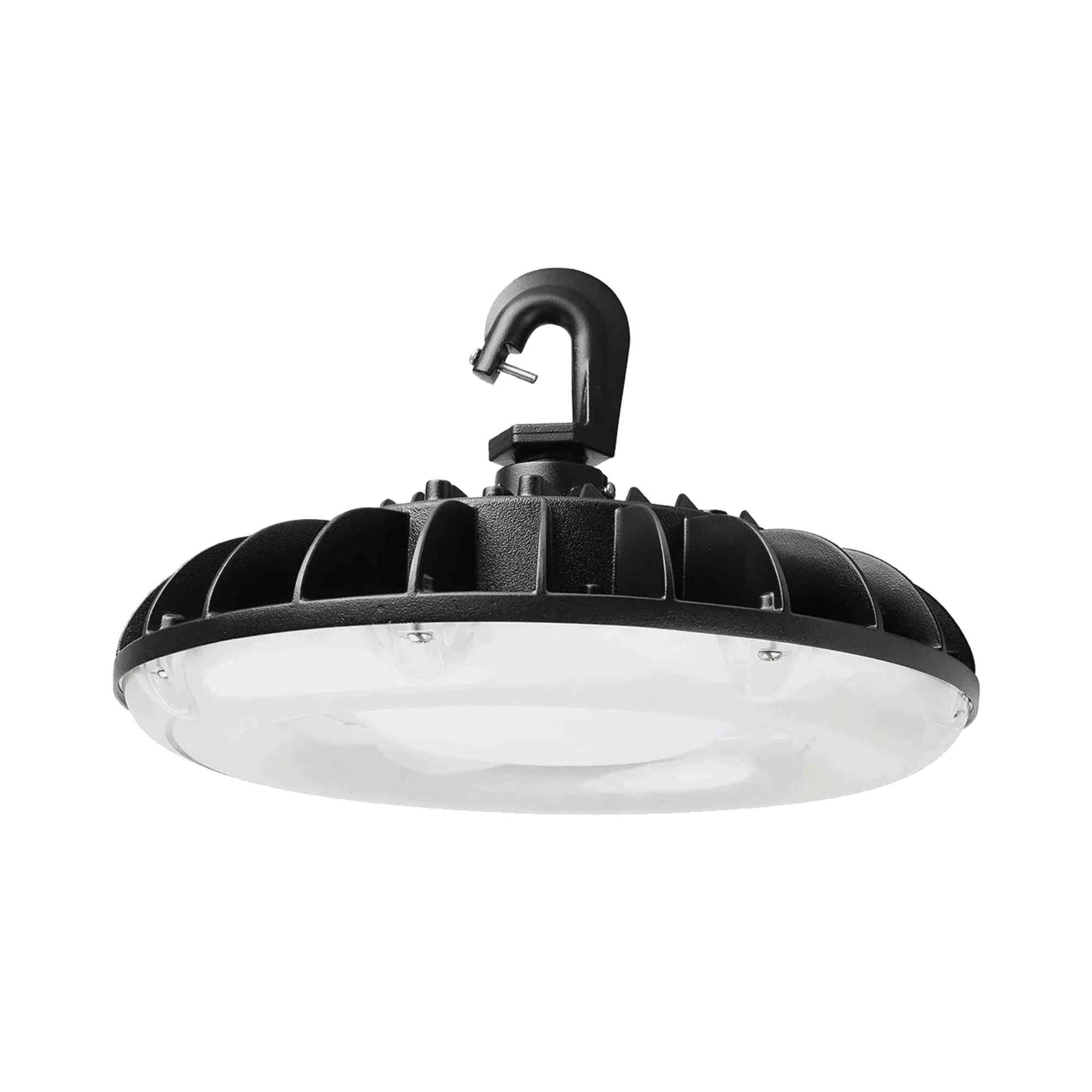

The GLT HBU Series is a family of compact, round, field-adjustable UFO LED high bays engineered for commercial and industrial facilities of every size. Three models — HBU-150W, HBU-200W, and HBU-240W — cover the full range from mid-size warehouses and manufacturing floors to large industrial and municipal facilities. Every model features four selectable wattage steps (40% / 60% / 80% / 100%) and tri-selectable CCT (3000K / 4000K / 5000K), adjustable on-site via built-in switches before installation. Universal 120–277V input standard; optional Transformer Box converts any model to 347–480V without stocking a separate SKU. CRI 70, UL cUL wet location listed, DLC Premium listed, and cold-start rated to -40°C across the entire family. Backed by a 5-year manufacturer warranty.

Model Selection Guide

• HBU-150W-UV-CCT — 60W / 90W / 120W / 150W: 9,800–24,000 lm (4000K peak) | 180 lm/W peak | Ø10.7" × 7.5"H | Ceiling: 10–25 ft | Replaces up to 550W MH
• HBU-200W-UV-CCT — 84W / 126W / 168W / 210W: 14,500–32,000 lm (4000K peak) | 173 lm/W peak | Ø14.1" × 7.5"H | Ceiling: 10–30 ft | Replaces up to 1000W MH
• HBU-240W-UV-CCT — 92W / 138W / 184W / 230W: 16,500–36,000 lm (4000K peak) | 179 lm/W peak | Ø14.1" × 7.5"H | Ceiling: 12–32 ft | Replaces up to 750W MH

Key Features — All Models

• Field-Selectable Wattage: Four steps (40% / 60% / 80% / 100%) — right-size output for ceiling height without stocking multiple SKUs
• Field-Selectable CCT: 3000K / 4000K / 5000K — set color temperature on-site before installation
• CRI: 70 across all models, wattage, and CCT settings
• Dimming: 0–10V dimmable driver standard (100% to 10% minimum) on all models
• Universal Voltage: 120–277V AC standard — optional Transformer Box for 347–480V conversion
• Power Factor / THD / Surge: PF >90%, THD <20%, 6kV surge protection — all models
• Location Rating: UL cUL wet location listed — all models
• Cold-Start Rated: -40°C to +45°C (-40°F to +113°F) — all models
• Optics: Anti-UV prismatic translucent lens for uniform distribution and glare control
• Rated Life: 50,000 hours (IES LM-80 / TM-21)
• Certifications: DLC Premium, UL cUL Listed, TAA Compliant — all models
• Warranty: 5-year manufacturer warranty

Performance & Light Output

Lumen output varies by CCT across all models — 4000K delivers the highest output at every wattage setting. HBU-150W: 150W/24,000 lm/160 lm/W → 60W/10,800 lm/180 lm/W (4000K). HBU-200W: 210W/32,000 lm/152 lm/W → 84W/14,500 lm/173 lm/W (4000K). HBU-240W: 230W/36,000 lm/157 lm/W → 92W/16,500 lm/179 lm/W (4000K). All models maintain CRI 70 and 50,000-hour rated life per IES LM-80 / TM-21 projections.

Smart & Control Features

All HBU models share the same plug-and-play sensor platform via the integrated sensor receptacle:

• Plug-and-Play PIR Sensor: ANT-6-4T (standard) | ANT-6-4T-BLE-SR (Bluetooth) — sold separately
• Plug-and-Play Microwave Sensor: ANT-5-4T (standard) | ANT-5-4T-BLE-SR (Bluetooth) — sold separately

Bluetooth variants enable wireless group control without a separate gateway. One sensor SKU covers the entire HBU family for simplified procurement.

Electrical

Universal 120–277V AC input on all models, 50/60Hz. 0–10V dimming from 100% to 10% minimum. PF >90%, THD <20%, 6kV surge protection. Operating temperature: -40°C to +45°C. Optional Transformer Box accessory converts any HBU model to 347–480V high-voltage input — installs into the junction box, eliminating the need to stock separate HV SKUs. TAA compliant.

Construction

All models feature rugged die-cast aluminum housing for superior thermal management, bronze corrosion-resistant powder-coat finish, and anti-UV prismatic translucent lens. HBU-150W: Ø10.7" × 7.5"H. HBU-200W and HBU-240W: Ø14.1" × 7.5"H.

Installation & Mounting

Hook mount is pre-installed on every model. Conduit pendant and U-bracket surface mount are available separately for all models.

• Emergency Battery: 15W 2000lm 90-min (HBU-150W) | 25W 3500lm 90-min (HBU-200W, HBU-240W) — sold separately
• Sensors: ANT-6-4T (PIR), ANT-5-4T (Microwave), Bluetooth variants — sold separately
• Aluminum Reflector: Available separately for enhanced directional control
• Transformer Box: Converts to 347–480V high-voltage input — sold separately
• U-Bracket: Surface mount kit — sold separately

Certifications & Rebates

All models UL cUL listed for wet locations. DLC Premium listed across the full HBU family — eligible for utility rebate programs in most U.S. states and Canadian provinces. Verify eligibility at designlights.org. TAA compliant. RoHS compliant.

Typical Applications

• Warehouses & Distribution Centers: Scale from HBU-150W for lower-bay storage to HBU-240W for large-footprint high-rack facilities up to 32 ft
• Manufacturing & Industrial Facilities: Wet-location rating and -40°C cold-start handle the full range of production floor environments
• Large Retail & Big-Box Spaces: Tri-CCT selection matches existing ambient lighting; selectable wattage avoids over-lighting lower-ceiling areas
• Municipal & Government Buildings: TAA compliant — qualifies for federally funded retrofit and new construction projects across all three models
• Commercial Garages & Auto Service: Uniform round UFO distribution improves visibility at any ceiling height
• Stadiums & Recreation Facilities: Right-size the model to ceiling height — HBU-150W for school gyms, HBU-240W for arenas

What's Included

• GLT HBU Series UFO LED High Bay (selected model) with integrated LED engine, driver, and field-selectable wattage/CCT switches
• Pre-installed hook mount
