GLT Sports Stadium Light 120000 Lumens 850W 5700K 480V NEMA 4Hx4V Trunnion
Available in stock (100)
About this item
About this item
- Lumens: Delivers an impressive 120000 lumens for high-output lighting needs.
- Wattage: Operates at 850 watts, ensuring powerful illumination.
- Voltage: Compatible with 480V input, suitable for high-voltage applications.

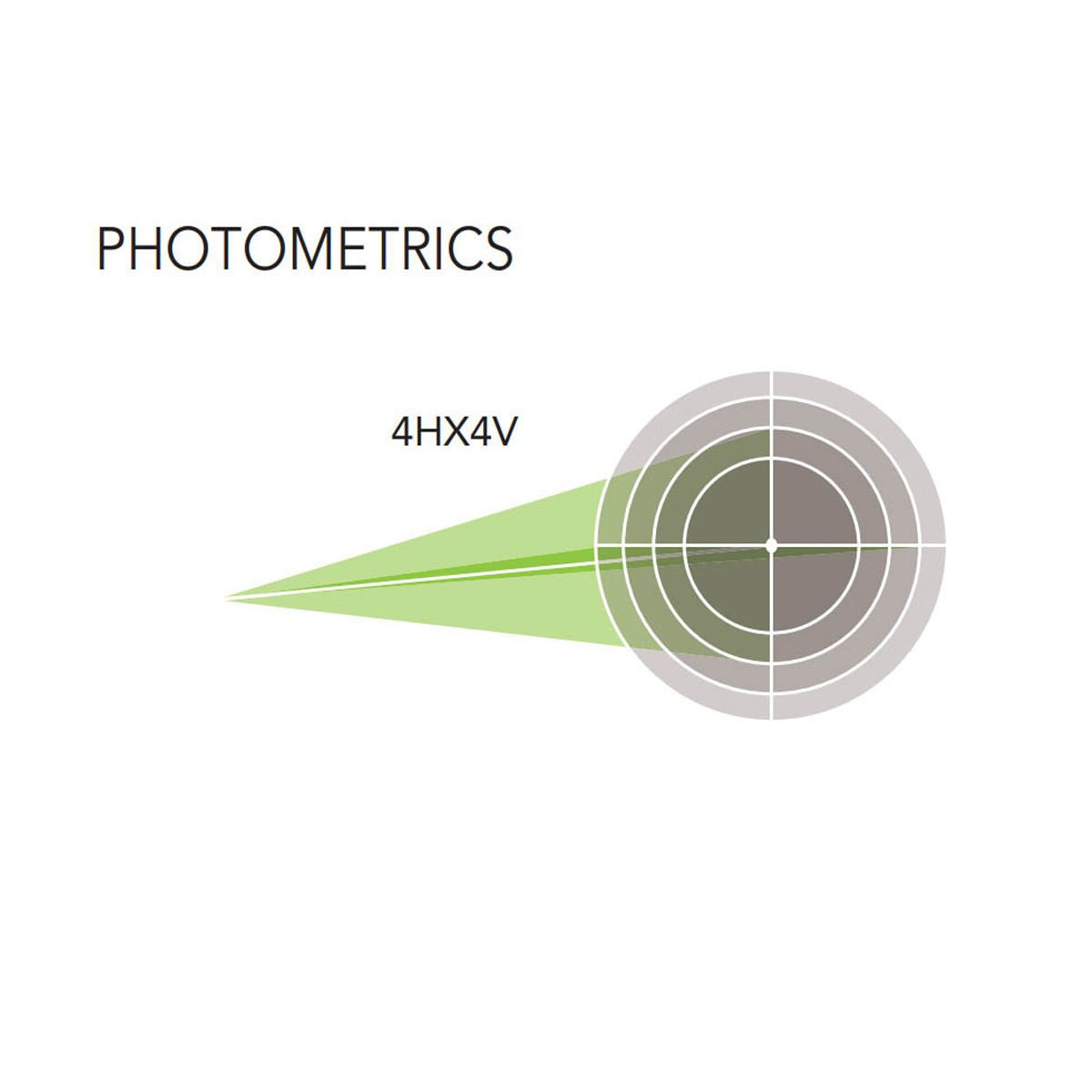

- Beam Angle: Features a 4Hx4V beam angle for precise light distribution.
- Environmental Rating: IP66 rated for protection against dust and water ingress.
We process payments securely and do not store credit card information.
Description
Description

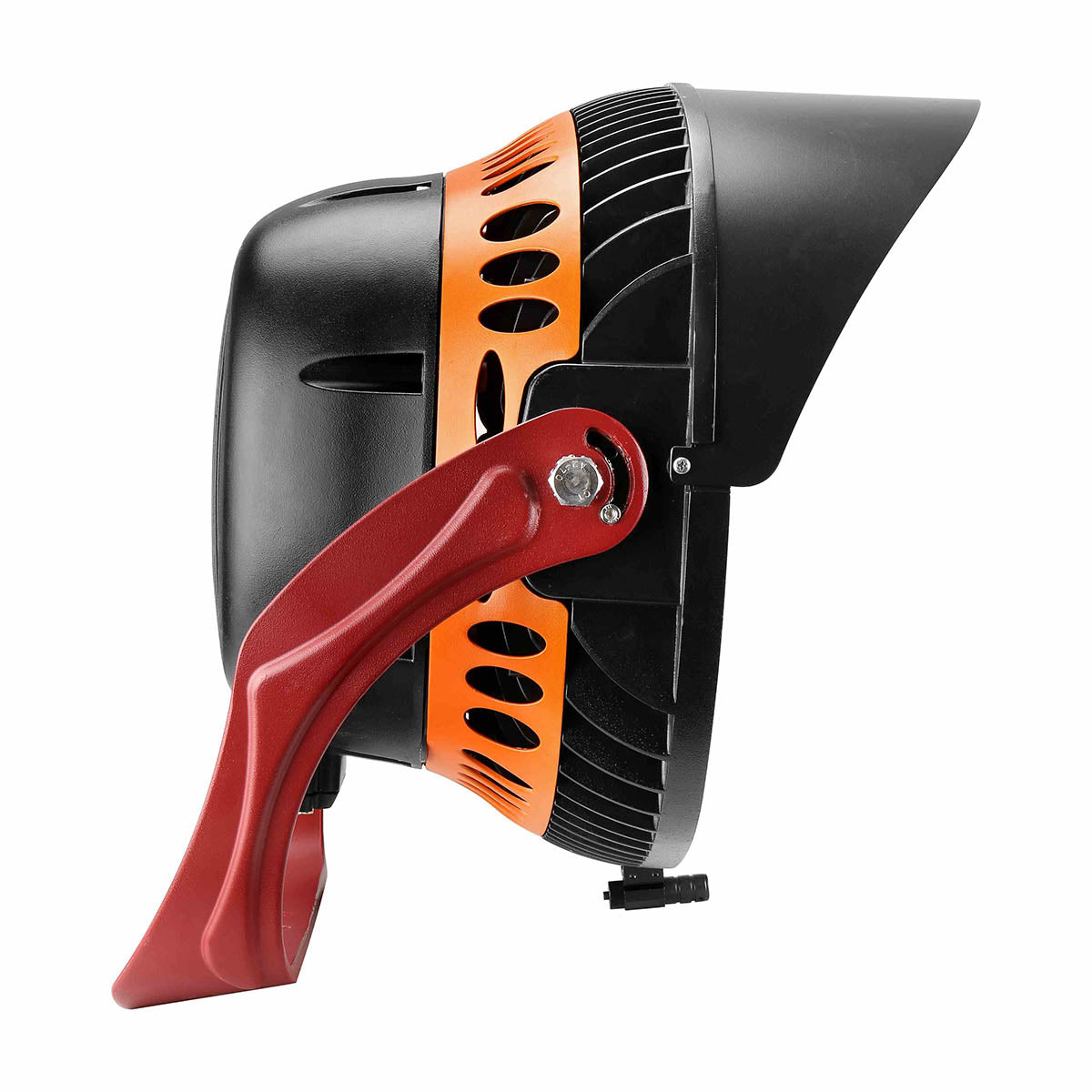

GLT GSL Stadium Light Flood Light — 850W Configuration

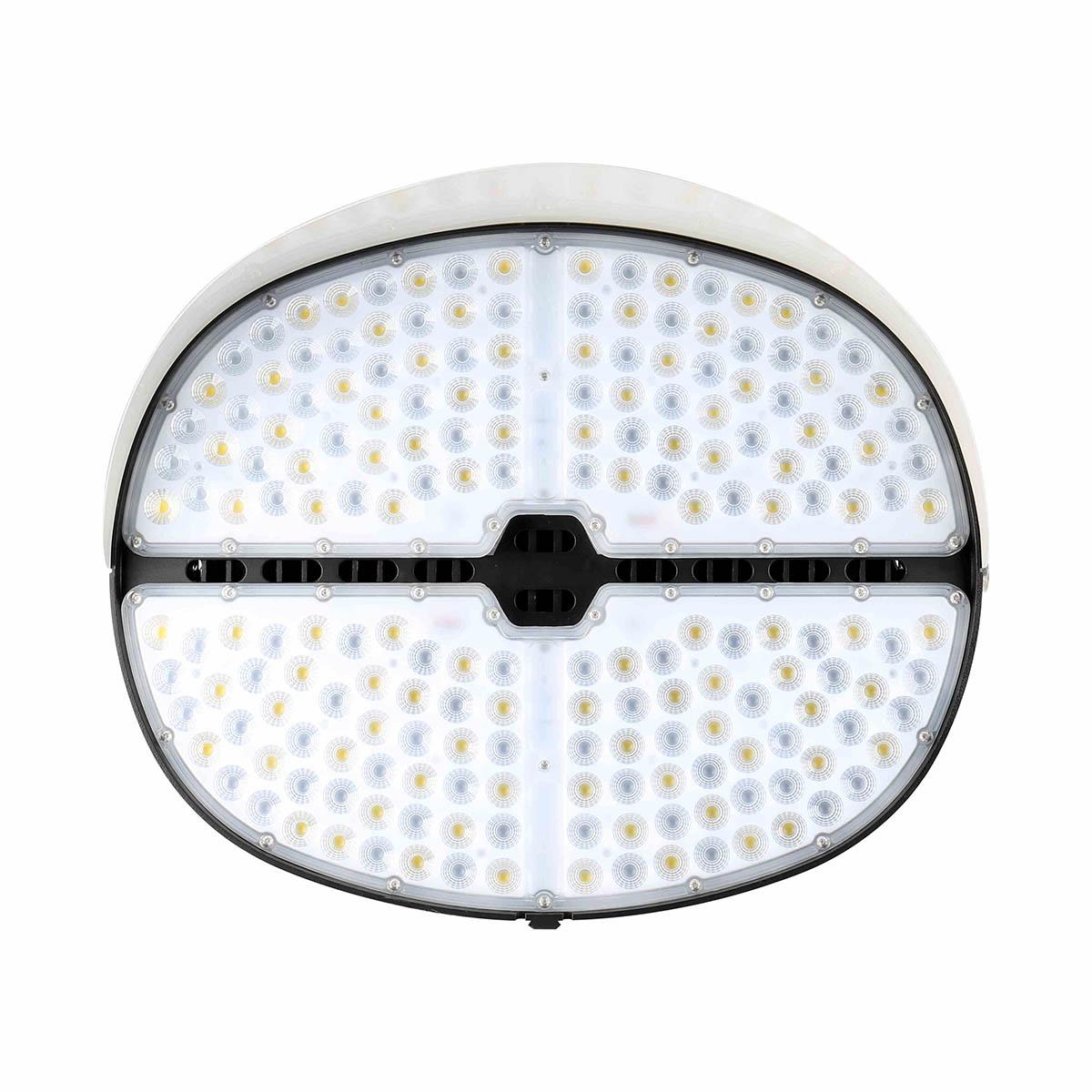

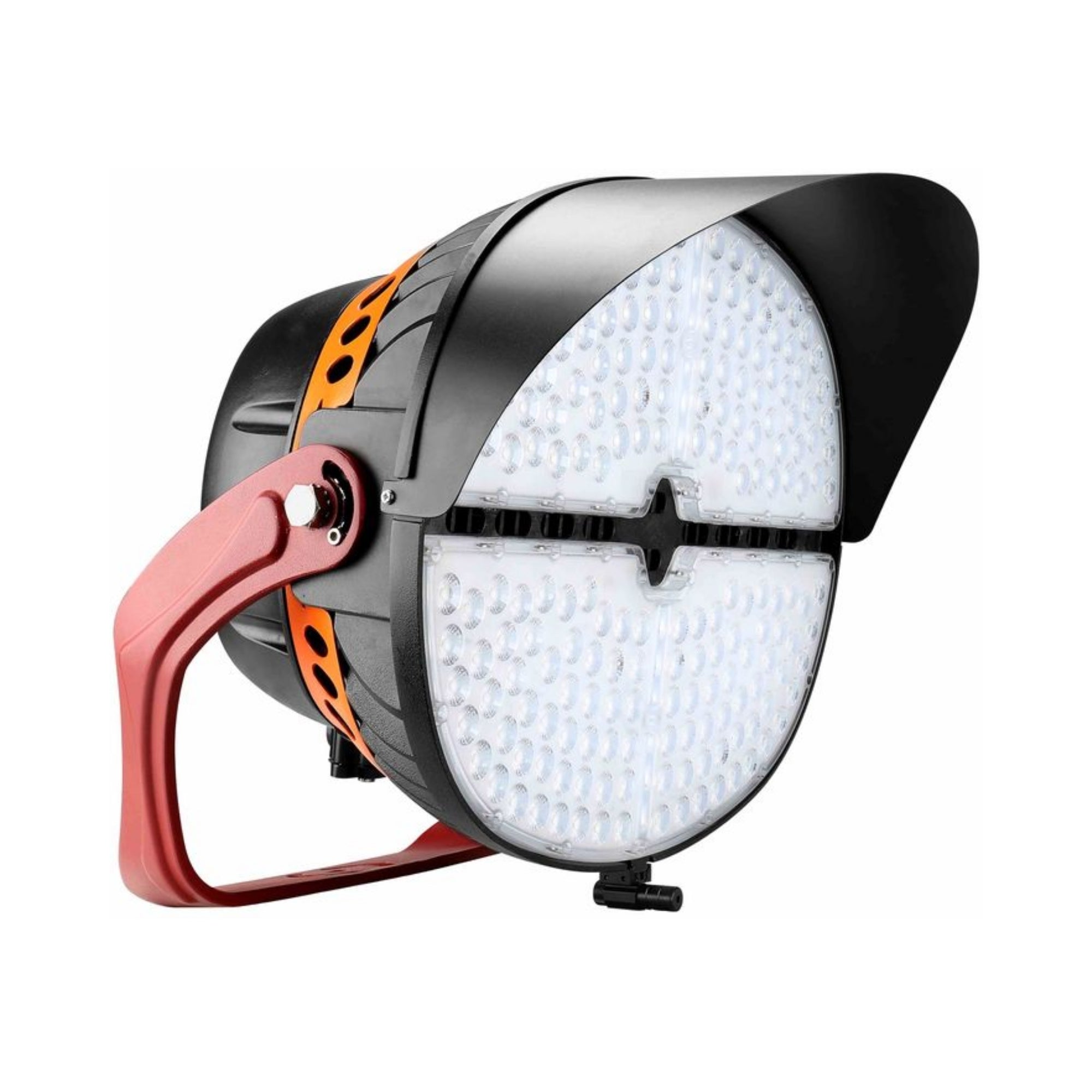

The GLT MSL01 Stadium Light, model GSL-800W-HV-50K-TR, is a robust flood light delivering 850 watts of power and 120000 lumens of brightness. Designed for 480V systems, it is ideal for outdoor sports lighting applications, offering a 5700K color temperature. This fixture is IP66 rated, ensuring durability in challenging environments.
Key Features
- Sealed Construction: The die-cast housing is sealed to protect against moisture and contaminants.
- Vibration Rated: Designed to withstand 3G vibration, minimizing wind load requirements.
- Optical Precision: Engineered optics maximize efficiency and application spacing.
- Surge Protection: Built-in surge suppression up to 40KV for enhanced driver protection.
- Long Lifespan: Estimated 100,000-hour LED lifespan based on IES LM-80 results.
- Dimming Capability: Standard 0-10V dimming driver for adjustable light output.
- High Efficacy: Offers high lumens per watt efficiency for energy savings.
- Wide Temperature Range: Operates in temperatures from -40? to 131?.
- DesignLights Consortium™ Qualified: Meets DLC standards for performance and efficiency.
- UL cUL Listed: Certified for wet locations, ensuring safety and reliability.
Typical Applications
- Municipal Sports Fields
- School Athletic Facilities
- Semi-Professional Sports Venues
- Outdoor Arenas
- Large Outdoor Event Spaces
Performance & Light Output

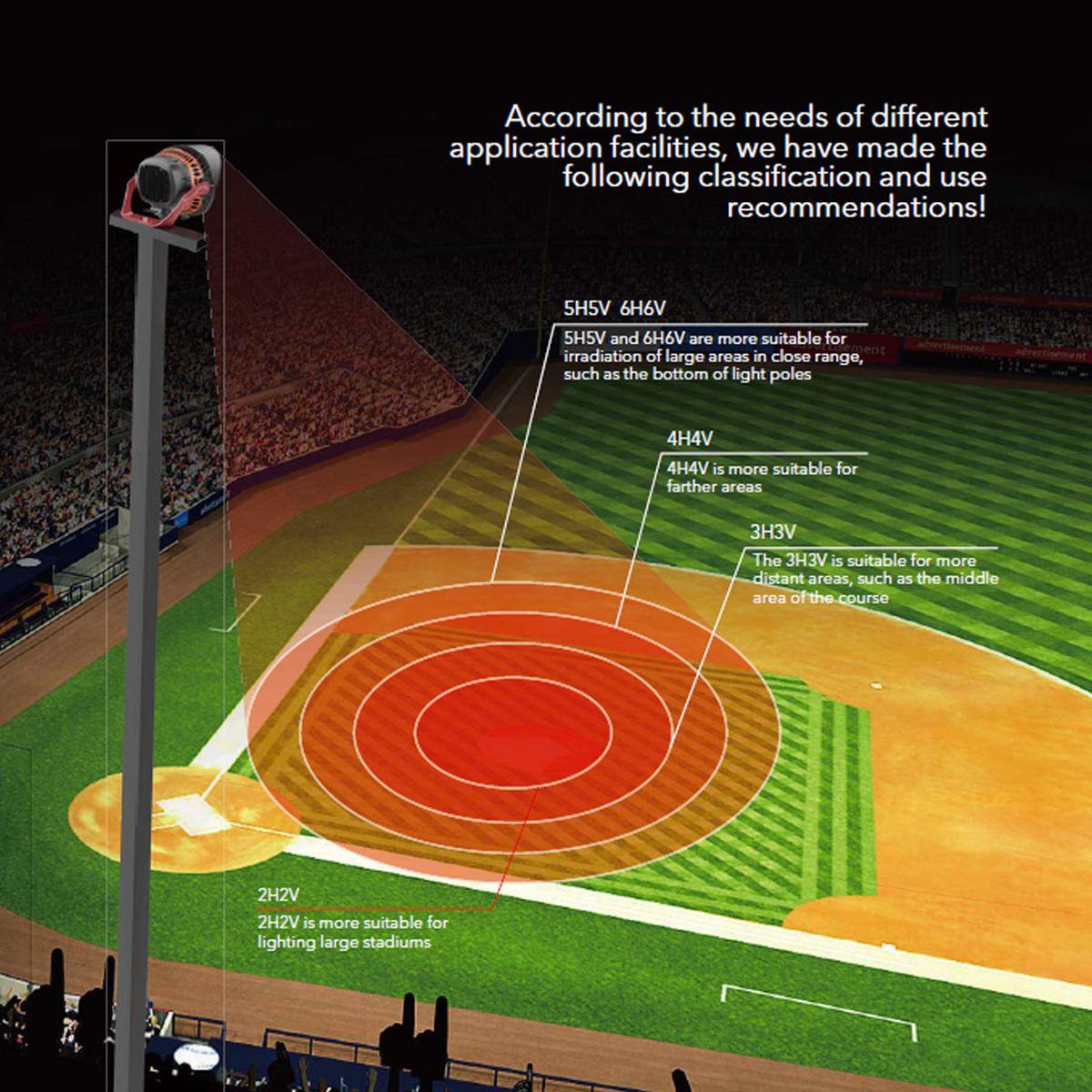

This flood light provides a high lumen output of 120000 lumens with a beam angle of 4Hx4V, ensuring broad and even coverage. It maintains a high efficacy, delivering optimal light distribution for large areas.
Electrical & Controls
Designed for 480V systems, this fixture includes a 0-10V dimming driver and built-in surge protection up to 40KV. It supports a power factor of ?90% and THD ?20%.
Construction & Durability
The housing is constructed from die-cast aluminum, providing IP66 protection against dust and water. It is designed to operate in extreme temperatures, ensuring reliability in various environments.
Installation & Mounting

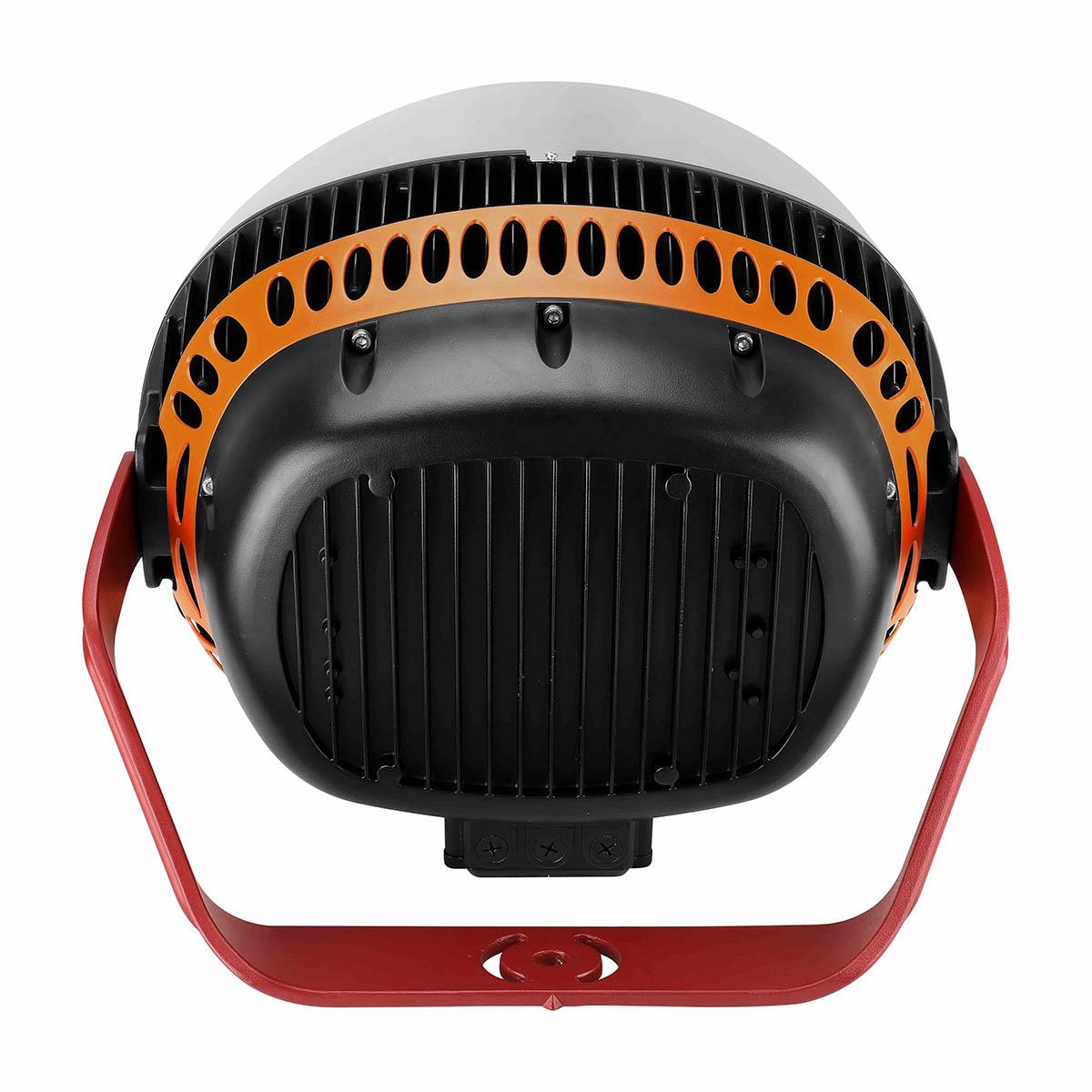

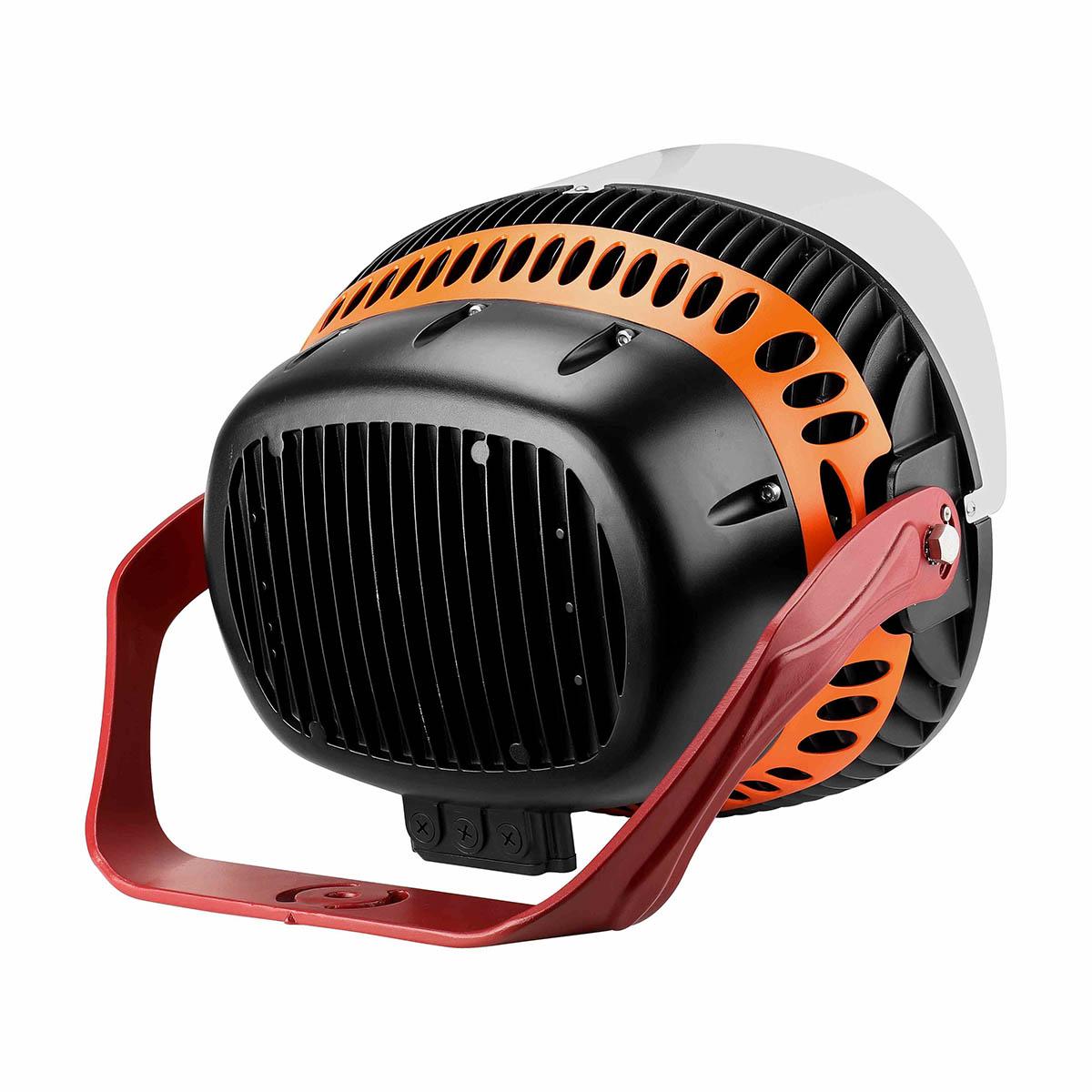

Features a versatile trunnion mount for easy installation. Optional accessories include a yoke adapter for mounting on a 2 3/8'' tennon.
What's Included
- Flood Light Fixture
- Trunnion Mount
Specifications
Specifications

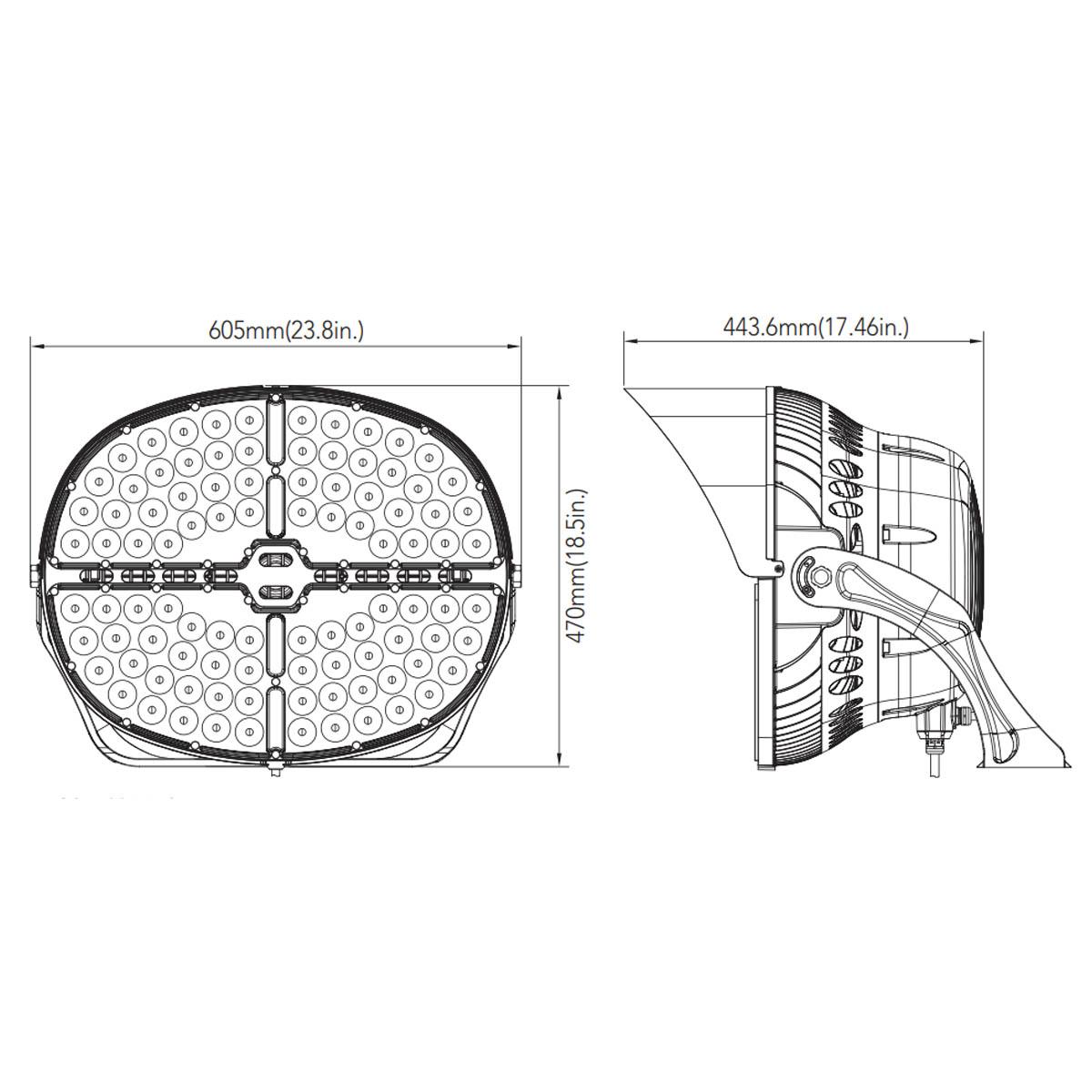

Dimensions
