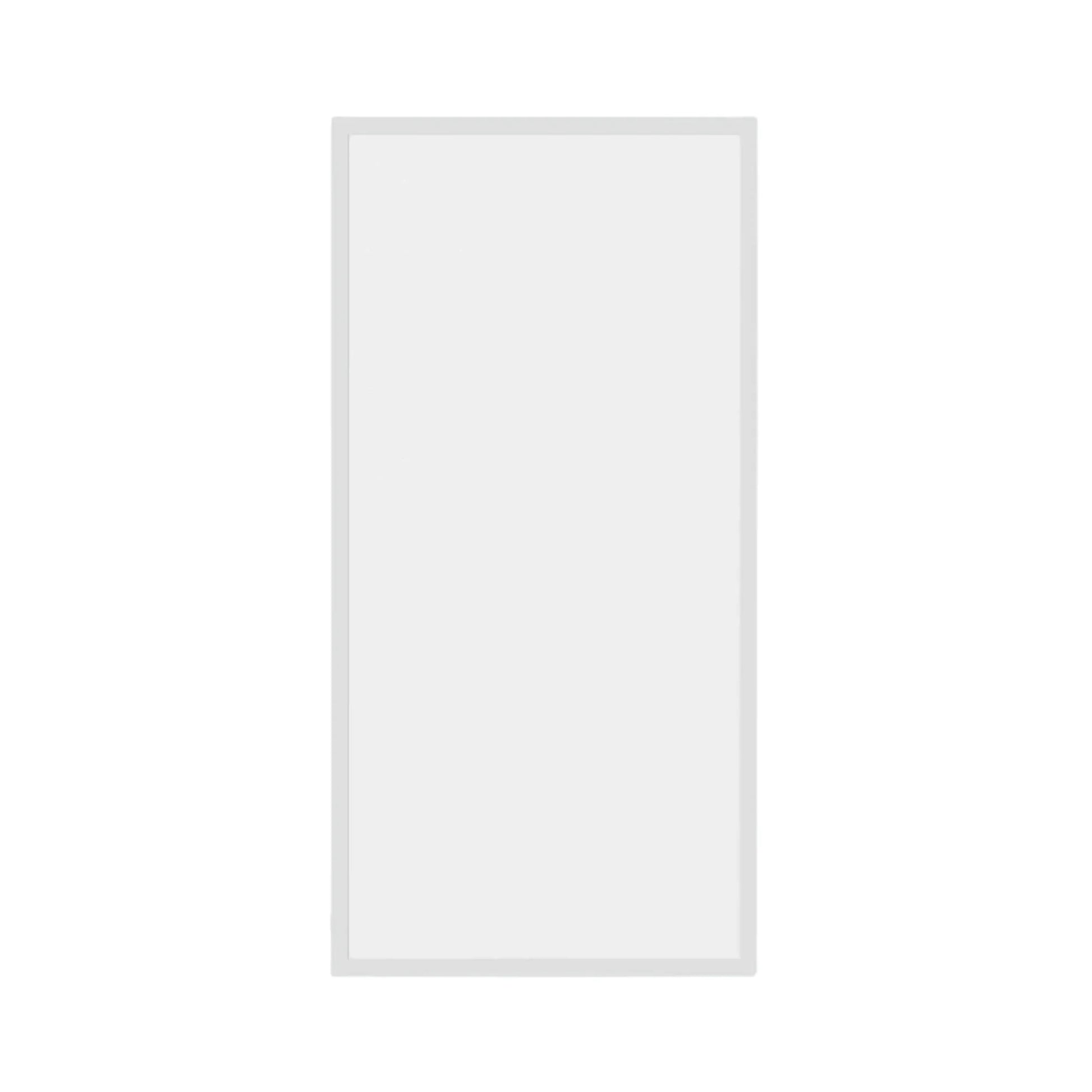

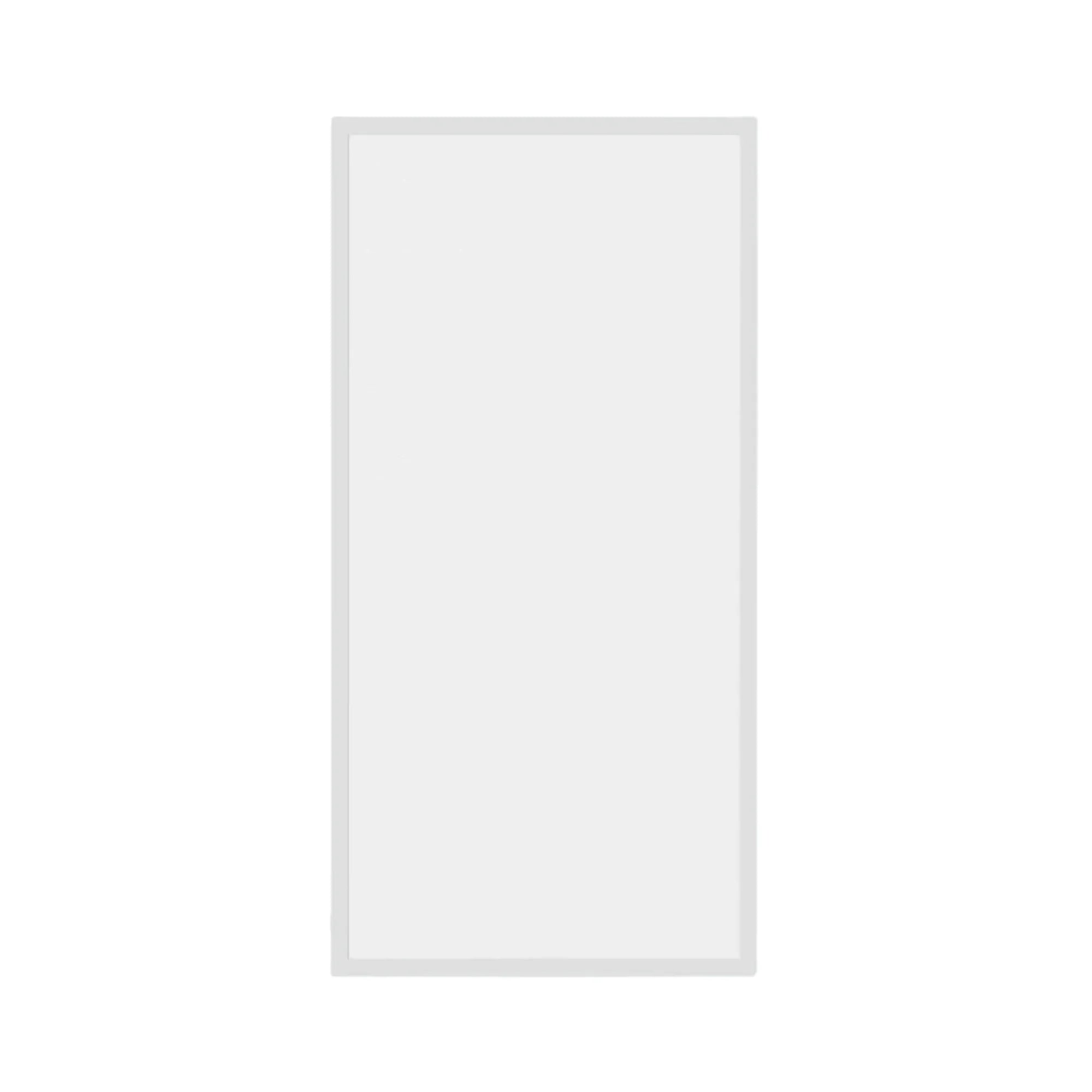

GLT FPS24-60L-CCT-D10 LED Flat Panel — 2×4 — 30/40/50W Selectable — 3500K/4000K/5000K — White

The GLT FPS24-60L-CCT-D10 is a 2×4 LED flat panel with field-selectable wattage and color temperature. Wattage is selectable between 30W (LV3), 40W (LV2), and 50W (LV1); color temperature is selectable between 3500K, 4000K, and 5000K — both adjusted via switches on the driver. Maximum output is 6,100 lumens at 50W with up to 127 lm/W peak efficacy at the 30W setting. The fixture delivers a 120° beam angle, supports 0–10V dimming, operates on 120–277V, and is DLC Premium Listed — qualifying for the highest tier of utility rebate programs.

Key Features

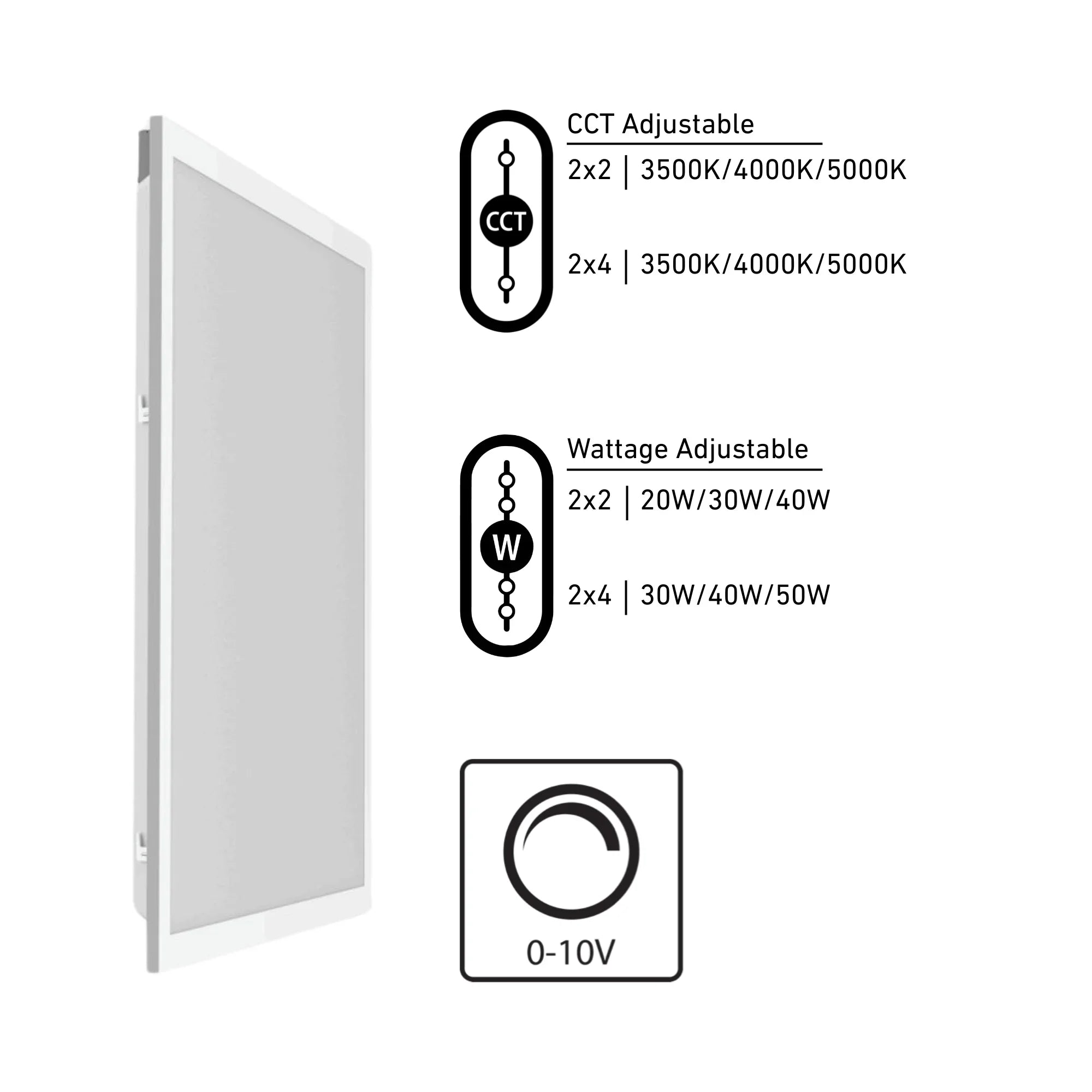

• Selectable Wattage: Field-selectable between 30W (LV3), 40W (LV2), and 50W (LV1) via switches on the driver — no rewiring required.
• Wattage Equivalency: Replaces traditional fluorescent 2×4 systems with up to significant energy savings across all three wattage settings.
• Maximum Lumen Output: Up to 6,100 lumens at 50W (LV1).
• Peak Efficacy: Up to 127 lm/W at 30W (LV3).
• CRI: >80.
• Selectable CCT: Field-selectable between 3500K, 4000K, and 5000K via switches on the driver — no tools required.
• Lens & Optics: Flat panel diffuser lens — 120° beam angle delivering even, glare-controlled illumination across the ceiling grid opening.
• Dimming: 0–10V continuous dimming. Compatible dimmer required, sold separately.
• Voltage: 120–277V universal voltage driver.
• Location Rating: Suitable for dry and damp location installations.
• Operating Temperature: Refer to spec sheet for rated ambient temperature range.
• Certifications: DLC Premium Listed — ETL Listed — FCC.
• Rated Life: L70 50,000 hours.
• Warranty: 5-year limited warranty.
• Optional Accessories: Compatible with plug-in PIR sensor (12–24VDC, sold separately) and field-installable emergency battery backup (8W, 900 lm, 90 min, sold separately).

Performance & Light Output

At 30W (LV3), the FPS24-60L-CCT-D10 delivers 3,800 lumens at a peak efficacy of 127 lm/W. At 40W (LV2), output reaches 4,900 lumens at 123 lm/W. At maximum 50W (LV1), output is 6,100 lumens at 122 lm/W. All wattage settings support 3500K, 4000K, and 5000K selectable CCT with a 120° beam angle. CRI: >80. L70 rated life: 50,000 hours.

Smart & Control Features

The FPS24-60L-CCT-D10 supports 0–10V continuous dimming via the onboard driver. An optional plug-in PIR sensor (12–24VDC input) is available separately — factory default settings: 100% sensitivity, hold time 5 min, dimming level 30%, dimming time 60 minutes. Daylight sensor function is included. A compatible 0–10V dimmer is required for dimming control, sold separately.

Electrical

Input voltage: 120–277V. Dimming: 0–10V. Beam angle: 120°. CRI: >80. L70 rated life: 50,000 hours. Mercury-free.

Construction

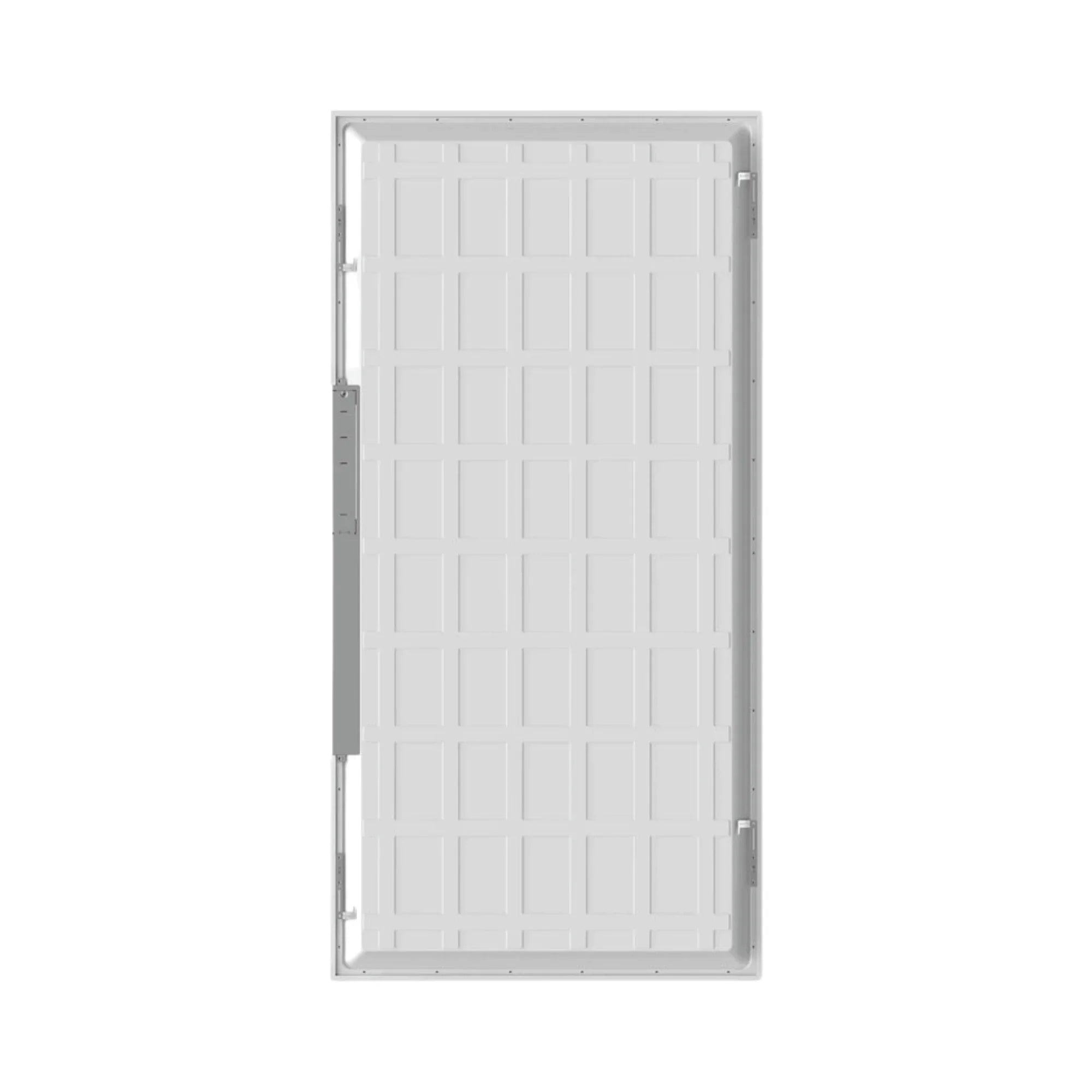

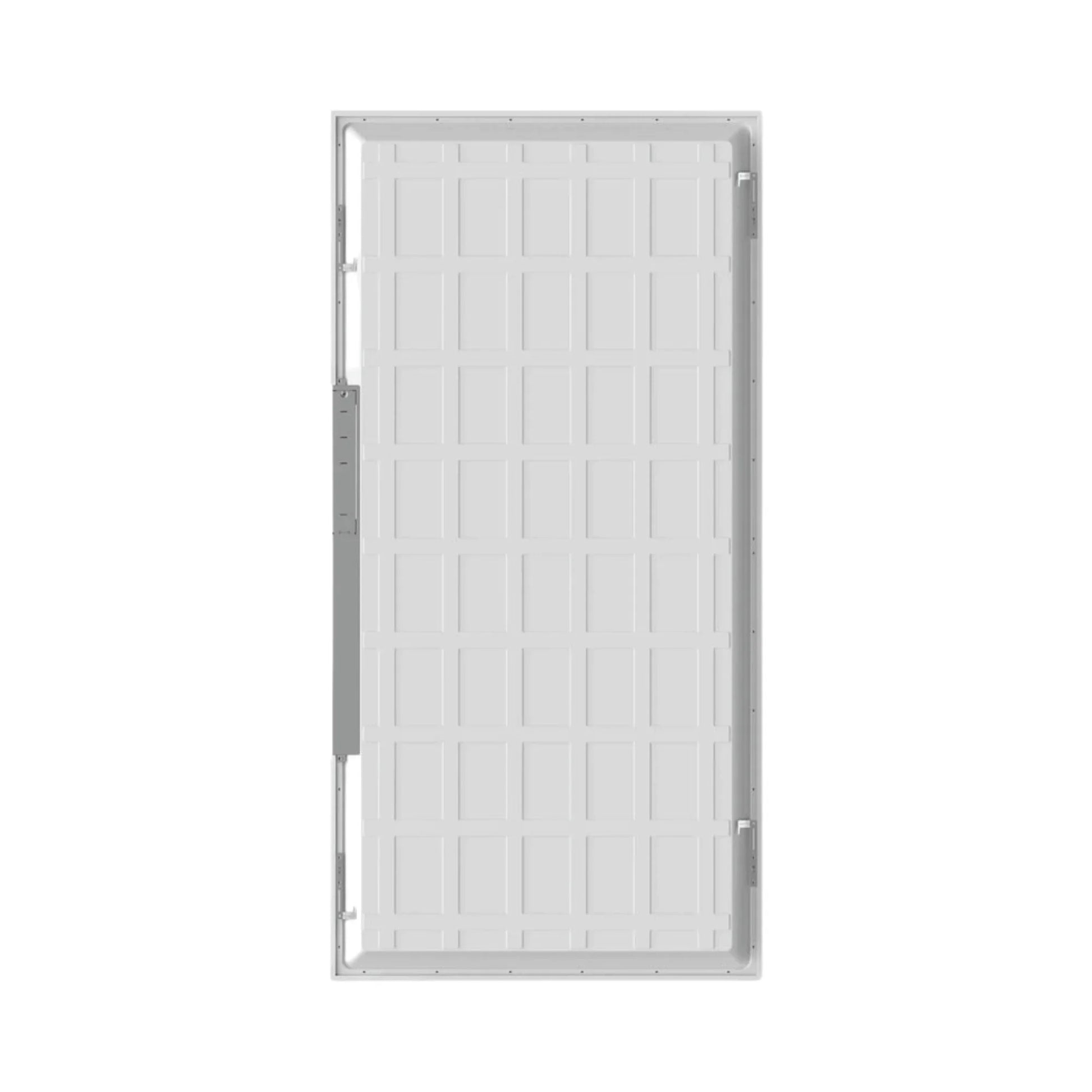

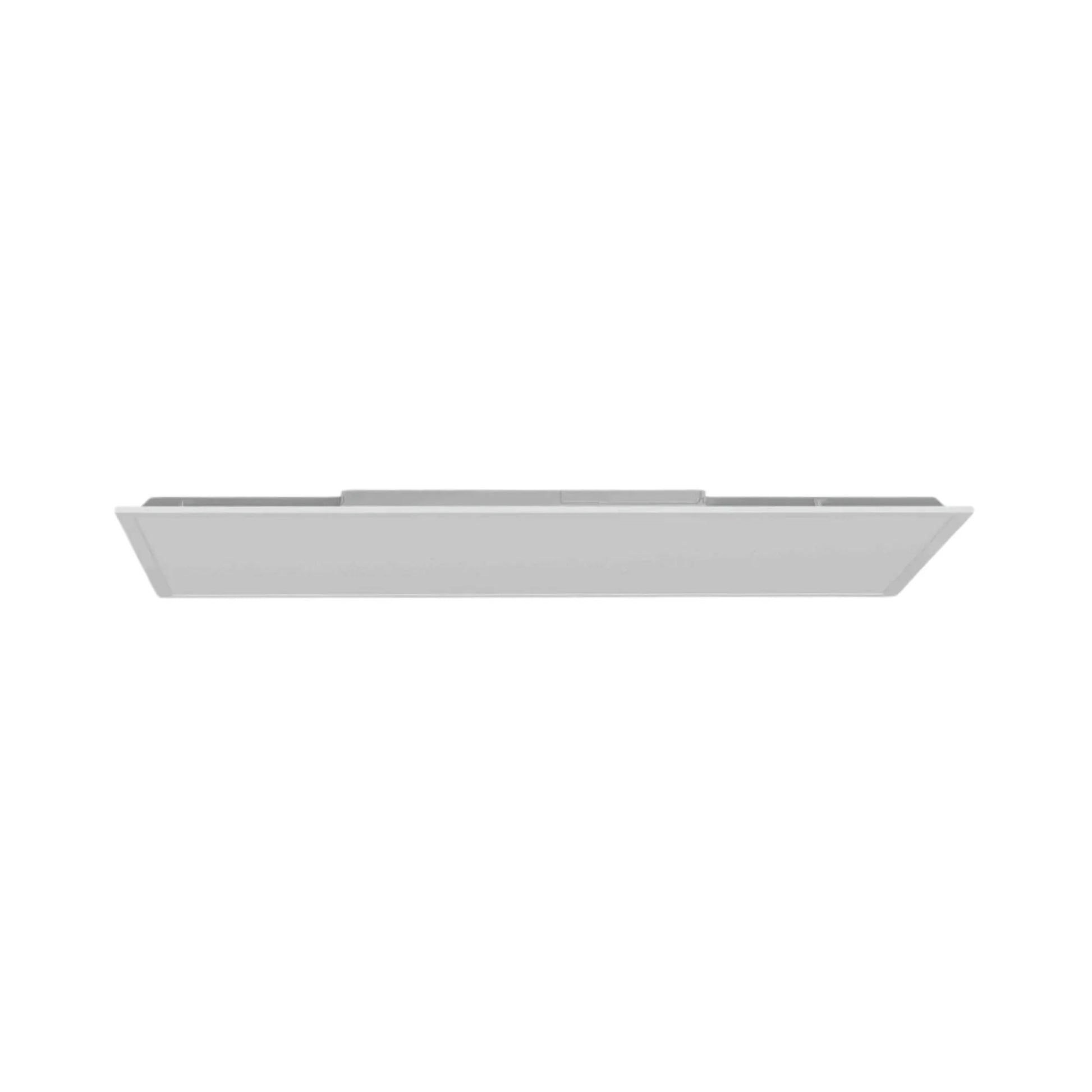

Housing & Thermal: Low-profile flat panel housing. Depth: 1.41″ (36mm).

Lens & Optics: Flat panel diffuser — 120° beam angle with even, glare-controlled light distribution across the full panel surface.

Finish: White.

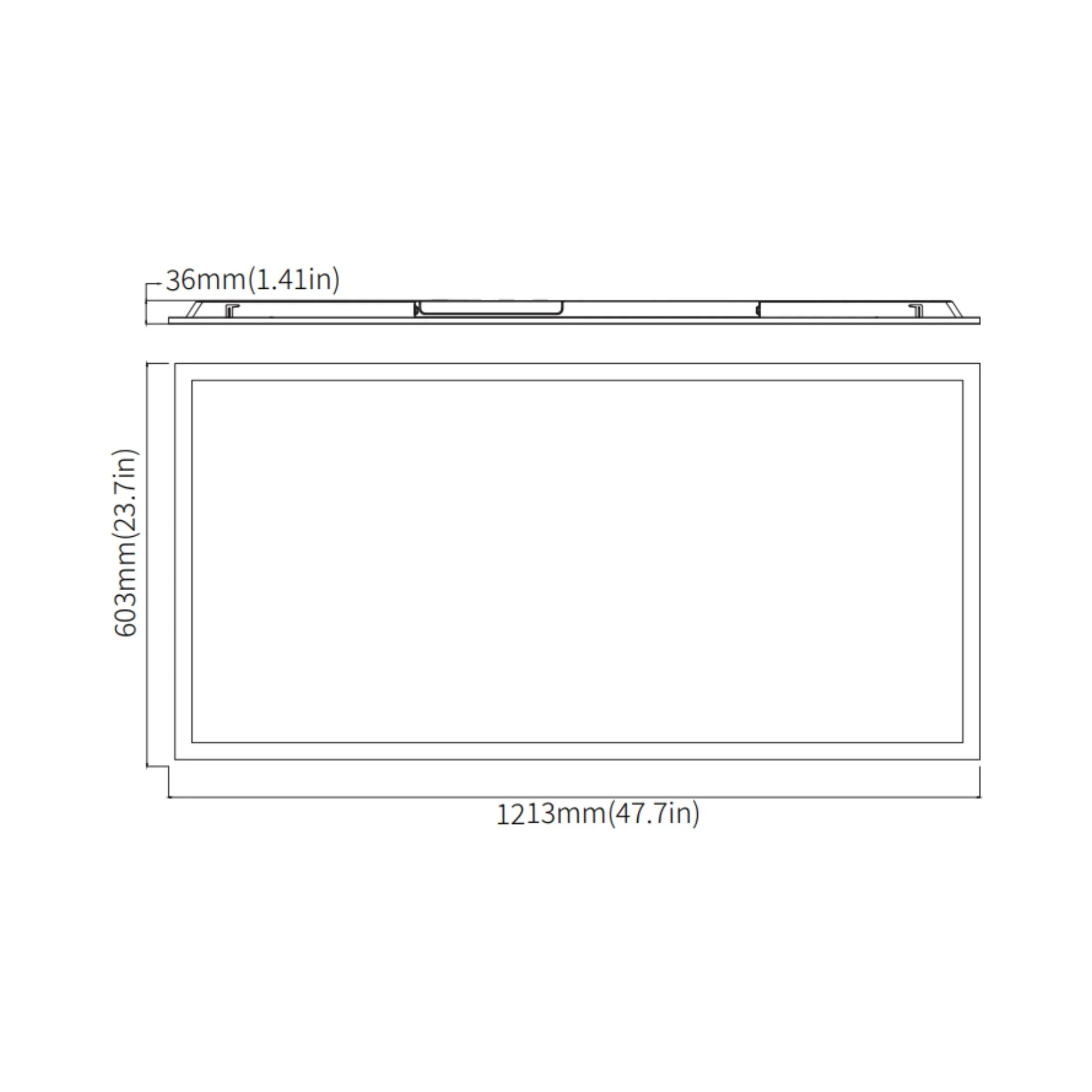

Dimensions: 47.7″ L × 23.7″ W × 1.41″ H (1213 × 603 × 36mm). Net weight: 8.1 lbs.

Installation & Mounting

Standard Mounting: Recessed installation into standard 2×4 T-grid ceiling systems (default).

Optional Mounting Methods (Sold Separately):

• Suspended Mount: Wire suspension kit — sold separately
• Surface Mount: Surface mount frame — sold separately

Optional Accessories (Sold Separately):

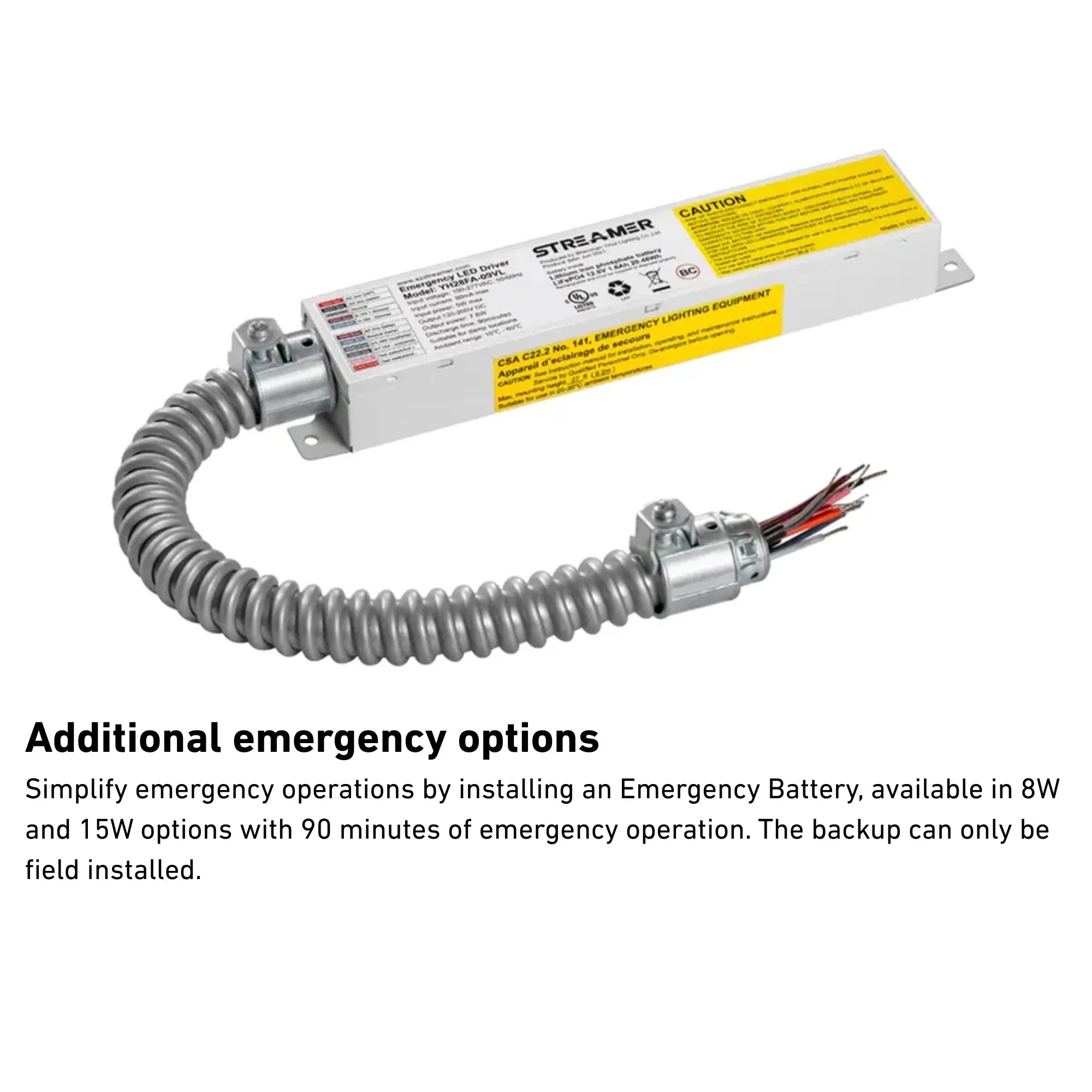

• Emergency Battery Backup: 8W, 900 lm, 90-minute runtime — field-installable, sold separately
• PIR Sensor: 12–24VDC plug-in PIR sensor with daylight sensor function — factory default: 100% sensitivity, 5 min hold time, 30% dimming level, 60 min dimming time; sold separately

Certifications & Rebates

• DLC Premium Listed — qualifies for the highest tier of utility rebate programs. To verify rebate eligibility with your utility provider, visit designlights.org and search DLC product ID S-RXY8VP.
• ETL Listed
• FCC Compliant

Typical Applications

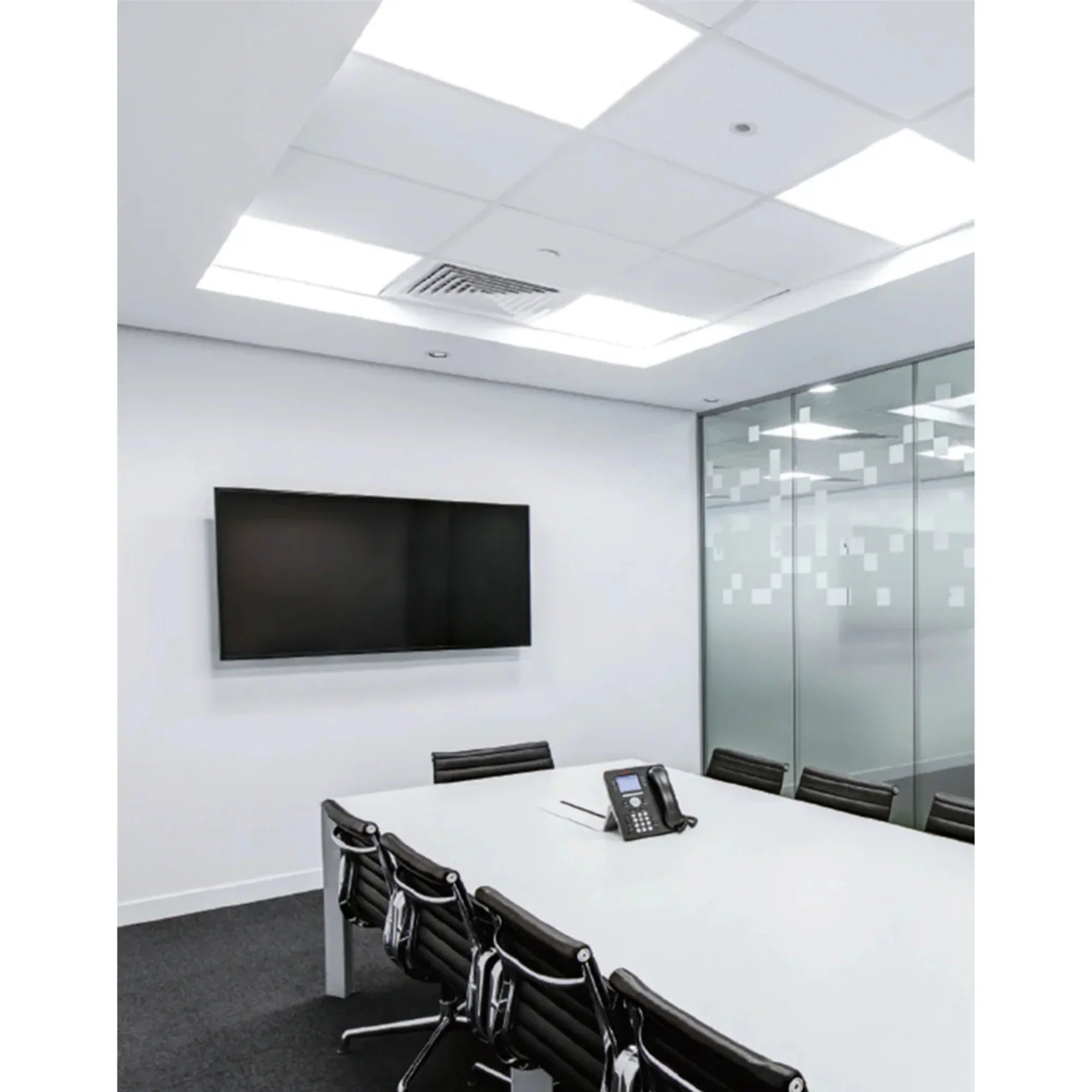

• Corporate offices and open-plan workspaces — selectable CCT and wattage allow tuning for task lighting at any desk density without re-ordering

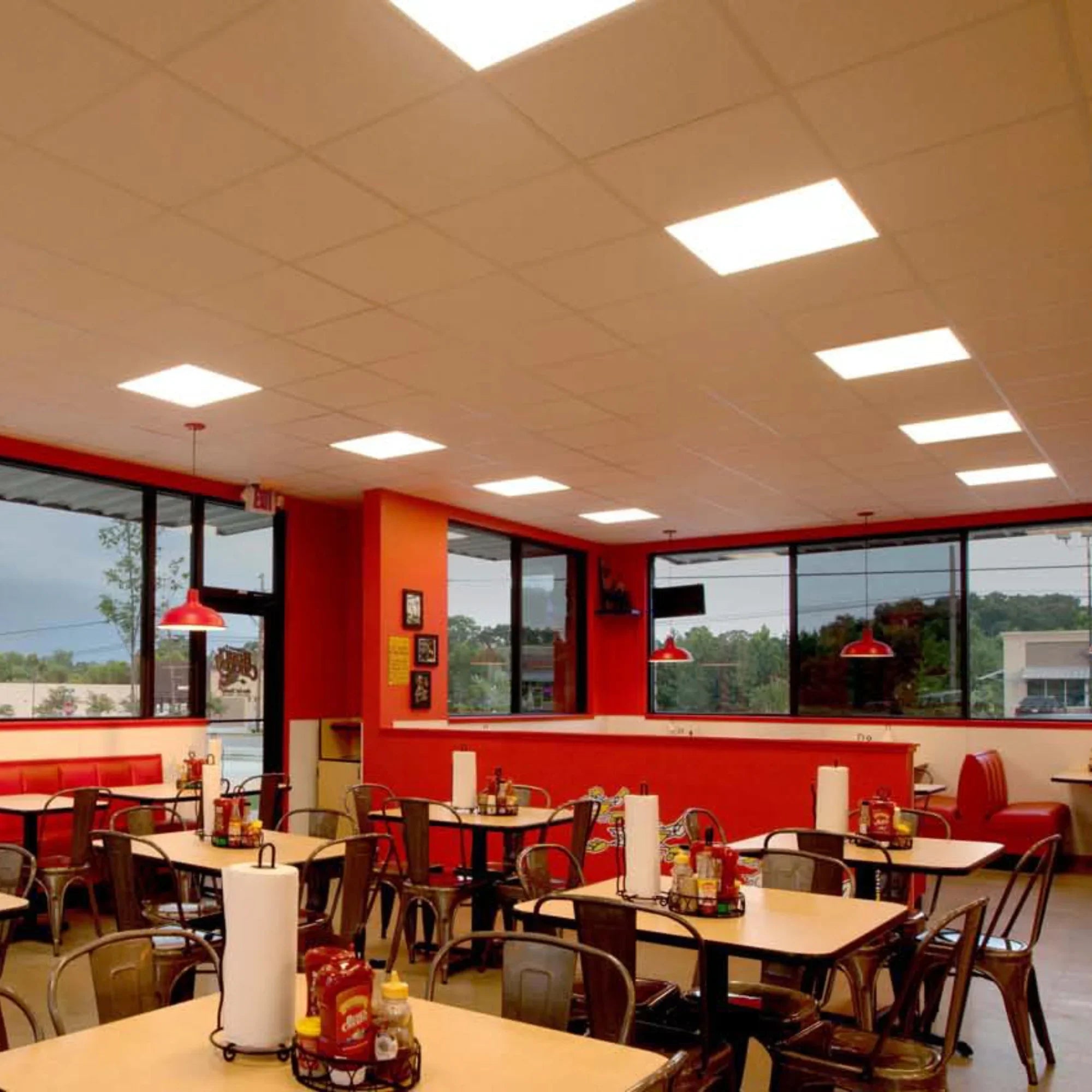

• Retail and showroom spaces — 120° beam angle delivers even, shadow-free illumination across wide floor areas
• Educational facilities — selectable CCT supports varied classroom environments; 120–277V driver covers standard U.S. electrical systems
• Healthcare and institutional spaces — DLC Premium listing maximizes utility rebate eligibility for large-scale retrofit projects

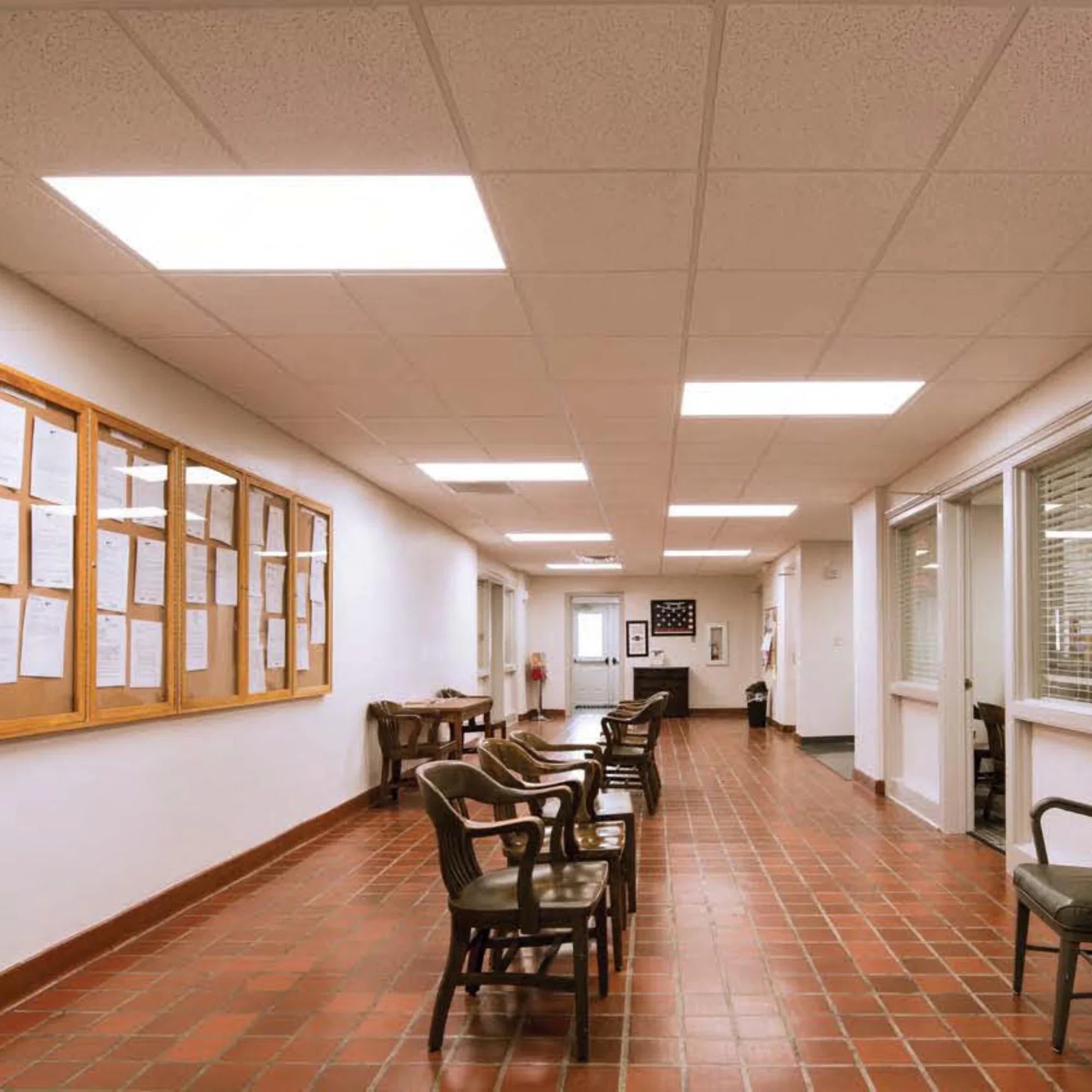

• Corridors and common areas — optional PIR sensor (sold separately) enables occupancy-based dimming to 30% for automated energy savings
• Fluorescent retrofit projects — replaces standard 2×4 fluorescent troffers with up to 6,100 lm output and selectable wattage to match existing light levels

What’s Included

• GLT FPS24-60L-CCT-D10 LED flat panel fixture — 2×4 — White
• Mounting hardware for recessed T-grid installation
