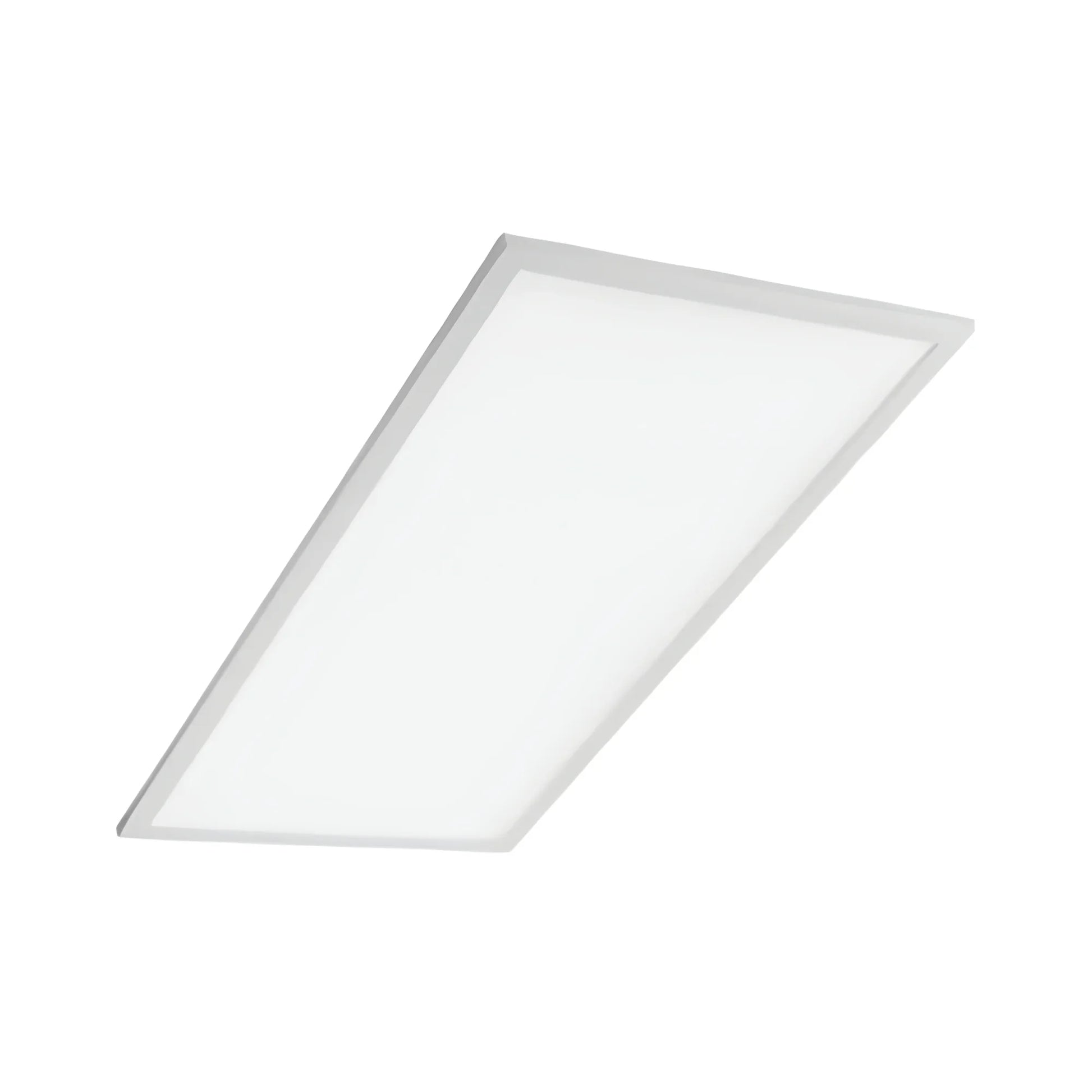

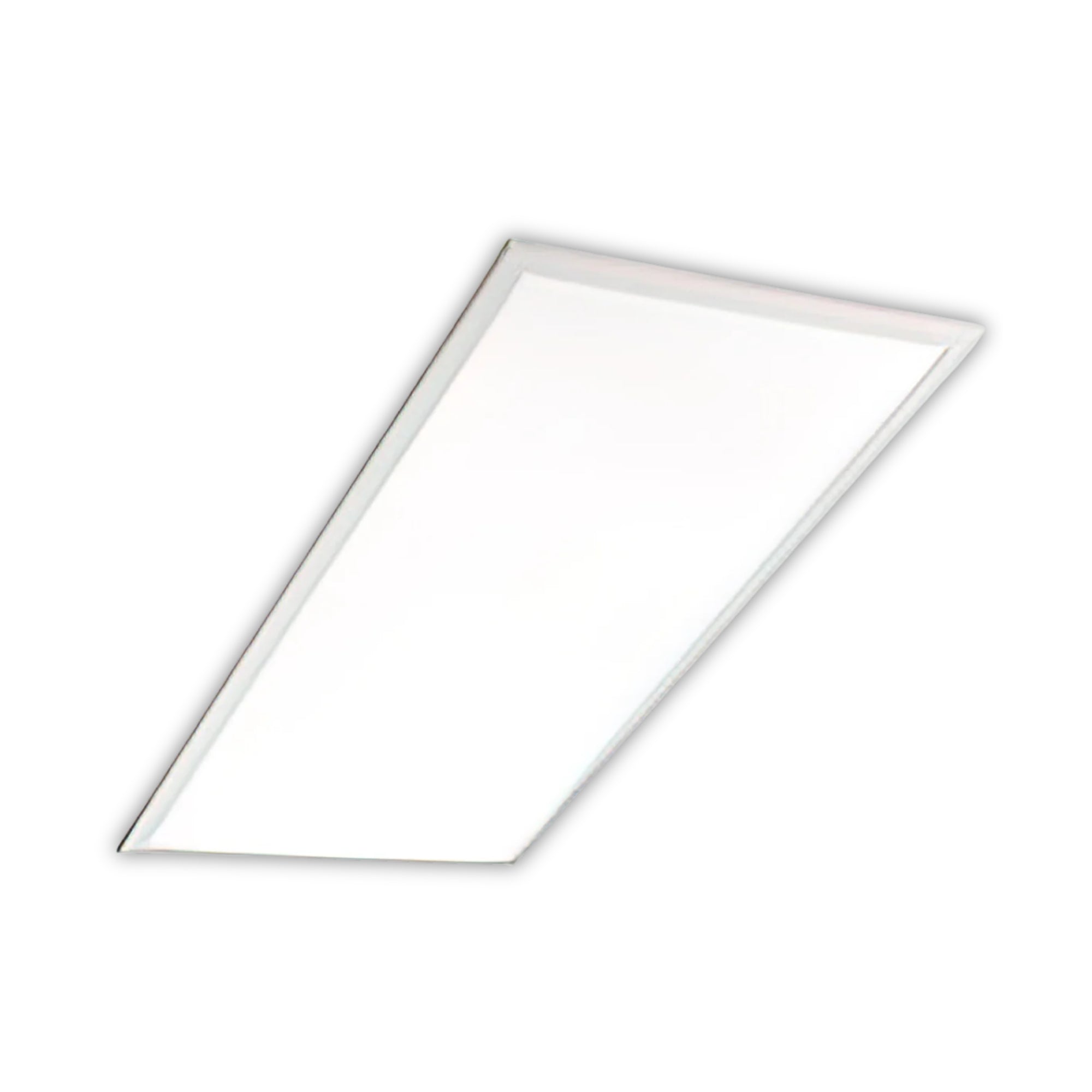

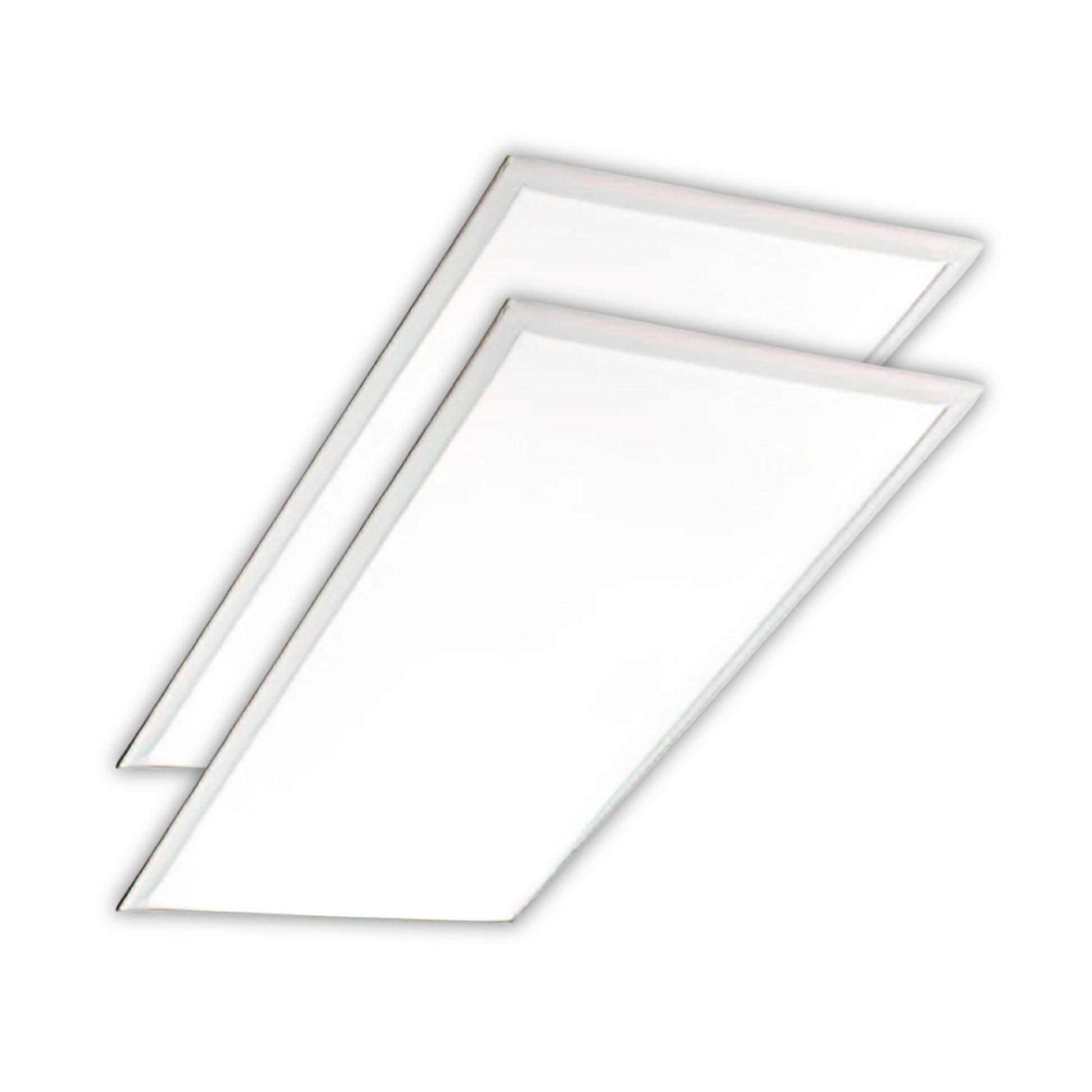

GLT FPS24-55L-35K-D10 LED Flat Panel — 2×4 — 47W — 3500K — White

The GLT FPS24-55L-35K-D10 is a 2×4 edge-lit LED flat panel delivering 6,159 lumens at 47W with an efficacy of 130 lm/W at 3500K. The edge-lit design with enhanced optics produces low glare and consistent, even light distribution across the full panel surface. The fixture supports 0–10V dimming, operates on 100–277V, and is UL, cUL, and DLC Listed with a 5-year warranty and L70 50,000-hour rated life.

Key Features

• Wattage: 47W fixed.
• Lumen Output: 6,159 lumens.
• Efficacy: 130 lm/W.
• CRI: >83.
• CCT: 3500K.
• Lens & Optics: Edge-lit flat panel with enhanced optics — low glare, consistent even light distribution across the full panel surface.
• Dimming: 0–10V continuous dimming. Compatible dimmer required, sold separately.
• Voltage: 100–277V universal voltage driver.
• Location Rating: Indoor — IP20 rated.
• Operating Temperature: −20°C to +45°C.

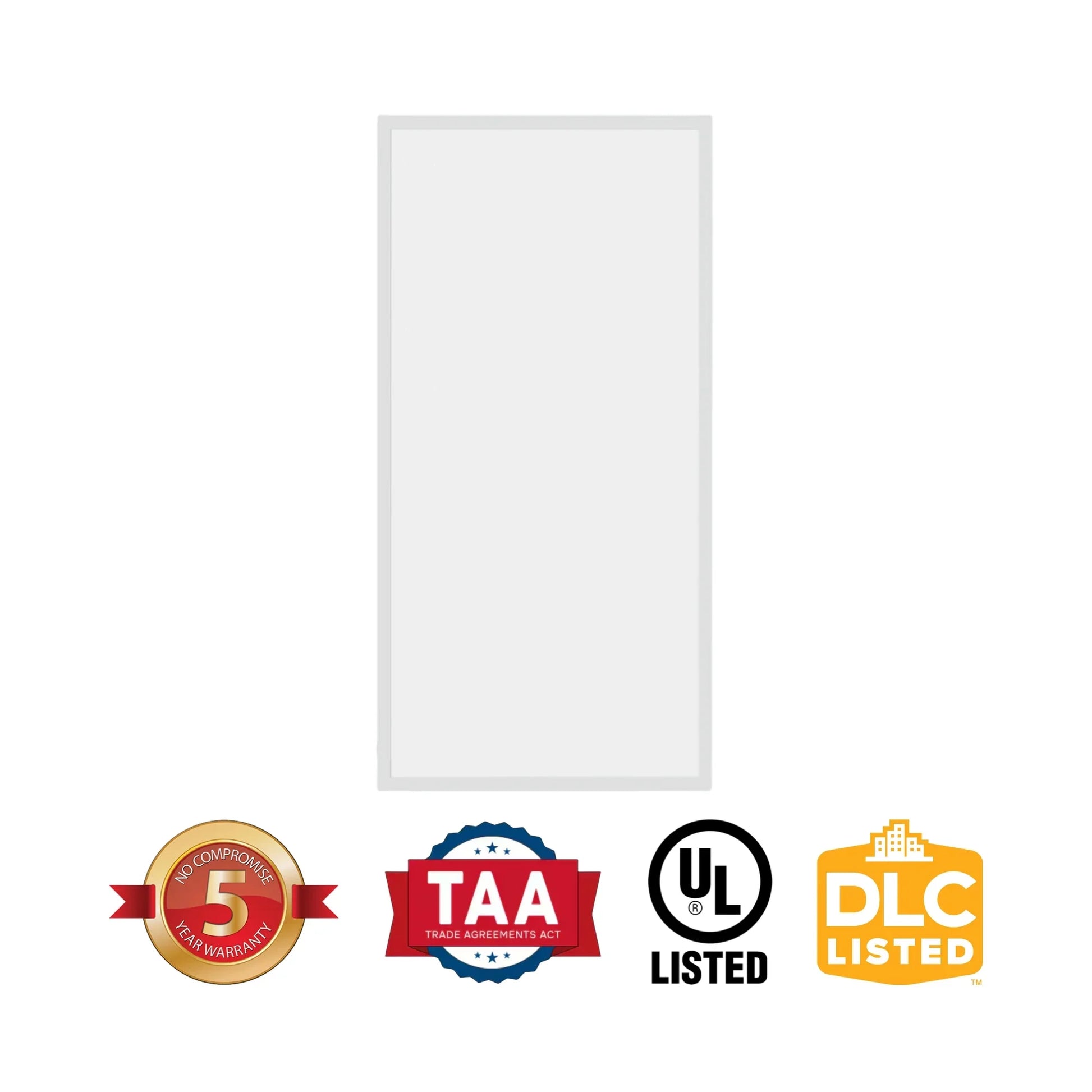

• Certifications: UL Listed — cUL Listed — DLC Listed.
• Rated Life: L70 50,000 hours.
• Warranty: 5-year limited warranty.
• LED Driver: LIFUD driver.
• Optional Accessories: Surface mount kit (FPA-2X4SMK), suspension kit (FPA-SUSPKIT), and emergency battery kit (EL-1248-XXU) — all sold separately.

Performance & Light Output

The FPS24-55L-35K-D10 delivers 6,159 lumens at 47W with an efficacy of 130 lm/W at 3500K. CRI: >83. Power factor: >0.9. L70 rated life: 50,000 hours. DLC product ID: PZA187EY.

Smart & Control Features

The FPS24-55L-35K-D10 supports 0–10V continuous dimming via the onboard LIFUD driver. A compatible 0–10V dimmer is required, sold separately.

Electrical

Input voltage: 100–277V. Dimming: 0–10V. Power factor: >0.9. LED driver: LIFUD. Operating temperature: −20°C to +45°C (−4°F to +113°F). Mercury-free.

Construction

Housing & Thermal: Edge-lit LED flat panel design with enhanced optics. Depth: 1.80″.

Lens & Optics: Edge-lit technology with enhanced optics — produces low glare and consistent, even light distribution across the full panel surface.

Finish: White.

Environment: Indoor — IP20 rated.

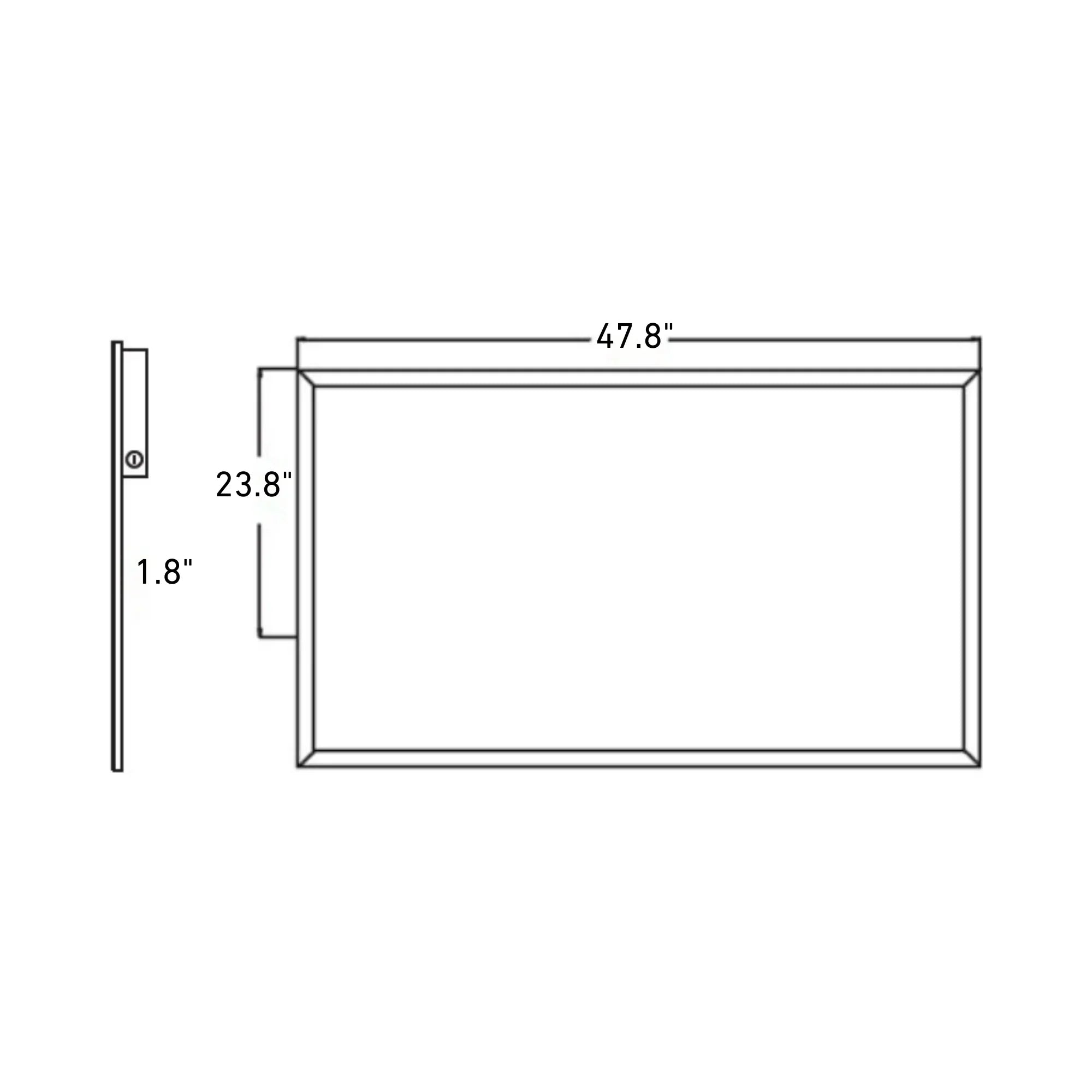

Dimensions: 47.8″ L × 23.8″ W × 1.80″ H. Net weight: 9.9 lbs.

Installation & Mounting

Standard Mounting: Recessed installation into existing 2×4 recessed frame (default).

Optional Mounting Methods (Sold Separately):

• Surface Mount Kit: FPA-2X4SMK — surface mount kit for 2×4; sold separately
• Suspension Kit: FPA-SUSPKIT — wire suspension kit; sold separately

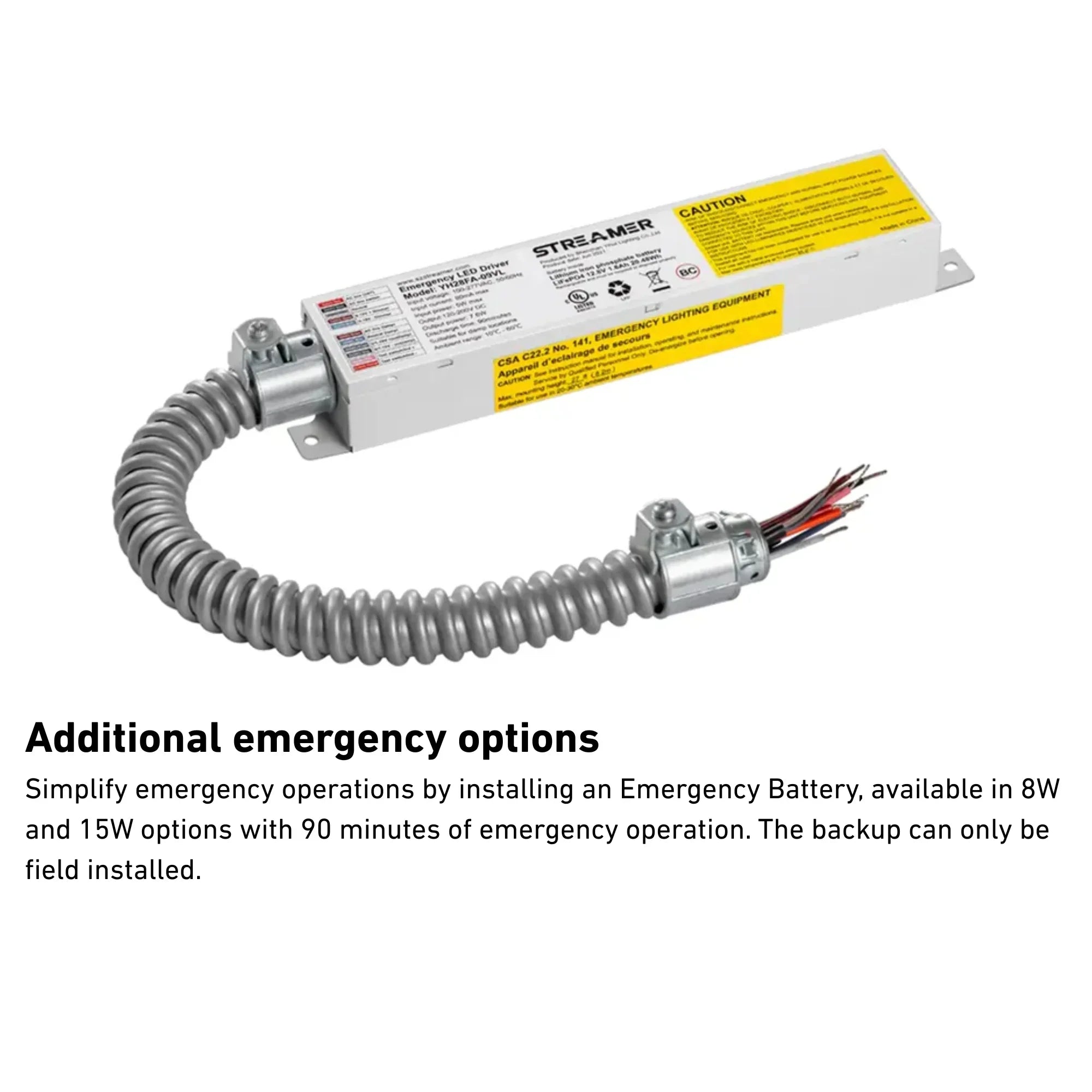

• Emergency Battery Kit: EL-1248-XXU — field-installable emergency battery backup; sold separately

Certifications & Rebates

• UL Listed
• cUL Listed
• DLC Listed — qualifies for utility rebate programs. To verify rebate eligibility with your utility provider, visit designlights.org and search DLC product ID PZA187EY.

Typical Applications

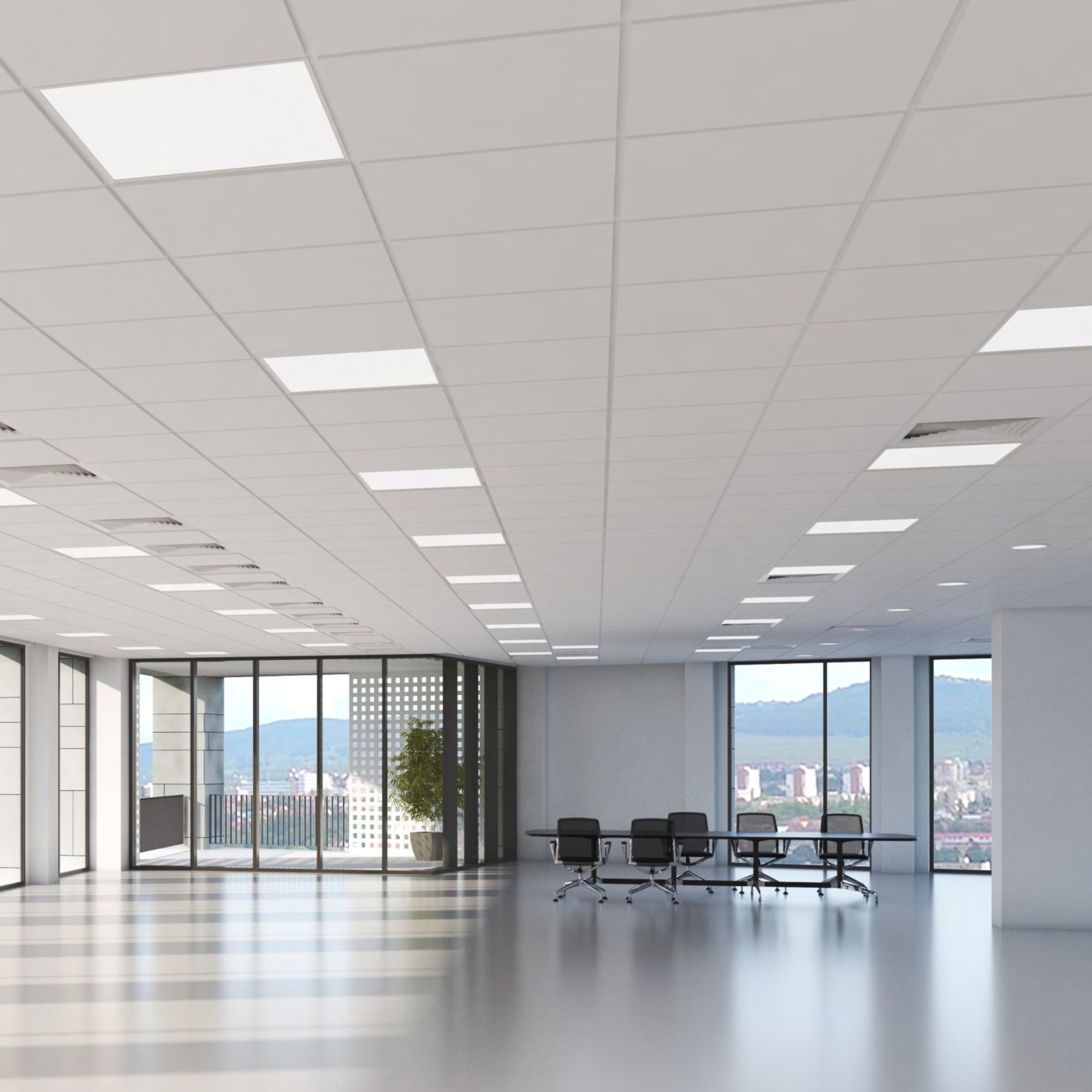

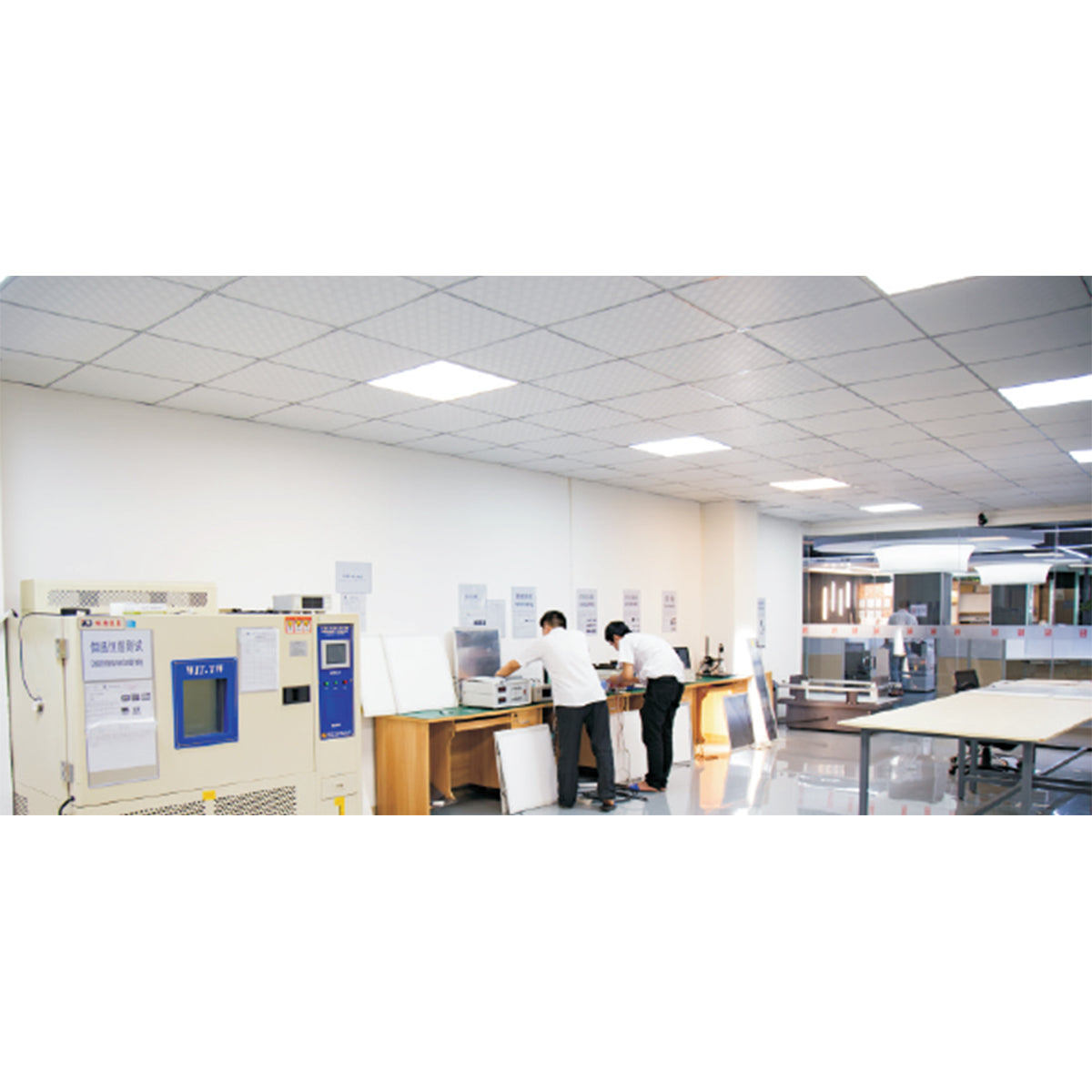

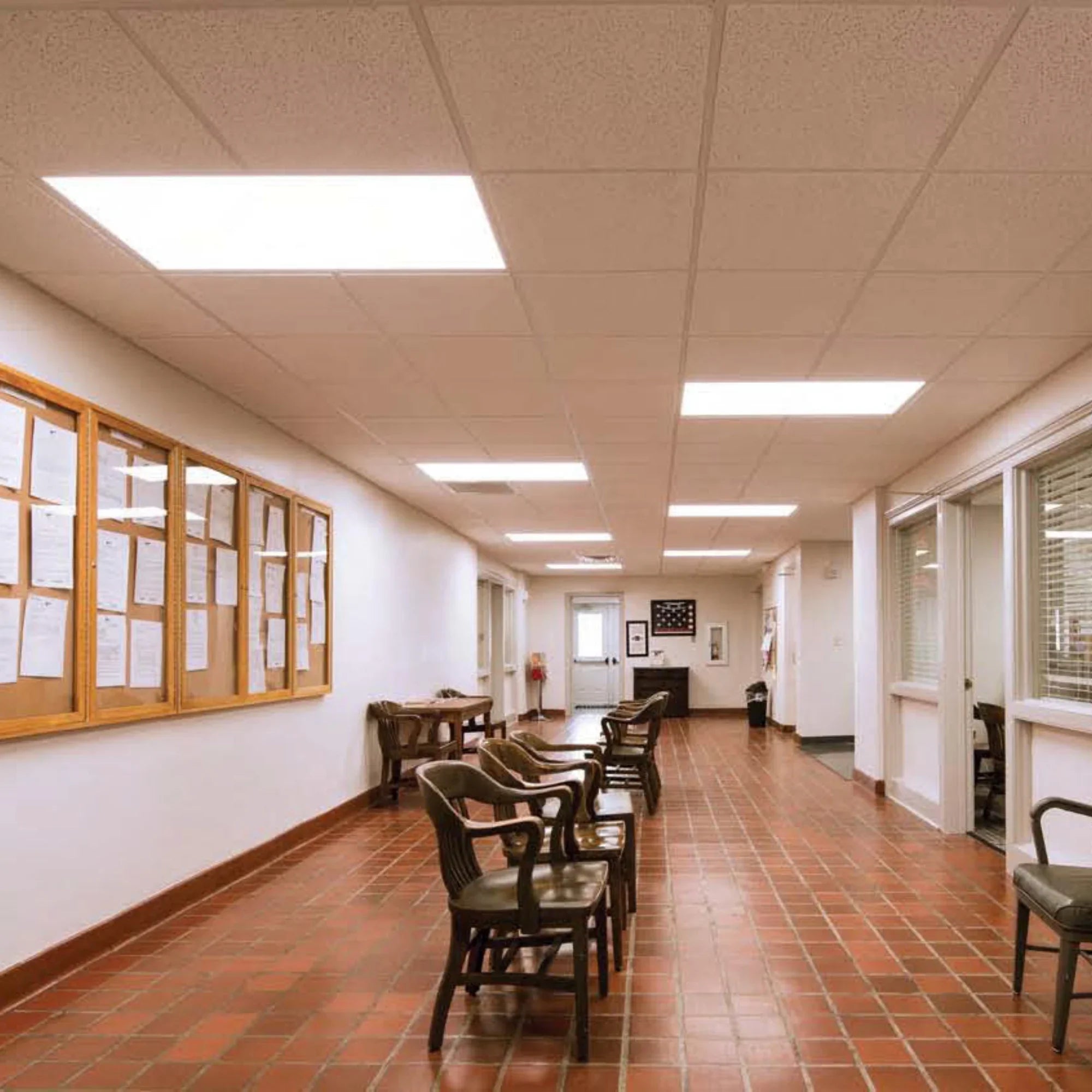

• Corporate offices and open-plan workspaces — 3500K warm-neutral CCT and even, low-glare edge-lit distribution supports comfortable, sustained task lighting

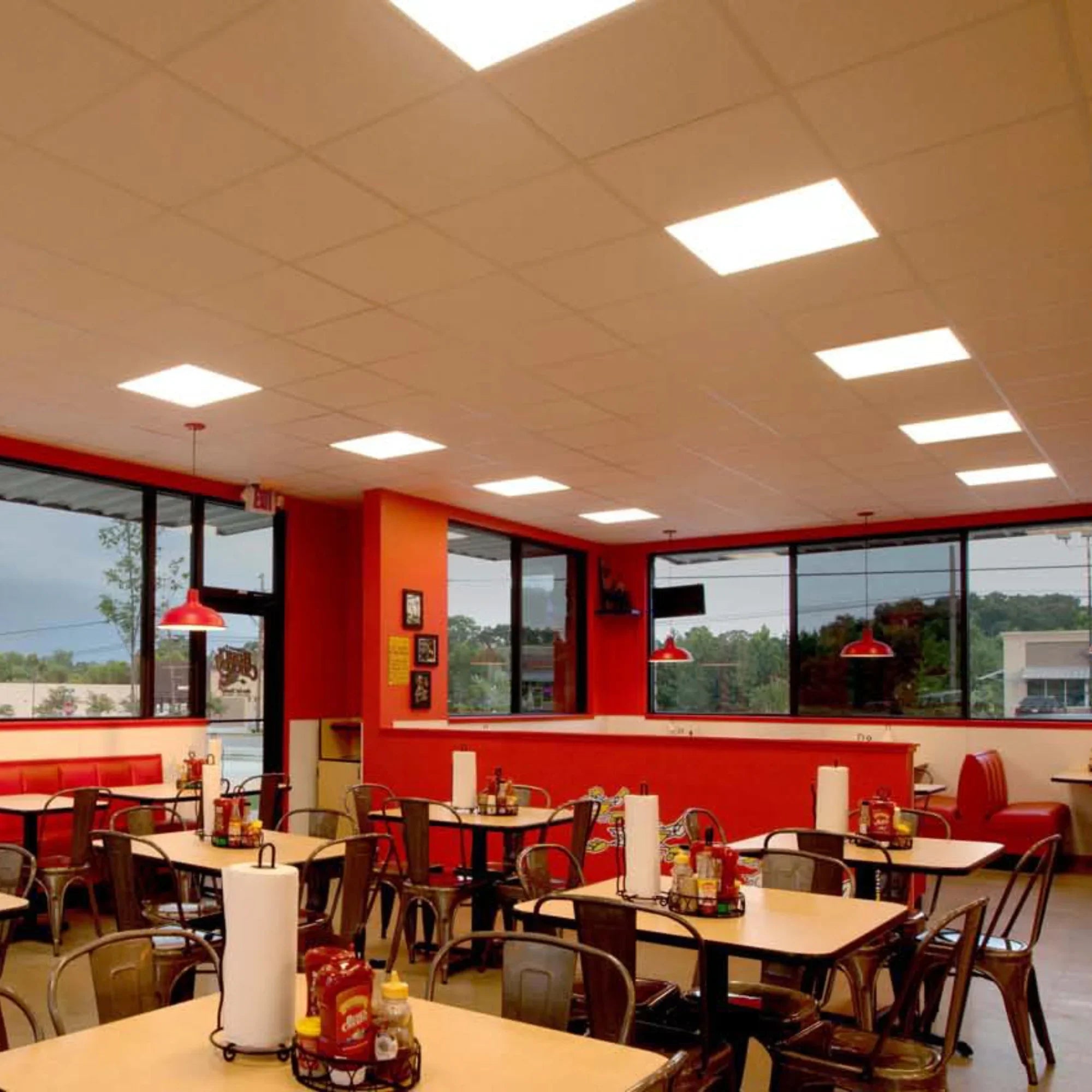

• Retail and showroom spaces — 130 lm/W efficacy and even panel distribution deliver high-quality, consistent illumination across wide floor areas
• Educational facilities — 3500K CCT and low-glare optics support focused learning environments; 100–277V driver covers standard U.S. and Canadian electrical systems
• Healthcare facilities — UL/cUL Listed with DLC qualification for utility rebate eligibility on retrofit projects
• Petroleum and industrial spaces — IP20 indoor rating for clean, enclosed commercial environments
• Fluorescent retrofit projects — replaces standard 2×4 fluorescent troffers with 6,159 lm output and up to 130 lm/W efficacy

What’s Included

• GLT FPS24-55L-35K-D10 LED flat panel fixture — 2×4 — White
