Description

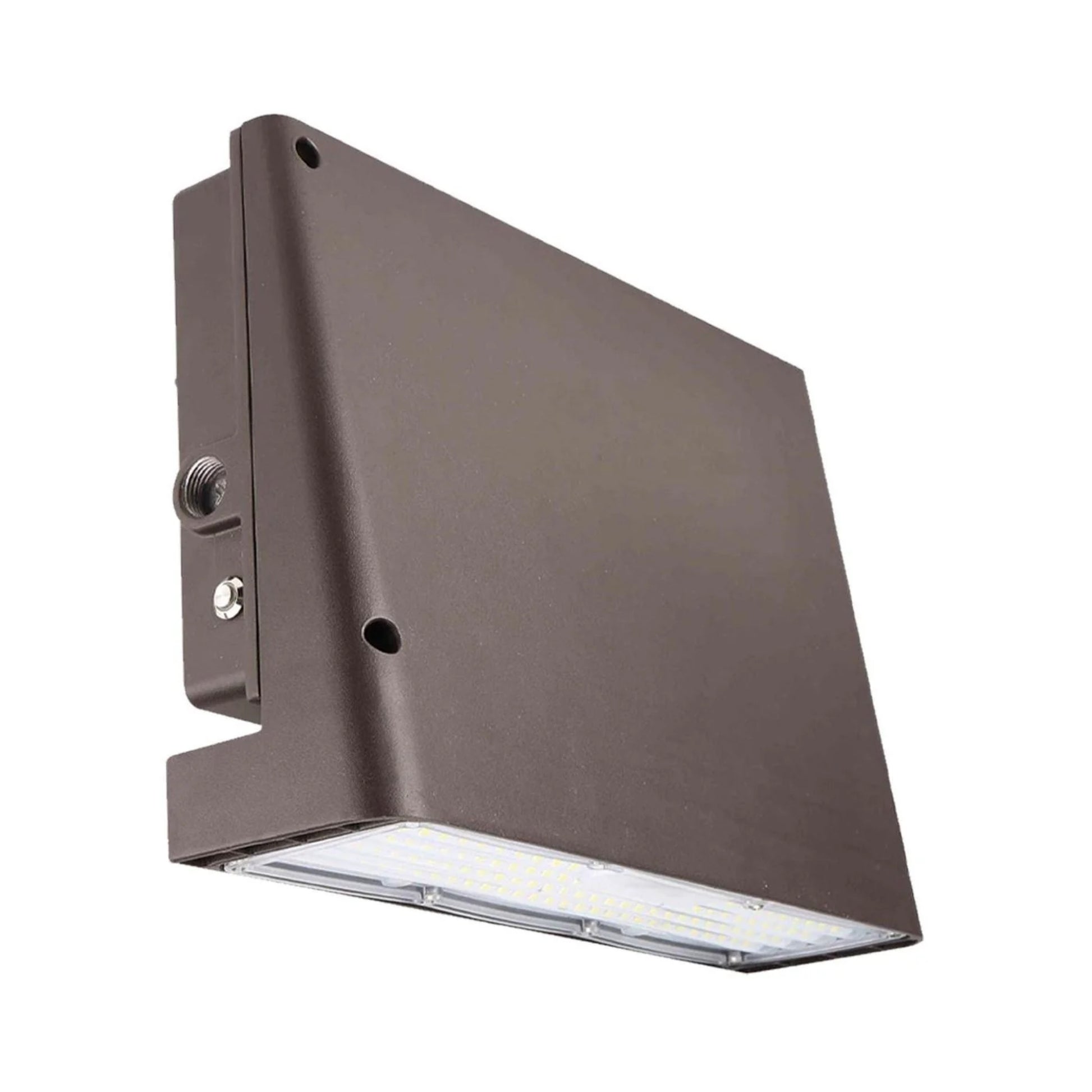

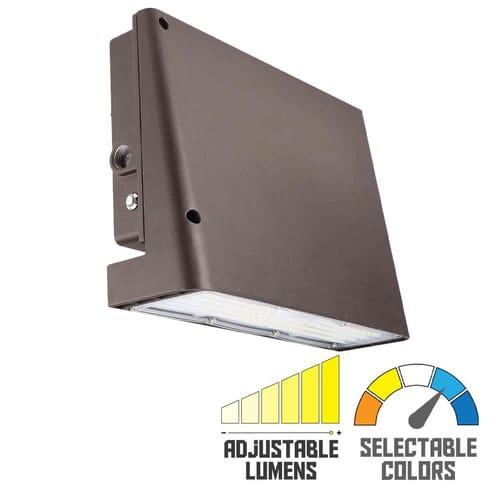

GLT Field-Adjustable Full Cutoff LED Wall Pack - 38W/31W/23W/17W (100%/80%/60%/40%) Selectable - 3000K/4000K/5000K - Bronze

The GLT CWP-40W-UV-CCT is a commercial full cutoff LED wall pack from the CWP series engineered to deliver up to 6,000 lumens across on-site adjustable 100%, 80%, 60%, and 40% output settings (38.12W down to 16.89W) and switchable 3000K, 4000K, and 5000K color temperatures via its included Power and CCT controller. Operating on universal 120-277V AC electrical systems with 1-10V dimming, this CWP series luminaire belongs to a scalable family replacing legacy Metal Halide fixtures up to 400W MH. Built with a two-piece die-cast aluminum body tested to ANSI C136.31 3G vibration ratings, this UL and cUL wet-location listed (E350489) luminaire features a zero-uplight full cutoff optical profile, direct mounting over standard 4" and 5" junction boxes, and three 1/2" conduit entry holes alongside an anti-UV prismatic translucent lens and an included dusk-to-dawn photocell.

Key Features

  • Adjustable Wattage & Lumen Output: 100% / 80% / 60% / 40% on-site selectable settings (38.12W / 30.95W / 23.01W / 16.89W)
  • Maximum Lumen Output: Up to 6,000 lm (at 4000K)
  • Peak Efficacy: Up to 158 lm/W
  • CRI: 70 CRI
  • Selectable CCT: 3000K / 4000K / 5000K field-adjustable
  • Lens & Optics: Anti-UV prismatic translucent lens with zero-uplight full cutoff distribution
  • Photocell & Controller: Includes dusk-to-dawn photocell and on-site Power and CCT switch controller
  • Dimming: 1-10V continuous dimming
  • Input Voltage & Driver: 120-277V AC, single driver (680 mA driver current), PF >90%, THD <20%
  • Vibration & Body Rating: ANSI C136.31 3G vibration rated two-piece die-cast aluminum housing
  • Location Rating: UL and cUL Listed for wet locations (File E350489)
  • Operating Temperature: -40°F (-40°C) to 104°F (40°C) (50°F/10°C to 104°F/40°C when equipped with optional emergency battery)
  • Mounting & Conduit Access: Mounts directly over 4" and 5" junction boxes; three 1/2" conduit entries on three sides
  • Rated Life: Estimated 50,000-hour L70 LED lifespan based on IES LM-80 results and TM-21 calculations
  • Warranty: 5-year limited warranty - GLT

Performance & Light Output

Nominal Wattage (100% Output) 3000K (Warm White) 4000K (Neutral White) 5000K (Cool White)
38W (100%) 5,600 lm (147 lm/W) 6,000 lm (158 lm/W) 5,800 lm (153 lm/W)

On-Site Adjustable Lumen Output Breakdown (@ 120-277V, 5000K):

Output Setting System Watts Total Lumens (5000K)
100% Setting 38.12W 5,690.70 lm
80% Setting 30.95W 4,871.24 lm
60% Setting 23.01W 3,697.60 lm
40% Setting 16.89W 2,789.20 lm

Delivers 70 CRI across all selectable wattage and color temperature settings with a zero-uplight cutoff distribution. Estimated 50,000-hour LED lifespan (L70) based on IES LM-80 results and TM-21 calculations.

Lens & Optics

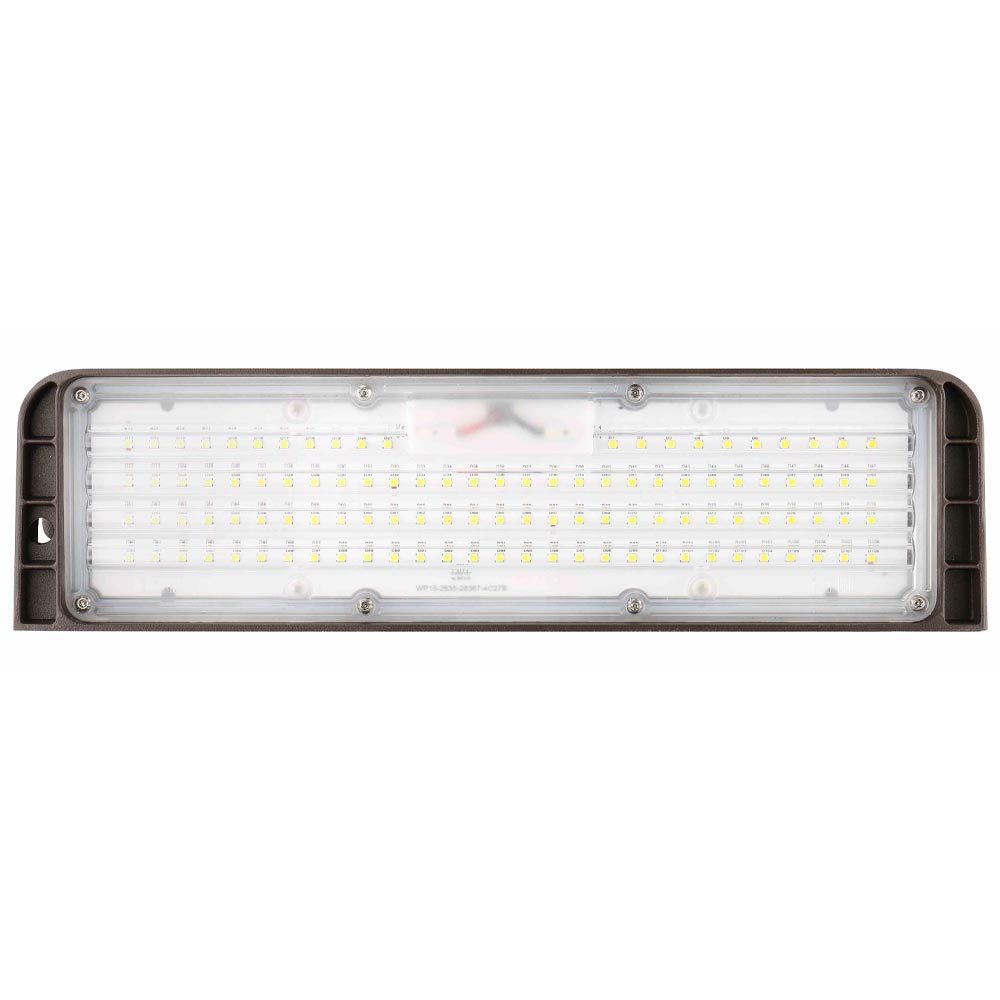

Engineered with an independently designed anti-UV prismatic translucent lens delivering a dedicated Full Cutoff Zero-Uplight optical distribution. The prismatic optical diffuser shapes uniform downward and forward perimeter illumination while reducing glare and eliminating uplight above the 90° horizontal plane.

Smart & Control Features

Engineered for automated dusk-to-dawn operation and on-site contractor customization:

  • Dusk-to-Dawn Photocell (Included): Comes complete with a dusk-to-dawn photocell for automated nighttime security lighting and daytime energy savings.
  • Included Power & CCT Controller: Built-in switch controller allows contractors to adjust lumen output (100%, 80%, 60%, 40%) and color temperature (3000K, 4000K, 5000K) quickly at the installation site.
  • 1-10V Dimming: Equipped with 1-10V dimming leads for integration with compatible commercial dimming controls.

Electrical

Powered by 1 constant current driver (680 mA driver current) operating on universal 120-277V AC with a Power Factor >90% and Total Harmonic Distortion (THD) <20%. Includes 1-10V dimming control wiring.

Optional Emergency Battery Backup: Compatible with an optional 8W emergency egress battery backup (sold separately) delivering 900 lumens for 90 minutes (operating temperature range with emergency battery: 50°F/10°C to 104°F/40°C).

Operating current and amp draw across input voltages for branch circuit and breaker loading calculations:

Nominal Power 120V Current (A) 208V Current (A) 240V Current (A) 277V Current (A)
38W 0.32A 0.18A 0.16A 0.14A

Construction

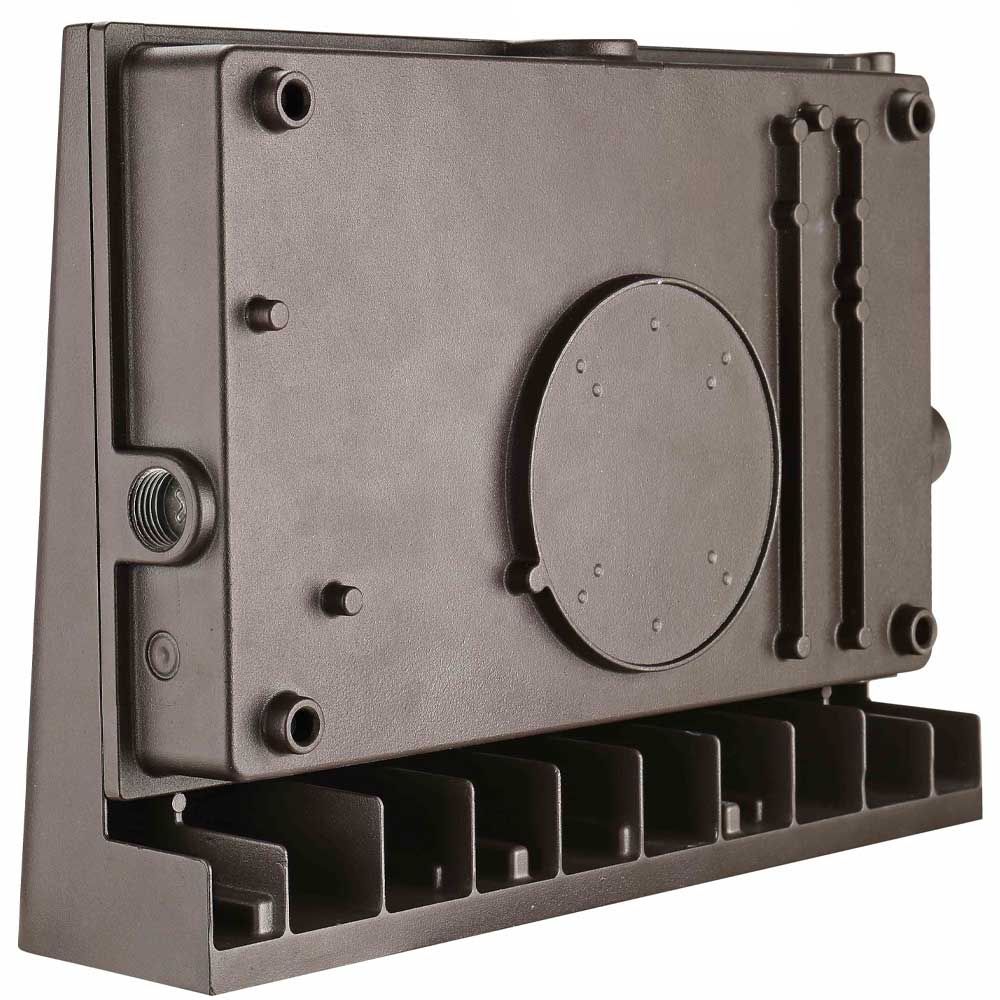

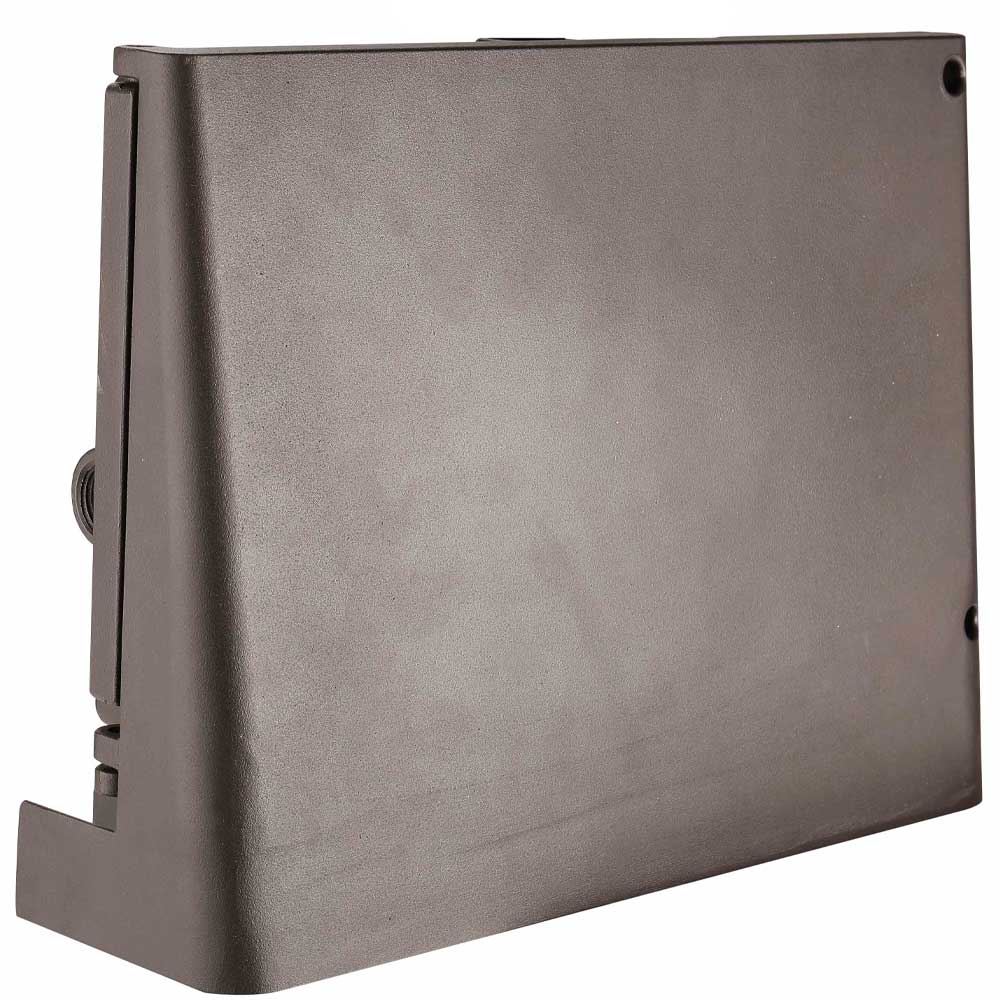

Housing & Thermal: Two-piece die-cast aluminum housing secures the thermally conductive LED panel and isolated electrical chamber, conducting heat away from the LEDs via passive convection to optimize efficacy and service life. Tested and suitable for applications requiring ANSI C136.31 3G vibration rating.

Finish: Durable architectural bronze powder-coat finish formulated for outdoor weather resistance.

Environmental Sealing: UL and cUL Listed for wet locations (File E350489). Ambient operating temperature: -40°F (-40°C) to 104°F (40°C).

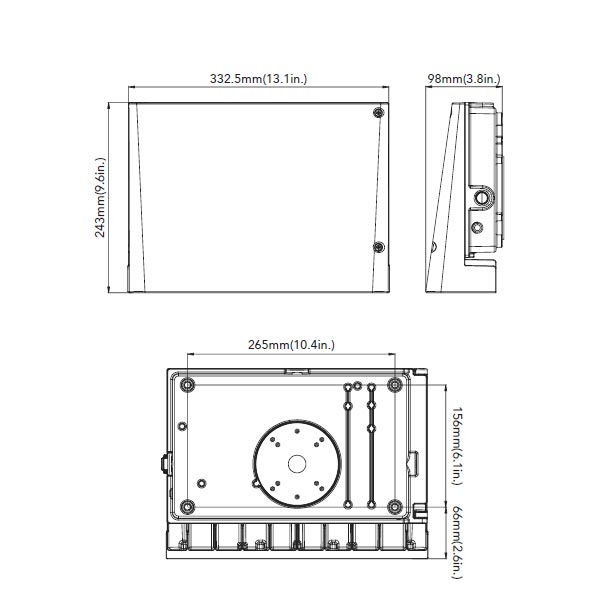

Dimensions & Weight: 13.1" L x 9.6" H x 3.8" D (332.5mm x 243mm x 98mm); backbox mounting footprint 10.4" W x 6.1" H (Small Size housing).

Installation & Mounting

Mounting Hardware: Two-piece die-cast aluminum housing mounts directly over standard 4" and 5" electrical junction boxes while maintaining a level 0° zero-uplight cutoff plane.

Conduit & Wiring Access: Three 1/2" threaded conduit holes on three sides of the housing accommodate surface conduit wiring or rear J-box entry.

Accessories (Sold Separately):

  • Optional Emergency Battery Backup: 8W emergency battery pack delivering 900 lumens for 90 minutes; factory or field-installable (sold separately)

Certifications & Rebates

  • cULus Listed (File E350489): UL and cUL certified for wet locations
  • ANSI C136.31 3G Vibration Rated: Certified for high-vibration exterior mounting environments including bridges, overpasses, and industrial structures
  • Zero-Uplight Full Cutoff Optics: Eliminates uplight above the horizontal plane to reduce glare and skyglow

Typical Applications

  • Commercial & Industrial Building Perimeters - Zero-uplight full cutoff optics, included photocell, and on-site 100%/80%/60%/40% lumen controller tailor dusk-to-dawn illumination to property boundaries
  • High-Vibration Infrastructure, Bridges & Loading Docks - ANSI C136.31 3G vibration rating and two-piece die-cast aluminum body withstand heavy truck traffic and structural vibration
  • Warehouses, Distribution Centers & Manufacturing Plants - Universal 120-277V driver, -40°F to 104°F temperature rating, and three 1/2" conduit entries simplify industrial surface-conduit installations
  • Retail Plazas, Schools & Multifamily Walkways - Included 3000K/4000K/5000K CCT selector and anti-UV prismatic translucent lens deliver low-glare pedestrian security lighting
  • Emergency Egress & Security Doorways - Direct 4" and 5" junction box mounting with optional 8W (900 lm, 90-min) emergency battery backup compatibility (sold separately)

What's Included

  • GLT CWP-40W-UV-CCT Field-Adjustable Full Cutoff Wall Pack (38W) - Bronze
  • Included dusk-to-dawn photocell
  • Included Power and CCT switch controller (100%/80%/60%/40% lumen output and 3000K/4000K/5000K CCT)
  • Installation hardware and operation manual

Specifications

Dimensions

Length/Depth
3.8 in
Width/Diameter
13.1 in
Height
9.6 in
Weight
5.75 lb

Style & Materials

Material
Aluminum
Shape
Slim

Characteristics & Features

Lamp Source
led
Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
70 CRI
Delivered Lumens
6000
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
38W

Item Details

MPN
CWP-40W-UV-CCT
Brand
GLT
Catalog Number
MWP1538W27VDDKDPAD
Family
MWP15 Cutoff Wall Pack
UPC
710822102072

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
50,000 Hours
Product Rating
Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is the GLT CWP-40W-UV-CCT wall pack a zero-uplight cutoff fixture, and how does it mount?

Yes, the GLT CWP-40W-UV-CCT features a full cutoff zero-uplight optical design with an anti-UV prismatic translucent lens that reduces glare and eliminates uplight. Its 13.1" L x 9.6" H x 3.8" D two-piece die-cast aluminum housing mounts directly over standard 4" and 5" electrical junction boxes and includes three 1/2" conduit holes.

How are the wattage, lumen output, and color temperature adjusted on the GLT CWP-40W-UV-CCT?

The included controller dials output across 100% (38.12W / up to 6,000 lm), 80% (30.95W / 4,871.24 lm), 60% (23.01W / 3,697.60 lm), and 40% (16.89W / 2,789.20 lm) at up to 158 lm/W. You can also switch between 3000K, 4000K, and 5000K with 70 CRI.

Does the GLT CWP-40W-UV-CCT include a photocell and dimming, and is emergency battery backup available?

Yes, the GLT CWP-40W-UV-CCT comes with a dusk-to-dawn photocell included, an on-site Power and CCT controller, and a universal 120-277V AC driver with 1-10V dimming. For egress applications, it supports an optional 8W emergency battery backup that delivers 900 lumens for 90 minutes (sold separately).

How is the GLT CWP-40W-UV-CCT constructed for outdoor weather and vibration durability?

The GLT CWP-40W-UV-CCT is built with a two-piece bronze die-cast aluminum housing rated for ANSI C136.31 3G vibration testing and paired with an anti-UV prismatic lens. It is UL and cUL Listed for wet locations (E350489) and operates in ambient temperatures from -40°F (-40°C) to 104°F (40°C).

What are the rated LED lifespan and warranty coverage for the GLT CWP-40W-UV-CCT?

The GLT CWP-40W-UV-CCT is engineered for an estimated 50,000-hour L70 LED lifespan based on independent IES LM-80 testing results and TM-21 calculations. It is backed by GLT's 5-year limited warranty for commercial outdoor wall-mounted applications.
