TriAire Custom Matte White 60" Marine Grade Motor, Blades Sold Separately
Available in stock (754)
About this item
About this item
- Airflow: 6765 CFM for optimal circulation
- Motor Type: Efficient DC Motor
- Environment Rating: Wet Location rated for outdoor use
- Controls: Includes Wi-Fi receiver and remote control
- Blade Span: 60'' with 3 blades for large spaces
We process payments securely and do not store credit card information.
Description
Description

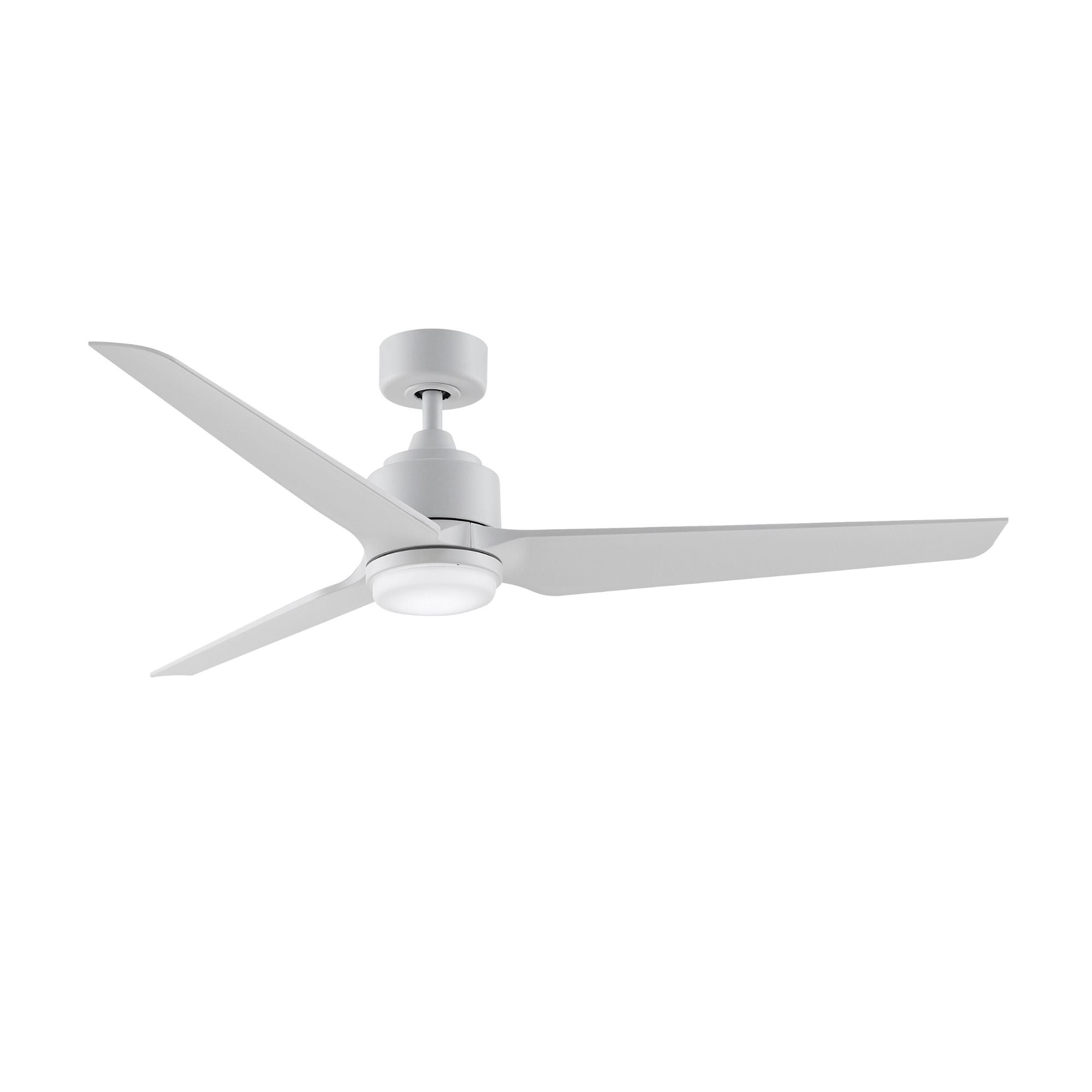

Fanimation Triaire 60'' Ceiling Fan — Matte White
The Fanimation MAD8514MWM is a 60-inch ceiling fan with a sleek Matte White finish. It features a 3-blade design and a powerful DC motor, making it suitable for wet locations. This fan is perfect for large rooms or outdoor areas, providing efficient airflow and modern aesthetics.
Key Features
- Blade Span: 60'' for expansive coverage
- Motor Type: DC-158 x 22MM sensorless DC motor
- Airflow: 6765 CFM at high speed
- Efficiency: 247 CFM/W
- Control Options: Includes Wi-Fi receiver and TR305 remote
- Sloped Ceiling Compatible: Up to 27°, with optional kits for greater angles
- Downrod Included: 4.5'' standard, with longer options available
- Environment Rating: Wet Location rated
Construction & Design

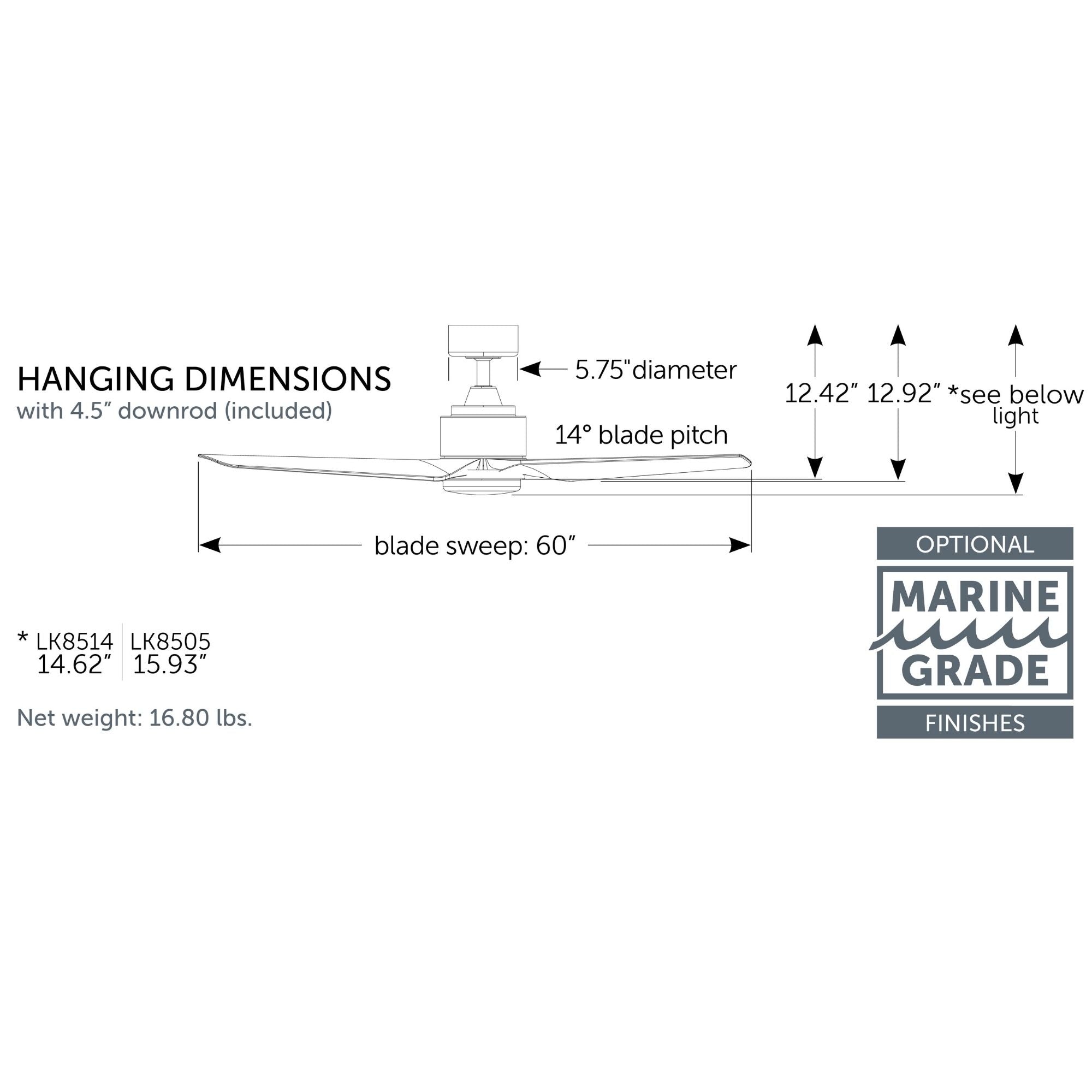

Constructed with durable materials, the fan features a 14° blade pitch and a modern Matte White finish, enhancing any decor.
Smart & Control Features
Equipped with a Wi-Fi receiver and TR305 remote, the fan offers 16 speeds, reverse function, and app control via fanSync.
Electrical & Installation
Requires 120V AC supply. Compatible with sloped ceilings up to 27°; includes a 4.5'' downrod.
Fan Performance
Delivers 6765 CFM at high speed with an efficiency of 247 CFM/W, ensuring powerful and efficient air circulation.
What's Included
- 60'' Ceiling Fan
- Wi-Fi Receiver
- TR305 Remote Control
- 4.5'' Downrod
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Fan Information
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
How high should a ceiling fan be from the floor?
How high should a ceiling fan be from the floor?
For residential fans, safety codes require a minimum clearance of 7.5 feet under the blades. If you are installing an industrial-rated fan, a minimum of 10 feet is required. For ceilings higher than 12 feet, hang your fan at least one-third the distance to the floor while maintaining that 7.5-foot minimum clearance. For optimal performance, a height of 9–10 feet is ideal.
How many blades are best for a ceiling fan?
How many blades are best for a ceiling fan?
Airflow is determined by a combination of factors including motor size, blade pitch, and blade materials. Instead of counting blades, compare fans using their standardized Airflow (CFM) and Airflow Efficiency (CFM per Watt) ratings. A higher CFM means more air is moved, while higher efficiency means more air movement per watt of electricity used.
What is a "Hugger" or Low Profile fan?
What is a "Hugger" or Low Profile fan?
A hugger fan is designed to be installed flush against the ceiling without a downrod. These should be used exclusively in rooms with a ceiling height of 8 feet or less to maximize headroom while maintaining safe clearance.
Can I put a regular ceiling fan outside?
Can I put a regular ceiling fan outside?
No. You must use an outdoor-rated fixture. Use Damp Rated fans for covered areas like screened porches, and Wet Rated fans for exposed structures like pergolas where the fan will be in direct contact with rain or snow.
Can I use a dimmer switch with my ceiling fan?
Can I use a dimmer switch with my ceiling fan?
Do not use a standard wall dimmer for the fan motor, as it can cause humming or permanent motor damage. You must use a specialized Fan Speed Control or the remote control specifically designed for that model.
