TriAire Custom Black 56" Marine Grade Motor, Blades Sold Separately
Available in stock (402)
About this item
About this item
- Airflow: 6765 CFM for optimal circulation
- Motor Type: Efficient DC motor
- Environment Rating: Wet location rated for outdoor use
- Controls: Includes Wi-Fi receiver and remote control
- Blade Span: 56'' with 3 blades
We process payments securely and do not store credit card information.
Description
Description

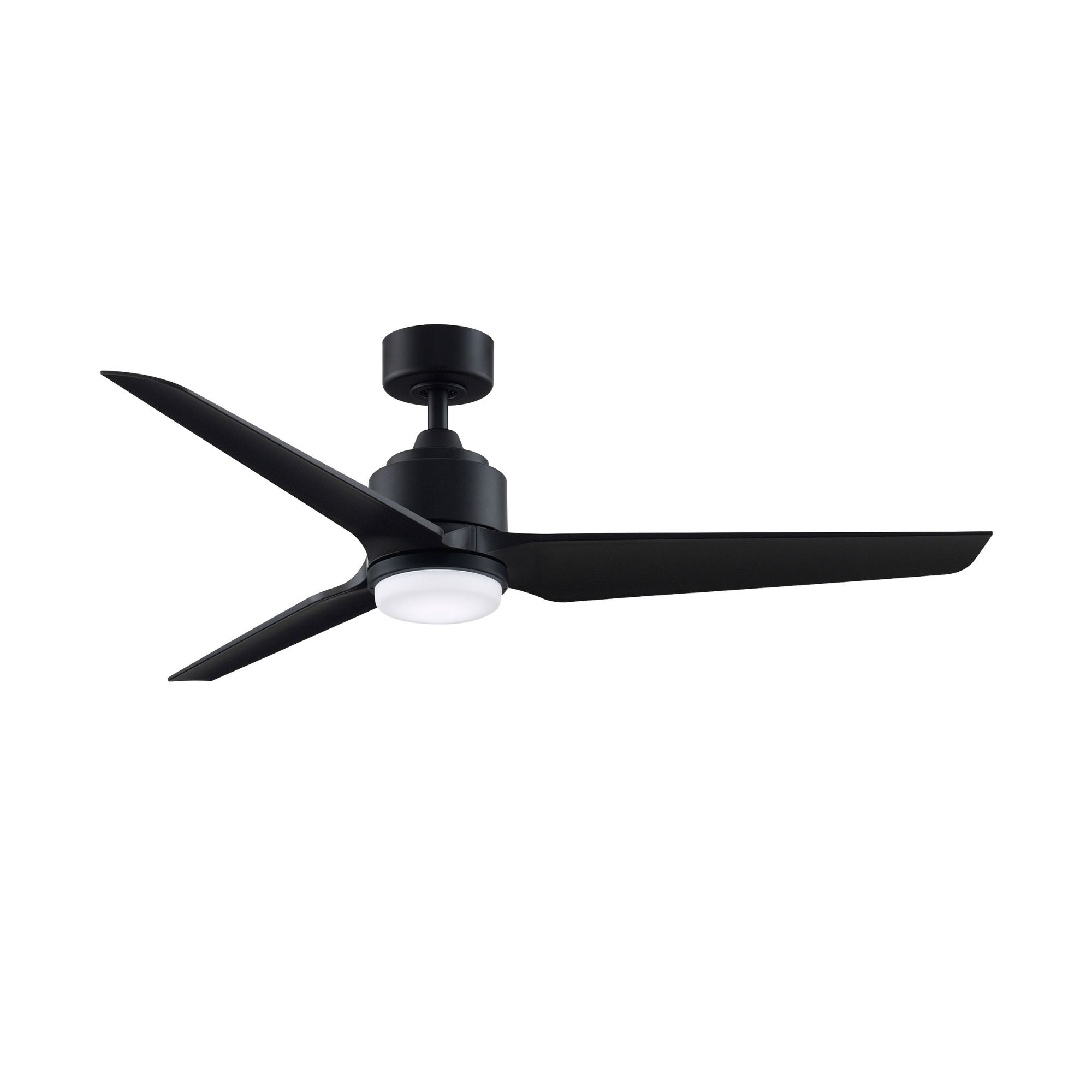

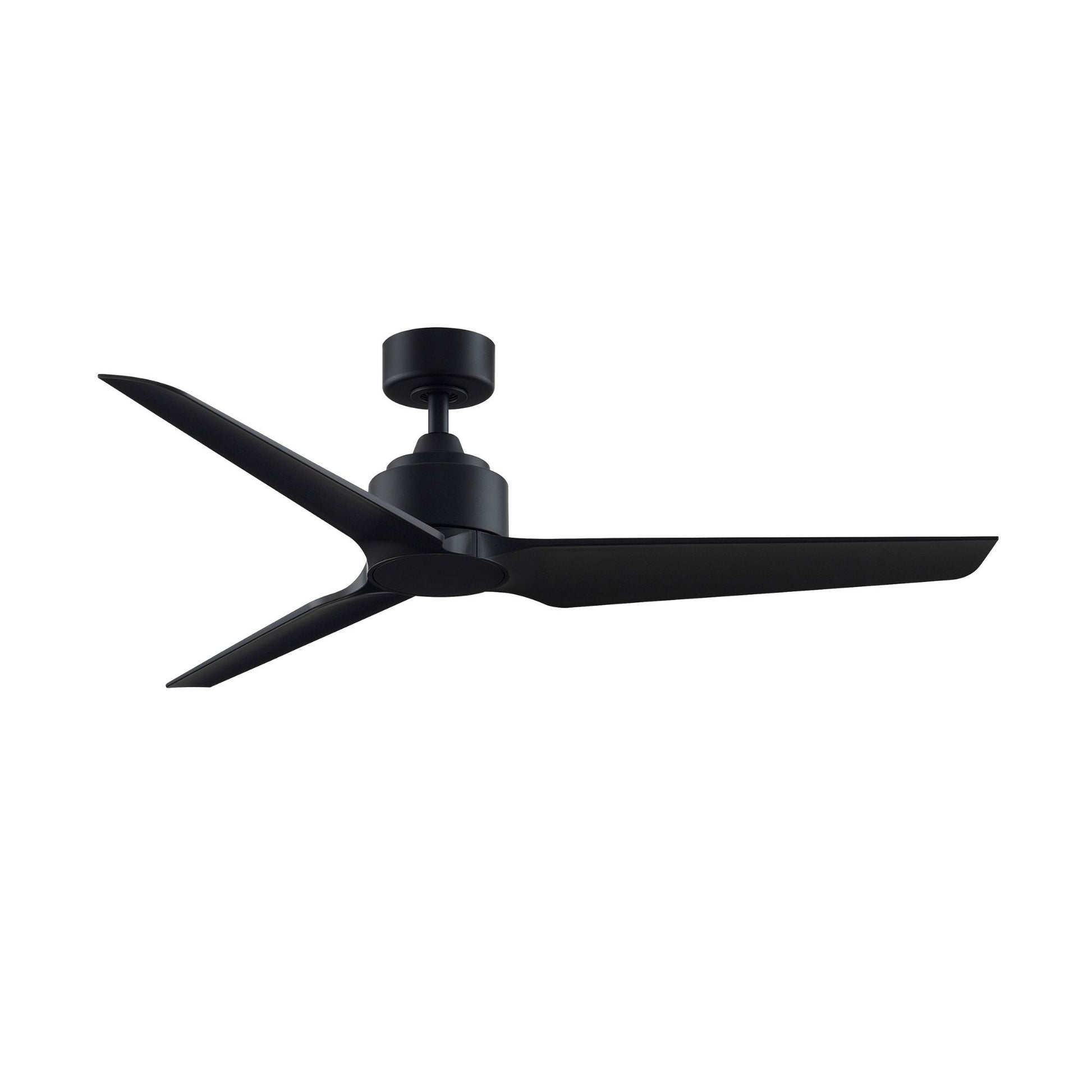

Fanimation Triaire 56'' Ceiling Fan — Black
The Fanimation Triaire ceiling fan, model MAD8514BLM, features a 56'' blade span with 3 blades, powered by a DC motor. This fan is wet location rated, making it suitable for outdoor use. The sleek Black finish complements any decor.
Key Features
- Blade Span: 56'' with 3 blades
- Motor Type: DC-158 x 22MM sensorless DC motor
- Environment Rating: Wet location rated
- Control Options: Includes Wi-Fi receiver and TR305 hand-held remote control
- Airflow: 6765 CFM
- Efficiency: 247 CFM/W
- Blade Pitch: 14°
- Sloped Ceiling Compatible: Up to 27° with optional kits for greater angles
- Downrod: Includes 4.5'' downrod, with options up to 72''

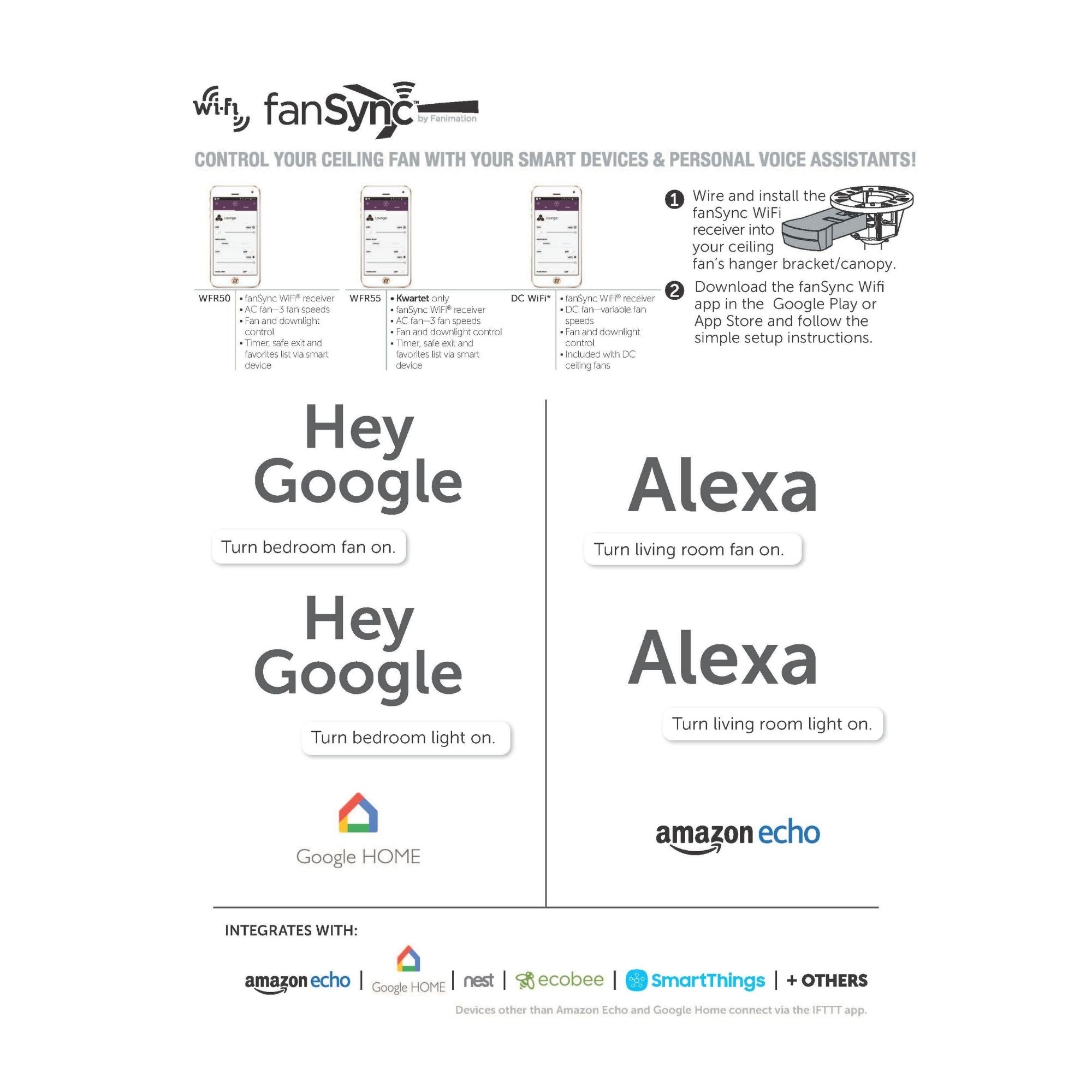

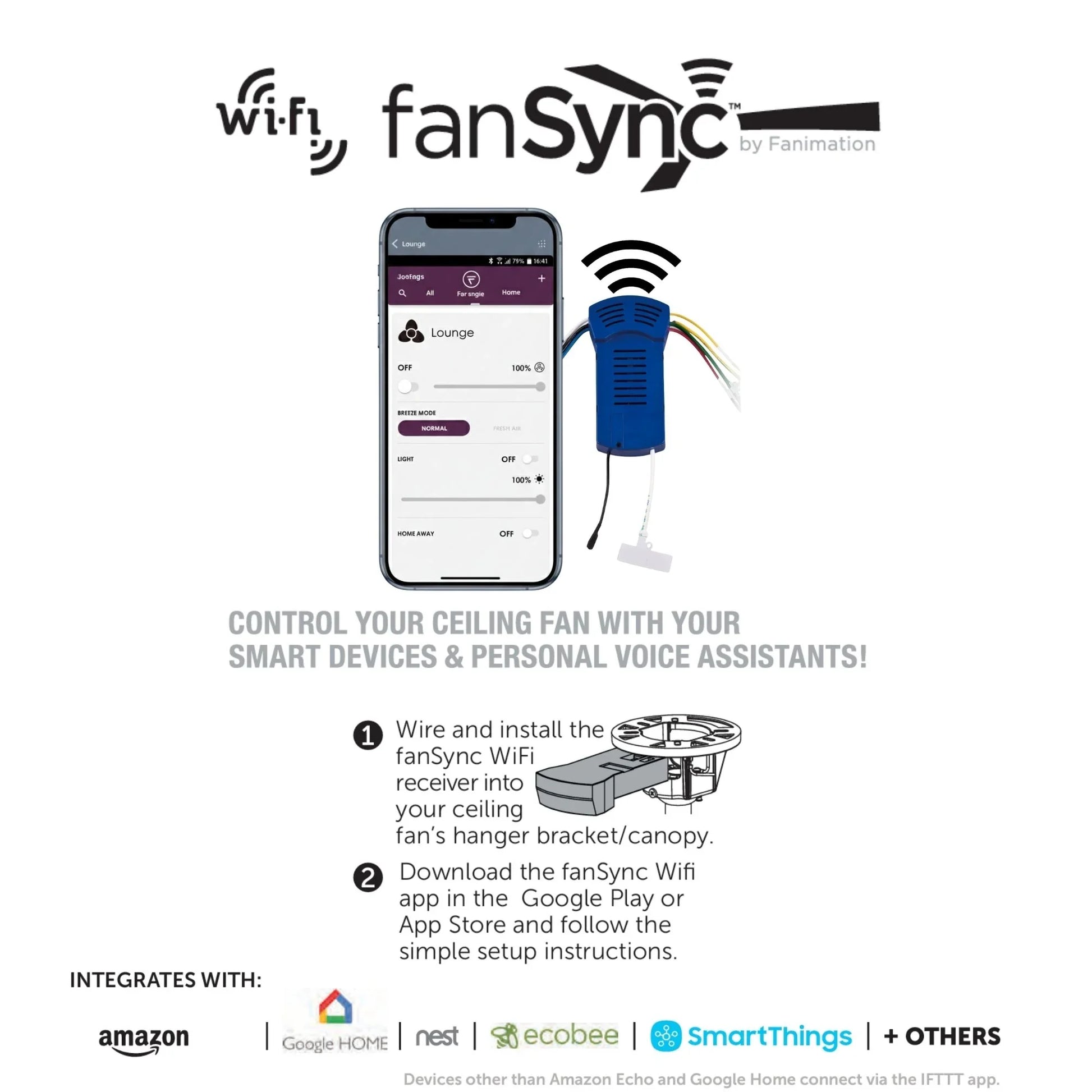

- Smart Features: Compatible with fanSync WiFi APP
Construction & Design
The fan features a durable plastic blade material with a 14° blade pitch, designed for optimal airflow and efficiency. The Black finish adds a modern touch to any space.
Smart & Control Features
This fan includes a Wi-Fi receiver and TR305 remote control, offering 16 fan speeds, reverse function, and dimmer light levels. Compatible with the fanSync WiFi APP for enhanced control.
Electrical & Installation
Designed for 120V AC, 60 Hz, 15 amp circuits. Compatible with sloped ceilings up to 27°, with optional kits available for greater angles. Includes a 4.5'' downrod.
Fan Performance
With an airflow of 6765 CFM and an efficiency of 247 CFM/W, this fan provides excellent air circulation for large spaces.
What's Included
- 56'' Ceiling Fan
- 4.5'' Downrod
- Wi-Fi Receiver
- TR305 Remote Control
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Fan Information
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
How high should a ceiling fan be from the floor?
How high should a ceiling fan be from the floor?
For residential fans, safety codes require a minimum clearance of 7.5 feet under the blades. If you are installing an industrial-rated fan, a minimum of 10 feet is required. For ceilings higher than 12 feet, hang your fan at least one-third the distance to the floor while maintaining that 7.5-foot minimum clearance. For optimal performance, a height of 9–10 feet is ideal.
How many blades are best for a ceiling fan?
How many blades are best for a ceiling fan?
Airflow is determined by a combination of factors including motor size, blade pitch, and blade materials. Instead of counting blades, compare fans using their standardized Airflow (CFM) and Airflow Efficiency (CFM per Watt) ratings. A higher CFM means more air is moved, while higher efficiency means more air movement per watt of electricity used.
What is a "Hugger" or Low Profile fan?
What is a "Hugger" or Low Profile fan?
A hugger fan is designed to be installed flush against the ceiling without a downrod. These should be used exclusively in rooms with a ceiling height of 8 feet or less to maximize headroom while maintaining safe clearance.
Can I put a regular ceiling fan outside?
Can I put a regular ceiling fan outside?
No. You must use an outdoor-rated fixture. Use Damp Rated fans for covered areas like screened porches, and Wet Rated fans for exposed structures like pergolas where the fan will be in direct contact with rain or snow.
Can I use a dimmer switch with my ceiling fan?
Can I use a dimmer switch with my ceiling fan?
Do not use a standard wall dimmer for the fan motor, as it can cause humming or permanent motor damage. You must use a specialized Fan Speed Control or the remote control specifically designed for that model.
