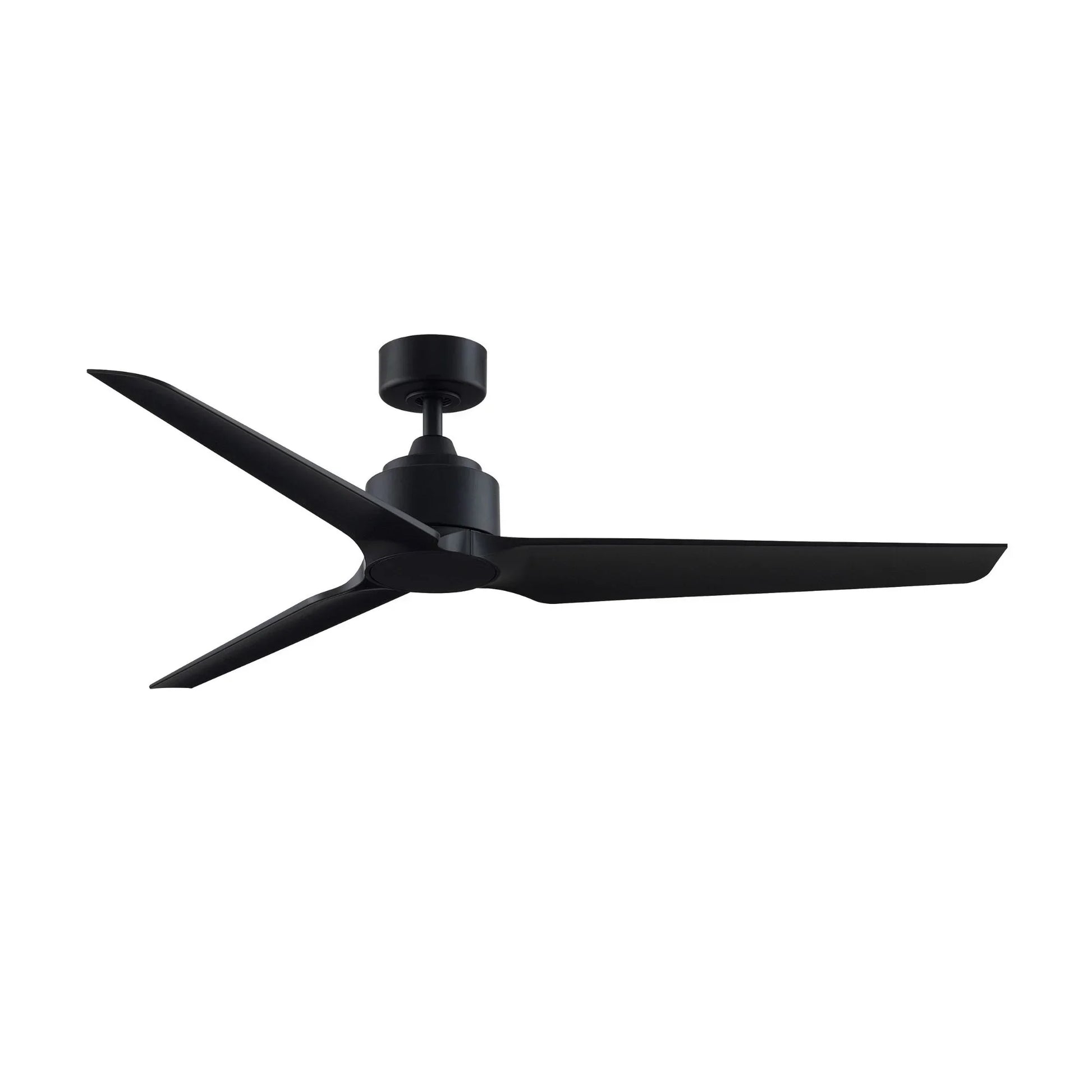

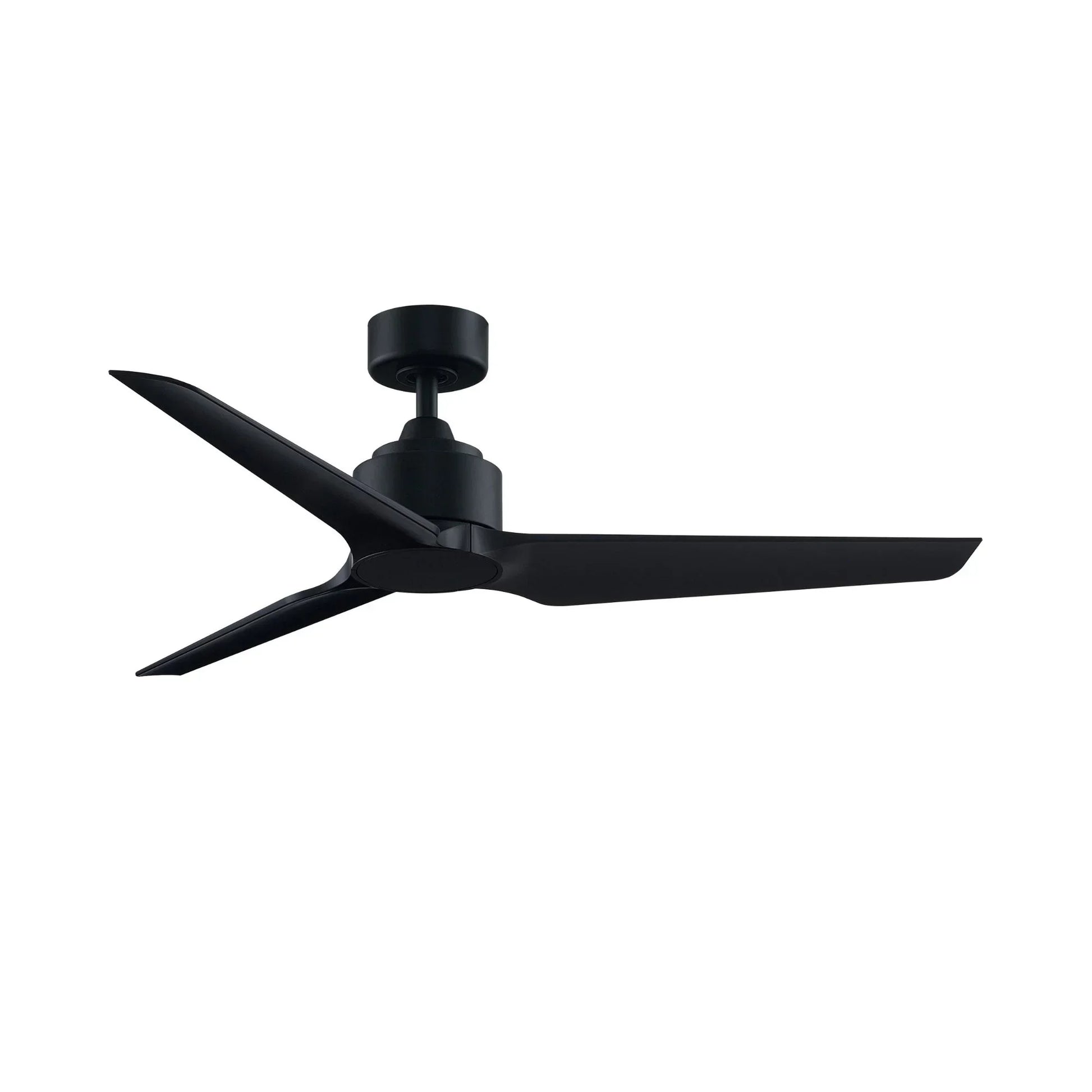

Fanimation TriAire Custom MAD8514 Marine Grade Fan Motor, Blades Sold Separately
Available in stock (481)
-
Estimated delivery: Nov 05 - Nov 09
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
The Fanimation TriAire Custom MAD8514M is a marine grade DC ceiling fan motor engineered for the harshest coastal and salt-air environments. Choose your finish below and pair with a compatible BPW8514 blade set (44–60 in, sold separately) and optional LK8514M marine grade light kit to complete your build. The DC 158×22mm sensorless motor delivers 6,765 CFM at high speed at 230 CFM/W (tested with 60 in blades), with 16 variable speeds and WiFi via the fanSync app.
⚠️ Motor unit only. Blade sets and light kit sold separately at Bees Lighting.

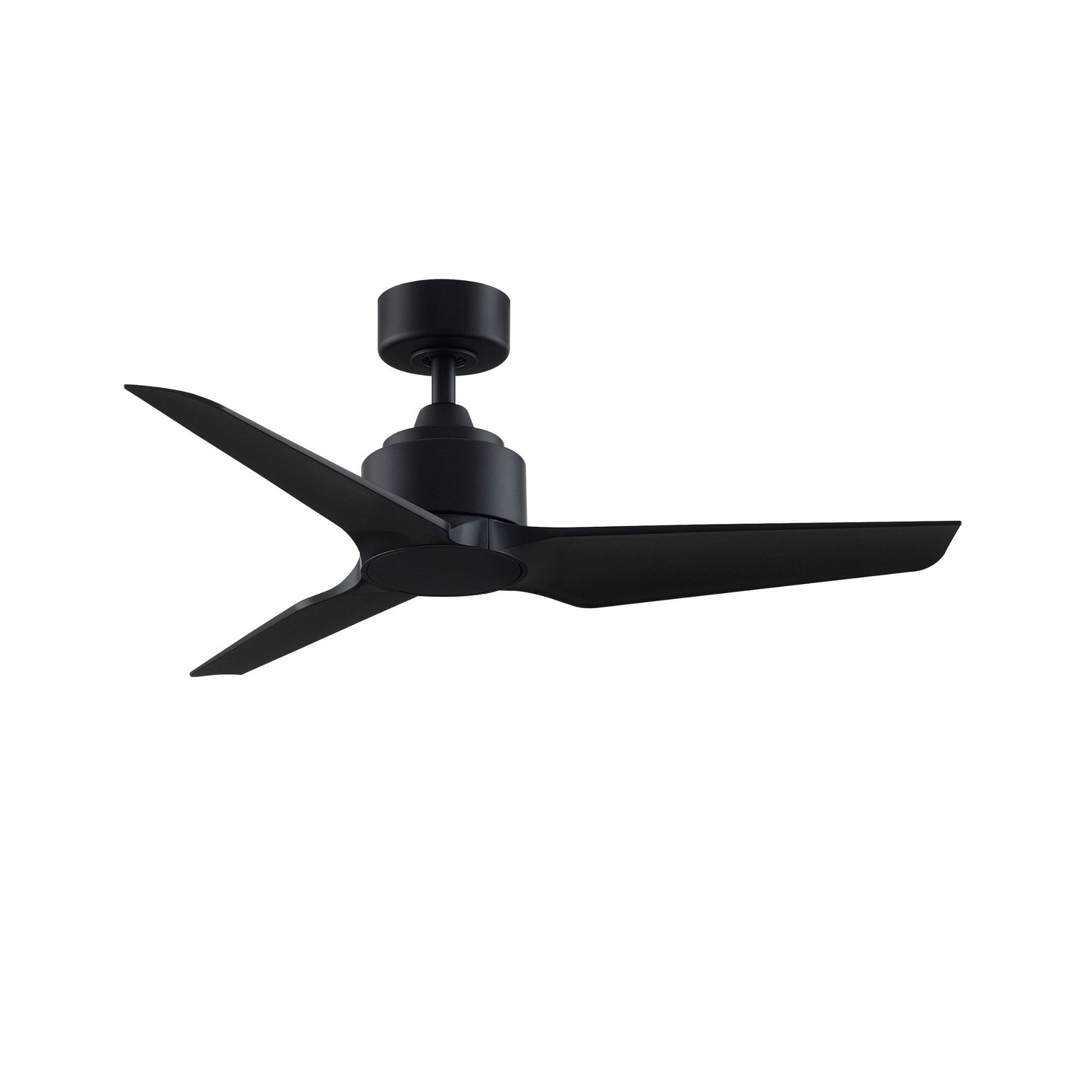

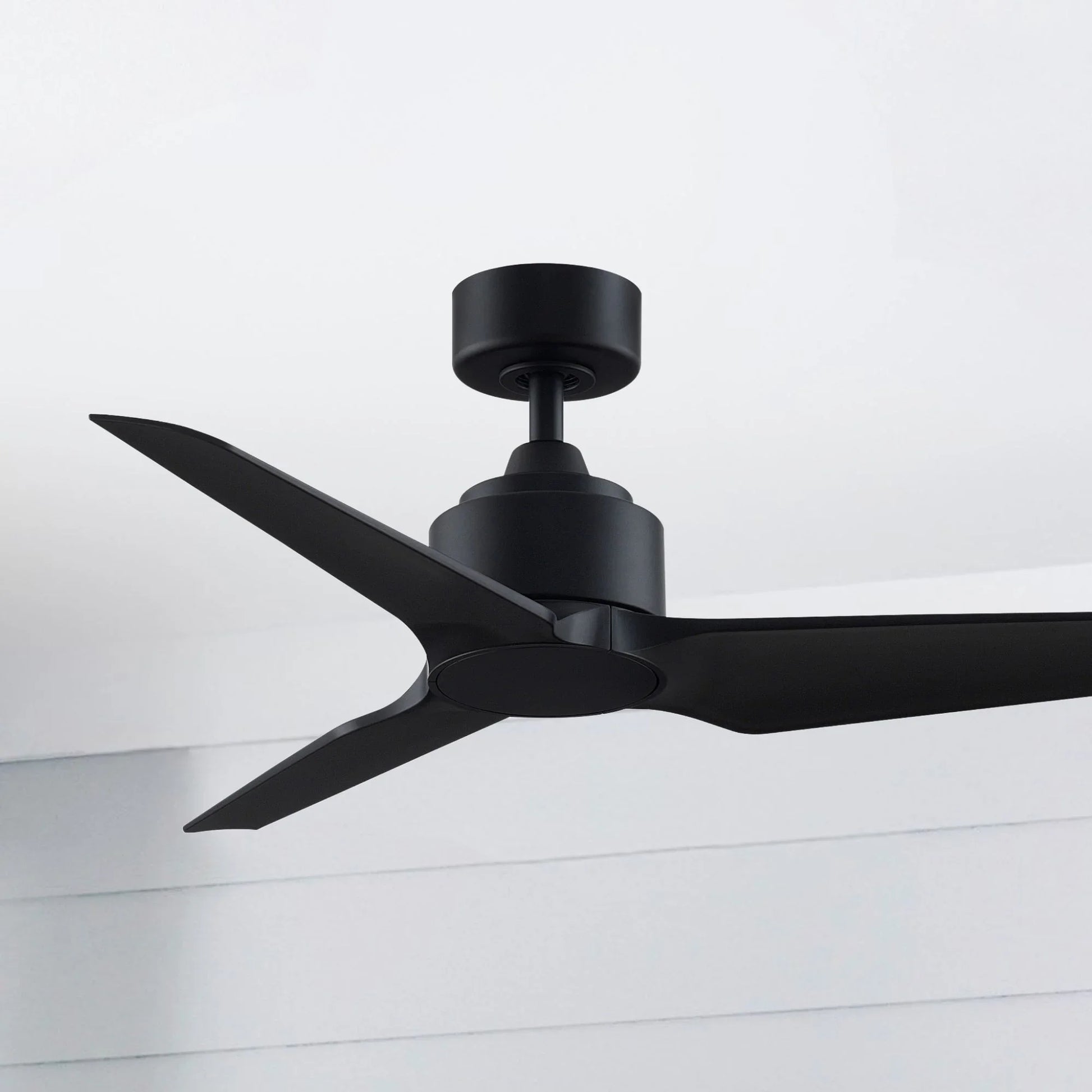

Finish & Motor Options- Black (BLM) — marine grade / DC 158×22mm sensorless / 6,765 CFM high / 230 CFM/W / 29W / cUL marine grade
- Dark Bronze (DZM) — marine grade / DC 158×22mm sensorless / 6,765 CFM high / 230 CFM/W / 29W / cUL marine grade

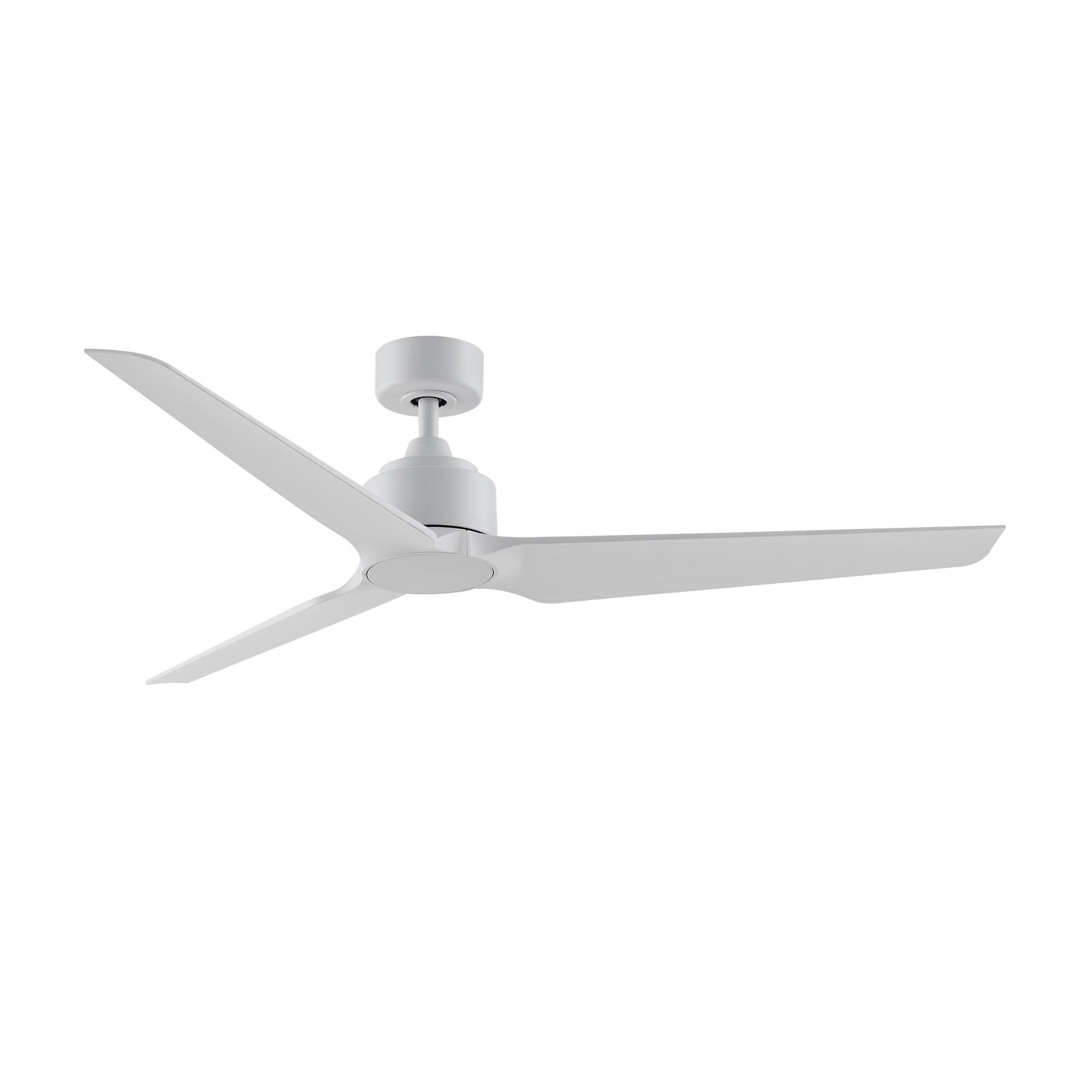

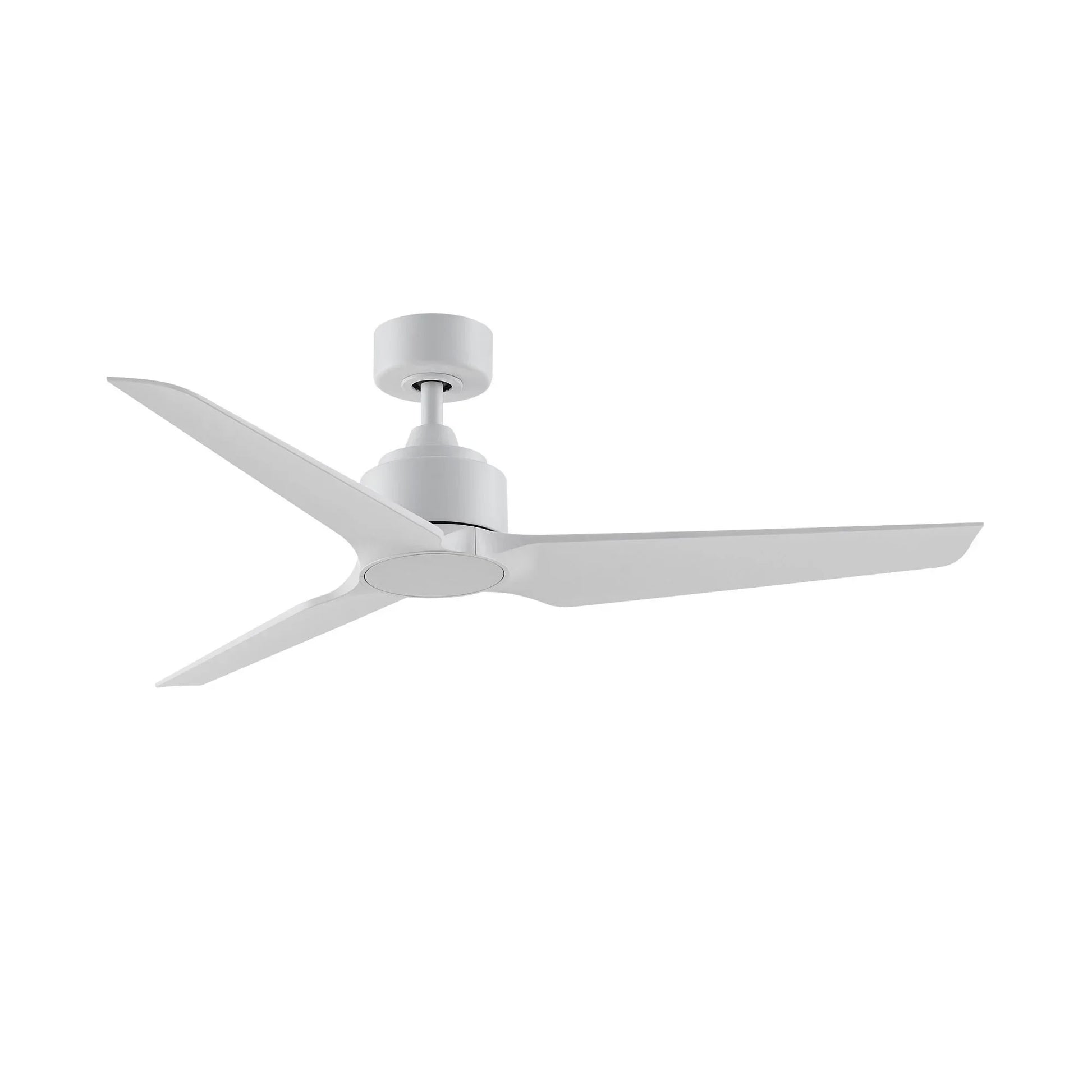

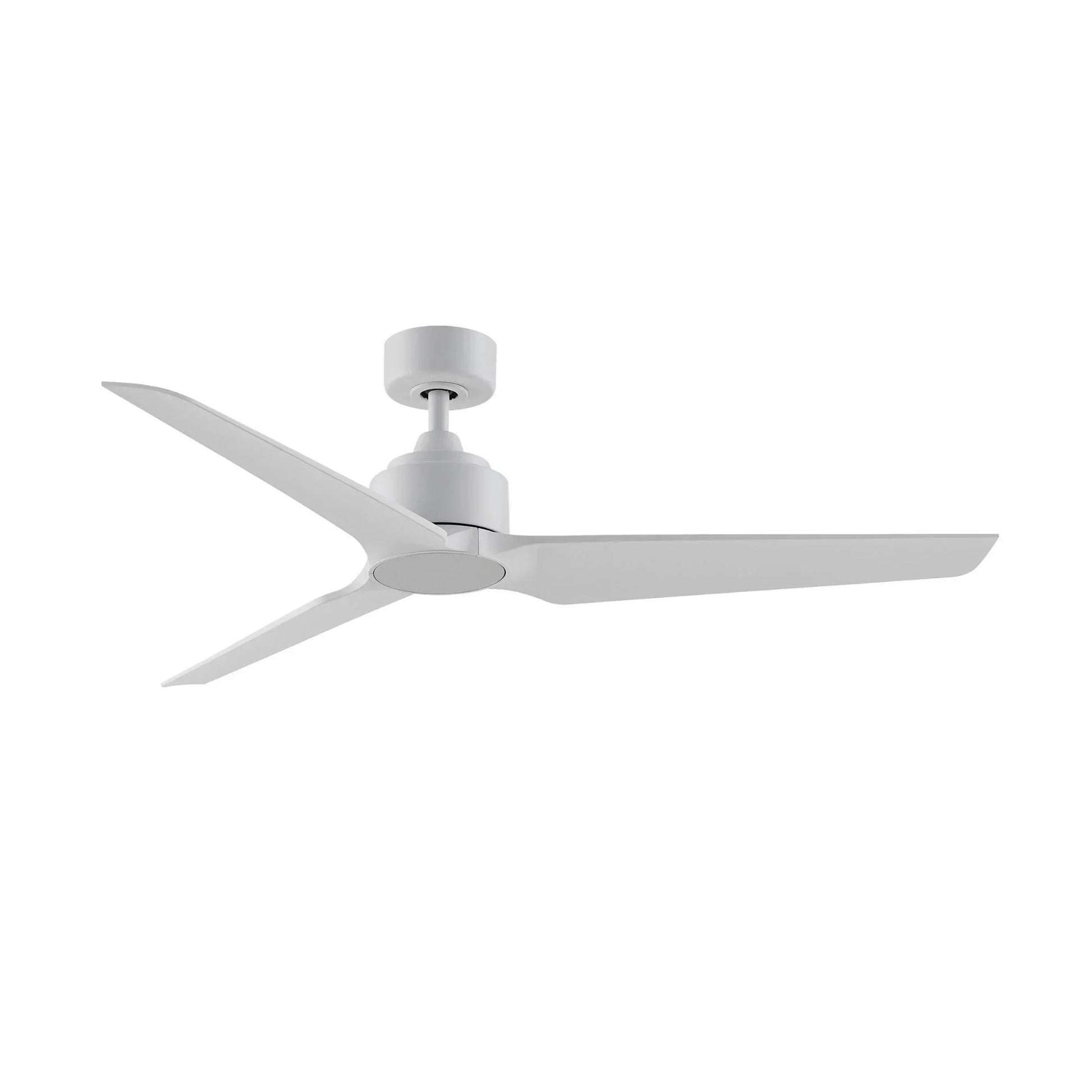

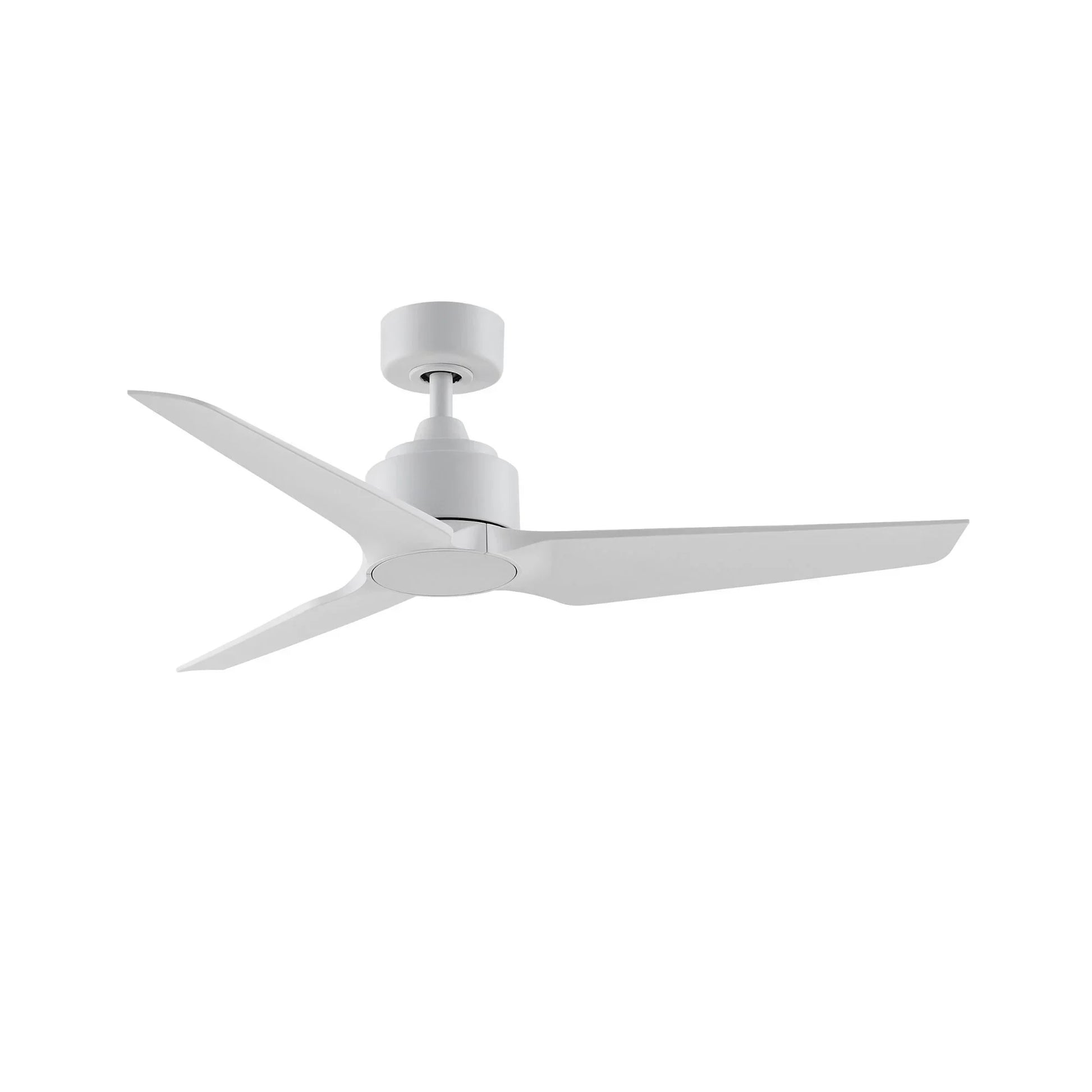

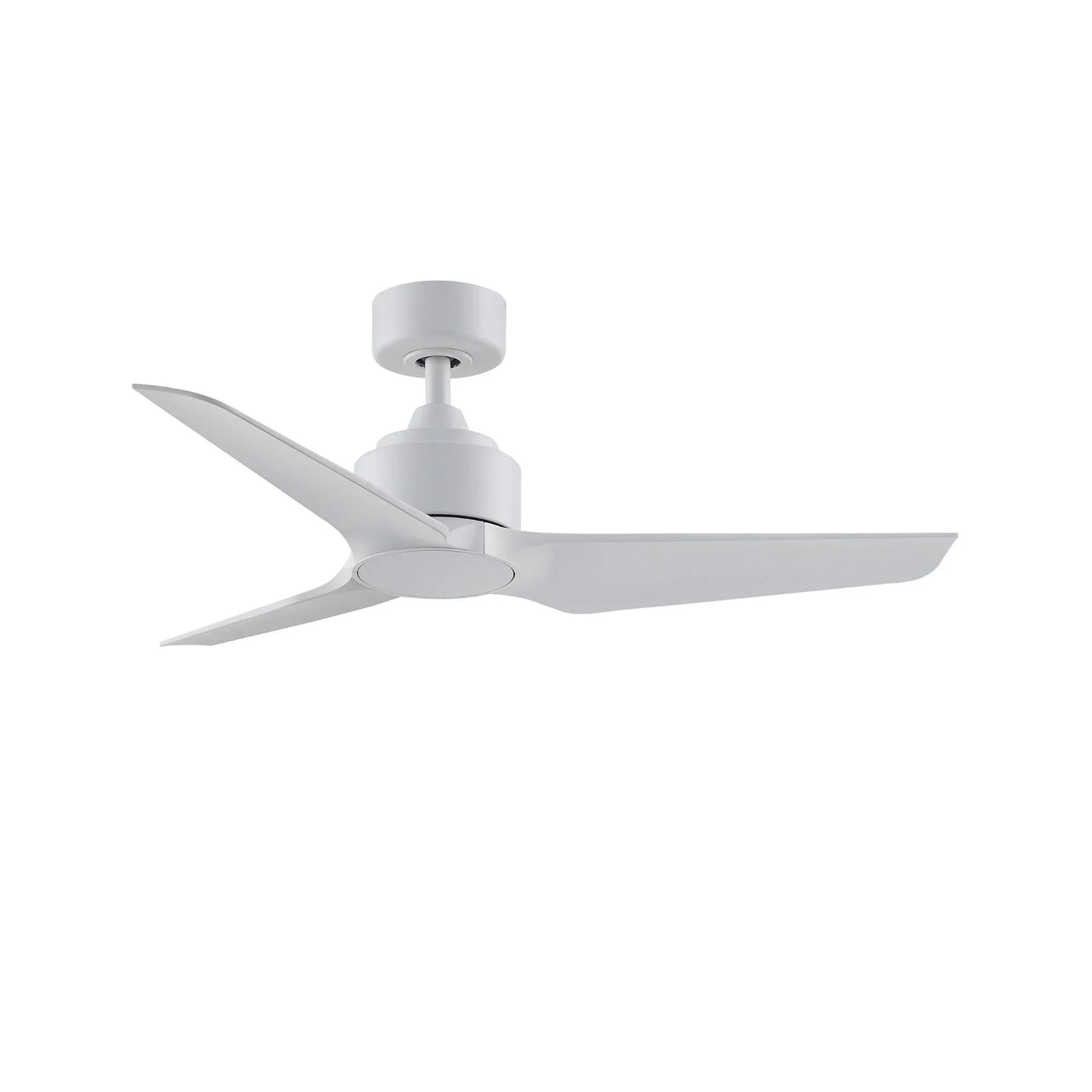

- Matte White (MWM) — marine grade / DC 158×22mm sensorless / 6,765 CFM high / 230 CFM/W / 29W / cUL marine grade
- Airflow (w/ 60 in blades): 6,765 CFM high / 4,222 CFM med / 821 CFM low — 230 CFM/W high efficiency
- Motor: DC 158×22mm sensorless DC, 16 variable speeds, reversible
- Compatible Blade Spans: 44, 48, 52, 56, 60 in (BPW8514 — sold separately)
- Wattage (w/ 60 in blades): 29W high / 8W med / 2W low
- Location: Marine grade — cUL listed, Energy Star
- Room Size: 44–48 in: up to 225 sq ft / 52–54 in: up to 400 sq ft / 56 in+: over 400 sq ft
Includes WiFi receiver and TR305 hand-held remote — 16-speed control, fresh air mode, Summer & Winter reverse, on/off plus full-range light dimmer, CCT select, fan/light timer, away mode, safe exit/off. Control via fanSync WiFi app (iOS & Android). Optional TW306 wall control sold separately.
Fan PerformanceTested with BPW8514-60 (60 in) blades. Performance varies by blade span selected.
- High (16th): 6,765 CFM / 230 CFM/W / 29W
- Med (9th): 4,222 CFM / 503 CFM/W / 8W
- Low (1st): 821 CFM / 357 CFM/W / 2W

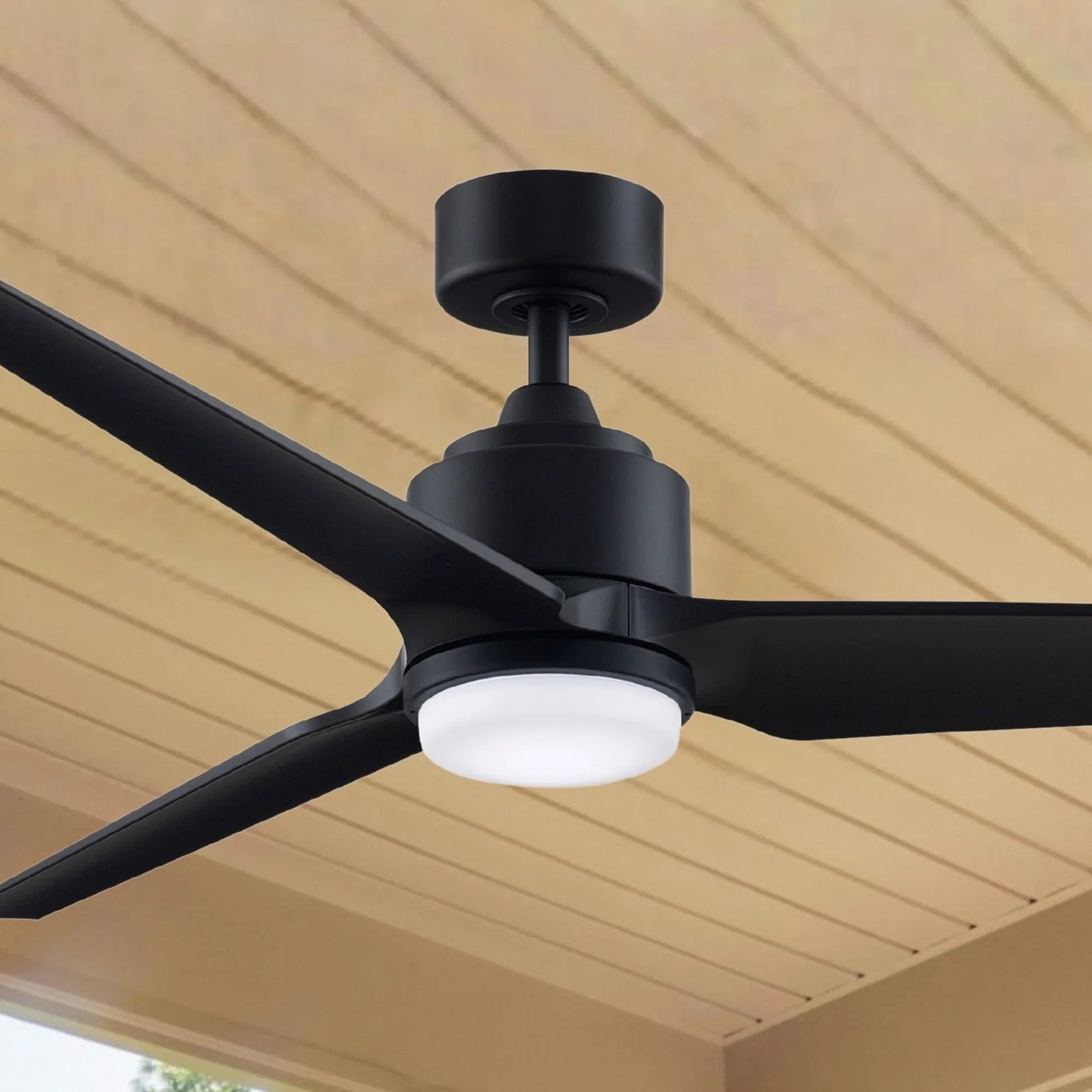

- Light kit ready: LK8514M marine grade (18W, 1,600 lm, 3000/4000/5000K, CRI 90) — sold separately
- BPW8514-44*** — 44 in / up to 225 sq ft
- BPW8514-48*** — 48 in / up to 225 sq ft
- BPW8514-52*** — 52 in / up to 400 sq ft
- BPW8514-56*** — 56 in / over 400 sq ft
- BPW8514-60*** — 60 in / over 400 sq ft
120V AC, 60Hz, 15A circuit. Downrod: 4.5 in included (1 in dia). Slope to 27° — SCB1-52 sloped ceiling ball available separately for up to 42°. Close-to-ceiling kit available separately. Additional downrods: 12, 18, 24, 36, 48, 60, 72 in. Motor dia: 5.75 in.
Suggested Downrod by Ceiling HeightShips with 4.5 in downrod (1 in dia). Blades sold separately — maintain 7 ft minimum floor-to-blade clearance once blade set is installed.
- 9 ft → 12 in
- 10 ft → 18 in
- 12 ft → 24 in
- 14 ft → 36 in
- 16 ft → 48 in
- 18 ft → 60 in
- 20 ft → 72 in
- MAD8514M ceiling fan motor (finish per selection)
- TR305 hand-held remote (WiFi receiver included)
- 4.5 in downrod (1 in dia)
- Mounting hardware
