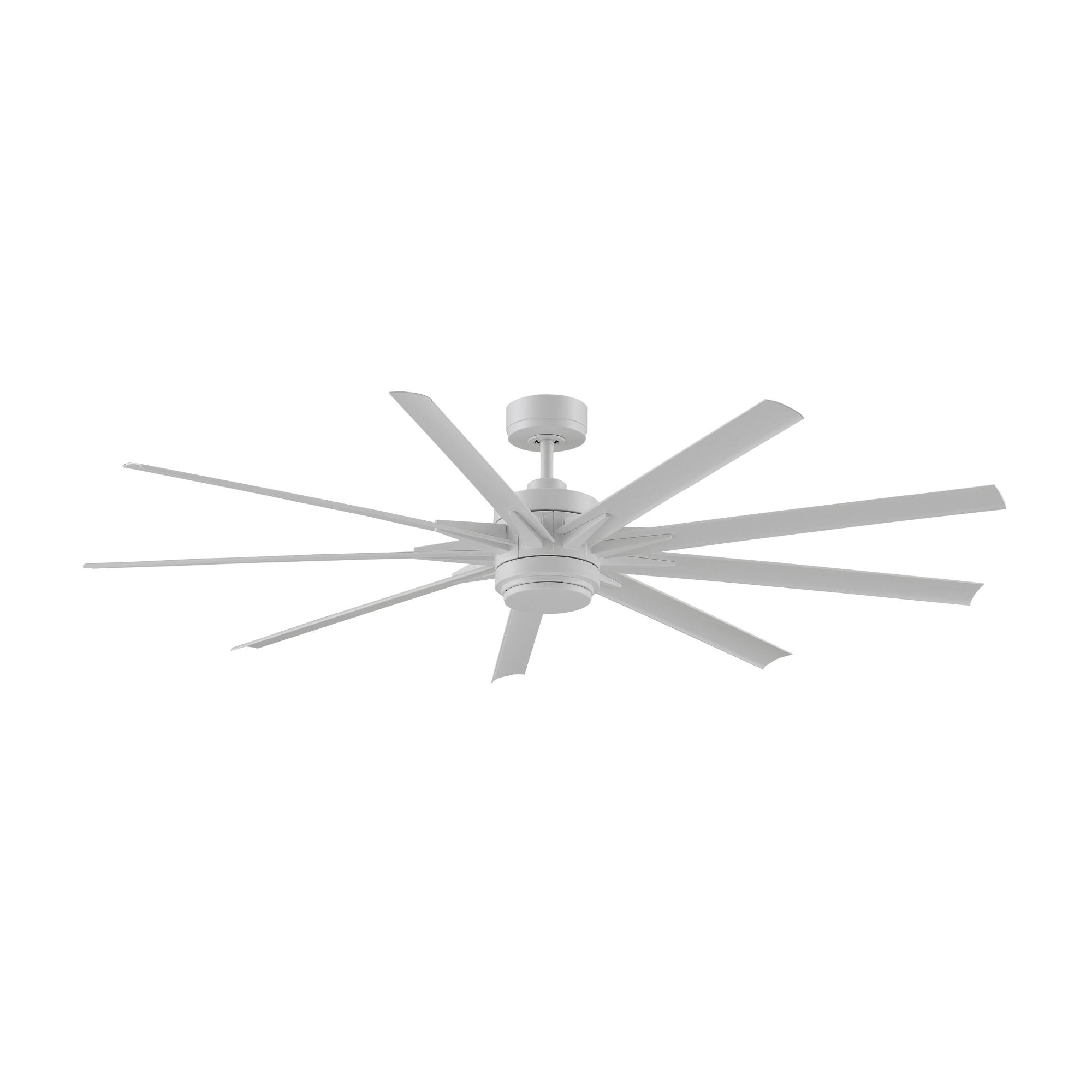

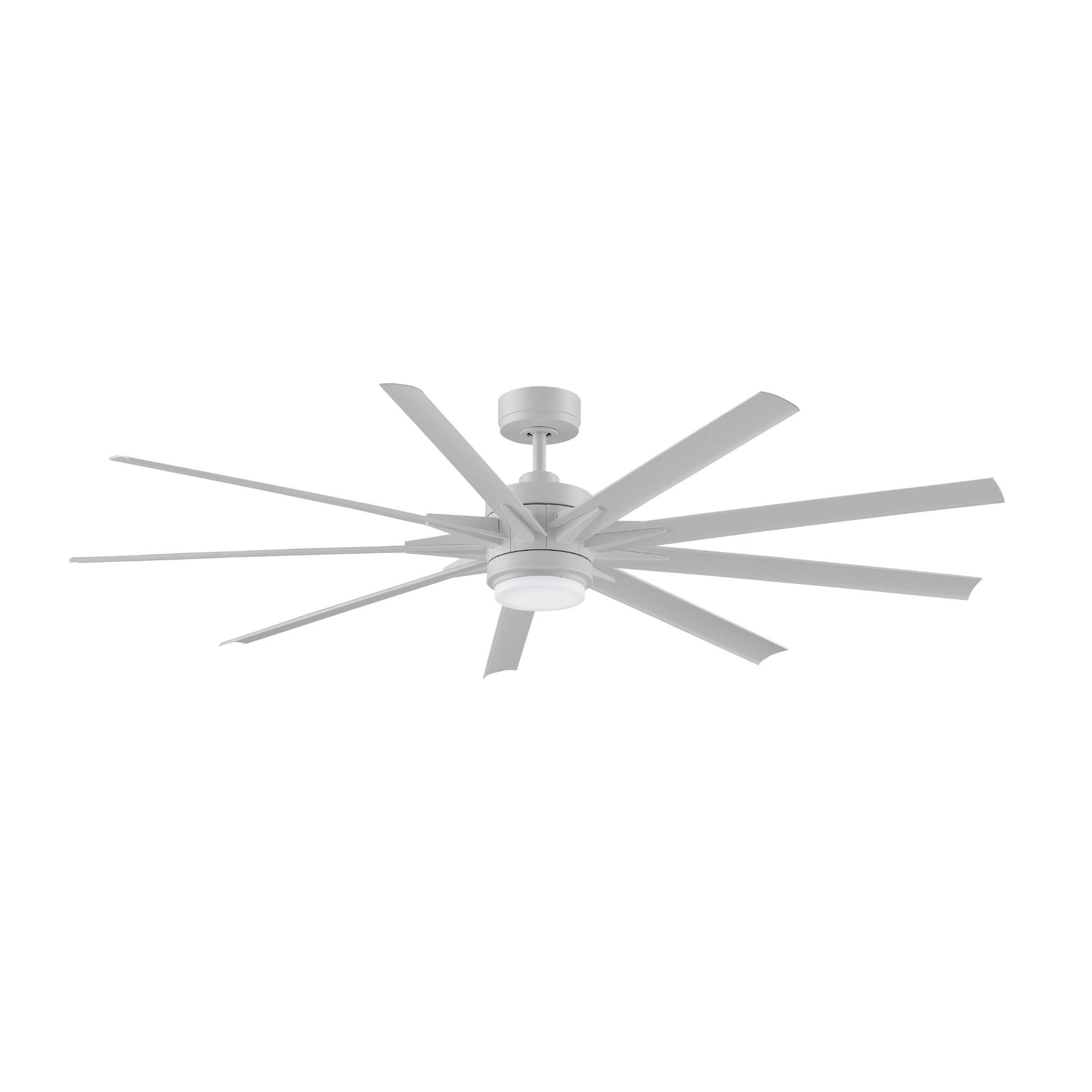

The Fanimation Odyn Custom MAD8152MWW is a Matte White DC motor unit for the Odyn Custom series — a large-format customizable ceiling fan available in 56, 64, and 72 in blade sweeps. Pair with your choice of Fanimation blade set (sold separately) and enjoy the included 18W CCT LED light kit with opal frosted glass. Delivers up to 9,193 CFM (72 in, 321 CFM/W, 29W). Includes the TR305 remote with built-in fanSync WiFi. UL Listed for Wet Locations — Energy Star certified — limited lifetime warranty.

⚠️ Motor unit only. Compatible blade sets (BPW8152-56**, BPW8152-64**, BPW8152-72**) sold separately at Bees Lighting.

• Blade Span: 56 / 64 / 72 in — blade set sold separately — 9 blades, 12° pitch, all-weather composite
• Motor: DC135 sensorless DC motor — 16 variable speeds — reverse on remote

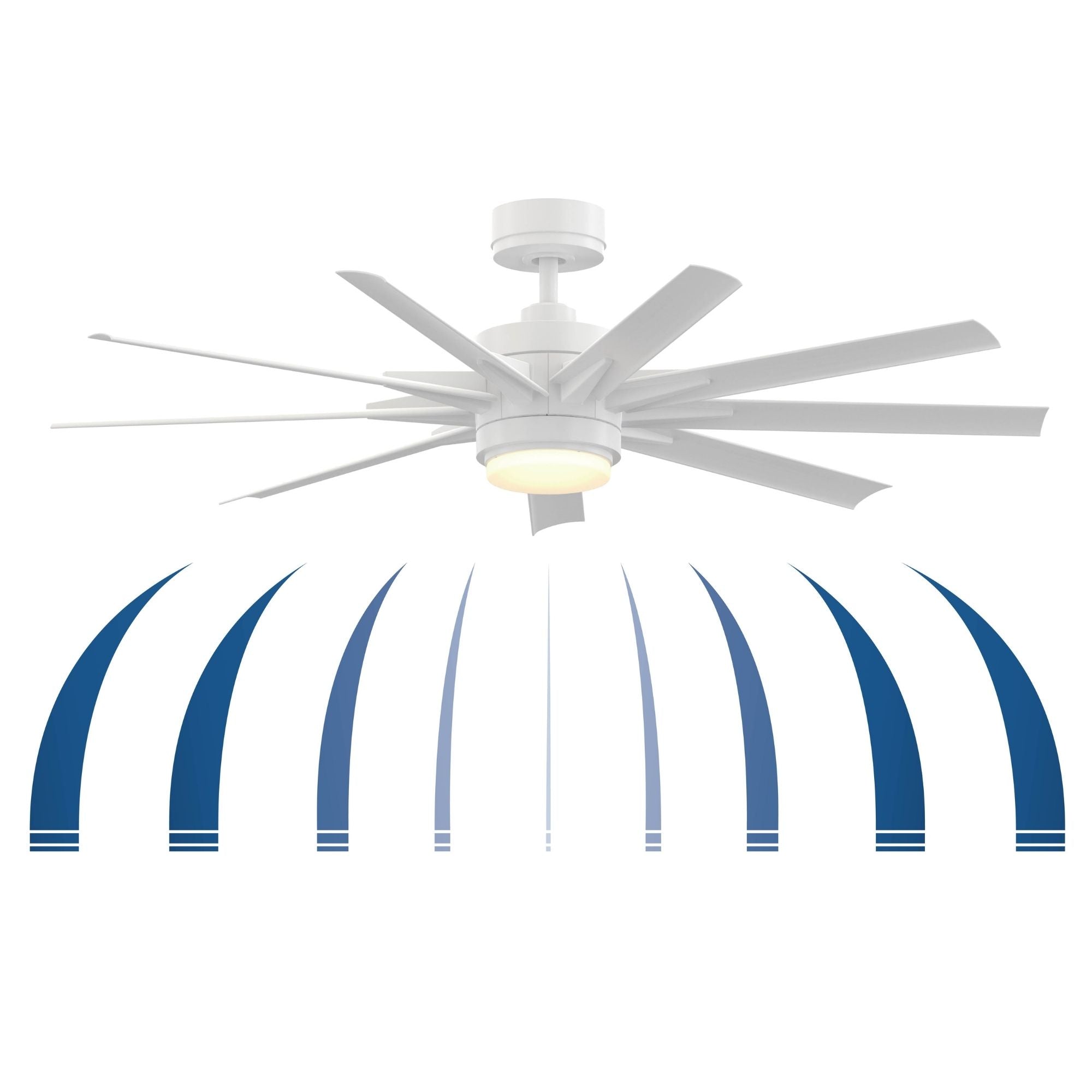

• Airflow (72 in): 9,193 CFM high / 3,090 CFM low — 321 CFM/W / 29W
• Airflow (64 in): 8,415 CFM high / 2,242 CFM low
• Airflow (56 in): 7,587 CFM high / 1,561 CFM low
• Wattage: 29W high / 10W med / 3W low (72 in)

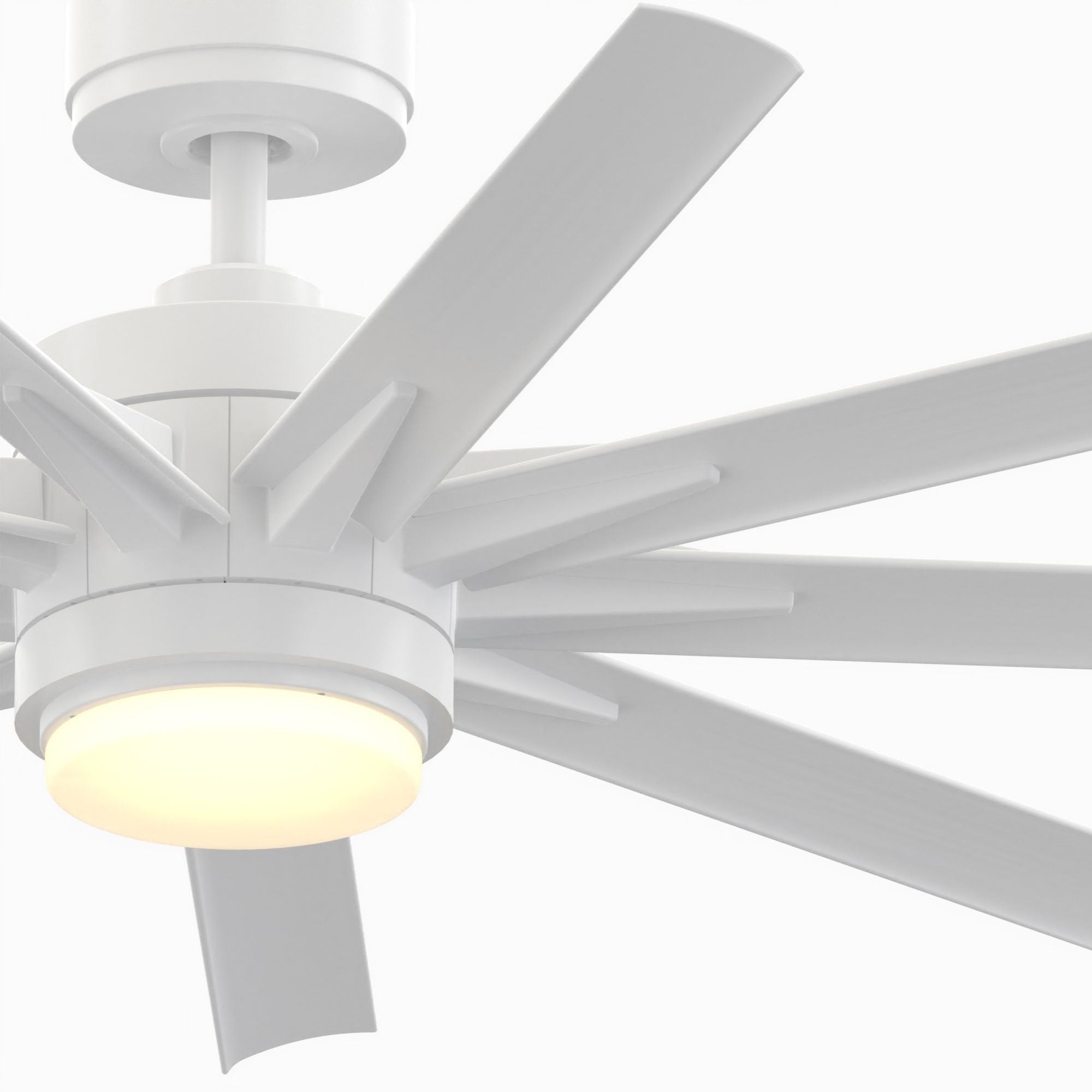

• Light Kit: 18W CCT LED — 1,600 lm — 3000/4000/5000K — CRI 90 — opal frosted glass + steel cap — included
• Location Rating: UL Listed for Wet Locations — indoor, covered and open outdoor use
• Certifications: Energy Star certified
• Mounting: Downrod — up to 27° standard; up to 42° with SCB1-52 (sold separately)
• Included Downrod: 1 in dia. × 12 in wet-location (DR1SS-12)
• Canopy: 6.46 in dia. — 7 ft min floor-to-blade clearance
• Net Weight: 25.07 lbs (motor assembly only)

Includes TR305 hand-held remote — 16 variable fan speeds, fresh air mode, reverse, ON/OFF dimmer, CCT Select (3000/4000/5000K), fan/light timer, home away, safe exit, and off. Built-in fanSync WiFi connects directly to your home network — no hub required. Control via the Fanimation fanSync app (iOS & Android) with voice control through Amazon Alexa and Google Home. Optional TW306 2-wire fan-only wall control available separately.

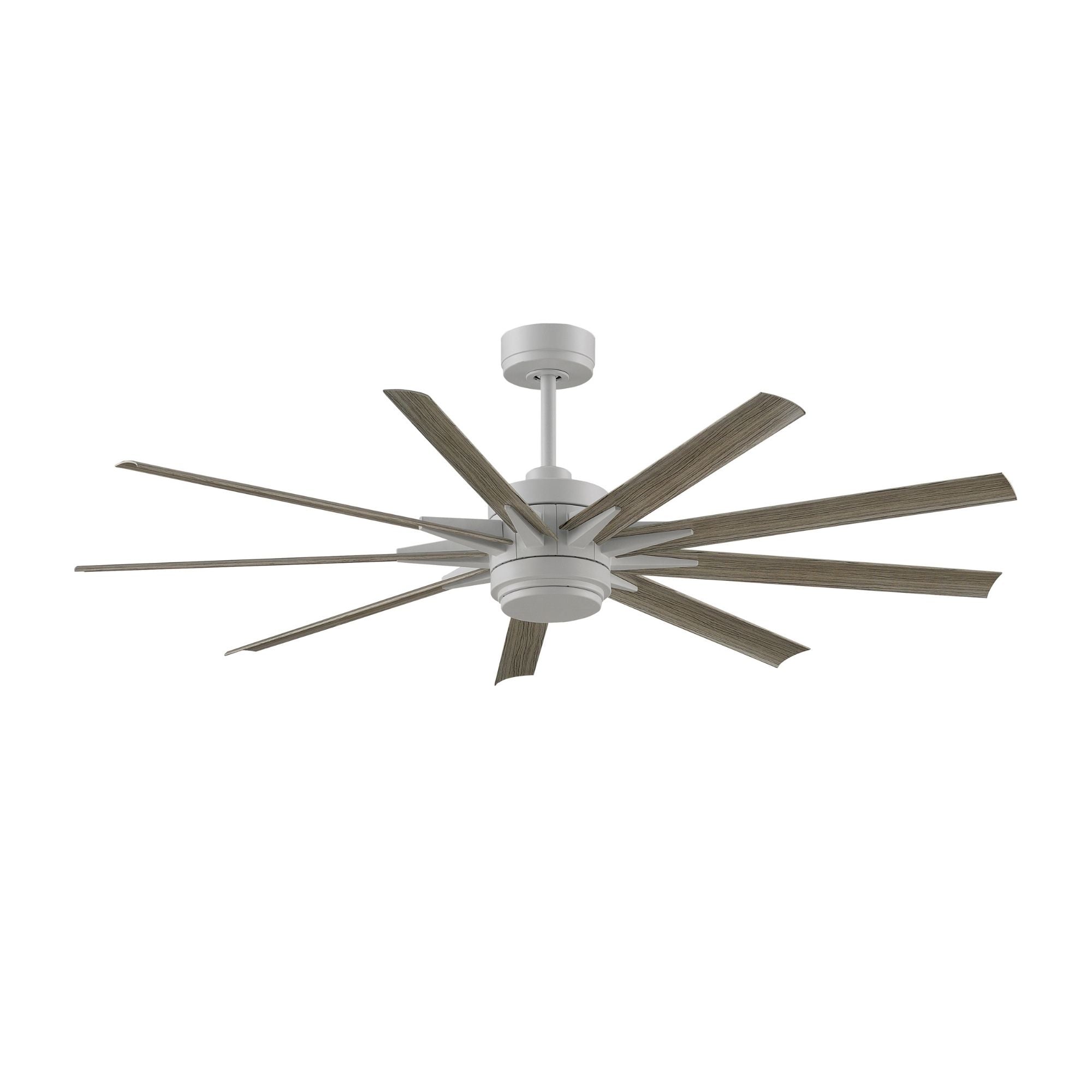

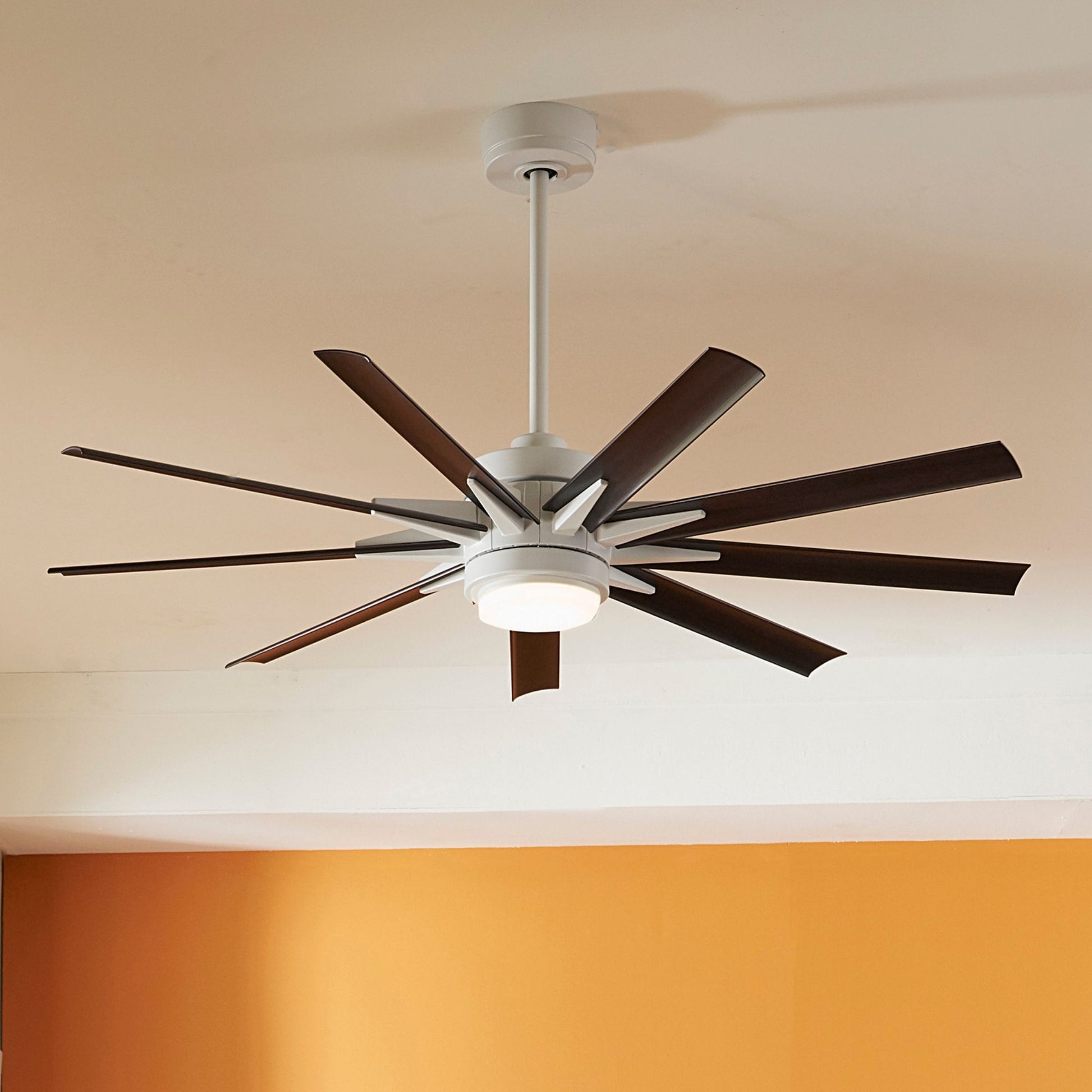

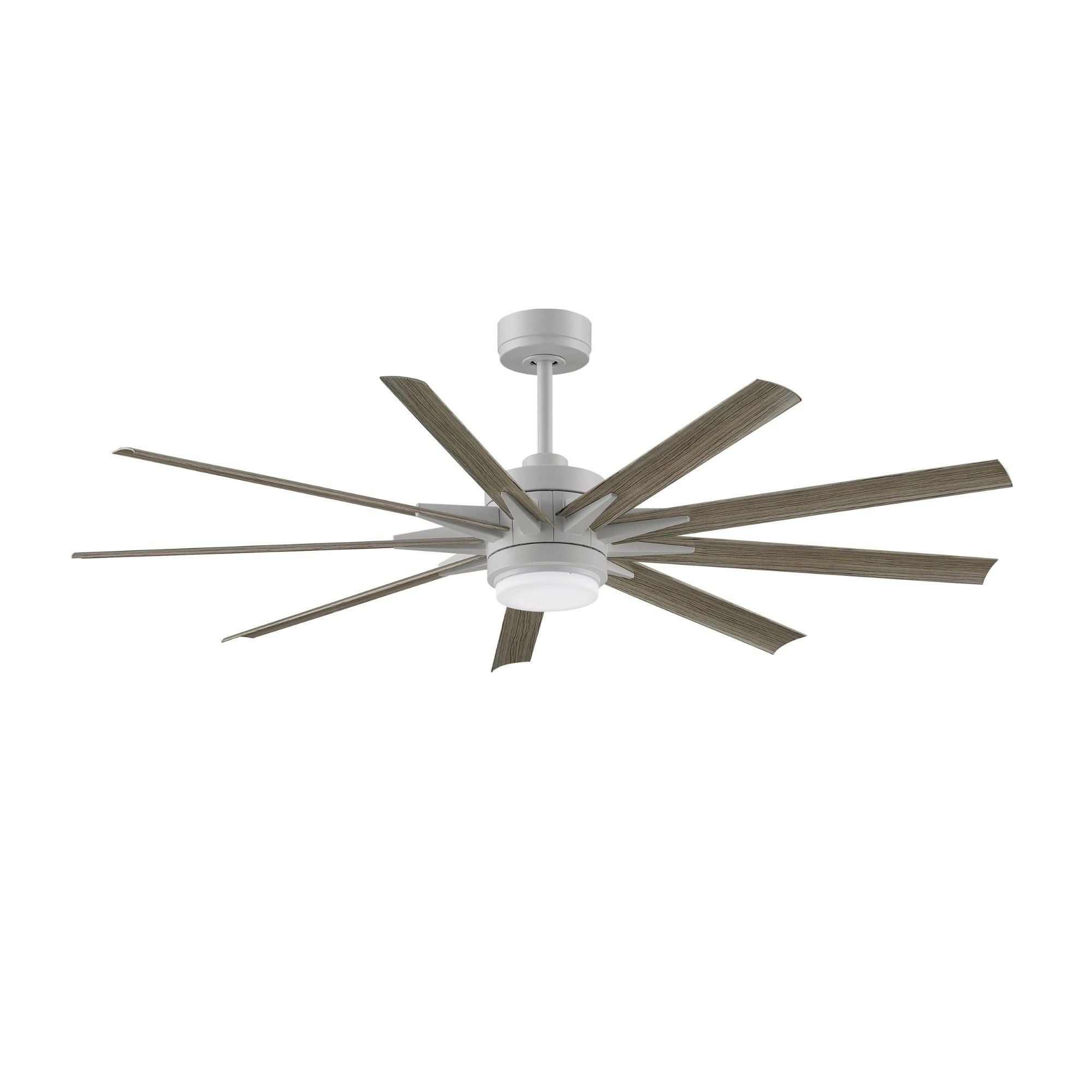

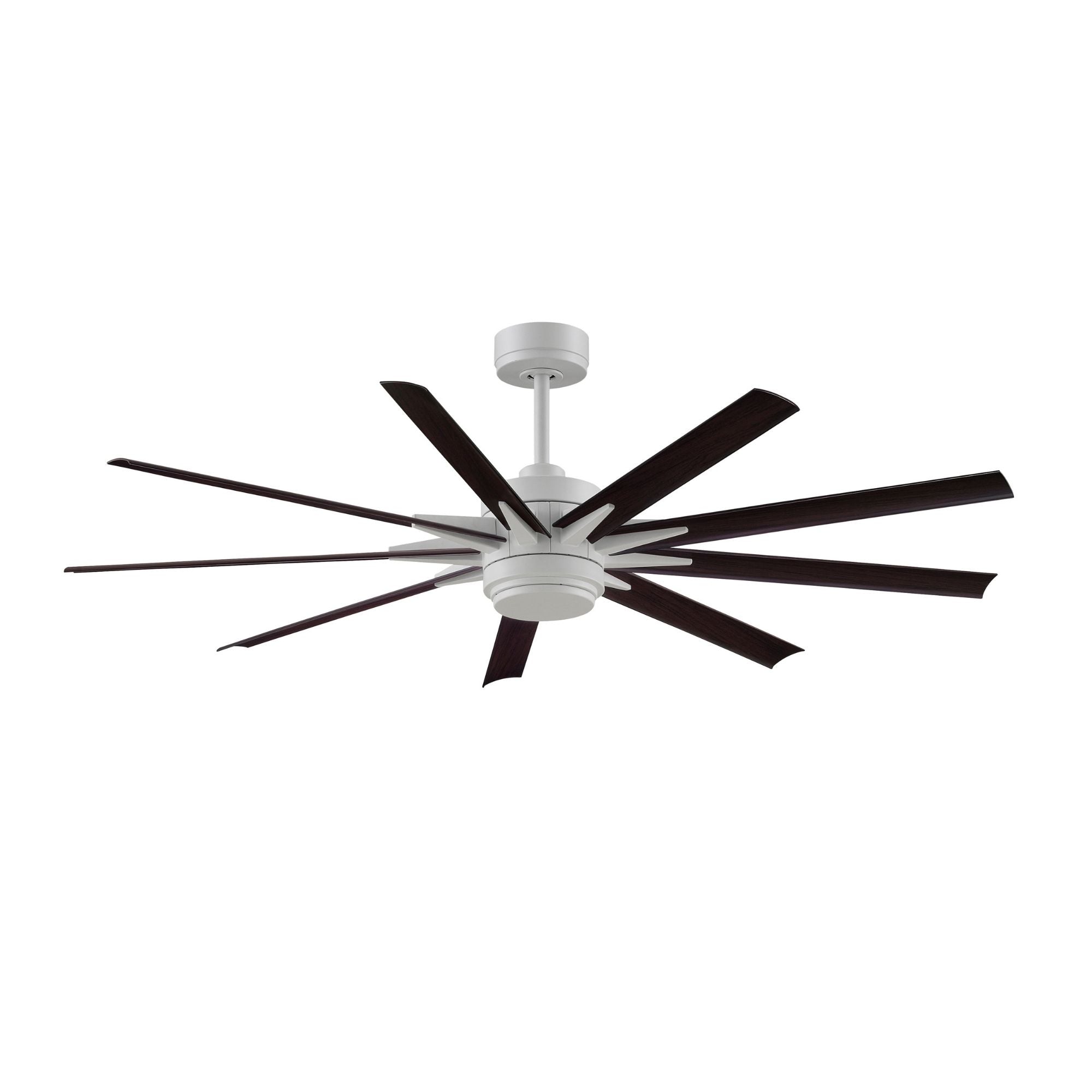

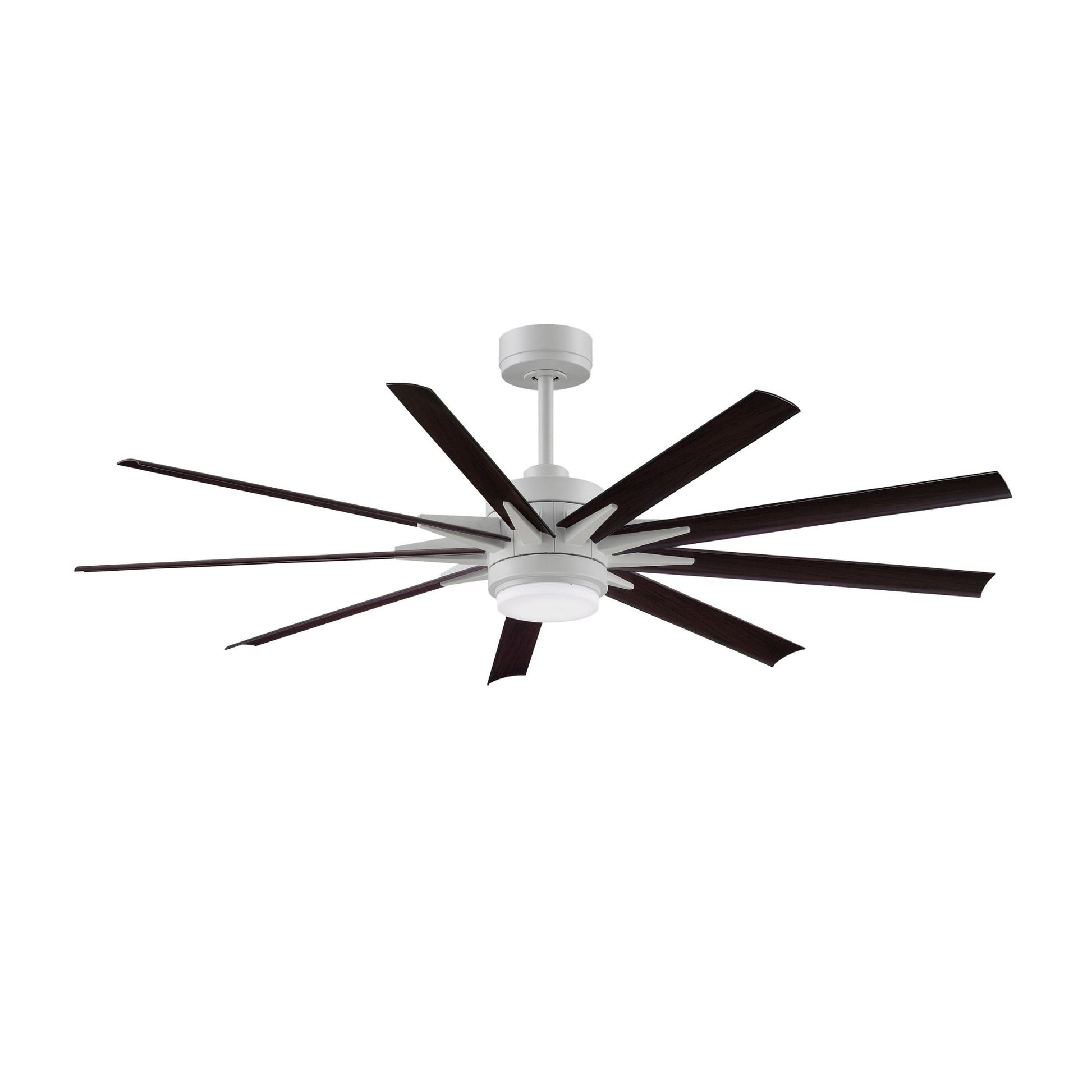

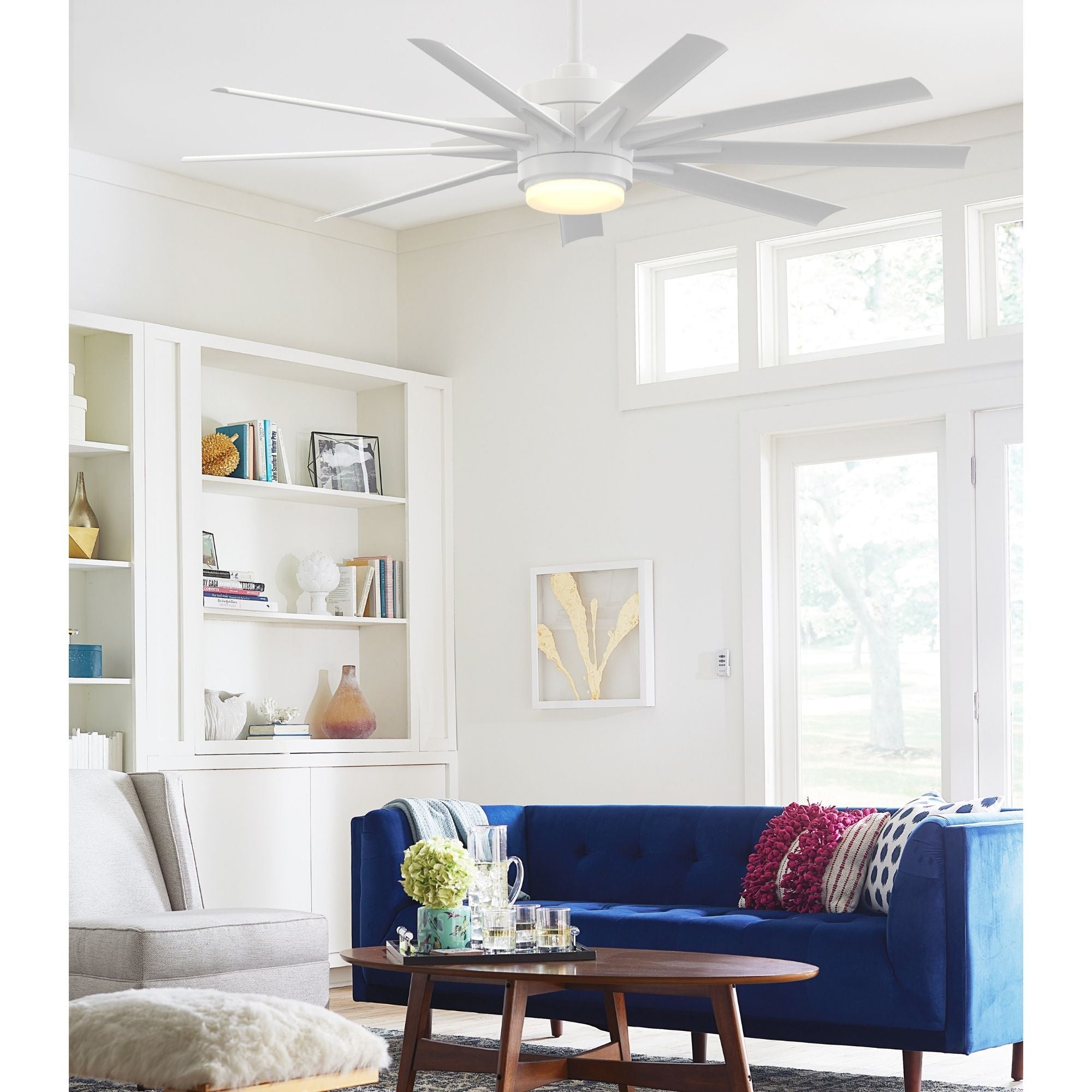

Matte White motor housing with steel cap and opal frosted glass light kit included. Blade sets sold separately in five finishes (black, brushed nickel, dark walnut, matte white, weathered wood) across 56, 64, and 72 in spans. The Odyn Custom’s bold nine-blade silhouette delivers dramatic large-format presence for covered patios, open outdoor spaces, great rooms, and commercial applications. Backed by a limited lifetime warranty.

120V AC, 60Hz, 15A circuit. Fan: 29W high (72 in). Light: 18W. Reversible via remote. Junction box must be rated for at least 35 lbs. Sloped up to 27° standard; up to 42° with SCB1-52 (sold separately). Optional close-to-ceiling kit CCK8002 available separately. UL Listed for Wet Locations.

Includes 1 in dia. × 12 in wet-location downrod (DR1SS-12). Optional wet-location downrods available in 18, 24, 36, 48, 60, and 72 in lengths. Coupler DR1-CP** available for runs over 72 in. Ideal floor-to-blade: 7–9 ft.

• 9 ft → <12 in
• 10 ft → 12–18 in
• 11 ft → 18–24 in
• 12 ft → 24–36 in
• 13 ft → 36–48 in
• 14 ft → 48–60 in
• 15 ft → 72 in+

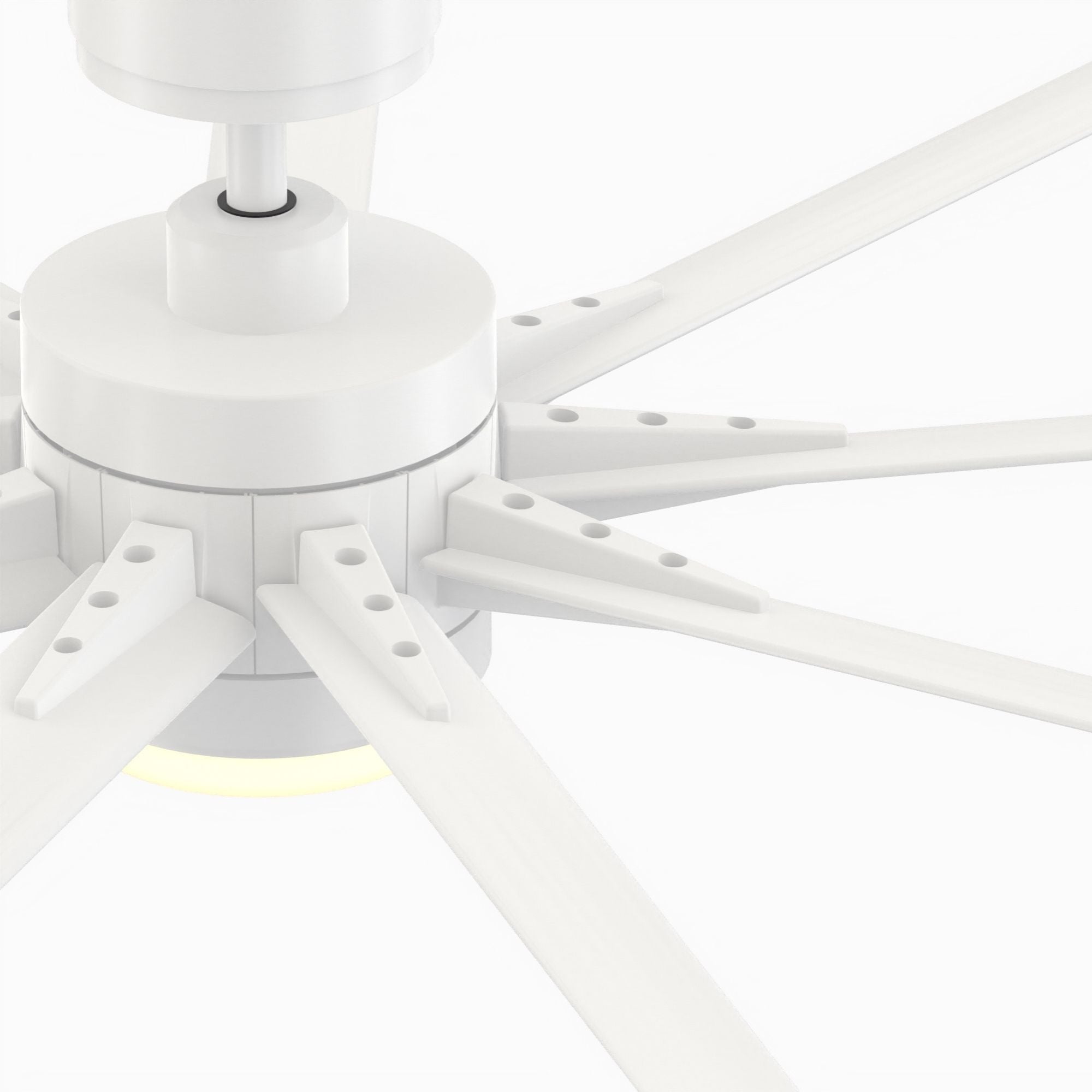

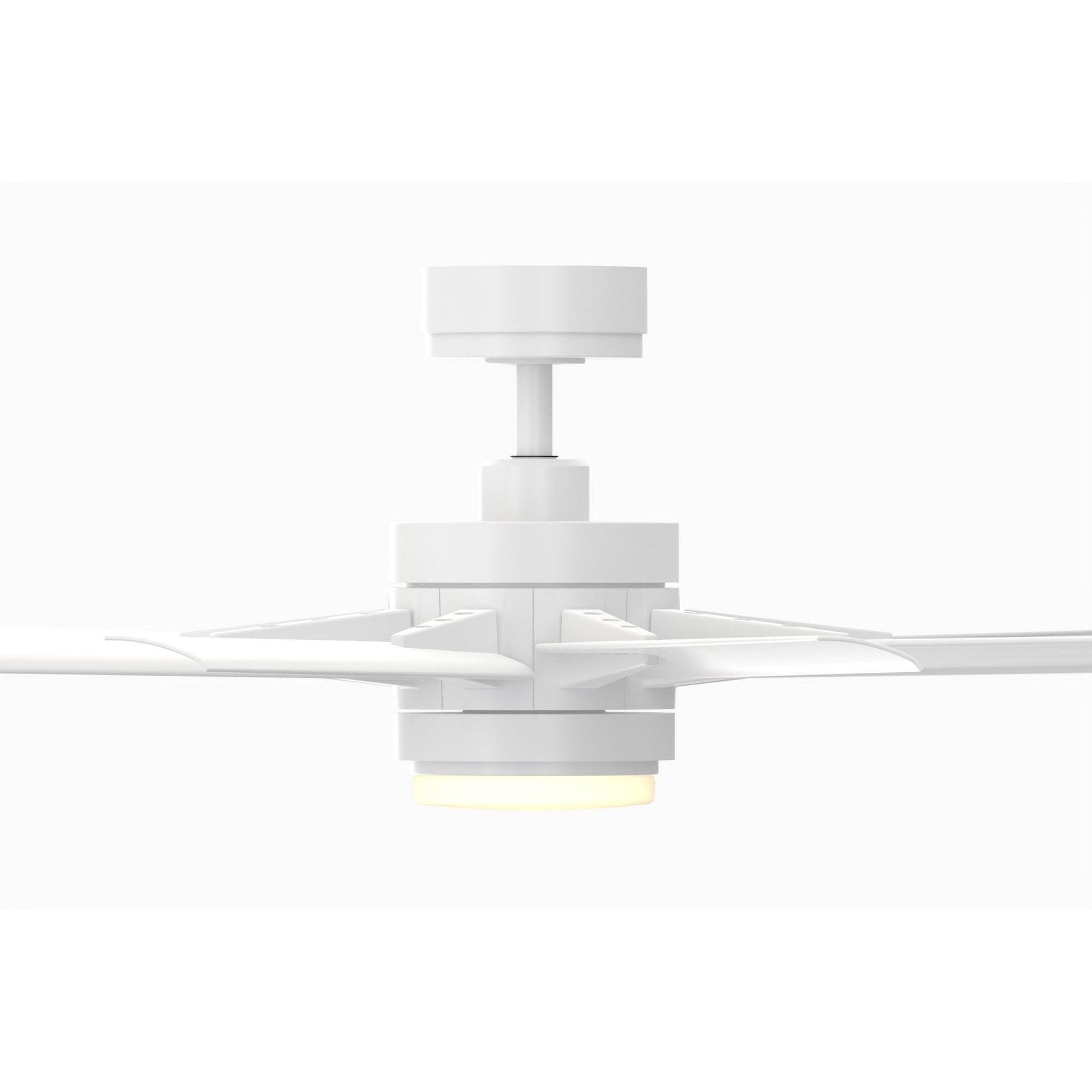

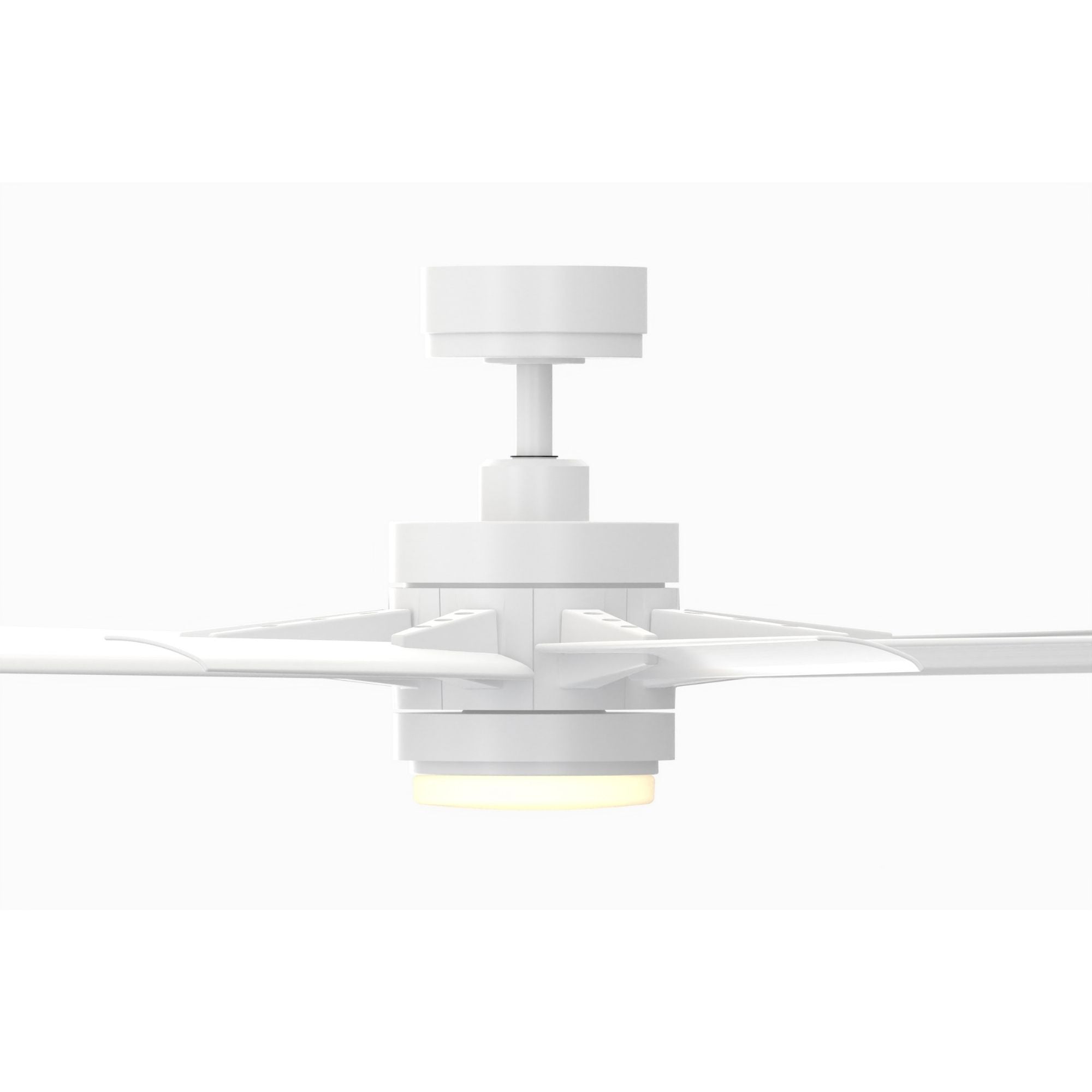

• MAD8152MWW motor unit — Matte White finish
• 18W CCT LED light kit — opal frosted glass + steel cap
• TR305 remote with built-in fanSync WiFi
• 12 in wet-location downrod
• Mounting hardware
• Blade set sold separately at Bees Lighting
