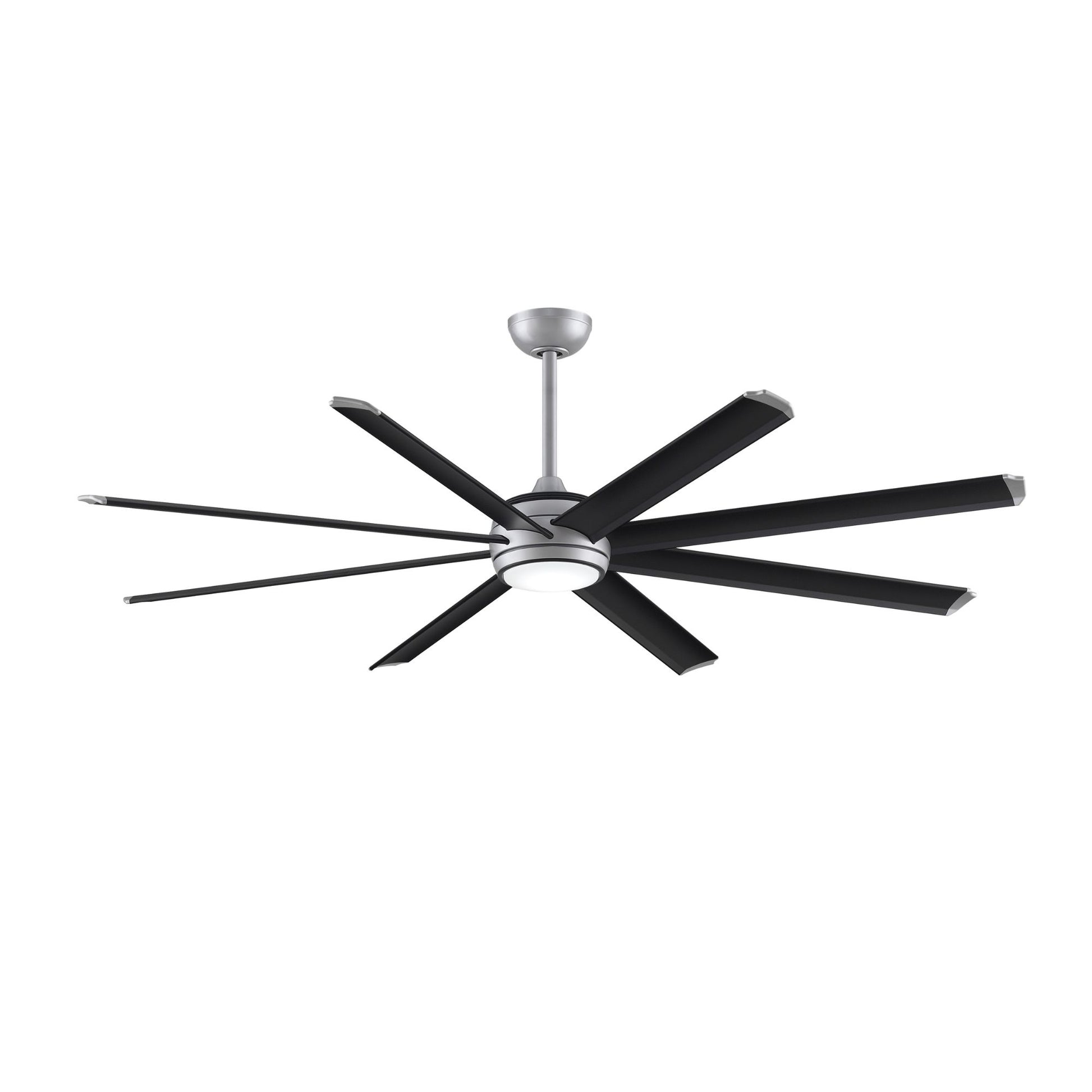

Reign supreme with the Stellar Custom by Fanimation — a large-format, high-performance DC motor platform available in blade sweeps from 56–84 in. The MAD7997SLW motor unit delivers exceptional airflow with built-in fanSync WiFi app control, an included 18W CCT LED light kit, and the TR305 remote. Blade sets sold separately. Limited lifetime warranty.

• Motor: DC153×25 sensorless ferrite sintered DC motor, 16 speeds, Summer & Winter reverse
• Finish: Silver w/Black Top Plastic Ring, Glass Ring bottom, Silver Steel Cap
• Blade Sweeps: 56 in, 64 in, 72 in, 84 in (blade sets sold separately)
• Airflow (84 in sweep): 11,092 CFM high (298 CFM/W, 37W) / 4,127 CFM low (4W)
• Light Kit: 18W CCT LED included, 1,600 lm, 3000K/4000K/5000K selectable, CRI 90
• Location Rating: UL Listed for Dry, Damp, and Wet Locations
• Room Size: Over 400 sq ft
• Mounting: Downrod, up to 27° standard; up to 42° with SCB1-52 (sold separately)
• Included Downrod: 1 in dia. × 12 in wet-location (DR1SS-12)

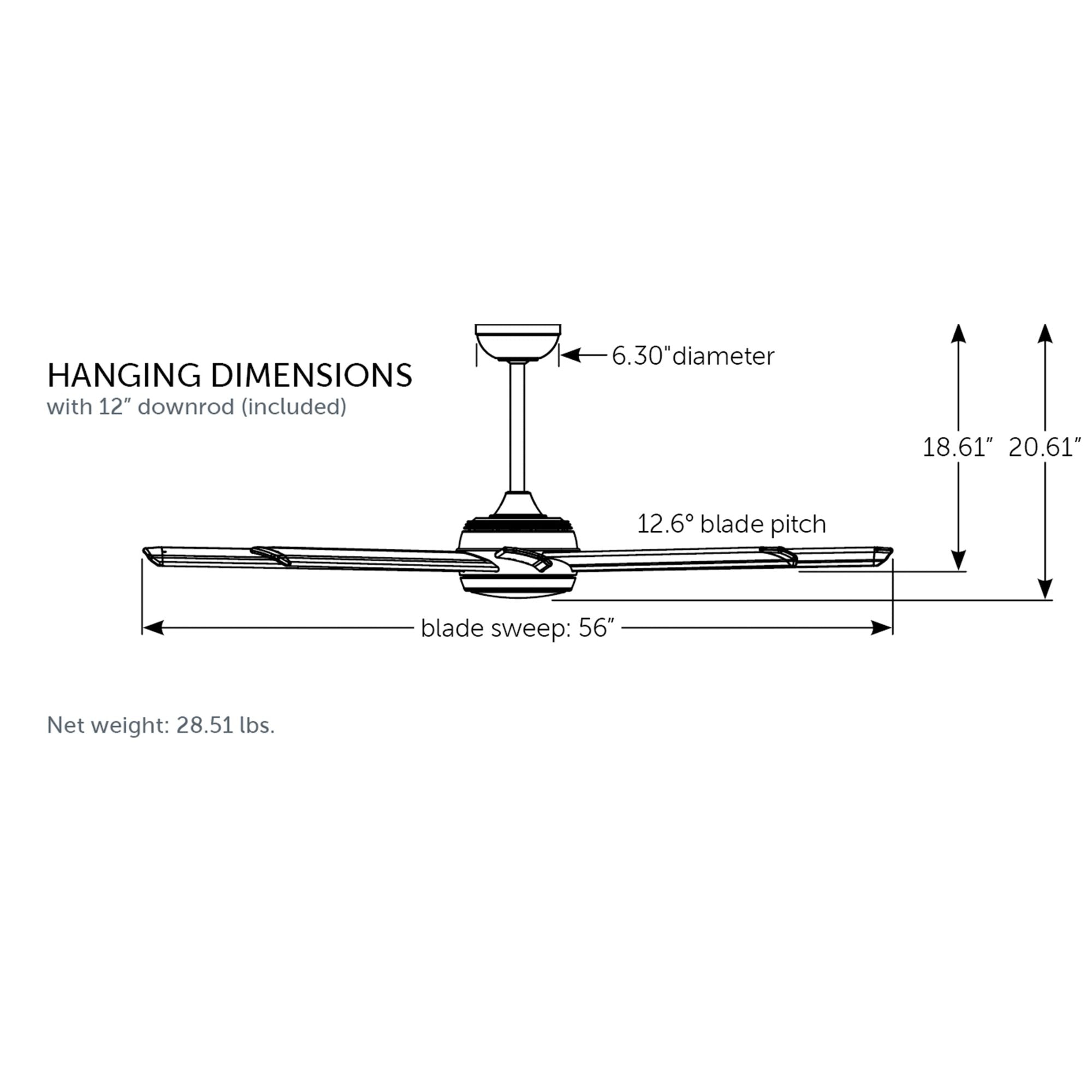

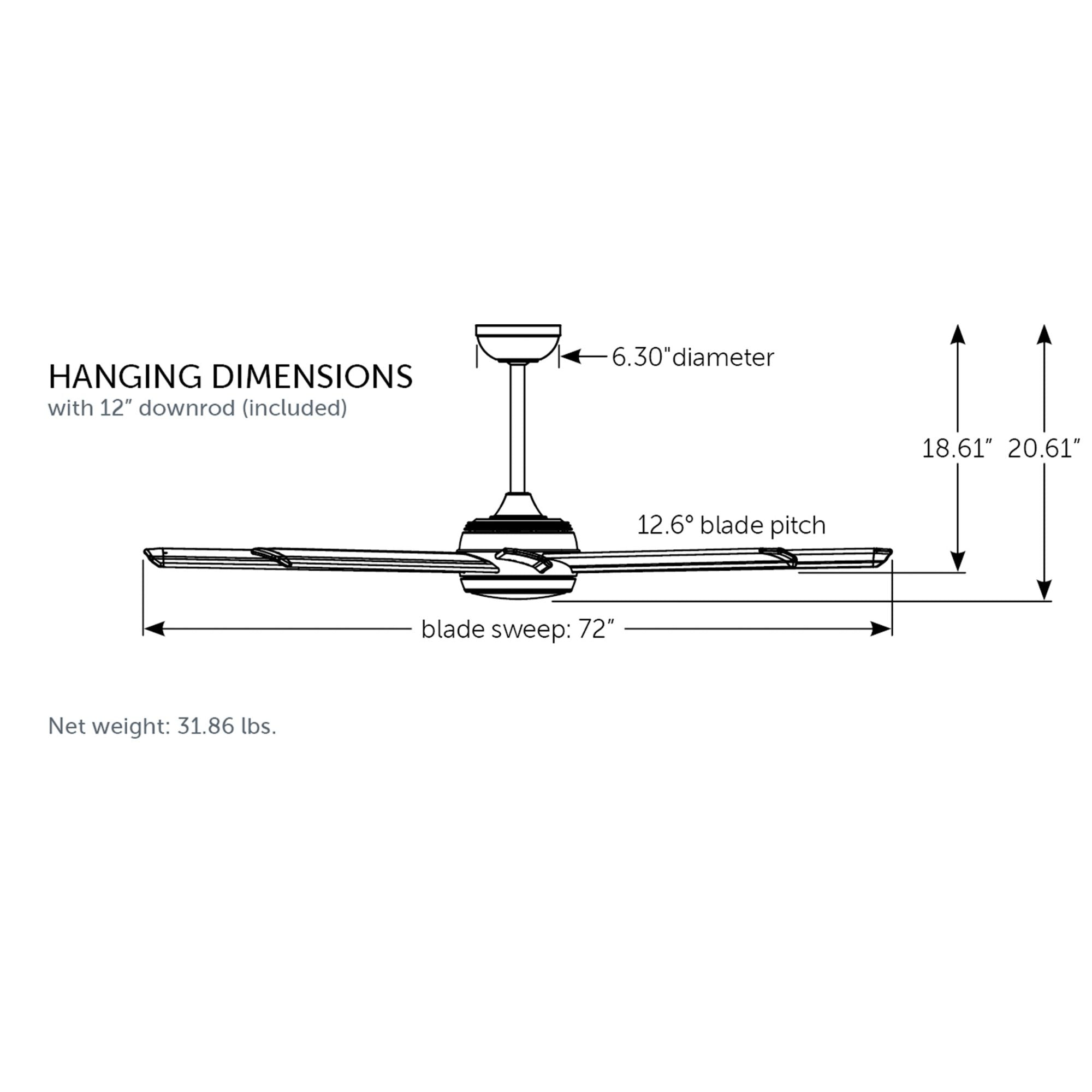

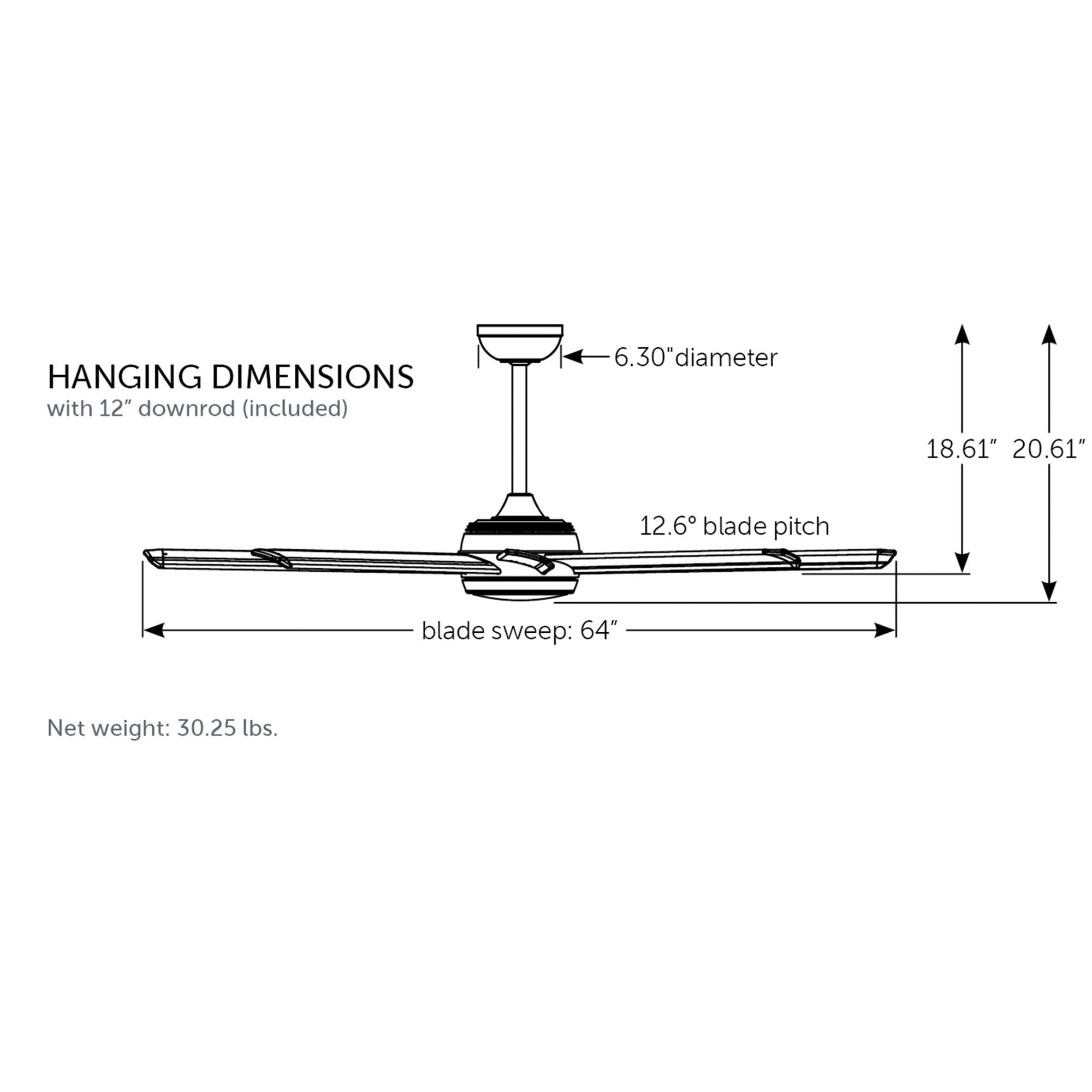

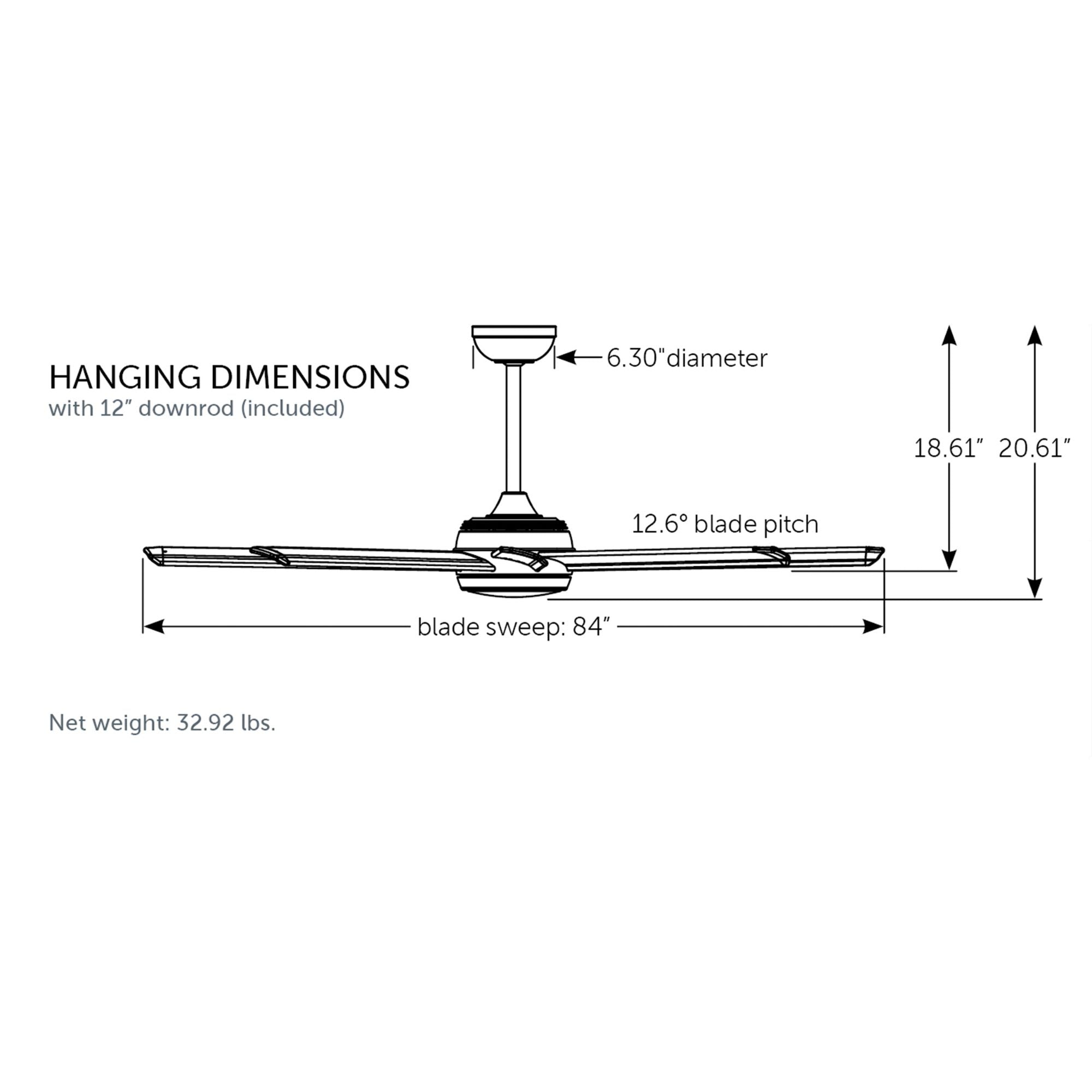

• Canopy: 6.30 in dia., 7 ft min floor-to-blade clearance
• Blade Pitch: 12.6°

The Stellar Custom MAD7997SLW includes built-in fanSync WiFi — connect directly to your home WiFi network with no hub required. Control fan speed (16 speeds), light dimming, CCT selection (3000K/4000K/5000K), fresh air mode, home/away mode, schedules, and timers via the fanSync app (iOS and Android). Voice control compatible with Amazon Alexa and Google Home. Also includes the TR305 hand-held remote — 16-speed fan control, ON/OFF dimmer light levels, CCT Select, fresh air, reverse, home/away, safe exit, and off. Optional TW306 wall control available separately at Bees Lighting.

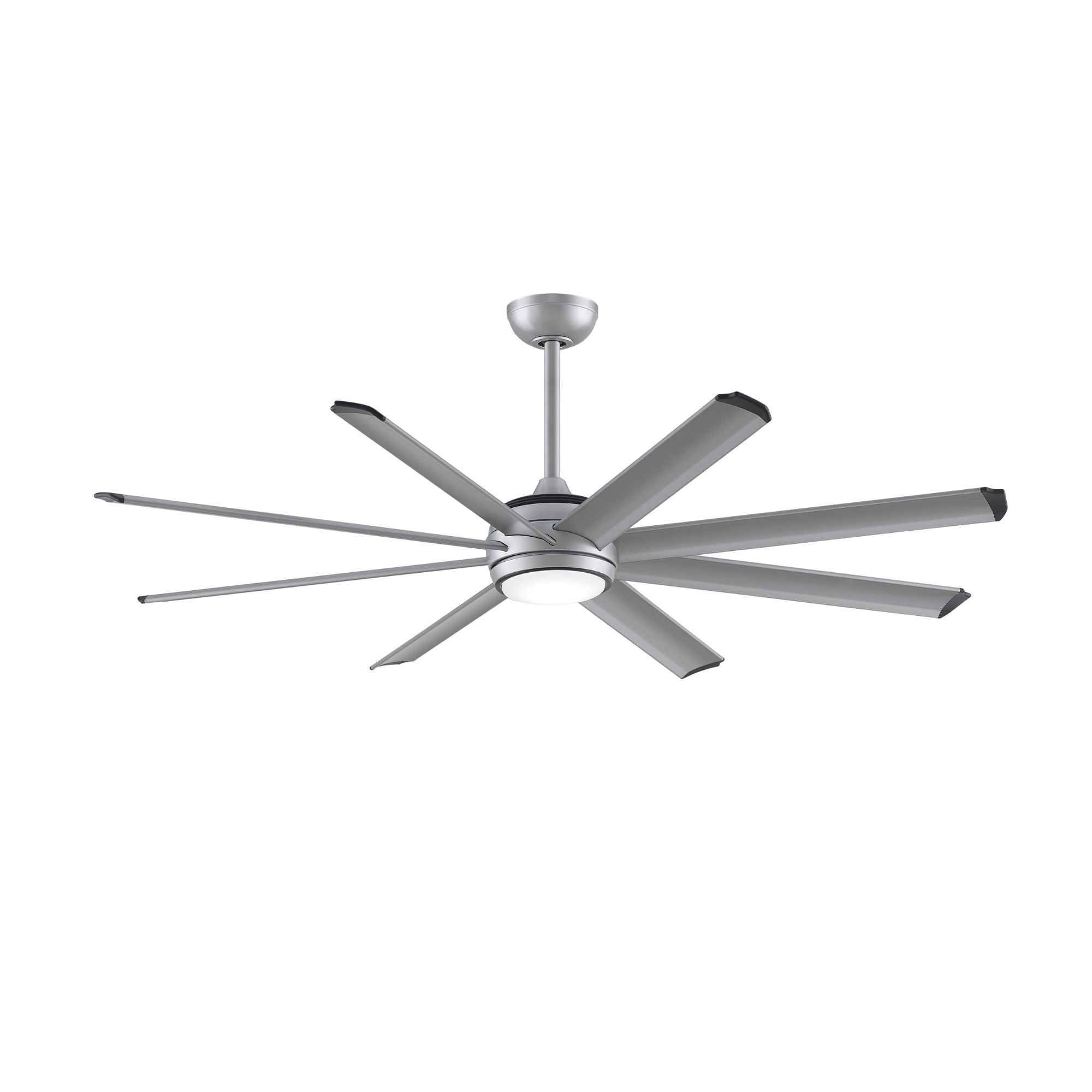

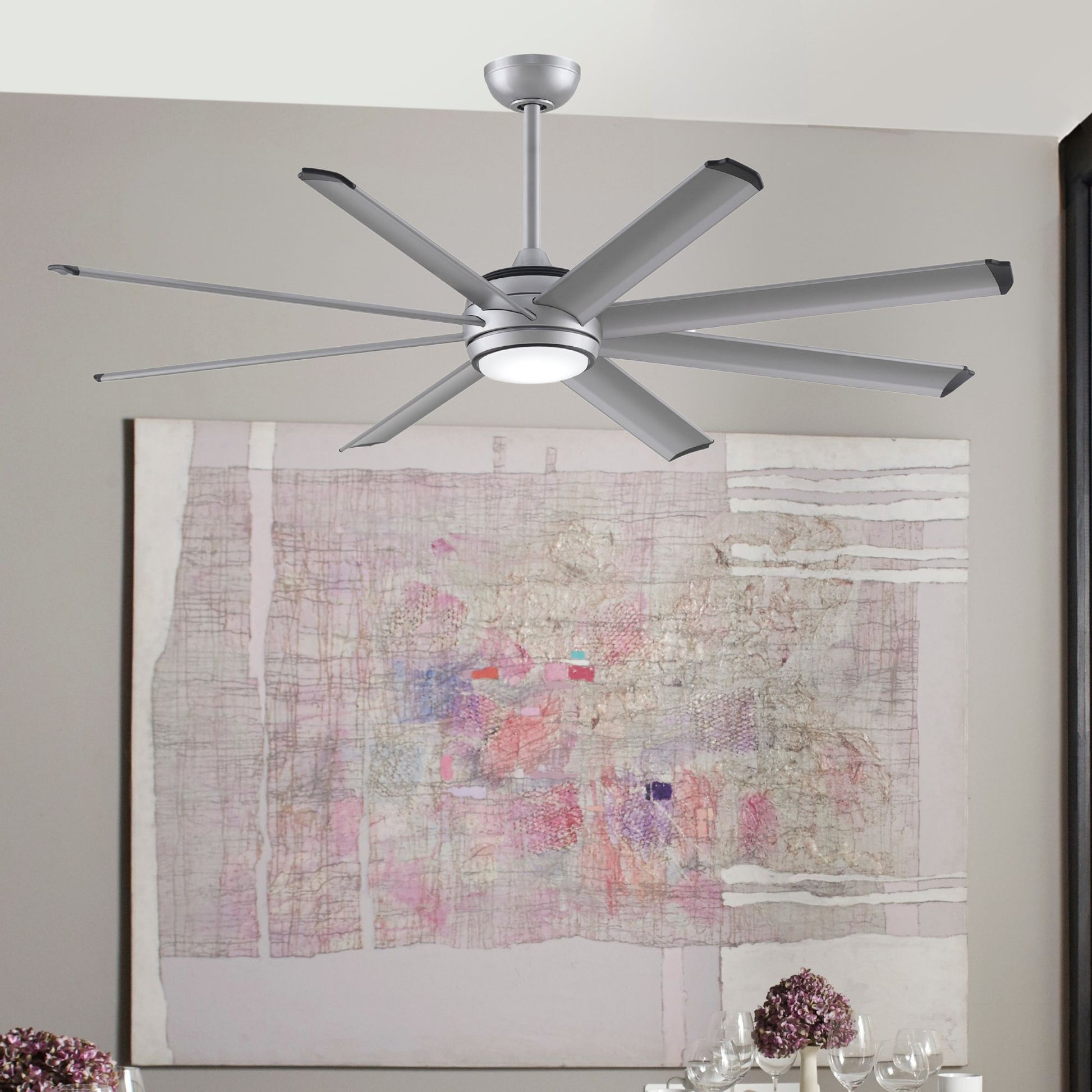

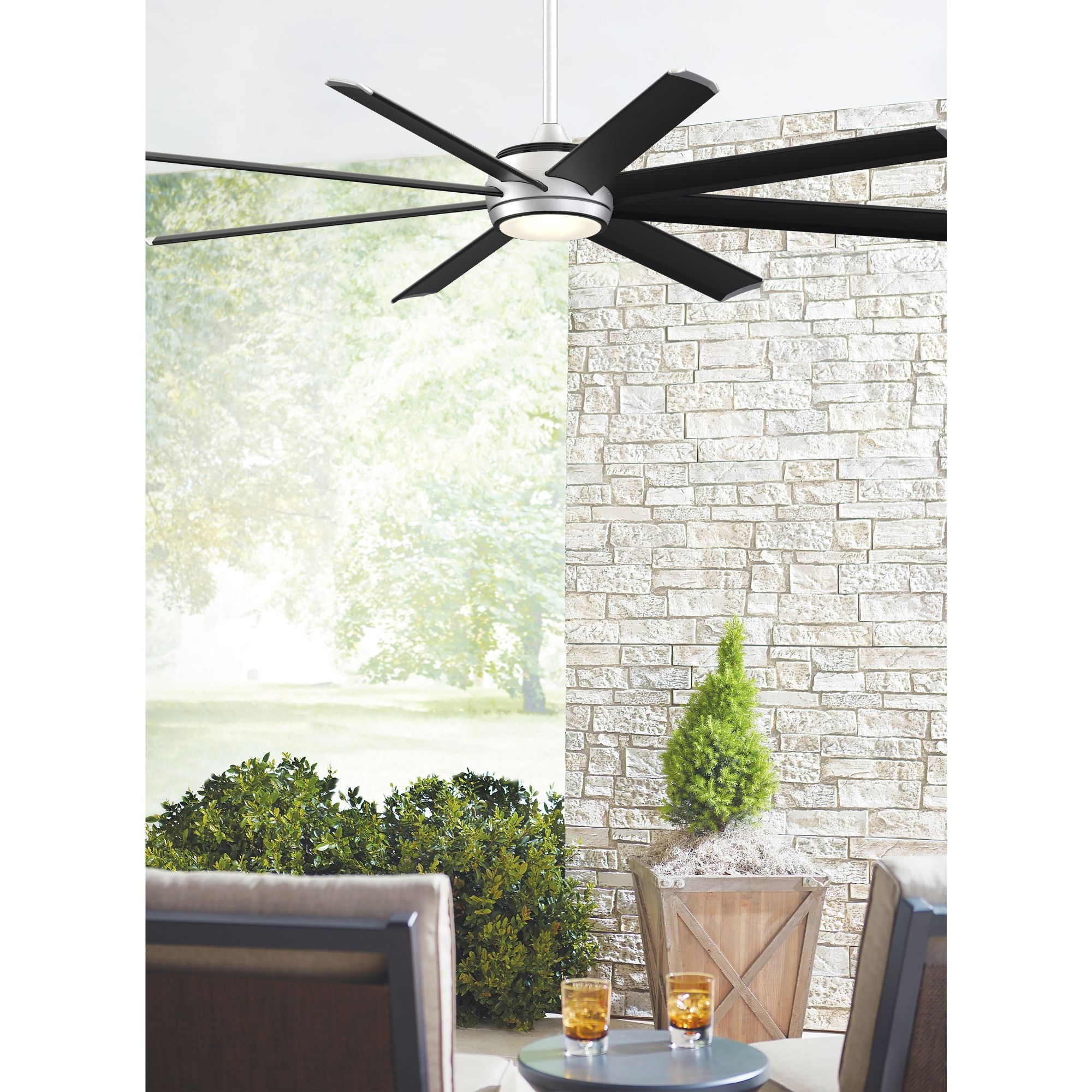

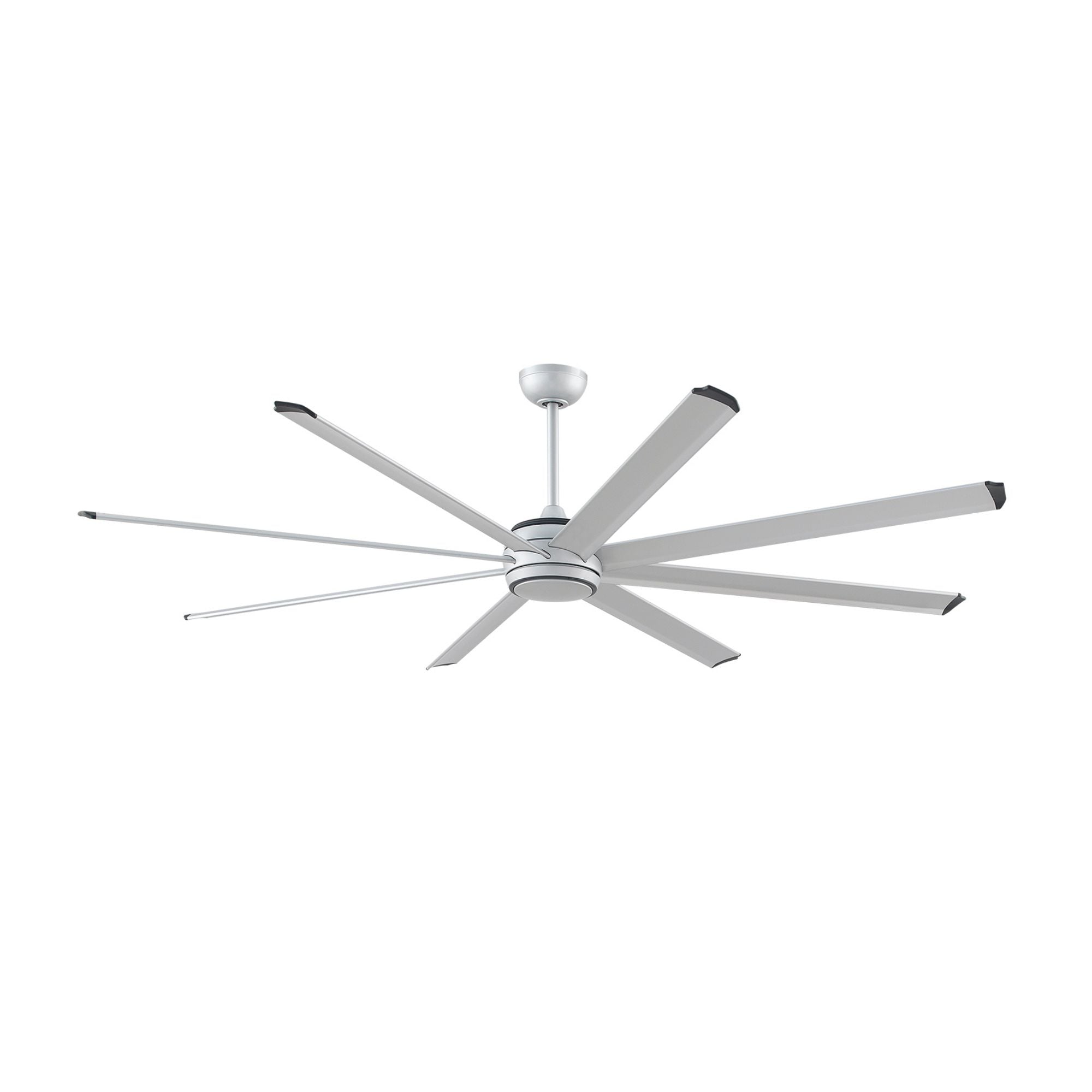

The Stellar Custom’s bold multi-blade silhouette and precision DC motor make a commanding architectural statement in large living rooms, open-plan spaces, covered outdoor areas, and commercial environments. The Silver w/Black accents finish — Silver motor body, Black Top Plastic Ring, Glass Ring bottom, and Silver Steel Cap — delivers a refined contemporary look. Pairs with B7997-56SLW (56 in), B7997-64SLW (64 in), B7997-72SLW (72 in), and B7993-84SLW (84 in) aluminum blade sets with silver blades and black tips — sold separately. Backed by a limited lifetime warranty.

The included 18W CCT LED delivers 1,600 lumens with selectable color temperatures of 3000K (warm white), 4000K (neutral white), and 5000K (daylight) and a CRI of 90. CCT selection and dimming are controllable via the TR305 remote and fanSync app. Airflow varies by blade sweep:

• 56 in (B7997-56SLW): 8,042 CFM high / 1,630 CFM low
• 64 in (B7997-64SLW): 9,277 CFM high / 2,233 CFM low
• 72 in (B7997-72SLW): 9,978 CFM high / 2,996 CFM low
• 84 in (B7993-84SLW): 11,092 CFM high (298 CFM/W, 37W) / 4,127 CFM low — Energy Guide: 10,015 CFM / 22W / 465 CFM/W

120V AC, 60Hz, 15A circuit. Motor: 37W high. Light: 18W. Junction box must be rated for at least 35 lbs. Sloped up to 27° standard; up to 42° with SCB1-52 sloped ceiling ball kit (sold separately). Optional close-to-ceiling kit CCK8002 available separately. UL Listed for Wet Locations.

Includes 1 in dia. × 12 in wet-location downrod (DR1SS-12). Ideal floor-to-blade: 7–9 ft.

• 9 ft → <12 in
• 10 ft → 12–18 in
• 11 ft → 18–24 in
• 12 ft → 24–36 in
• 13 ft → 36–48 in
• 14 ft → 48–60 in
• 15 ft → 72 in+

• MAD7997SLW motor unit — Silver w/Black Accents
• 18W CCT LED light kit (3000K/4000K/5000K)
• TR305 remote control
• WiFi receiver (built-in fanSync)
• 12 in wet-location downrod (DR1SS-12)
• Mounting hardware
• Blade set not included — sold separately
