Fanimation Stellar Custom MAD7997 DC Ceiling Fan Motor and LED Light

Create an architectural centerpiece with the Stellar Custom DC motor platform, an included 18W selectable-CCT LED and separately selected aluminum blades. Choose a 56, 64, 72 or 84 in sweep to suit your space. TR305 remote and fanSync WiFi are included, and the platform is wet rated for indoor and outdoor use. This purchase includes the motor and light, not blades. A compatible eight-blade set is required and sold separately.

Key Features

• Motor: DC153 × 25 sensorless DC motor with 16 speeds.
• Blade configuration: Required eight-blade aluminum set, selected separately in 56, 64, 72 or 84 in sweep.
• Size-specific high airflow: 8,042 CFM at 56 in; 9,277 CFM at 64 in; 9,978 CFM at 72 in; 11,092 CFM at 84 in.
• Included light: 18W LED with 3000K, 4000K and 5000K selectable CCT and 90 CRI.
• Controls: TR305 remote and fanSync WiFi included; optional TW306 wall control.
• Location: UL listed for wet locations, including fully exposed outdoor settings.
• Included downrod: DR1SS-12, 12 in wet-location downrod with 1 in diameter.
• Warranty: Limited lifetime warranty.

Smart & Control Features

The included TR305 remote provides 16-speed fan control and CCT selection. Built-in fanSync WiFi connects to the home WiFi network without a separate hub, with app access on iOS and Android. The finished listings also support Amazon Alexa and Google Home voice integration, schedules and timers. The optional TW306 wall control is sold separately.

Construction & Design

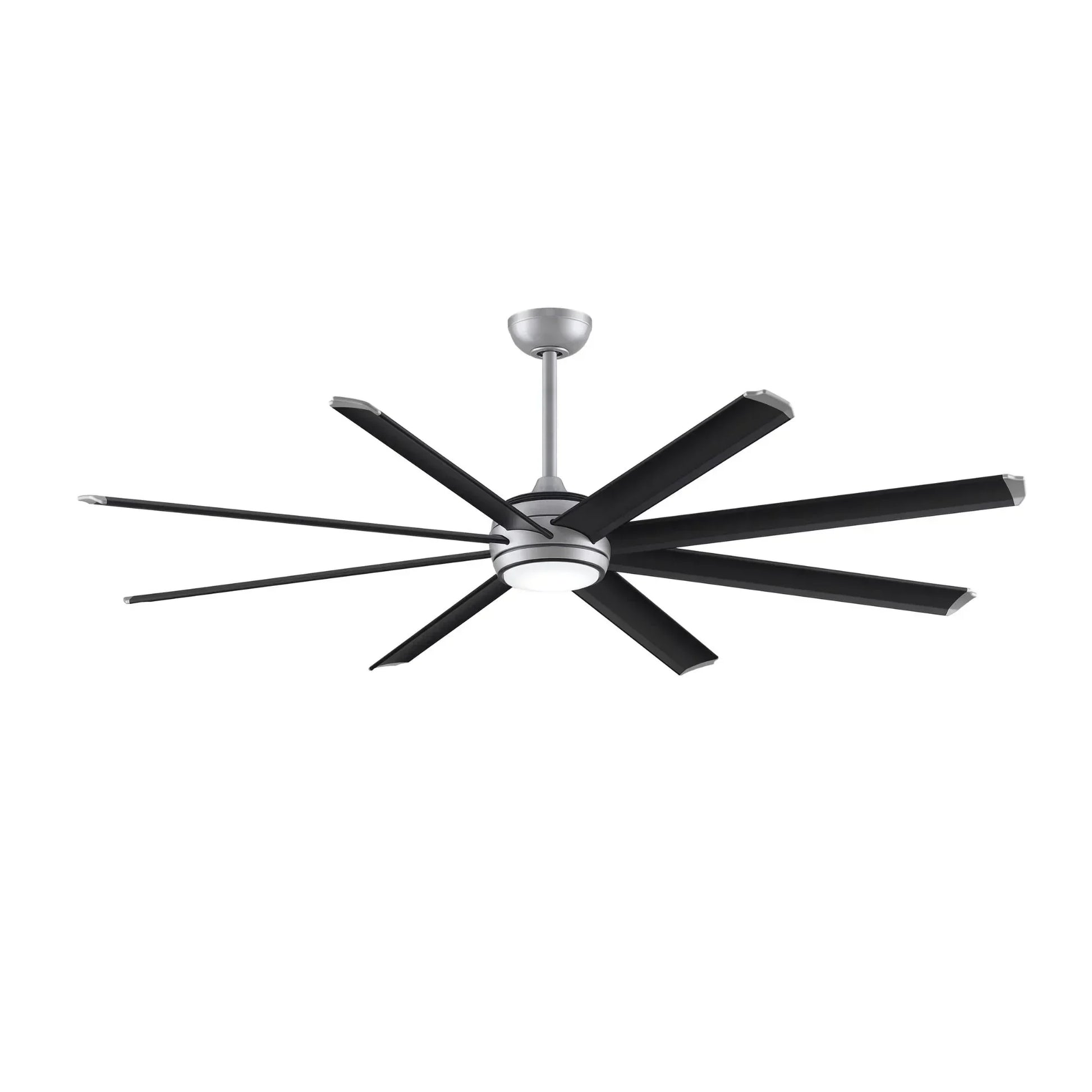

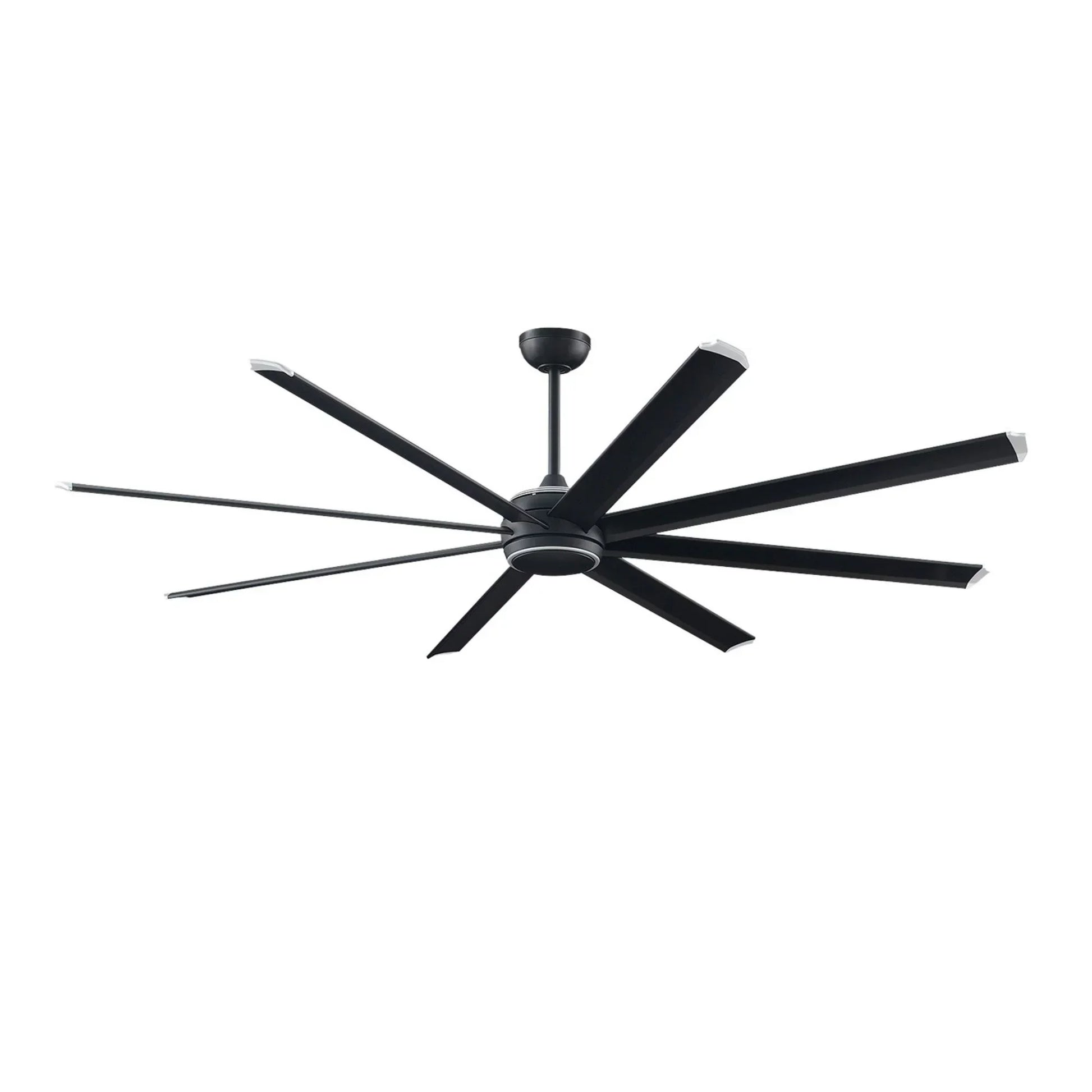

Select MAD7997BLW for a Black motor with Silver accents or MAD7997SLW for a Silver motor with Black accents. The separately purchased aluminum blades create the eight-blade silhouette and carry contrasting tips. Motor-unit net weight is 18.92 lb; canopy diameter is 6.30 in. Compatible blade sets are:

• 56 in: B7997-56BLW, Black with Silver accents; B7997-56SLW, Silver with Black accents.
• 64 in: B7997-64BLW, Black with Silver accents; B7997-64SLW, Silver with Black accents.
• 72 in: B7997-72BLW, Black with Silver accents; B7997-72SLW, Silver with Black accents.
• 84 in: B7993-84BLW, Black with Silver accents; B7993-84SLW, Silver with Black accents.

Light Output & Performance

The included 18W LED offers 3000K warm white, 4000K neutral white or 5000K daylight with 90 CRI. Airflow depends on the required blade set and must not be treated as one rating for every configuration:

• 56 in B7997-56: 8,042 CFM high; 1,630 CFM low.
• 64 in B7997-64: 9,277 CFM high; 2,233 CFM low.
• 72 in B7997-72: 9,978 CFM high; 2,996 CFM low.
• 84 in B7993-84: 11,092 CFM high at 37W and 298 CFM/W; 4,127 CFM low. Separate Energy Guide performance is 10,015 CFM at 22W and 465 CFM/W.

Electrical & Installation

Designed for 120V AC, 60Hz operation. The included DR1SS-12 wet-location downrod measures 12 in long × 1 in diameter. Use a fan-rated junction box rated for at least 35 lb. Standard mounting supports slopes up to 27°; most sloped installations require an optional 24 in or longer downrod. For slopes beyond 27° up to 42°, add the optional SCB1-52 sloped ceiling ball kit. Optional CCK8002 close-to-ceiling kit is sold separately. Maintain at least 7 ft floor-to-blade clearance with the selected blade sweep and mounting hardware.

Suggested Downrod by Ceiling Height

A 12 in wet-location downrod is included. Alternate downrods and mounting accessories are sold separately. Select final length for the completed fan, ceiling slope and required floor-to-blade clearance of at least 7 ft.

• 9 ft ceiling → shorter than 12 in if required for clearance
• 10 ft ceiling → 12–18 in downrod; 12 in included
• 11 ft ceiling → 18–24 in downrod
• 12 ft ceiling → 24–36 in downrod
• 13 ft ceiling → 36–48 in downrod
• 14 ft ceiling → 48–60 in downrod
• 15 ft ceiling → 72 in or longer downrod arrangement as required

What's Included

• Stellar Custom MAD7997BLW Black motor with Silver accents or MAD7997SLW Silver motor with Black accents
• 18W selectable-CCT LED light kit
• TR305 remote
• Built-in fanSync WiFi receiver
• DR1SS-12 wet-location 12 in downrod
• Mounting hardware

Blades are not included. Purchase a compatible B7997-56, B7997-64, B7997-72 or B7993-84 eight-blade set separately.
