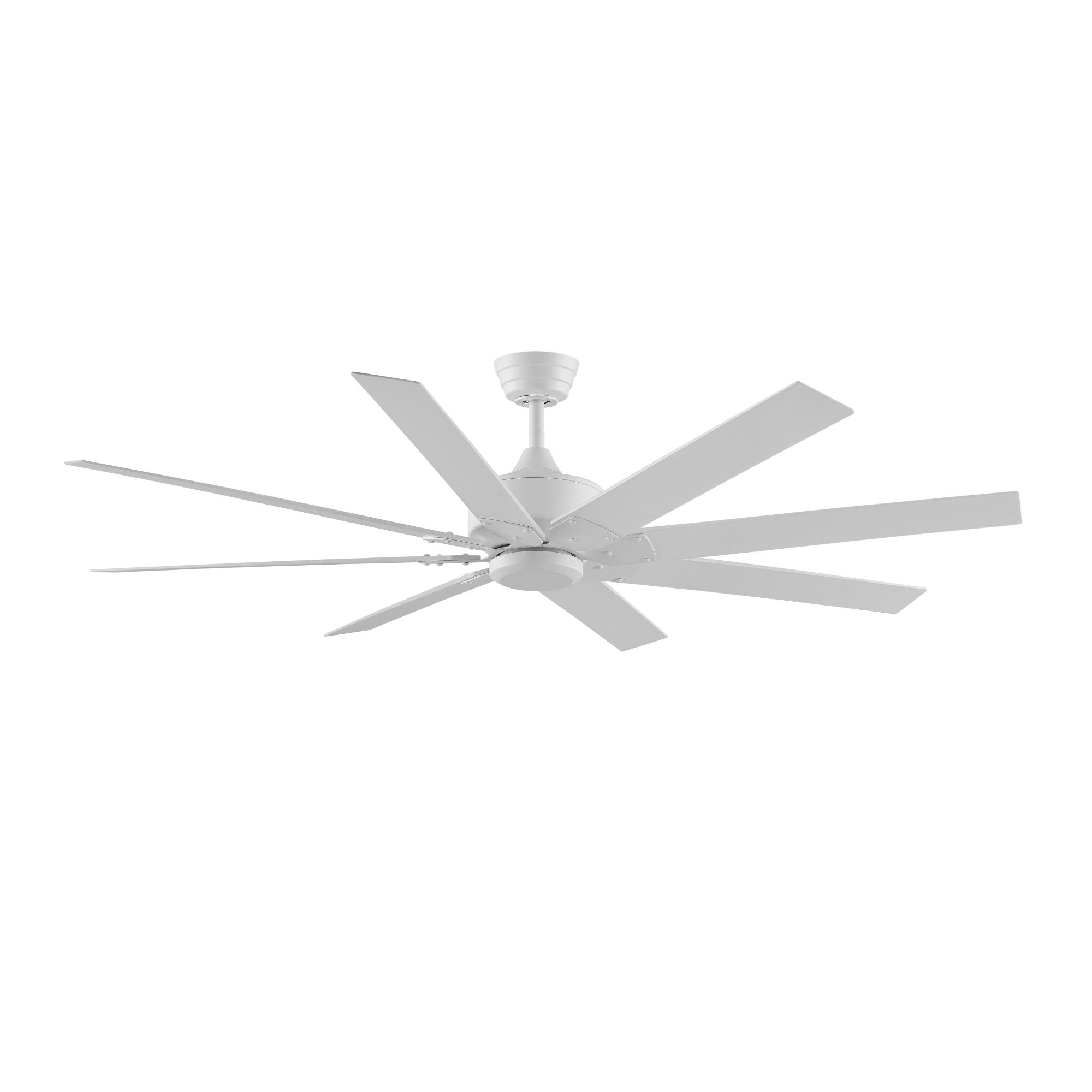

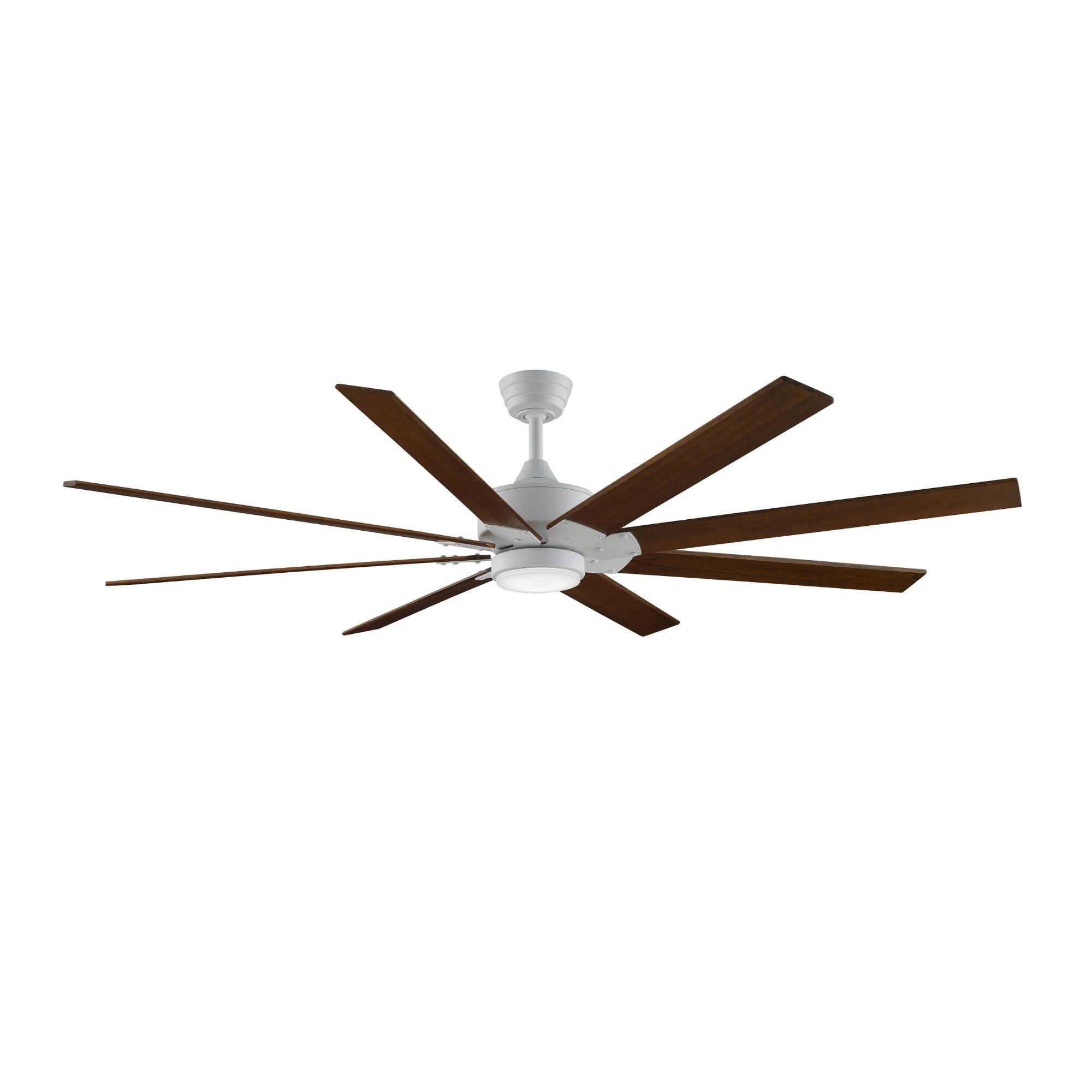

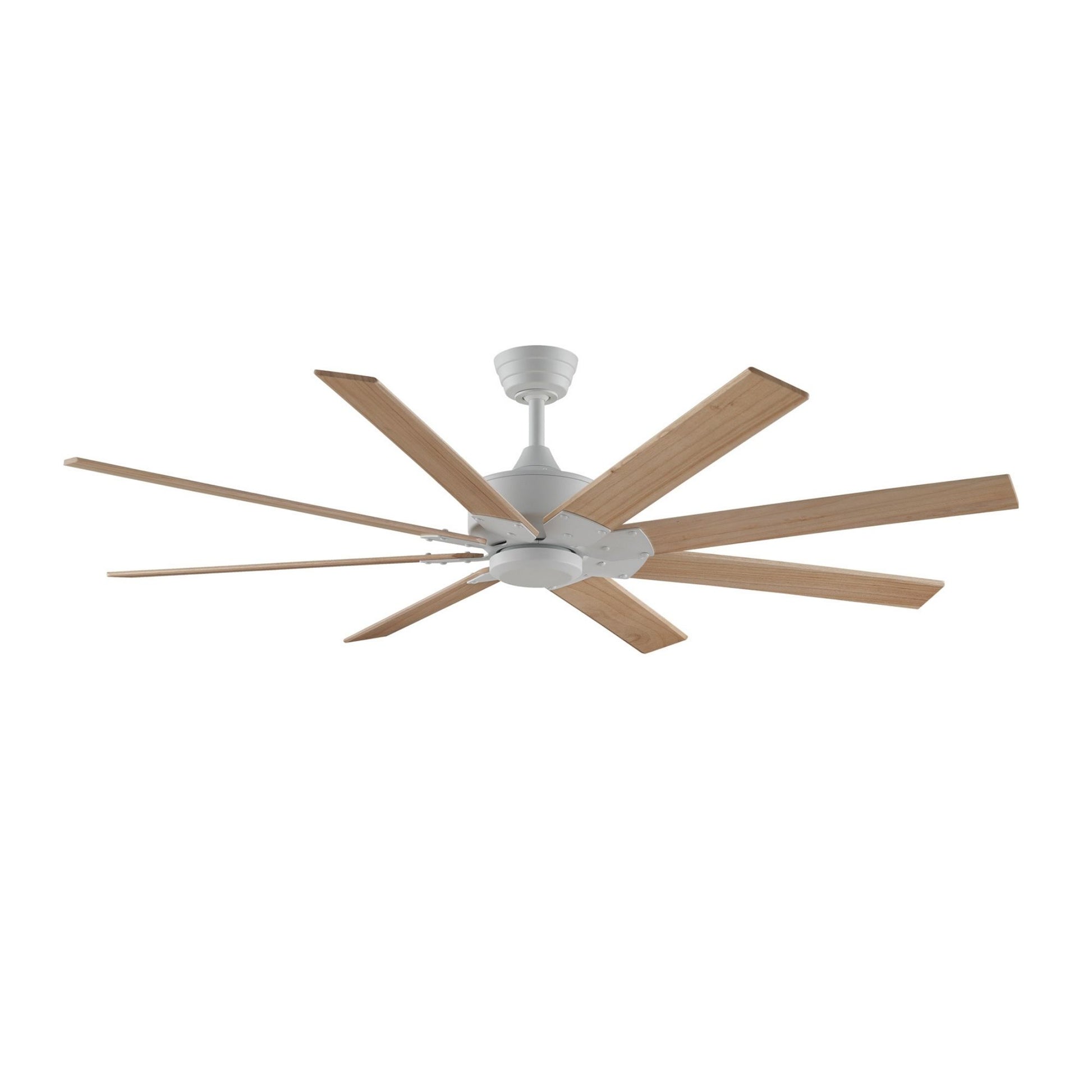

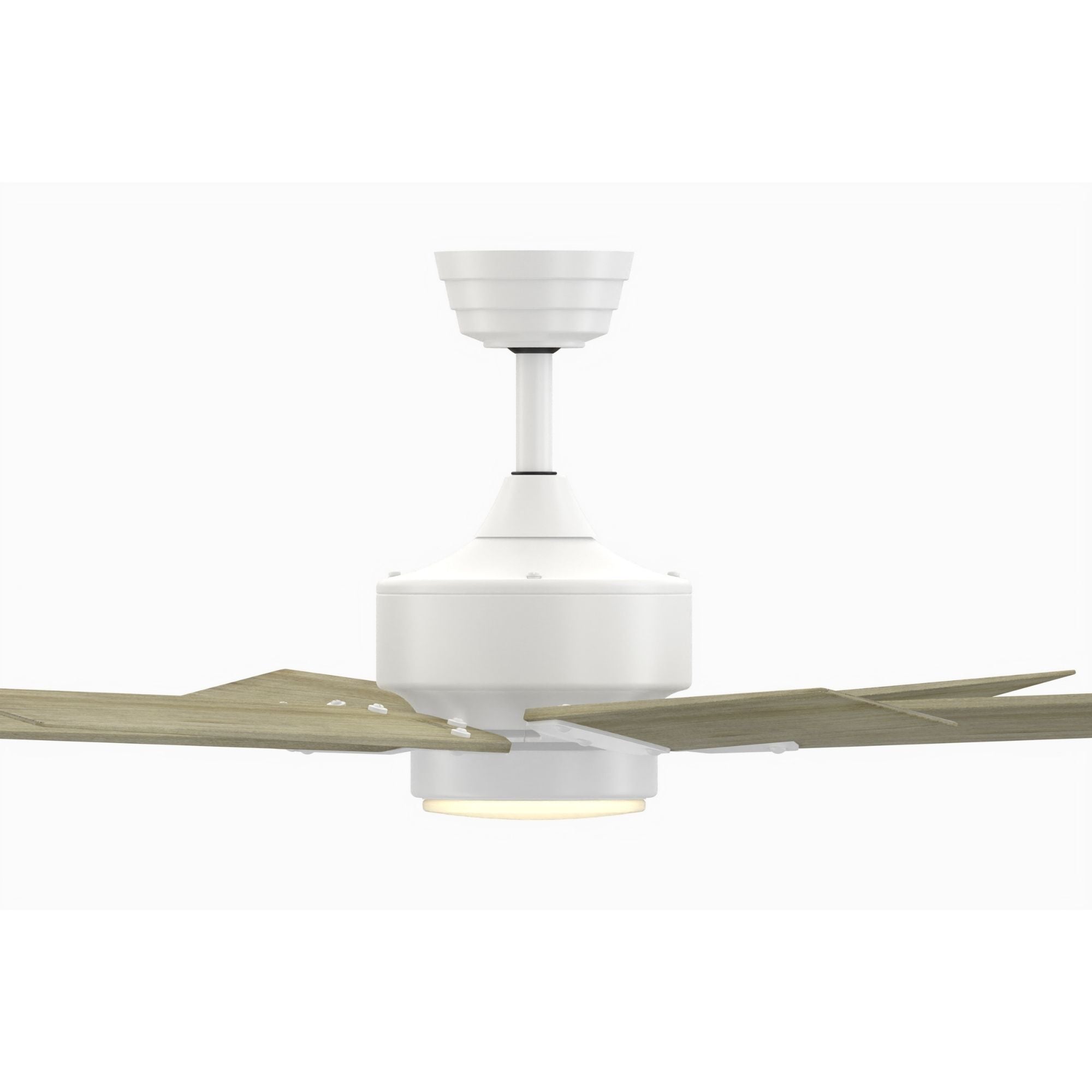

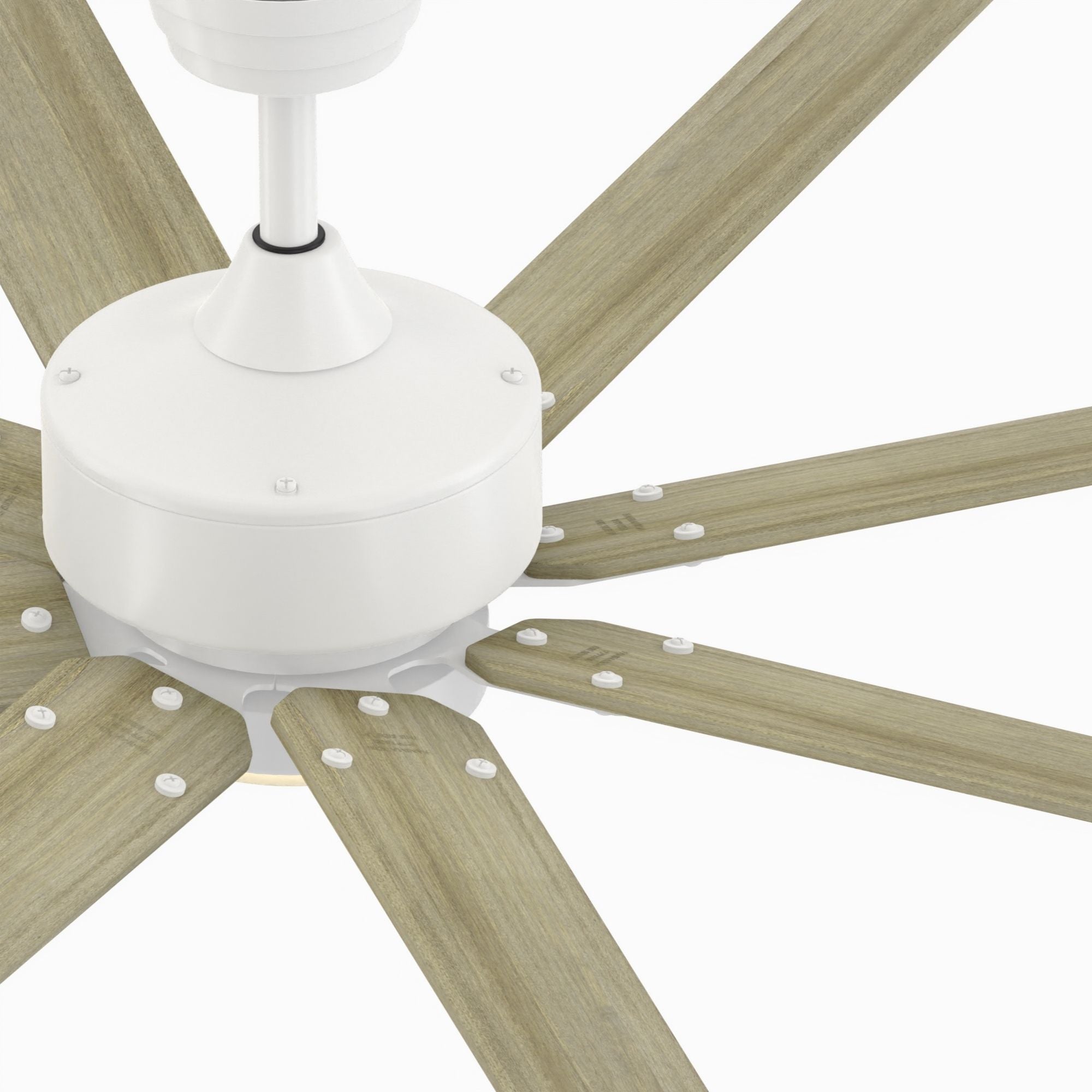

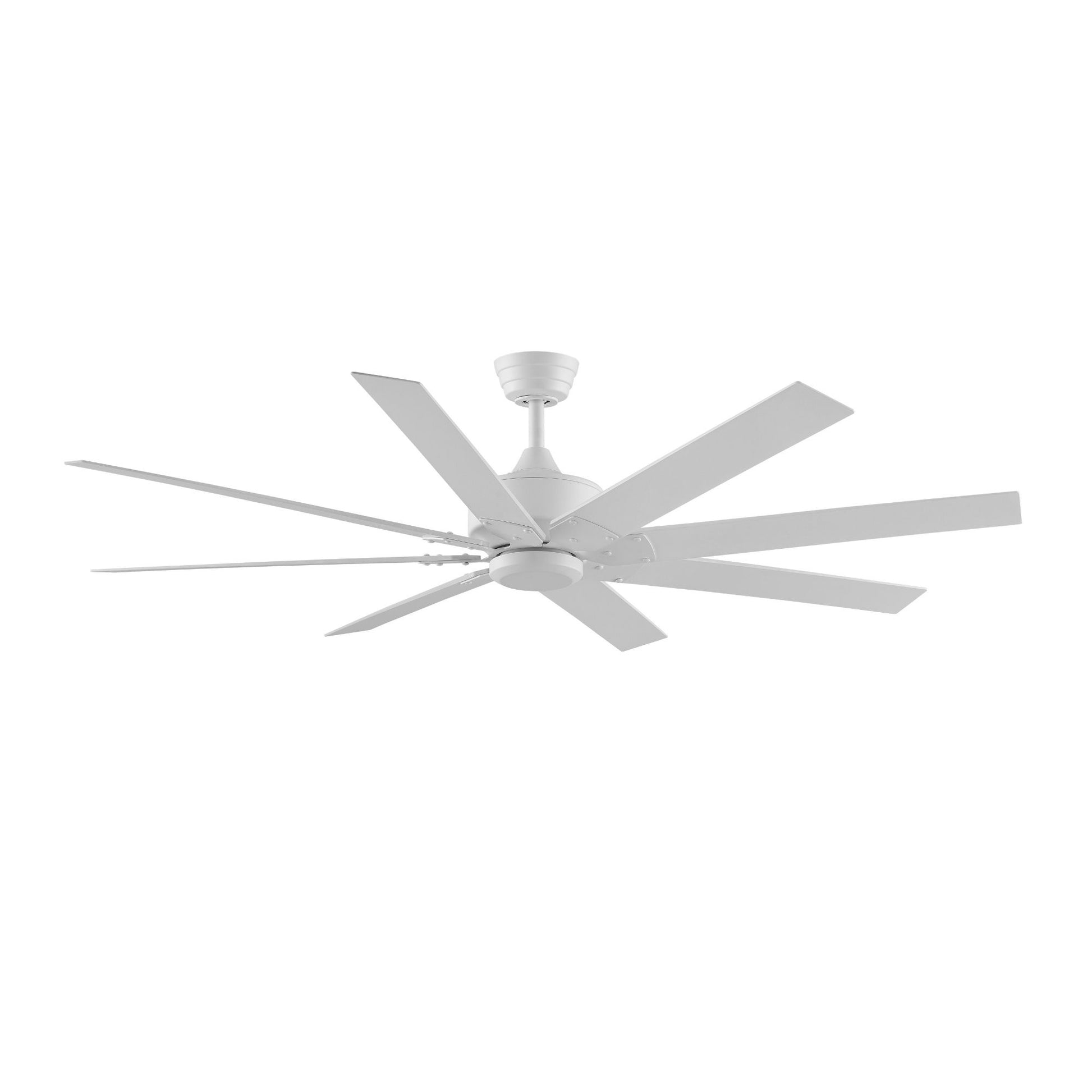

The Fanimation Levon Custom MAD7912BMW is a Matte White DC motor unit for the Levon Custom series. Available in 52, 64, and 72 in blade sweeps — blade set sold separately. Delivers up to 8,091 CFM (72 in, 249 CFM/W, 33W). Includes TR305 remote with built-in fanSync WiFi. UL Listed for Damp Locations — Energy Star certified — limited lifetime warranty.

⚠️ Motor unit only. Compatible blade sets (BPW7912**, BPW7913**, BPW7914**) and light kit (LK7912BMW) sold separately at Bees Lighting.

• Blade Span: 52 / 64 / 72 in — blade set sold separately — 8 blades, 14° pitch, wood or composite
• Motor: DC135 sensorless DC motor — 16 variable speeds — reverse on remote

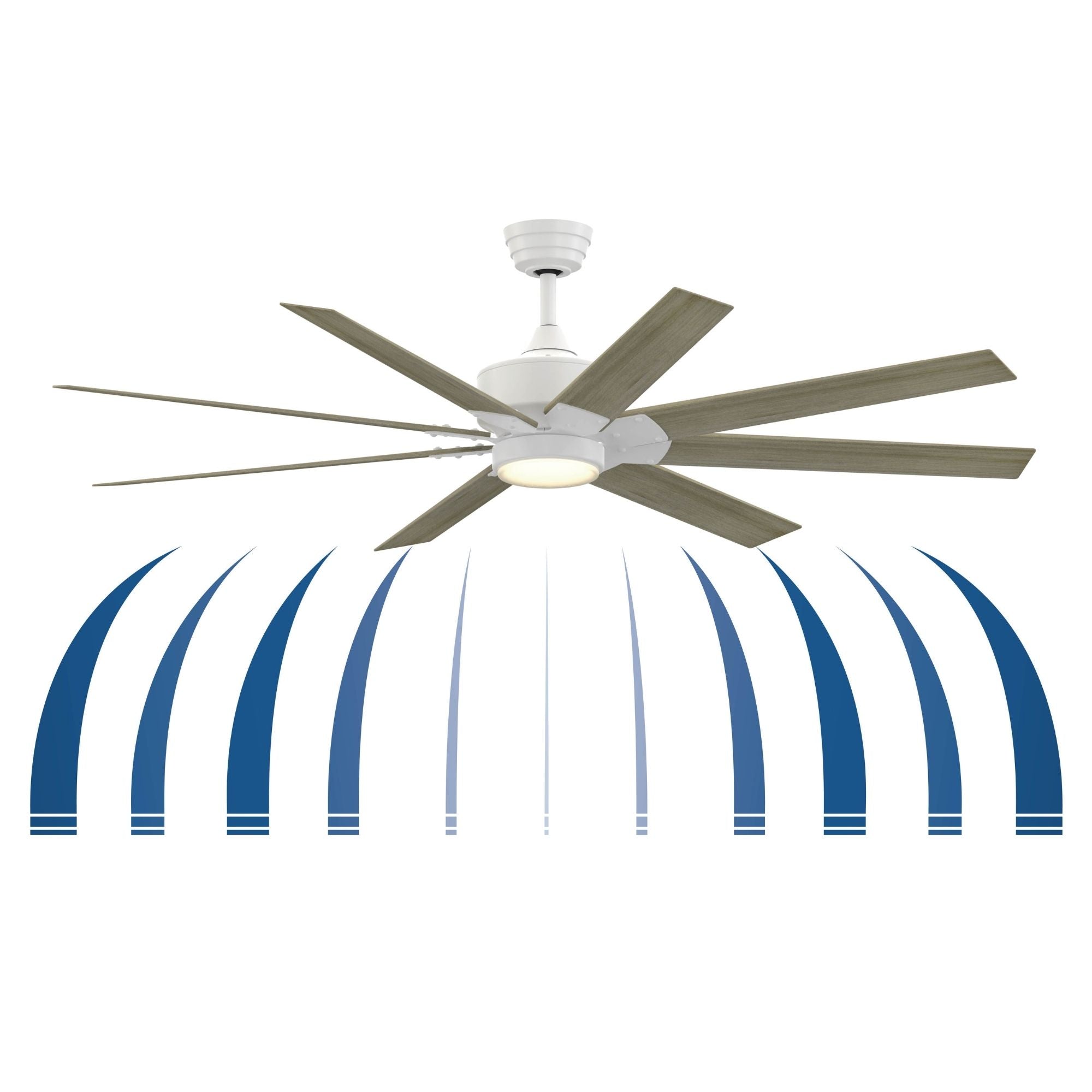

• Airflow (72 in): 8,091 CFM high / 4,121 CFM low — 249 CFM/W / 33W
• Airflow (64 in): 7,466 CFM high / 3,020 CFM low
• Airflow (52 in): 6,416 CFM high / 1,755 CFM low
• Wattage: 33W high / 15W med / 6W low (72 in)
• Light Kit: LK7912BMW sold separately — 18W CCT, 1,600 lm, 3000/4000/5000K, CRI 90, opal frosted
• Location Rating: UL Damp Rated — indoor and covered outdoor
• Certifications: Energy Star certified
• Mounting: Downrod — up to 27°; up to 42° with SCB1-52 (sold separately)
• Included Downrod: 1 in dia. × 6 in (DR1-6)

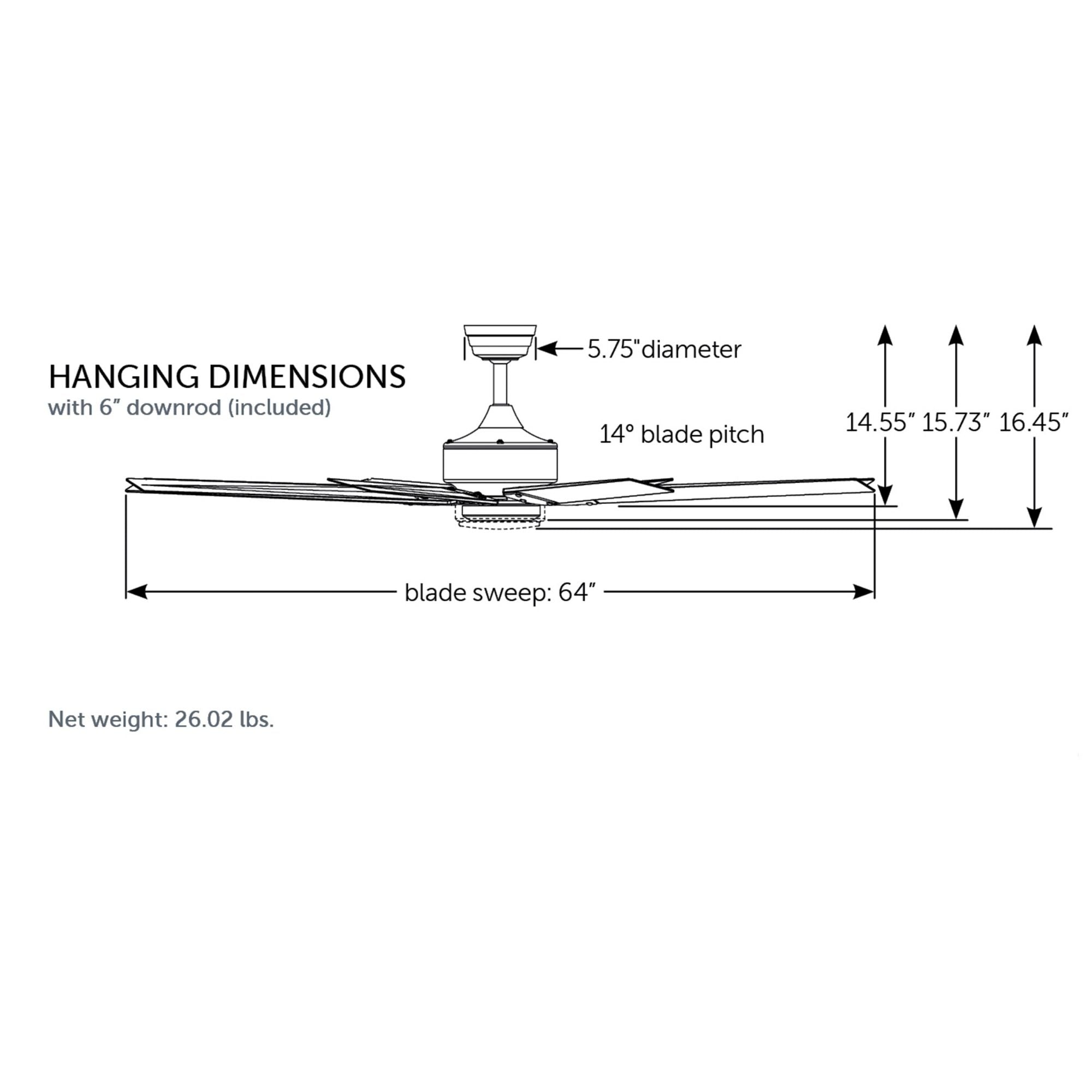

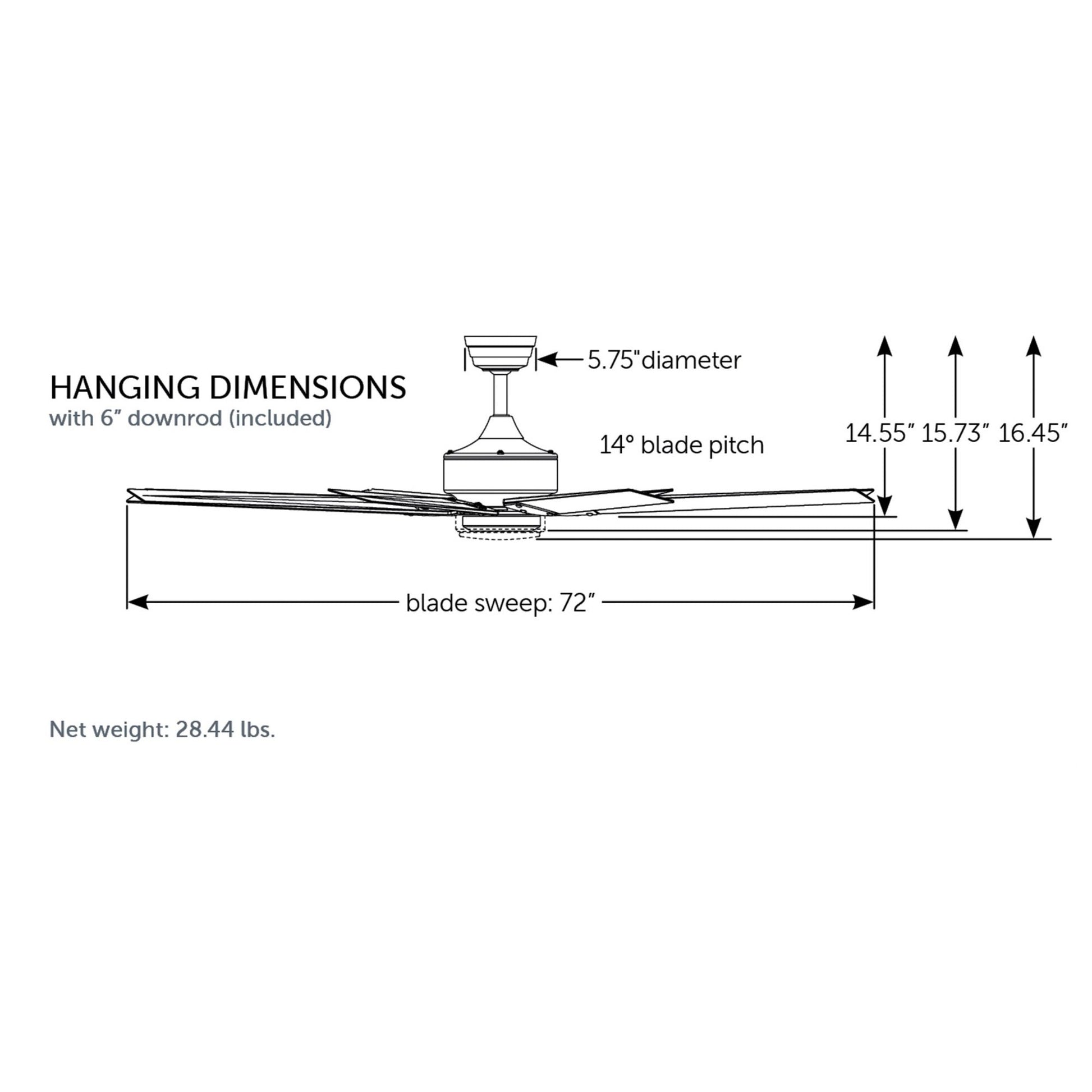

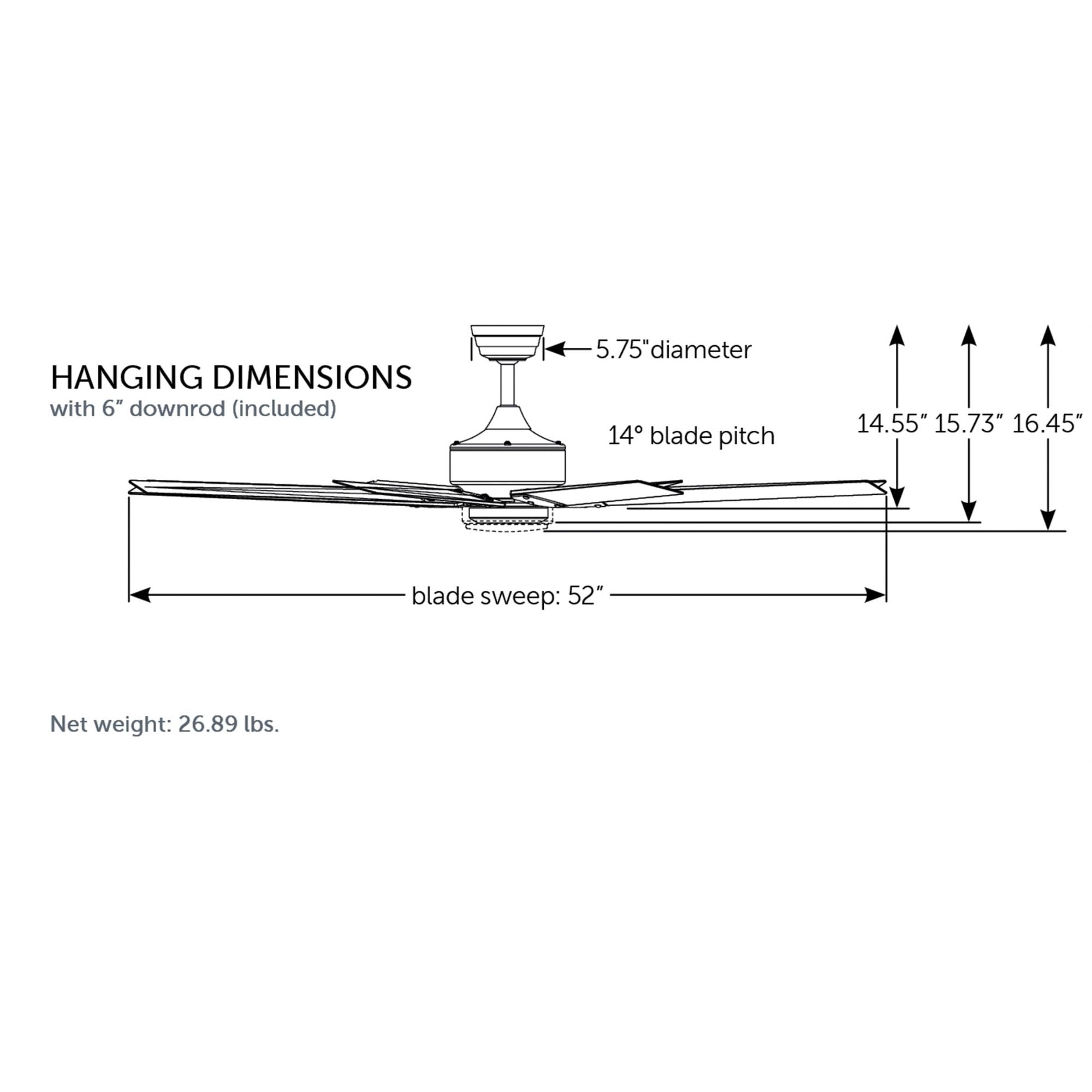

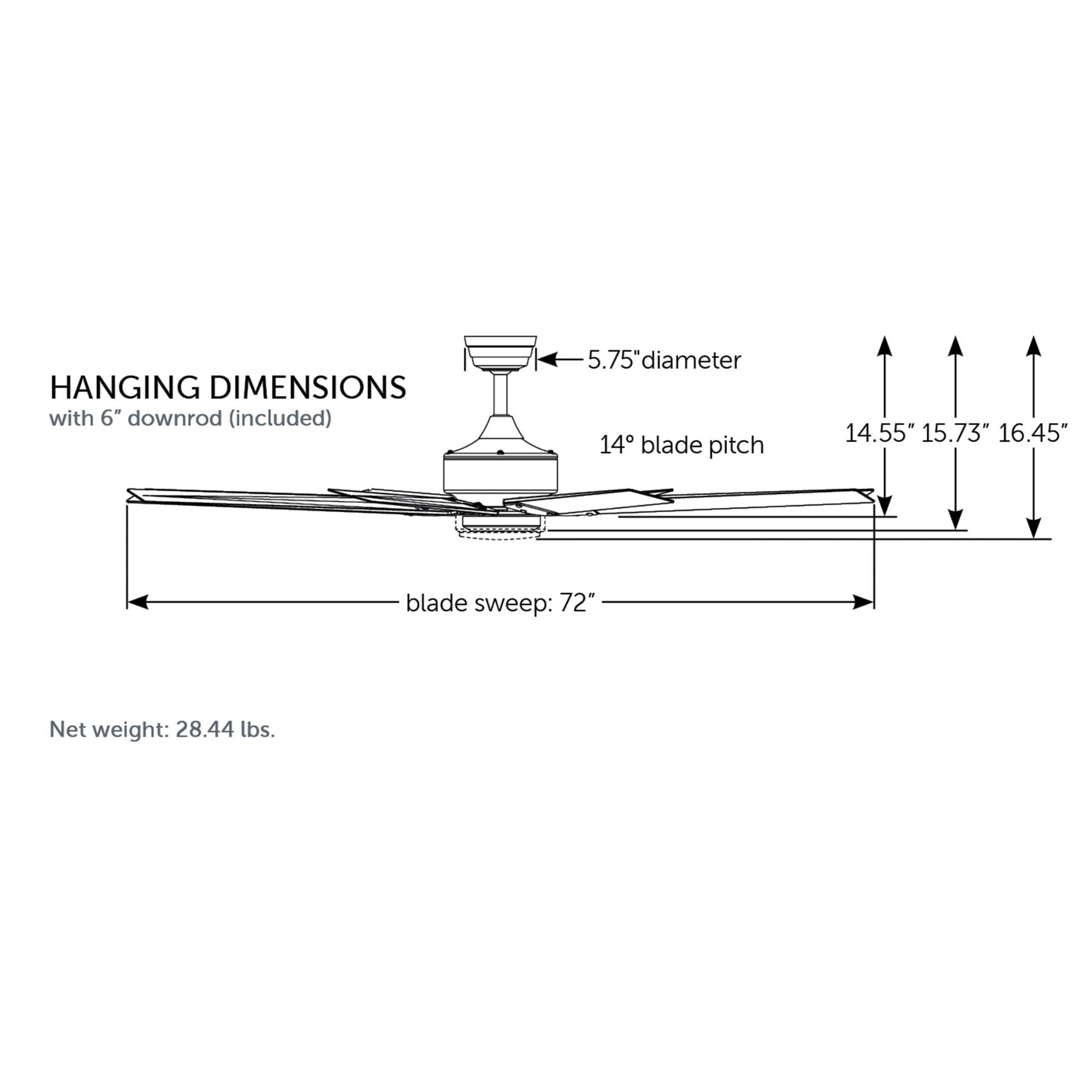

• Canopy / Height: 5.75 in dia. — 14.51–16.45 in H (varies by blade set)
• Net Weight: 25.21–28.44 lbs (varies by blade set)

Includes TR305 remote — 16 speeds, fresh air, reverse, dimmer, CCT Select, timer. Built-in fanSync WiFi — no hub required. Fanimation fanSync app (iOS & Android). Voice: Amazon Alexa & Google Home. Optional TW306 2-wire fan-only wall control available separately.

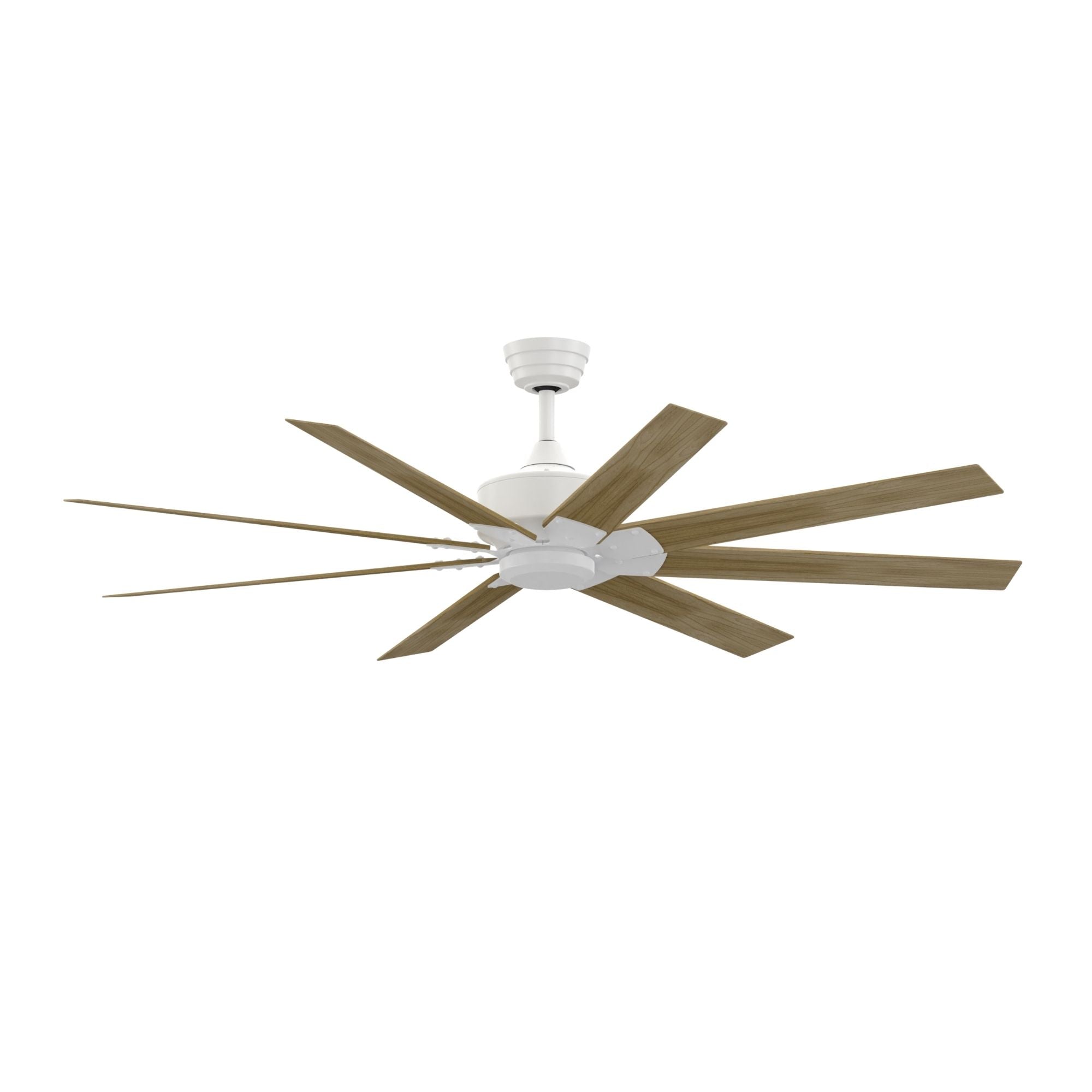

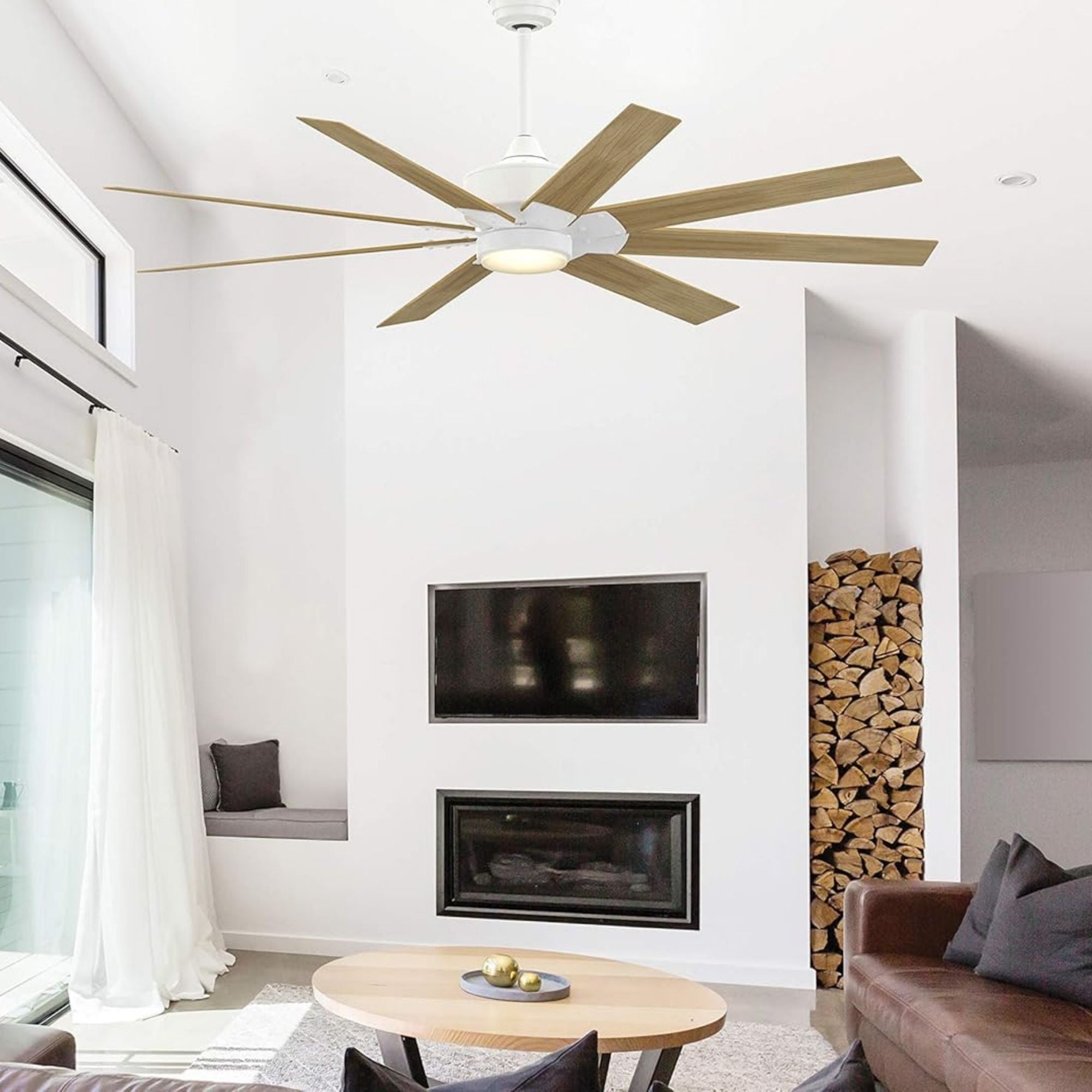

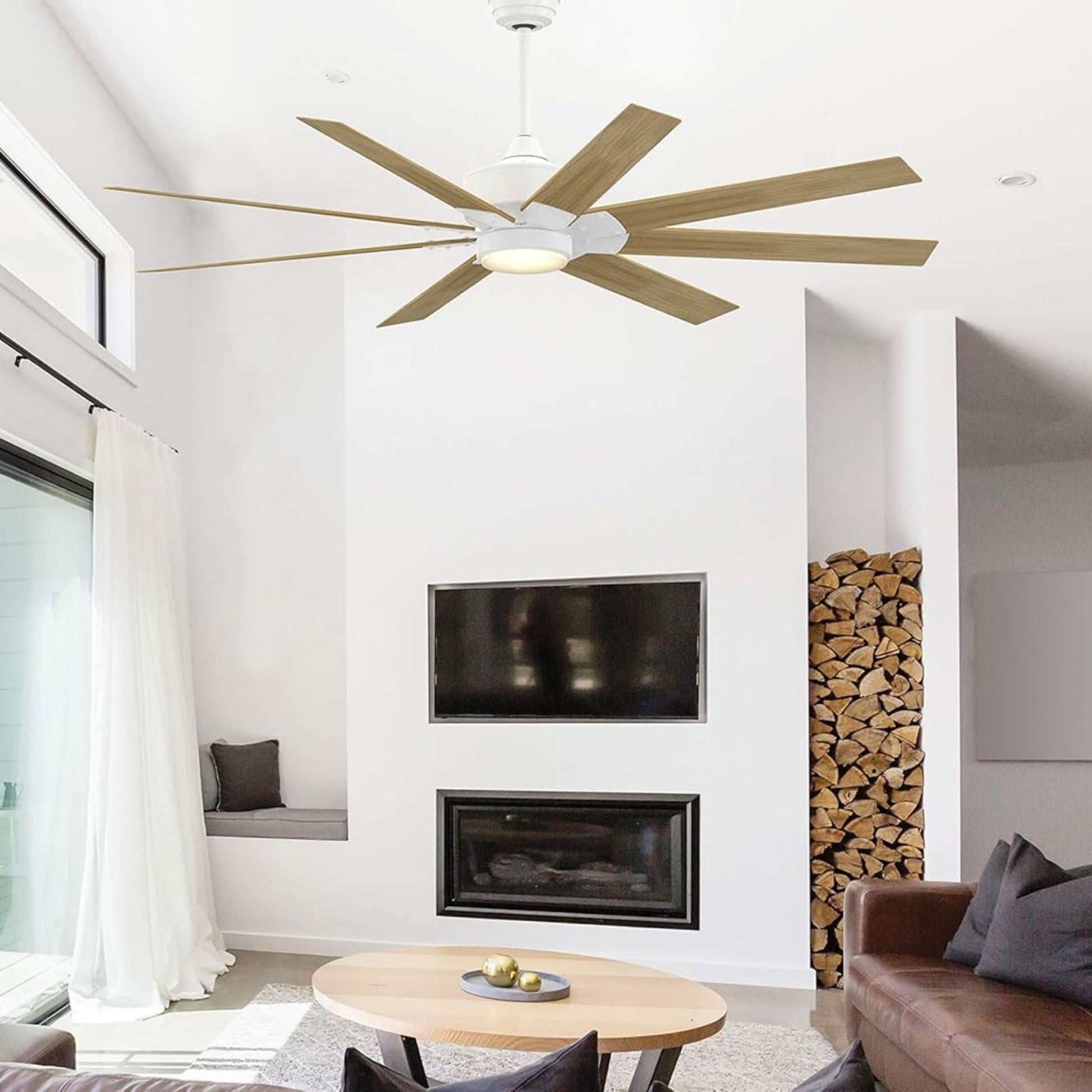

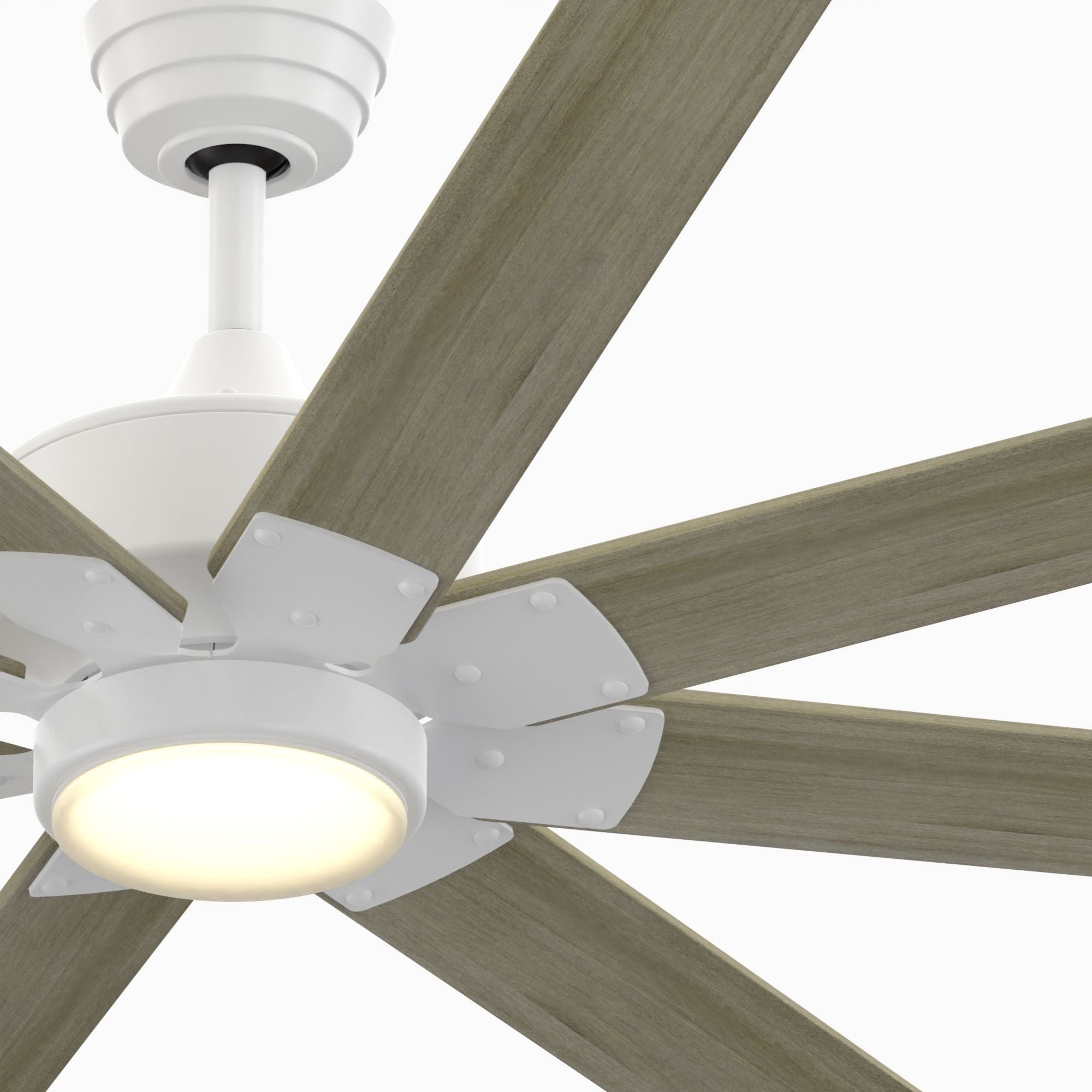

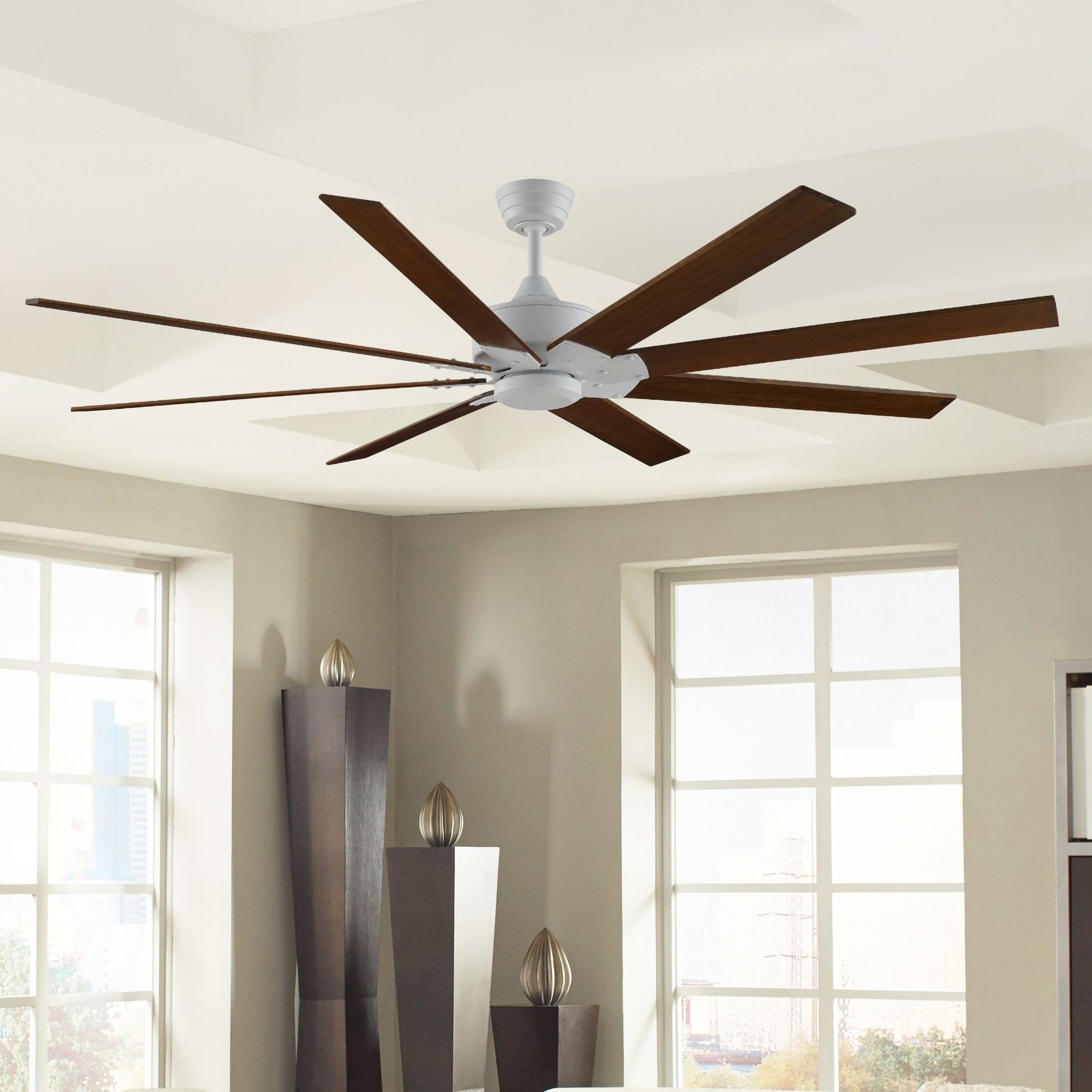

Matte White motor with eight-blade sweeping silhouette. Blade sets sold separately in wood and composite finishes across 52, 64, and 72 in spans. Bold large-format presence for interiors and covered outdoor spaces. Backed by a limited lifetime warranty.

120V AC, 60Hz, 15A circuit. 33W high (72 in). Reversible via remote. Includes 6 in downrod; optional 12–72 in available. Sloped up to 27° standard; up to 42° with SCB1-52. Junction box rated for at least 35 lbs. UL Damp Rated.

Ideal floor-to-blade: 7–9 ft. Coupler DR1-CP** available for runs over 72 in.

• 9 ft → <12 in
• 10 ft → 12–18 in
• 11 ft → 18–24 in
• 12 ft → 24–36 in
• 13 ft → 36–48 in
• 14 ft → 48–60 in
• 15 ft → 72 in+

• MAD7912BMW motor unit — Matte White
• TR305 remote with built-in fanSync WiFi
• 6 in downrod — mounting hardware
• Blade set and light kit sold separately at Bees Lighting
