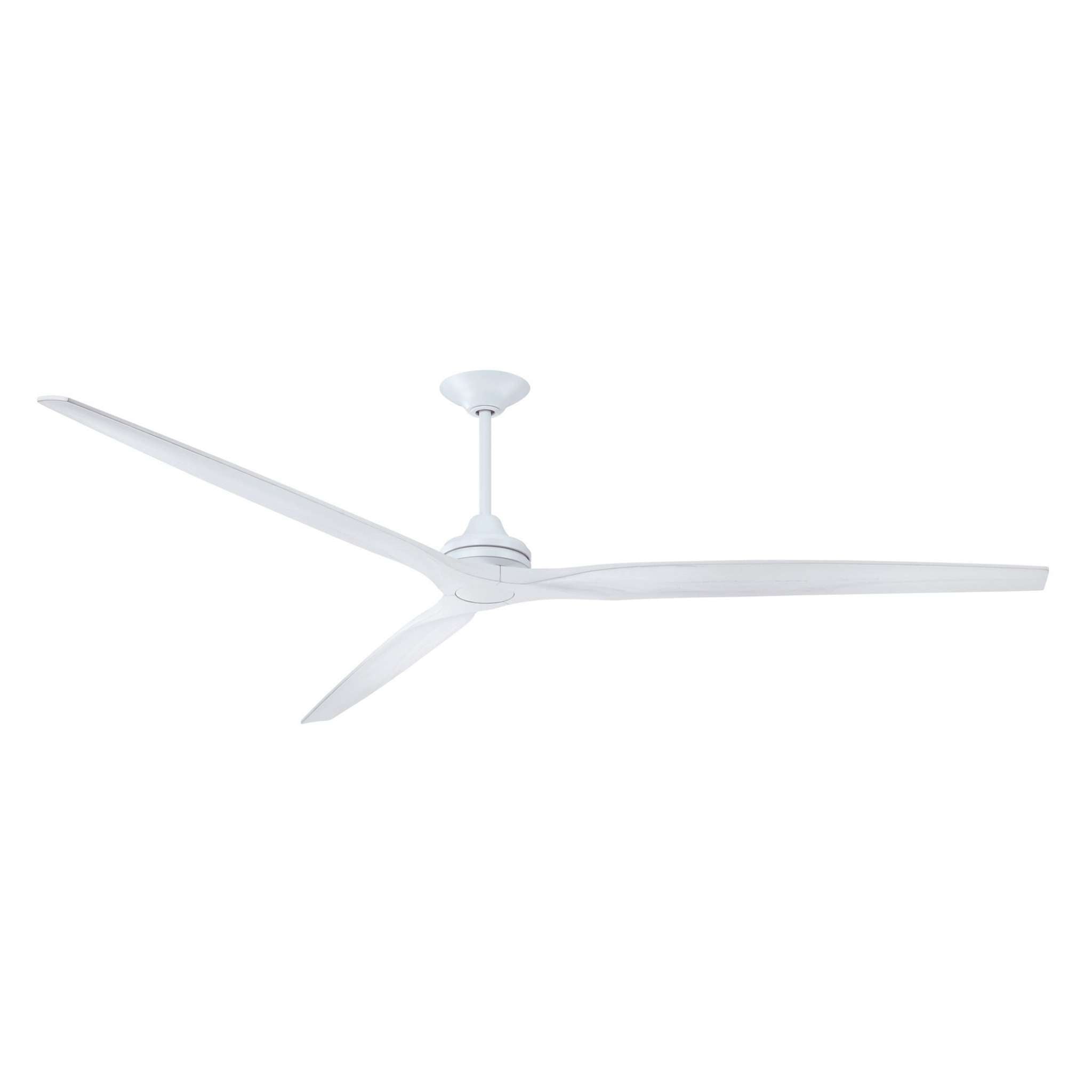

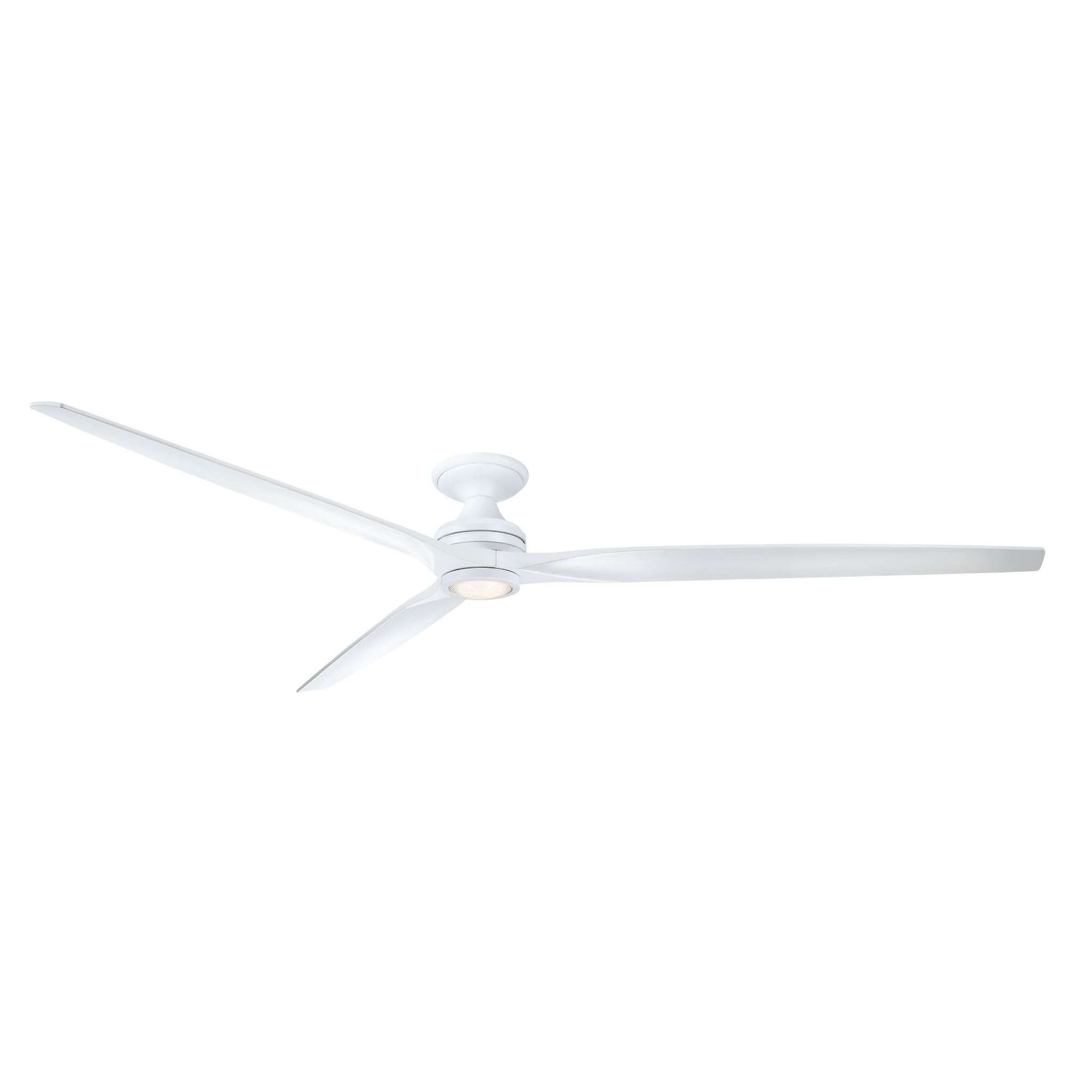

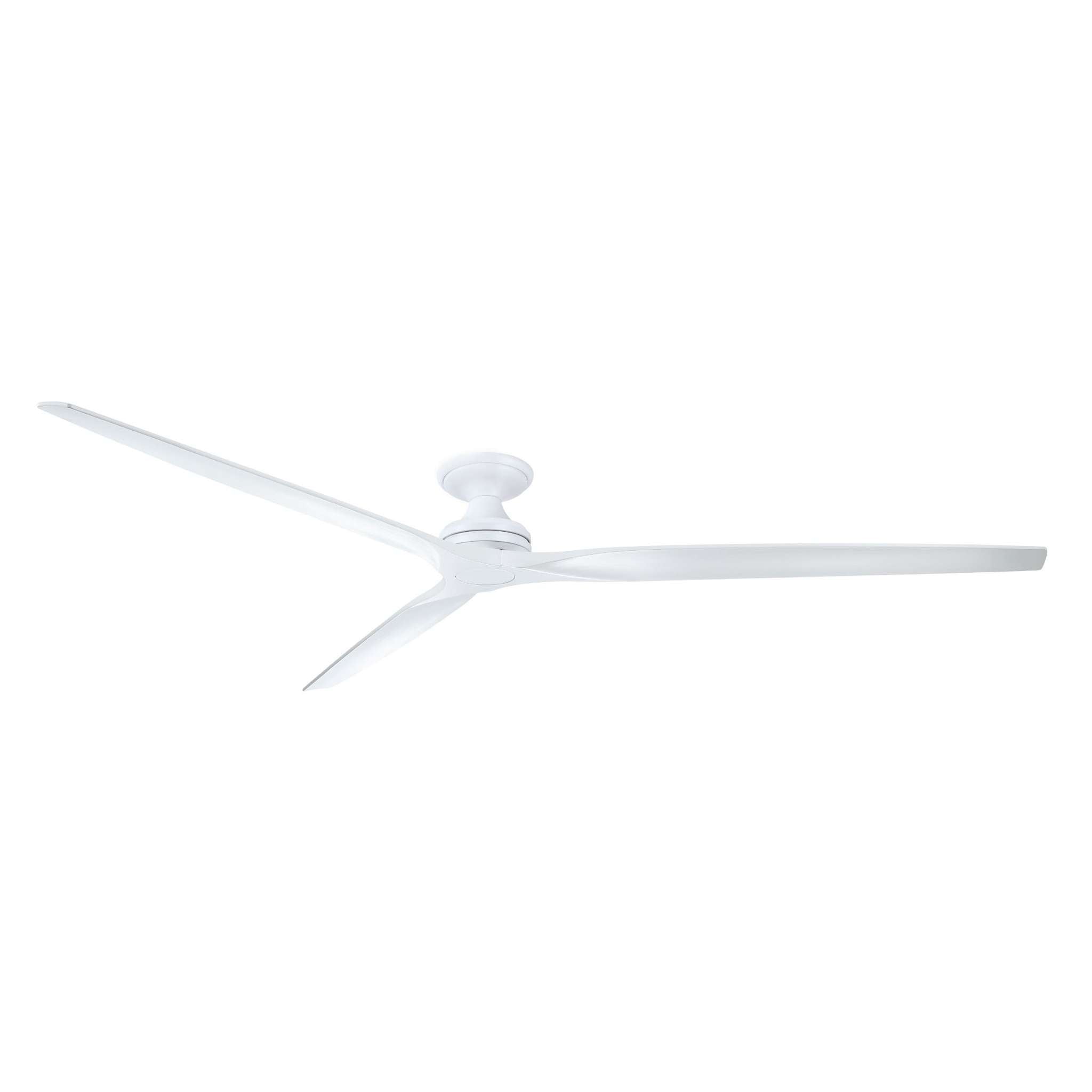

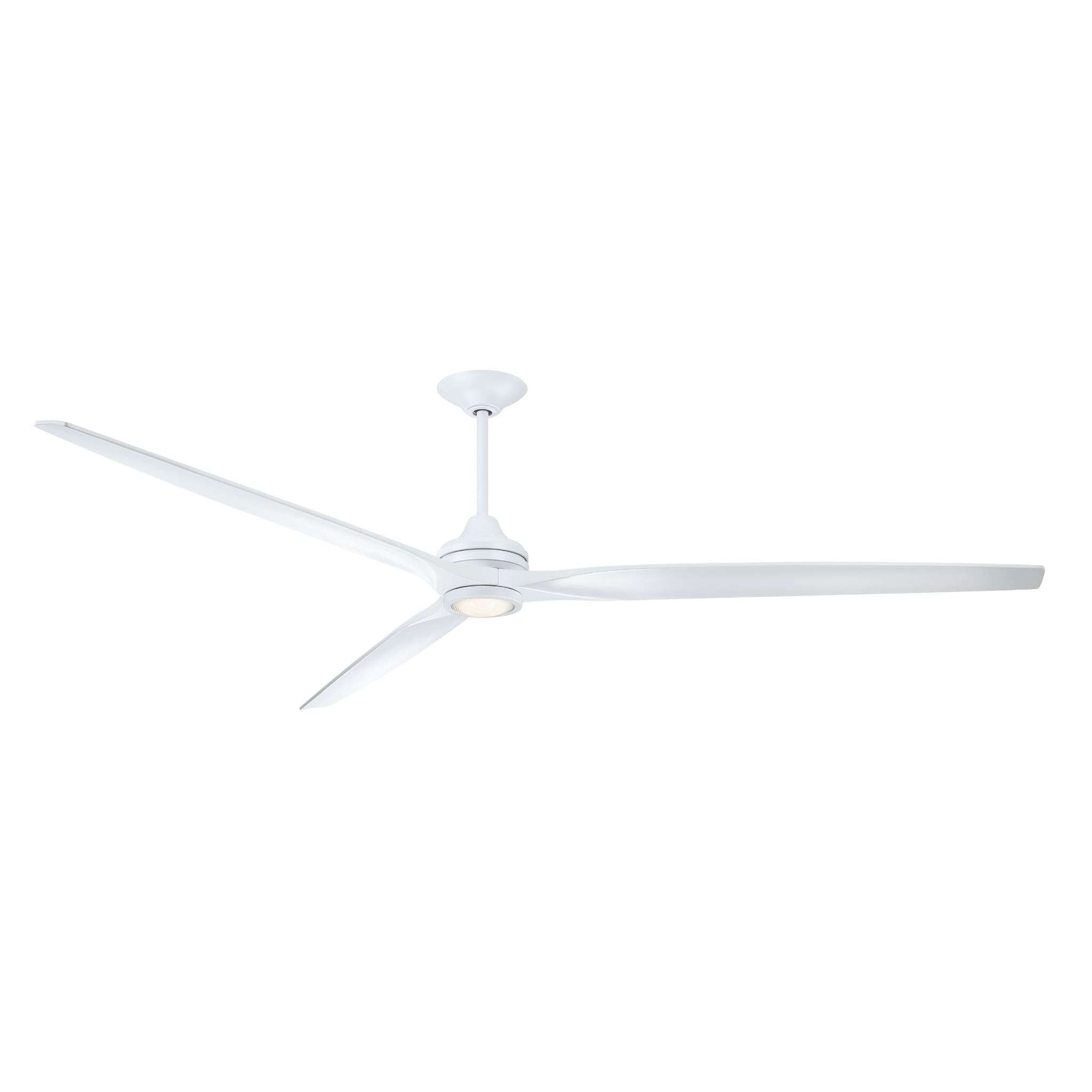

Fanimation Spitfire 96 in DC Ceiling Fan Motor — Matte White

The Fanimation Spitfire (model MAD6721MW-96) is a 96 in damp-rated DC ceiling fan motor built around Fanimation’s customizable Spitfire platform — letting you pair your motor with the blade finish and light kit of your choice for a fully personalized ceiling fan. The DC153×22mm sensorless DC motor delivers 10,359 CFM at high speed at just 30W — an efficiency of 348 CFM/W — sized for rooms over 400 sq ft. At 96 inches, this is the largest Spitfire DC motor — purpose-built for great rooms, commercial lobbies, and voluminous open-plan spaces where maximum blade coverage and whisper-quiet performance are non-negotiable. The Matte White finish is the most universally flattering option in the Spitfire lineup — a soft, non-reflective white that blends seamlessly into white and light-colored ceilings, making the fan feel lighter and the room feel larger. Pairs effortlessly with white, natural maple, or light wood blade sets for a clean, airy, and contemporary result. A WiFi receiver and TR360 hand-held remote are included, with access to the free fanSync WiFi app for smart home control. Damp location rated — suitable for covered outdoor spaces, bathrooms, and humid environments.

⚠️ Blades sold separately. This listing is for the Spitfire motor unit only. Compatible 3-blade paulownia blade sets (B6720-96) are available separately at Bees Lighting. Optional matching light kit — LK6721BDC-MW (18W 5CCT dimmable LED, 545–579 lumens, 3,000/4,000/5,000K, CRI 90 — includes Fresnel & frosted shades) — is also available separately at Bees Lighting.

Key Specifications

• Blade Span: 96 in | 14° pitch (blades sold separately — B6720-96 compatible)
• Motor: DC — 153×22mm sensorless | 6 speeds | Reversible
• Airflow: 6,140 CFM (low/1st) / 9,239 CFM (med/4th) / 10,359 CFM (high/6th)
• Efficiency: 348 CFM/W (high) | 505 CFM/W (med) | 916 CFM/W (low)
• Watts: 7W (low) / 18W (med) / 30W (high)
• RPM: 51 (low) / 74 (med) / 88 (high)
• Room Size: Over 400 sq ft
• Location Rating: Dry & Damp

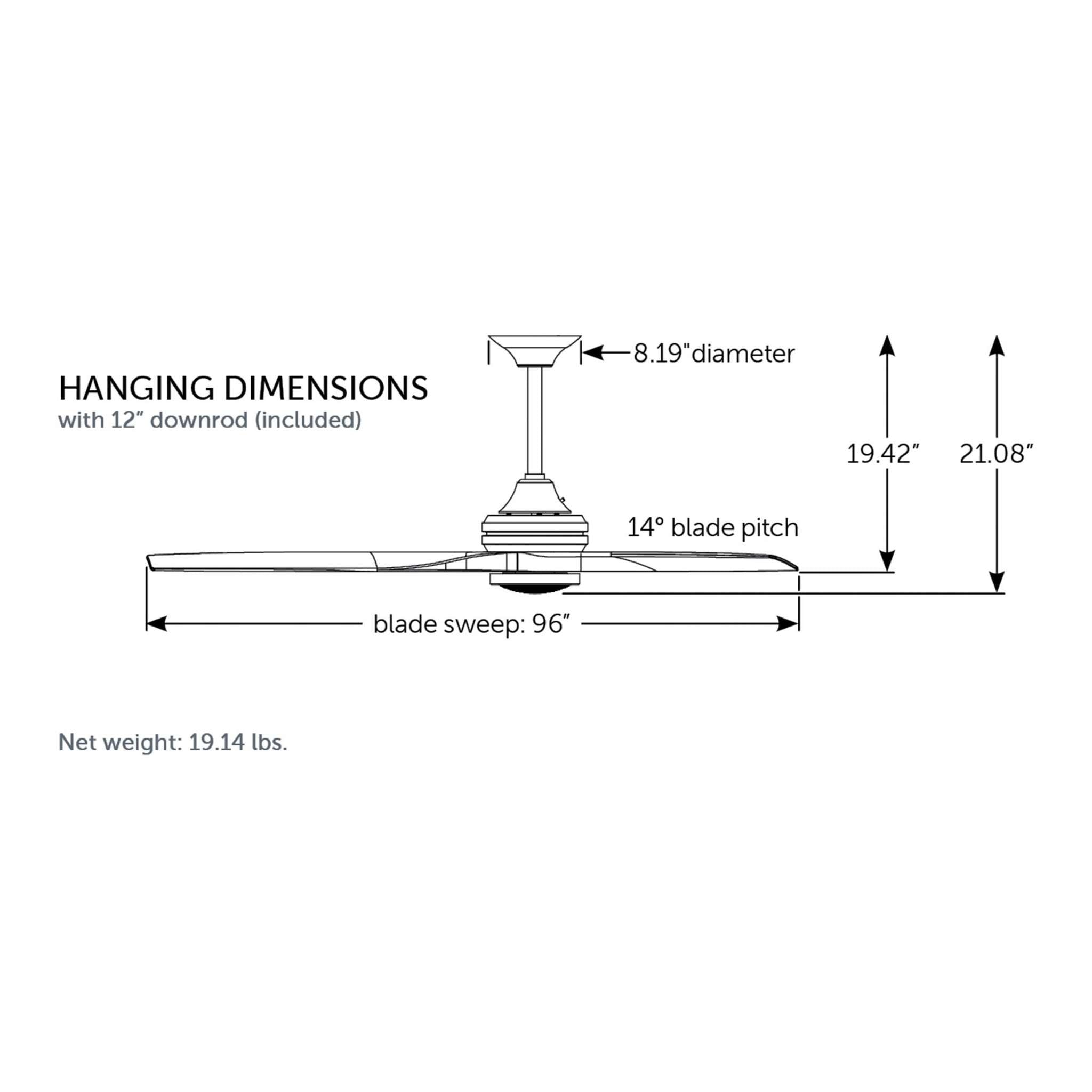

• Sloped Ceiling Compatible: Yes (up to 27° standard | 36 in downrod recommended | SCB1-52 kit for 27°–42°)
• Downrod: 1 in dia. × 6 in + 1 in dia. × 12 in both included | Optional: 18, 24, 36, 48, 60, 72 in

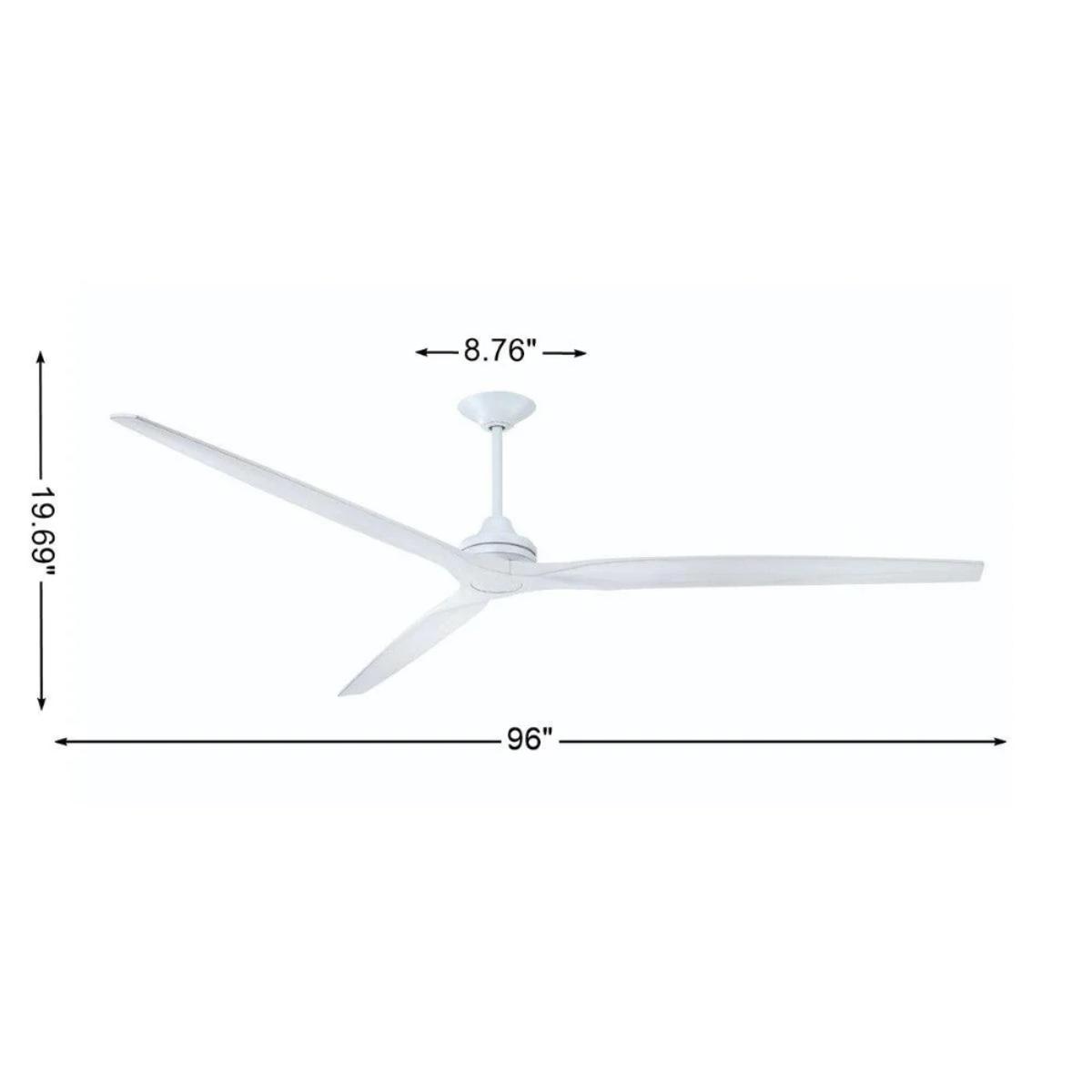

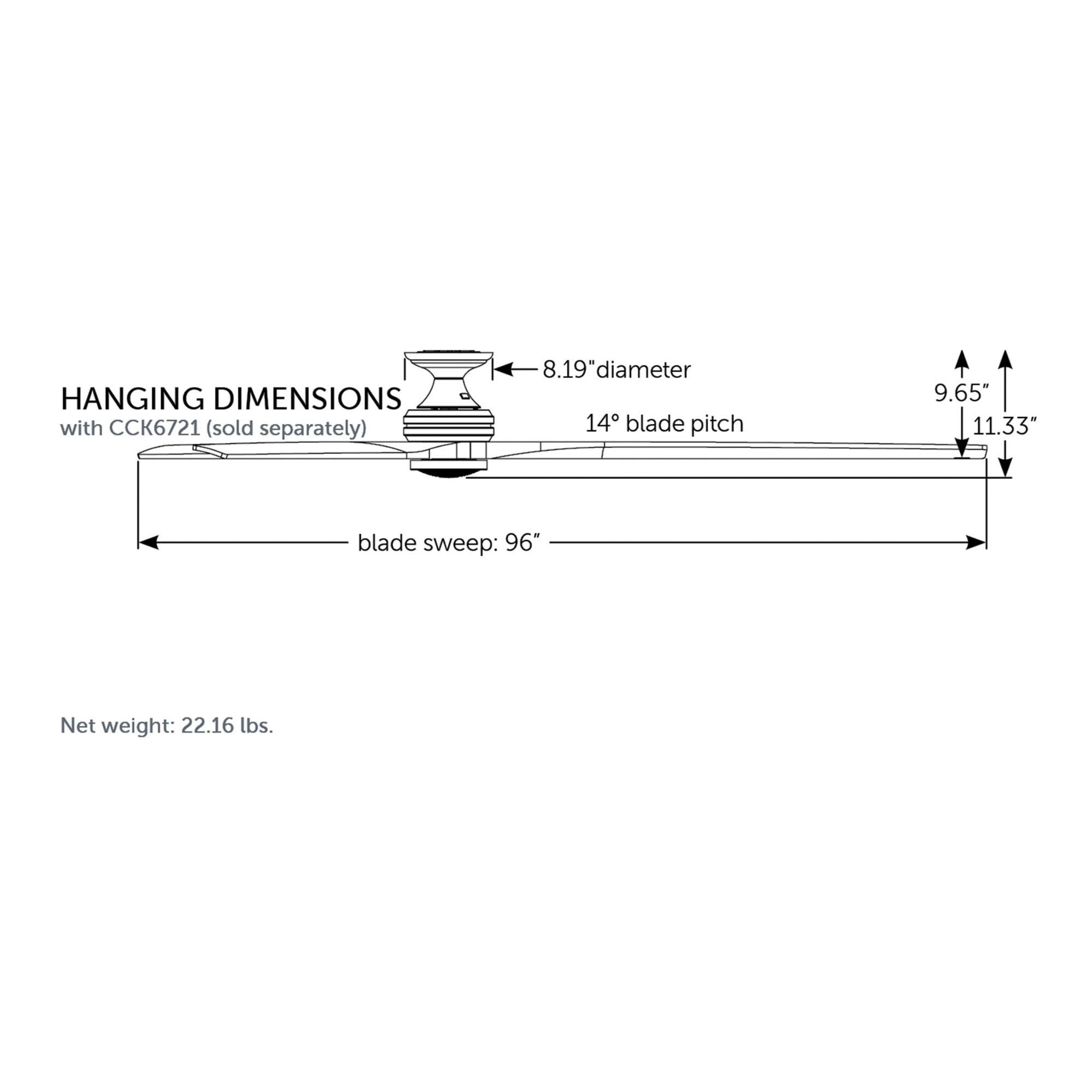

• Canopy: 8.76 in dia. (motor only) | 7.85 in dia. (with CCK6721)

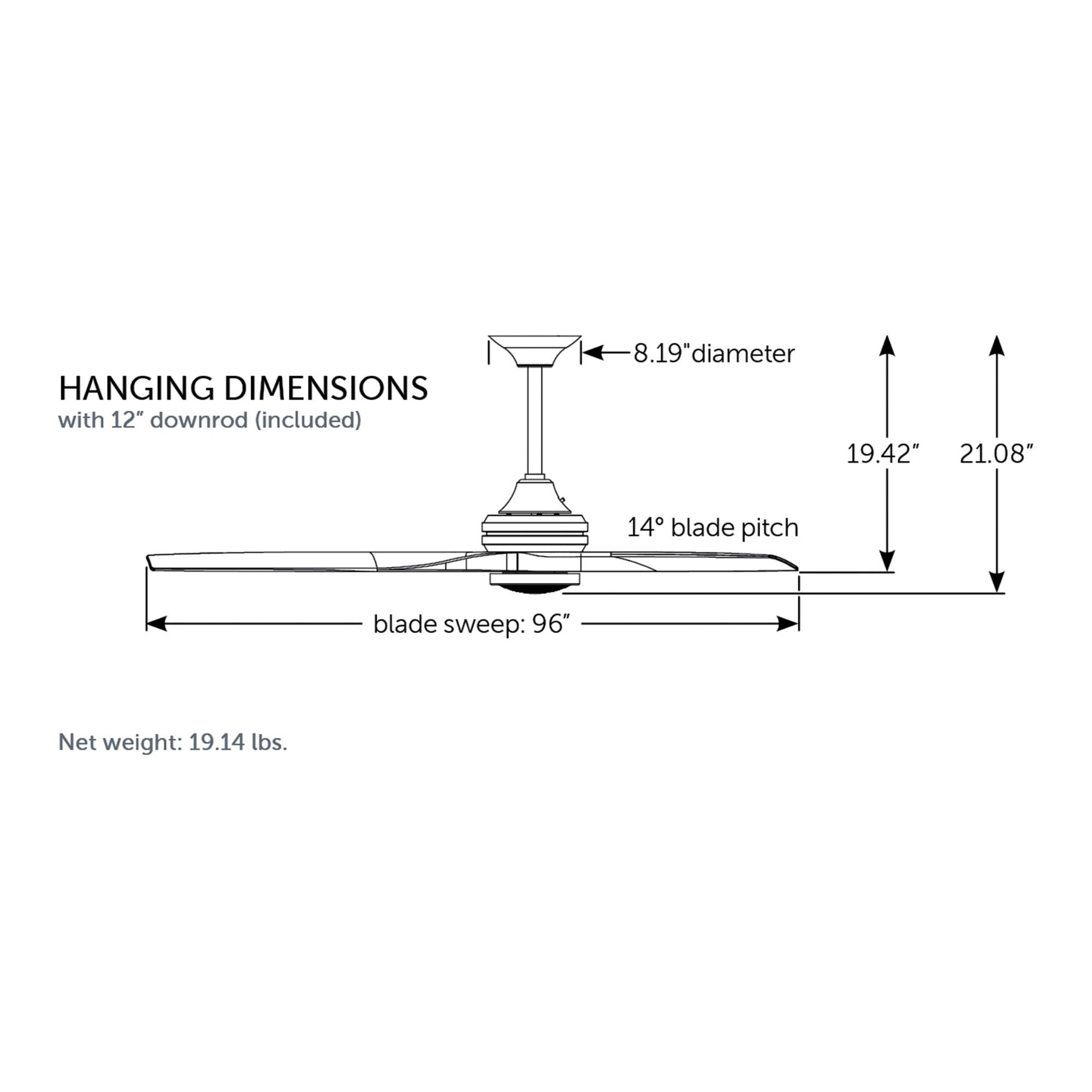

• Min. Ceiling Height: 7 ft | Net hanging weight: 19.77 lbs

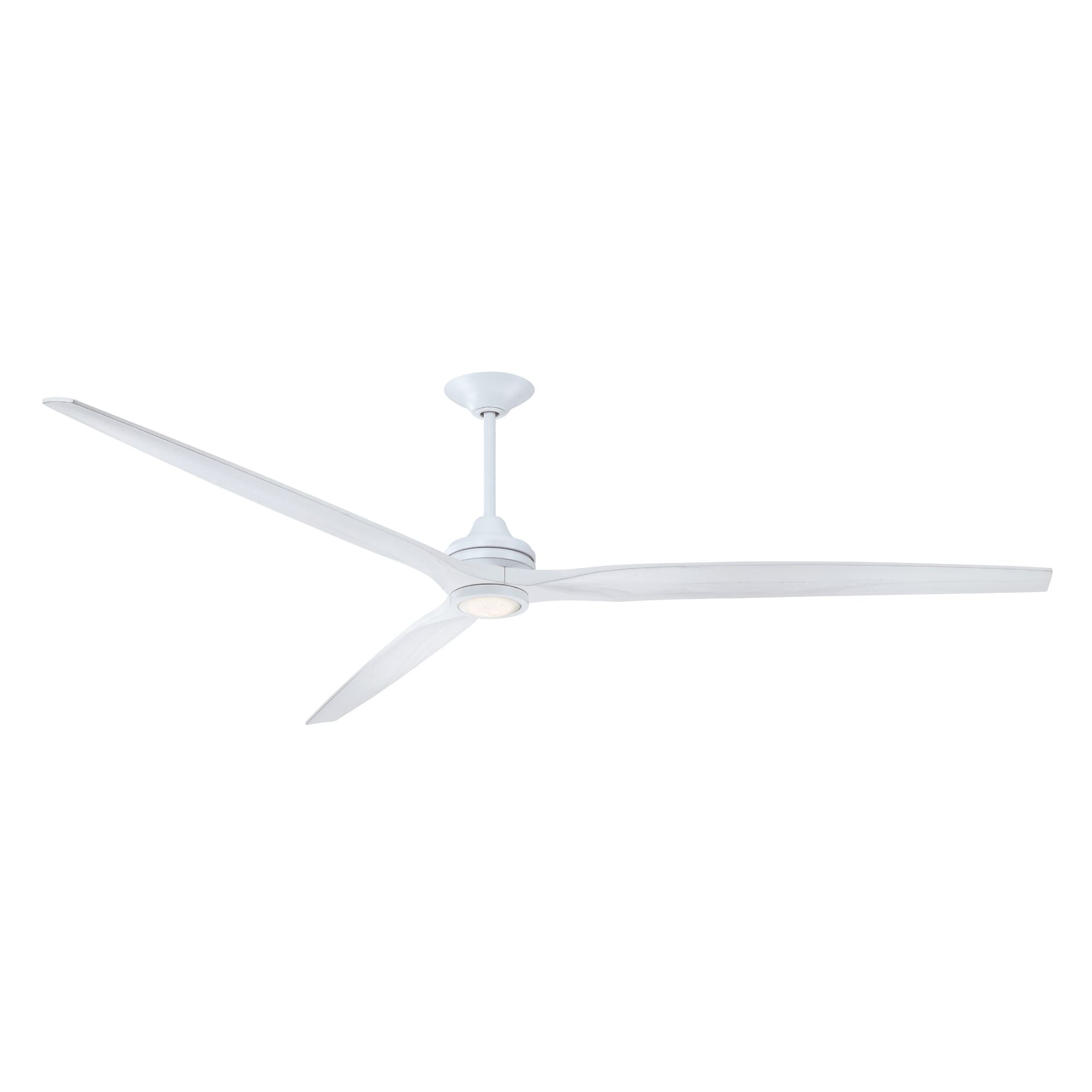

• Light Kit: LK6721BDC-MW — 18W | 5CCT | 545–579 lumens | CRI 90 | sold separately at Bees Lighting
• Decorative Cap: CAP6721 — sold separately at Bees Lighting
• Controls: WiFi receiver + TR360 remote included | fanSync WiFi app (free) | Optional TW406 wall control (sold separately)

Compatible Accessories (sold separately at Bees Lighting)

• Blade Set: B6720-96 — 3-blade paulownia sets in multiple finishes
• Light Kit: LK6721BDC-MW — matching Matte White finish | 18W 5CCT dimmable LED | 545–579 lumens | 3,000/4,000/5,000K | CRI 90 | includes Fresnel & frosted shades | Damp rated

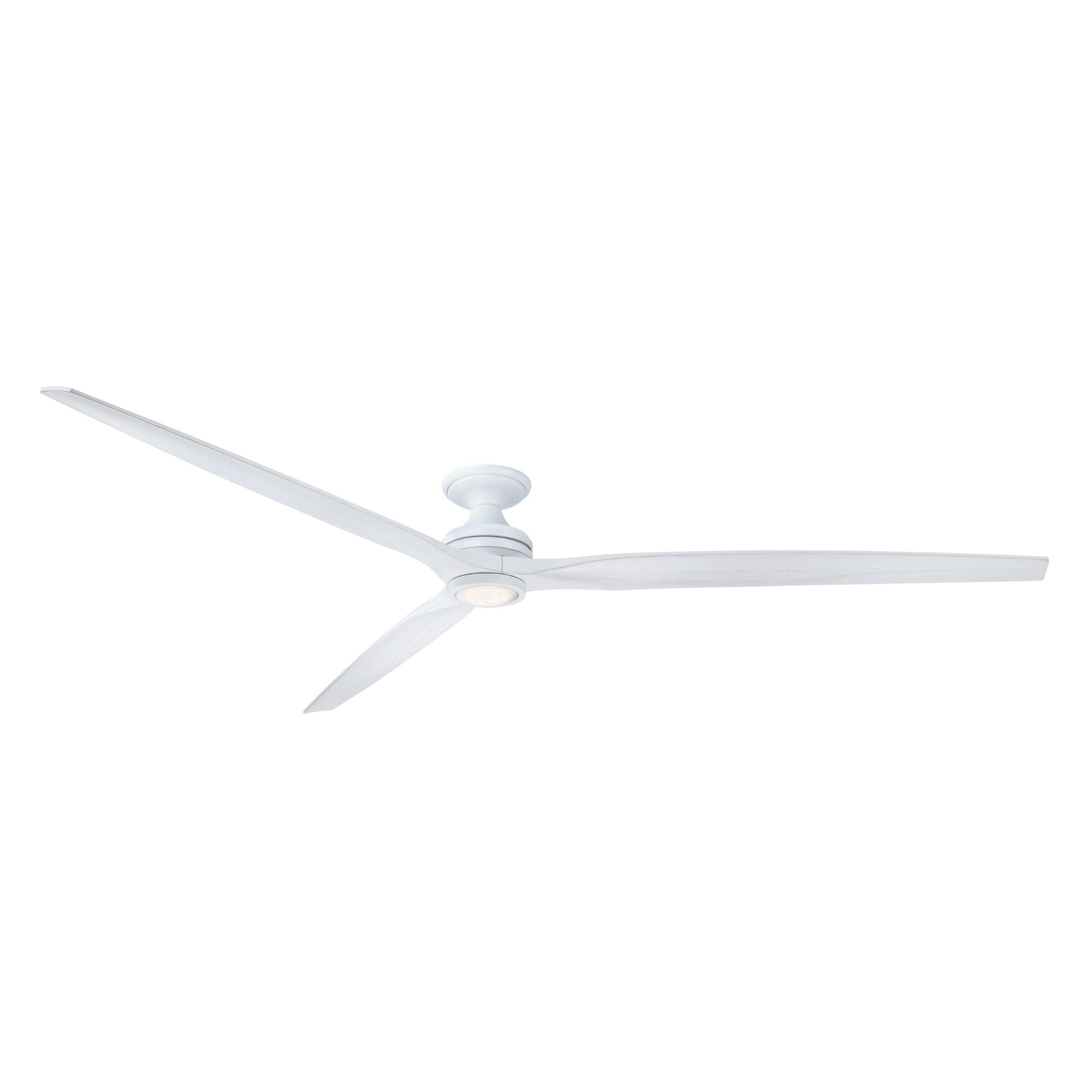

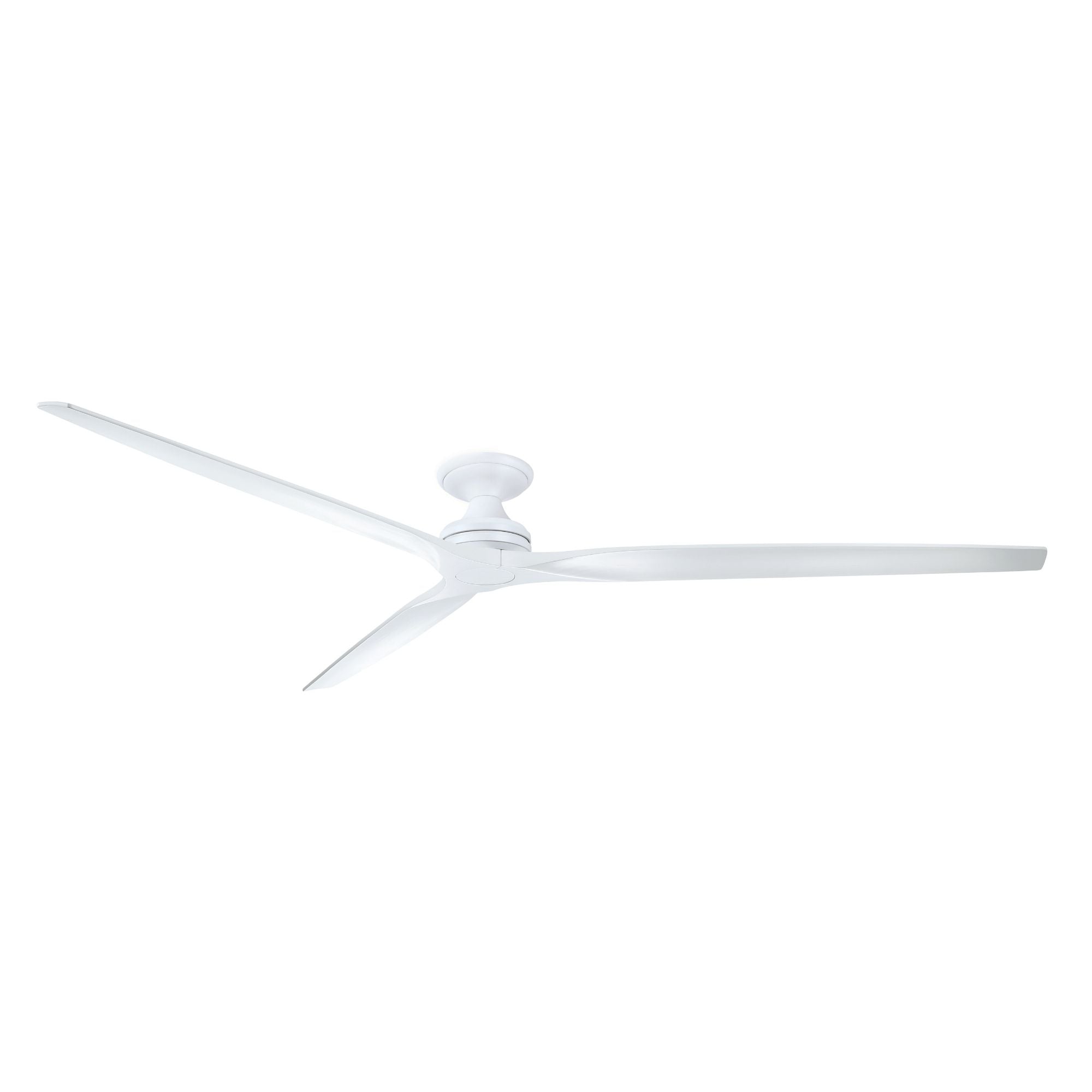

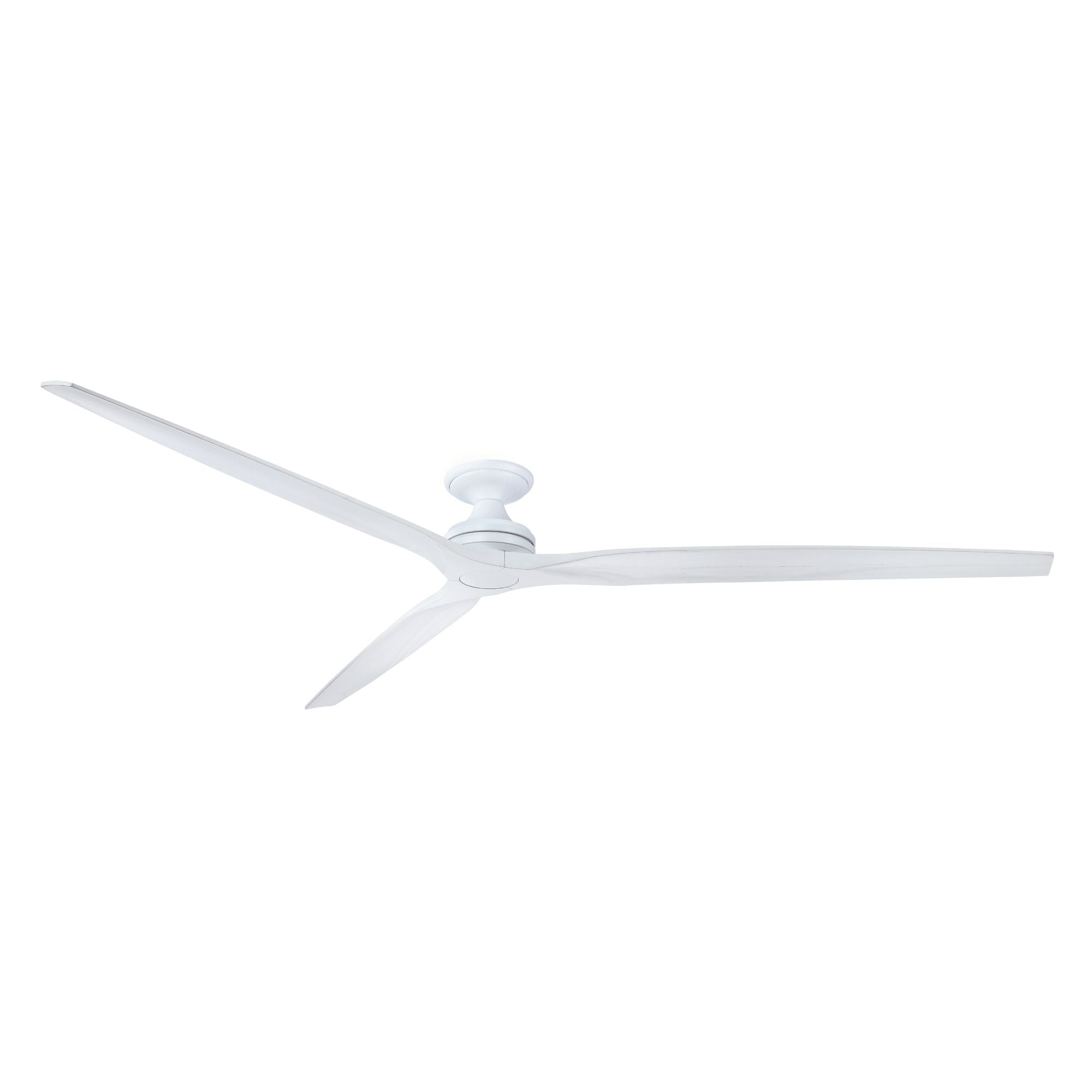

• Flush Mount Kit: CCK6721 — for low-ceiling installations
• Decorative Cap: CAP6721
• Sloped Ceiling Kit: SCB1-52 — for slopes 27°–42°
• Wall Control: TW406 (sold separately)

Control Features

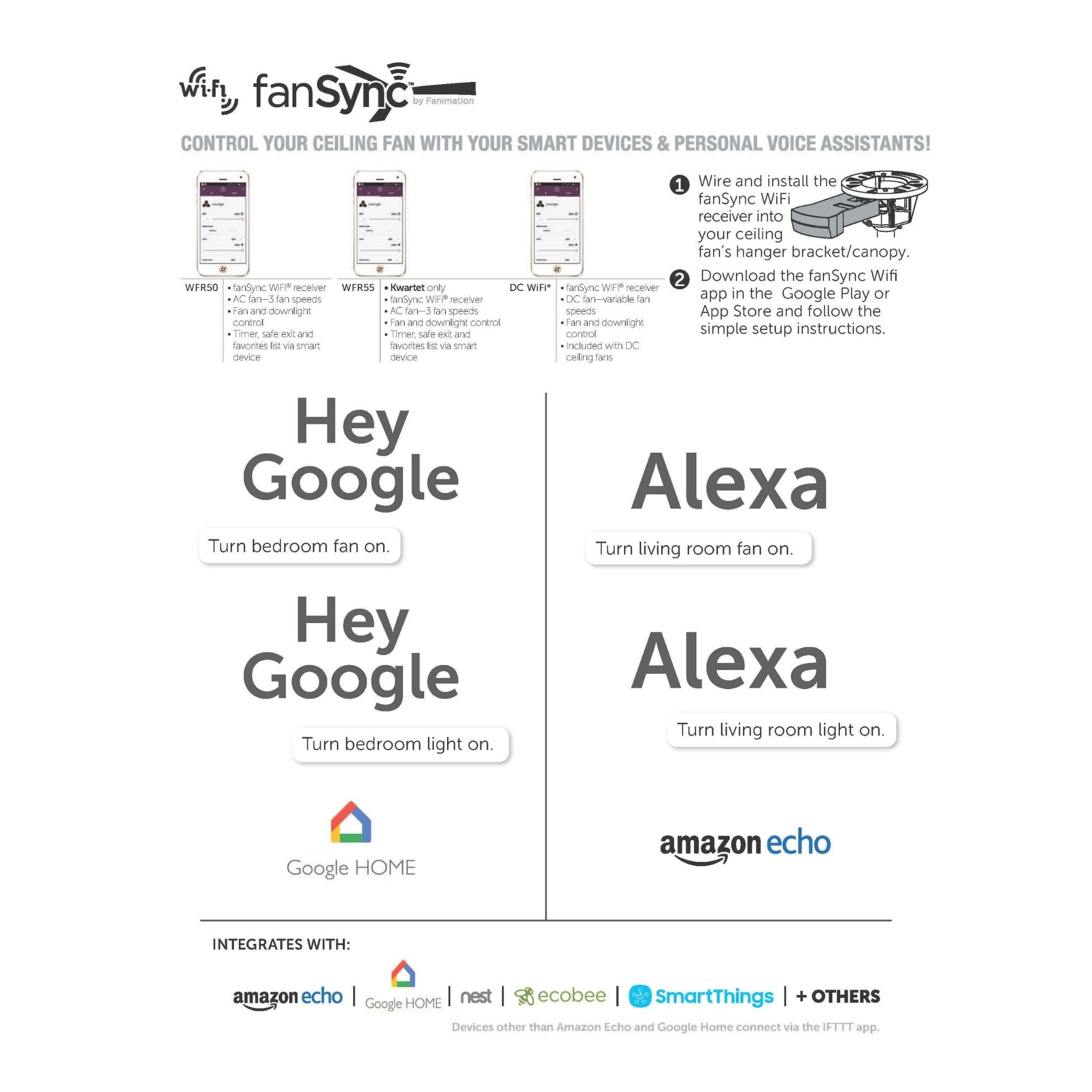

The Spitfire MAD6721MW-96 includes a WiFi receiver and TR360 hand-held remote with 6-speed fan control, fresh air mode, reverse, ON/OFF, and dimmer light levels with 5CCT select. Download the free fanSync WiFi app (Apple App Store or Google Play) and create your Fanimation fanSync account for smart home integration. The optional TW406 wall control is available separately at Bees Lighting.

Construction & Design

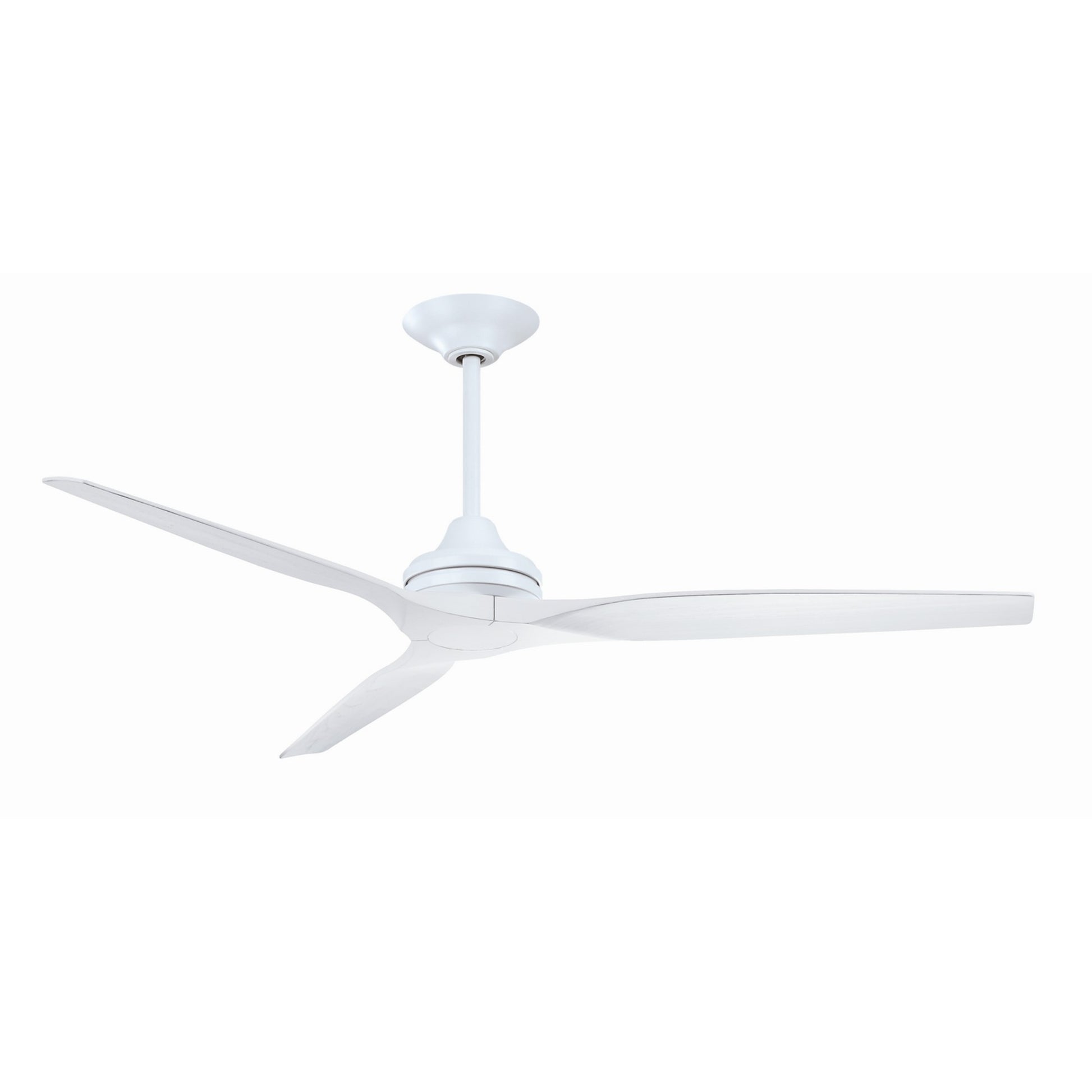

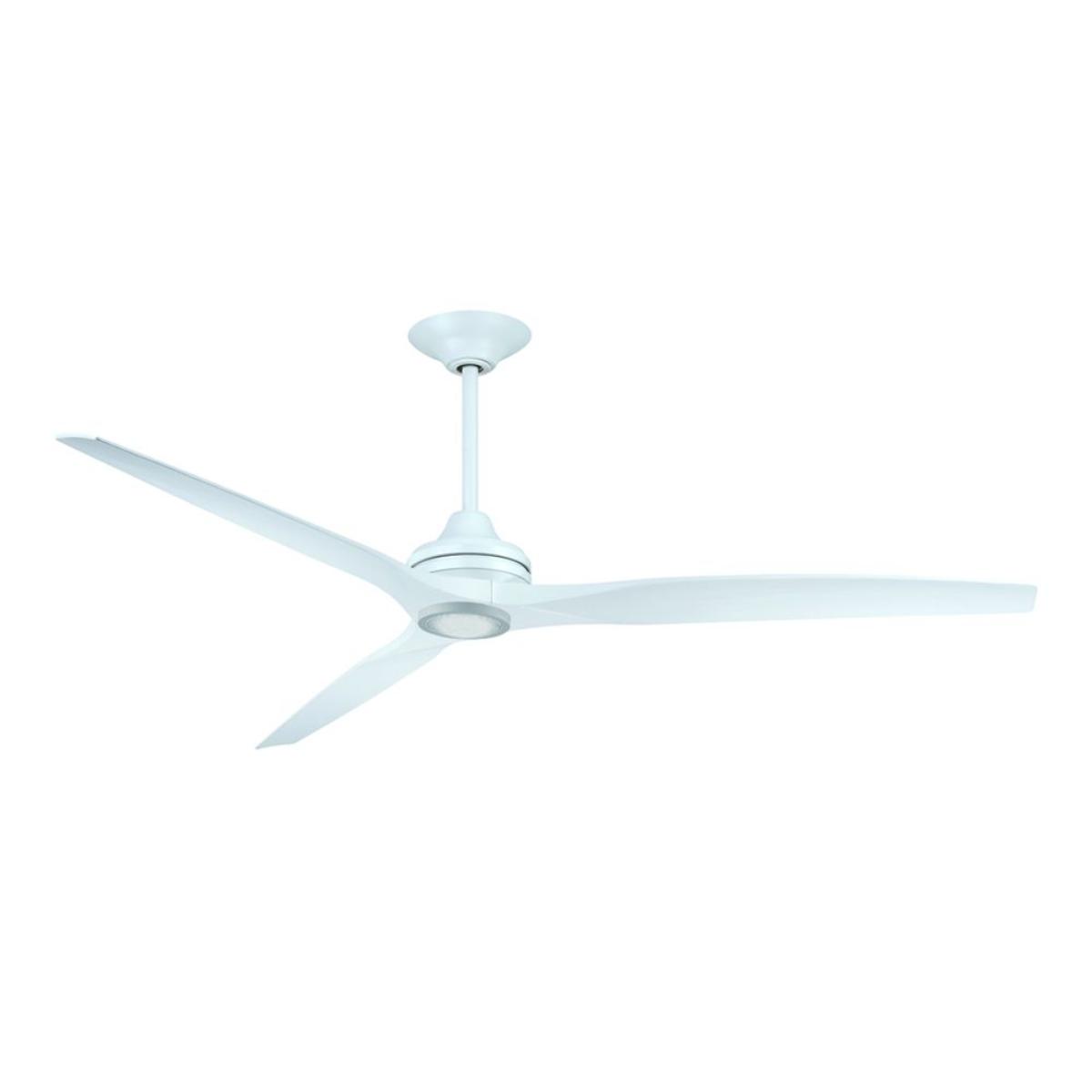

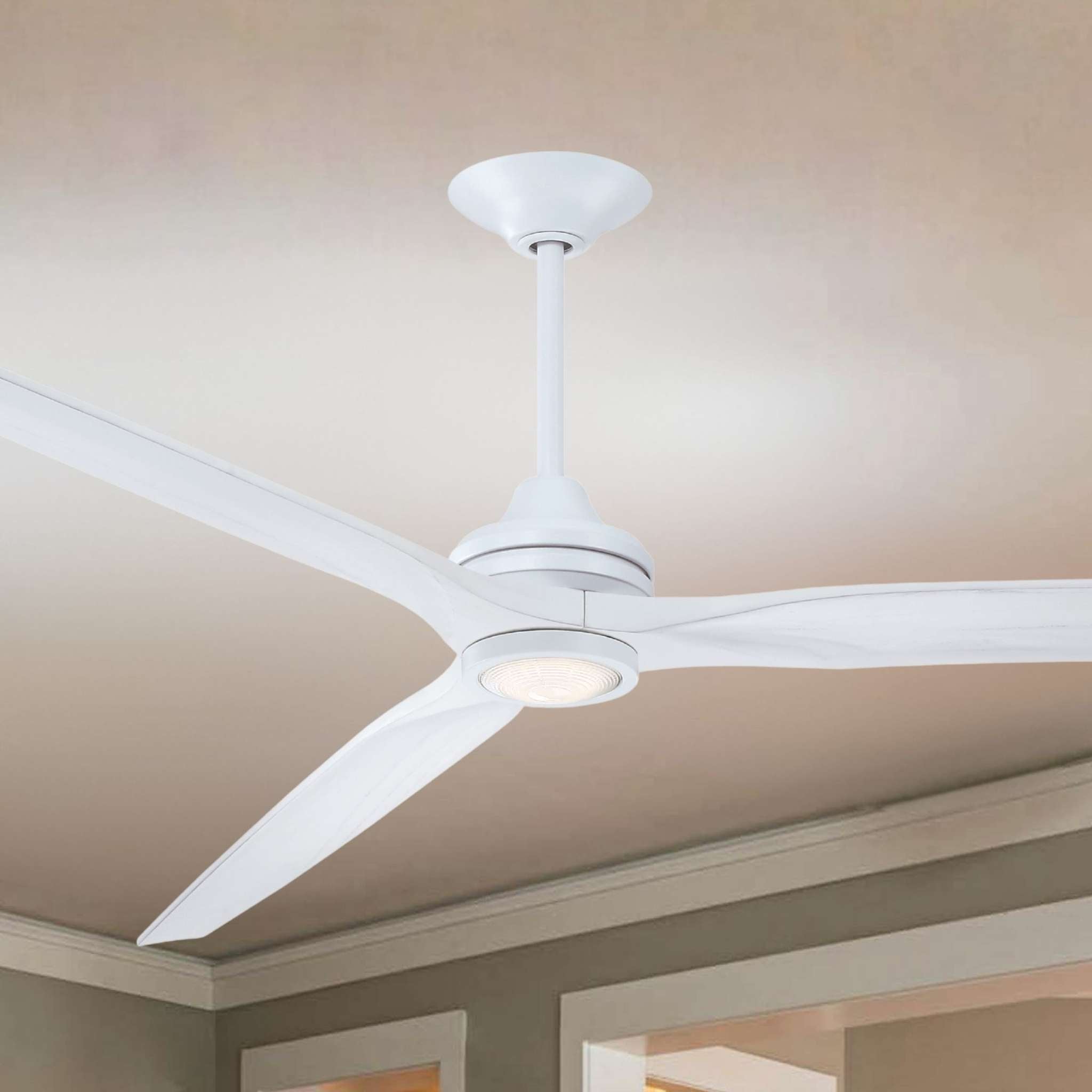

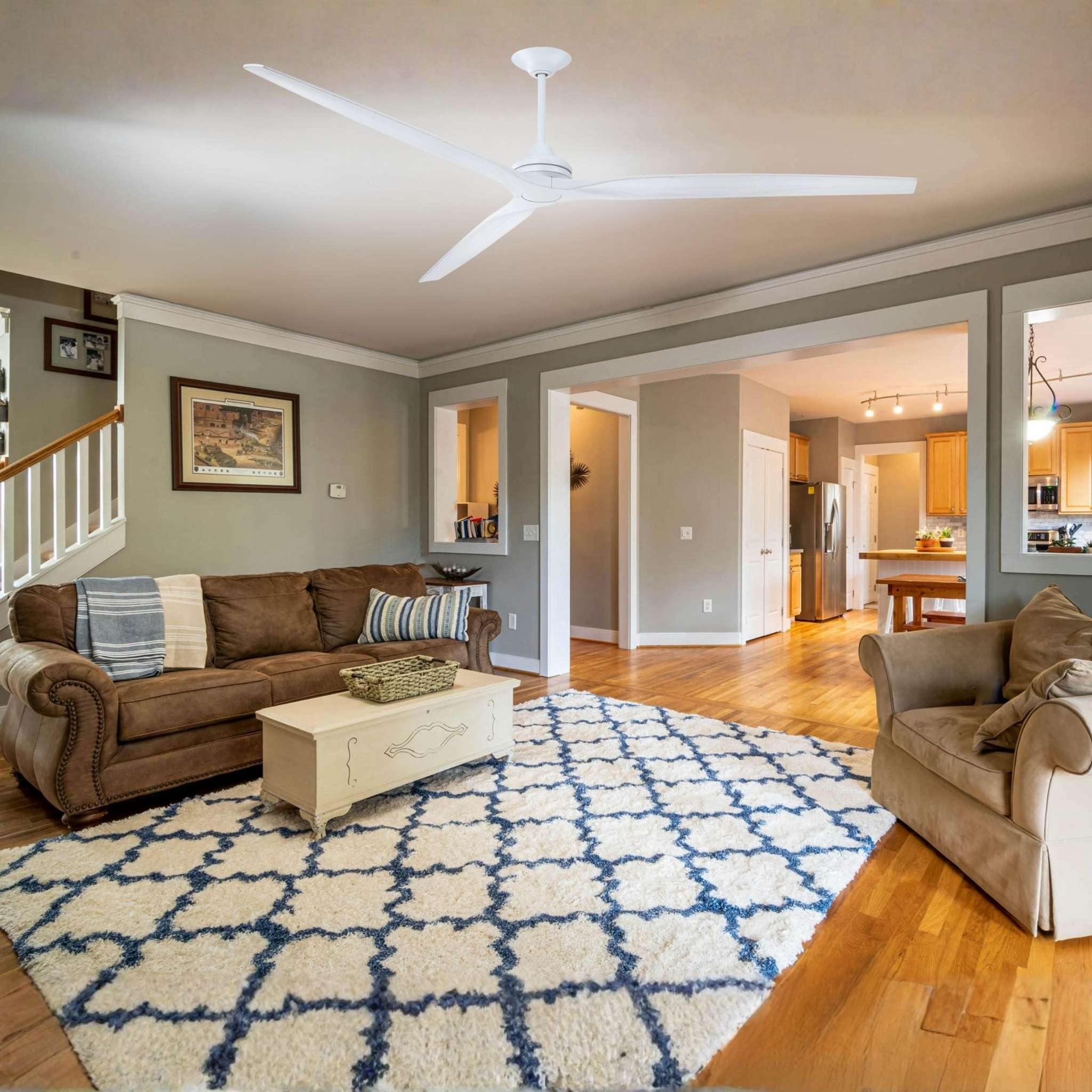

The Spitfire’s clean, swept-blade silhouette is defined by its 3-blade customizable format — a minimalist profile that keeps the focus on the blade finish you choose. At 96 in, this is the statement-scale Spitfire — engineered for grand residential great rooms, hotel lobbies, and commercial spaces where both visual presence and exceptional airflow efficiency matter. The Matte White motor housing is the most ceiling-friendly finish in the Spitfire lineup — its soft, non-reflective surface disappears against white ceilings, creating an effortless, light-filled look in coastal bedrooms, Scandinavian-inspired living rooms, and any space where simplicity and airiness define the aesthetic at grand scale. Damp rated — suitable for covered porches, bathrooms, and humid interior environments.

Suggested Downrod by Ceiling Height

Ideal distance from floor to fan blades is 7 to 9 feet. Two downrods (6 in and 12 in) are included.

• Below 9 ft ceiling → Flush mount kit CCK6721 (no downrod)
• 9 ft ceiling → 6 in downrod (included)
• 10 ft ceiling → 12 in downrod (included)
• 11 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 13 ft ceiling → 36 in downrod
• 14 ft ceiling → 48 in downrod
• 15 ft ceiling → 60 in downrod
• 16 ft ceiling → 72 in downrod

What’s Included

• Fanimation Spitfire MAD6721MW-96 DC ceiling fan motor unit
• WiFi receiver + TR360 hand-held remote control
• 1 in × 6 in downrod + 1 in × 12 in downrod
• Mounting hardware
• Blades and light kit not included — sold separately at Bees Lighting
