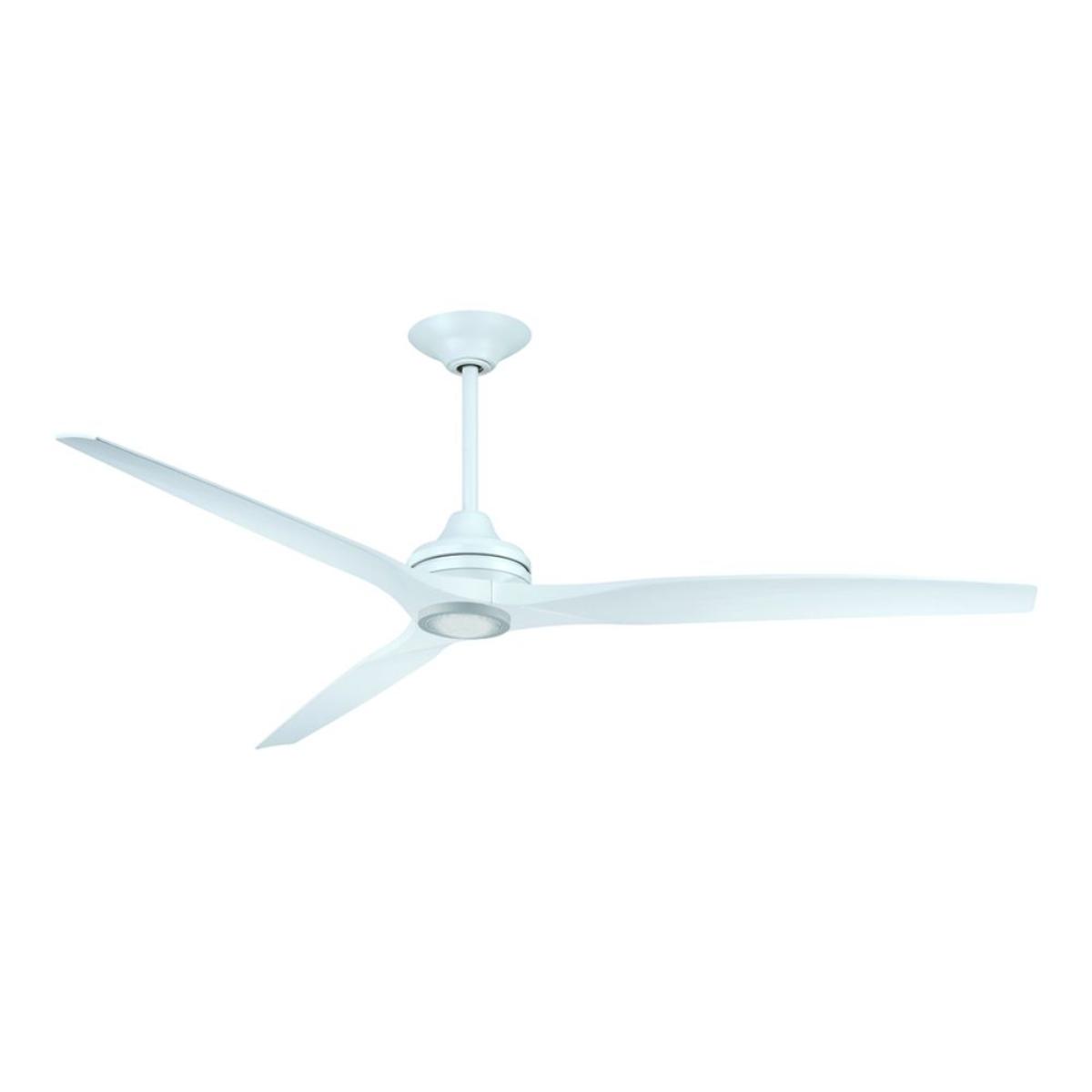

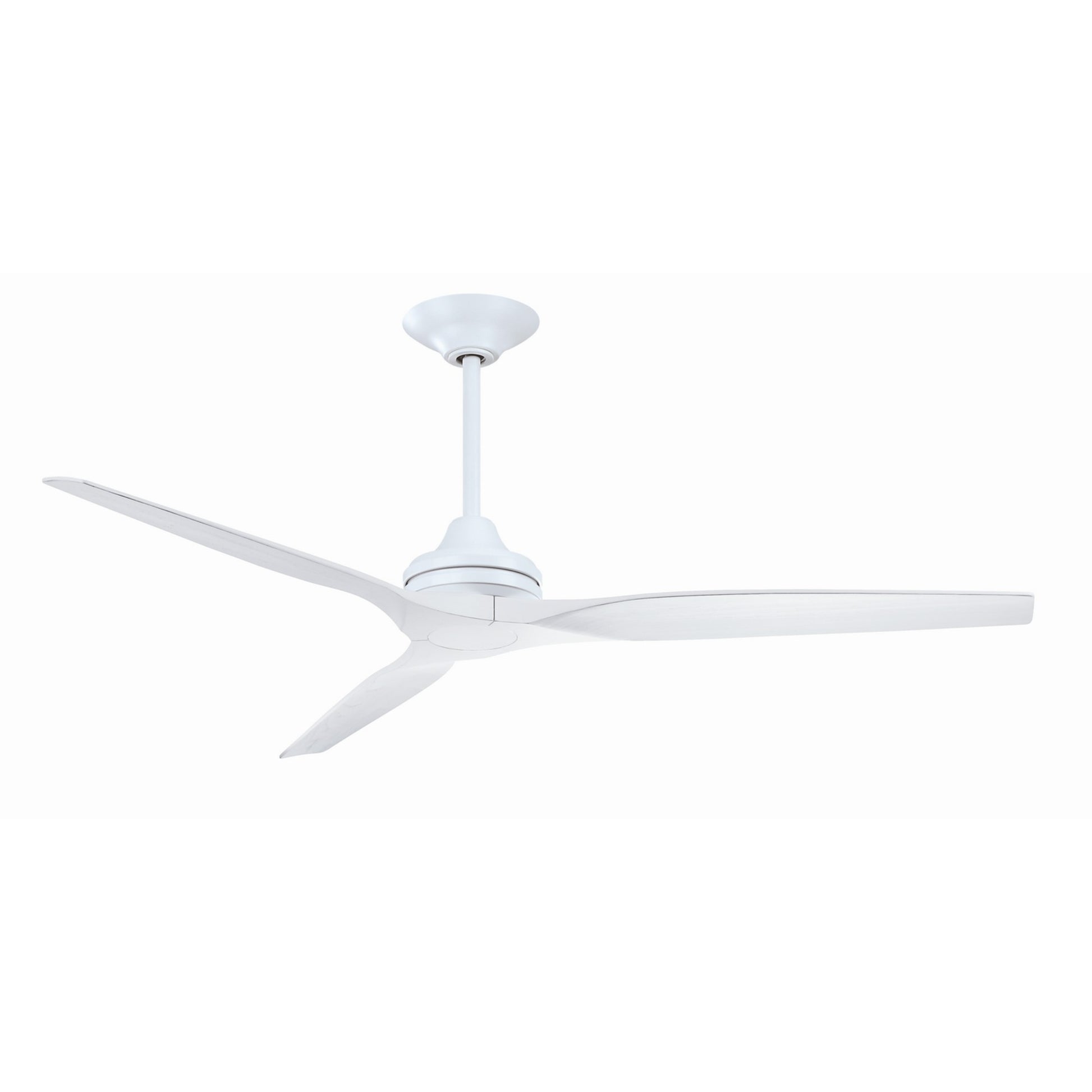

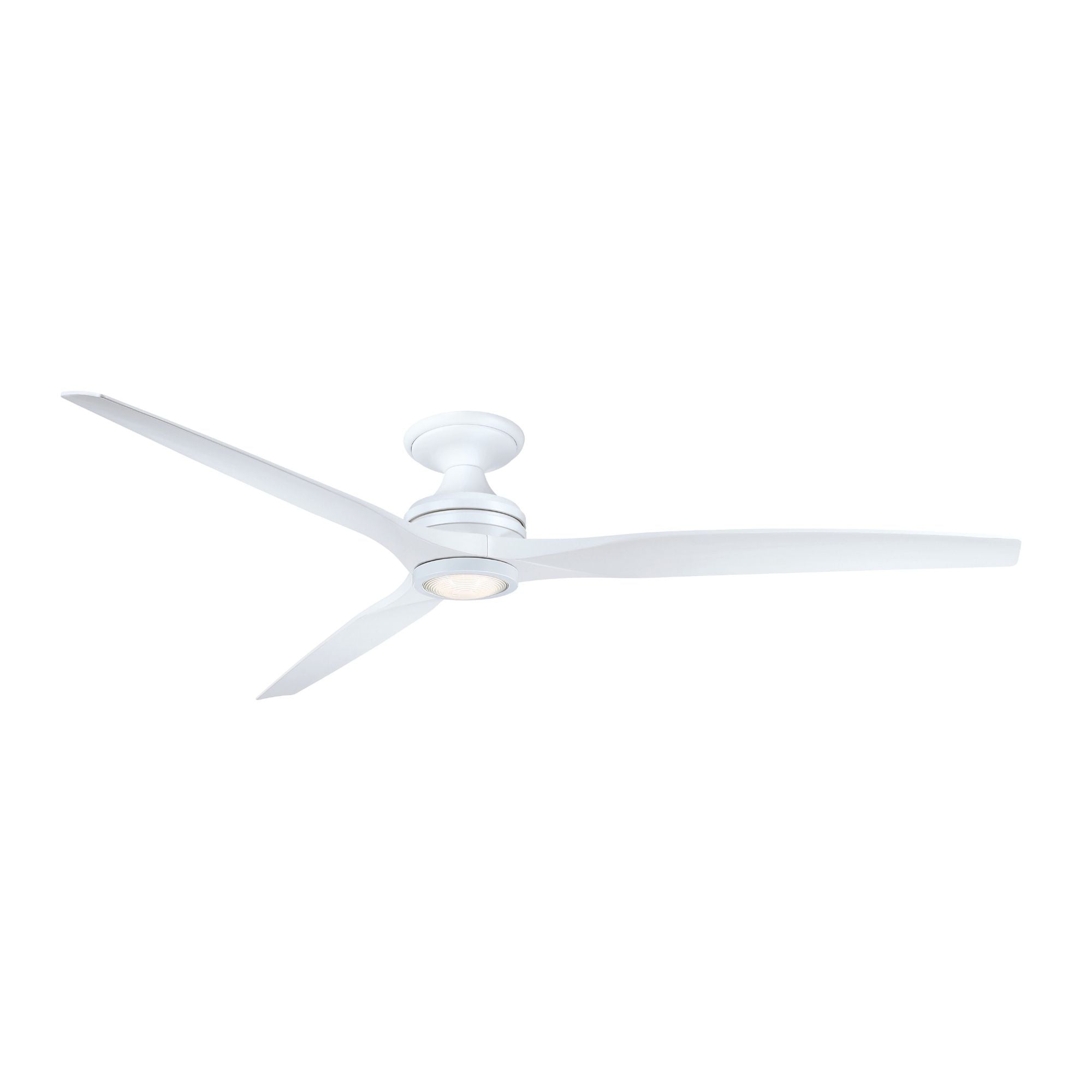

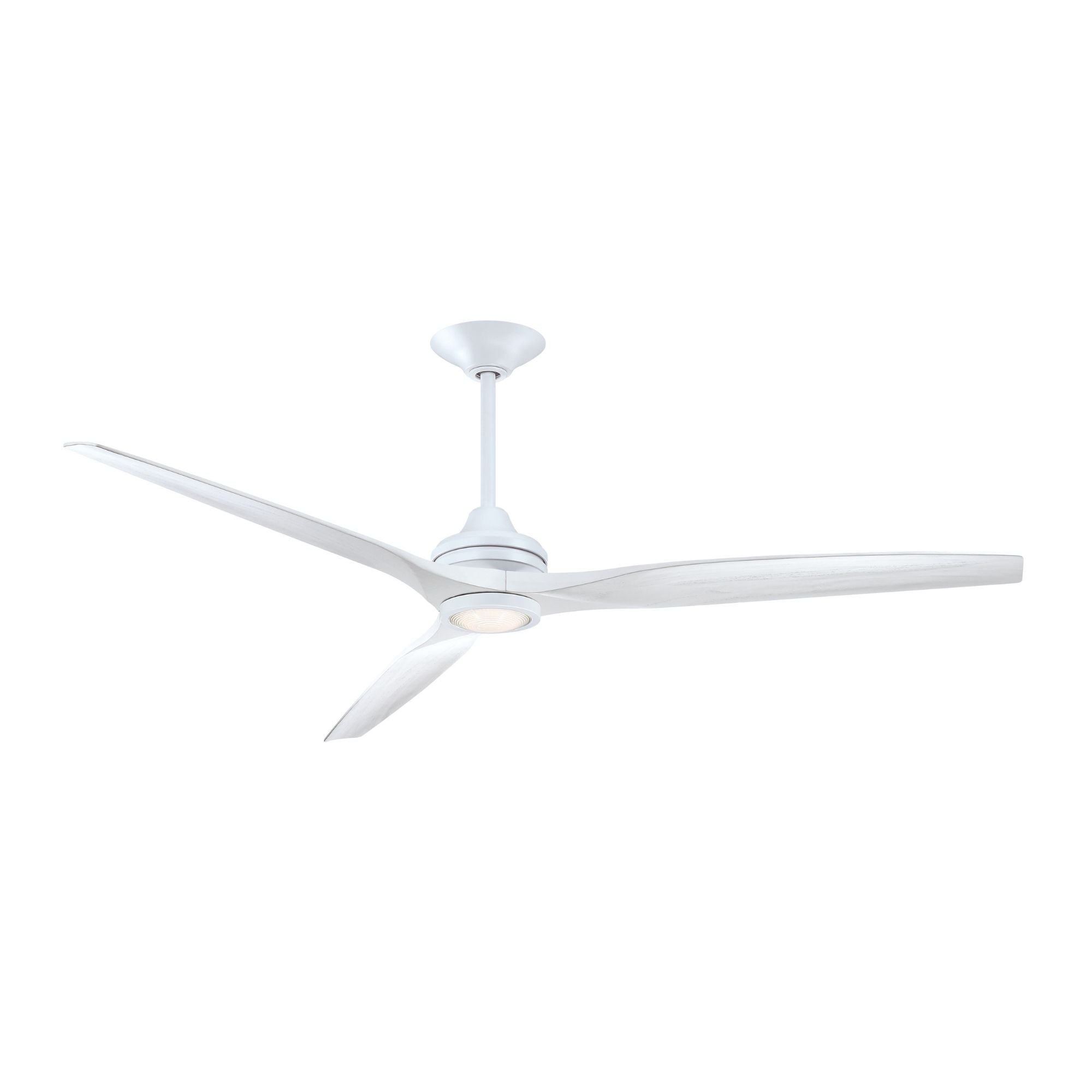

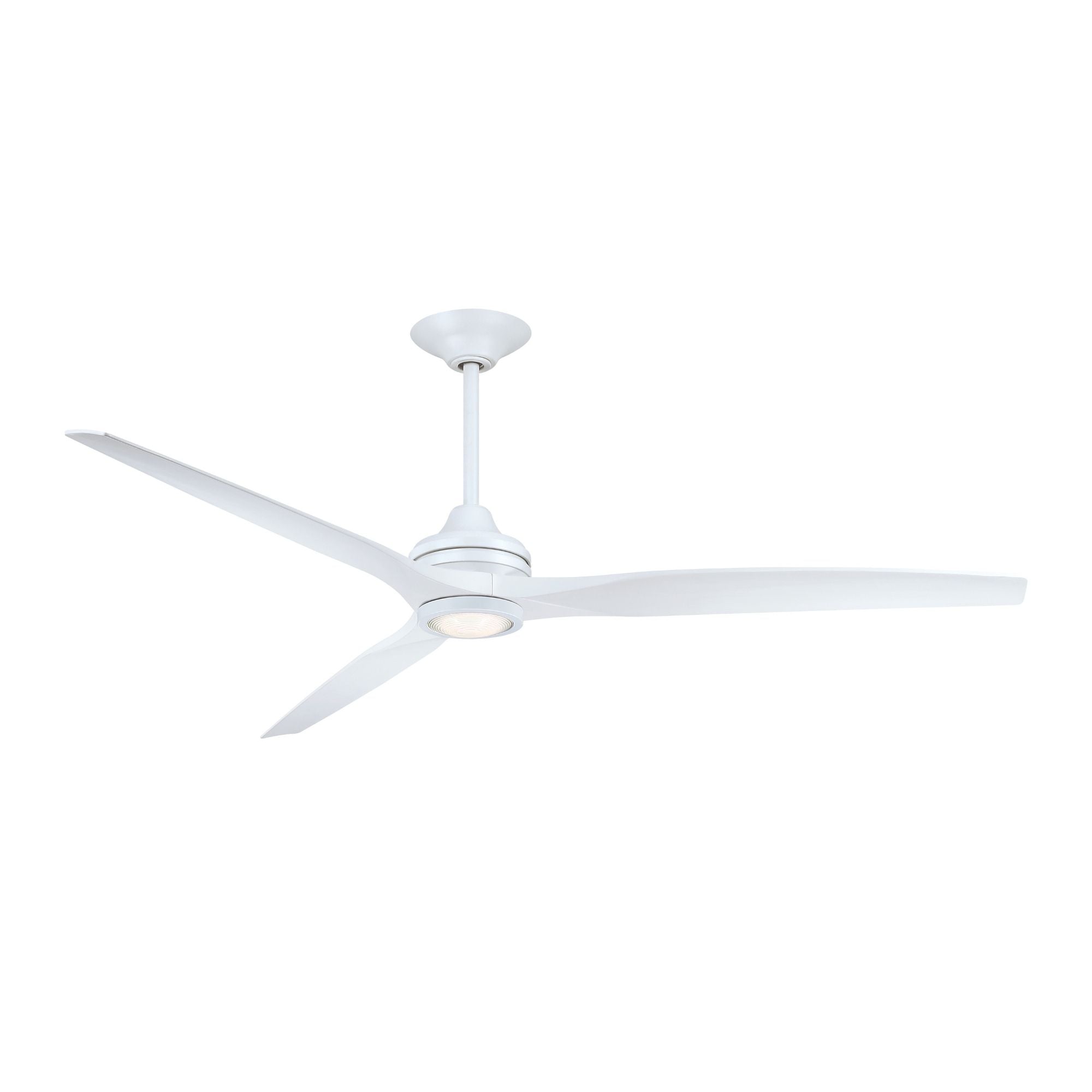

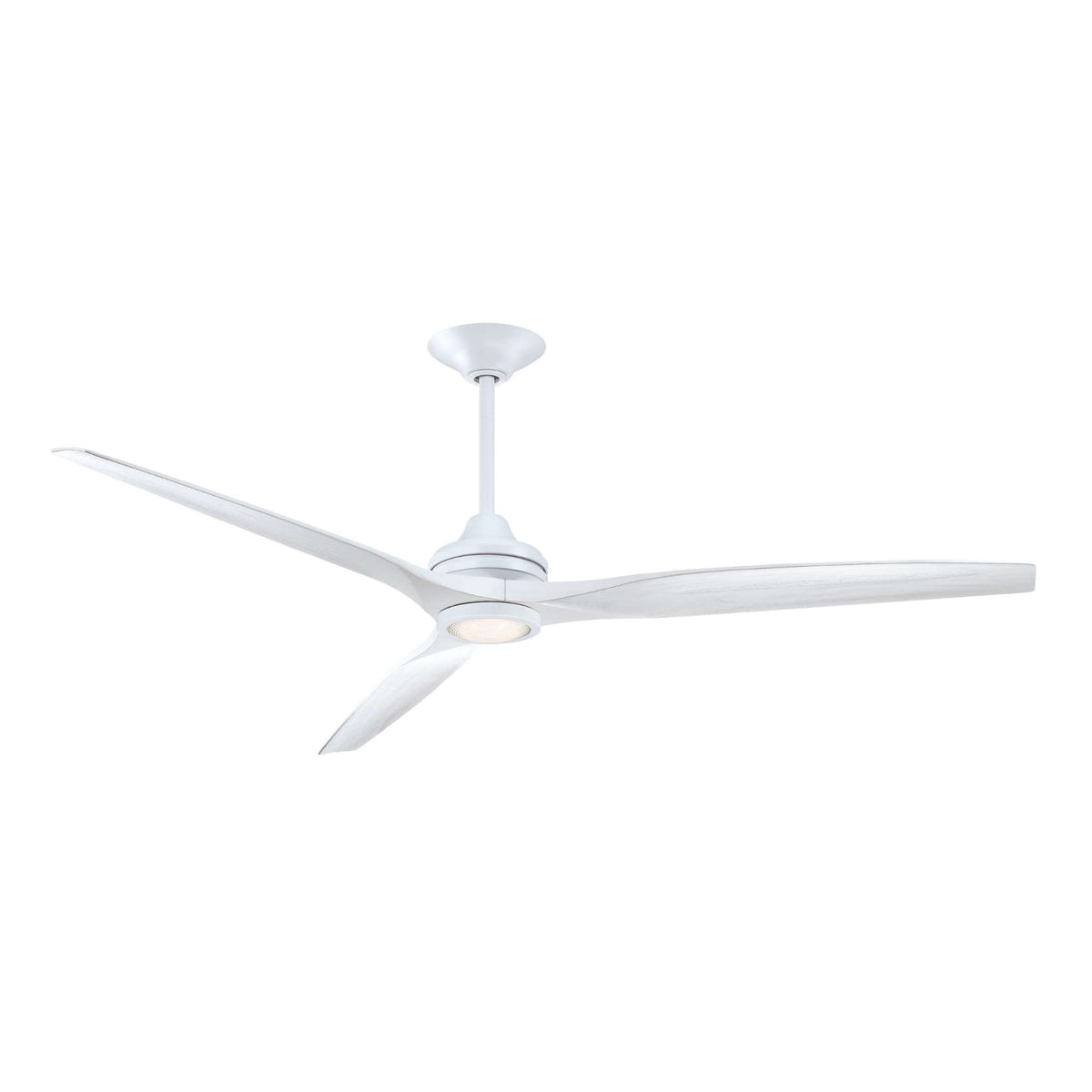

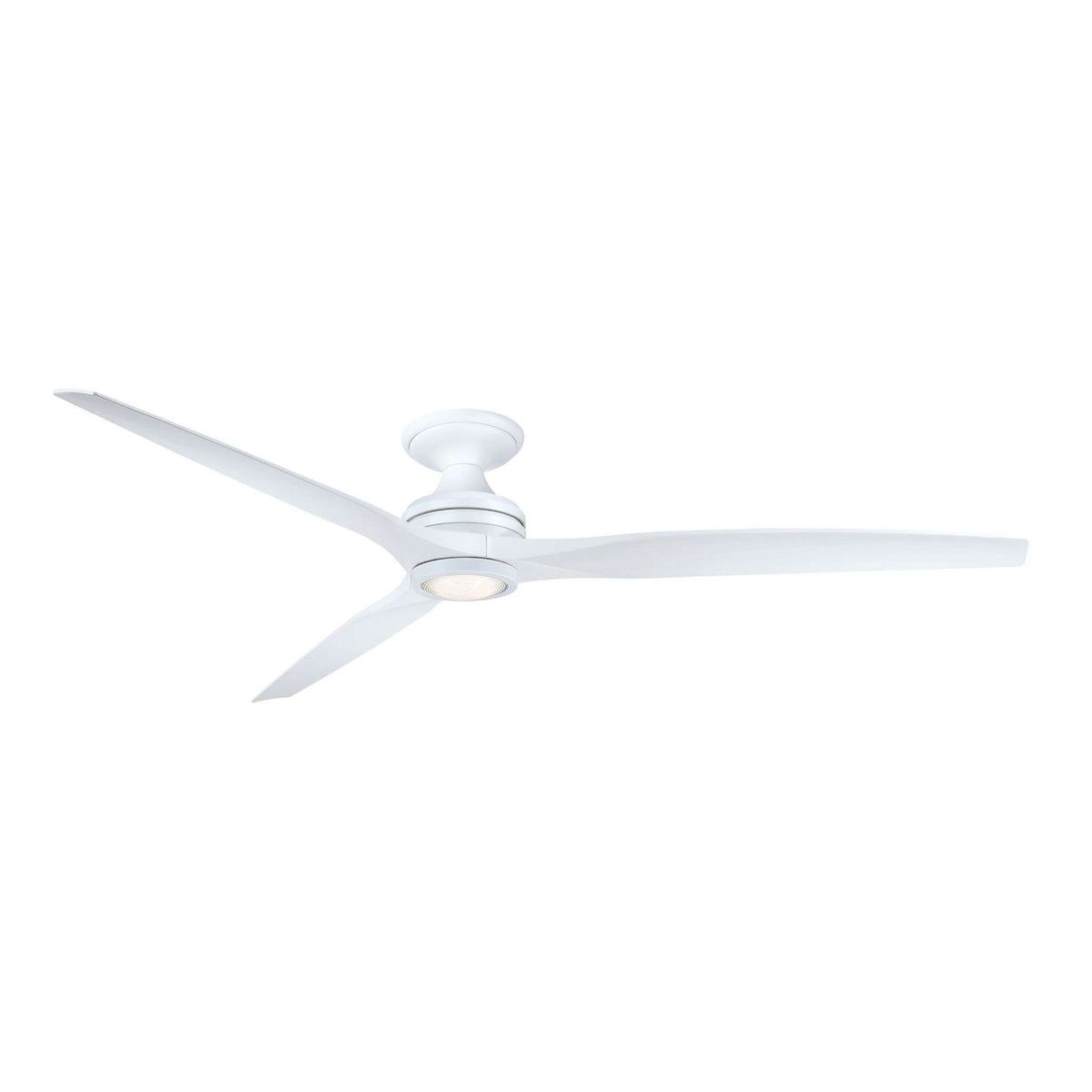

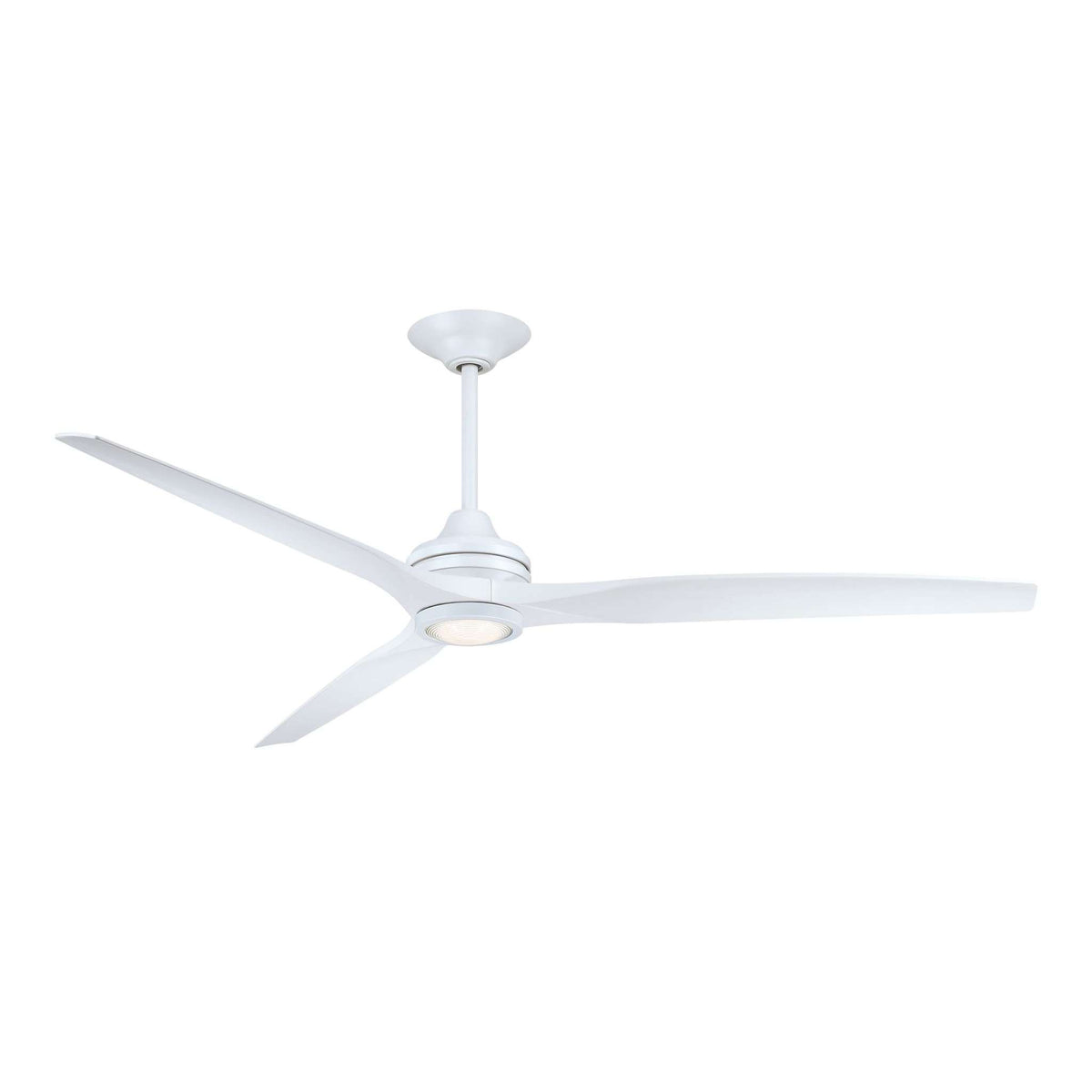

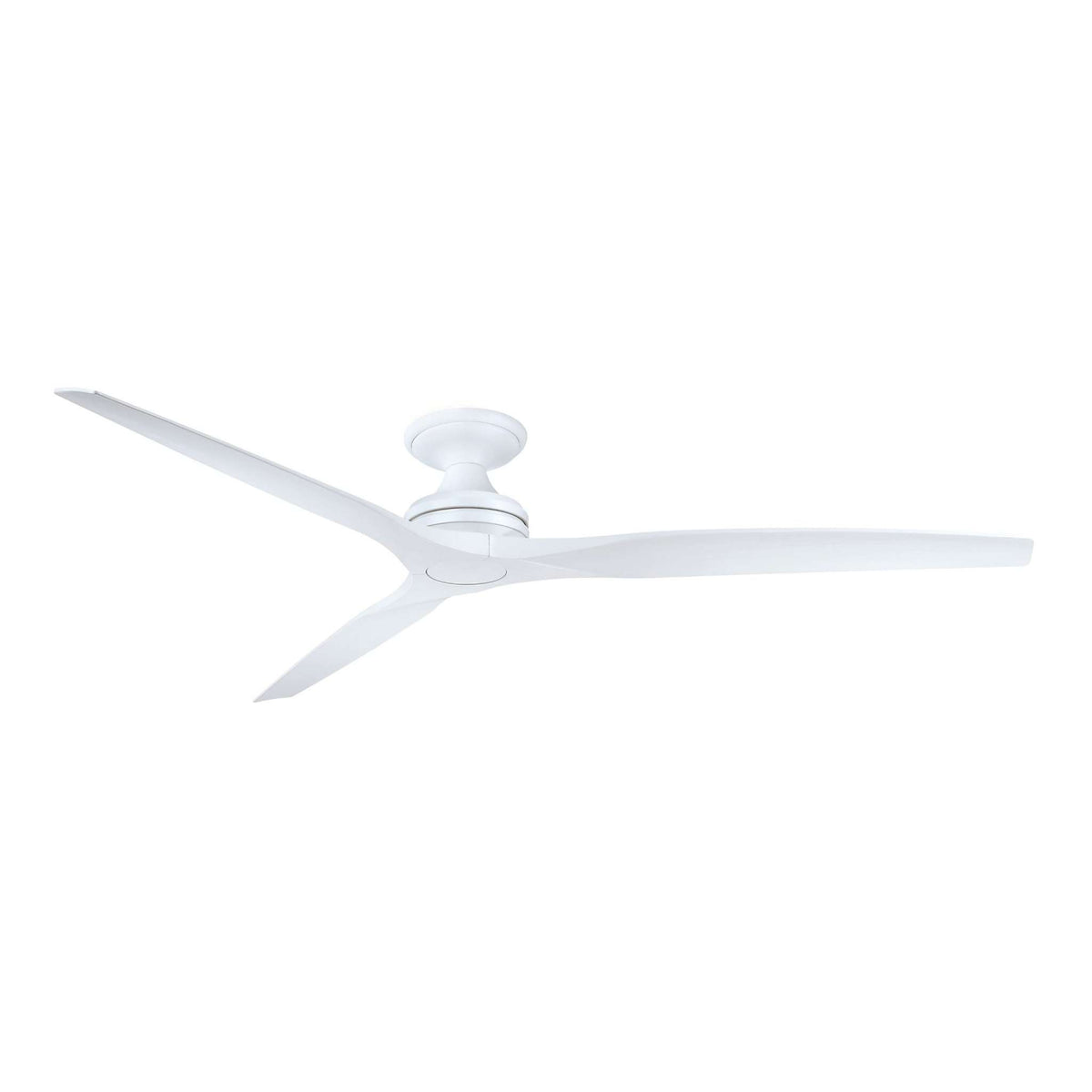

Fanimation Spitfire 72 in DC Ceiling Fan Motor — Matte White

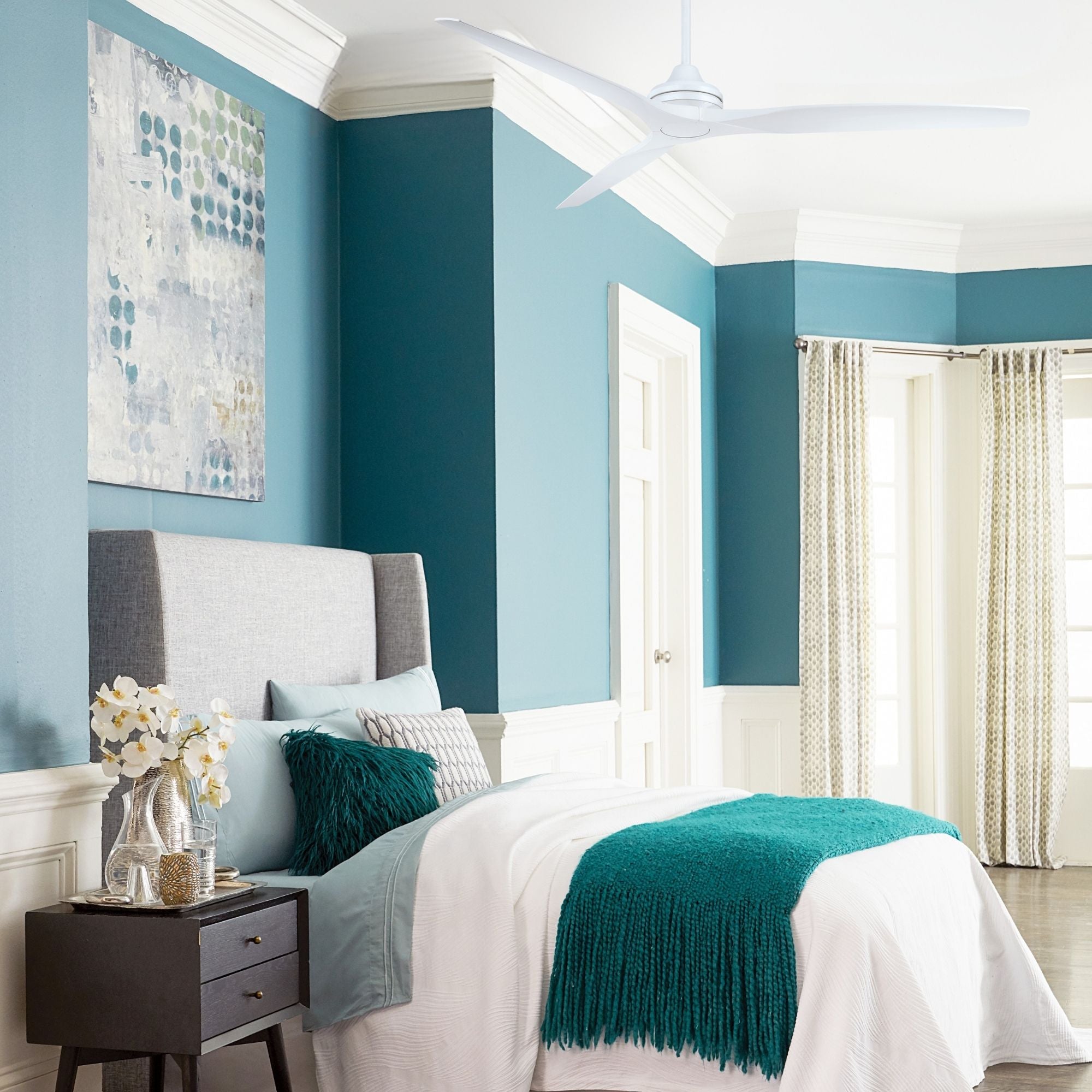

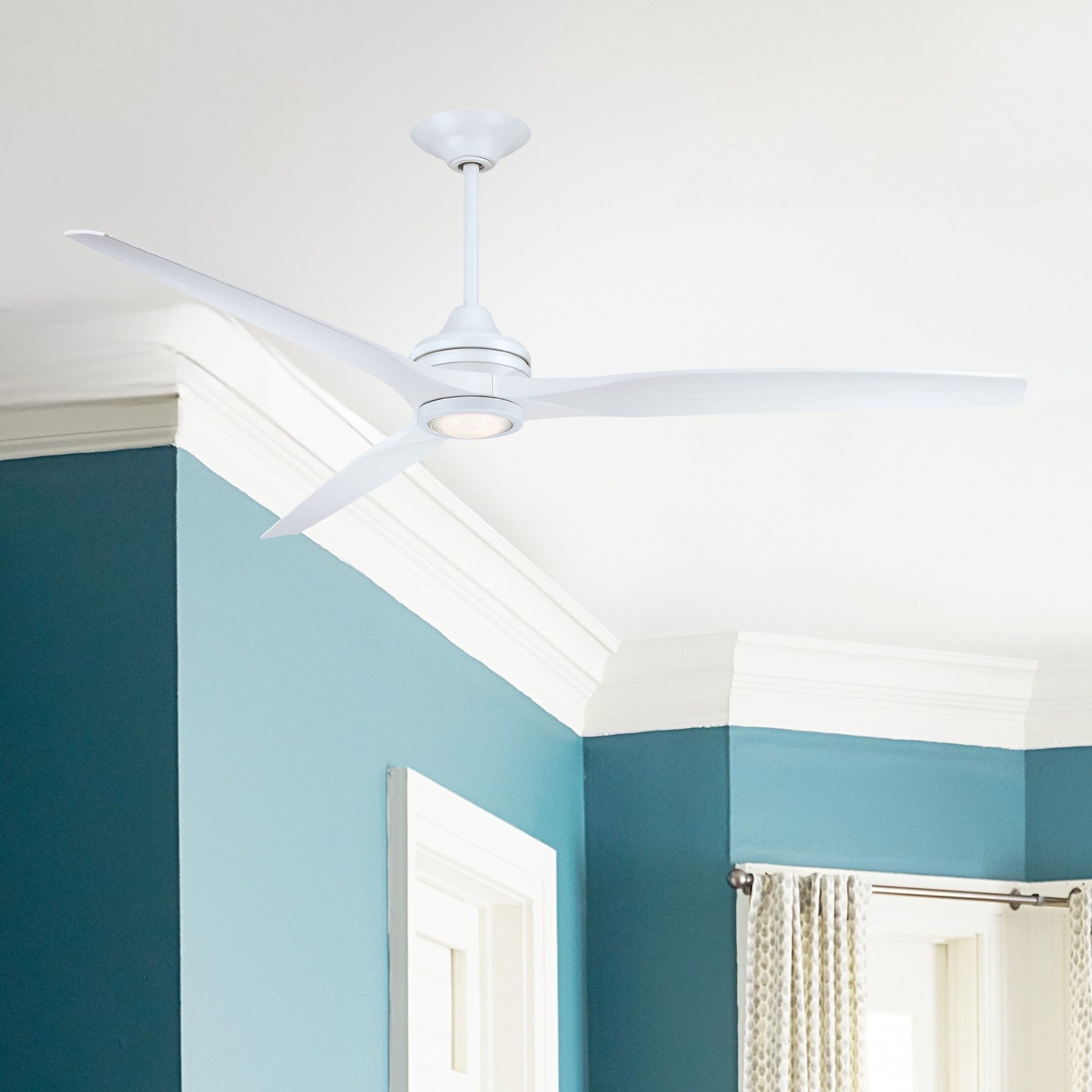

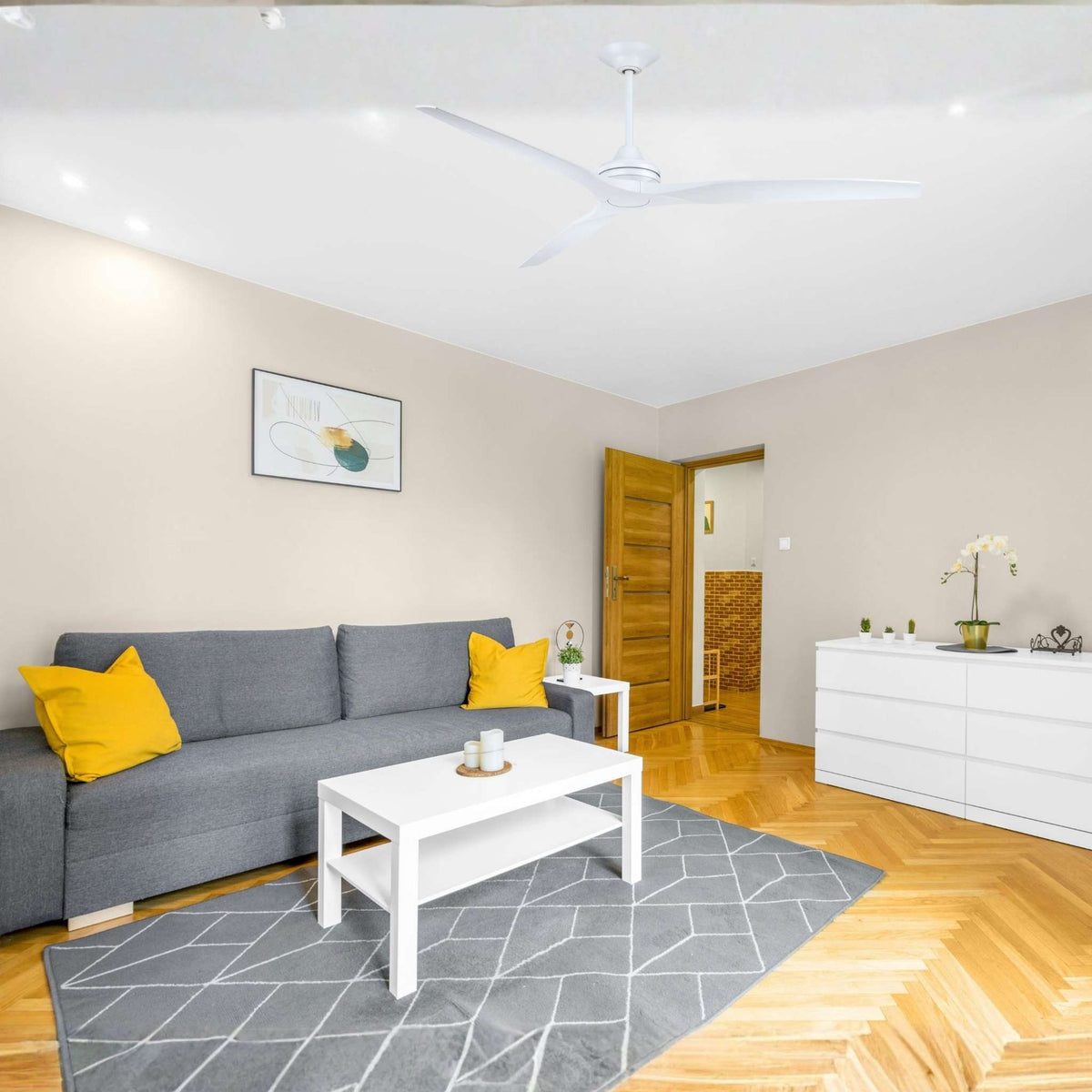

The Fanimation Spitfire (model MAD6721MW-72) is a 72 in damp-rated DC ceiling fan motor built on Fanimation’s customizable Spitfire platform. The DC153×22mm sensorless DC motor delivers 8,939 CFM at high speed at just 28W — an efficiency of 322 CFM/W — for rooms over 400 sq ft. At 72 in, this motor delivers commanding airflow for grand living rooms, vaulted great rooms, and open-plan spaces where coverage and efficiency both matter. The Matte White finish blends seamlessly into white and light-colored ceilings, making the fan feel lighter and the room feel larger. Pairs effortlessly with white, natural maple, or light wood blade sets for a clean, airy, contemporary look in coastal bedrooms, Scandinavian-inspired living rooms, and warm minimalist spaces. A WiFi receiver and TR360 hand-held remote are included with access to the free fanSync WiFi app. Damp rated for covered outdoor spaces, bathrooms, and humid environments. Blades sold separately.

⚠️ Motor unit only. Compatible blade sets (B6720-72) and matching light kit (LK6721BDC-MW) sold separately at Bees Lighting.

Key Specifications

• Blade Span: 72 in | 14° pitch | Blades sold separately — B6720-72 compatible
• Motor: DC — 153×22mm sensorless | 6 speeds | Reversible
• Airflow: 2,834 CFM (low) / 5,837 CFM (med) / 8,939 CFM (high)
• Efficiency: 810 CFM/W (low) | 478 CFM/W (med) | 322 CFM/W (high)
• Watts: 4W (low) / 12W (med) / 28W (high)
• RPM: 50 (low) / 102 (med) / 138 (high)
• Room Size: Over 400 sq ft
• Location Rating: Dry & Damp | Sloped ceiling compatible (up to 27° standard | SCB1-52 for 27°–42°)

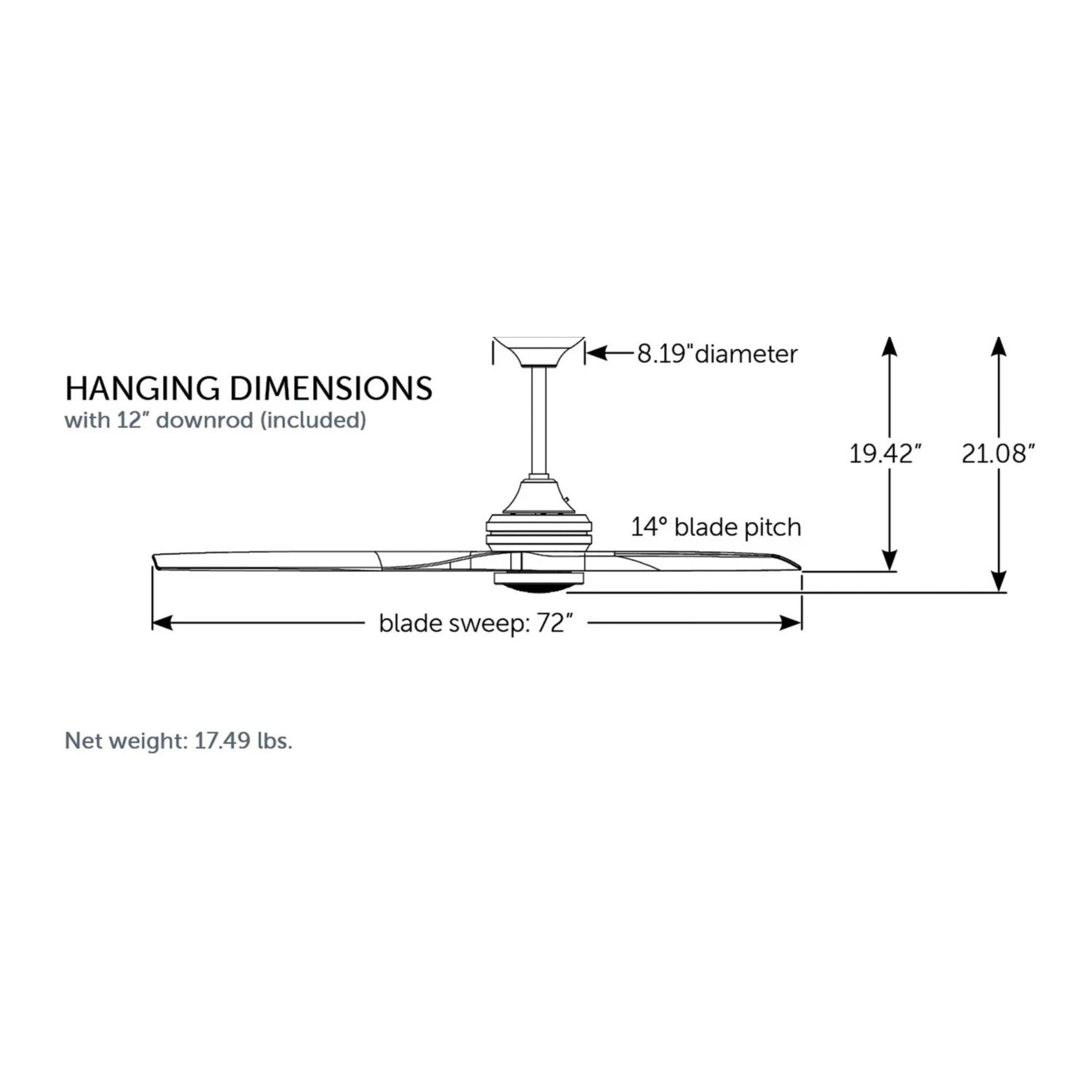

• Downrod: 1 in dia. × 6 in + 1 in dia. × 12 in both included | Optional: 18, 24, 36, 48, 60, 72 in

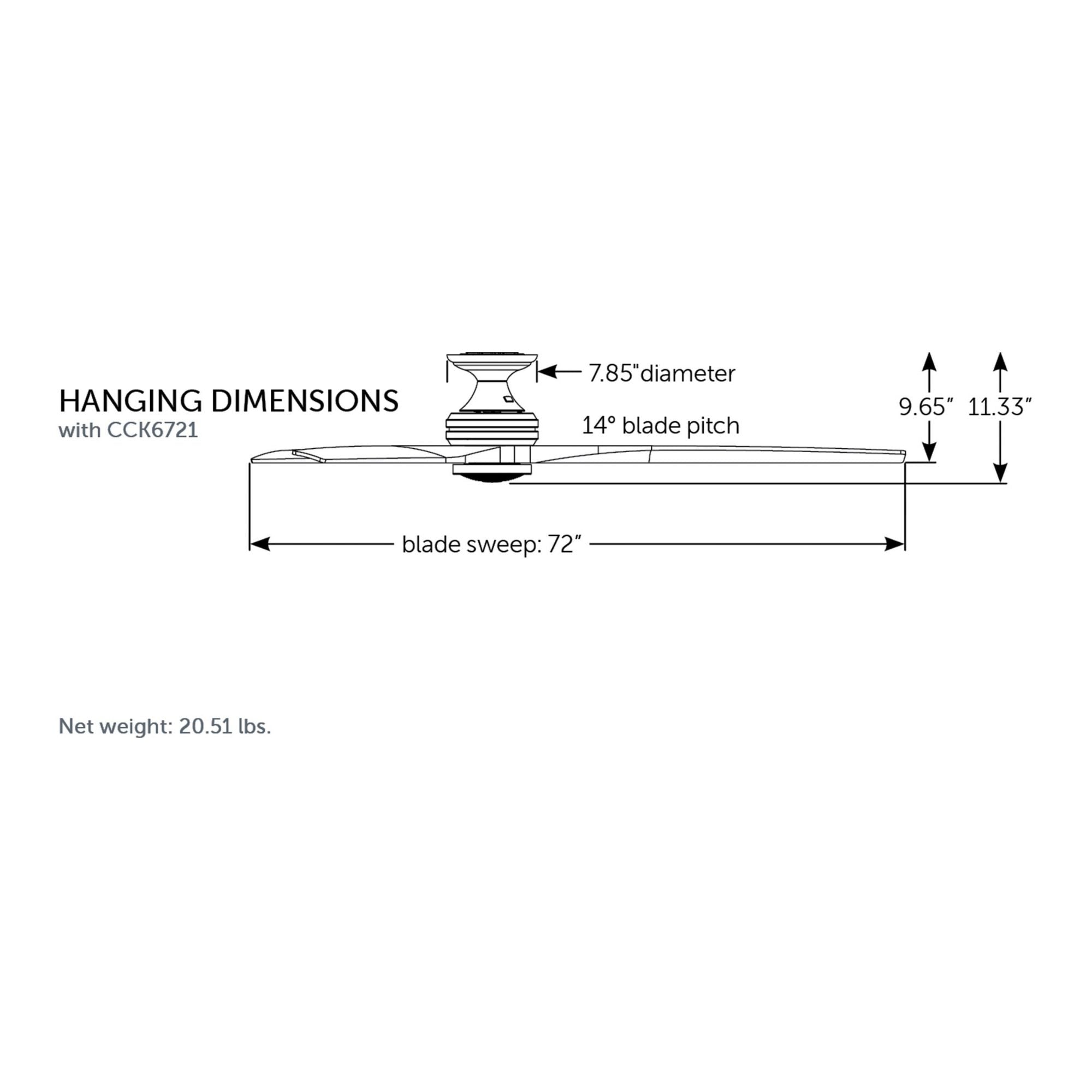

• Canopy: 8.76 in dia. (motor only) | 7.85 in dia. (with CCK6721)
• Min. Ceiling Height: 7 ft | Weight: 18.12 lbs
• Light Kit: LK6721BDC-MW — 18W | 5CCT | 545–579 lumens | CRI 90 | sold separately at Bees Lighting
• Controls: WiFi receiver + TR360 remote included | fanSync WiFi app (free) | Optional TW406 wall control

Compatible Accessories (sold separately at Bees Lighting)

• Blade Set: B6720-72 — 3-blade paulownia sets in multiple finishes
• Light Kit: LK6721BDC-MW — Matte White | 18W 5CCT dimmable LED | 545–579 lumens | 3,000/4,000/5,000K | CRI 90 | includes Fresnel & frosted shades | Damp rated

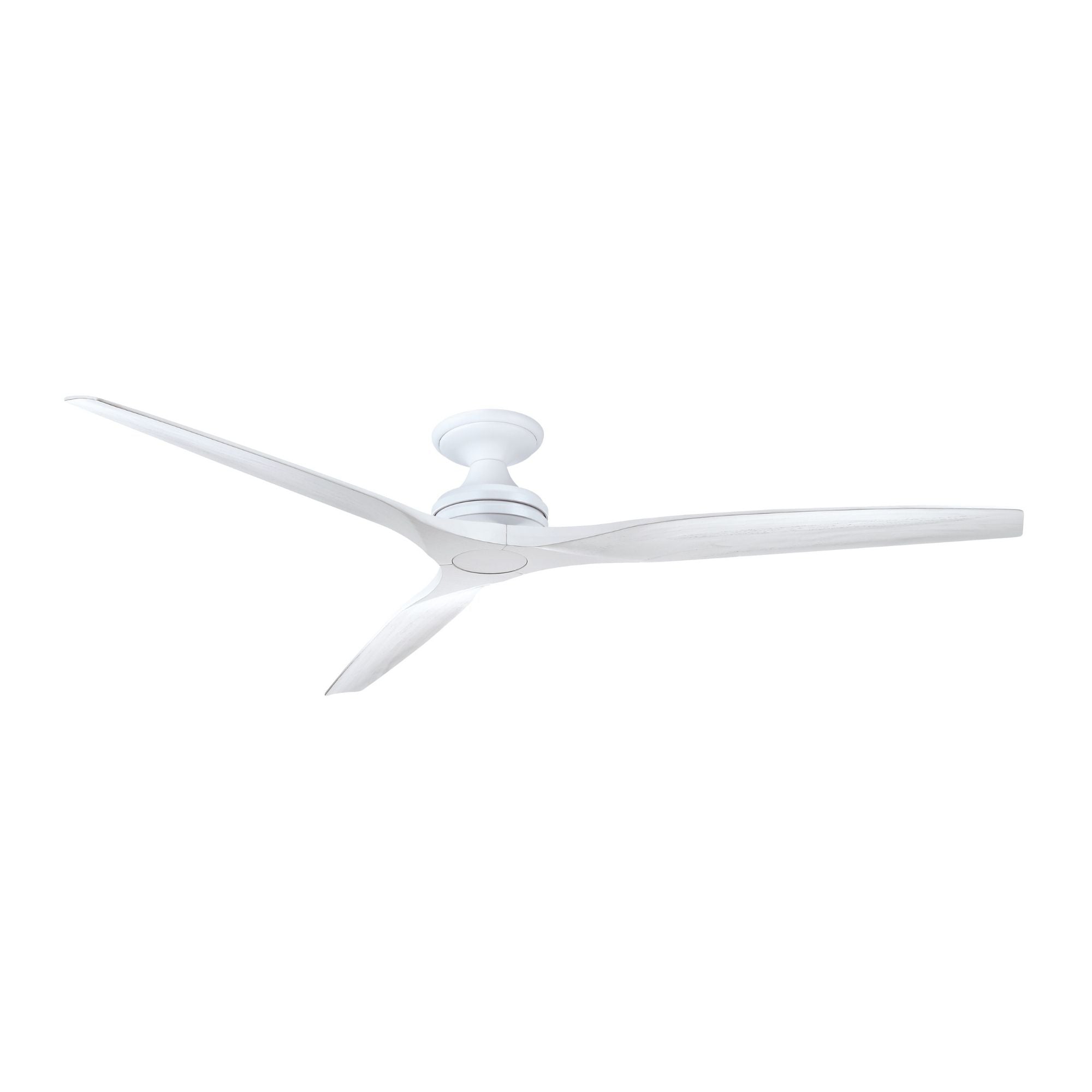

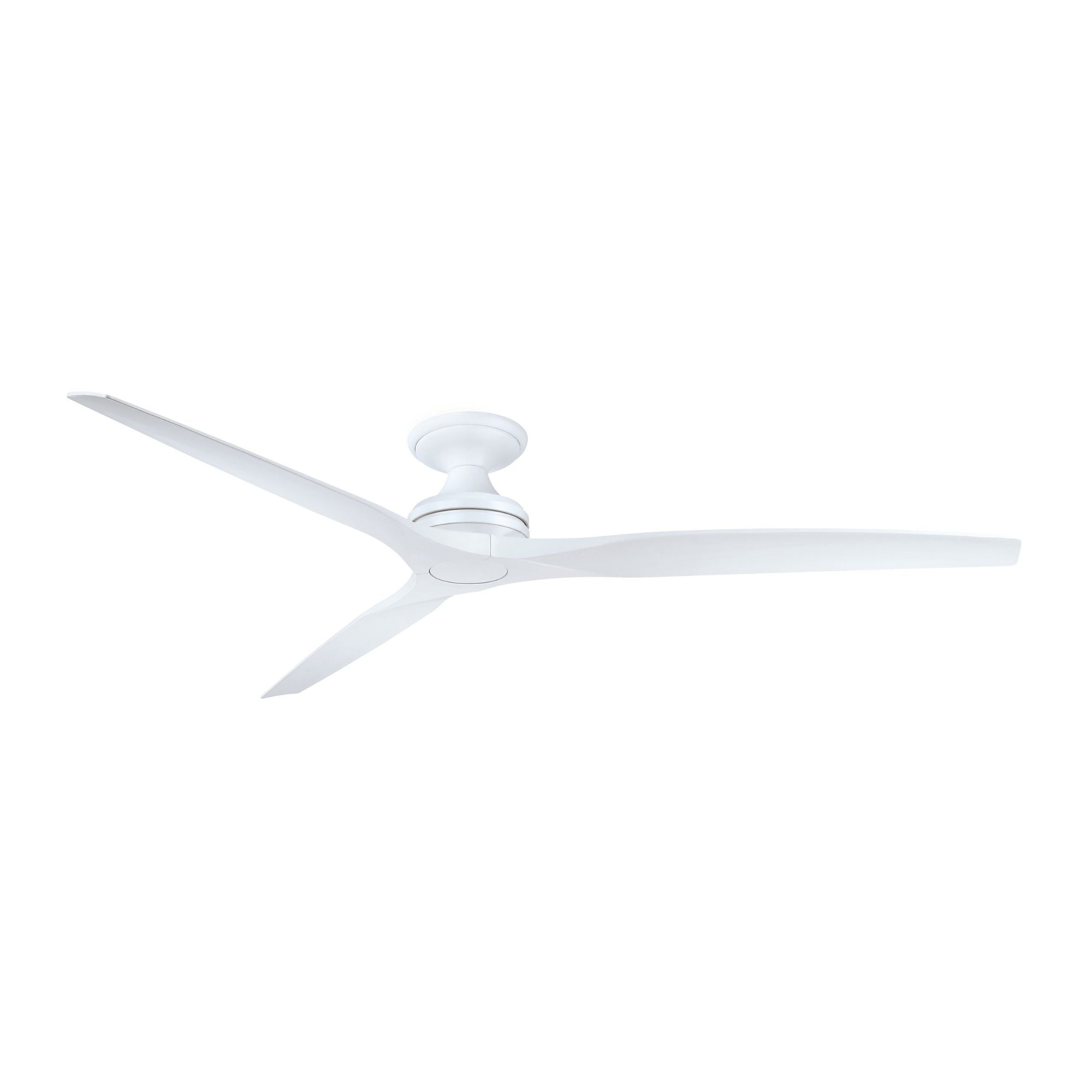

• Flush Mount Kit: CCK6721 — for low-ceiling installations
• Decorative Cap: CAP6721
• Sloped Ceiling Kit: SCB1-52 — for slopes 27°–42°
• Wall Control: TW406 (sold separately)

Control Features

Includes a WiFi receiver and TR360 hand-held remote with 6-speed fan control, fresh air mode, reverse, ON/OFF, and dimmer with 5CCT select. Download the free fanSync WiFi app (Apple App Store or Google Play) for smart home integration. Optional TW406 wall control available separately at Bees Lighting.

Suggested Downrod by Ceiling Height

• Below 9 ft → Flush mount kit CCK6721
• 9 ft → 6 in downrod (included) | 10 ft → 12 in downrod (included)
• 11 ft → 18 in | 12 ft → 24 in | 13 ft → 36 in
• 14 ft → 48 in | 15 ft → 60 in | 16 ft → 72 in

What’s Included

• Fanimation Spitfire MAD6721MW-72 72 in DC ceiling fan motor unit
• WiFi receiver + TR360 hand-held remote
• 1 in × 6 in downrod + 1 in × 12 in downrod | Mounting hardware
• Blades and light kit not included — sold separately at Bees Lighting
