Spitfire DC Galvanized 96" Ceiling Fan Motor, Blades Sold Separately
Available in stock (632)
About this item
About this item

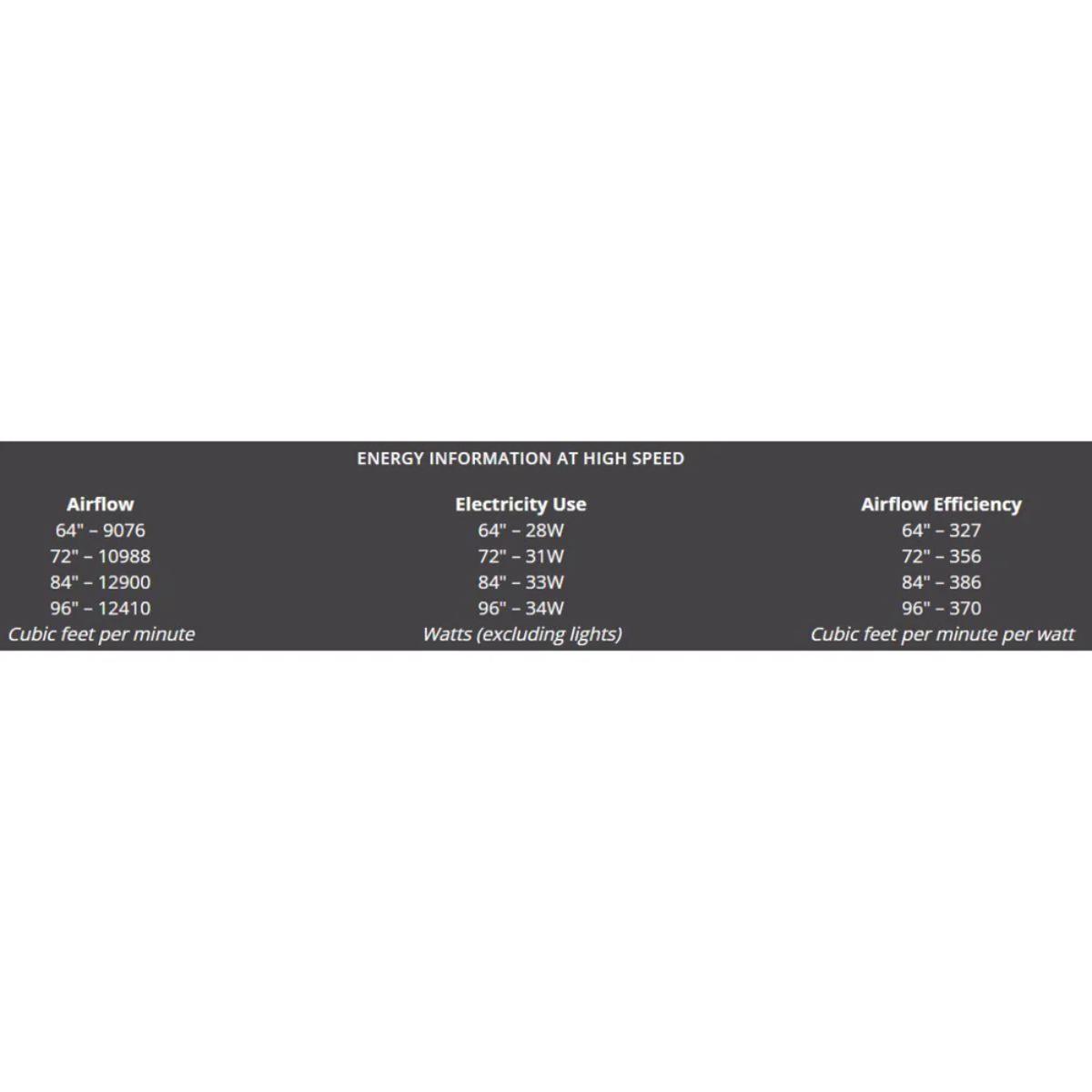

- Airflow (CFM): 12900 at high speed
- Motor Type: DC Motor for energy efficiency
- Environment Rating: Damp Location rated for versatile use
- Controls: Includes Wi-Fi receiver and remote control

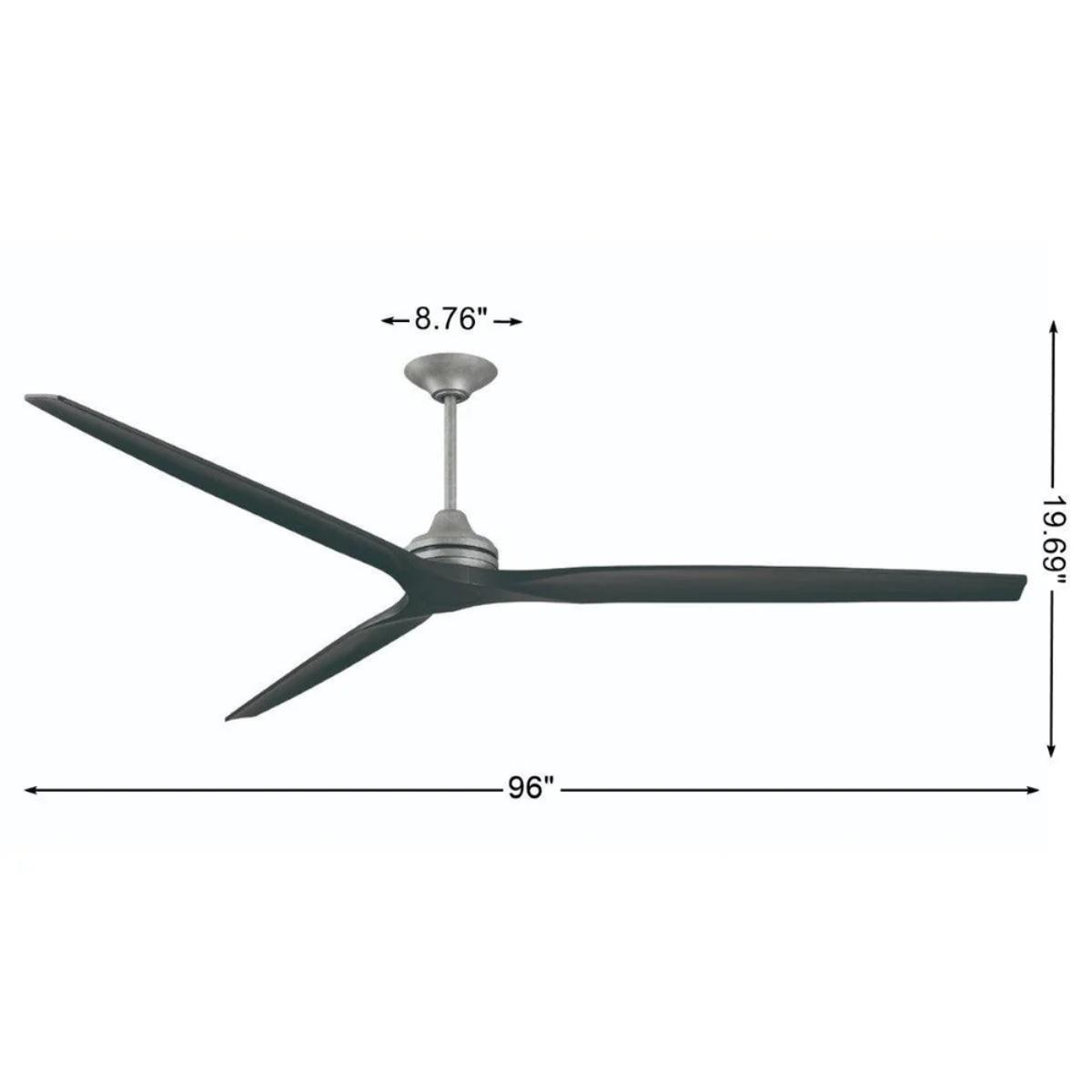

- Blade Span: 96'' for large spaces
We process payments securely and do not store credit card information.
Description
Description

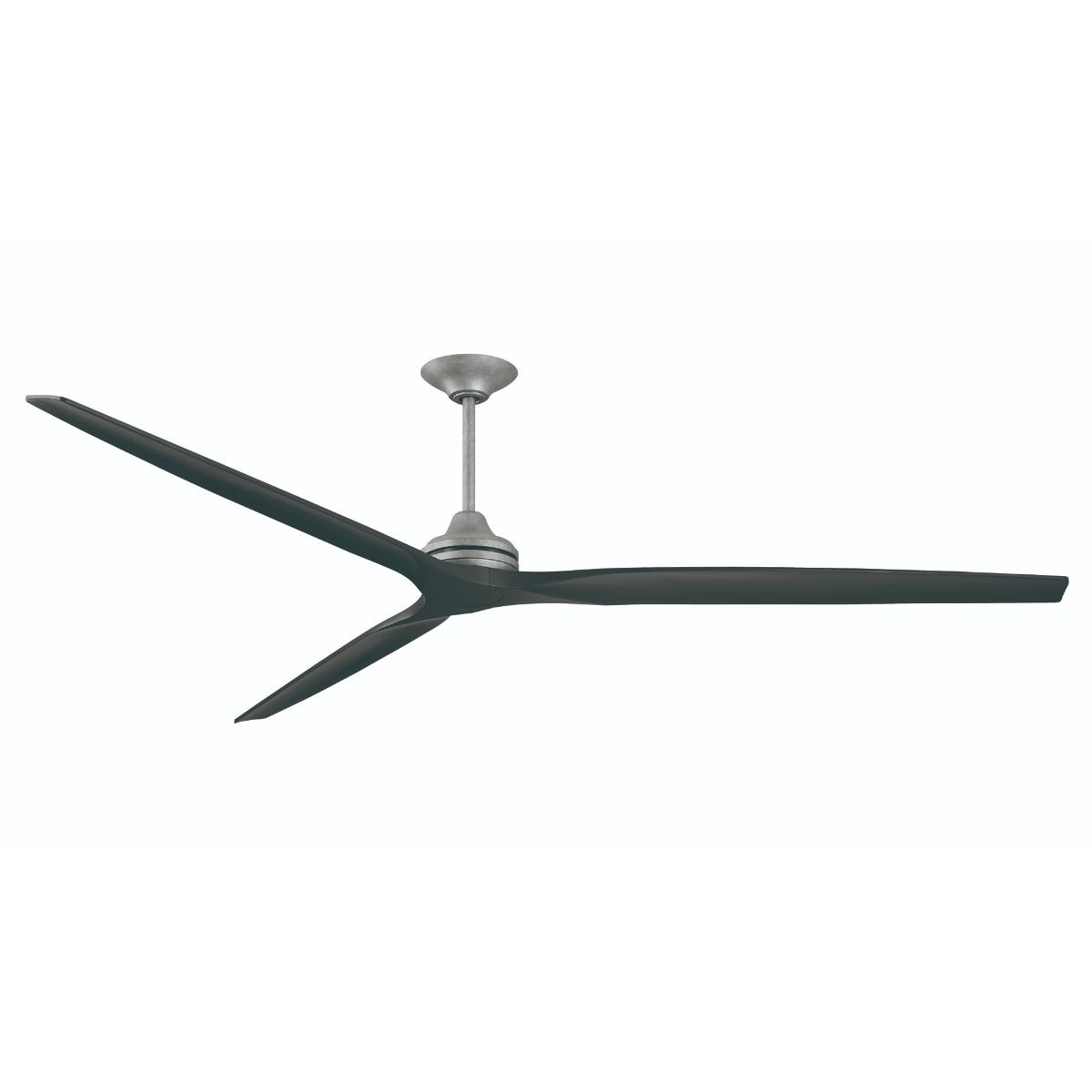

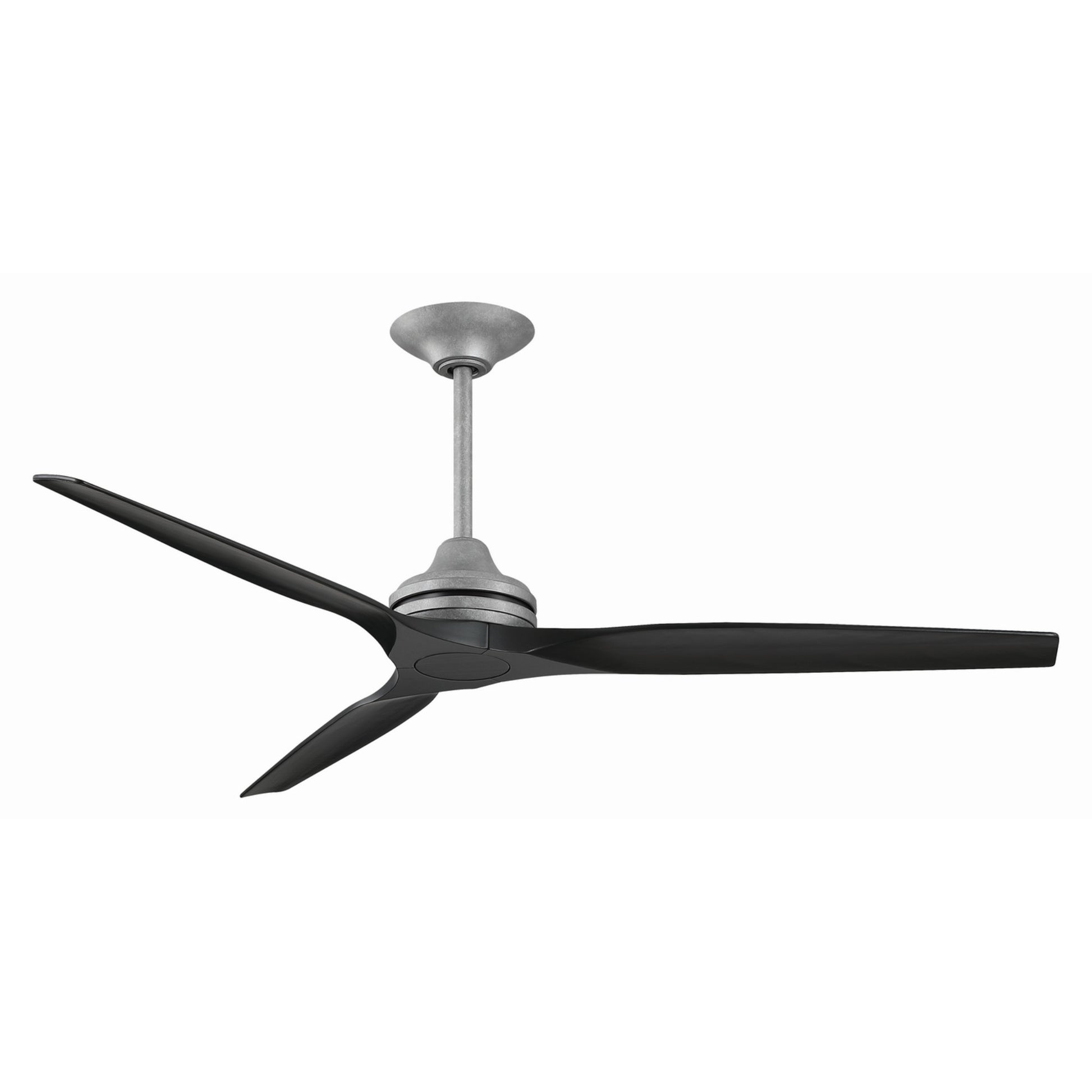

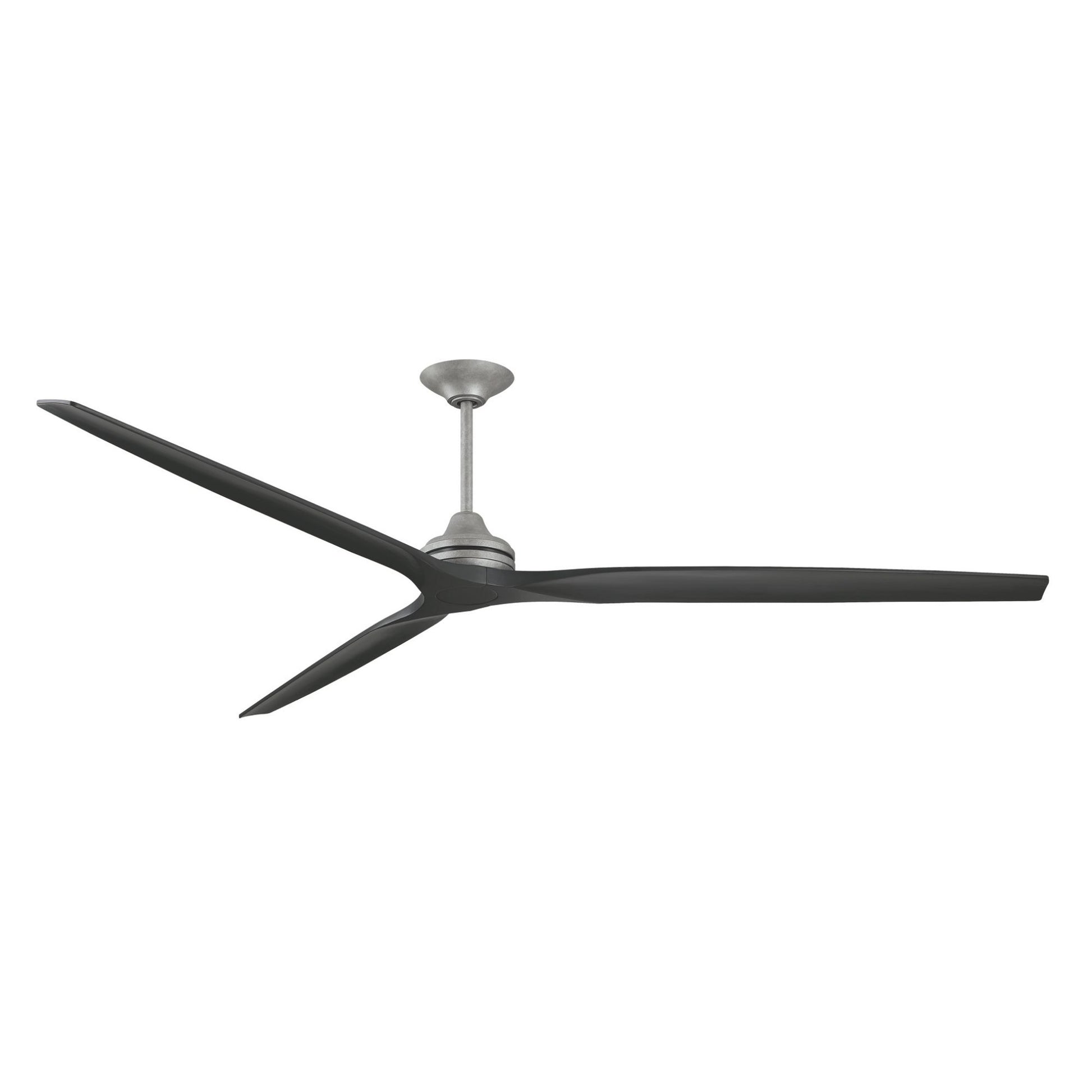

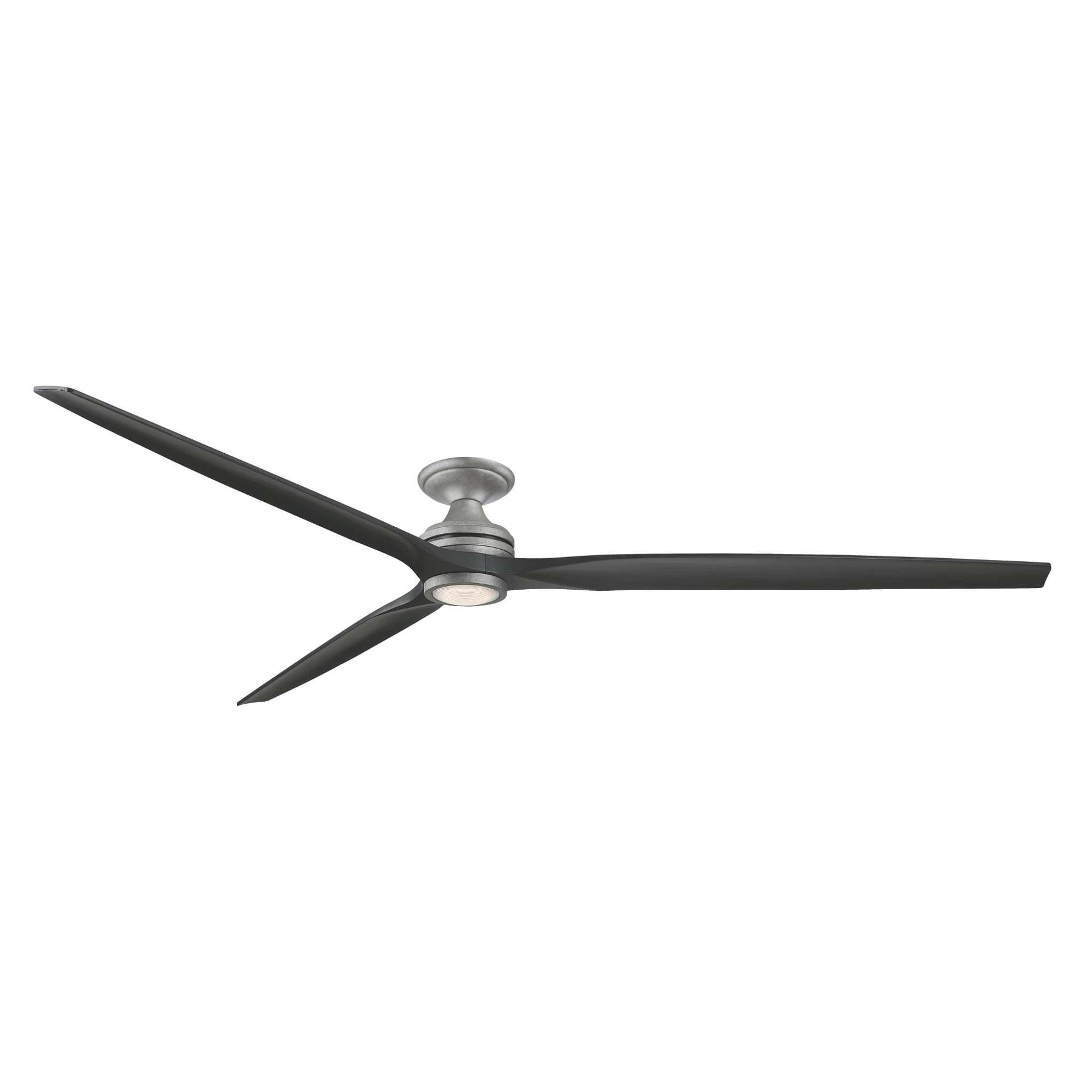

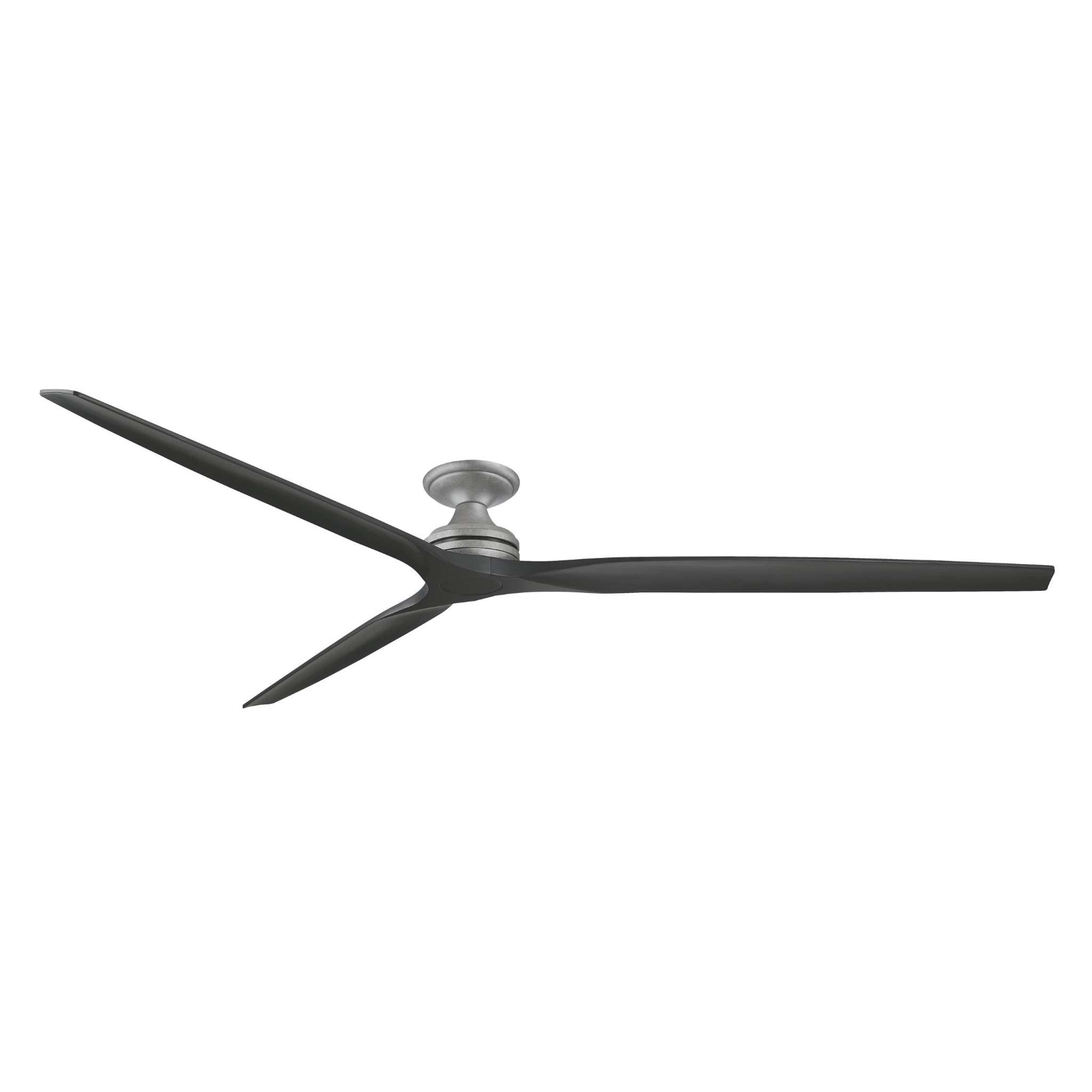

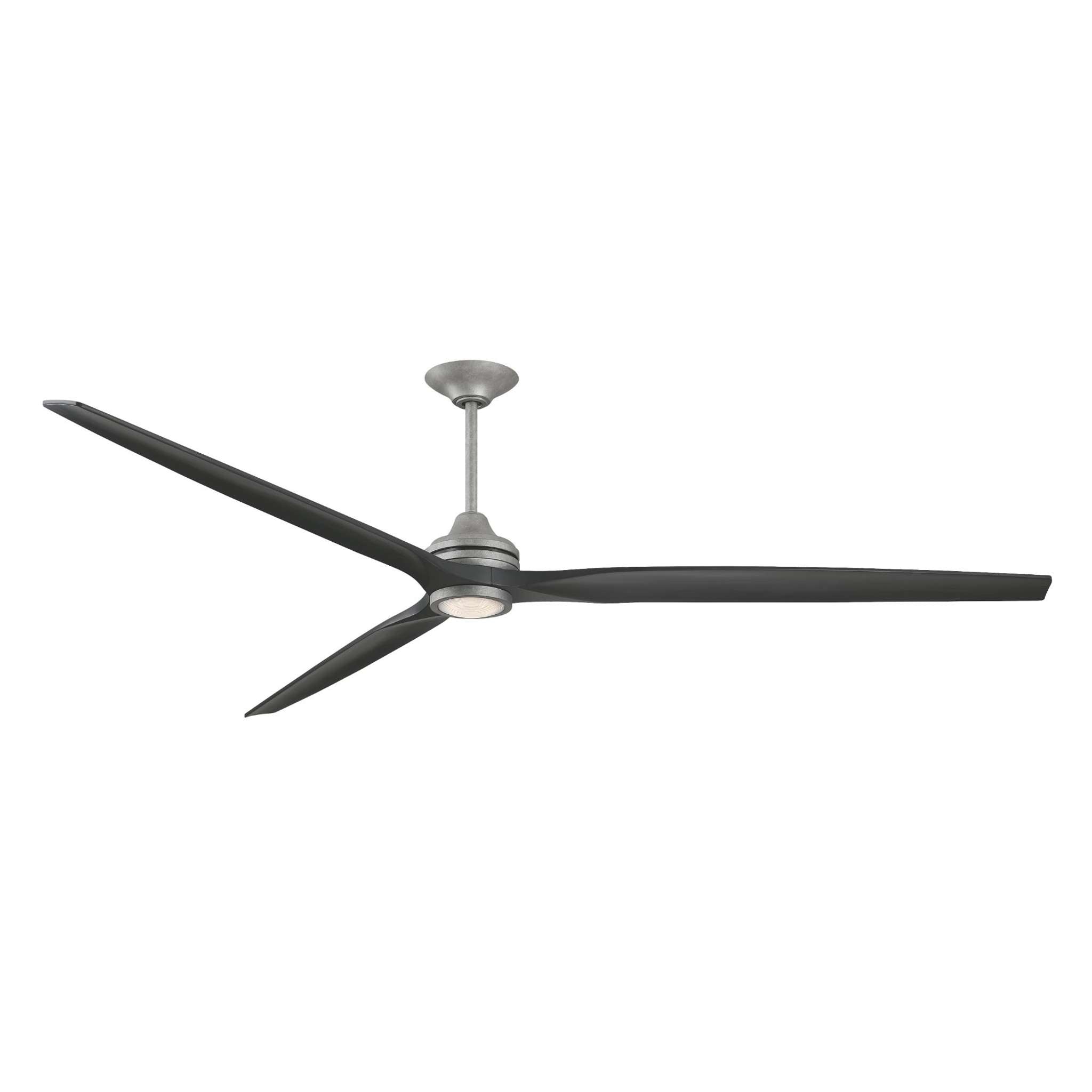

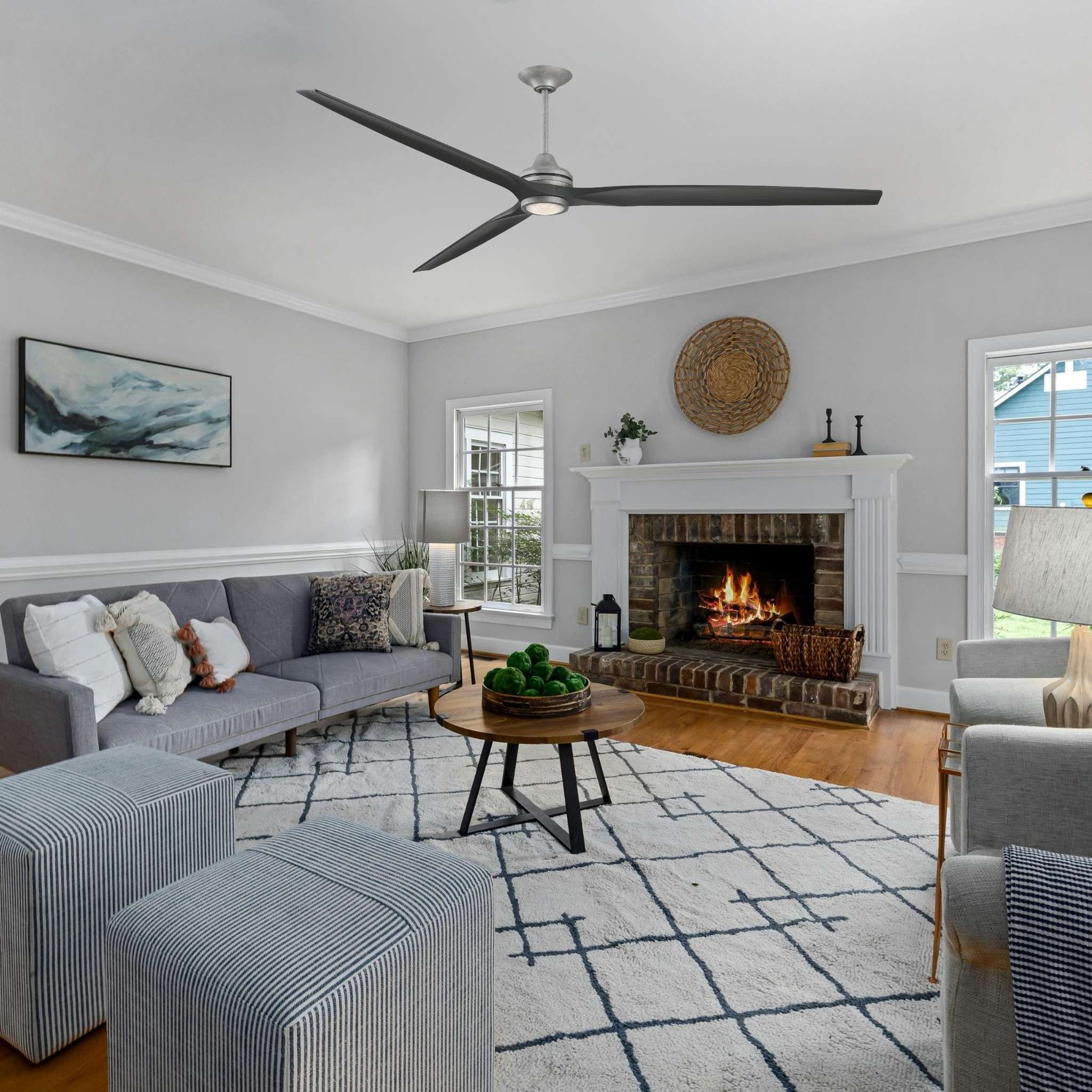

Fanimation Spitfire 96'' Ceiling Fan — Galvanized
The Fanimation Spitfire ceiling fan, model MAD6721GZ, features a substantial 96'' blade span with three blades, powered by a highly efficient DC motor. This fan is damp location rated, making it suitable for both indoor and covered outdoor areas. The Galvanized finish adds a modern touch to any space.
Key Features
- Blade Span: 96'' for expansive coverage
- Motor Type: DC153 x 25FS motor for optimal performance
- Airflow Efficiency: 361 CFM/W
- Control Options: Wi-Fi receiver and TR305 remote included
- Sloped Ceiling Compatible: Up to 27°, with optional kits for greater angles
- Downrod Included: 12'' downrod, with longer options available
- Reversible Motor: Yes, for seasonal comfort
- Energy Use: 33 watts at high speed
- Installation: Requires a 120V AC, 60 Hz, 15 amp circuit

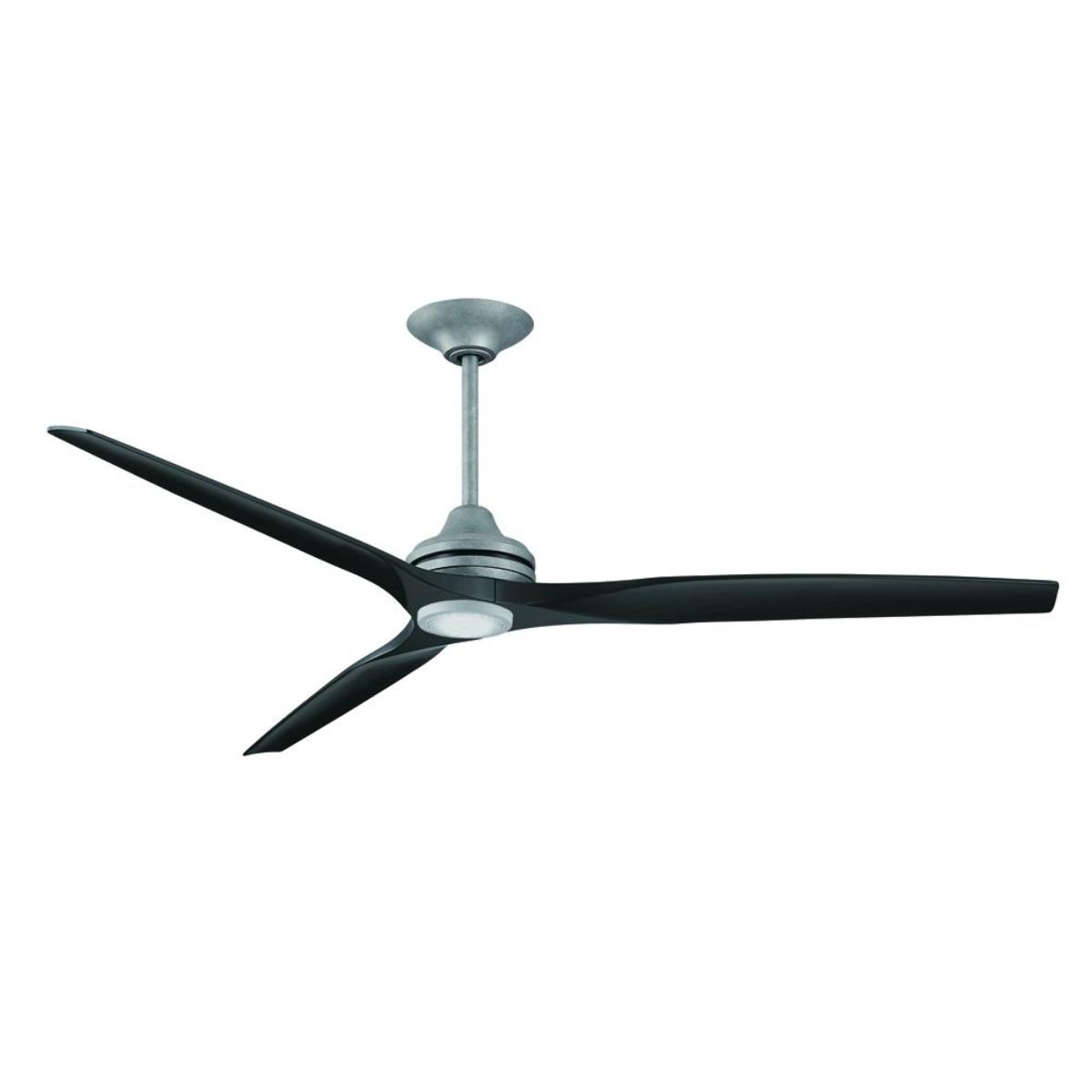

- Optional Light Kit: LK6721BDC LED light kit available
Construction & Design

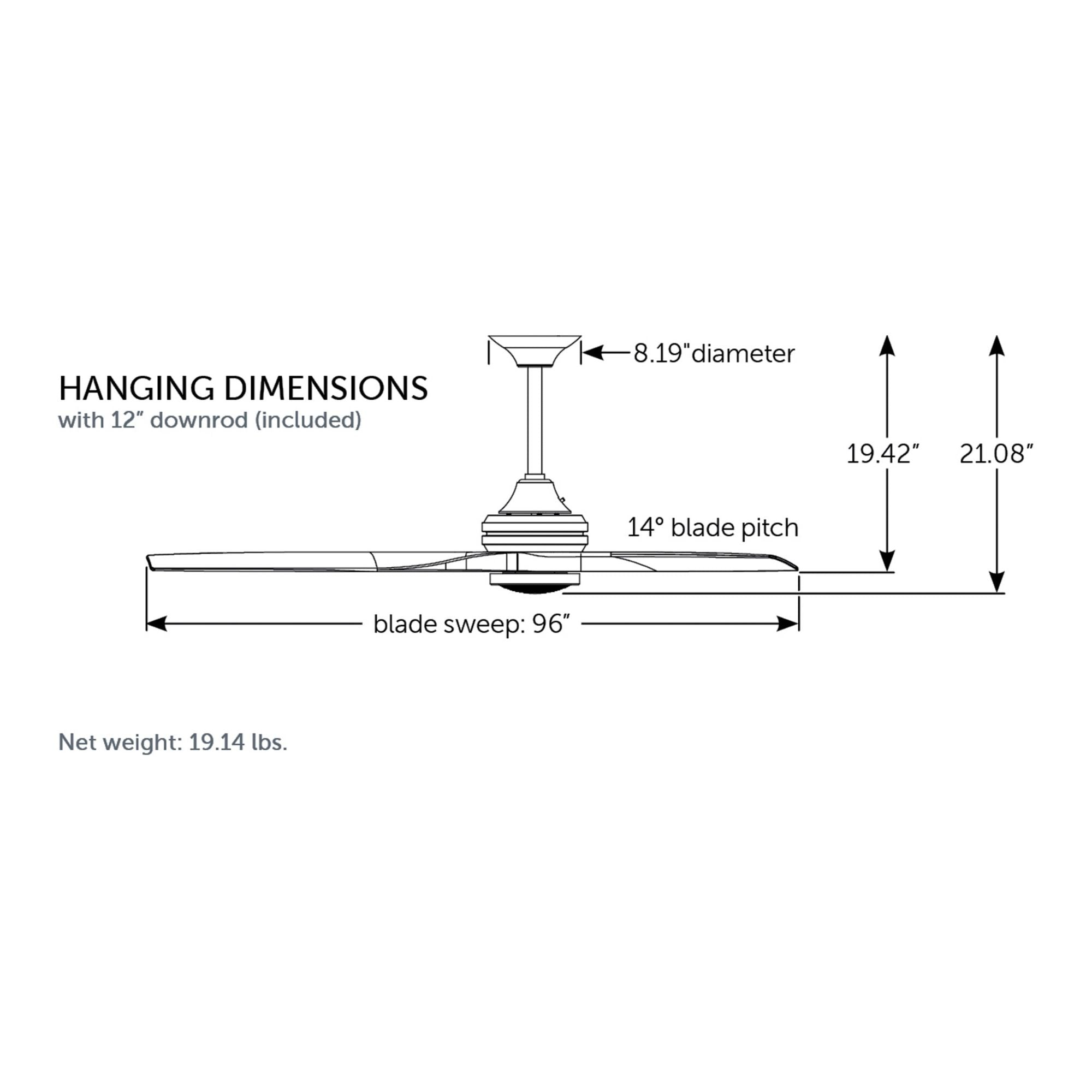

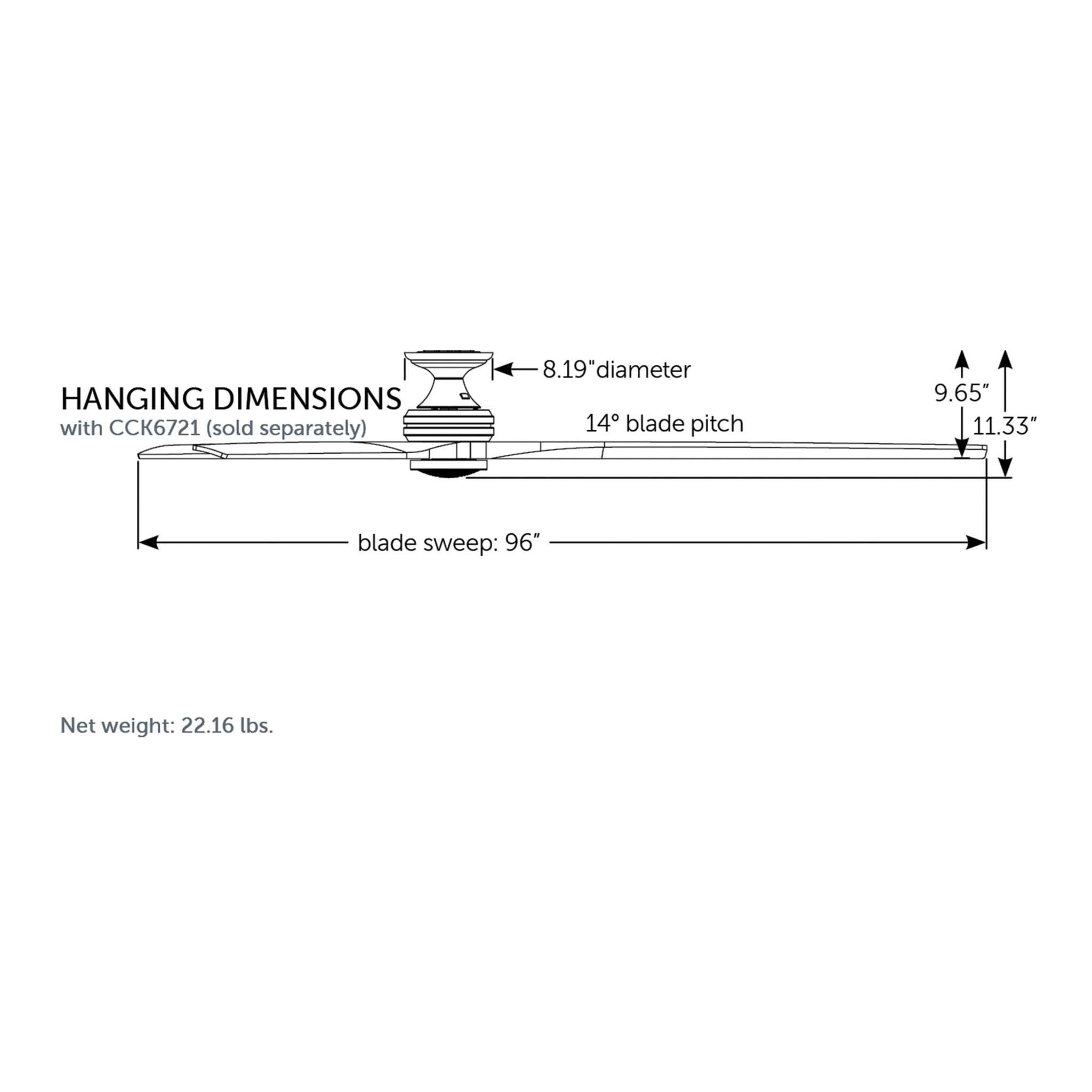

Crafted with a robust design, the fan features a 14° blade pitch and is available in a variety of finishes, including the sleek Galvanized option.
Smart & Control Features

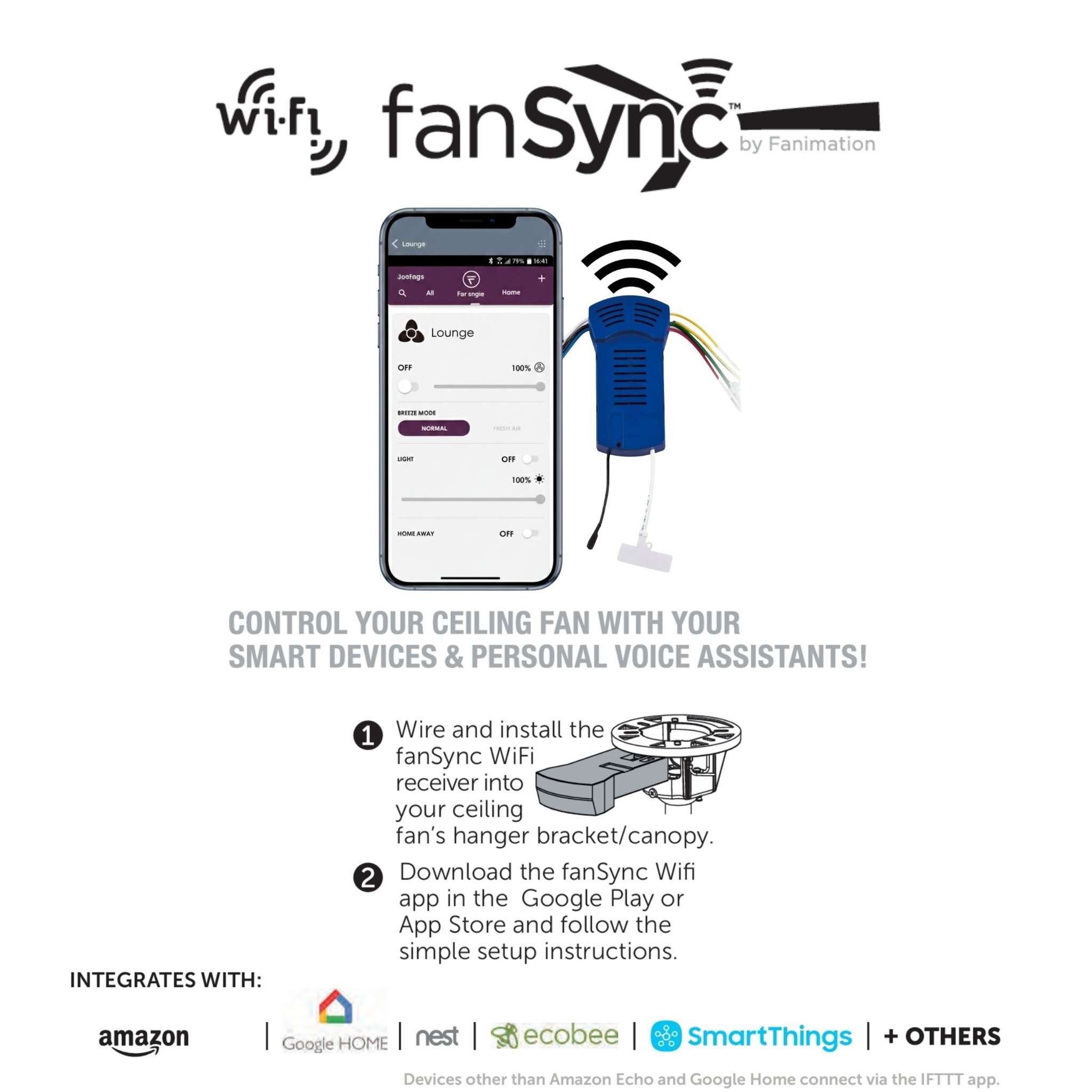

Equipped with a Wi-Fi receiver, this fan can be controlled via the fanSync WiFi APP, offering 16 fan speeds, reverse function, and more.
Electrical & Installation

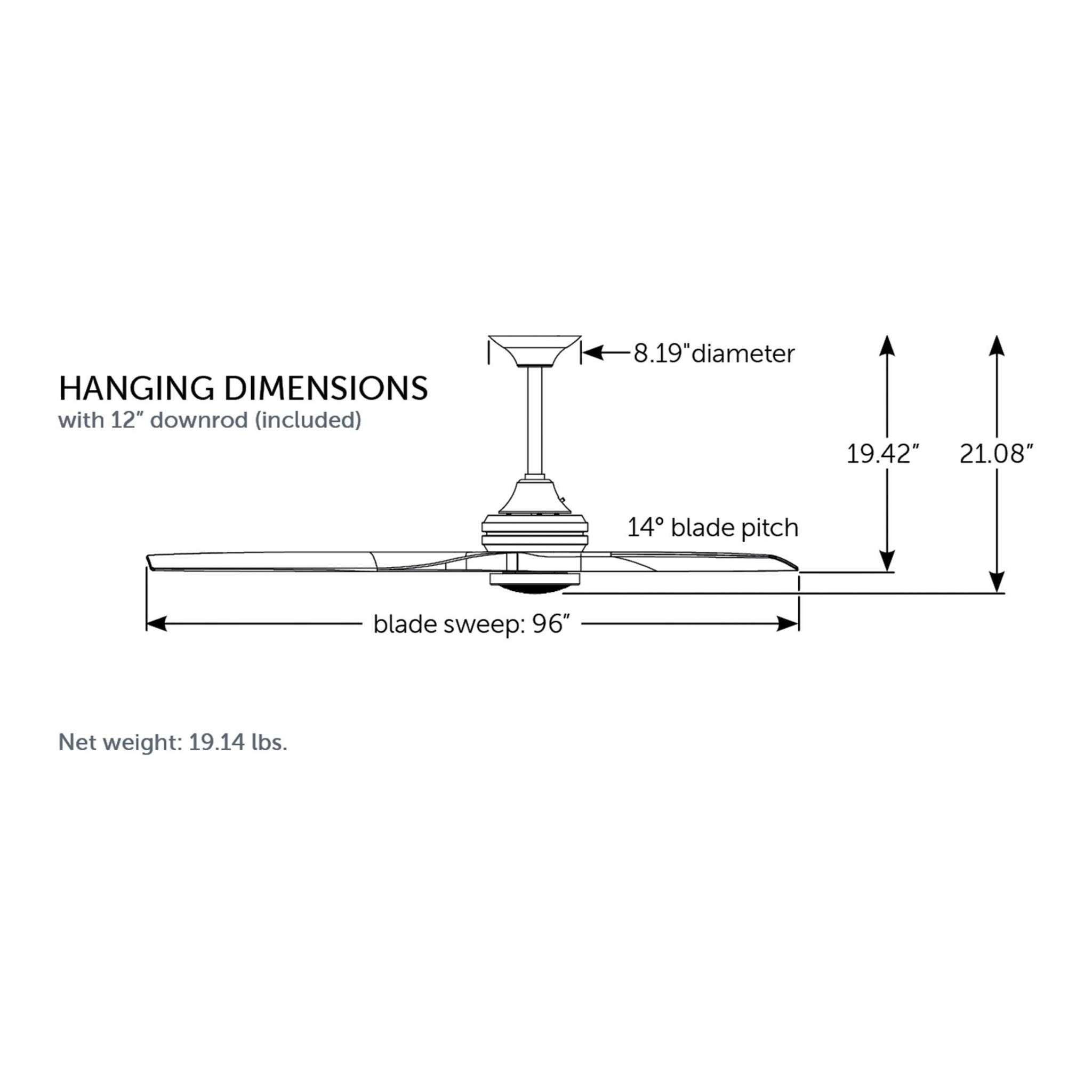

Designed for easy installation, the fan includes a 12'' downrod and is compatible with sloped ceilings up to 27°.
Fan Performance
With a maximum RPM of 112 and airflow of 12900 CFM, this fan is ideal for large spaces over 400 sq ft.
What's Included
- 96'' Ceiling Fan
- Wi-Fi Receiver
- TR305 Remote Control
- 12'' Downrod
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Fan Information
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
How high should a ceiling fan be from the floor?
How high should a ceiling fan be from the floor?
For residential fans, safety codes require a minimum clearance of 7.5 feet under the blades. If you are installing an industrial-rated fan, a minimum of 10 feet is required. For ceilings higher than 12 feet, hang your fan at least one-third the distance to the floor while maintaining that 7.5-foot minimum clearance. For optimal performance, a height of 9–10 feet is ideal.
How many blades are best for a ceiling fan?
How many blades are best for a ceiling fan?
Airflow is determined by a combination of factors including motor size, blade pitch, and blade materials. Instead of counting blades, compare fans using their standardized Airflow (CFM) and Airflow Efficiency (CFM per Watt) ratings. A higher CFM means more air is moved, while higher efficiency means more air movement per watt of electricity used.
What is a "Hugger" or Low Profile fan?
What is a "Hugger" or Low Profile fan?
A hugger fan is designed to be installed flush against the ceiling without a downrod. These should be used exclusively in rooms with a ceiling height of 8 feet or less to maximize headroom while maintaining safe clearance.
Can I put a regular ceiling fan outside?
Can I put a regular ceiling fan outside?
No. You must use an outdoor-rated fixture. Use Damp Rated fans for covered areas like screened porches, and Wet Rated fans for exposed structures like pergolas where the fan will be in direct contact with rain or snow.
Can I use a dimmer switch with my ceiling fan?
Can I use a dimmer switch with my ceiling fan?
Do not use a standard wall dimmer for the fan motor, as it can cause humming or permanent motor damage. You must use a specialized Fan Speed Control or the remote control specifically designed for that model.
