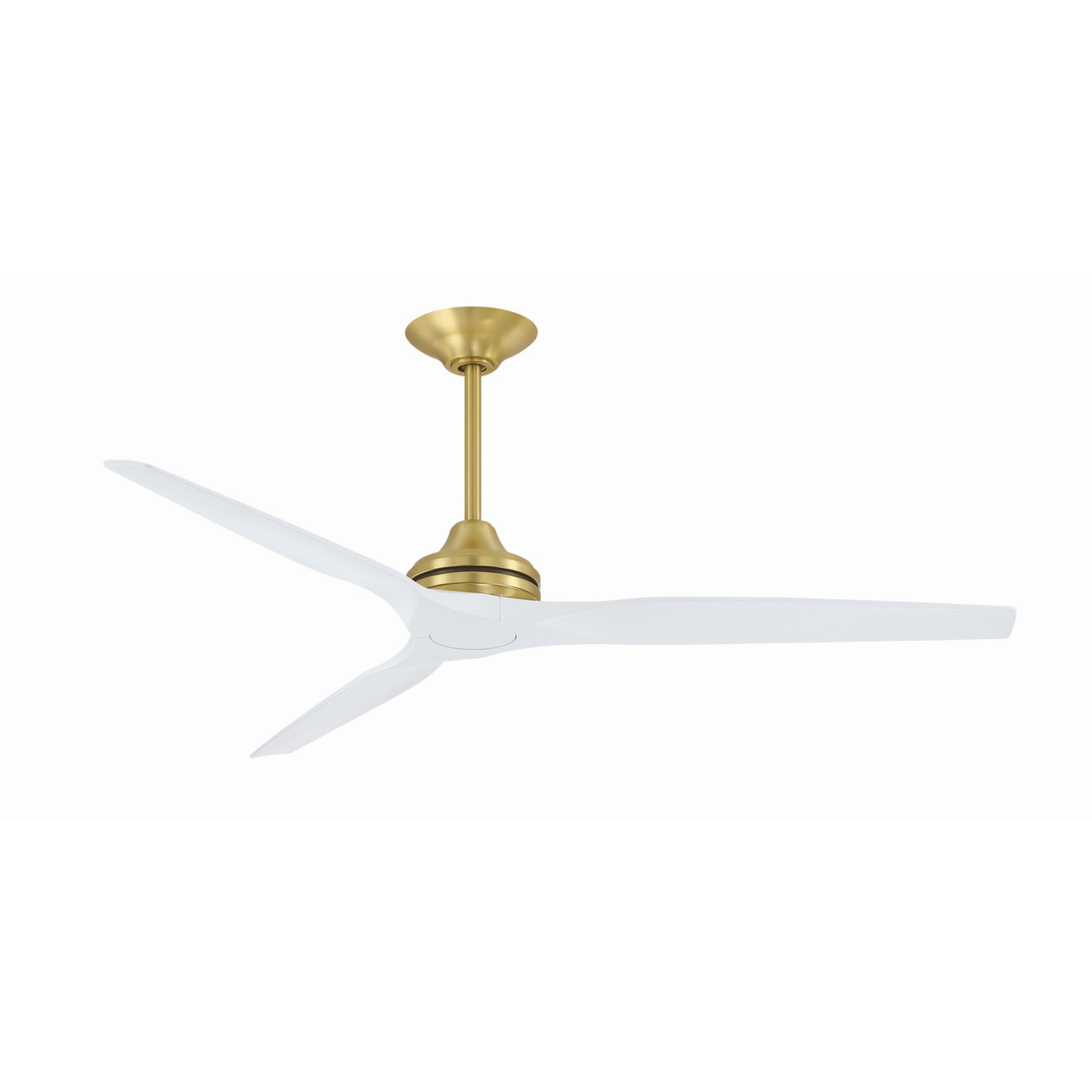

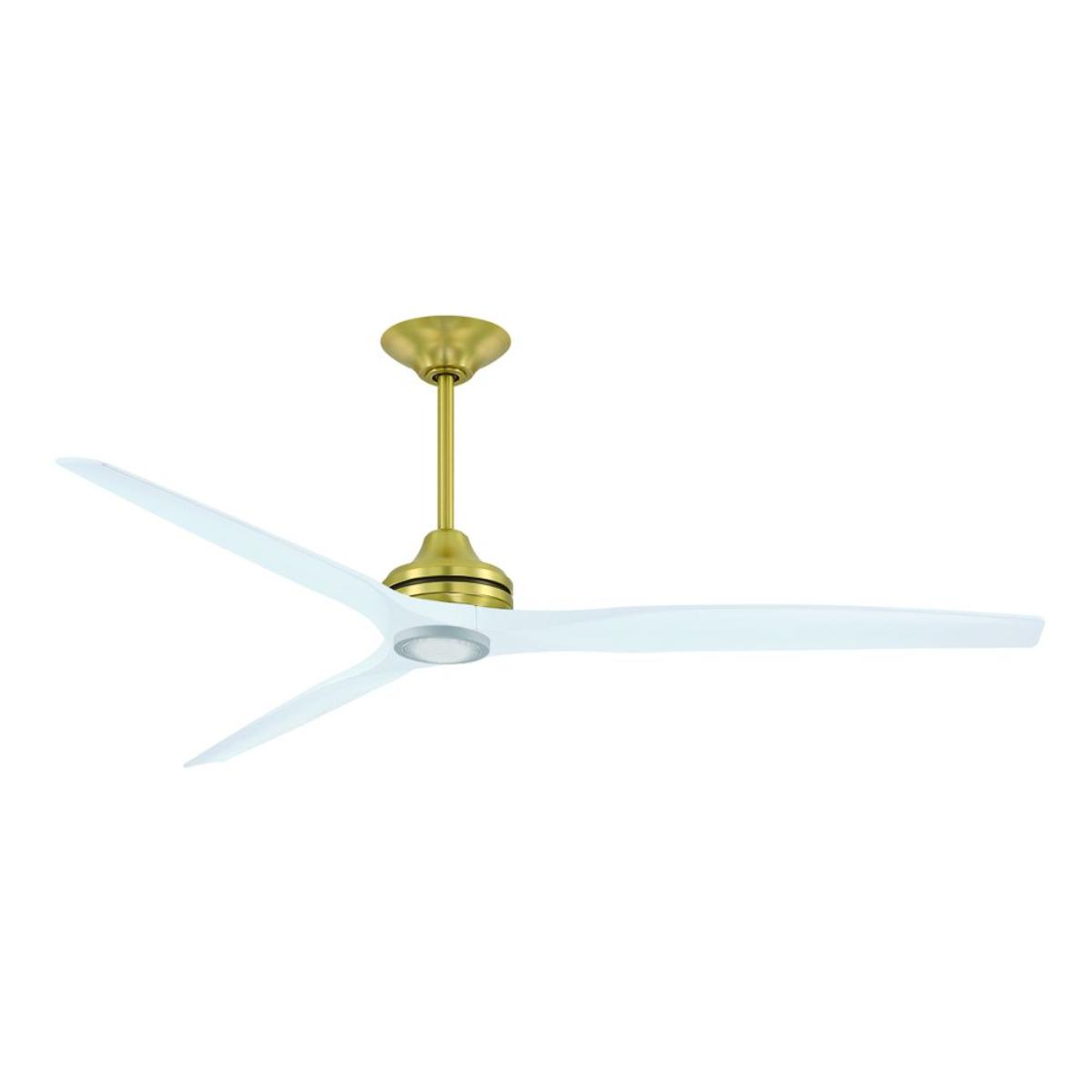

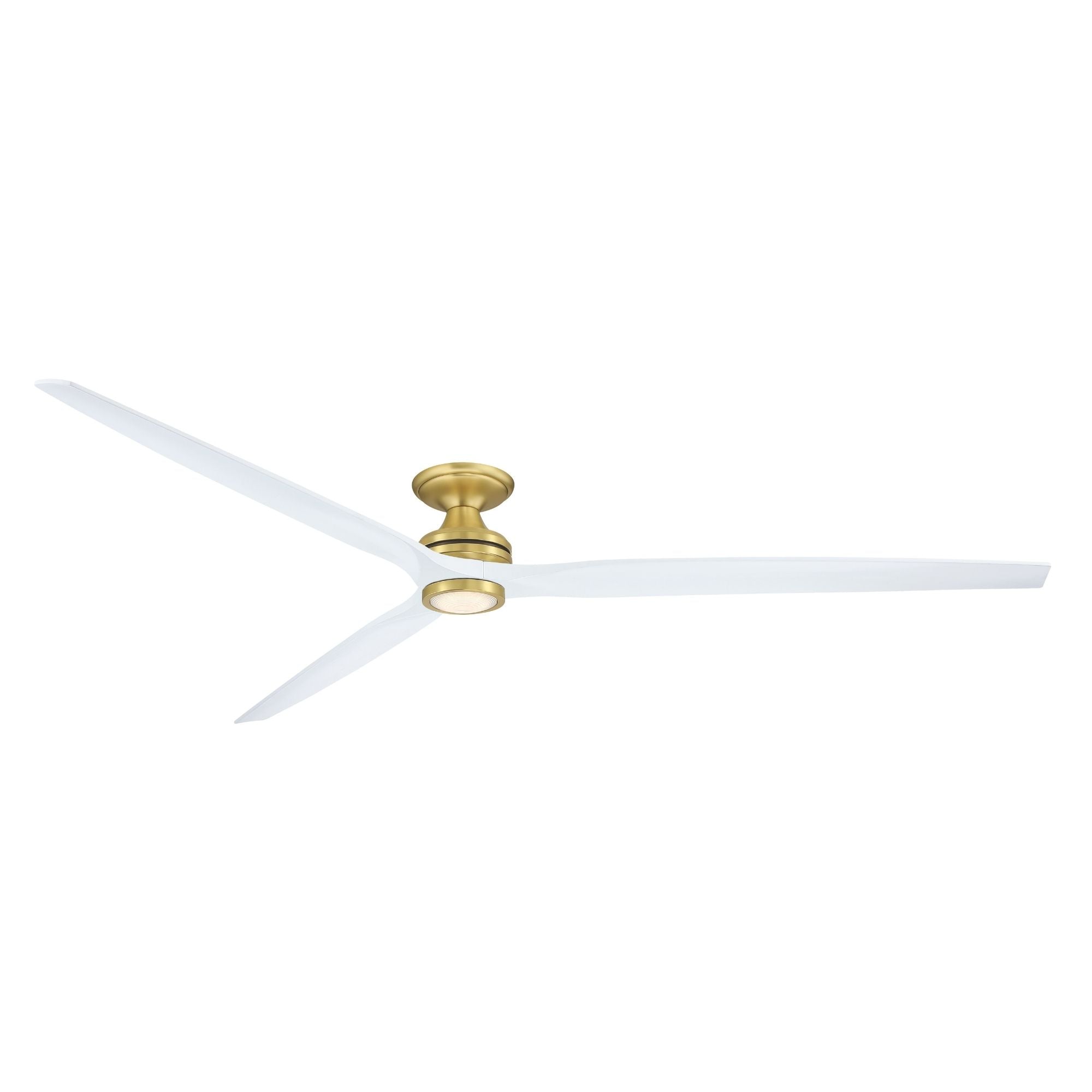

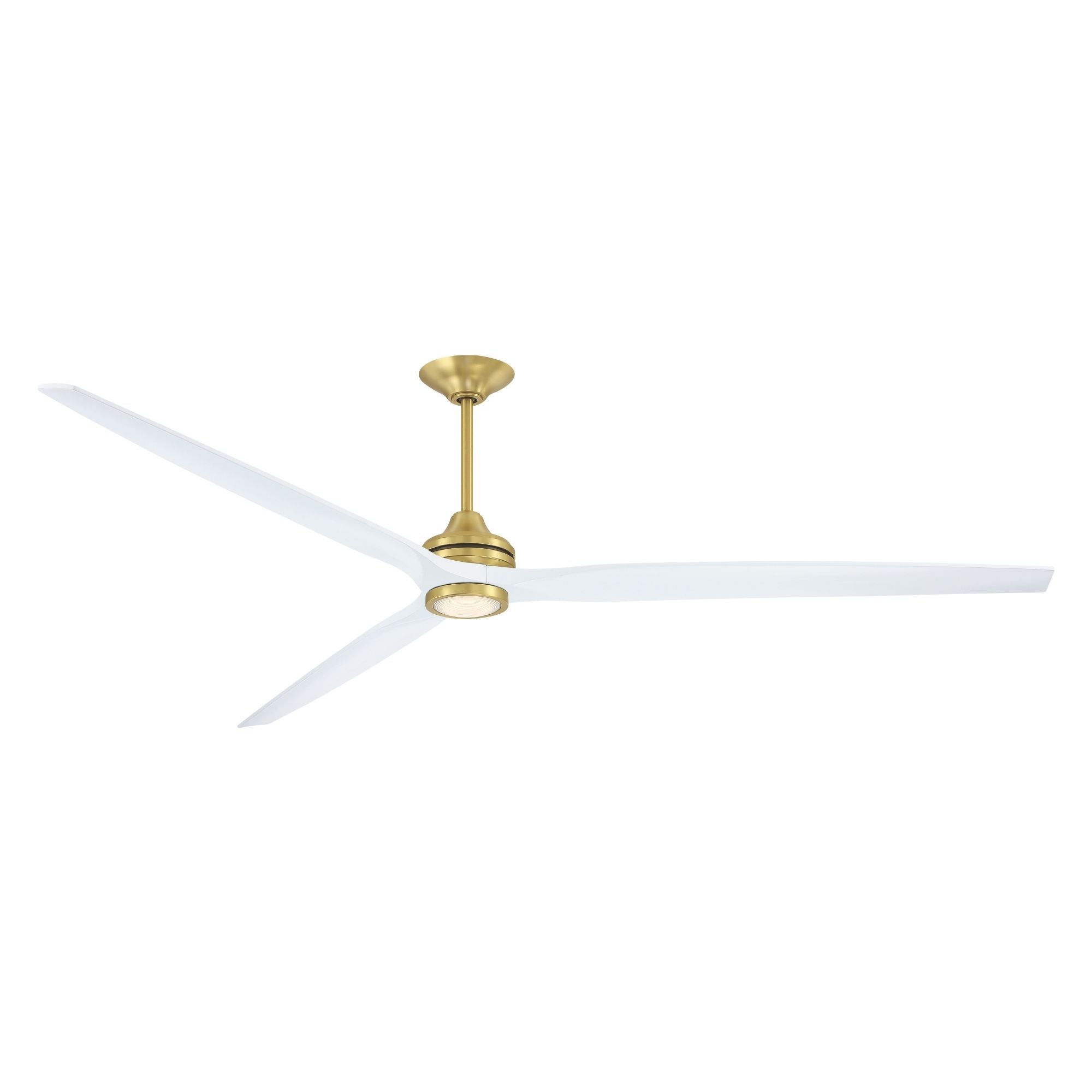

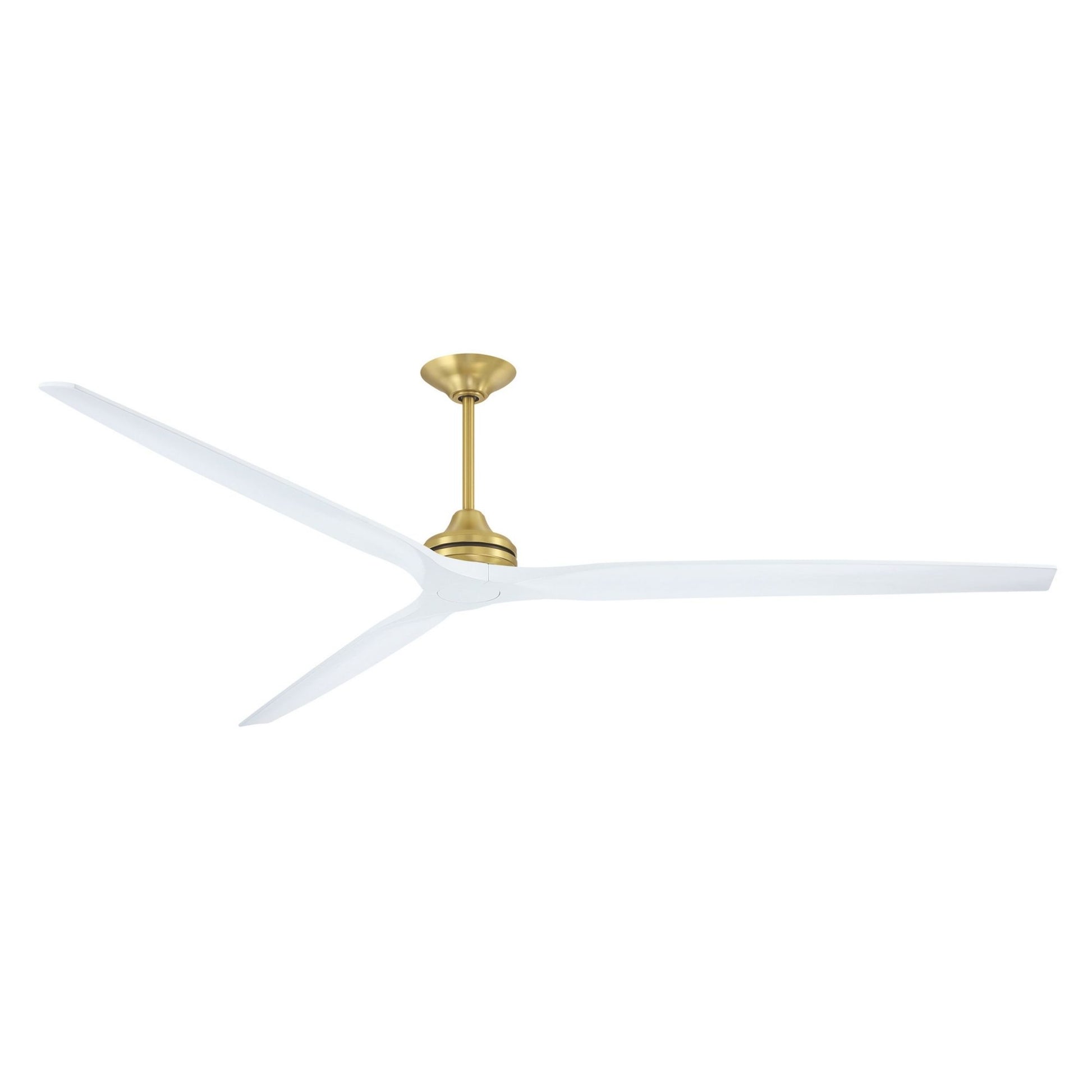

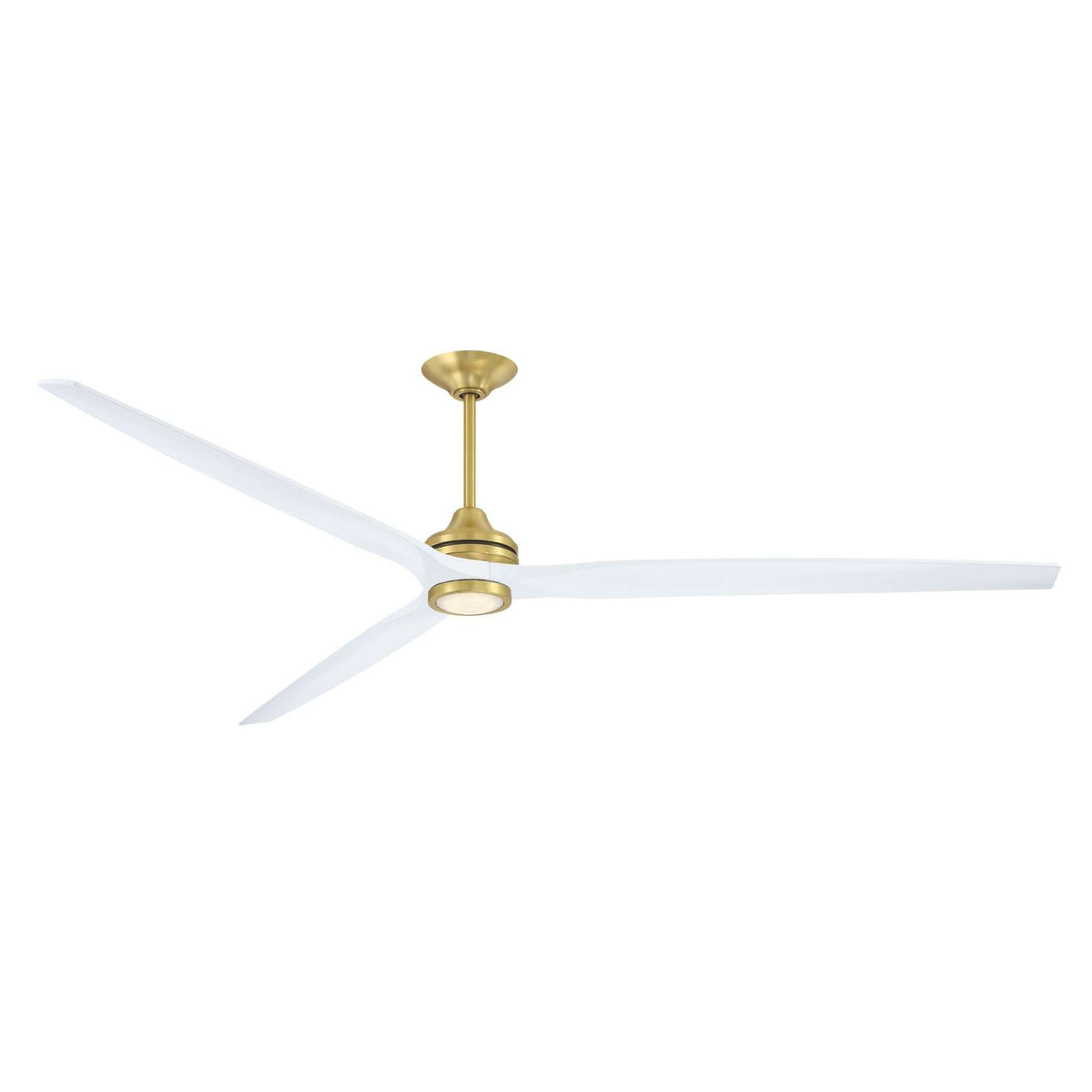

Fanimation Spitfire 96 in DC Ceiling Fan Motor — Brushed Satin Brass

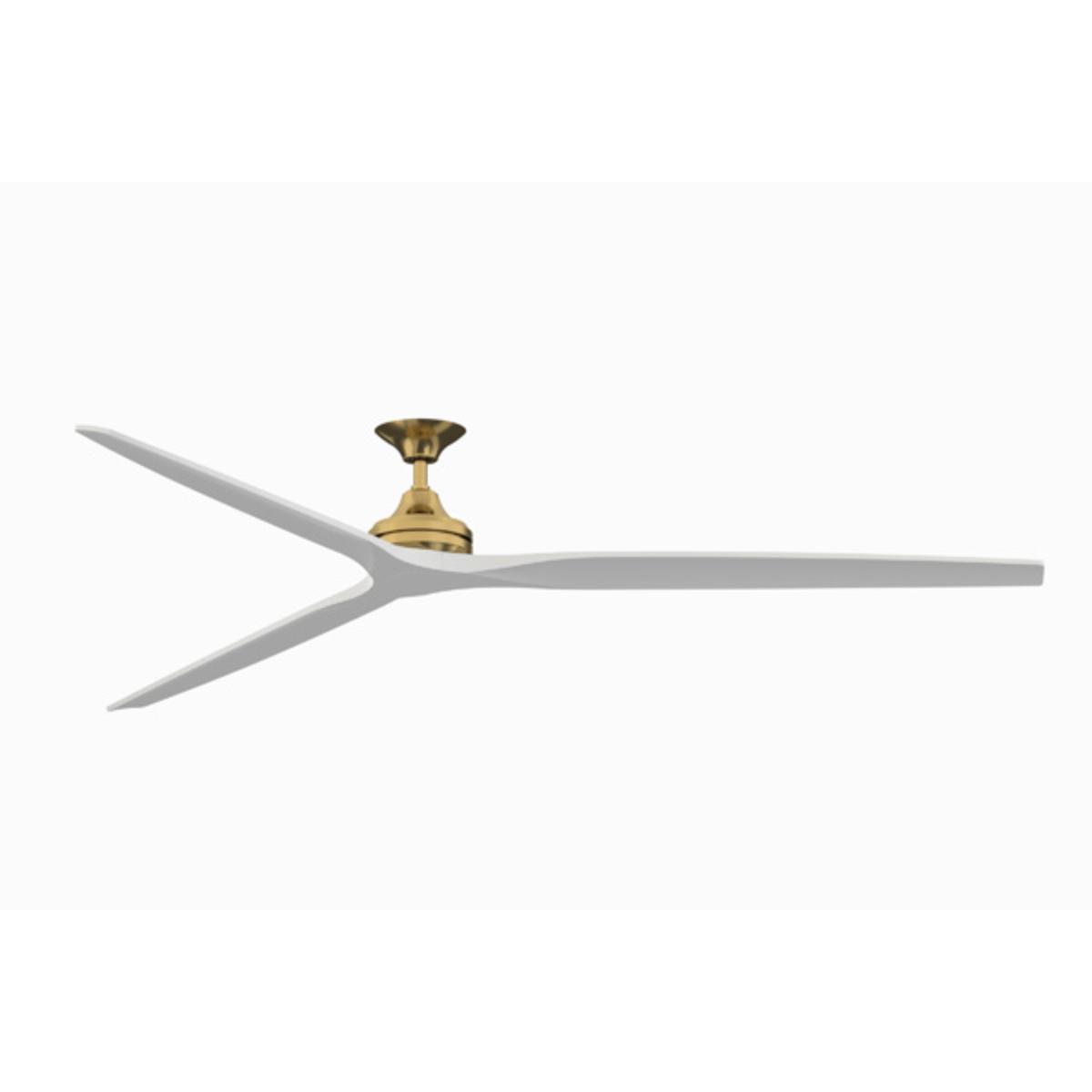

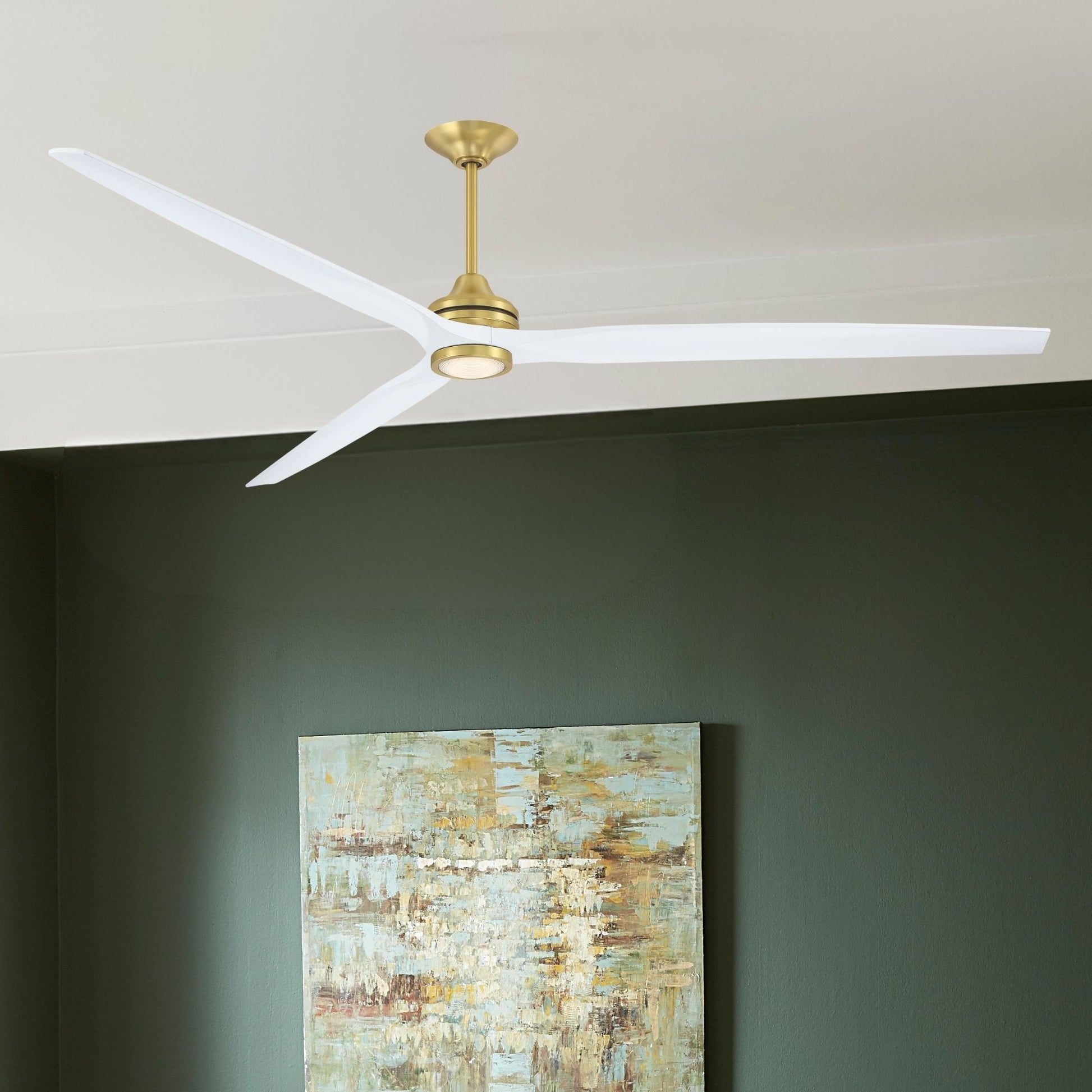

The Fanimation Spitfire (model MAD6721BS-96) is a 96 in damp-rated DC ceiling fan motor built on Fanimation’s customizable Spitfire platform. The DC153×22mm sensorless DC motor delivers 10,359 CFM at high speed at just 30W — an efficiency of 348 CFM/W — for rooms over 400 sq ft. At 96 in, this is the statement-scale Spitfire — purpose-built for grand residential great rooms, hotel lobbies, and commercial spaces where maximum blade coverage, visual presence, and whisper-quiet performance are all non-negotiable. The Brushed Satin Brass finish brings a warm, muted gold tone with a soft brushed texture — pairs beautifully with walnut, natural wood, or warm-toned blade sets for a modern glam or transitional luxe aesthetic at the grandest scale. A WiFi receiver and TR360 hand-held remote are included with access to the free fanSync WiFi app. Damp rated for covered outdoor spaces, bathrooms, and humid environments. Blades sold separately.

⚠️ Motor unit only. Compatible blade sets (B6720-96) and matching light kit (LK6721BDC-BS) sold separately at Bees Lighting.

Key Specifications

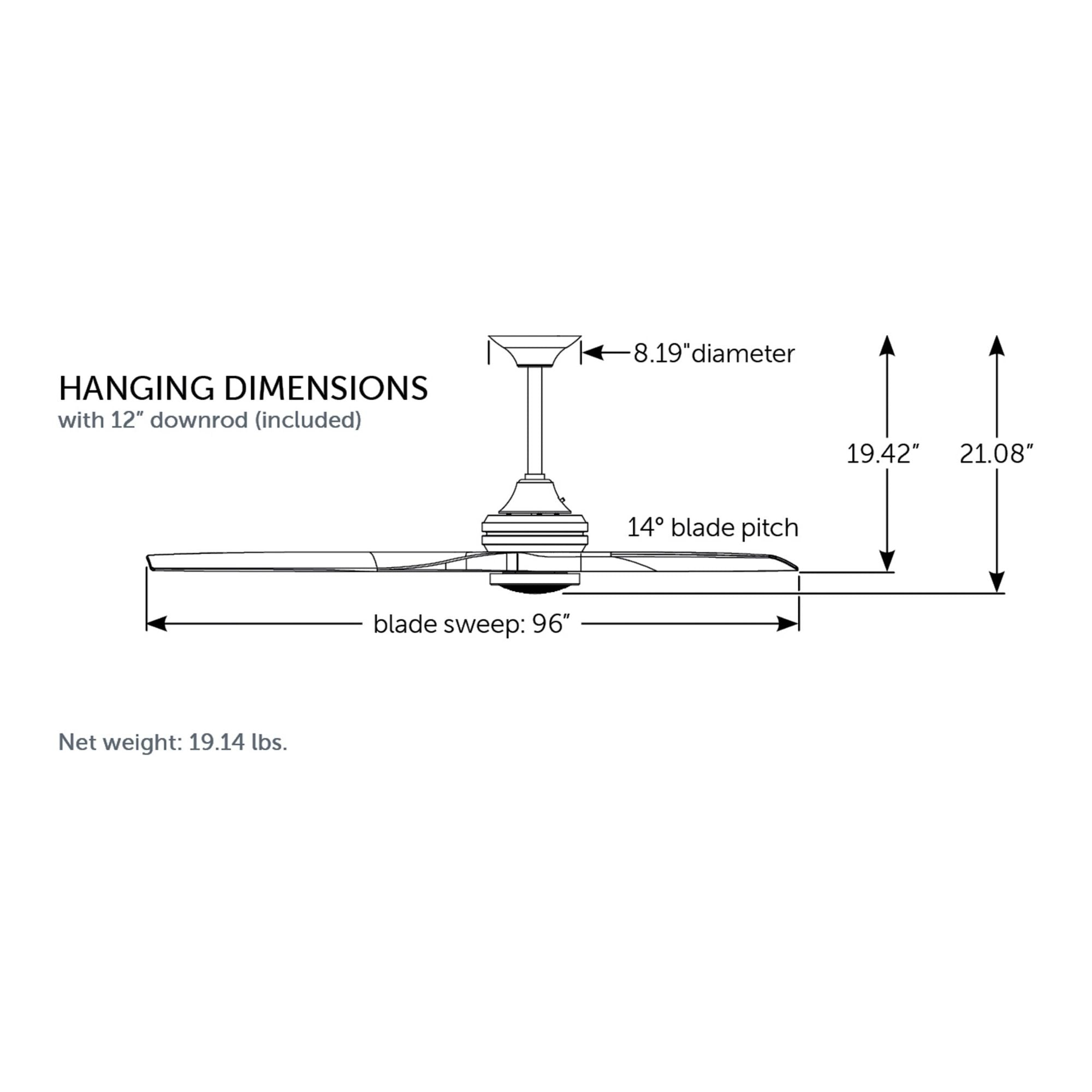

• Blade Span: 96 in | 14° pitch | Blades sold separately — B6720-96 compatible

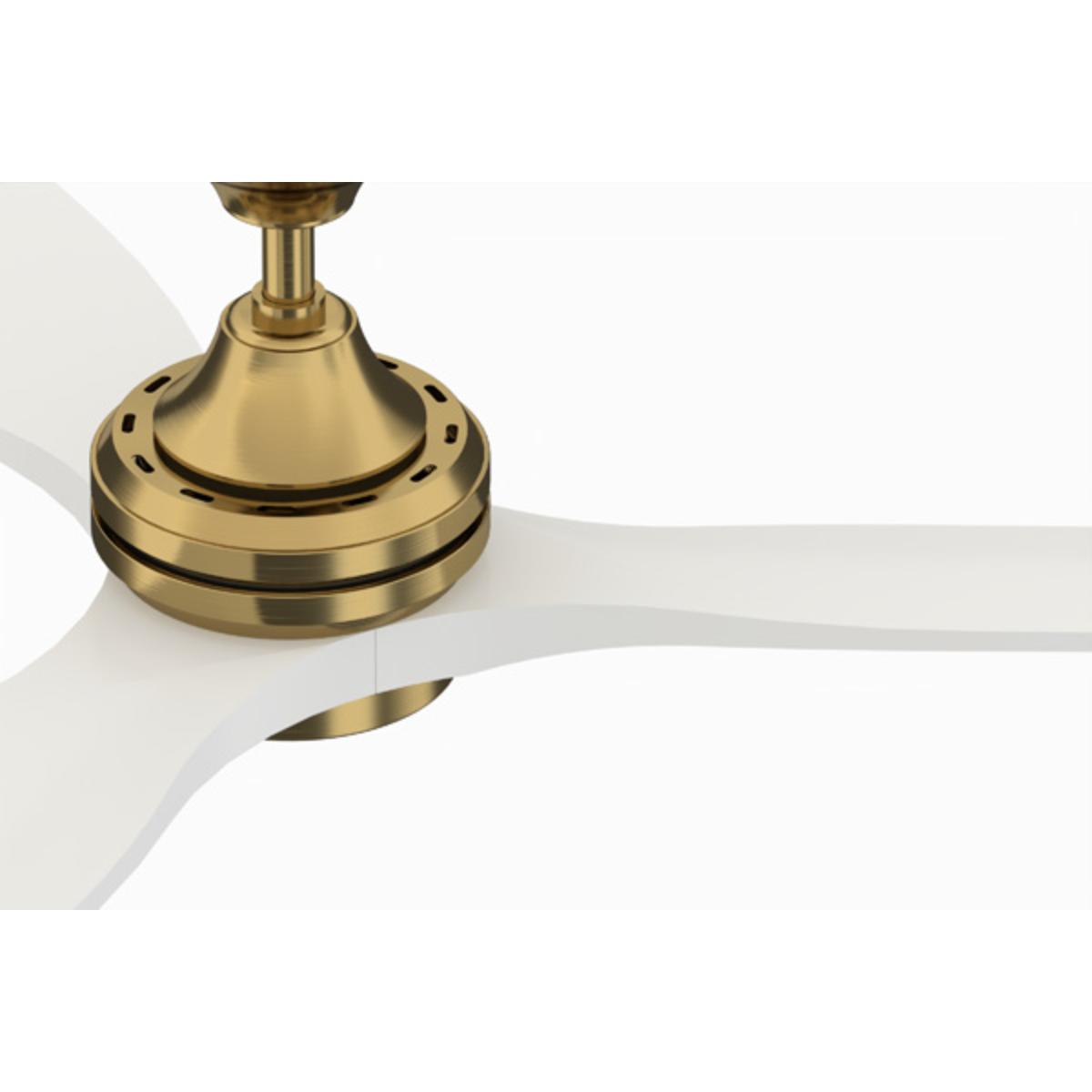

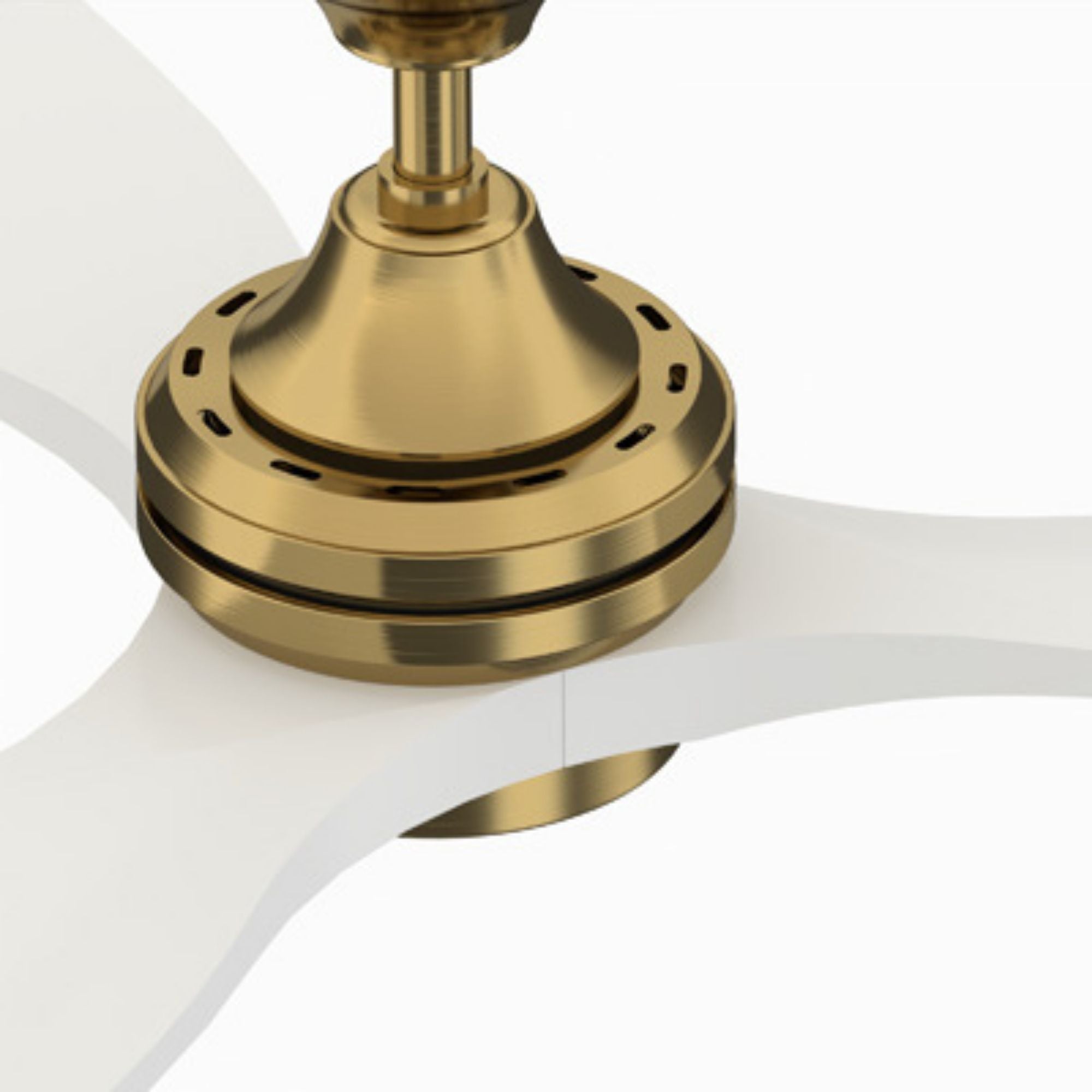

• Motor: DC — 153×22mm sensorless | 6 speeds | Reversible
• Airflow: 6,140 CFM (low) / 9,239 CFM (med) / 10,359 CFM (high)
• Efficiency: 916 CFM/W (low) | 505 CFM/W (med) | 348 CFM/W (high)
• Watts: 7W (low) / 18W (med) / 30W (high)
• RPM: 51 (low) / 74 (med) / 88 (high)
• Room Size: Over 400 sq ft
• Location Rating: Dry & Damp | Sloped ceiling compatible (up to 27° standard | SCB1-52 for 27°–42°)
• Downrod: 1 in dia. × 6 in + 1 in dia. × 12 in both included | Optional: 18, 24, 36, 48, 60, 72 in

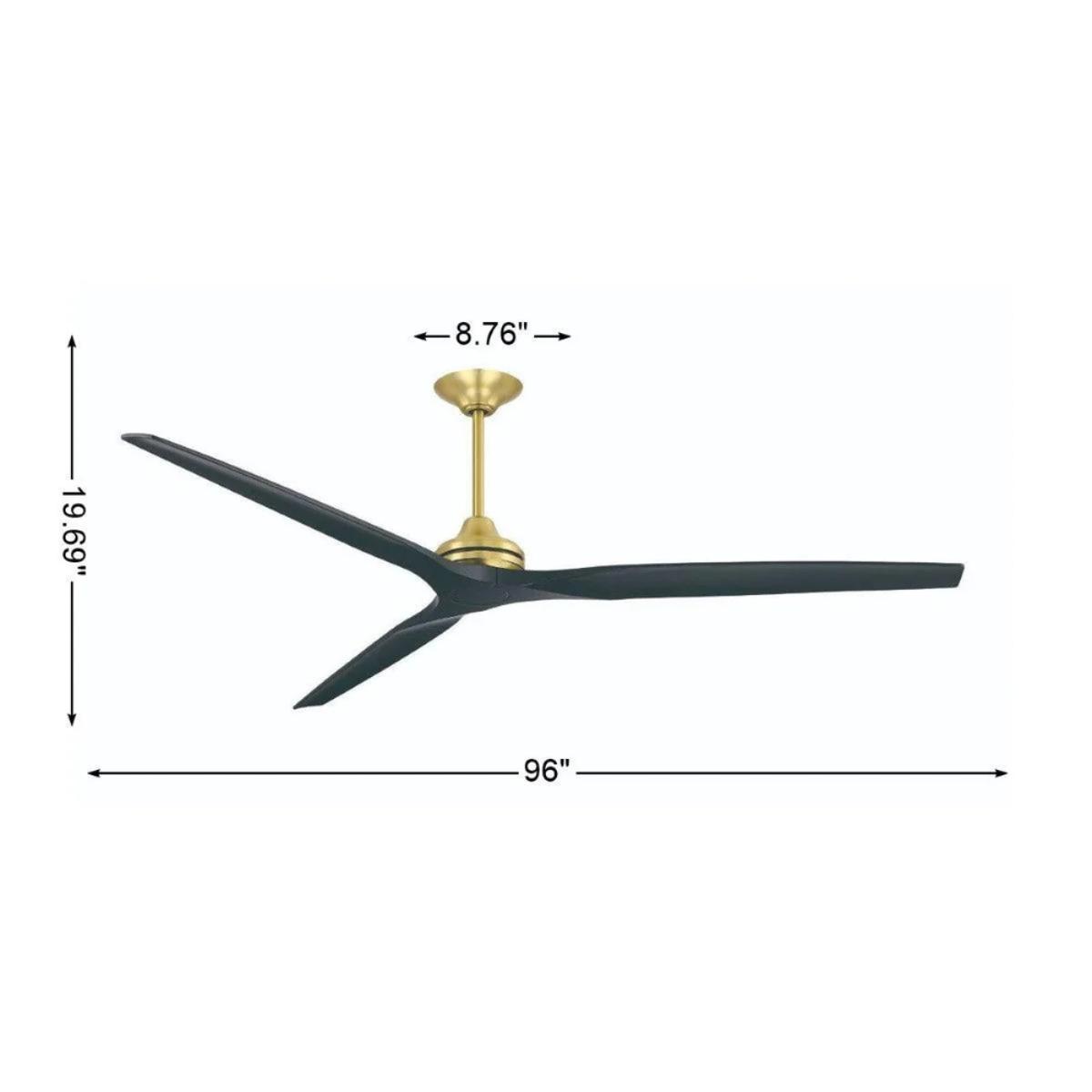

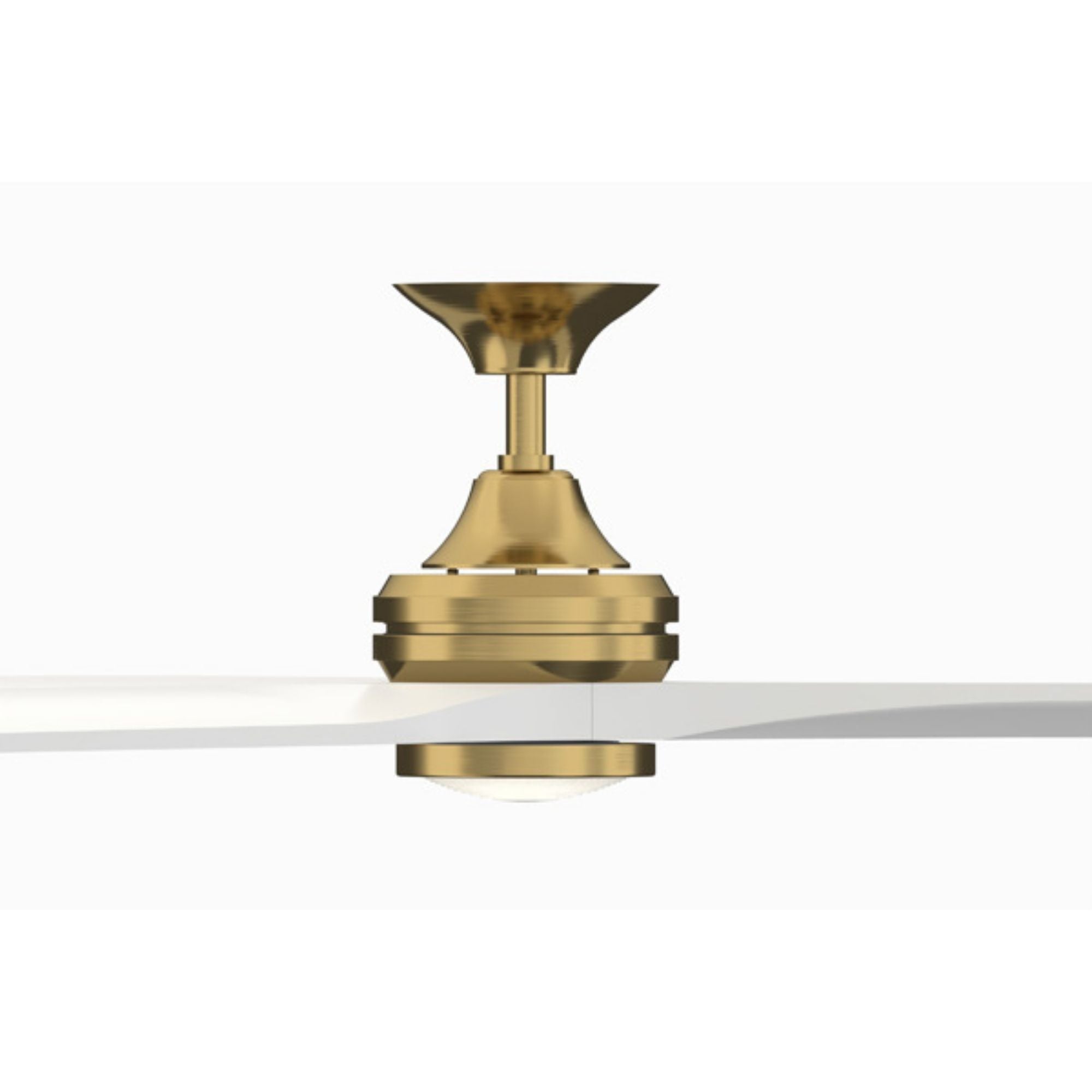

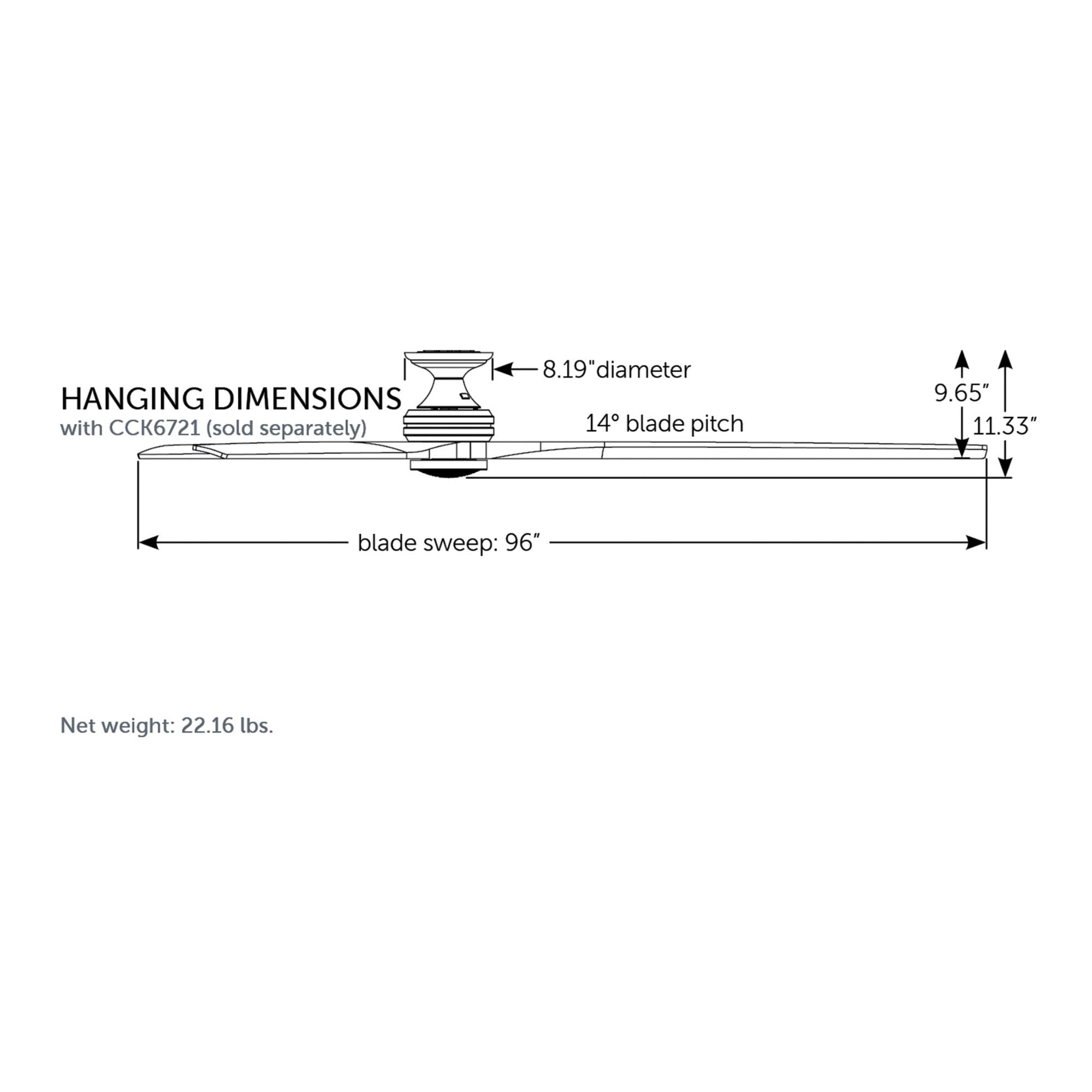

• Canopy: 8.76 in dia. (motor only) | 7.85 in dia. (with CCK6721)
• Min. Ceiling Height: 7 ft | Weight: 19.77 lbs

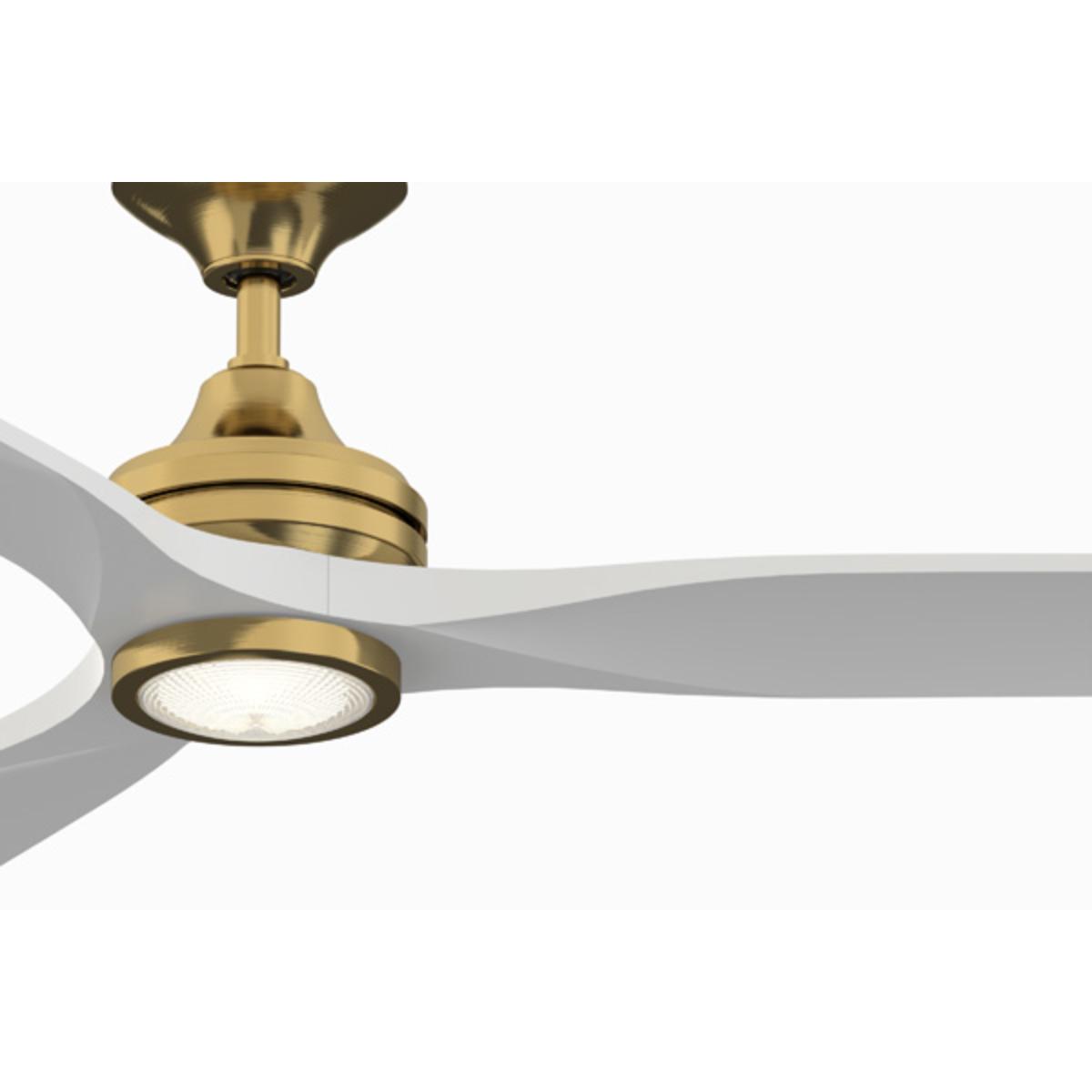

• Light Kit: LK6721BDC-BS — 18W | 5CCT | 545–579 lumens | CRI 90 | sold separately at Bees Lighting
• Controls: WiFi receiver + TR360 remote included | fanSync WiFi app (free) | Optional TW406 wall control

Compatible Accessories (sold separately at Bees Lighting)

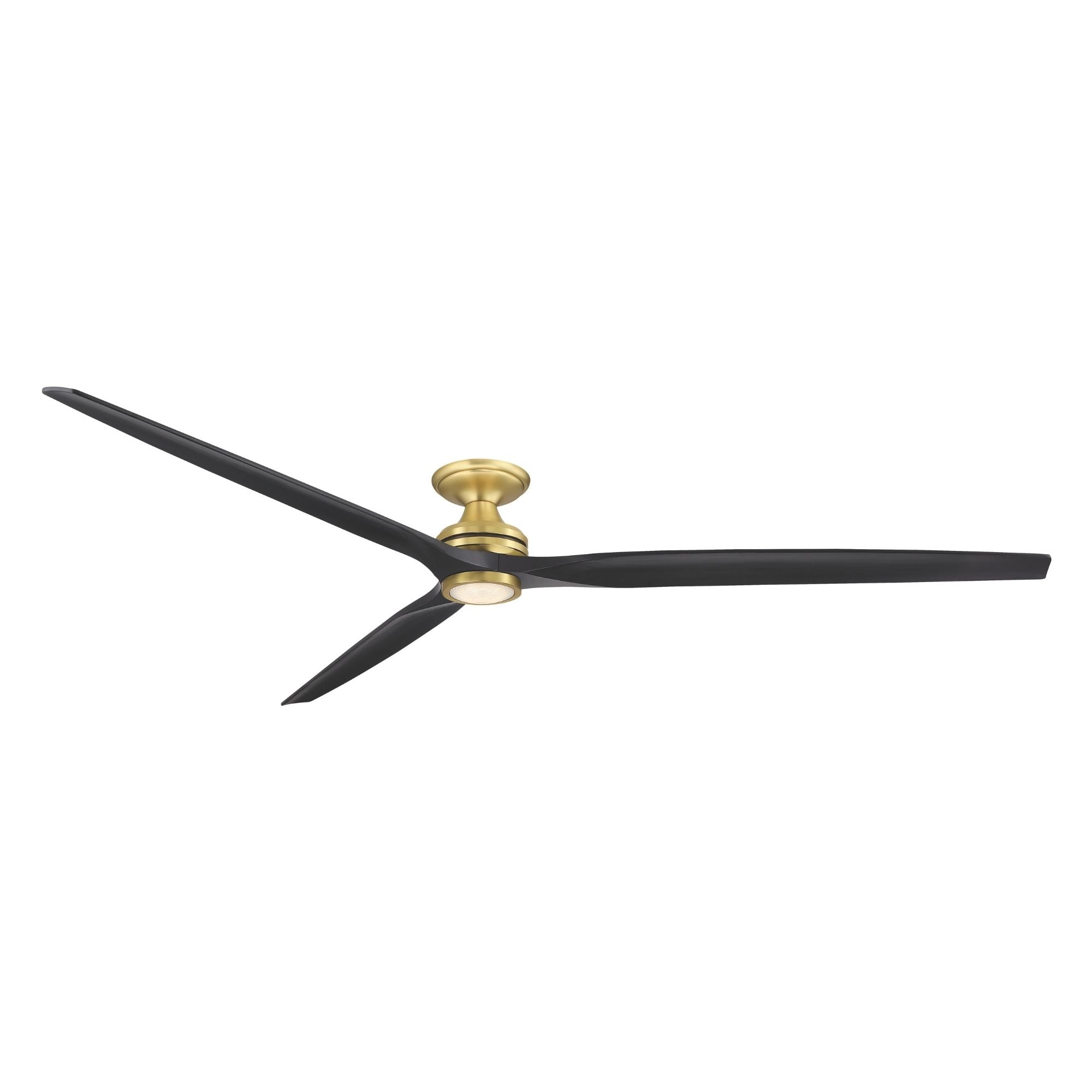

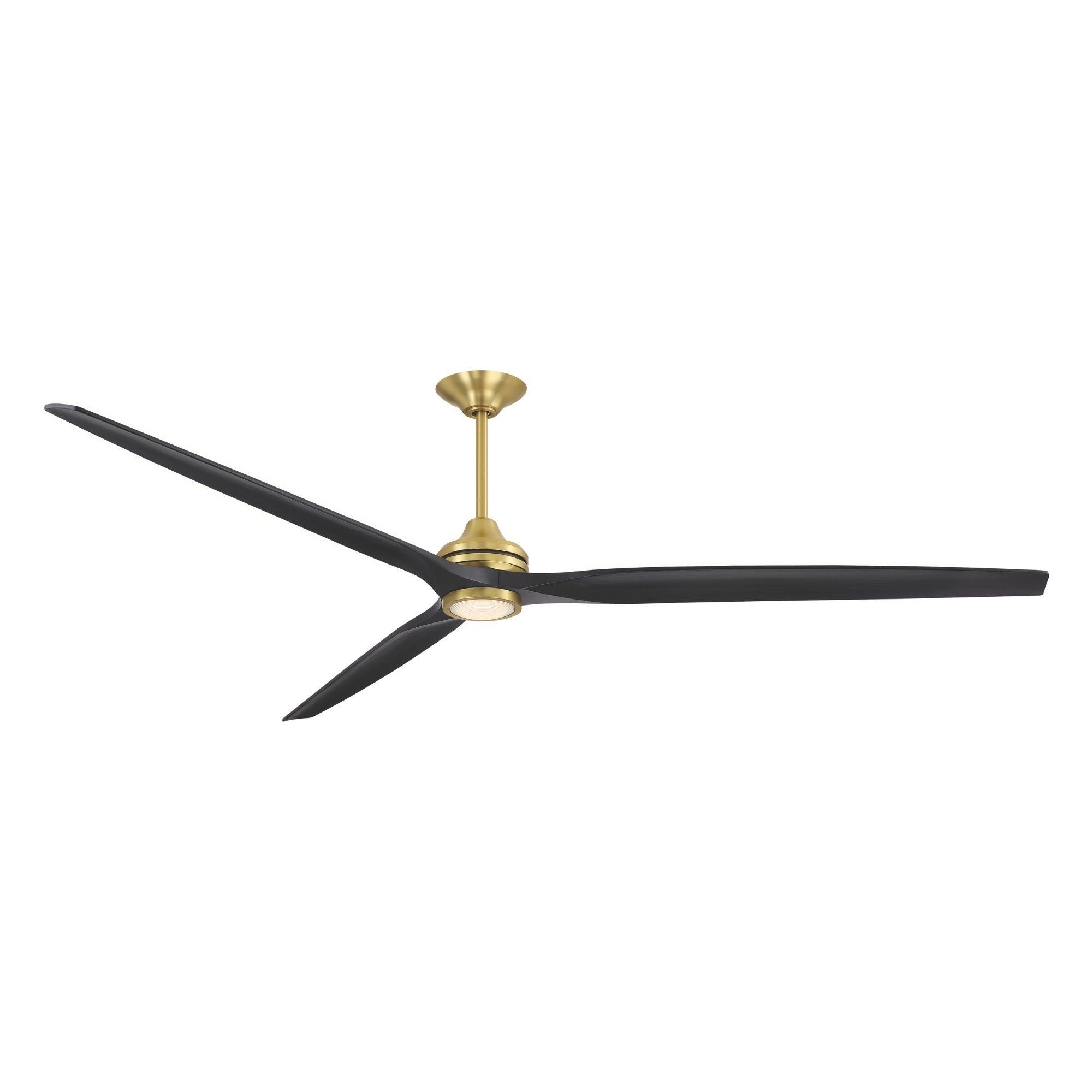

• Blade Set: B6720-96 — 3-blade paulownia sets in multiple finishes

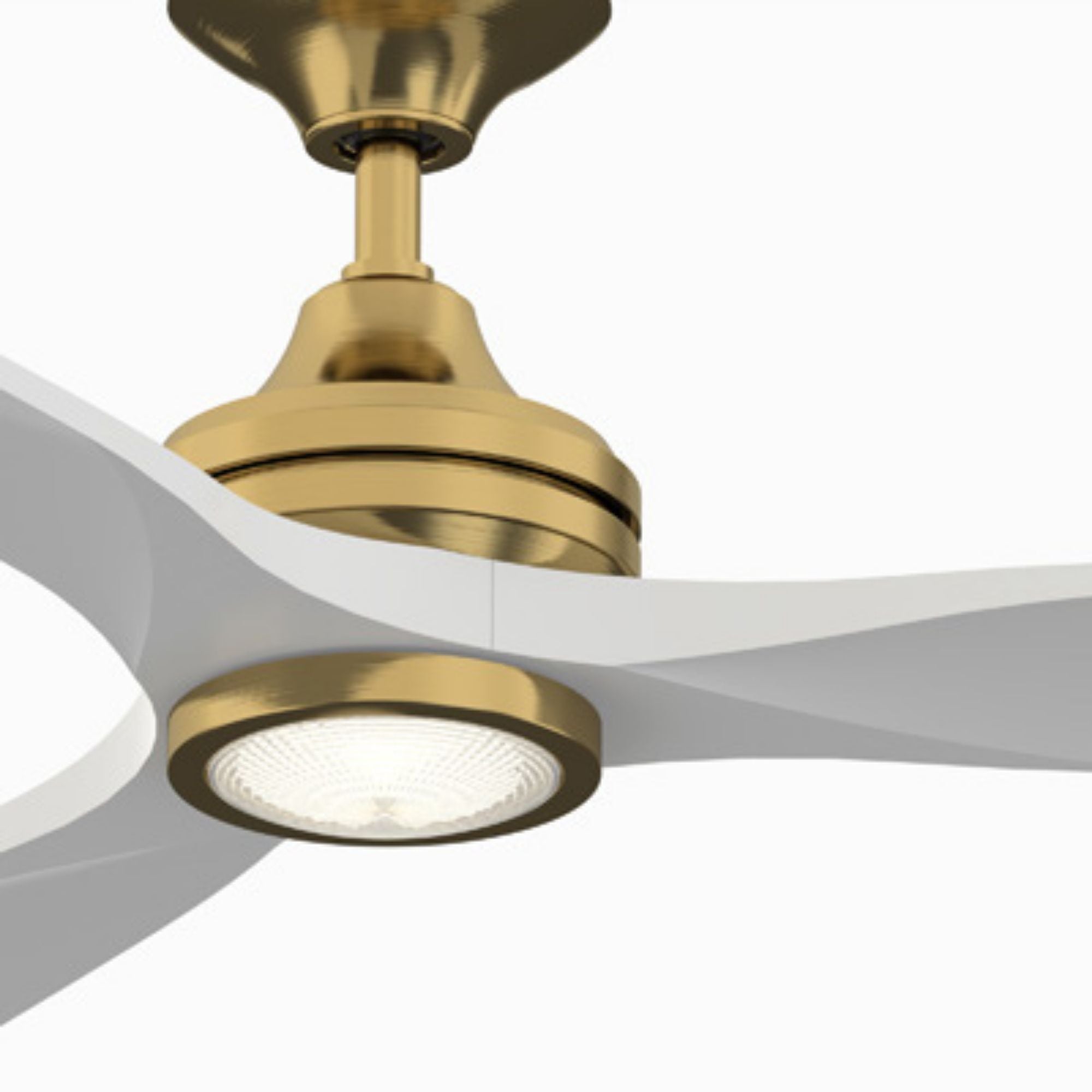

• Light Kit: LK6721BDC-BS — Brushed Satin Brass | 18W 5CCT dimmable LED | 545–579 lumens | 3,000/4,000/5,000K | CRI 90 | includes Fresnel & frosted shades | Damp rated

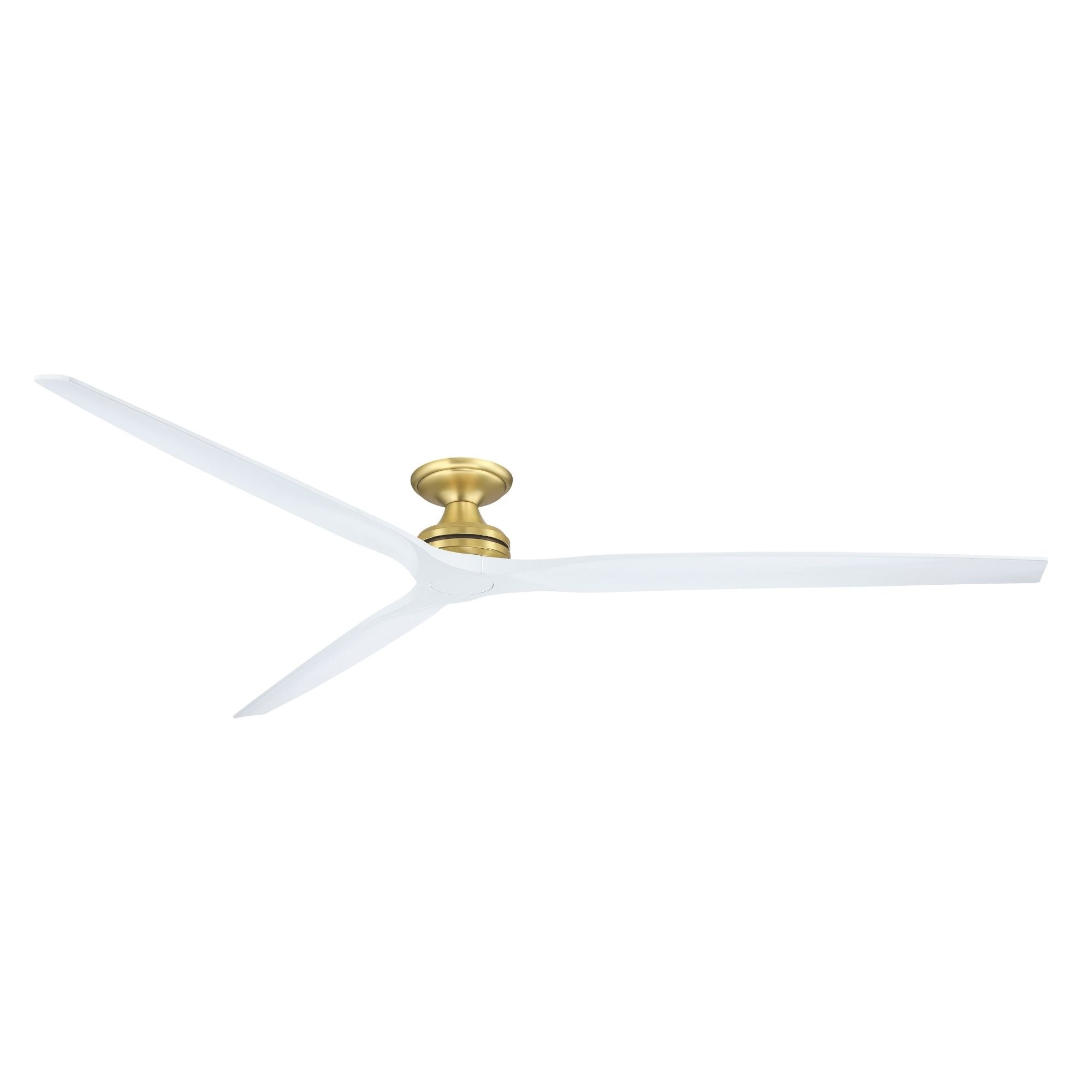

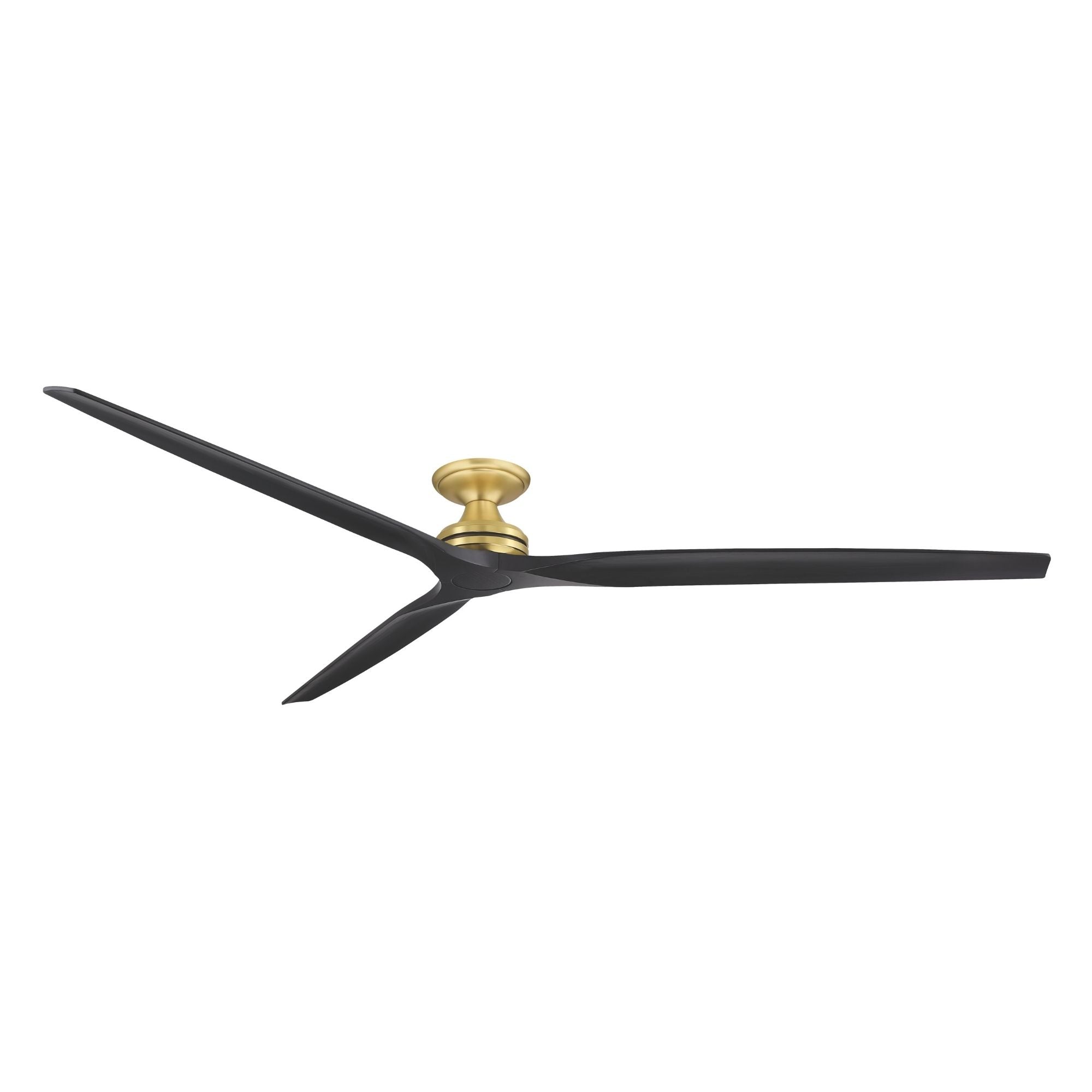

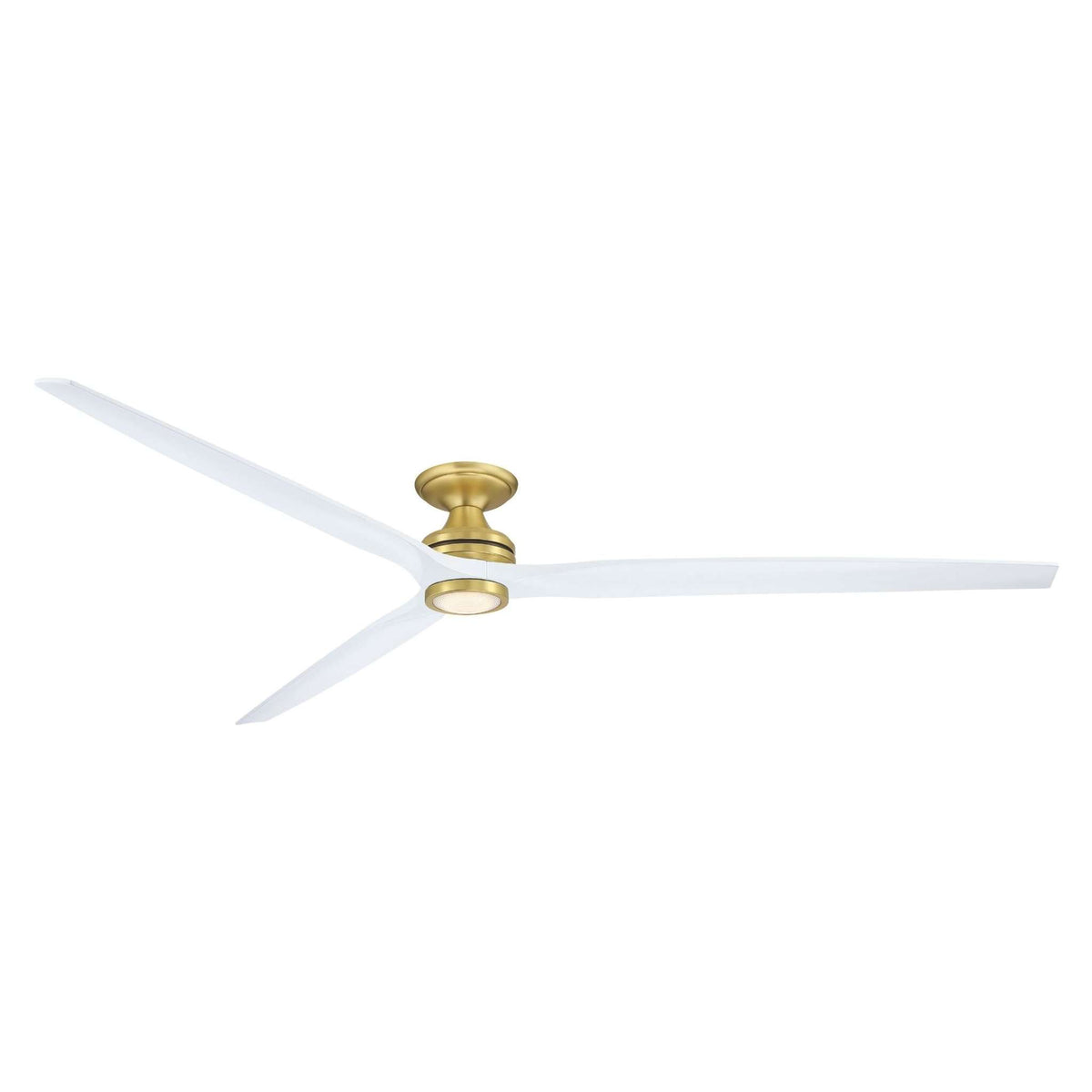

• Flush Mount Kit: CCK6721 — for low-ceiling installations
• Decorative Cap: CAP6721
• Sloped Ceiling Kit: SCB1-52 — for slopes 27°–42°
• Wall Control: TW406 (sold separately)

Control Features

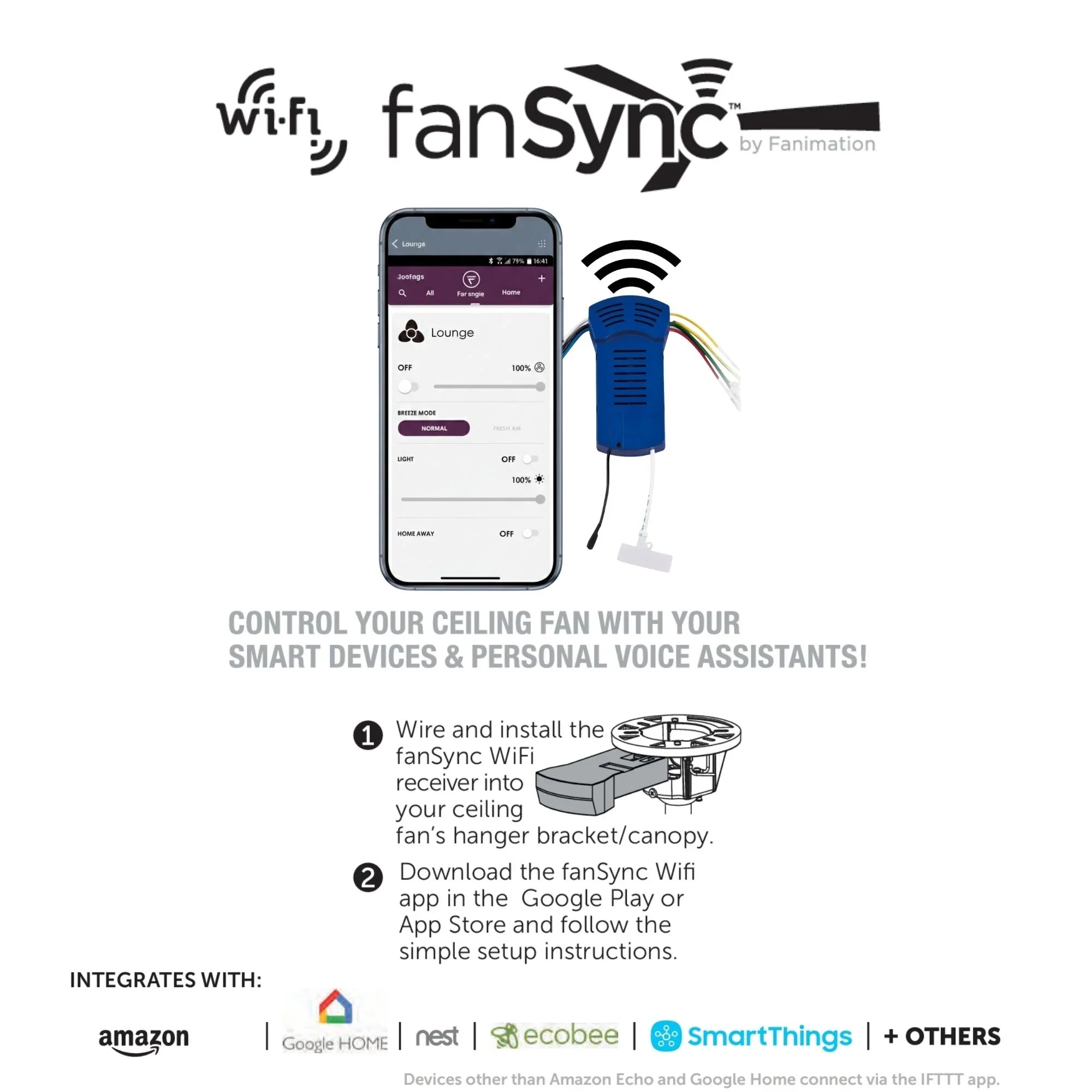

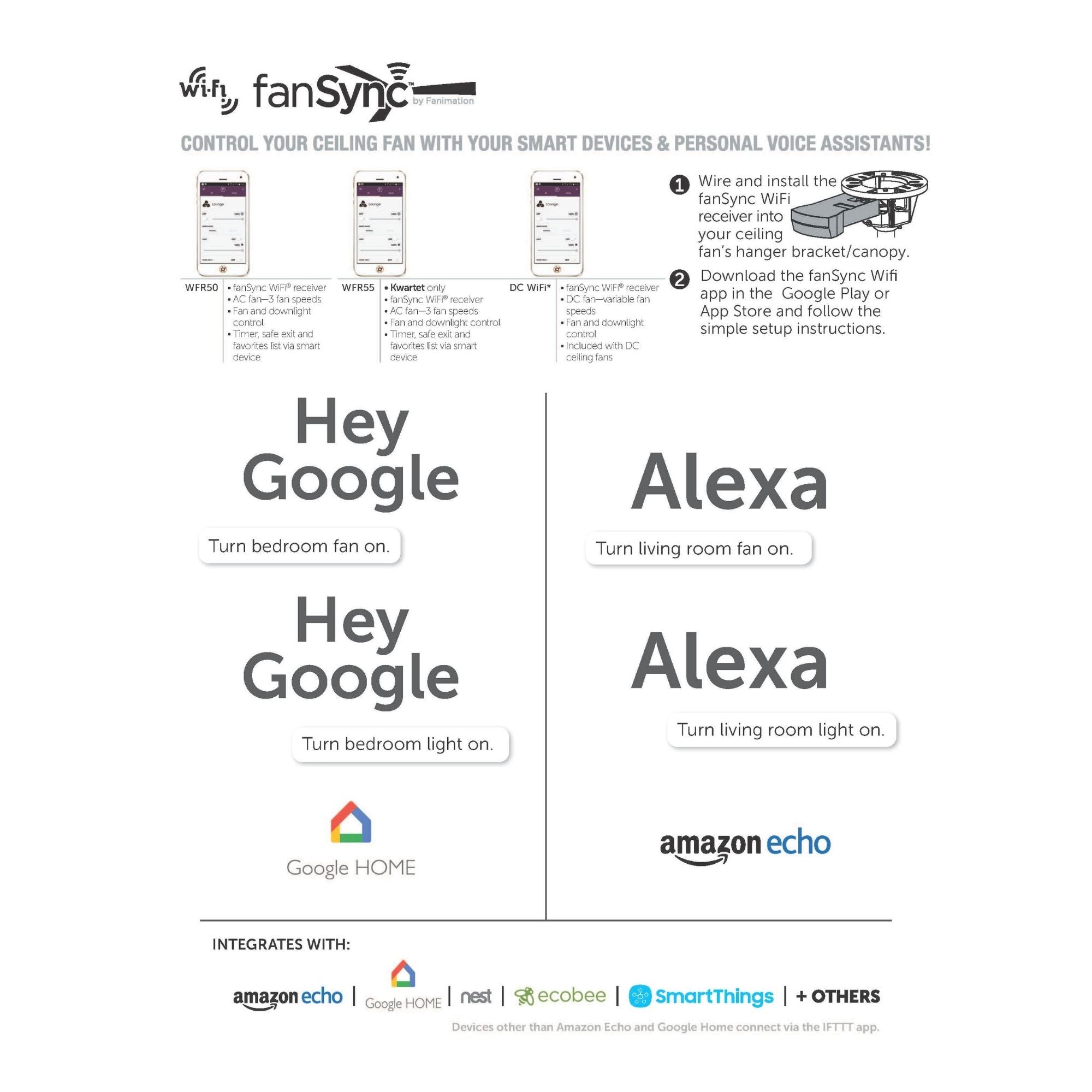

Includes a WiFi receiver and TR360 hand-held remote with 6-speed fan control, fresh air mode, reverse, ON/OFF, and dimmer with 5CCT select. Download the free fanSync WiFi app (Apple App Store or Google Play) for smart home integration. Optional TW406 wall control available separately at Bees Lighting.

Suggested Downrod by Ceiling Height

• Below 9 ft → Flush mount kit CCK6721
• 9 ft → 6 in downrod (included) | 10 ft → 12 in downrod (included)
• 11 ft → 18 in | 12 ft → 24 in | 13 ft → 36 in
• 14 ft → 48 in | 15 ft → 60 in | 16 ft → 72 in

What’s Included

• Fanimation Spitfire MAD6721BS-96 96 in DC ceiling fan motor unit
• WiFi receiver + TR360 hand-held remote
• 1 in × 6 in downrod + 1 in × 12 in downrod | Mounting hardware
• Blades and light kit not included — sold separately at Bees Lighting
